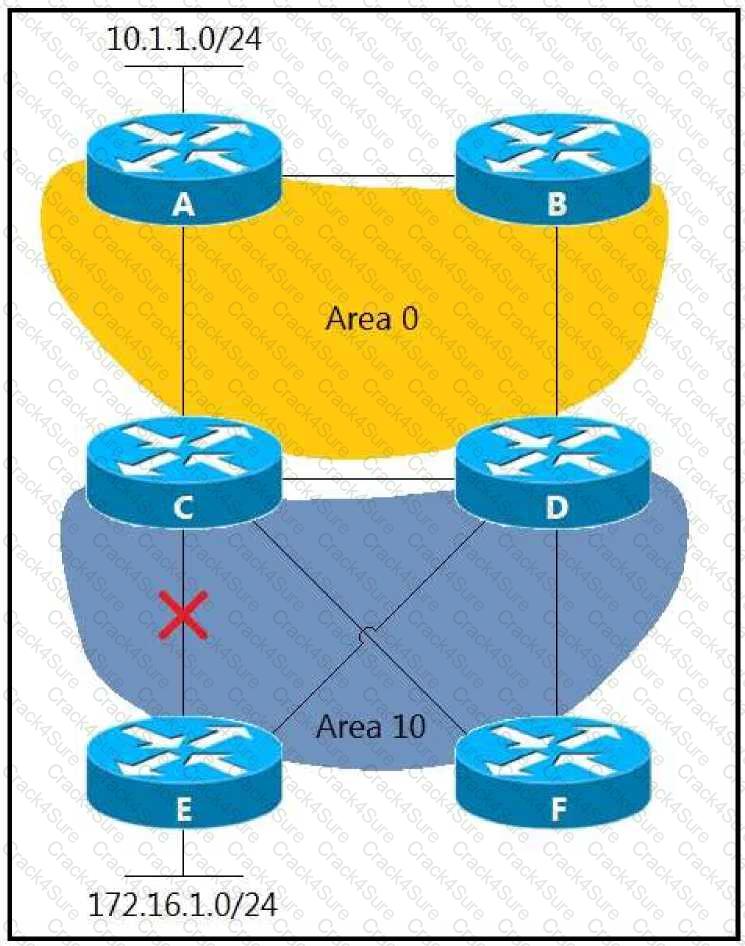

Moving the link between routers C and D into area 10 provides the most direct OSPF design correction for optimal routing between the internal networks after the C-E link fails. OSPF requires careful area design because intra-area routes are preferred over interarea routes, and traffic between two routers in the same regular area should not be forced through a less optimal backbone or interarea path when a better local path exists. If the C-D link remains outside area 10, the failure of C-E can cause traffic between 10.1.1.0/24 and 172.16.1.0/24 to take a suboptimal interarea route. Placing the C-D link in area 10 keeps the alternate path within the same area and allows OSPF to calculate the best intra-area route when the primary link fails. A virtual link is used to connect a disconnected area to area 0, not to optimize this intra-area failure case. A tunnel adds unnecessary overlay complexity, and making area 10 NSSA changes external LSA behavior, not internal path optimization. Reference topics: OSPF area design, intra-area preference, failure-path optimization, link placement.

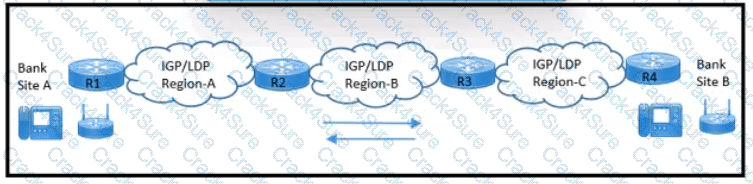

The scalable BGP design should use VPNv4 on the PE routers for L3VPN site routes and BGP IPv4 unicast on ABRs to connect multiple IGP/LDP domains. VPNv4 is the correct MP-BGP address family for carrying customer VPN routes across a provider MPLS Layer 3 VPN core because it combines route distinguishers and VPN labels with customer prefixes. This lets the provider scale many customer routes while maintaining separation between VPNs. When the provider network spans multiple IGP or LDP domains, BGP IPv4 unicast can be used at ABRs to carry infrastructure reachability and avoid trying to flood a single IGP domain across the entire provider backbone. Full-mesh iBGP among all routers in different IGP domains is not scalable and conflicts with the requirement that thousands of routes will be added. Redistributing all IGP routes into a single BGP IPv4 instance without VPNv4 does not preserve customer VPN separation. Filtering loopbacks everywhere is not the core scaling solution. Reference topics: MP-BGP VPNv4, MPLS L3VPN, ABR design, interdomain provider routing, route scale.

OpenConfig separates intended configuration from operational state by using separate config and state containers, while many IETF and Cisco native models use a single hierarchy for configuration and operational data or expose operational data differently. This distinction is important in automation because the client must know whether it is writing desired configuration or reading actual device state. OpenConfig’s structure was designed to provide consistent multivendor modeling, with configuration data placed under config containers and observed state under state containers. Cisco native models tend to mirror the Cisco device CLI and feature hierarchy more closely, while IETF models focus on standards-based interoperability. Option B correctly states the contrast presented in the question. Option A reverses the relationship. Option C incorrectly assigns split containers to IETF and native models. Option D incorrectly isolates Cisco native models as the only split-container style. Reference topics: YANG model structure, OpenConfig config and state containers, IETF YANG, Cisco native models, network automation data modeling.
