Practice Free SPI Sonography Principles and Instrumentation Exam Questions Answers With Explanation

Comprehensive and Detailed Explanation From Exact Extract:

When sound passes through a structure that attenuates less than surrounding tissue (e.g., fluid-filled cyst), more sound reaches the tissues behind it, causing them to appear brighter. This artifact is called enhancement (or posterior acoustic enhancement).

According to sonography instrumentation reference:

“Posterior enhancement appears as increased echogenicity distal to a weakly attenuating structure due to greater beam intensity reaching deeper tissues.”

Therefore, the correct answer is A: Enhancement.

—

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing happens in Doppler ultrasound when the Doppler shift frequency exceeds half of the pulse repetition frequency (the Nyquist limit). When PRF is too low for the measured Doppler shift, the signal wraps around, producing aliasing.

According to sonography instrumentation reference:

“Aliasing occurs when the Doppler shift frequency exceeds one-half the pulse repetition frequency (Nyquist limit). This results in incorrect display of flow direction and velocity.”

Therefore, the correct answer is C: Aliasing.

—

Comprehensive and Detailed Explanation From Exact Extract:

Write magnification acquires new data over the smaller field of view with a higher number of scan lines, improving spatial resolution.

Principles and Instrumentation state:

"Write magnification rescans the selected region with new data acquisition, increasing the number of pixels and improving resolution."

Post-processing (A) applies to read magnification.

Larger pixel size (C) would decrease resolution.

Write magnification improves, not decreases (D), spatial resolution.

Therefore, the correct answer is B: New data acquisition.

—

Power Doppler, unlike color Doppler, is less angle dependent because it detects the strength of the Doppler signal rather than the velocity of the blood flow. This means it is more sensitive to detecting low-velocity flow and flow in smaller vessels, regardless of the angle between the ultrasound beam and the flow direction. Color Doppler provides information on flow direction and velocity but is highly dependent on the angle of insonation, making it less reliable when the angle is suboptimal.

ARDMS Sonography Principles and Instrumentation guidelines

Zwiebel, W. J., & Pellerito, J. S. (2017).Introduction to Vascular Ultrasonography. Elsevier.

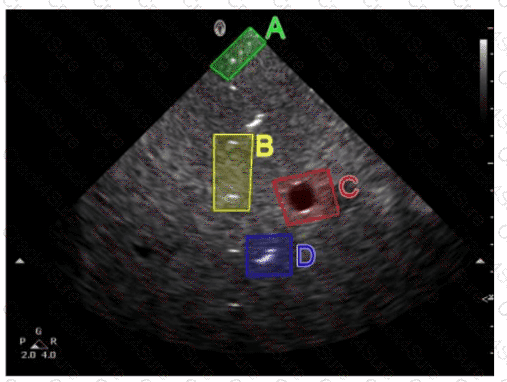

In the given image of a tissue-mimicking phantom, Option B (yellow box) is used to evaluate axial resolution. Axial resolution refers to the ability of the ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam (i.e., parallel to the beam). The targets in Option B are typically aligned in such a way to test the system's capacity to differentiate between structures that are situated closely together along the beam’s axis.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

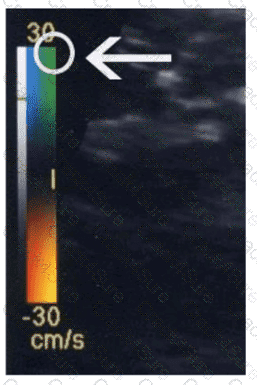

In a variance mode color map, the upper right side typically indicates higher velocity and turbulent flow with a positive Doppler shift. Variance mode maps are designed to display not only the mean velocity and direction of blood flow but also the presence of turbulence. The color green is often used in the upper right quadrant to represent areas of turbulence with positive Doppler shifts, which occur when the blood flow is moving towards the transducer at higher velocities and with increased chaotic motion.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Physics and Equipment" by Peter Hoskins, Kevin Martin, Abigail Thrush

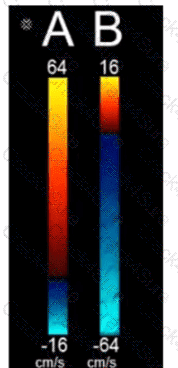

The color bar on a Doppler ultrasound display indicates the range of velocities that the system can detect and display. In color bar A, the scale is set to a higher maximum velocity (64 cm/s), while in color bar B, the scale is set to a lower maximum velocity (16 cm/s). Adjusting the scale (or velocity range) changes the upper and lower limits of the velocities displayed, which affects the sensitivity of the Doppler system to detect flow velocities. Lowering the scale allows for better visualization of lower velocities, but it may also increase the likelihood of aliasing for higher velocities.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Ensemble length, also known as packet size or Doppler packet, refers to the number of pulses used to calculate each Doppler measurement. Increasing the number of pulses in an ensemble length improves the accuracy of velocity measurements by providing more data points for the Doppler shift analysis. This leads to better estimation of mean velocities and reduces the variability of the measurements, although it may slightly decrease temporal resolution due to the longer time required to acquire the data.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution reflects how quickly frames are updated (frame rate). Reducing the number of scan lines per frame (low line density) decreases acquisition time, thus increasing frame rate and improving temporal resolution.

According to sonography instrumentation reference:

“Lower line density allows for faster frame rates, improving temporal resolution at the expense of spatial resolution.”

Therefore, the correct answer is D: Low line density.

Comprehensive and Detailed Explanation From Exact Extract:

The imaging depth is limited by the frequency of the transducer because higher frequency sound waves attenuate more rapidly as they penetrate tissue, reducing maximum depth capability.

According to Principles and Instrumentation:

"Higher frequencies provide better resolution but have increased attenuation, limiting penetration depth. Lower frequencies penetrate deeper but at the cost of resolution."

Propagation speed is relatively constant in soft tissue (~1540 m/s), amplitude affects signal strength but not depth limit directly, and focal depth is an adjustable beam parameter.

Therefore, the correct answer is B: Frequency.

QUESTION NO15

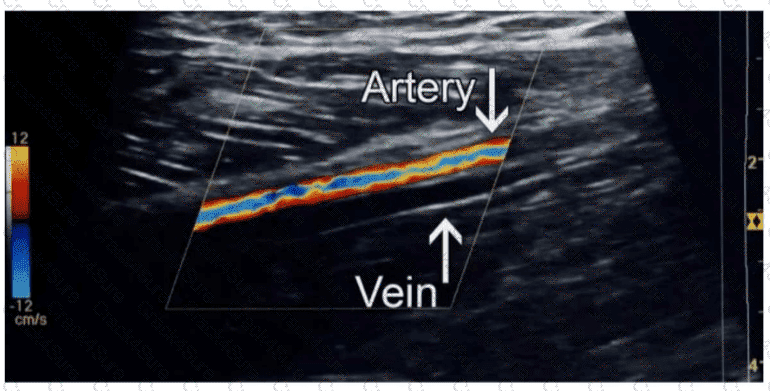

Which color Doppler setting adjustment would likely demonstrate color flow in the normal vein seen in this image?

An ultrasound image of veins and veins Description automatically generated

A. Decreasing scale

B. Increasing scale

C. Decreasing persistence

D. Increasing persistence

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

Veins generally exhibit low-velocity flow. The color scale (or velocity range) must be low enough to detect these slow flows. Decreasing the scale lowers the Nyquist limit, allowing the machine to display lower velocities that may otherwise be undetectable.

Principles and Instrumentation state:

"Reducing the scale increases sensitivity to low-velocity flows such as venous flow, while high scales may suppress these signals."

Therefore, the correct answer is A: Decreasing scale.

The purpose of using a spectral Doppler wall filter is to eliminate lower velocity signals. Wall filters are designed to remove low-frequency Doppler shifts caused by the motion of the vessel walls or surrounding tissues, which are generally of no diagnostic value. By eliminating these lower velocity signals, the wall filter helps to clean up the Doppler signal and reduce clutter, allowing for a clearer and more accurate display of blood flow velocities.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Acoustic Shadowing: This artifact occurs when a structure absorbs or reflects most of the ultrasound waves, causing a shadow behind the structure. It does not cause improper positioning of a reflector on the display.

Speckle: This is a form of noise in ultrasound imaging that appears as granular texture. It can affect image quality but does not lead to improper positioning of reflectors.

Enhancement: This artifact occurs when the area behind a weakly attenuating structure appears brighter. It affects the brightness of the image but does not affect the position of reflectors.

Range Ambiguity: This occurs when an echo is received after the next pulse has been sent out, causing the reflector to be placed at an incorrect depth on the display. This is because the system assumes the echo came from the most recent pulse.

The ALARA principle stands for "As Low As Reasonably Achievable" and aims to minimize patient exposure to ultrasound energy. Decreasing the output power reduces the intensity of the ultrasound waves, thereby reducing the potential for tissue heating and mechanical effects, which aligns with the ALARA principle of minimizing exposure while still obtaining necessary diagnostic information.

ARDMS Sonography Principles and Instrumentation guidelines

Hangiandreou, N. J. (2003). "Physics Tutorial for Residents: Topics in US: B-Mode US: Basic Concepts and New Technology." Radiographics.

Sensitivity is the term for an ultrasound system's ability to display low-level echoes. It refers to the system's capacity to detect and accurately display weak echoes returning from tissues. High sensitivity allows the sonographer to visualize structures that produce faint echoes, such as small or low-contrast lesions. This parameter is critical for ensuring that subtle pathological changes are not missed during imaging.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is the system’s ability to distinguish two structures side-by-side. It is directly determined by the beam width — the narrower the beam, the better the lateral resolution.

Principles and Instrumentation:

"Lateral resolution depends on beam width at a given depth. Narrower beams provide better lateral resolution."

Depth of penetration influences maximum imaging depth.

Propagation speed is largely constant in soft tissue.

Wavelength affects axial resolution.

Therefore, the correct answer is A: Beam width.

—

Comprehensive and Detailed Explanation From Exact Extract:

Damping material is applied to the back of the piezoelectric crystal to absorb energy and shorten the pulse duration. Shorter pulse durations reduce spatial pulse length, which directly improves axial resolution by enabling better separation of structures along the beam path.

According to sonography instrumentation reference:

“Greater transducer damping results in shorter pulse duration and improved axial resolution but reduces sensitivity.”

Therefore, the correct answer is D: Improved axial resolution.

Comprehensive and Detailed Explanation From Exact Extract:

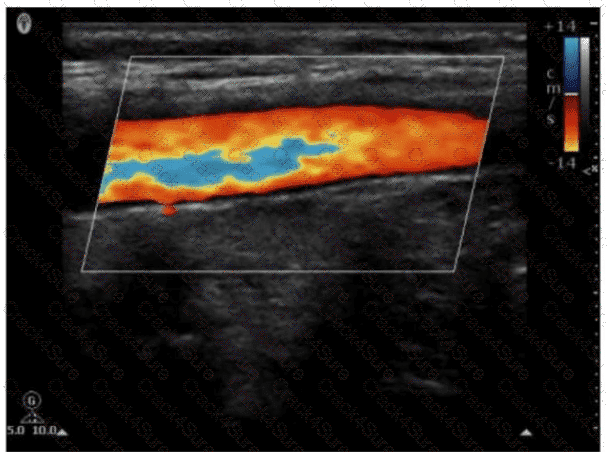

Aliasing occurs in pulsed-wave Doppler imaging when the Doppler shift frequency exceeds the Nyquist limit (which is half the pulse repetition frequency, PRF). This results in a wrap-around of the Doppler signal, which appears as a reversal of flow direction (aliasing artifact).

According to standard Principles and Instrumentation references in sonography:

“To eliminate aliasing, the Doppler PRF (scale) should be increased. Increasing the PRF raises the Nyquist limit and therefore allows for higher measurable velocities without aliasing.”

The correct adjustment to correct this aliasing artifact isC: Increase the Doppler pulse repetition frequency. This effectively increases the Nyquist limit and resolves the wrap-around aliasing appearance.

Options A and B (adjusting the spectral Doppler gain) would only change the appearance of the Doppler waveform (i.e., its amplitude and brightness) but would not affect aliasing. Option D (decreasing the PRF) would actually worsen the aliasing by lowering the Nyquist limit.

Therefore, the correct choice is toincrease the Doppler PRF.

The settings that lead to the highest temporal resolution are those that reduce the amount of information that the ultrasound system needs to process, allowing for a higher frame rate. A smaller sector width and shallower scan depth reduce the area that needs to be imaged, enabling faster data acquisition. Turning off color Doppler further reduces processing demands, as the system no longer needs to compute and display color flow information. Therefore, a 45-degree sector width, 4 cm scan depth, and color Doppler off will provide the highest temporal resolution.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Spectral Doppler mirroring, also known as crosstalk, occurs when the Doppler signal appears on both sides of the baseline. This can be caused by excessively high Doppler gain, which amplifies the signal and creates artificial mirror images. Decreasing the Doppler gain reduces the signal amplitude, thereby minimizing the mirroring artifact.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

Comprehensive and Detailed Explanation From Exact Extract:

Defects in transducer crystals result in missing or weakened signals along the beam path produced by those elements, creating dropout. In array transducers, dropout typically appears as vertical or horizontal dark zones depending on which elements are affected.

According to sonography instrumentation reference:

“Crystal failure results in areas of signal dropout directly beneath the defective elements due to loss of transmitted or received signals.”

Therefore, the correct answer is D: Dropout.

—

Comprehensive and Detailed Explanation From Exact Extract:

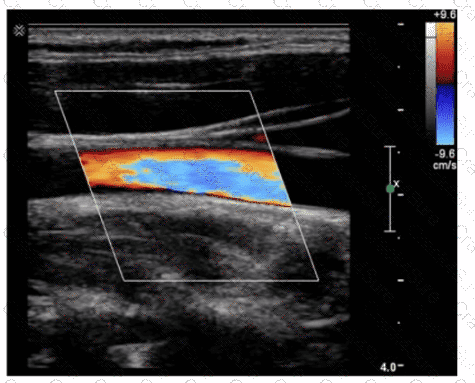

In color Doppler imaging, the default color map assigns red and blue to represent flow direction relative to the transducer (usually red toward, blue away). The color invert control reverses this assignment.

According to sonography Principles and Instrumentation:

"The color invert control reverses the baseline of the color map, swapping red and blue assignments for flow direction."

Color priority adjusts the overlay of color vs grayscale.

Color gain controls amplification of the Doppler signal.

Color threshold sets minimum amplitude to display color.

Therefore, the correct answer is D: Color invert.

—

Heat and Transient: Heat and transient are not classifications of cavitation.

Thermal and Mechanical: These terms refer to different bioeffects of ultrasound but are not types of cavitation.

Stable and Transient: These are the two types of cavitation observed in tissues during ultrasound. Stable cavitation involves the oscillation of gas bubbles without collapse, while transient cavitation involves the violent collapse of gas bubbles, which can generate high temperatures and shock waves.

Thermal and Stable: Thermal effects are a different concept related to tissue heating, not a type of cavitation.

To avoid exceeding the Nyquist limit and prevent aliasing in Doppler ultrasound, the pulse repetition frequency (PRF) should be increased. The Nyquist limit is half of the PRF, so by increasing the PRF, the Nyquist limit is raised, allowing the system to accurately measure higher velocities without encountering aliasing artifacts.

ARDMS Sonography Principles and Instrumentation guidelines

Zwiebel, W. J., & Pellerito, J. S. (2017).Introduction to Vascular Ultrasonography. Elsevier.

Dynamic range in ultrasound imaging affects the number of gray shades displayed in a 2-D image. Adjusting the dynamic range changes how echo signals are mapped to grayscale. A higher dynamic range means more shades of gray are displayed, providing a more detailed and softer image, which is useful for differentiating subtle tissue textures. Conversely, a lower dynamic range increases contrast by displaying fewer shades of gray, making the image appear more black and white. This adjustment is crucial for optimizing image quality based on the specific diagnostic needs.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Increasing the packet length in color Doppler imaging means increasing the number of pulses used to interrogate each scan line. This improves the accuracy of velocity measurements and sensitivity to low flow velocities but has the drawback of decreasing the frame rate. A longer packet length requires more time to acquire the necessary data, which reduces the number of frames that can be processed and displayed per second. Consequently, while color Doppler imaging becomes more precise, the temporal resolution (frame rate) decreases.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Color Doppler, Power Doppler, and Spectral Doppler" by Michael J. Riccabona

When sound waves encounter a smooth, flat surface, the primary interaction is reflection. This means the sound waves bounce back towards the transducer, producing echoes that are used to create the ultrasound image. Reflection is most effective when the surface is smooth and perpendicular to the sound beam, allowing for the maximum return of sound waves to the transducer.

ARDMS Sonography Principles and Instrumentation guidelines

Zagzebski, J. A. (1996). Essentials of Ultrasound Physics.

Transducer beam divergence is influenced by the aperture size and frequency. A smaller aperture and lower frequency result in greater beam divergence. Among the given options, the transducer with a 4 mm aperture and 4 MHz frequency will have the greatest divergence. This is because the smaller aperture size contributes to a wider beam spread, and the lower frequency also increases the divergence compared to higher frequencies.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

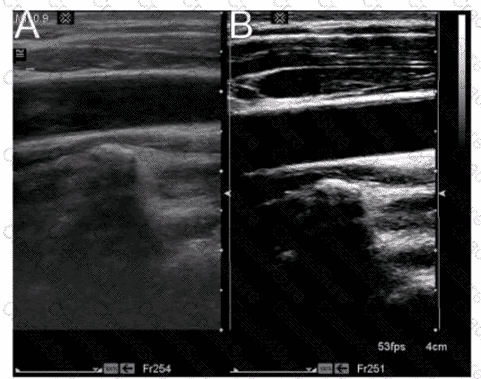

Spatial compounding acquires multiple frames from different angles and combines them into a single image. This technique reduces the appearance of artifacts such as shadowing and speckle noise, resulting in a smoother, more uniform image.

According to sonography instrumentation reference:

“Spatial compounding reduces artifacts like posterior shadowing and speckle by averaging data from multiple insonation angles.”

Therefore, the correct answer is D: Decreases shadowing.

—

Reject: This control eliminates low-level noise and weak signals, affecting image quality but not primarily used for contrast resolution.

Output Power: This adjusts the intensity of the transmitted ultrasound waves but does not directly change contrast resolution.

Gain: This control amplifies all signals equally, affecting brightness but not specifically the contrast resolution.

Dynamic Range: Adjusting the dynamic range changes the range of grayscale that the ultrasound system displays, which directly affects the contrast resolution by altering how many shades of gray are visible between the black and white extremes.

Comprehensive and Detailed Explanation From Exact Extract:

Higher frequencies are more attenuated than lower frequencies. When scanning calcified structures, increasing the frequency enhances attenuation, which makes posterior shadowing more pronounced and visible.

According to sonography instrumentation reference:

“Increasing frequency increases attenuation, thereby enhancing acoustic shadowing posterior to highly attenuating structures such as calcifications or bone.”

Therefore, the correct answer is D: Frequency.

—

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is determined by the beam width perpendicular to the ultrasound beam’s axis. As depth increases, the beam width changes due to beam divergence after the focal point. Narrower beams (better focusing) provide improved lateral resolution at specific depths.

According to sonography instrumentation reference:

“Lateral resolution depends on the width of the ultrasound beam. The narrower the beam at a particular depth, the better the lateral resolution.”

Therefore, the correct answer is A: Beam width.

—

Comprehensive and Detailed Explanation From Exact Extract:

The Doppler equation demonstrates that the Doppler shift frequency is directly proportional to the velocity of the moving reflector (typically red blood cells).

The Doppler shift formula is:

Doppler shift = (2 × transducer frequency × reflector velocity × cos ?) / propagation speed

According to sonography instrumentation references:

“The Doppler shift frequency increases as the velocity of the moving reflector increases. This relationship is linear when all other factors remain constant.”

Therefore, the correct answer is D: Velocity of the moving reflector.

—

Axial resolution refers to the ability to distinguish two structures that are close to each other along the direction of the sound beam. It is determined by the spatial pulse length (SPL), which is the product of the number of cycles in a pulse and the wavelength. Shorter SPL means shorter pulse duration, which leads to better axial resolution. This is because shorter pulses allow for better separation of echoes from closely spaced structures.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

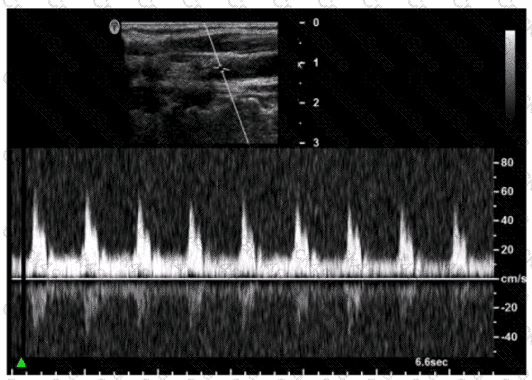

The waveform in the image shows spectral Doppler signals that are pushed against the upper limit of the display, indicating that the baseline is too high. Lowering the baseline allows for a better visual representation of the entire Doppler signal within the available display range. This adjustment prevents the waveform from being cut off and helps in accurately interpreting the blood flow characteristics.

The fundamental frequency of a pulsed wave transducer is primarily determined by the thickness of the piezoelectric element. The frequency is inversely proportional to the thickness of the element – thinner elements produce higher frequencies, while thicker elements produce lower frequencies. This relationship is derived from the formula????=????2????f=2dv?, where????fis the frequency,????vis the propagation speed of sound in the piezoelectric material, and????dis the thickness of the element.

Comprehensive and Detailed Explanation From Exact Extract:

Ensemble length, also known as packet size, refers to the number of ultrasound pulses sent along each scan line when performing color Doppler or power Doppler imaging. Increasing the ensemble length allows for more accurate velocity estimation and improved sensitivity to low flow but comes at the expense of decreased frame rate.

Official sonography instrumentation reference states:

“Ensemble length refers to the number of pulses per scan line used in color Doppler imaging. A larger ensemble improves sensitivity to slow flow and provides more accurate frequency (velocity) estimates but reduces temporal resolution.”

Thus, the correct answer is B: Number of pulses along a scan line.

—

Comprehensive and Detailed Explanation From Exact Extract:

Each additional focal zone requires extra transmissions per scan line, which slows down frame acquisition, thereby reducing the frame rate.

Principles and Instrumentation state:

"Increasing the number of focal zones lowers frame rate because multiple pulses are needed per scan line for each focal depth."

Increasing PRF (B) allows faster data acquisition.

Decreasing depth (C) shortens round-trip time, increasing frame rate.

Decreasing sector width (D) reduces scan lines, increasing frame rate.

Frame rate in color flow Doppler is influenced by several factors, including the imaging depth. Decreasing the depth reduces the time it takes for sound waves to travel to the imaging area and back to the transducer. This allows for more frames to be captured per second, thereby increasing the frame rate. Higher frame rates improve temporal resolution, making it easier to visualize moving structures.

Changing the displayed depth control directly affects the pulse repetition frequency (PRF). When the depth setting is increased, the ultrasound system needs more time to send and receive echoes from deeper structures, resulting in a lower PRF. Conversely, decreasing the depth allows for a higher PRF since the time required for the sound waves to travel to and from the structures is shorter. PRF is crucial for determining the maximum detectable velocity in Doppler ultrasound without aliasing.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Comprehensive and Detailed Explanation From Exact Extract:

In linear array transducers, each element controls a vertical portion of the image. If adjacent elements fail, the result is a vertical dropout corresponding directly below the damaged crystals.

According to sonography instrumentation reference:

“Damage to specific elements in a linear array transducer results in vertical dropout directly beneath the malfunctioning crystals.”

Therefore, the correct answer is A: Vertical dark zone directly below the damaged elements.

—

Comprehensive and Detailed Explanation From Exact Extract:

The primary purpose of compression is to reduce the dynamic range of received echoes, making the image more visually interpretable by adjusting contrast without losing diagnostic information.

According to sonography instrumentation reference:

“Compression reduces the dynamic range of the signal amplitudes to fit within the display range of the monitor while preserving important differences in tissue echogenicity.”

Therefore, the correct answer is D: Reduce the dynamic range.

—

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed between the transducer’s piezoelectric element and the patient’s skin. Its primary function is to improve the transmission of sound energy into the body by reducing the acoustic impedance mismatch between the crystal and tissue, minimizing reflection at the transducer surface.

According to sonography instrumentation reference:

“The matching layer improves transmission of ultrasound energy by reducing impedance mismatch between the transducer and soft tissue, thus increasing the efficiency of sound energy transfer.”

Therefore, the correct answer is D: Increase sound transmission.

—

Axial resolution refers to the ability to distinguish two structures that are close to each other along the path of the ultrasound beam.

Spatial pulse length (SPL) is the distance over which one pulse occurs, and it directly affects axial resolution.

Shorter SPL improves axial resolution because it allows better differentiation of closely spaced structures.

The axial resolution is improved by increasing the frequency of the transducer, which shortens the wavelength and hence the SPL.References:

ARDMS Sonography Principles and Instrumentation guidelines on resolution parameters and their impact on image quality.

The primary difference between Image A and Image B is the overall gain setting. Gain controls the amplification of the received echoes. A lower gain setting results in a darker image with less overall brightness, which is evident in Image A compared to Image B. Image B appears brighter, indicating a higher gain setting that amplifies the echoes more, making the structures appear more prominently.

ARDMS Sonography Principles and Instrumentation guidelines

Hedrick, W. R., Hykes, D. L., & Starchman, D. E. (2005).Ultrasound Physics and Instrumentation.

The color Doppler image shows an artifact where high-velocity blood flow exceeds the Nyquist limit, resulting in color wrap-around or aliasing. This artifact is visualized as a mosaic pattern of colors that abruptly change, indicating that the velocity exceeds the color Doppler scale's maximum. Aliasing occurs when the sampling rate (pulse repetition frequency) is insufficient to accurately capture the high velocities, causing the display to cycle back to lower velocities.

Comprehensive and Detailed Explanation From Exact Extract:

Spatial compounding uses multiple scan angles to create an image. By combining information from different angles, it can reduce shadowing artifacts caused by highly attenuating structures.

According to sonography instrumentation reference:

“Spatial compounding reduces artifacts such as posterior shadowing by averaging images acquired from multiple insonation angles.”

Therefore, the correct answer is A: Increasing spatial compounding.

—

The wall filter is used in color Doppler and spectral Doppler imaging to eliminate low-frequency Doppler shifts caused by tissue motion or vessel wall movement. Adjusting the wall filter removes these low-frequency signals without affecting higher-frequency Doppler shifts that represent blood flow. Other settings like gain, scale, and persistence do not selectively filter out low-frequency shifts in the same manner.

The Nyquist limit, which is the maximum detectable velocity before aliasing occurs, is directly related to the pulse repetition frequency (PRF). Increasing the color scale on the ultrasound machine effectively increases the PRF. When the PRF is increased, the Nyquist limit is also increased, allowing for the measurement of higher velocities without aliasing.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

Interpolation estimates pixel values between scan lines by averaging adjacent data, filling in gaps to create a smoother, more complete image without additional scanning.

According to sonography instrumentation reference:

“Interpolation is a post-processing technique that fills gaps between scan lines by estimating values based on surrounding echoes, improving image smoothness.”

Therefore, the correct answer is D: Interpolation.

—

Focusing improves lateral resolution in ultrasound imaging. Lateral resolution refers to the system's ability to distinguish between two points that are side by side (perpendicular to the sound beam's path). By focusing the ultrasound beam, the width of the beam is narrowed at the focal point, enhancing the system's ability to resolve structures that are close together in the lateral plane. This results in clearer, more detailed images of the anatomical structures.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Diagnostic Ultrasound: Principles and Instruments by Kremkau, F. W. (latest edition).
