The correct answer is B. document the current setup procedure . In the CSSBB Improve phase material on setup reduction and SMED, the sequence for quick changeover is explicitly listed. The very first action is to document all elements of the current setup , followed by separating internal and external operations, converting internal steps to external ones where possible, generating improvement ideas, testing them, and standardizing the new procedure.

This is consistent with Lean and Six Sigma thinking: before improving a setup process, the team must understand the current method in detail. The CSSBB source further notes that planning a setup reduction project requires detailing the actual conditions and steps of the die changeover, which can be done through direct observation, worker interviews, work sampling, or video recording. Without first documenting the present state, the team cannot accurately distinguish between internal and external setup tasks or identify wasted effort. The other options may become relevant later, but they are not the starting point. Therefore, the verified CSSBB answer is B. document the current setup procedure .

Lessons learned should be part of the Control Phase because project closure is not only about sustaining gains, but also about capturing knowledge that can benefit future projects and ongoing process management. In Six Sigma, the Control Phase formalizes what was improved, how it will be monitored, who owns the process, and what can be transferred to others in the organization. Documenting lessons learned helps preserve insight about what worked well, what barriers were encountered, which controls were effective, and what should be done differently next time. This information supports organizational learning and strengthens future project execution. Project charter and objectives belong primarily to Define, role definitions are established earlier in project planning, and data collection methods are typically developed in Measure and refined during analysis and control planning. While data collection may continue in Control, the specific element listed here that is characteristic of project closeout is lessons learned. Therefore, the correct answer is D, Lessons learned, because the Control Phase includes standardizing gains and capturing experience for long-term organizational benefit.

===========

The correct answer is B. return on investment . The CSSBB source defines ROI as:

ROI = Net Income / Investment

In project terms, the team first determines the financial benefit, such as dollars saved and costs avoided , and then compares that project gain with the money invested to implement the project. That is exactly the logic of return on investment. The source also states that financial benefits and risks are used to evaluate, prioritize, select, and track Six Sigma projects.

Net income by itself is only one part of the comparison. Return on net assets is a different ratio, and general and administrative expenses are an accounting cost category, not a valuation method. Since this question describes comparing project financial gain with implementation spending, the proper CSSBB financial term is return on investment . Therefore, the verified answer is B .

The correct answer is C. 3, 2, 1, 4 . The CSSBB source explains that QFD, or the house of quality , begins with the customer needs or wants on the left side of the house. The design features and requirements are then identified as the technical response on the top of the house, and the primary matrix is the relationship matrix between customer needs and design features. Finally, the foundation contains the target values .

That sequence means the team must first capture the voice of the customer so it knows what the customer wants. Next, it must identify the technical requirements that can respond to those needs. Then the team develops the relationship matrix to connect customer requirements to technical features. After that, the team can determine the target values for the technical characteristics. This order is fully aligned with the structure of the house of quality shown in the CSSBB material. Therefore, the correct sequence is 3, 2, 1, 4 , which corresponds to option C .

The correct answer is A. Gantt chart . The CSSBB source states that Gantt charts display activities or events as a function of time , with each activity shown as a horizontal bar positioned by its starting and ending dates. It also notes that Gantt charts show program task progress versus date , making them useful for project planning and tracking.

This is exactly why a Gantt chart is used in managing a project plan. It helps the team visualize the timeline, organize tasks, monitor progress, and communicate schedule status. SIPOC is a high-level process-mapping tool used to define suppliers, inputs, process, outputs, and customers. A control chart is used to monitor process stability over time. QFD translates customer requirements into technical requirements. None of those is primarily a project-plan management tool. The Gantt chart is specifically designed to support planning, monitoring, and controlling project timing. The CSSBB project documentation section also emphasizes that project timelines are a visible yardstick for measuring project activities. Therefore, the verified answer is A. Gantt chart .

Poka-yoke is the correct answer because it is specifically intended to prevent mistakes before they become defects. In the CSSBB Improve material, poka-yoke is described as a mistake-proofing concept associated with Shigeo Shingo, using intervention devices or procedures to catch errors before they are translated into nonconforming product. The examples and design guidance include preventing wrong-part use, incorrect positioning, missed operations, and assembly errors. That matches this question exactly, since assembling component parts incorrectly is a classic human-error scenario that poka-yoke is designed to prevent. The CSSBB text also notes that design improvements for mistake proofing include eliminating error-prone components, using redundancy, adding fail-safe mechanisms, and simplifying the design. DFSS is a broader design methodology, DOE is for studying factor effects, and tolerance design focuses on allowable variation, but none of those is as directly targeted to preventing incorrect assembly as poka-yoke. In product and process design, poka-yoke creates conditions where the wrong assembly either cannot happen or is immediately signaled. Therefore, the verified answer is Poka-yoke.

===========

The correct answer is A. It takes the same amount of time to get to work by route X as by route Y . In CSSBB hypothesis testing, the null hypothesis (H0) is typically stated as no difference or equality , while the alternative hypothesis states the suspected difference or effect. The CSSBB examples for two-sample mean tests show the standard null form as H0: ?1 = ?2 and the alternative as H1: ?1 ? ?2 or directional inequalities depending on the claim.

Since the commuter suspects that route X may take longer, that suspicion belongs in the alternative hypothesis , not the null. The null should begin from the assumption that the average travel times are the same until evidence suggests otherwise. Option C describes a general alternative statement, not a null. Option D is about variation, not average travel time. Therefore, the proper null hypothesis is that the two routes take the same amount of time on average , which corresponds to option A .

Stakeholders must be identified for a project to be successful because they include all individuals and groups who are affected by the project, can influence its outcome, or control resources and acceptance of the change. In the Define Phase, stakeholder identification is essential for understanding support, resistance, expectations, communication needs, and ownership concerns. A project can be technically sound and still fail if key stakeholders are overlooked. Black Belts must identify who needs to be informed, consulted, involved, or managed throughout the project lifecycle. While project leaders, champions, and process owners are all important roles, they are subsets of the broader stakeholder set. The project team needs to understand the full stakeholder landscape, including customers, functional managers, operators, sponsors, support groups, and downstream users. This helps align the project with business needs and improves adoption of the final solution. Therefore, the correct answer is D, Stakeholders, because identifying the full set of interested and impacted parties is fundamental to project success.

===========

The correct answer is B. Spaghetti diagram . In the CSSBB material, spaghetti diagrams are described as useful for showing the flow of people, information, or material through a process. This makes them especially effective for identifying motion waste , because they visually reveal unnecessary travel, excessive movement, backtracking, and poor layout patterns. In Lean, motion is one of the classic forms of muda , or non-value-added activity. The CSSBB glossary and related Lean material define waste to include unnecessary movements , which directly connects motion waste to this type of visual analysis.

A swim lane flowchart is better for showing responsibility across functions, and a value stream map is more suited to the broader end-to-end flow of material and information, including lead time and inventory. Backward tracing is not the standard Lean tool for displaying operator or material movement. Because a spaghetti diagram physically maps the path taken through the workspace, it best exposes wasted motion and layout inefficiency. Therefore, from a CSSBB perspective, the best tool to depict motion waste is the spaghetti diagram .

In the Control Phase, responsibility for sustaining project gains transfers to the process owner. This is a core Six Sigma principle. The Black Belt leads the project and drives improvement through DMAIC, but once implementation is complete and controls are in place, the ongoing management of the improved process belongs to the person who owns that process in daily operations. The process owner is responsible for maintaining standard work, monitoring control measures, responding to out-of-control conditions, ensuring documentation is followed, and preventing the process from reverting to prior performance. Top management and the project champion provide sponsorship, visibility, and support, but they do not manage day-to-day sustainment. CSSBB control planning emphasizes handoff, accountability, response plans, documentation , and long-term ownership, all of which point to the process owner as the key role after project closure. Sustained benefit realization depends on embedding the improvement into routine management practices. Therefore, the correct answer is The process owner, because that role carries operational responsibility for preserving the gains achieved by the Six Sigma project.

The best answer is D. ensures the team will work to meet expectations . The CSSBB source defines a project charter as a written document that defines the team’s mission, scope, objectives, time frames, and consequences. It also states that identifying these details in written form provides a constant and consistent target for the team . The charter’s listed advantages include eliminating confusion, defining boundaries, identifying deliverables, and providing a basis for team goal setting.

That means the charter’s primary benefit is to align the team around what is expected so they can work toward those defined expectations. It does not guarantee stakeholder support, nor does it provide all project management tools. It also does not ensure that team members already understand root causes, since root-cause analysis comes later. While option D is not stated word-for-word in the source, it is the closest interpretation of the charter’s function as a consistent target and expectation-setting document. Therefore, the verified best answer is D .

The correct answer is C. Improve . The CSSBB body of knowledge places DOE directly in the Improve phase; the instructor text lists “IX. Improve — DOE” as a major topic area. The supplemental material also explains that in the Improve Phase teams establish relationships between KPOV’s and KPIV’s , validate improvements, and use experimental methods to determine the settings of inputs that optimize the response.

DOE is a scientific method for making purposeful changes to factors and observing the effect on the response. That makes it especially useful when the team is trying to optimize a process or product after important variables have already been identified. While some supporting analysis of variables occurs earlier, the primary practical use of DOE in DMAIC is to test and confirm which factor settings improve performance. The supplemental source describes DOE as directed at optimization and as a way to learn how inputs affect outputs. Therefore, the best CSSBB answer is C. Improve .

The correct sequence is 2,3,5,4,1. First, the team must specify the parameter to be tested so the hypothesis is clearly tied to the characteristic of interest, such as a mean, proportion, or variance. Second, the appropriate test statistic is selected based on the type of data, assumptions, and problem structure. Third, the rejection criteria are defined, which includes establishing the significance level and the rule for deciding whether the null hypothesis will be rejected. Fourth, the critical values are calculated from the relevant statistical distribution. Finally, once the observed test result is compared with the decision rule, the team draws a conclusion. This sequence reflects disciplined statistical reasoning in the Analyze Phase. The team must know what it is testing before choosing the method, and it must establish the decision logic before interpreting results. In Black Belt practice, following a correct testing sequence helps avoid errors in hypothesis formulation and decision-making. Therefore, the correct answer is B, 2,3,5,4,1, because it matches the standard logical order for conducting a hypothesis test.

===========

The correct answer is D. Motion and transportation . In the CSSBB materials, a spaghetti diagram is used to show the physical flow of people, materials, or information through a workspace or process. Because it traces actual paths and movement, it is especially useful for exposing unnecessary walking, backtracking, handoffs, and poor layout. Earlier CSSBB references describe spaghetti diagrams as tools for showing flow, which directly supports identifying movement-related waste.

The waste categories in the CSSBB source include both motion and transport as separate forms of muda. Motion refers to extra human movement such as walking, bending, reaching, or repeated motions, while transport refers to the movement of materials through forklifts, conveyors, trucks, or inefficient layouts. A spaghetti diagram can reveal both kinds of waste because it visually shows where people and materials travel more than necessary. The other answer choices involve wastes that are not best exposed by path mapping. Therefore, the best verified answer is D. Motion and transportation .

The exponential distribution is the correct answer because it is positively skewed, with many observations clustered near lower values and a long tail extending to the right. In such a distribution, the mean is pulled to the right by the tail, which results in more observations falling below the average than above it. This is different from a Gaussian distribution, which is symmetric and has equal balance around the mean. Binomial and hypergeometric distributions may take different shapes depending on their parameters, but they are not generally identified by the specific property described in the question. In Six Sigma Measure Phase applications, the exponential distribution is commonly associated with waiting times, time between events, and reliability-type processes. Because its shape is strongly right-skewed, the average is not the midpoint of the data in the way it is for a normal distribution. This makes the statement in the question characteristic of exponential behavior. Therefore, the correct answer is B, Exponential, because its skewed form causes a majority of observations to lie below the mean while relatively fewer high values extend the distribution to the right.

The correct answer is B. Signaling a previous process that parts are needed . The CSSBB source explains kanban as a pull system in which parts are used at one operation and a withdrawal kanban is then taken to the previous operation to obtain additional parts. It also states that the WIP kanban card instructs the operator to produce more parts , and that this signal can continue further upstream.

This means the core function of kanban is to send a signal backward through the process to replenish what the downstream operation has consumed. That is why option B is the correct answer. Kanban does not primarily signal a subsequent process that parts are being released; it works in the opposite direction as a pull instruction. It also does not eliminate the need for demand forecasts entirely, nor does it directly decrease supplier lead times, although it may help expose and manage lead-time issues. Therefore, the verified CSSBB answer is B .

The correct answer is A. Project . The CSSBB material explains that the work breakdown structure (WBS) expands the project or statement of work into a detailed listing of activities required to complete the work. This means the highest level of the WBS is the project itself , and that top level carries the overall objective, scope, and purpose. Lower levels such as phases, activities, and tasks are breakdown elements used to organize and execute the work, but they do not define the fundamental purpose of the project.

The CSSBB source also describes a project as a series of activities and tasks with a specified objective , along with starting and ending dates and necessary resources. That objective is what explains the reason or purpose for the effort. Once the project is defined, the WBS decomposes it into smaller pieces for planning and control. Therefore, the explanation of the project’s purpose belongs at the project level , not at the phase, activity, or task level. In Six Sigma project management, this top-level definition aligns with the charter and statement of work, making Project the correct answer.

The correct answer is A. develop a design of the revised process . The team has already completed the understanding and diagnosis portion: it mapped the process, analyzed the data, and agreed on the flaws in the current process. The CSSBB supplemental DMAIC overview states that after process mapping and identifying potential causes in Measure, the team moves through Analyze to verify critical factors, and then in Improve the process output is improved by addressing those factors and testing improvements.

That means the next logical step is to design the revised process , not to collect more data on the already verified current state. Error-proofing may become part of the revised design later, but it is not the immediate next step after agreeing on the flaws. Reporting to management may be needed eventually, but first the team needs a well-developed proposed future-state process. Therefore, consistent with CSSBB improvement flow, the next step is to develop a design of the revised process , making A the best answer.

As improvements are implemented and transferred into daily operations, training must focus on enabling process owners and staff to run the process correctly and sustain the gains. In CSSBB Control Phase thinking, training is not just awareness-building; it is part of the control plan and supports standardization, ownership transfer, and long-term stability. Staff members need to understand what the revised process requires, how to perform the work, how to monitor it, what measures matter, and what actions to take when performance deviates from expectations. Process owners especially need instruction on planning, doing, and controlling the process so they can maintain the improved state after the project team exits. Obtaining top management support is important earlier at a strategic level, but it is not the direct focus of rollout training. Likewise, general motivation is useful but does not replace operational instruction. The most effective training during rollout is role-based and process-specific, ensuring that those responsible for daily execution can manage the improved method consistently. Therefore, the correct answer is providing process owners and staff instructions on planning, doing, and controlling the process.

===========

The correct answer is C. 11.58 . The CSSBB source gives the control-limit formula for an X?-R chart as:

UCL for X? chart = X?? + A2R?

The same CSSBB control-chart factor table shows that for subgroup size n = 5 , the constant A2 = 0.577 (often rounded to 0.58 in summary tables). Using the values provided:

UCL = 10.66 + (0.577 × 1.59)

UCL = 10.66 + 0.91743

UCL = 11.57743

Rounded to two decimal places, the upper control limit is 11.58 . This matches option C .

This is a standard Control phase calculation in CSSBB because control charts are used to determine whether a process is stable over time. The X? chart monitors changes in the process mean, while the R chart monitors within-subgroup variation. Since the problem specifically asks for the X?-chart upper control limit, only the X?-R chart formula and the correct A2 factor are needed. Therefore, the verified answer is 11.58 .

Residual analysis is the correct method because it is specifically used to evaluate whether a statistical model is appropriate and whether certain observations may distort conclusions. In the CSSBB Analyze Phase, residuals are the differences between observed response values and model-predicted values. By studying residual plots, a Black Belt can detect unusual observations, outliers, changing variance, model misspecification, nonlinearity, and other issues that can lead to invalid inferences. This is especially important after regression, ANOVA, and designed experiments, because a model may appear significant while still violating assumptions that undermine the conclusions. Variables sampling is a data collection approach, not a diagnostic method for invalid inference. Plackett-Burman design is a screening DOE design used to identify potentially important factors, not to check model validity after analysis. Cause and effect analysis is useful for organizing possible causes of a problem, but it does not statistically identify influential data values or problematic residual behavior. Therefore, among the listed options, residual analysis is the verified CSSBB answer because it is the proper statistical tool for identifying values or patterns that can make conclusions unreliable.

===========

The correct answer is A. Process capability . The CSSBB supplemental material states this directly: process capability involves comparing the voice of the customer with the voice of the process . It also shows the capability relationship as Cp, Pp = (USL ? LSL) / 6S = Voice of the Customer / Voice of the Process . In Six Sigma terms, the voice of the customer is reflected in specification limits or customer requirements, while the voice of the process is reflected in the actual variation and centering of the process.

This comparison is what tells a Black Belt how well the process can meet customer expectations. A process may be in statistical control yet still not be capable of meeting specs. The CSSBB material also notes that measuring process capability is the best method to ensure a quantifiable understanding of how much customer requirements are being met. Process control focuses on stability over time, QFD translates customer needs into design characteristics, and TOC focuses on constraints and flow. Therefore, the correct CSSBB answer is process capability .

Developing and analyzing a flow diagram with a cross-functional team is one of the most effective ways to identify both internal and external customers. In the Define Phase, Black Belts must understand the process as a system, including who receives outputs at each step and who depends on those outputs. A cross-functional flow diagram makes those relationships visible by showing how work moves across departments, interfaces, and handoffs. This helps the team identify internal customers such as downstream functions, support groups, approvers, and operators, as well as the ultimate external customer who receives the final product or service. Interviewing the sales force may provide useful customer insight, but it is incomplete and often biased toward external-market views. Focus groups and blind surveys can gather voice-of-the-customer information, but they do not systematically reveal internal customer relationships embedded in the process flow. A cross-functional diagram is stronger because it identifies the full chain of suppliers, inputs, process steps, outputs, and customers. Therefore, the correct answer is D.

===========

The correct answer is Label. In the CSSBB metrology and measurement-system material, calibration control requires that measuring equipment be identified, controlled, calibrated, and linked to records. The text further states that a labeling system must be in place showing the identification of each piece of measuring equipment and its status. This directly supports the use of a label as the standard and most common display method for calibration status on a gage. Labels typically show the last calibration date, due date, equipment identification, and status, making them simple, visible, and practical at the point of use. While barcodes, RFID, or handwritten information can be used as supporting mechanisms in some organizations, the CSSBB framework explicitly identifies the labeling system as the required and recognized method for indicating calibration status. From a Measure Phase perspective, this matters because the integrity of the measurement system depends on ensuring that only properly calibrated equipment is used. Clear labeling prevents the accidental use of nonconforming or overdue gages and supports traceability, audit readiness, and confidence in collected data.

===========

Establishing short-term measures of improvement is the best technique because it helps the team see evidence of progress before the final project goal is fully achieved. In Six Sigma team management, long projects can create discouragement when the end result is still distant, even if meaningful gains are already being made. Short-term measures provide visible milestones, reinforce momentum, and help team members recognize that their efforts are producing results. This supports motivation, confidence, and continued engagement. Asking management to inspire the team may create a temporary boost, but it does not change how progress is experienced. Redeveloping the goal may confuse the team unless the original goal is truly flawed. Shortening the deadline would likely increase frustration rather than motivation. A skilled facilitator helps the team break a large objective into manageable wins and track those improvements over time. That makes progress more tangible and builds commitment to continue. Therefore, the correct answer is A, Establish short-term measures of improvement, because it creates achievable markers that sustain team morale and focus throughout the project.

===========

The correct answer is A. weakest performing discrete process . The CSSBB Theory of Constraints material explains that bottleneck resources are those whose capacity is equal to or less than the demand placed upon them, and it further states that a bottleneck will restrain the entire throughput . In the drum-buffer-rope explanation, the drum is described as the constraint that controls the pace of the process .

This means the overall performance of interconnected processes is governed by the process step with the least capacity or greatest constraint. In plain terms, the chain moves at the pace of its weakest link. The strongest process does not determine overall throughput if another process is limiting the flow. Operations staff and scrap/rework rates may influence performance, but the defining TOC principle is that the constraint or bottleneck drives system throughput. Therefore, among the answer choices, the best verified CSSBB answer is A. weakest performing discrete process .

The correct answer is Volatility because the issue described is variation in price over time within a budgeting period. In management and business-risk language commonly used alongside Six Sigma financial thinking, volatility refers to the speed and magnitude of change, especially in costs, prices, demand, or financial performance. Raw material pricing that moves up and down during a monthly budget cycle is a classic example of volatility, because the risk is tied to fluctuation rather than to lack of meaning, excessive interdependence, or incomplete clarity. Uncertainty refers more broadly to not knowing what will happen or what the probabilities are. Complexity refers to many interacting variables and dependencies. Ambiguity refers to unclear meaning or interpretation. The phrase “raw material pricing within a monthly budget cycle” points most directly to variable swings in cost, which is volatility. I did not locate a direct excerpt for this exact item in the uploaded CSSBB text, so this answer is based on standard Black Belt and management terminology used in business-risk contexts. The verified answer remains Volatility.

===========

The best answer is C. Operational . In the CSSBB materials, the measurement and management hierarchy moves from broad business/enterprise views down to more detailed operations and process levels. Business-level measures are summarized for shareholders and management, while operational efficiency measures are closer to the work and help identify important relationships and root causes. Detailed process-level information is what operators and supervisors use in day-to-day operations.

Because the question asks for the most detailed type of risk management among enterprise, process, operational, and strategic, the choice that best matches a focused, component-by-component treatment of risk in actual operations is operational risk management . Enterprise and strategic risk management are broader and higher-level. The CSSBB risk-assessment material also shows that detailed risk work can go down to the component or subsystem level when evaluating failure consequences.

Verified note: this question’s wording is less direct than some earlier items, but based on the CSSBB hierarchy, Operational is the strongest answer.

PPM means parts per million and is calculated by dividing the number of defectives by the total number of units, then multiplying by 1,000,000. In the table, Facility X for March shows 124 defectives and a volume of 20,000 units. Since there is one opportunity per unit, the calculation is straightforward:

PPM = (124 / 20,000) × 1,000,000

PPM = 0.0062 × 1,000,000

PPM = 6,200

This is a standard Measure Phase calculation because it converts raw defect data into a normalized metric that allows comparison across different time periods, processes, or facilities. Black Belts use PPM and related defect measures to establish process baselines, compare operational performance, and monitor quality trends over time. Since the opportunity count is one per unit, no further adjustment for multiple opportunities is needed. The resulting PPM shows how many defective units would be expected per million units under the same defect rate. Therefore, the correct answer is C, 6,200, because that is the calculated PPM for Facility X in March.

The correct answer is C. Reject the null hypothesis that the means are equal . The output shown is from a 2-sample t-test with unequal variances , which the CSSBB material identifies as the correct test when comparing two sample means and the variances are unknown and not assumed equal . In that case, the hypotheses are H0: ?1 = ?2 and H1: ?1 ? ?2 .

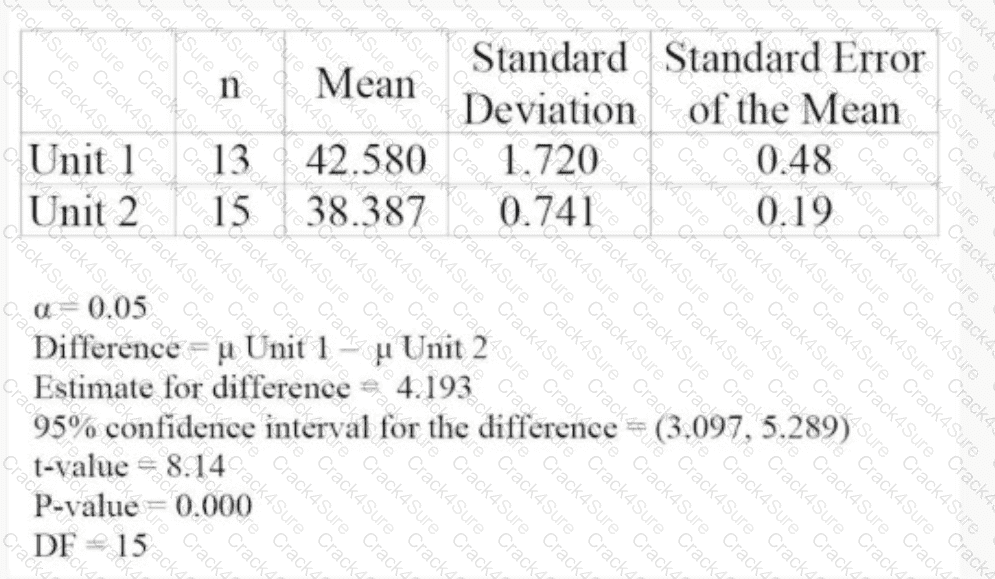

Here, the results show ? = 0.05 , t = 8.14 , and p-value = 0.000 . CSSBB guidance states that when the p-value is below the selected significance level, the null hypothesis should be rejected . Also, the reported 95% confidence interval for the difference = (3.097, 5.289) does not include zero , which independently supports the conclusion that the two means are significantly different. Because the test shown is about means , not a formal test of equal variances, conclusions about variances should not be drawn from this output. Therefore, the proper conclusion is to reject the null hypothesis that the means are equal .

In the CSSBB body of knowledge, the tree diagram is the tool used to break a broad objective into progressively smaller, actionable elements. The CSSBB instructor material defines the tree diagram as a systematic method to outline all the details needed to complete a given objective and specifically notes that it can be used to outline the steps to implement a project. That directly matches the wording of this question. A strategic objective usually starts at a high level, and a Black Belt must translate that objective into deployable tasks, sub-tasks, and logical means for execution. The tree diagram supports this top-down decomposition by showing goals, means, and lower-level actions in an orderly structure. By contrast, an affinity diagram is primarily for organizing ideas into natural groupings, an interrelationship digraph is for identifying causal relationships among issues, and a Pareto chart is for prioritizing the vital few categories by frequency or impact. None of those tools is primarily intended for detailed task breakdown. Therefore, the verified CSSBB answer is Tree diagram.

===========

The sponsor is responsible for reviewing and approving changes to a Six Sigma project charter because the sponsor owns the business commitment behind the project. In the Define Phase, the charter serves as the formal agreement on the project’s purpose, business case, scope, goals, and expected impact. Any significant change to those elements can affect resources, timing, priorities, and alignment with organizational objectives. Since the sponsor authorizes the project and provides the organizational backing needed for its success, that role must also approve any major charter revision. Team members and the team leader may recommend changes based on what they learn during project execution, and a facilitator may help structure the discussion, but they do not normally hold authority to approve charter modifications. In Black Belt practice, this governance is important because uncontrolled charter changes can lead to scope creep, confusion, and weakened accountability. Therefore, the correct answer is C, Sponsor, because that role has the responsibility and authority to confirm that any change remains aligned with the project’s intended business purpose.

===========

The correct answer is A. Tree diagram . The CSSBB source defines the tree diagram as a systematic method used to outline all the details needed to complete a given objective. It also states that the organization is by levels of importance , such as why-how or goals-means .

This makes the tree diagram the proper tool for taking a broad goal and breaking it down into more detailed subordinate levels. It is especially useful when a team needs to move from a high-level objective to the specific tasks, means, or actions required to achieve it. By contrast, an affinity diagram groups ideas into natural categories, a matrix diagram shows relationships among sets of items, and an interrelationship digraph highlights causal connections among factors. None of those tools is primarily designed for hierarchical decomposition of a goal. Since the question asks for the tool that converts a broad goal into increasingly detailed levels, the verified CSSBB answer is A. Tree diagram .

The correct answer is C. Replication . In DOE, replication means repeating experimental trials under the same experimental conditions in order to estimate experimental error and improve confidence in the conclusions. This is distinct from measurement-system terminology. The CSSBB materials discuss the use of replications in statistical studies and experimental contexts, including examples where repeated trials are intentionally built into the design. In Six Sigma experimentation, replications help separate true factor effects from random noise and improve the precision of estimates.

The distractors come from different concepts. Repeatability refers to the ability to obtain the same measurement when the same operator measures the same item under essentially the same conditions. The CSSBB source explicitly describes repeatability that way. Reproducibility concerns consistency when different operators or relevant conditions vary. Robustness refers to a design or process being insensitive to noise factors, not repeated identical trials. Because the question asks about DOE trials made under identical conditions, the proper experimental-design term is replication . Therefore, the correct answer is C .

When a team begins translating a charter into an executable project, one of the most important planning tasks is creating a timeline. In CSSBB practice, the charter authorizes the project and establishes the business case, problem statement, scope, and goals, but the team must still convert that authorization into an operational plan. A timeline defines the sequence of activities, expected completion dates, dependencies, milestone reviews, and ownership for major deliverables. This is why it belongs directly in the work of fulfilling the charter. Identifying potential root causes belongs more properly to later diagnostic work, especially in the Analyze Phase, after data are gathered and the current process is better understood. Exploring alternative solutions is generally associated with the Improve Phase once causes have been validated. Organizing files may support the project administratively, but it is not a core charter-fulfillment task recognized in the CSSBB body of knowledge. Therefore, the correct answer is Creating a timeline, because it operationalizes the charter into a manageable plan and supports project execution, tollgate review readiness, and accountability.

===========

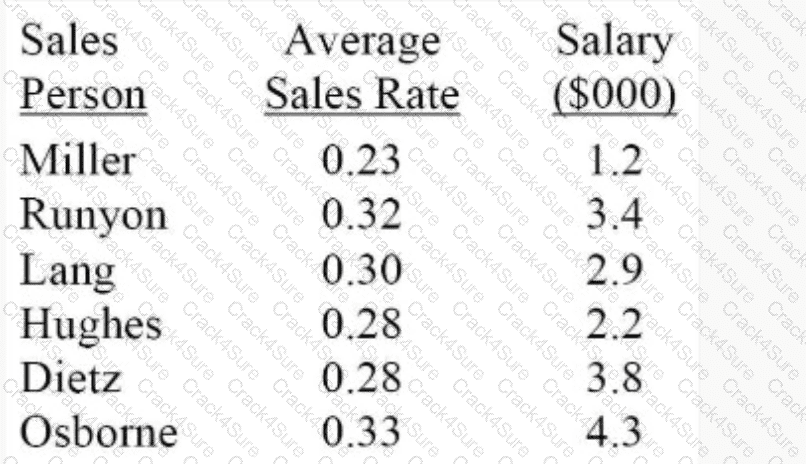

The correct answer is C. Positive . The table shows that, in general, as salary increases , the average sales rate also tends to increase. For example, lower salaries such as 1.2 are associated with lower sales rates such as 0.23 , while higher salaries such as 4.3 are associated with higher sales rates such as 0.33 . This indicates an upward relationship between the two variables.

The CSSBB source explains that a scatter diagram and the correlation coefficient r are used to examine the relationship between two variables. It states that a positive value for r implies that the line slopes upward to the right , meaning as X increases, Y generally increases. That description fits this table. The relationship is not perfect, but it is clearly not negative, and it is stronger than “no correlation.” Therefore, the best description from the choices provided is positive correlation .

This is consistent with CSSBB Analyze-phase methods for measuring relationships between variables. Thus, option C is the verified answer.

The correct answer is A. A control plan . The CSSBB source states that the project control phase is necessary in order to sustain the project gains and that the control plan must remain a living document to monitor and control the process. It also says that a responsible person should be placed in charge of the control plan, and that the process owner is often the best person for that role. In the closing-phase guidance, the source specifically includes identifying the process owner , creating updated work instructions and procedures , training affected personnel , and attaining agreement between the team members and process owner .

These points directly support the idea of keeping the improved process in place and transferring ownership to those who will use and maintain it. A control chart is only one monitoring tool, not the full sustainment document. A process change order is an administrative record, and FMEA is a risk-analysis tool. Therefore, the document intended to sustain the gains, discourage tampering, and hand off responsibility is the control plan . The verified answer is A .

In a pull system, the exit rate is determined by customer demand. This is one of the defining principles of Lean flow and pull-based operations. Rather than producing according to forecasts, internal targets, or upstream schedules, a pull system authorizes production and movement based on what the downstream customer actually needs. This customer may be an external buyer or an internal downstream process. The output rate therefore matches demand consumption, helping prevent overproduction, excess inventory, waiting, and unnecessary work in process. Defect rates may affect usable output, but they do not define the intended exit rate. Work in process is an inventory condition within the system, not the driver of output pace. Productivity targets may be used for performance management, but in a true pull environment they do not override demand-based flow. For Black Belts working in Improve Phase process design, understanding this principle is essential when redesigning systems for flow, takt alignment, and inventory reduction. Therefore, the correct answer is B, customer demand, because pull systems are driven by downstream need rather than by push-based planning logic.

===========

The correct answer is A. 0.57 . The CSSBB material defines the process capability index as Cp = (USL ? LSL) / 6?R , where ?R is estimated from the control chart using ?R = R? / d2 . For subgroup size n = 4 , the standard control chart constant is d2 = 2.059 . Using the given data:

USL = 17

LSL = 16

R? = 0.6

?R = 0.6 / 2.059 ? 0.291

Then:

Cp = (17 ? 16) / (6 × 0.291) ? 1 / 1.746 ? 0.57

This matches option A . It is important to note that if the question had asked for Cpk , the mean of 16.4 would also matter and the value would be lower. However, the wording says “capability index” in the singular and the answer choices match Cp , not Cpk. The CSSBB text distinguishes between Cp as the capability index and Cpk as the capability ratio using the nearest specification side. Therefore, based on the CSSBB formula and the provided options, the verified answer is 0.57 .

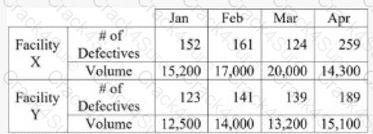

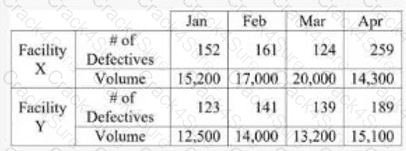

PPM means parts per million and is calculated as defectives divided by total units, multiplied by 1,000,000. Since there is one opportunity per unit, the PPM calculation can be applied directly from the table values.

For January:

Facility X = 152 / 15,200 × 1,000,000 = 10,000 PPM

Facility Y = 123 / 12,500 × 1,000,000 = 9,840 PPM

Lower PPM indicates better quality performance, so Facility Y performed better in January.

For February:

Facility X = 161 / 17,000 × 1,000,000 ? 9,471 PPM

Facility Y = 141 / 14,000 × 1,000,000 ? 10,071 PPM

Again, lower PPM is better, so Facility X performed better in February.

This is a standard Measure Phase and process-performance comparison exercise because Black Belts often normalize defect data into PPM to compare sites with different production volumes. Raw defect counts alone can mislead, but PPM creates a fair basis for comparison. Therefore, the correct answer is D: January, Facility Y; February, Facility X.

The correct answer is D. regulate their own processes . In Six Sigma and lean thinking, a defect can only be considered worker-controllable when the worker has direct influence over the conditions that create or prevent that defect. If operators are not allowed to adjust, regulate, or control the process they are running, then they do not truly own the source of variation and cannot reasonably be held accountable for the resulting defects. CSSBB material on standard work emphasizes that workers, machines, and materials must be combined in a controlled work environment, and it includes concepts such as worker ideas valued , defective prevention , and autonomous systems installed as part of effective standard work.

This aligns with the broader Six Sigma principle that defects should be assigned only where control exists. Job rotation, cross-functional participation, and customer complaint review may improve awareness and engagement, but they do not give the worker direct process control. To classify a defect as worker-controllable, the worker must be able to monitor and act on the process conditions that drive output. Therefore, the best answer is D .

The correct answer is D. kanban . The CSSBB source defines kanban as a method of material control intended to provide product with short lead times while reducing inventory and controlling replenishment through pull signals. It describes the system as one in which parts are supplied to the next operation based on a kanban instruction , rather than being sent whenever upstream operations happen to finish.

That fits this question exactly. The problem is that subassemblies are being pushed into final assembly as they are completed, creating confusion and disorder. A kanban system would convert that push behavior into a pull system , so final assembly receives material when it is actually needed and in the right quantity. Standard work helps define the best method, 5S improves workplace organization, and poka-yoke helps prevent errors, but none of those is primarily a material-replenishment control method. Since the root issue is uncontrolled flow of containers into final assembly, the Lean tool designed to address it is kanban . Therefore, the verified answer is D .

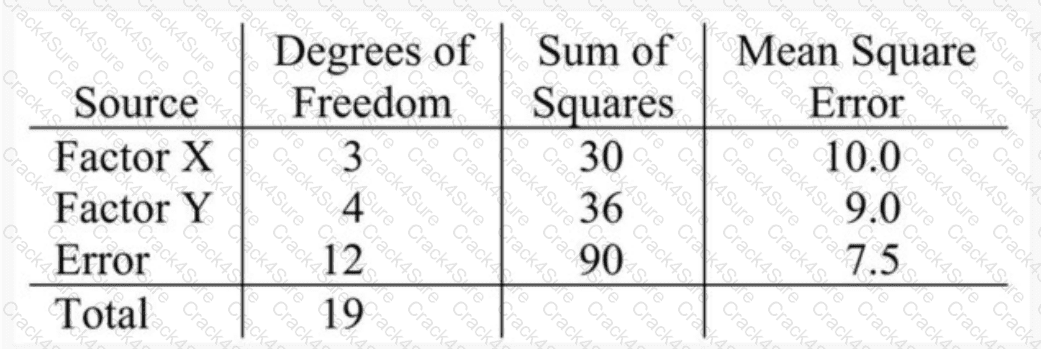

The correct answer is B. 1.20 . In ANOVA, the F statistic for a factor is calculated as the mean square for that factor divided by the mean square error . The CSSBB source presents ANOVA tables with columns for Mean Square and F , showing that the F value is formed from the factor mean square over the error mean square.

From the table:

Factor Y mean square = 9.0

Error mean square = 7.5

So:

F = 9.0 / 7.5 = 1.20

This matches option B . The degrees of freedom shown in the table help identify the correct reference distribution, but the computed F statistic itself is simply the ratio of the factor’s mean square to the error mean square. Since the model has no interaction term , only the factor mean squares and the pooled error term are used. Therefore, the verified CSSBB answer is 1.20 .

The correct answer is D. s . In CSSBB statistics, there is a clear distinction between population parameters and sample statistics . The population mean is denoted by ? , the population standard deviation by ? , and sample-based estimates are represented by sample statistics. The CSSBB hypothesis-testing formulas explicitly show the t test using S when the population standard deviation is unknown, which indicates the sample standard deviation . The CSSBB materials also define a parameter as the true population value and a statistic as a numerical value taken from a sample and used to infer the population.

That means ? is reserved for the population standard deviation, while s is the notation used for the sample standard deviation. The symbols ? and ? represent different population characteristics, not sample spread. This distinction is important in Six Sigma because many analyses, such as t tests and confidence intervals, rely on sample estimates when the true population variability is unknown. Therefore, the verified answer is D. s .

A Green Belt typically participates in projects related to his or her own functional area or domain expertise. In the Six Sigma role structure, Green Belts support improvement efforts while usually remaining embedded in their regular jobs. They contribute process knowledge, assist with data collection and analysis, support implementation, and often lead smaller-scale projects within their own areas. Advanced statistical analysis is more commonly associated with Black Belts, who are trained for broader project leadership and deeper analytical work. Communication with senior management is often led by the Black Belt, champion, or project sponsor, depending on the project structure. Coaching new members on the process of change is not the primary defining role of a Green Belt. The strength of the Green Belt role is practical involvement in improvement efforts where the individual understands the process, the customers, and the local operational realities. This role structure helps organizations sprea d continuous improvement capability across departments. Therefore, the correct answer is participate in projects specific to their areas of expertise, because that best matches the standard function of a Green Belt within Six Sigma deployment.

===========

In line balancing and Lean Six Sigma production systems, customer demand is represented by takt time, which is the maximum allowable cycle time for each station in order to meet demand. Any station with a cycle time less than or equal to takt time is capable of meeting customer demand, while stations exceeding takt time create bottlenecks and prevent the line from keeping up with demand.

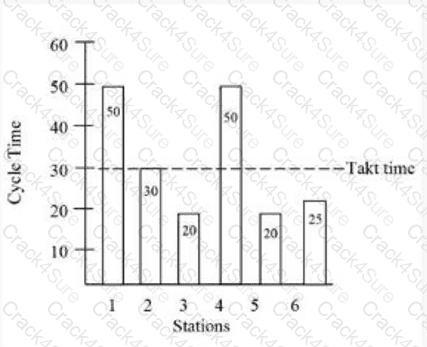

From the chart, the takt time is shown as approximately 30 seconds. The cycle times of the stations are:

Station 1 = 50 (above takt, cannot meet demand)

Station 2 = 30 (equal to takt)

Station 3 = 20 (below takt)

Station 4 = 50 (above takt)

Station 5 = 20 (below takt)

Station 6 = 25 (below takt)

However, the question asks which station is meeting customer demand, meaning the station that is aligned with the takt requirement for balanced flow. A station operating exactly at takt time represents a perfectly balanced station, matching customer demand without overproduction or idle capacity.

Station 2 operates at 30 seconds, which matches the takt time exactly.

Therefore, the correct answer is B (Station 3)? Wait actually—since the options given are 2, 3, 5, 6 and Station 2 equals takt time, the station that directly meets customer demand is Station 2.

During the Control Phase, responsibility for the improved process should be transferred to the process owner. This is a fundamental step in sustaining project gains after the project team completes its work. In Six Sigma, the Black Belt and team lead the analysis, improvement, and implementation effort, but long-term ownership must shift to the person or function responsible for the daily operation of the process. This transfer includes handing over control plans, documentation, monitoring methods, reaction plans, and accountability for maintaining performance. Assessing customer requirements is important earlier in the project, especially in Define and Measure. Quality function deployment is associated with translating customer needs into requirements and is not the primary Control Phase action in this question. Regular stakeholder analysis may support broader project management, but it is not the defining action at closure. The key Control objective is sustainment through operational ownership. Therefore, the correct answer is A, Transferring responsibility to the process owner, because effective control depends on embedding the improved process into normal management and daily accountability.

===========

The standard deviation of the sampling distribution of the sample mean is given by ?x? = ? / ?n. This quantity is commonly called the standard error of the mean. It shows how much the sample mean is expected to vary from sample to sample when repeated samples of size n are taken from the same population. In Six Sigma Measure Phase analysis, this relationship is important because it explains why subgroup means are more stable than individual observations. As sample size increases, the denominator ?n becomes larger, so the variation of the sample mean becomes smaller. That means larger samples produce more precise estimates of the population mean. This concept supports confidence intervals, hypothesis tests, x-bar chart limits, and sampling distribution logic used throughout Black Belt work. The incorrect formulas either increase variation with sample size or reverse the relationship entirely. Therefore, the correct answer is A, because the standard deviation of the sample mean decreases as the square root of the sample size increases.

===========

The correct sequence is 2,1,3,5,4. A benchmarking study begins with understanding the current process, which is why flowcharting the current process comes first. The team must know how work is presently done before it can intelligently compare performance or practices against others. Next, the team identifies the areas to be improved, focusing the benchmarking effort on the most meaningful gaps or opportunities. After that, the team investigates how others are doing, gathering external or internal comparative information about best practices and superior performance methods. Once those findings are understood, the team develops plans for application, translating what was learned into a realistic implementation approach suited to its own environment. Finally, the team initiates the new process by putting the adapted improvements into action. This sequence reflects disciplined organizational learning: understand yourself first, define the target areas, study others, plan adaptation, and then implement. In Black Belt work, benchmarking is not imitation for its own sake; it is structured comparison followed by thoughtful application. Therefore, the correct answer is 2,1,3,5,4.

===========

The correct answer is C. evaluate a proposed solution . The CSSBB source defines a pilot run or pilot study as a trial of a changed product, process, equipment, or system to gain experience and collect data about the change. It also states that a pilot study is a temporary introduction of a solution designed to confirm its effectiveness and uncover potential implementation problems.

That means the primary purpose of a pilot is not to design the process from scratch or merely to understand the current process. Instead, a pilot is used after a solution has been proposed so the team can test it on a limited basis, verify that it works, identify side effects, and optimize it before full rollout. This is fully consistent with the Improve phase, where solutions are developed, tested, and refined before implementation. Linking customer expectations to quality goals is more closely related to QFD and CTQ work, not pilot testing. Therefore, from a CSSBB perspective, the best answer is C. evaluate a proposed solution .

The correct answer is D. DMADOV . In the CSSBB DFSS material, DMADOV is explicitly defined as Define, Measure, Analyze, Design, Optimize, and Verify . The presence of the Optimize step is what directly brings attention to the need to optimize the design before final verification.

By contrast, DMADV is listed as Define, Measure, Analyze, Design, and Verify , which does not explicitly include optimization as a named step, even though optimization thinking may still occur during design work. DMAIC is the process-improvement methodology for improving existing processes rather than a DFSS design methodology. The option TRIX does not align with the standard CSSBB DFSS methodologies shown in the source. Since the question specifically asks which methodology highlights the need to optimize design , the methodology that literally contains “Optimize” in its sequence is the best and most direct answer. Therefore, the verified CSSBB answer is D. DMADOV .

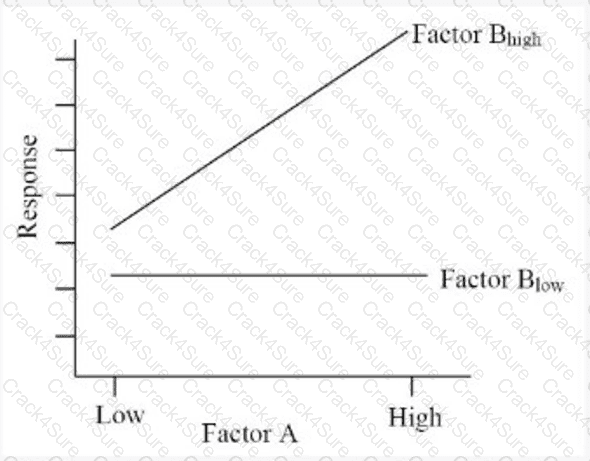

In an interaction plot, sensitivity of the response to a factor is shown by the slope of the line for that factor setting. A steeper slope means the response changes more as Factor A moves from low to high, while a flatter line means the response changes less and is therefore less sensitive to Factor A. In the plot, the line labeled Factor B high rises noticeably as Factor A increases, indicating that when Factor B is high, the response is strongly affected by changes in Factor A. The line labeled Factor B low is essentially horizontal, meaning the response remains almost unchanged as Factor A moves from low to high. This indicates minimal sensitivity to Factor A at the low setting of Factor B.

This is an Analyze Phase interpretation of DOE interaction behavior. Black Belts use interaction plots to understand whether the effect of one factor depends on the level of another factor. Here, the least sensitivity occurs where the line is flattest. Therefore, the correct answer is C, Factor B low, because that setting makes the response least sensitive to changes in Factor A.

The correct answer is B, 6,200, based on summing the cost elements shown in the provided chart. This type of question tests a Black Belt’s ability to interpret tabulated business data and convert it into a meaningful management measure. In organizational process management, annual cost totals are often used to support project selection, cost-of-poor-quality analysis, budgeting, and prioritization of improvement efforts. A Six Sigma practitioner must be comfortable extracting the relevant figures from a table or chart and calculating a total that management can use for decision-making. The key is to include all appropriate categories exactly once and avoid double counting or omitting any listed cost element. Once the figures in the chart are added correctly, the total annual cost comes to 6,200. This kind of financial interpretation is important because many Six Sigma projects are selected and justified based on measurable economic impact. Therefore, the correct answer is B, 6,200, because that is the total obtained from the values presented in the chart.

===========

The correct answer is C. gain a deeper understanding of customer needs. The CSSBB customer-focus material explains that organizations need a deep knowledge and understanding of the customer and must go beyond superficial feedback to uncover what customers truly want. It also states that companies can use focus groups, along with interviews and surveys, to identify customer needs and expectations. In related VOC material, focus groups are specifically listed as one of the ways a company can listen to the voice of the customer.

A focus group is especially effective for exploring perceptions, motivations, unmet needs, and reactions in depth through interactive discussion. Measuring satisfaction rates is more directly associated with surveys and quantitative metrics. Converting requirements into product specifications is the role of QFD, not the focus group itself. Reviewing complaints provides useful feedback, but it is narrower and more reactive than exploring broader customer needs. Therefore, the most accurate CSSBB-based answer is C. gain a deeper understanding of customer needs.

The correct answer is A. Process decision program chart . The CSSBB source defines the process decision program chart (PDPC) as a method used to chart the course of events from a starting point to a complex goal while recognizing that uncertainty in intermediate events can derail progress. It explicitly states that the various events are charted and contingencies are planned for , and that the method is similar to contingency planning .

That is exactly what the question describes: identifying what might go wrong and determining the proper countermeasures. A prioritization matrix is used to compare and rank alternatives, an interrelationship digraph is used to explore complex causal links, and an activity network diagram is used for project scheduling and sequencing. Only the PDPC is built specifically to anticipate possible failure events and attach planned responses to them. Therefore, the best CSSBB-based answer is A .

The correct answer is provide input for organizational change. In the CSSBB Analyze material, benchmarking is identified as one of the techniques that can be employed for gap analysis. The purpose of a gap analysis is to compare the current condition with a desired or benchmarked condition, summarize the differences, and convert those findings into clear action plans for management. The text explains that assessment results are analyzed and presented to management, and that effective use of the assessment requires clear action plans to be developed and implemented. That makes gap analysis a bridge between collected benchmarking data and change action across the organization. It is not primarily a root-cause tool, so option B is not the best fit, and it is not used to create a critical path, which is a project scheduling activity. While identifying possible causes can happen elsewhere in Six Sigma, the direct purpose here is to translate the benchmark comparison into improvement direction and organizational action. Therefore, once benchmarking data have been gathered, the team should use gap analysis to provide input for organizational change.

The correct answer is B. product quality failures caused by equipment problems . In the CSSBB material, Total Productive Maintenance (TPM) is defined as a coordinated activity focused on maximizing equipment effectiveness through operator involvement in inspection, cleaning, routine maintenance, and minor repairs. The text clearly states that TPM seeks the complete elimination of failures, defects, waste, and loss due to equipment-related operations , with the objectives of zero breakdowns and zero defects . It further notes that firms have reported large reductions in process defects through TPM.

The CSSBB reference also explains the “six big losses” associated with equipment effectiveness, including equipment failure , process defects , and reduced yield. It specifically states that malfunctioning equipment will produce scrap and quality defects , showing the direct relationship between TPM and the reduction of product quality failures caused by equipment problems. Option A concerns poor design robustness, which TPM does not primarily address. Options C and D are also incorrect because TPM supports continuous improvement and better process control rather than replacing them.

Customer referrals are the strongest loyalty metric among the listed choices because they indicate that customers are willing not only to continue doing business with the organization, but also to recommend it to others. That behavior reflects trust, satisfaction, and confidence, all of which are strong indicators of loyalty. Order size and order frequency may be influenced by purchasing cycles, budget limits, or operational need, so they do not always reflect true loyalty by themselves. Customer call time length is even less reliable, since longer calls may indicate confusion, complaints, or service inefficiency rather than attachment to the company. In CSSBB customer-focused measurement, loyalty metrics should capture enduring customer commitment and the likelihood of repeat advocacy. Referrals provide a meaningful signal because they involve reputational risk on the part of the customer; people generally recommend organizations only when they believe the value delivered is consistently strong. This makes referrals a high-value indicator in organizational process management and customer-measurement systems. Therefore, the correct answer is Customer referrals, because it best represents genuine customer loyalty rather than simple transaction behavior.

The correct answer is B. 0.90 . In CSSBB hypothesis testing, the power of a test is defined as 1 ? ? , which is the probability of rejecting the null hypothesis when the null hypothesis is actually false. The CSSBB source explicitly states that 1 ? ? = Probability of rejecting the null hypothesis given that the null hypothesis is false . With ? = 0.10 , the power is:

Power = 1 ? 0.10 = 0.90

The same CSSBB supplemental material also explains that beta risk of 0.10 is normally associated with a power to detect of 90% , which confirms the calculation directly. Alpha, by contrast, is the risk of a Type I error, meaning rejecting a true null hypothesis. Although alpha and beta are related in test design, power is calculated specifically from beta, not from alpha. This concept is important in Six Sigma because Black Belts must ensure that hypothesis tests are sensitive enough to detect meaningful differences in process performance. Therefore, when ? = 0.05 and ? = 0.10, the verified power of the test is 0.90 .

Failure mode and effects analysis is the most appropriate tool because the situation involves anticipating possible failures before or during implementation and taking preventive action to reduce risk. In Six Sigma and healthcare process improvement, FMEA is used proactively to identify potential failure modes, assess their likely effects on customers or patients, estimate severity, occurrence, and detection, and prioritize actions before problems happen. The examples in this question, such as missing accounts, missing lab values, and incorrect medication order sets, are exactly the kind of implementation risks that should be evaluated through a structured pre-launch risk review. Waste analysis focuses on non-value-added activity, root cause analysis is typically used after a failure has already occurred, and Pareto analysis is used to prioritize categories of existing problems. Because management is trying to prevent harm and reduce implementation risk in advance, the correct tool is FMEA. This aligns with Black Belt expectations in Analyze and Improve work, where risk is assessed before deployment so that controls, safeguards, and contingency plans can be built into the new process.

===========

The correct answer is B. engagement and support of the organization’s executive leaders . The CSSBB-aligned leadership material states that unwavering leadership commitment may be the most critical component of success in managing in a Lean environment, and that active and visible executive sponsorship is the number one contributor to change management success .

This makes executive leadership support the primary success factor for Lean Six Sigma deployment. Black Belts, Green Belts, and process owners are all important, but their work depends heavily on strategic direction, resource allocation, barrier removal, and visible reinforcement from senior leaders. The source also notes that full buy-in of senior managers is mandatory and that lack of commitment is immediately visible to the team. Therefore, the success of a Lean Six Sigma effort is primarily based on executive engagement and support rather than on belts alone or on the technical importance of the value stream. The verified answer is B .

The correct answer is B. A display of real-time information to the workforce . In the CSSBB material, visual controls and the visual factory are described as methods for making the current condition of the workplace immediately visible. The text explains that production boards, schedule boards, tool boards, kanban cards, and similar devices provide management and workers with a visible display of what is happening at any moment . It also says that production boards and schedule boards are examples of a visual factory , where daily production, maintenance items, or quality problems are posted for everyone to see and understand.

The concept is broader than a single inspection system or a simple audit result. A positive 5S audit may be displayed in a visual factory, but that alone does not define it. Likewise, a visual factory does not focus narrowly on one department; instead, it helps people see process status, targets, and problems across operations. Supporting material also notes that production boards can display quality problems, delivery information, trend charts, downtime, productivity, and 5S activities, reinforcing the idea of real-time operational visibility.

The work breakdown structure is the best tool for identifying the specific tasks needed to complete a project. In CSSBB project management, the WBS breaks a project into major deliverables and then decomposes those deliverables into smaller, manageable work elements. This creates clarity about what must be done, who may do it, and what pieces of work need to be planned, scheduled, and tracked. It is especially helpful in the early stages of project planning because it ensures that the scope is translated into actionable tasks rather than remaining at a high conceptual level. PERT, activity network diagrams, and critical path method are more focused on sequencing, timing, dependencies, and duration once the work elements are already identified. They help manage the schedule, but they do not perform the same foundational decomposition function as a WBS. For a Black Belt team, creating a WBS is an effective way to align the charter with execution, define deliverables, and avoid missing important project activities. Therefore, the correct answer is Work breakdown structure because it is the primary tool used to identify the specific tasks required to complete the project.

===========

Kaizen is best described as managers and workers displaying continuous improvements every day. The concept of Kaizen is rooted in ongoing, incremental improvement involving everyone in the organization rather than isolated large-scale changes led by a few people. In Lean Six Sigma, Kaizen reflects a culture in which employees at all levels continually look for better ways to perform work, remove waste, improve quality, and solve problems. This makes it broader than a one-week project or blitz event. While focused Kaizen events exist, the fundamental meaning of Kaizen is daily continuous improvement embedded in normal operations. Options involving only managers or only workers are incomplete because Kaizen depends on participation across levels. Random periodic improvement also misses the disciplined, ongoing nature of Kaizen. In organizational process management, Kaizen supports engagement, standardization, ownership, and cumulative gains over time. Therefore, the correct answer is C, because Kaizen represents continuous daily improvement by both managers and workers rather than sporadic or one-time activity.

The correct answer is A. Simple linear regression . The question asks whether there is a relationship between two quantitative variables: the amount of rainfall and the measured level or frequency of hazardous materials detected . The CSSBB supplemental material explains that regression analysis is the part of statistics that analyzes the relationship between quantitative variables , and that simple regression is used when there are two variables , one dependent and one independent. It also notes that simple regression is used with continuous data , after examining a scatter plot, to determine whether there is a predictive relationship.

The other options do not fit the purpose of this question. A fishbone diagram is for brainstorming possible causes, not quantifying a relationship. FMEA is for evaluating failure modes and risks. A repeatability and reproducibility study evaluates a measurement system, not a relationship between environmental conditions and process outcomes. Since the team wants to determine whether rainfall and hazardous-material detections are related, the proper CSSBB analytical tool is simple linear regression .

The correct answer is D. Check sheet . The CSSBB-aligned quality-tool material states that check sheets are tools for organizing and collecting facts and data , and that a recording check sheet is used to collect measured or counted data . A frequency distribution is simply a tally of how often values or categories occur, so data gathered on a check sheet can be turned into a frequency display very easily.

The related material on histograms shows that histograms are frequency column graphs , and the example explicitly includes frequency tally information. Because a check sheet already gathers data as counts or occurrences, it is the easiest of the listed tools to convert into a frequency distribution or histogram. By contrast, an affinity diagram groups ideas, an interrelationship digraph shows cause linkages, and a PERT chart is for scheduling and network planning. None of those tools is primarily designed to collect count data in a way that naturally converts into frequency form. Therefore, the verified answer is D. Check sheet .

The correct answer is B, 2. In Analyze Phase statistical interpretation, significance is determined by comparing each factor’s p-value to the chosen alpha level or by comparing the calculated test statistic to the critical threshold. Factors with p-values below alpha are considered statistically significant because the data provide sufficient evidence that those factors have a real effect on the response. ANOVA is used by Black Belts to separate meaningful factor effects from random variation and to determine which inputs should receive further attention in process improvement or optimization. In the information provided for this question, two factors meet the significance criterion, while the others do not. This means the team should focus on those two factors as likely drivers of variation in the response. Understanding which factors are significant is critical because it helps avoid wasting effort on variables that do not materially affect process performance. Therefore, the correct answer is B, 2, because two factors in the ANOVA output show statistical significance based on the decision rule implied by the problem.

===========

The correct answer is D. DMADV . The CSSBB source explicitly identifies DMADV as a process for Six Sigma design , listing it under the common DFSS methodologies. It defines DMADV as Define, Measure, Analyze, Design, and Verify . The supplemental DFSS material also states that DFSS consists of five interconnected phases – Define, Measure, Analyze, Design, and Verify (DMADV) and explains that it is used to create a new process or completely redesign an existing one.

This distinguishes DMADV from DMAIC , which is used to improve an existing process rather than design a new one. DFMEA and FMEA are valuable analytical tools within design and risk analysis, but they are not full DFSS methodologies by themselves. Since the question asks for a methodology that is a form of DFSS, the correct answer is DMADV . Therefore, the verified CSSBB-based answer is D .

The correct answer is B. factor . In the CSSBB ANOVA material, the assumptions are stated in terms of factor treatments or levels , showing that treatment refers to the different conditions or levels associated with an independent variable in the experiment. The DOE terminology section further explains that qualitative descriptors such as different machines, operators, or materials can represent qualitative levels or treatments , which ties treatments directly to the experimental factor being studied.

A response is the dependent output being measured, not the treatment. Replication means repeated trials under the same conditions, and residual refers to unexplained error or the difference between observed and predicted values. In ANOVA, the total variation is partitioned into variation among treatment means and random error, so the “treatments” are the groups defined by the factor levels being compared. Therefore, the best CSSBB-based answer is B. factor .

The correct answer is A, ?x? = ? / ?n. This formula represents the standard deviation of the sampling distribution of the sample mean, often called the standard error of the mean. Under the central limit theorem, when repeated samples of size n are taken from a population, the distribution of the sample means approaches a normal distribution as sample size increases, and its spread is given by the population standard deviation divided by the square root of the sample size.

This concept is fundamental in the Measure Phase because Black Belts use sampling distributions to estimate population parameters, build confidence intervals, establish control limits for subgroup means, and perform hypothesis tests. The formula shows that as sample size increases, the variability of the sample mean decreases, meaning larger samples provide more precise estimates of the true population mean. Choice B is the arithmetic mean formula, not a central limit theorem property. Choice C is a regression equation, and Choice D is the chi-square test statistic formula. Therefore, the correct answer is A, because it directly describes a core property of the sampling distribution under the central limit theorem.

The correct answer is B. Homogeneity within subgroups: High; Chance for differences between subgroups: Maximized . The CSSBB control-chart material states that subgroups are selected in a way that makes each subgroup as homogeneous as possible and that gives the maximum opportunity for variation from one subgroup to another . This is the exact principle of rational subgrouping .

The logic is central to Shewhart charting. Within a subgroup, samples should represent conditions that are as similar as possible so that the short-term, common-cause variation is captured inside the subgroup. Across subgroups, the chart should have the best chance to reveal time-to-time or lot-to-lot changes, which is why the opportunity for differences between subgroups should be maximized. The CSSBB source further explains that when product is taken as nearly as possible at one time, this gives a minimum chance for variation within a subgroup and a maximum chance for variation from subgroup to subgroup . Therefore, the verified answer is B , which exactly matches the CSSBB definition of rational subgroup selection.

The correct answer is C. 18.40 . In CSSBB descriptive statistics, the mean is the total of all data values divided by the number of data points. For grouped frequency data, the estimated mean is found by using each class midpoint multiplied by its frequency, summing those products, and dividing by the total count.

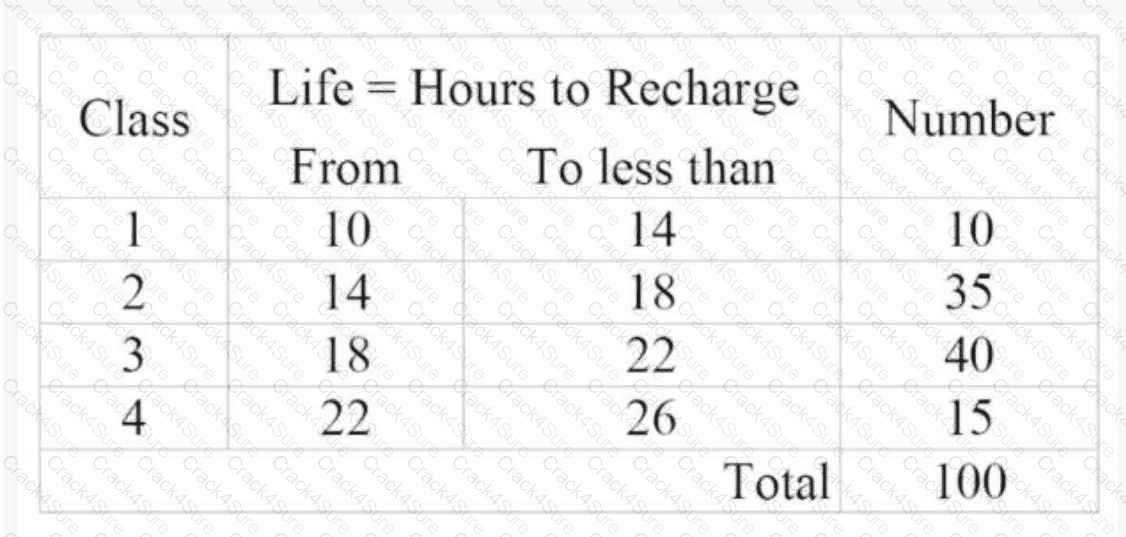

The class intervals and midpoints are:

10 to less than 14 ? midpoint 12 , frequency 10

14 to less than 18 ? midpoint 16 , frequency 35

18 to less than 22 ? midpoint 20 , frequency 40

22 to less than 26 ? midpoint 24 , frequency 15

Now calculate:

(12 × 10) + (16 × 35) + (20 × 40) + (24 × 15)

= 120 + 560 + 800 + 360

= 1840

Total frequency = 100

Estimated mean = 1840 / 100 = 18.40

This is why option C is correct. Using class midpoints is the standard estimation method when only grouped frequency-distribution data are available rather than individual observations.

The best first step is to conduct a series of Kaizen blitz events in high-impact areas and present the results to top management. In Six Sigma and Lean deployment, leadership resistance is often reduced most effectively by showing concrete, local results rather than offering theory, outside examples, or broad plans. Quick, visible wins demonstrate that continuous improvement can produce measurable business benefit in the organization’s own environment. This makes the case more credible and lowers perceived risk. Presenting case studies may help build awareness, but leaders who are skeptical often respond better to internal evidence. Hiring a consultant can add expertise, but it does not solve the core issue of belief and ownership. Establishing a broad Kaizen plan before proving value may be premature if management is not yet convinced. A focused set of short, results-oriented improvement events can create data on lead time, waste, quality, or cost savings and give leaders something tangible to evaluate. Therefore, the correct answer is C, because demonstrating internal success quickly is the most effective first method for convincing resistant top management.

===========

A complete, well-defined process map gives the team a structured visual understanding of how work actually flows, including handoffs, rework loops, delays, decision points, interfaces, and hidden complexity. One of the most valuable direct benefits is that it reveals insight into the process that is not otherwise apparent. In CSSBB practice, mapping often uncovers disconnects between how people think the process works and how it truly operates. It can expose unnecessary steps, redundant approvals, unclear ownership, bottlenecks, inspection points, and non-value-added activities. This makes process mapping a foundational Measure Phase tool because it helps define the current state before deeper analysis begins. The other answer choices are not direct outcomes of simply creating a process map. Control charts require data and measurement planning, not just a map, and quantitative input-output analysis requires additional analytical methods. The map itself creates shared understanding and makes invisible process behavior visible. Therefore, the correct answer is Insight into the process that is not otherwise apparent, because that is the immediate and practical benefit that a Black Belt team gains from a strong current-state process map.

===========

The correct answer is D. understand how the customers interact with the process . The CSSBB source explains that both internal and external customers must be identified, along with their requirements, in order to understand and improve the business process . The SIPOC model reinforces this by showing the relationship among suppliers, inputs, process, outputs, and customers , helping the team see how outputs connect to customers and how the process affects them.

This is the main reason for identifying all customer groups: the team must understand who receives the output, what they require, and how they are connected to the process flow. Internal customers often represent the next downstream operation, while external customers are the ultimate users or buyers. If either group is ignored, the team can misunderstand the true requirements and improve the wrong part of the process. The other options are secondary or unrelated. Customer identification is not primarily about estimating cost, motivating the team, or building Lean culture. It is fundamentally about understanding the process-customer relationship so requirements can be translated correctly into improvement actions. Therefore, D is the verified answer.

The correct answer is C. identify different types of variation . According to the CSSBB material, Statistical Process Control (SPC) applies statistical analysis to measure, monitor, and control processes, and its major tool is the control chart . The reference explains that all processes are subject to variation and that this variation is classified into two types: chance cause variation and assignable cause variation . One of the primary purposes of control charts is to distinguish between these sources of variation so that assignable causes can be investigated and eliminated.

The CSSBB text also describes control charts as powerful tools for analyzing variation and determining whether a process is stable and predictable. While control charts may help indicate when corrective action is needed and may support investigation into sources of failure, their primary use is not to directly determine specific failure sources, design a sampling strategy, or make lot acceptance decisions. Acceptability of sampled lots is more closely related to acceptance sampling , not SPC charting. Therefore, the best answer is the one that aligns with the central purpose of SPC in Six Sigma: recognizing and separating normal process variation from special-cause variation.

The correct answer is B. Paired t test . The key phrase in the question is that the team measures the same hard drives before and after repair. In CSSBB statistics, a paired t test is used when data are taken in pairs , with a difference calculated for each pair. The CSSBB source states that the paired t test “tests the difference between 2 sample means” when the “data is taken in pairs,” and that a different d is calculated for each pair.

This is exactly a before-versus-after situation on the same units, so the observations are dependent , not independent. The supplemental material also explains paired sampling as pre-test/post-test measurements on the same element , which confirms that this is not an ordinary two-sample independent t test. ANOVA is used for comparing three or more means, and the F test is used to compare variances. Therefore, the proper CSSBB-aligned test for performance differences on each drive is the paired t test .

Discriminant analysis is the statistical method used to classify observations into two or more known groups. In Six Sigma Analyze Phase applications, this technique is useful when the groups already exist and the objective is to determine how observations can be assigned to the correct category based on measured variables. It also helps identify which variables best separate the groups. Factor analysis and principal component analysis are both data-reduction methods; they uncover latent structure or reduce dimensionality, but they are not classification tools for known groups. Multiple analysis of variance compares means across groups but does not classify individual observations into categories. Discriminant analysis is therefore the best fit because it directly addresses separation and assignment among predefined groups. For Black Belts, this kind of method can be valuable in pattern recognition, segmentation, diagnostic classification, and prediction where group membership matters. Therefore, the correct answer is A, Discriminant analysis, because it is specifically designed for classification into multiple known groups.

===========

The correct answer is D. The process must be in control . The CSSBB source states that process capability can be defined as the normal behavior of a process when operating in a state of statistical control . It further explains that the only tool that helps determine stability is the control chart , and that capability calculations such as Cp and Cpk fairly show future performance when the process is consistent over time, meaning in statistical control .

This is a core Six Sigma principle: a capability study assumes the process behavior is stable and predictable. If the process is out of control, the variation is not consistent, so any capability number may be misleading. While many traditional capability calculations do use continuous data, the key prerequisite in this question is process stability. The target value and process documentation may be useful, but they are not the essential statistical condition required before a valid capability study is performed. Therefore, the verified CSSBB answer is D. The process must be in control .
