The Survey Point represents the shared real-world or site coordinate framework. Placing or defining it consistently at the common site origin allows every building model to relate to the same survey reference for federation, site plans, civil coordination, and geographically consistent exports.

Each building should retain its own Project Base Point because this point supports the building’s local project-coordinate framework. A building may use a convenient internal datum and orientation suited to its grids, geometry, and documentation while still maintaining a transformation to the common survey system. This separation allows the buildings to remain independently manageable without losing site-wide positional accuracy.

Placing every Project Base Point at the shared site origin would eliminate the intended distinction between each building’s local coordinate basis and the common site reference. Likewise, using a single Project Base Point across all separate models is not how Revit coordinate systems operate; each model has its own internal origin, Project Base Point, and Survey Point. Option B is imprecise because the requirement is not to establish unrelated Survey Points, but to align the models to one shared site origin.

The correct arrangement is a common Survey Point reference combined with a locally appropriate Project Base Point for each building.

Reference topics: Survey Point; Project Base Point; multi-building coordination; local versus shared coordinates; site federation; building-specific origins.

===============

The BIM manager should perform a formal compliance review against the BIM Execution Plan, model-content standard, information requirements, and applicable element or classification matrix. Each nonconforming condition should be documented clearly, including incorrect category assignments, inconsistent object styles, excessive geometric detail, missing parameters, invalid naming, and unsuitable data structures.

The subcontractor should then receive a controlled revision request identifying the required corrections and resubmission criteria. Geometry should be simplified to the level needed for coordination and downstream use, but required metadata, classifications, connection points, clearances, and asset information must be retained. Optimization and information compliance are parallel requirements, not competing alternatives.

Approving the model unchanged would introduce performance and data-quality defects into the federation and could cause unreliable clash results, scheduling errors, or handover deficiencies. Hiding excessive detail with view filters changes only its visibility; the underlying geometry and data remain noncompliant and continue to affect model processing. Instructing the subcontractor to reduce file size regardless of information loss also fails the project’s deliverable requirements.

Acceptance should occur only after the revised model passes the defined quality-control checks.

Reference topics: Content standards; subcontractor deliverables; model acceptance criteria; geometry optimization; classification and metadata; BEP compliance; quality-control reporting.

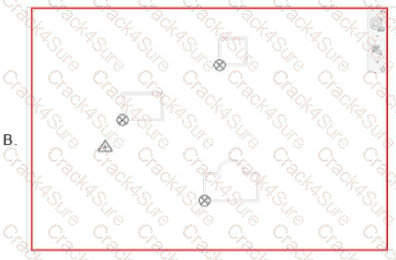

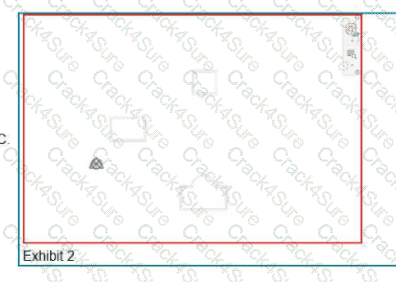

Exhibit 3 represents the correct multi-building coordination condition. It shows the three building models occupying their intended and separate locations while referencing a common site-coordinate framework. Each building retains the model reference required for its individual internal setup, but all models are related to one consolidated site reference, thereby preserving their geographic placement and orientation when linked into the site model.

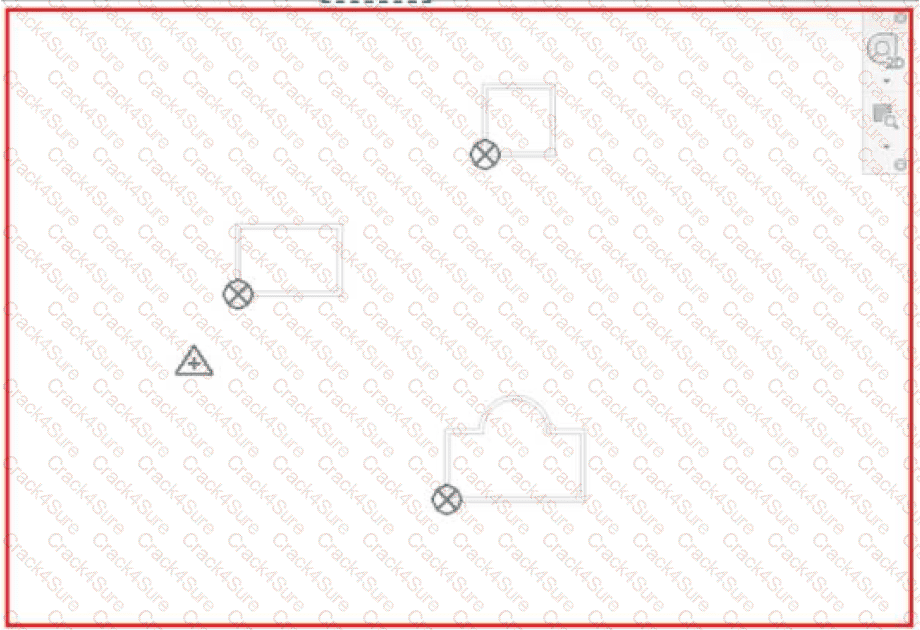

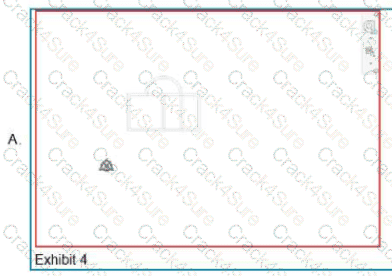

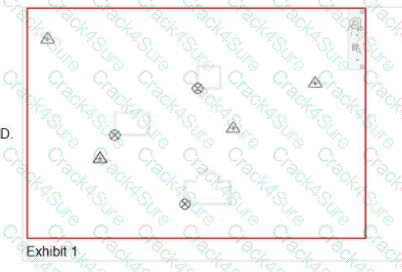

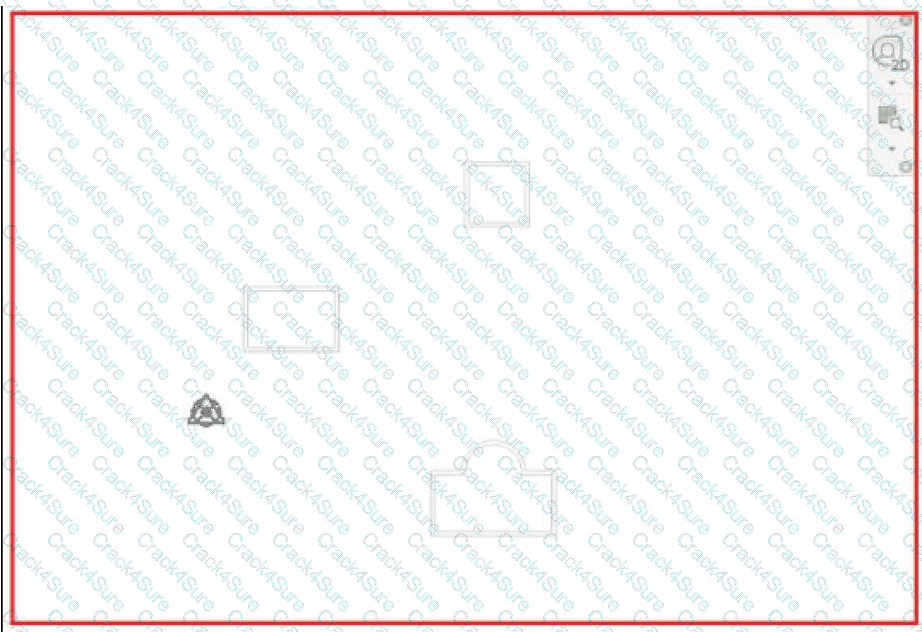

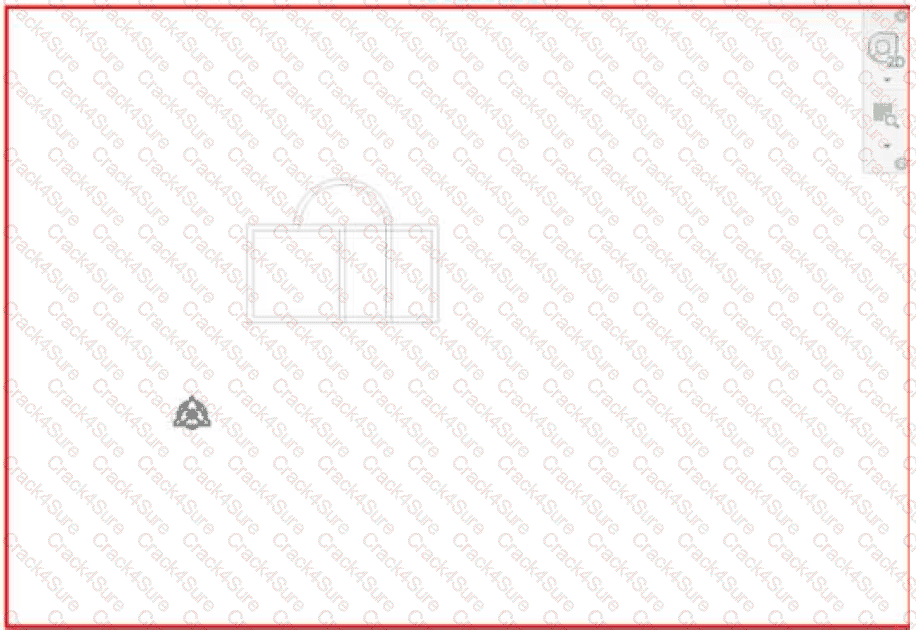

Exhibit 1 displays multiple displaced site-reference indicators, suggesting that the building models have not been reconciled to one authoritative shared-coordinate system. This condition creates a risk that models will appear correctly only when manually positioned and will subsequently shift when reloaded or exchanged. Exhibit 2 does not demonstrate the required relationship between the individual building origins and the shared site reference. Exhibit 4 places the building geometries on top of one another, which is characteristic of models linked using a common internal origin without applying their correct site positions.

For a campus or multi-building project, the site model should function as the authoritative spatial reference. Each building model is positioned against that site definition, and the coordinated relationship is retained through shared positioning rather than repeated manual movement. This allows consistent federation, consultant exchange, reload behavior, and downstream coordination.

Reference topics: Shared coordinates; multi-building projects; site-model authority; linked-model positioning; survey and internal reference management; model federation.

===============

The DWG should be cleaned in AutoCAD before it is accepted as a Revit link. Setting PROXYGRAPHICS=1 preserves graphical representations of custom or proxy objects so that applications without the originating object enabler can display the relevant geometry. PURGE ALL removes unused layers, blocks, linetypes, text styles, registered applications, and other unreferenced definitions that unnecessarily increase file complexity.

AUDIT identifies and repairs database errors, while OVERKILL removes duplicate or overlapping lines and can consolidate redundant geometry. Together, these operations reduce the amount of irrelevant data Revit must interpret when loading and regenerating the linked file.

Deleting every XREF may remove required design information, while changing fonts does not resolve database corruption or excessive geometry. Deleting all text and exploding all geometry is destructive and commonly increases the number of individual entities, making performance worse. Setting PROXYGRAPHICS=0 can prevent required custom-object representations from being retained for downstream display.

The cleaned DWG should also be limited to the required layers and extents, checked for correct units and coordinates, and linked rather than imported wherever feasible.

Reference topics: DWG preparation; linked versus imported CAD; PURGE; AUDIT; OVERKILL; proxy graphics; Revit model-performance management.

===============

The clash matrix is the project’s approved framework for determining which model combinations, object categories, zones, and tolerances require coordination. The BIM manager should configure clash tests to reflect that matrix rather than distribute an unfiltered list of every geometric intersection generated by the software.

Low-value results should be removed through controlled rule selection, object-category filtering, zone-based scoping, and technically justified tolerance settings. Reports can then be organized according to each discipline’s responsibility and focused on clashes that materially affect constructability, design intent, access, maintenance clearances, or code compliance.

Sending all 3,000 results to project teams transfers the BIM manager’s triage responsibility to designers and creates substantial coordination noise. Manual spreadsheet sorting separates the results from model context and is inefficient for repeated review cycles. Arbitrarily relaxing clash rules merely to reduce totals is also unacceptable; tolerances must correspond to documented project requirements rather than a desired numerical result.

Applying the clash matrix creates a repeatable, auditable process and ensures that coordination meetings address consequential issues instead of irrelevant geometric contacts.

Reference topics: Clash matrices; clash-test configuration; tolerance management; discipline-based reporting; coordination prioritization; Model Coordination.

===============

A mandatory multidisciplinary review session is the strongest method for ensuring that contributors understand the BEP rather than merely receive it. The session allows the BIM manager to explain model ownership, coordination procedures, file structures, software requirements, information exchanges, quality-control responsibilities, naming conventions, issue workflows, and escalation processes. It also enables each discipline to identify ambiguities and confirm acceptance before implementation begins.

Following review and approval, the BEP should be retained as the official controlled project document in the Common Data Environment. This provides an accessible reference and establishes the approved baseline against which later revisions can be tracked.

Uploading a live copy to a shared folder is necessary for accessibility, but distribution alone does not demonstrate that participants understand their obligations. Including the BEP in the contract provides formal status but does not replace operational onboarding. Email signatures confirm receipt or acknowledgment, not comprehension, and can lead to disconnected copies outside the controlled document environment.

The best process combines formal review, multidisciplinary approval, controlled publication, and ongoing accessibility. Among the available choices, option B most completely addresses understanding, agreement, and official document control.

Reference topics: BIM Execution Plan onboarding; multidisciplinary review; roles and responsibilities; controlled documentation; Common Data Environment; approval and revision management.

A complete absence of clashes on a large multidisciplinary retail project is more likely to indicate an input or positioning problem than perfect coordination. The BIM manager should first confirm that every published model uses the approved shared-coordinate system and appears in the correct horizontal position, elevation, and orientation. Models exported using unrelated internal or project coordinates may be separated by a substantial distance in the coordination space, preventing the clash engine from detecting intersections.

After correcting the source models, the teams should republish the designated coordination views and verify visually that the architectural, structural, and building-services models overlay correctly before rerunning clash detection. Publication status, model versions, included geometry, and coordination-space assignments should also be checked.

Adding sheets does not affect three-dimensional clash detection because sheets are documentation containers rather than coordinated model geometry. Proceeding on the assumption that zero results means zero issues would bypass essential input validation. A case study would be inappropriate until the unexpected result has been investigated and confirmed.

The governing principle is that clash results are only reliable when the model inputs, coordinate systems, publication settings, and federation are validated first.

Reference topics: Shared coordinates; model publication; coordination-space validation; clash-detection inputs; federated-model positioning; quality assurance.

===============

Repositioning the authoritative civil site resource relative to the established building model and then publishing the revised positional relationship is the least disruptive approach. At Design Development, multiple disciplines may already have linked the building model, established views, placed annotations, configured worksets, and coordinated systems around its current internal geometry. Physically moving all building elements would therefore create extensive risk, including displaced annotations, broken constraints, altered links, and inconsistent consultant coordination.

Publishing the updated position preserves the controlled relationship between the project model and the site resource without requiring each discipline to relocate its authored geometry manually. The revised coordinate relationship can then be distributed through the established shared-coordinate workflow.

Specify Coordinates at Point is not appropriate merely because a setback changed; it can redefine the project’s coordinate basis based on an isolated point rather than maintaining the managed relationship with the civil reference. Resetting coordinates and reacquiring them is substantially more disruptive because it discards the existing shared-coordinate relationship and can affect every connected model. Moving all model elements is the highest-risk option because it changes design geometry rather than correcting the external positional reference.

Reference topics: Shared coordinates; civil-site coordination; Publish Coordinates; model positioning; geolocation governance; change management during design development.

===============

A dedicated coordination group defines the exact collection of models that will participate in the specified coordination review. Assigning only the Architectural and Structural published models to that group limits clash processing to the required discipline pair and produces a clean, controlled result set aligned with the approved clash matrix.

Running clash detection across every model and filtering the results afterward is inefficient and may generate a large volume of irrelevant issues. It also makes reporting less precise because the underlying coordination space still includes trades that were explicitly intended to be excluded. Requesting other disciplines to remove views or models disrupts established publication workflows and may affect other coordination activities. Similarly, merging all models into one file and manually hiding elements eliminates clear model ownership and is not an appropriate cloud-coordination method.

Coordination groups allow the BIM manager to establish discipline-specific or package-specific clash tests without modifying the source models. Separate groups may be maintained for Architectural–Structural, Mechanical–Structural, Architectural–MEP, or other approved combinations.

Reference topics: Model Coordination; coordination groups; clash matrices; published design models; discipline-specific clash testing; federated-model governance.

===============

A project-specific BIM kickoff is required to convert the BEP and client information requirements into operating procedures understood by every contributor. The session should align teams on weekly publication deadlines, approved file formats, model naming, coordinate standards, coordination responsibilities, issue workflows, COBie parameter requirements, validation gates, and final handover expectations.

This is particularly important where consultants use different platforms. The team must agree on interoperability methods, exchange formats, responsibility for data loss during conversion, and the authoritative location for approved information. The kickoff also provides an opportunity to identify training, software, access, and resource gaps before they affect production.

Accepting each firm’s standard workflow would preserve incompatible practices rather than establish a unified project process. Configuring permissions is necessary, but a Common Data Environment cannot compensate for undefined workflows or inconsistent deliverables. Waiting to modify a baseline BEP only after coordination problems occur is reactive and allows preventable errors to enter the project.

The kickoff should conclude with confirmed responsibilities, documented decisions, action owners, and controlled updates to the BEP and delivery plans.

Reference topics: BIM kickoff; multidisciplinary alignment; COBie; interoperability planning; coordination uploads; project-specific workflows; BIM Execution Plan implementation.

The existing project levels should be retained because the preset floor plans, reflected ceiling plans, and other level-associated views already placed on sheets depend on them. The BIM manager should align those levels with the authoritative as-built levels and then establish monitoring where appropriate. The linked grids can be created in the host through Copy/Monitor , providing native project grids that correspond to the resource model.

Deleting the template levels would also delete or disrupt dependent views, resulting in precisely the extensive sheet and view reconstruction the question requires the BIM manager to avoid. A Scope Box controls datum extents and view cropping; it does not reconcile level elevations or create coordinated grid elements. Hiding the host levels and displaying only linked datums would leave the host project without properly coordinated native reference elements and would not support reliable modelling or documentation.

After alignment and copying, the team should review Copy/Monitor warnings whenever the linked as-built model changes. This preserves the firm’s established documentation infrastructure while integrating authoritative project-specific datum information.

Reference topics: Copy/Monitor; level-associated views; linked as-built models; grid coordination; Revit template reuse; datum management.

===============

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============
