You want to remove one of your Brocade VDX 6740s from your VCS fabric in Logical Chassis mode. You issue the no vcs enable command on the VDX 6740 but the switch is not removed.
What would you do to resolve the problem?
A customer would like to manage their Brocade VDX switch but is having problems connecting from the Brocade Network Advisor server at IP address 10.10.30.15.
ip access-list standard access1
seq 5 permit host 10.10.20.0/24
seq 100 deny any log
interface Management 125/0
ip access-group access1 in
Referring to the exhibit, what are two reasons for this happening? (Choose two.)
Brocade Network Advisor has notified you that one of your ISLs between two Brocade VDXs is reporting a high number of errors. You log into the switch and clear the counters. You notice that the CRC and error counters are incrementing at a high rate.
What do these two errors indicate? (Choose two.)
You added a new Brocade VDX 6740 to an existing Brocade VCS Fabric in your data center. You connected the VDX 6740 to ports 3/0/11 and 3/0/12 on the existing fabric. After the switch boots, you realize it does not join the fabric. You examine the ISL status on the fabric as shown in the exhibit.
sw0(conf-if-te-3/0/19)# do sh fabric islport
Name: sw0
Type: 95.2
State: Online
Role: Fabric Principal
VCS Id: 1
Config Mode:Distributed
Rbridge-id: 3
WWN: 10:00:00:05:33:46:71:61
FCF MAC: 00:05:33:46:71:61
Index Interface State Operational State
===================================================================
0 Te 3/0/1 Down
1 Te 3/0/2 Down
2 Te 3/0/3 Down
3 Te 3/0/4 Down
4 Te 3/0/5 Down
5 Te 3/0/6 Down
6 Te 3/0/7 Down
7 Te 3/0/8 Up ISL 10:00:00:05:33:5c:e1:5a "sw0" (downstream)(Trunk Primary)
8 Te 3/0/9 Up ISL (Trunk port, Primary is 3/0/8 )
9 Te 3/0/10 Down
10 Te 3/0/11 Up ISL (Trunk port, Primary is 3/0/12 )
11 Te 3/0/12 Up ISL segmented,(ESC mismatch, Config Mode)(Trunk Primary)
12 Te 3/0/13 Down
13 Te 3/0/14 Down
14 Te 3/0/15 Down
15 Te 3/0/16 Down
16 Te 3/0/17 Down
17 Te 3/0/18 Down
18 Te 3/0/19 Down
19 Te 3/0/20 Down
20 Te 3/0/21 Down
21 Te 3/0/22 Down
22 Te 3/0/23 Down
23 Te 3/0/24 Down
What is causing the problem?
You just replaced a Brocade VDX in your four-switch VCS fabric.
Which two are enabled by default on the new VDX switch? (Choose two.)
Discards are incrementing on an ISL in your Brocade VCS fabric due to tail drops.
Which condition would cause this problem?
What are two valid ways to transfer firmware to a Brocade VDX when you perform a firmware upgrade? (Choose two.)
You are asked to implement PIM in your existing Brocade VCS Fabric running NOS 4.1. The fabric consists of VDX 8770s, VDX 6740s, VDX 6730s, and VDX 6720s.
On which two Brocade VDX models would this be implemented? (Choose two.)
Your customer has just implemented a Brocade VCS Fabric at the aggregation layer that interfaces with core and edge switches running RSTP. The Linux servers are detecting BPDUs at their interfaces confirmed by using the tcpdump command from a server. You want to prevent this traffic.
Which two parameters should be configured to accomplish this task? (Choose two.)

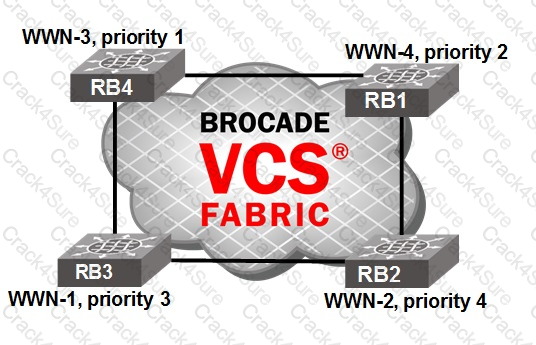

You have formed a Brocade VCS fabric with four switches.
Referring to the exhibit, which Brocade VDX would be the principal RBridge?
One of the switches in your Brocade VCS Fabric in logical chassis mode needs to be replaced. After configuring the replacement switch with the same VCS RBridge ID of the faulty switch, you attempt to replace the faulty switch with a new one but find the switch is segmented from the fabric.
Which two steps should be completed to replace the faulty switch? (Choose two.)
You want to enable a Service Virtual Fabric to provide 802.1Q VLAN virtualization.
Which two statements are correct? (Choose two.)
You need to deploy several FCoE initiators to communicate to FC targets.
Which two statements are true about deploying the solution? (Choose two.)
You are asked to provide time-based sampling of interface counters and statistical sampling of switched packets.
Which protocol supports these requirements?
What are two primary features of Data Center Bridging (DCB)? (Choose two.)
You want to examine packets in transit across links to troubleshoot the traffic pattern on a specific port using SPAN on a Brocade VDX 6730-76. You configure a monitor session with source interface Te 1/0/10 and destination interface Te 1/0/21.
Which two statements are correct? (Choose two.)
You want to capture sFlow statistics from a group of interfaces on a Brocade VDX and forward the data to your Brocade Network Advisor server.
Which three steps are required for a working configuration? (Choose three.)
Which two statements are true about Network OS integration with VMware vCenter? (Choose two.)
A Brocade VDX 6730 is added to an existing three node Brocade VCS Fabric running NOS 4.1. You want to manage all switches in the fabric from the principal switch.
What should you do to accomplish this task?
You want to design a Brocade VCS Fabric that can automatically classify and prioritize traffic for NAS storage.
Which two platforms would be used? (Choose two.)
You want to restore a configuration that was saved previously from the FTP server using this command:
copy ftp://anonymous:pass@10.255.1.89/VDX25-1-389.cfg running-config
The system responds with the error:
"Error while retrieving file over ftp. Please check the host IP address, user/password, and the permission and space left on the remote directory."
What is the problem?
You are connecting an existing Ethernet network to a Brocade VCS Fabric. You want to prevent any Layer 2 loops from forming.
Which two features would be used on the Brocade VDX to meet this requirement? (Choose two.)

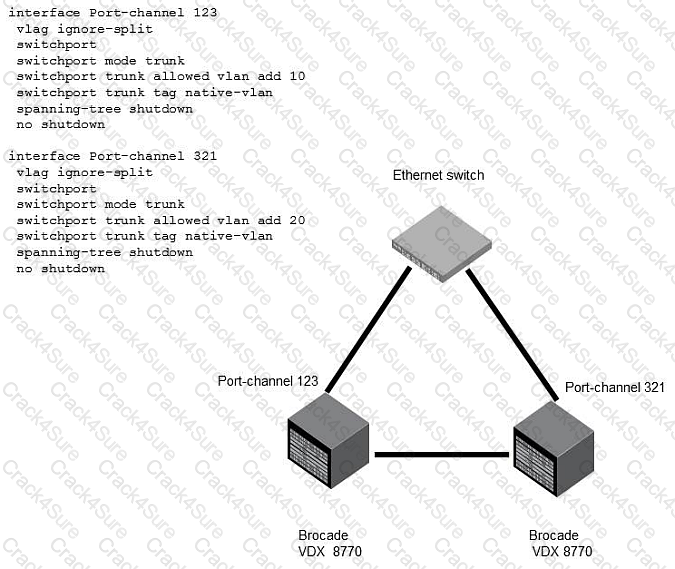

Referring to the exhibit
which two configurations are valid? (Choose two.)
You are designing a network with Brocade VCS Fabrics. You must support four 10 Gbps Brocade trunking ports in between the VDX switches. You need to determine which interfaces to connect.
What are two solutions? (Choose two.)

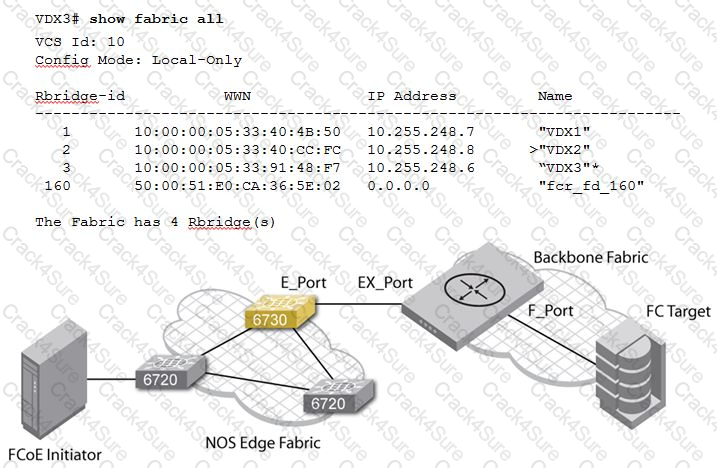

The FCoE initiator is unable to communicate with the FC target as shown in the exhibit.
What are two reasons? (Choose two.)
Your customer is using Brocade Network Advisor as a trap recipient for a Brocade VCS Fabric. A Brocade VDX is discovered and the customer is testing SNMP traps by removing the power supply. You are not receiving traps.
Which three actions will determine the problem? (Choose three.)
A customer wants to connect a group of servers to different Brocade VDXs in a three switch Brocade VDX 6740 fabric. All servers should have one gateway and should failover if one switch is taken offline for maintenance. The individual VDX should forward all packets to the destination from the VDX that receives them.
How should this solution be implemented?
A customer has a Brocade VDX 8770 and wants to implement policy based routing (PBR).
ip access-list standard acl1
seq 10 permit 1.1.1.1 255.255.255.255
seq 20 deny 11.11.11.11 255.255.255.255
!
ip access-list standard acl2
seq 10 permit 2.2.2.2 255.255.255.255
route-map brocade1 permit 10
match ip address acl acl1
set ip interface null0
set ip vrf brocade1 next-hop 3.3.3.3
!
route-map brocade1 permit 20
match ip address acl acl2
set ip next-hop 4.4.4.4
set ip vrf brocade1 next-hop 3.3.3.5
!
route-map brocade1 permit 30
set ip interface null0
Based on the configuration shown in the exhibit, what will happen to traffic coming from 2.2.2.2?
You are introducing a Brocade VCS Fabric to your network and would like to implement Fibre Channel using the same switch.
Which switch would you use?
Exhibit:
switch# show ip route
Destination Gateway Port Cost Type Uptime
1 0.0.0.0/0 10.24.64.1 mgmt 1 1/1 S 8m24s
2 1.1.1.0/24 10.1.1.10 Ve 10 1/1 S+ 3m11s
3 1.1.2.0/24 DIRECT Ve 12 0/0 D 3m11s
4 10.24.64.0/20 DIRECT mgmt 1 0/0 D 8m28s
Exhibit:
Referring to the exhibit, which statement is true?
You have implemented flow-based sFlow in your Brocade VCS Fabric by enabling sFlow globally on each Brocade VDX. You are not receiving any statistics in your sFlow collector from these devices.
What must happen to start collecting data?
You are connecting your Brocade VCS Fabric to a native Brocade Fibre Channel Router (FCR) using FC ports on one of your Brocade VDX switches.
Which two port types are supported? (Choose two.)
Which two Brocade VDX platforms allow you to deploy 40 servers with lossless iSCSI on a single switch? (Choose two.)
Your customer has performance problems and suspects dropped packets between the core router and the Brocade VCS Fabric. You determine that port Te 1/0/5 is connected to an old database server with a high transaction rate.
VDX1# show interface stats brief
Packets Error Discards CRC
Interface rx tx rx tx rx tx rx
Po 10 2013637 13726949 0 0 21668 0 0
Po 20 2215053 15608689 0 0 0 2 0
Te 1/0/1 1130905 12884896 0 0 21463 0 0
Te 1/0/5 39857 63074 0 0 0 0 0
Referring to the exhibit, what is the cause of the discarded packets on the port channel from the core?
You connected interface 2 on a Brocade VDX 6740 to your LAN, but no traffic is traversing the link.
SW1# show interface tengigabitethernet 1/0/2
TenGigabitEthernet 1/0/2 is up, line protocol is down (link protocol down)
Hardware is Ethernet, address is 0027.f8b2.d728
Current address is 0027.f8b2.d728
Pluggable media present
Receive Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
64-byte pkts: 0, Over 64-byte pkts: 0, Over 127-byte pkts: 0
Over 255-byte pkts: 0, Over 511-byte pkts: 0, Over 1023-byte pkts: 0
Over 1518-byte pkts(Jumbo): 0
Runts: 0, Jabbers: 0, CRC: 0, Overruns: 0
Errors: 0, Discards: 0
Transmit Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
Underruns: 0
Errors: 0, Discards: 0
Referring to the exhibit, what is happening?
Your customer wants to establish a LAG connection on a Brocade VDX 6740T-1G connecting to another vendor's switch using 1 GbE interfaces. Every time they try to enable the port channel, the interfaces shut down.
In this situation, which statement is true?
Exhibit:
sw0(conf-if-te-0/5)# channel-group 100 mode active type standard
%%Error: A switchport or a router port cannot be aggregated
Exhibit:
Referring to the exhibit, what is the cause of the error when applying a port channel to an interface?
You are required to deploy servers with a single adapter that are attached to your Brocade VDX 6730 running in Access Gateway mode that will communicate with FC SAN attached storage.
Which statement is true?
When connecting the Brocade VDX Fabric to an Ethernet switch with spanning tree disabled, CPU utilization goes up indicating a loop.
What is causing the loop?
Referring to the exhibit, which statement is correct?
Exhibit:
VDX8770_3-131# sh port-c 123
LACP Aggregator: Po 123
Aggregator type: Standard
Ignore-split is enabled
Admin Key: 0123 - Oper Key 0123
Partner System ID - 0x0000,00-00-00-00-00-00
Partner Oper Key 0000
Member ports on rbridge-id 131:
Link: Te 131/2/16 (0x8318880086) sync: 0
VDX8770_3-131# show running-config interface Port-channel 123
interface Port-channel 123
vlag ignore-split
switchport
switchport mode trunk
switchport trunk allowed vlan add 10,30
switchport trunk tag native-vlan
spanning-tree shutdown
no shutdown
Exhibit:
You need to manage the IP address allocation in your multi-tenant Brocade VCS Fabric.
Which VCS feature is used to accomplish this?
Your Brocade VCS Fabric consists of two Brocade VDX 8770s and 10 Brocade VDX 6740s. The current fabric is running in VCS fabric mode. You need to add a VLAN on one switch and have it distributed to all other switches in the fabric.
Which feature is required to accomplish this task?
You want to protect your Brocade VCS Fabric from excessive multicast traffic.
Which two features would you enable? (Choose two.)
You just connected multiple Brocade VCS Fabric mode-enabled switches and you want them to form an Ethernet fabric.
Which two configurations must be applied? (Choose two.)
