Practice Free 100-150 Cisco Certified Support Technician Networking Exam Exam Questions Answers With Explanation

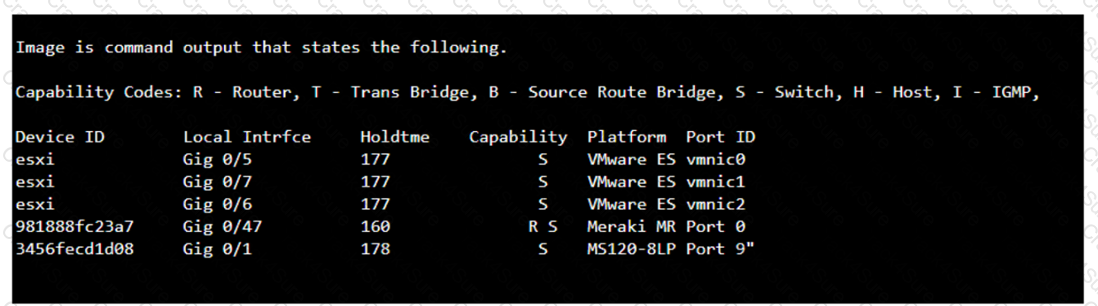

The command that will display the output provided, which includes capability codes, local interface details, device IDs, hold times, and platform port ID capabilities, is the show cdp neighbor command. This command is used in Cisco devices to display current information about neighboring devices detected by Cisco Discovery Protocol (CDP), which includes details such as the interface through which the neighbor is connected, the type of device, and the port ID of the device1.

References :=

•Cisco - show cdp neighbors

The provided output is from the Cisco Discovery Protocol (CDP) neighbor table. The show cdp neighbor command displays information about directly connected Cisco devices, including Device ID, Local Interface, Holdtime, Capability, Platform, and Port ID.

•A. show mac-address-table: Displays the MAC address table on the switch.

•C. show inventory: Displays information about the hardware inventory of the device.

•D. show ip interface: Displays IP interface status and configuration.

Thus, the correct answer is B. show cdp neighbor.

References :=

•Cisco CDP Neighbor Command

•Understanding CDP

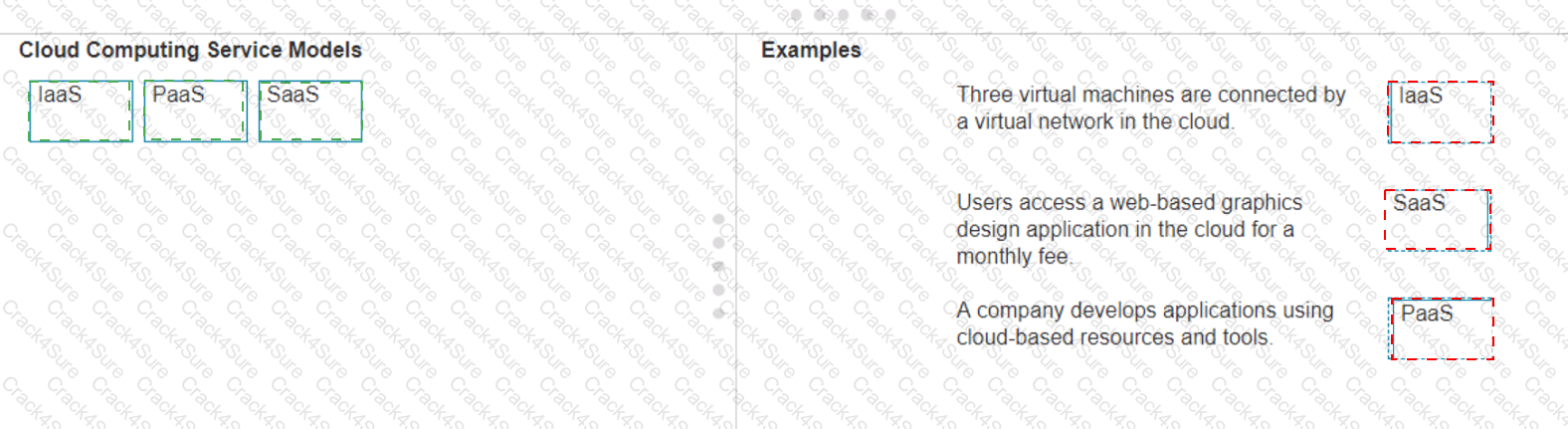

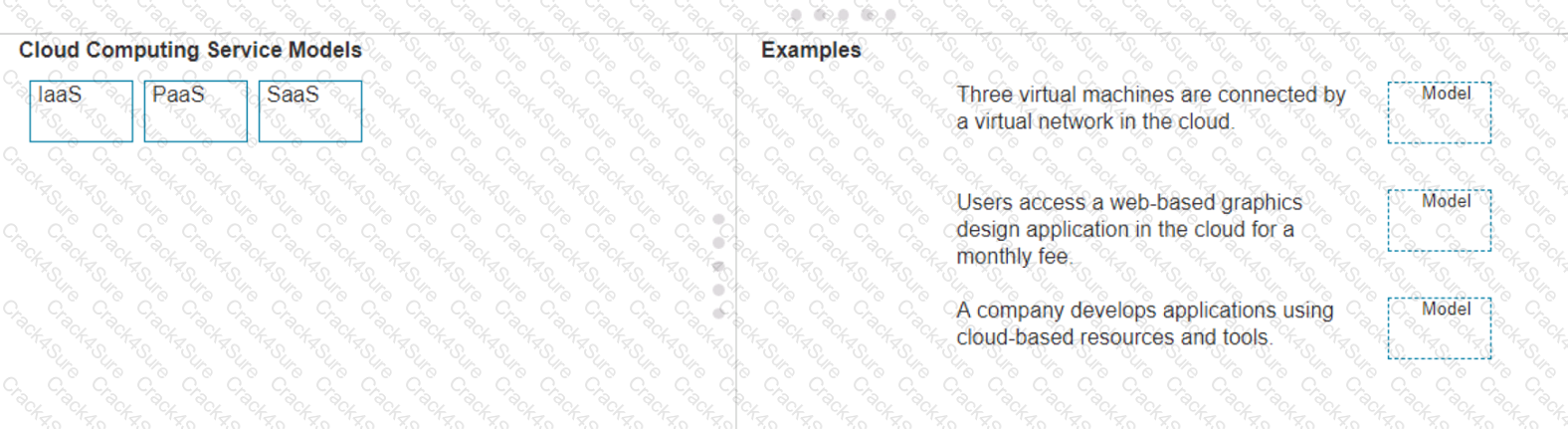

Three virtual machines are connected by a virtual network in the cloud.

Model: IaaS (Infrastructure as a Service)

Explanation: IaaS provides virtualized computing resources over the internet, including virtual machines, storage, and networks.

Users access a web-based graphics design application in the cloud for a monthly fee.

Model: SaaS (Software as a Service)

Explanation: SaaS delivers software applications over the internet, typically on a subscription basis, accessible via a web browser.

A company develops applications using cloud-based resources and tools.

Model: PaaS (Platform as a Service)

Explanation: PaaS provides a platform allowing customers to develop, run, and manage applications without dealing with the infrastructure.

IaaS (Infrastructure as a Service): Provides virtualized hardware resources that customers can use to build their own computing environments.

PaaS (Platform as a Service): Offers a platform with tools and services to develop, test, and deploy applications.

SaaS (Software as a Service): Delivers fully functional applications over the internet that users can access and use without managing the underlying infrastructure.

References:

Cloud Service Models: Understanding IaaS, PaaS, SaaS

NIST Definition of Cloud Computing: NIST Cloud Computing

To store files that will be accessible by every user on a network, you would need a server. A server is a computer system that provides data to other computers. It can serve data to systems on a local network (LAN) or a wide network (WAN) over the internet. In this context, a file server would be set up to store and manage files, allowing users on the network to access them from their own devices1.

References :=

What is a Server?

Understanding Servers and Their Functions

A server is a computer designed to process requests and deliver data to other computers over a local network or the internet. In this case, to store files that will be accessible by every user on the network, a file server is the appropriate endpoint device. It provides a centralized location for storing and managing files, allowing users to access and share files easily.

A. Access point: Provides wireless connectivity to a network.

C. Hub: A basic networking device that connects multiple Ethernet devices together, making them act as a single network segment.

D. Switch: A networking device that connects devices on a computer network by using packet switching to forward data to the destination device.

Thus, the correct answer is B. Server.

References :=

File Server Overview (Cisco)

Server Roles in Networking (Cisco)

Router

The show running-config command is used on a Cisco router to display the current operational settings that are actively configured in the router’s RAM. This command outputs all the configurations that are currently being executed by the router, which includes interface configurations, routing protocols, access lists, and other settings. Unlike show startup-config, which shows the saved configuration that the router will use on the next reboot, show running-config reflects the live, current configuration in use.

References := The information is supported by multiple sources that detail the use of Cisco commands, particularly the show running-config command as the standard for viewing the active configuration on a Cisco device123.

show running-config: This command displays the current configuration running on the router. It includes all the operational settings and configurations applied to the router.

show protocols: This command shows the status of configured protocols on the router but not the entire configuration.

show startup-config: This command displays the configuration saved in NVRAM, which is used to initialize the router on startup, but not necessarily the current running configuration.

show version: This command provides information about the router's software version, hardware components, and uptime but does not display the running configuration.

References:

Cisco IOS Commands: Cisco IOS Commands

The header of a UDP (User Datagram Protocol) segment includes port numbers. Specifically, it contains the source port number and the destination port number, which are used to identify the sending and receiving applications. UDP headers do not include IP addresses or MAC addresses, as those are part of the IP and Ethernet frame headers, respectively. Additionally, UDP does not use sequence numbers, which are a feature of TCP (Transmission Control Protocol) for ensuring reliable delivery of data segments1.

References :=

Segmentation Explained with TCP and UDP Header

User Datagram Protocol (UDP) - GeeksforGeeks

Which three fields are used in a UDP segment header

=========================

UDP Header: The header of a UDP segment includes the following key fields:

Source Port: The port number of the sending application.

Destination Port: The port number of the receiving application.

Length: The length of the UDP header and data.

Checksum: Used for error-checking the header and data.

IP Addresses: These are included in the IP header, not the UDP header.

Sequence Numbers: These are part of the TCP header, not UDP.

MAC Addresses: These are part of the Ethernet frame header and are not included in the UDP header.

References:

RFC 768 - User Datagram Protocol: RFC 768

Cisco Guide on UDP: Cisco UDP Guide

On a Cisco switch, a port with a blinking green LED typically indicates that the port is up (active) and is currently transmitting or receiving data. This is a normal state indicating active traffic on the port.

•A. Link is up with cable malfunctions: Usually indicated by an amber or blinking amber light.

•B. Link is up and not stable: Not typically indicated by a green blinking light.

•D. Link is up and there is no activity: Would be indicated by a solid green light without blinking.

Thus, the correct answer is C. Link is up and active.

References :=

•Cisco Switch LED Indicators

•Cisco Ethernet Switch LED Patterns

•Statement A: "The trace successfully reached the www.cisco.com server. " This is true as indicated by the "Trace complete" message at the end, showing that the trace has reached its destination.

•Statement C: "The IPv6 address associated with the www.cisco.com server is 2600:1408:c400:38d::b33. " This is true because the final hop in the trace, which is the destination, has this IPv6 address.

•Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.

•Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.

•Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.

References:

•Understanding Traceroute: Traceroute Guide
