Practice Free 300-430 Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI) Exam Questions Answers With Explanation

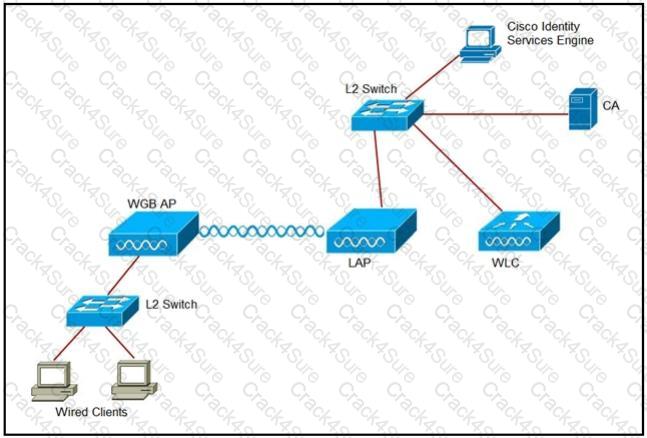

 EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) is an EAP method that an Access Point (AP) can use to authenticate to the wired network. EAP-TLS is considered one of the most secure EAP methods because it uses mutual authentication, where both the client and the server authenticate each other using certificates.

In Cisco ISE version 2.1 for BYOD with a Single SSID setup, 802.1x must be configured to provide the necessary layer of security and to facilitate the device registration process. 802.1x authentication allows for the use of EAP (Extensible Authentication Protocol) to authenticate users before they can access the network. This ensures that only authorized devices can join the BYOD network, providing a secure method for device onboarding and access control. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

For location analytics in a shopping center using AireOS controllers with Cisco Wave 2 APs, the CMX server settings must exclude probing clients to track only associated clients. This setting ensures that the location analytics data reflects the movements of clients that are actively connected to the WLAN, providing accurate insights into popular areas within the shopping center. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To ensure reliable streaming of multicast video over a wireless link, it’s essential to optimize the multicast settings on the controller. Option B, implementing video-stream for the multicast video on the controller, is a feature that optimizes the delivery of multicast streams by converting them into unicast streams for specific clients, thus improving reliability. Option C, allowing multicast-direct to work correctly, involves enabling multicast-direct globally, which allows multicast packets to be sent directly to clients without the need for them to subscribe to a specific multicast group, enhancing efficiency and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco Wireless LAN Controller (WLC) environments, the feature that allows for different usernames and passwords for administrative support on specific APs is the local management users. This feature enables the configuration of unique credentials on individual APs, separate from the global credentials used for the rest of the network. By enabling local management users, the APs in the CEO’s office can have distinct administrative access controls, ensuring a higher level of security and customization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 In FlexConnect deployments with local switching, dynamic VLAN assignments are facilitated by Cisco ISE through the use of specific RADIUS attributes. The Tunnel-Private-Group-ID attribute is essential for communicating the VLAN ID to the access point, which then applies it to the wireless client after successful authentication.

For a deployment that supports Cisco Connected Mobile Experiences (CMX), licenses for at least 3000 Access Points (APs), and wIPS licenses for 6000 sensors, a High-End vMSE is required. This version of MSE is designed to handle large-scale deployments with high license and sensor requirements, ensuring that the system can manage the data and analytics for such a substantial wireless environment. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 In Cisco CMX, to view active RFID tags, the engineer needs to enable the tracking of these tags within the system settings. This is typically done by selecting an option that allows for RFID tag tracking, which makes them visible on location-based services like the Detect and Locate window of Cisco CMX. By enabling this feature, the system starts to interpret signals from RFID tags and displays their location accordingly. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Voice VLAN feature on switches allows the network to distinguish between voice traffic and data traffic from wireless clients connected to IP phones. This is crucial for applying the appropriate QoS to ensure that voice traffic is prioritized over client data traffic. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 Bluetooth Low Energy (BLE) is renowned for its ability to provide precise location services, especially in the context of indoor positioning systems. BLE beacons can be strategically placed throughout a facility, and when used in conjunction with a mobile application, they can deliver the high level of location accuracy required for various use cases, including navigation, asset tracking, and contextual marketing.

In this scenario where branch wireless users can still associate locally but cannot access head office services due to WAN downtime indicates that Cisco FlexConnect is likely in use. The correct elements are: A - authentication-local/switch-local: This means that client authentication and data switching are happening locally at the branch. E - standalone mode: With WAN down, FlexConnect APs operate in standalone mode allowing clients to associate even without connectivity back to WLC. F - WEB authentication: This could be used as an authentication method regardless of WAN state since it’s processed locally at AP level. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When FlexConnect APs are in standalone mode due to losing connection to the WLC, they should still be able to serve clients if local switching and authentication are enabled. The issue described occurs because FlexConnect Local Authentication is disabled. With local auth enabled, the AP can authenticate clients directly, without needing to communicate with the WLC, thus allowing the SSID to remain advertised and clients to stay connected even if the WLC is unreachable. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco Prime Infrastructure, the maximum number of APs that can be used to contain an identified rogue access point in the WLC is four (4). This containment process involves using nearby APs to disrupt the rogue AP’s signals, thereby preventing it from effectively communicating with client devices. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which includes information on rogue AP detection and containment strategies within the WLC and Cisco Prime Infrastructure.

The Media Stream feature on a Cisco WLC allows for the prioritization of streaming media. To guarantee at least 2 Mbps stream per user, the ‘coarse’ Resource Reservation Control (RRC) template should be used, as it provides the necessary bandwidth allocation for each user’s media stream. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The issue is likely caused by the CPU ACL on the controller, which is blocking HTTP/HTTPS traffic from the guest clients. When a WLAN with Web Authentication is used, the wireless client’s browser is redirected to a web page for authentication. If the CPU ACL is configured to only allow controller web management traffic from the IT subnet, it may inadvertently block the necessary HTTP/HTTPS traffic for the Web Authentication process, leading to a timeout on the wireless client browser. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing CPU ACLs and their impact on network traffic.

 When a network engineer receives an alert about a rogue AP and determines it is a security threat inside the campus, the fastest way to disable it is by updating its status in Cisco Prime Infrastructure to ‘contained’. This action instructs the system to prevent the rogue device from communicating with other devices on the network, effectively isolating it without having to physically locate or manually disable it. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

Graphical user interface, application, Word Description automatically generated

The Extensible Authentication Protocol (EAP) is an authentication framework frequently used in wireless networks and Point-to-Point connections. During the EAP authentication process, EAP Request and EAP Response packets are exchanged between the supplicant (client device) and the authenticator (network). These packets are used to transport messages for the authentication process. An EAP Request packet is sent by the authenticator requesting identity information from the supplicant, while an EAP Response packet is sent by the supplicant in reply to the request. The other options, such as EAP complete, EAP failure, and EAP reply, are not standard EAP packet types. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To ensure end-to-end QoS and preserve markings correctly in the VoWLAN setup, the configurations needed on the wired network are trust boundaries and policy maps. Trust boundaries define where the network trusts the QoS markings on packets, and policy maps are used to enforce QoS policies on the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

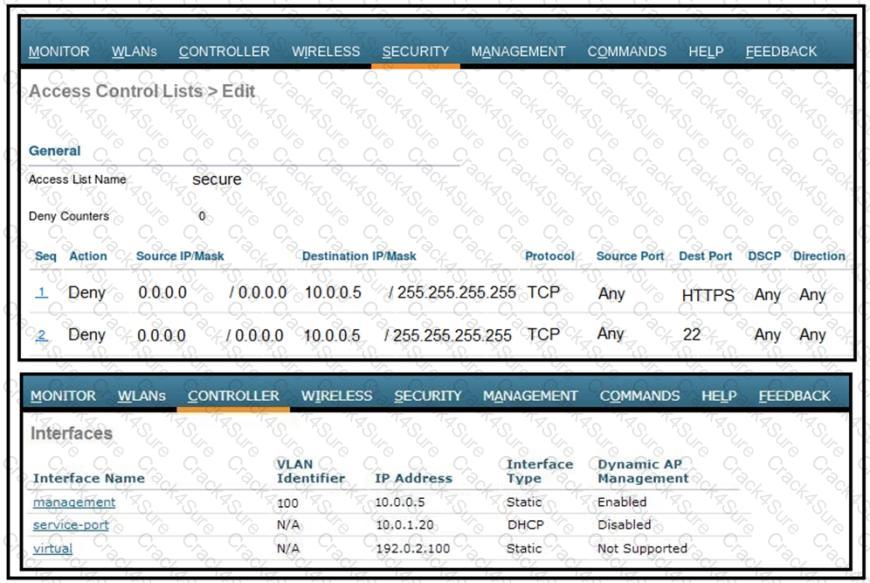

If the Cisco 5520 Series Wireless LAN Controller is no longer manageable via the network after implementing a CPU ACL, permit statements must be added to the top of the ACL in both directions (A). These statements should specify the network from which management is allowed and the virtual interface of the controller to ensure proper management access. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 In a Cisco WLAN deployment where it is required that all APs from branch1 remain operational even if the control plane CAPWAP tunnel is down, the operational mode that must be configured on the APs is standalone (option B). In standalone mode, the APs can continue to function and provide network access to clients even without a connection to the WLC, which is essential during a WAN failure to headquarters. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, with a focus on AP operational modes and their behavior during network disruptions.

The feature required on the Cisco Wireless LAN Controller to support dynamic VLAN mapping is AAA override. This feature allows for the assignment of VLANs on a per-user basis as determined by the authentication, authorization, and accounting server. When AAA override is enabled, attributes such as VLAN ID can be dynamically applied to a user’s session after successful authentication and authorization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 In a self-registration setup for guest/BYOD devices, when an employee tries to connect multiple devices simultaneously, the system allows the registration of all devices. However, it restricts the active connection to only one device at a time. This ensures that network resources are not overburdened by a single user connecting multiple devices. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 Cisco AVC (Application Visibility and Control) on a Cisco Wireless LAN Controller (WLC) is used to prioritize traffic by marking the packets. For Cisco IP cameras that use the wireless network, the AVC rule would be configured to mark the packets with a specific QoS value, ensuring that the video traffic is treated with higher priority as it traverses the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 In passive fallback mode for RADIUS, when the primary RADIUS server fails, the controller will start using the secondary RADIUS server. The default timer settings include an inactive timer, which, upon expiration, prompts the controller to attempt to send RADIUS requests back to the primary server. If the primary server is responsive, the controller will resume sending requests to it. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

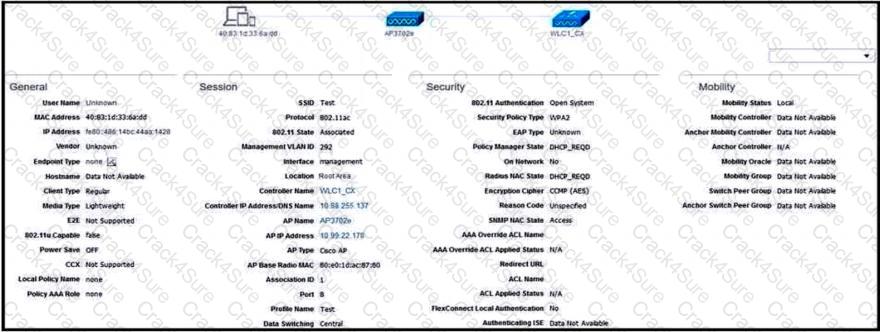

The wireless client cannot reach the RUN state because it is not receiving an IP address. This is a crucial step in the connection process, as a valid IP address is necessary for the client to communicate on the network. Without it, the client cannot achieve the RUN state, which indicates full authentication and association.

Protocol Independent Multicast (PIM) sparse mode and dense mode are two different multicast routing mechanisms. Sparse mode uses distribution trees and is designed for networks where multicast groups are sparsely distributed across the network, minimizing unnecessary traffic. In contrast, dense mode floods the network with multicast traffic and then prunes back the branches where there are no interested receivers, which can lead to inefficient use of bandwidth. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 mDNS has specific restrictions regarding its configuration. Option C is correct because mDNS is not supported on FlexConnect APs with a locally switched WLAN, which limits its deployment in certain network designs. Option D is also correct; the controller software must be newer than version 7.0.6 to support mDNS features, which means that older controller software versions do not have the necessary capabilities to handle mDNS. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The bronze QoS level is typically recommended for guest services in a wireless network environment. This level prioritizes basic internet access, which is suitable for guest services that do not require high bandwidth or low latency. It ensures that more critical services are not impacted by guest traffic, which is often less sensitive to performance fluctuations. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

A Public-Signed SAN (Subject Alternative Name) certificate allows multiple domain names to be protected with a single certificate. This is useful in a distributed environment like a guest portal on Cisco ISE, where there may be multiple nodes with different Common Names (CNs). Using a SAN certificate can prevent CN mismatch errors during SSL/TLS handshakes. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When using FlexConnect Smart AP Image Upgrade without a configured FlexConnect Master AP, the WLC will transfer the image to one indoor AP and one outdoor AP separately. Each AP model needs a different firmware image due to hardware differences. Therefore, there will be two image transfers from the WLC: one for the 2702i APs and another for the 1532i APs.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect Smart AP Image Upgrade

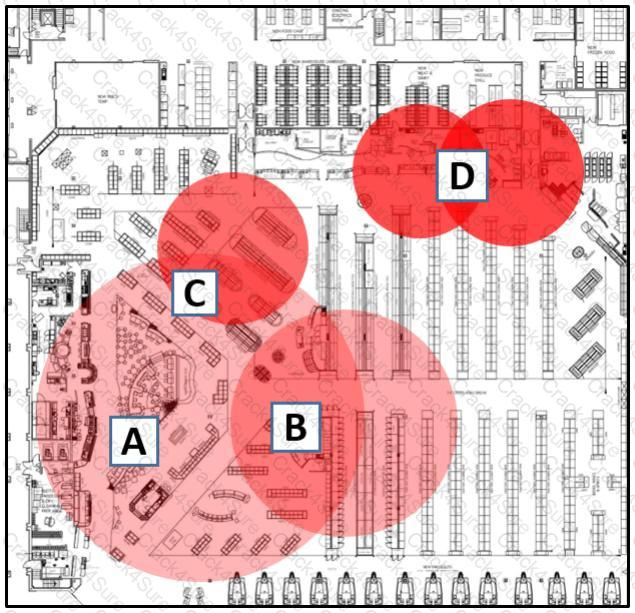

The output observed in Prime Infrastructure suggests that there is at least one strong interferer impacting connectivity at this site. This conclusion is drawn from observing areas marked with intense red coloring indicating high levels of RF interference which could degrade wireless performance significantly if not addressed.

The Cisco OfficeExtend Access Point (OEAP) feature is enabled on a Cisco Catalyst 9800 Series Wireless Controller through the Flex Profile. The Flex Profile allows for the configuration of various settings specific to FlexConnect deployments, including OEAP settings, which enable remote workers to connect to the corporate network securely.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on Catalyst 9800 Series Wireless Controllers

 The exhibit provided appears to be a floor map overlay with Cisco CleanAir Zone of Impact for interferers, which shows different areas affected by interference on a wireless network. The area labeled ‘A’ indicates the greatest impact on the wireless network due to its larger size compared with other zones, suggesting more significant interference or a stronger source of interference within this zone. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The maximum time range that can be viewed on the Cisco DNA Center issues and alarms page is 24 hours. This allows network administrators to monitor and troubleshoot recent issues and alarms within a one-day period. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 To provide guests access using social media authentication, the engineer must configure the “Social Connect” service. This service allows guests to use their Facebook credentials, among other social media platforms, to authenticate and gain network access. It simplifies the guest access process by leveraging existing social media accounts for authentication. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 If all APs are receiving multicast traffic instead of only those that need it, it indicates that Multicast Internet Group Management Protocol (IGMP) snooping is not enabled. IGMP snooping is a feature that allows a network switch to listen to IGMP network traffic and ensure that multicast packets are only sent to the ports associated with interested receivers, thus preventing unnecessary traffic on the network. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

If the Cisco 5520 Series Wireless LAN Controller is no longer manageable via the network after implementing a CPU ACL, permit statements must be added to the top of the ACL in both directions (A). These statements should specify the network from which management is allowed and the virtual interface of the controller to ensure proper management access. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

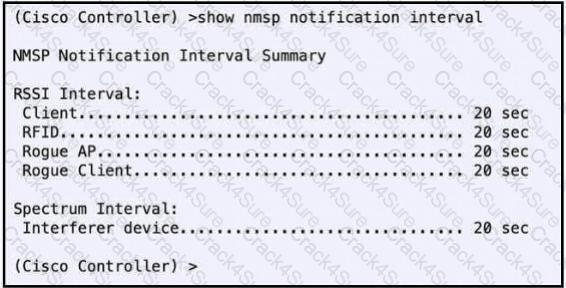

The correct command to configure the controller to update Cisco CMX every 5 seconds for rogue devices is “config nmsp notification interval rssi rogues 5”. NMSP (Network Mobility Services Protocol) is used by Cisco wireless controllers to manage and communicate with connected services such as Cisco CMX. The command structure “config nmsp notification interval” followed by the specific type of device or metric, in this case, ‘rssi rogues’, and the desired interval time ‘5’ seconds, sets the frequency of NMSP notifications for RSSI updates related to rogue devices.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

For central web authentication with Cisco ISE in a Cisco AireOS WLC environment using auto-anchor for the guest network, the foreign WLC must have UDP ports 1812 and 1813 open to ISE for RADIUS authentication and accounting. Additionally, a downloadable preauth ACL on ISE is required to define the permissions for the guest user before authentication, and a local preauth ACL on the WLC is needed to restrict or allow traffic prior to authentication. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, particularly the chapters on WLC configuration for guest access and integration with Cisco ISE for security and access control.

Mobile Device Management (MDM) integration with Cisco ISE increases security for lost devices by providing functions such as data wipe and jailbreak/root detection. Data wipe allows the remote erasure of sensitive information from lost devices, preventing unauthorized access. Jailbreak/root detection helps identify compromised devices that may bypass standard security measures, ensuring that they do not access network resources.

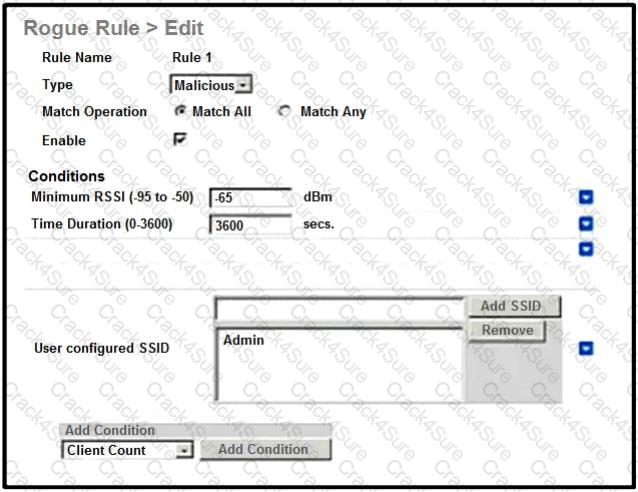

 The configuration for the Rogue Rule named “Rule 1” is set to classify an access point (AP) as malicious if it meets certain conditions. The rule specifies that the AP must have a Minimum RSSI (Received Signal Strength Indicator) of less than or equal to -65 dBm and must have been seen for a Time Duration greater than or equal to 3600 seconds. Among the options provided, both A and C have been seen for more than 3600 seconds, which satisfies the Time Duration condition. However, for the RSSI condition, only option C with an RSSI of -60 dBm meets the criteria of being less than or equal to -65 dBm. Therefore, option C is the correct answer, as it fulfills both conditions set by the Rogue Rule.

 Application Visibility and Control (AVC) profiles in AireOS controllers allow the identification and management of bandwidth consumption by different applications. By using AVC, administrators can set policies to prioritize or restrict bandwidth for specific applications, thus ensuring that critical services like voice and video are not adversely affected by bandwidth-heavy programs. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To segregate all iPads on the guest WLAN to a separate VLAN without using Cisco ISE, the engineer can create a local policy on the WLC (option A). This local policy can be configured to identify iPad devices and assign them to a specific VLAN based on their device profile or other identifying characteristics. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, especially the sections that cover local policies and device profiling on the WLC.

For rogue containment on an SSID, it’s recommended to use two access points for containment (Option B). Using more than two can lead to unnecessary interference and potential disruption of service for legitimate users, while using just one may not be effective enough in containing the rogue SSID. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 For a large company requiring support for 32 VLANs for different departments, the most efficient solution is to configure one single SSID and use Cisco ISE for dynamic VLAN assignment based on user roles. Cisco ISE can classify users into different groups and assign them to the appropriate VLANs. This approach reduces the complexity of managing multiple SSIDs and simplifies the user experience while maintaining a high level of security and network segmentation. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To load balance the data coming through NMSP from the WLCs and spread the load between multiple CMX servers, the configuration cmxctl config feature flags nmsplb.cmx-ap-grouping true should be used. This enables the load balancing feature and helps optimize the data flow for APs in a large network environment. References: The configuration for load balancing in CMX is explained in the certification guide, which outlines the commands and flags necessary to manage data flow efficiently.

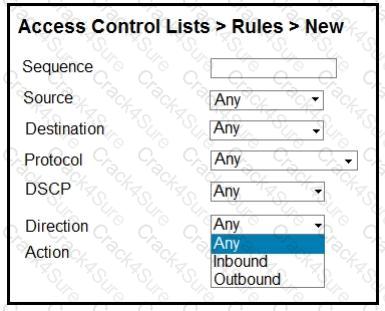

When configuring an Access Control List (ACL) to restrict traffic to the Wireless LAN Controller (WLC) CPU, the direction of the traffic is crucial. Since the ACL is meant to control traffic that is destined for the WLC CPU, it should be set as “Inbound”. This means that any rules applied within this ACL will affect incoming traffic towards the WLC, which is necessary when aiming to restrict certain types of traffic from reaching and potentially overwhelming the controller’s processing capabilities. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Graphical user interface Description automatically generated

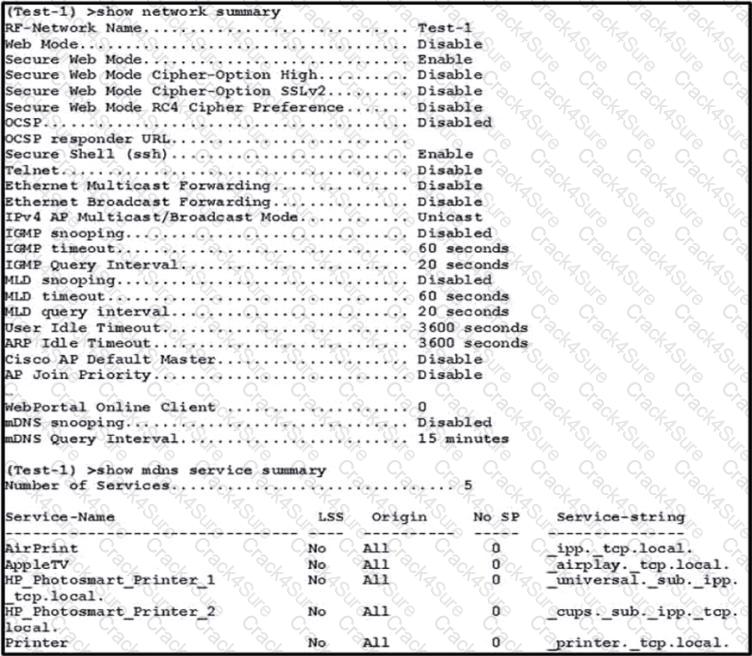

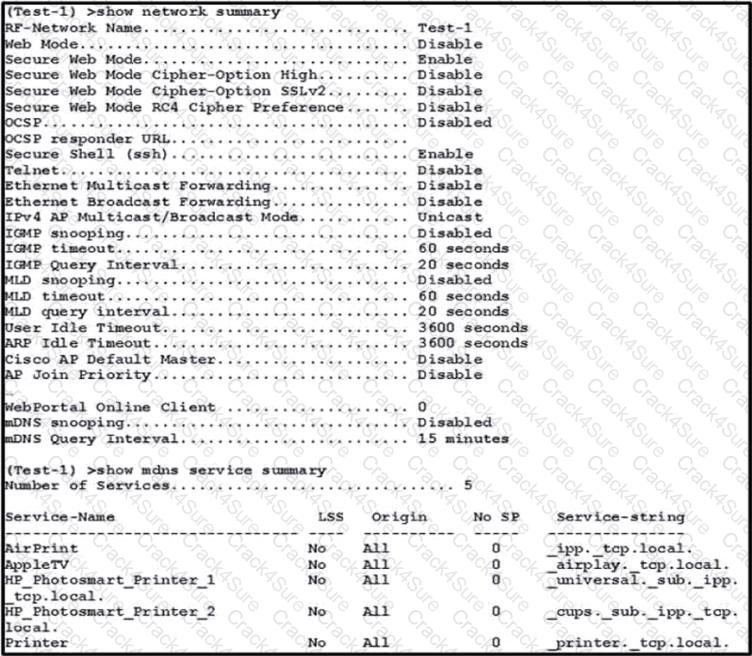

For printing services using Bonjour in a WLAN environment where mDNS services are utilized, especially with WLC firmware version 8.x, it’s essential that:

Enable mDNS and IGMP snooping (Option A): Multicast DNS or mDNS needs to be enabled for Bonjour services to function correctly as they rely on this protocol for service discovery within local networks. IGMP snooping improves network efficiency by ensuring multicast traffic is only forwarded to nodes that have explicitly requested it.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

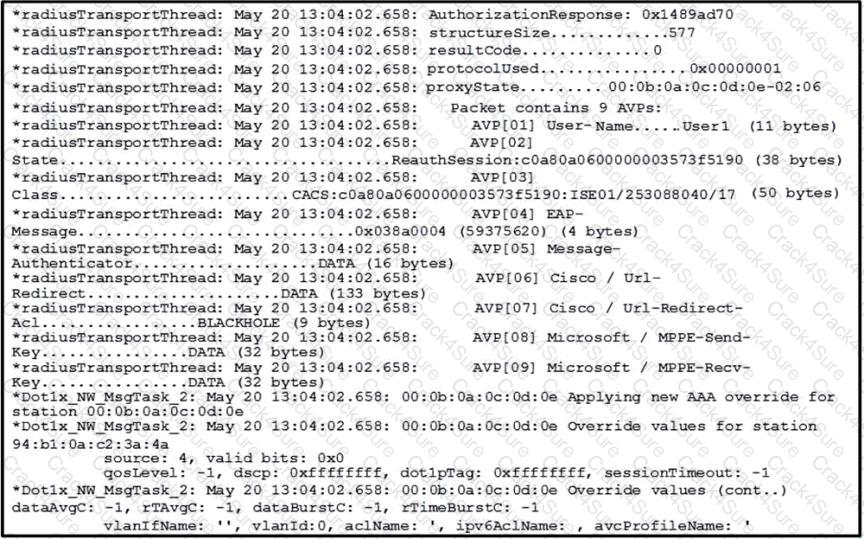

When a client is authenticated but cannot pass traffic in the RUN state, it indicates that an ACL may be blocking the traffic post-authentication. Disabling or modifying this ACL to allow traffic can resolve the connectivity issue, ensuring that the client’s traffic flows correctly after authentication with Cisco ISE.

The issue with duplicate client entries from iOS clients with the private MAC address feature enabled can be resolved by breaking the high availability using the cmxha config disable command and upgrading the primary and secondary individually. This approach allows for each appliance to be upgraded without affecting the high availability pair’s synchronization and operation. References: The solution is supported by best practices for upgrading Cisco appliances in a high availability configuration, as outlined in the CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Cisco Hyperlocation is enabled in the RF Profile on a Cisco Catalyst 9800 Series Wireless Controller web interface. The RF Profile contains settings that pertain to radio frequency management, which includes the configuration for Hyperlocation.

 The Cisco Mobility Services Engine (MSE) integrates with Cisco DNA Center to provide advanced location services, including the tracking of clients experiencing connectivity issues. This integration allows network administrators to visualize and troubleshoot client locations effectively. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which details the integration of location services within Cisco DNA Center.

To create an account for CLI access to an access point for troubleshooting, the WLC must be configured to allow user access with the capability to make changes. The ReadWrite User Access Mode enables an engineer to have full read and write access to the AP’s configuration via the CLI, which is necessary for performing troubleshooting tasks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

The image provided shows a packet capture with multiple entries displaying UDP traffic between two IP addresses using different ports (notably port number ‘16666’ which is commonly used for NMSP). Network Mobility Services Protocol (NMSP) is used by wireless controllers like WLCs to communicate with management software such as Cisco’s Mobility Services Engine or CMX. This protocol helps in managing various mobility services across wireless networks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Trusting DSCP is essential for maintaining the QoS markings across the wired and wireless network in a FlexConnect deployment. By trusting DSCP, the WLC and APs will preserve the QoS markings set by applications and devices, ensuring consistent QoS treatment throughout the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The configuration required is to trust the DSCP (Differentiated Services Code Point) on the controller switch port. This ensures that the voice traffic’s class of service is maintained throughout the network. By trusting DSCP, the switch will preserve the DSCP value set by the wireless LAN controller, which is responsible for marking the voice packets. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Cisco Hyperlocation is enabled in the RF Profile on a Cisco Catalyst 9800 Series Wireless Controller web interface. The RF Profile contains settings that pertain to radio frequency management, which includes the configuration for Hyperlocation.

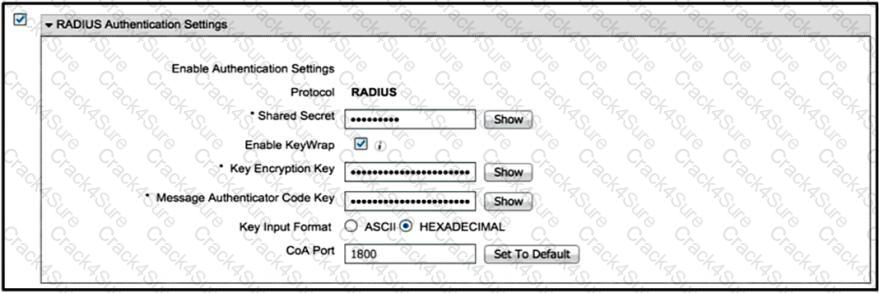

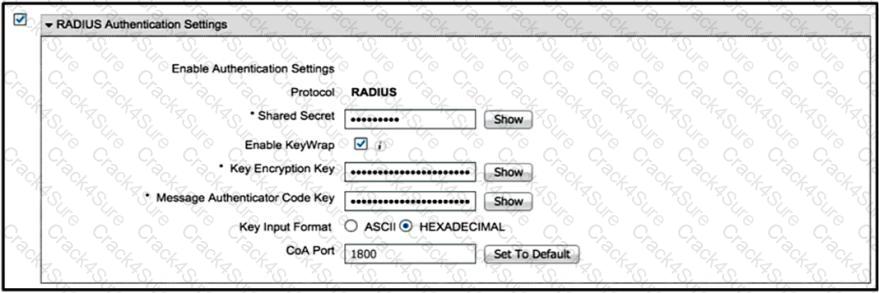

The configuration that must be applied in the RADIUS Authentication Settings section from the ISE Network Device page when clients are able to authenticate successfully but the ISE policies designed to place them on different interfaces are not working is to change the CoA Port. The CoA (Change of Authorization) port is used by ISE to send messages to the network device to apply different policies post-authentication. If the CoA port is not correctly configured, the network device will not receive or act upon these messages, resulting in clients not being placed on the correct interfaces as per ISE policies. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

During the Extensible Authentication Protocol (EAP) process, the RADIUS server generates an encrypted session key after the client’s identity is authenticated. This session key is sent to the access point to encrypt data frames between the client and the access point. It ensures that each session has a unique encryption key, enhancing security. References: Look for information on EAP and RADIUS in the CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Cisco CMX Visitor Connect supports various social connectors for guest network login. The configurable social connectors include LinkedIn, Google+, and Facebook, but not Pinterest, Medium, or Myspace. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 The two protocols used to communicate between the Cisco Mobility Services Engine (MSE) and the Cisco Prime Infrastructure network management software are HTTPS and NMSP (Network Mobility Services Protocol). HTTPS is used for secure web-based communications, while NMSP is a Cisco proprietary protocol used specifically for efficient, real-time communication between MSE and network management software like Cisco Prime Infrastructure. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

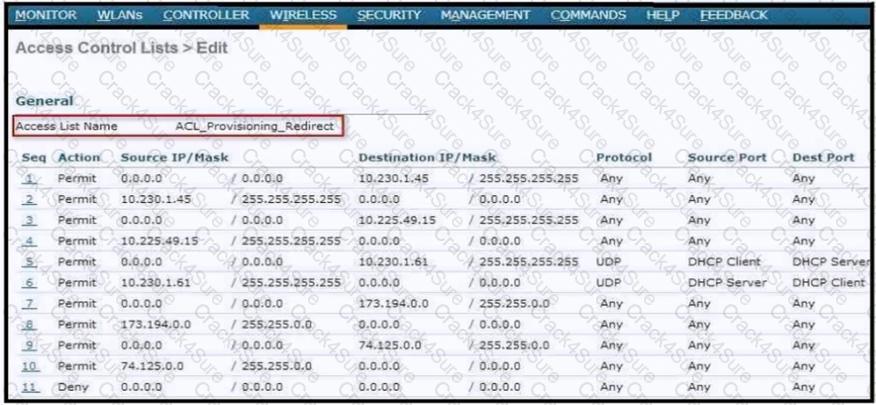

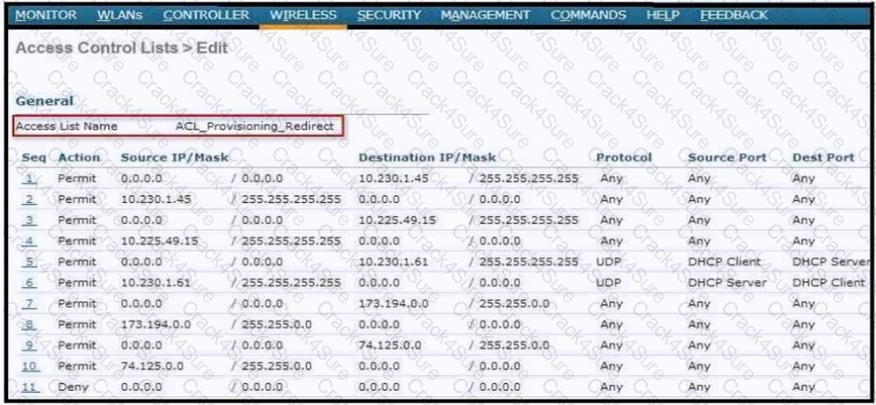

An ACL configured for BYOD clients to redirect to a guest portal must allow access to the RADIUS server and Cisco ISE. The RADIUS server is crucial for authentication services, a core component of network access control for BYOD. Cisco ISE integrates with the network infrastructure to provide comprehensive security, including guest access management, thus its accessibility is essential for the redirection process to function correctly. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The Cisco Aironet 1800s Active Sensor is designed to work with Cisco DNA Center. It is a compact, flexible sensor that provides insights into the wireless network’s health and is used for proactive monitoring and troubleshooting. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which includes information on Cisco DNA Center and compatible AP models.

To offer indoor directions to patient rooms using the existing wireless infrastructure, the hospital would need to install Cisco MSE (B) and Cisco CMX Visitor Connect ©. Cisco Mobility Services Engine (MSE) provides advanced location services, including tracking for Wi-Fi clients, which is essential for indoor navigation. Cisco CMX Visitor Connect, part of the Cisco Connected Mobile Experiences (CMX) solutions, allows for the customization of visitor experiences, such as indoor navigation. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 When a Cisco Wireless LAN Controller (WLC) is added to Cisco ISE as a network device for authentication purposes, it is crucial to verify the shared secret configured within the network device settings. The shared secret is used to secure communication between the WLC and ISE, ensuring that the authentication messages are encrypted and authenticated. If the shared secret does not match on both the WLC and ISE, the authentication will fail. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When setting up a new Network Access Device (NAD) on Cisco ISE, it is essential to configure the device’s IP address and the RADIUS shared secret. The device IP address is used to identify the NAD within the network, and the RADIUS shared secret is a password used between the ISE and the NAD to ensure secure communication.

When setting up identity-based networking with ISE and configuring AAA override on the WLAN, the attributes that can be used to change the client behavior from the default settings include the DNS server and DSCP value. The DNS server attribute allows for the specification of a DNS server per client, which can be essential for directing traffic through specific network paths or applying policies based on domain name resolutions. The DSCP value attribute is used to mark the packets with a specific Quality of Service (QoS) level, which can prioritize or deprioritize traffic as needed. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The correct URL to be used in the configuration as the external redirection URL for guests to view the company’s Facebook page before accessing the network is http:// :8083/fbwifi/forward (B). This URL is associated with the Cisco MSE’s Facebook Wi-Fi feature, which facilitates the redirection process. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To enable VLAN tagging for wireless Identity-Based Networking on a WLAN, an engineer must enable AAA override, which allows for dynamic VLAN assignment. Additionally, the RADIUS server attributes need to be updated to include tunnel type 64, medium type 65, and tunnel private group type 81, which are necessary for VLAN tagging information. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The correct command set for configuring a Cisco Catalyst 9800 Series Wireless Controller so that the client traffic enters the network at the AP switch port is Option C:

config terminal

wireless profile policy [policy name]

no central switching

end

This configuration disables central switching, which means that client traffic will be locally switched at the access point level rather than being sent through the controller. This is useful in scenarios where local switching is preferred due to reasons such as reducing latency or conserving bandwidth on WAN links. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )
