Practice Free 300-445 Designing and Implementing Enterprise Network Assurance (300-445 ENNA) Exam Questions Answers With Explanation

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, the deployment of ThousandEyes Enterprise Agents on switching infrastructure is designed to be highly flexible, catering to different management styles and network scales. Modern Cisco switches, specifically the Catalyst 9300 and 9400 Series , support the execution of containerized applications directly on the switch ' s hardware through the Cisco IOS XE Application Hosting framework. 1

Application Hosting (Option A) refers to the manual method using the Cisco IOS XE Command Line Interface (CLI). An engineer can use app-hosting commands to install, configure, and manage the Docker-based Enterprise Agent. 2 This provides granular control over resource allocation and networking for the container. Catalyst Center (Option B) provides a GUI-driven, automated workflow to deploy agents at scale across an entire campus fabric. 3 It simplifies the lifecycle management by handling the installation and activation across multiple switches simultaneously. For switches acting as edge devices in an SD-WAN fabric, Catalyst SD-WAN Manager (Option C) orchestrates the deployment through centralized policies and templates, allowing the agent to be pushed as part of a device configuration. Finally, while the ThousandEyes Portal (Option D) is the management plane for tests, it is also where the Docker image and Account Group Token are obtained for any of the aforementioned deployment methods.

Each method provides the same end result: an Enterprise Agent running " on-box " to provide deep visibility into the network path starting directly from the access or core layer. Therefore, All of the above (Option E) is the correct answer as it encompasses the manual, automated, and orchestrated methods available for switch-based deployment as per the 300-445 ENNA official guidelines.

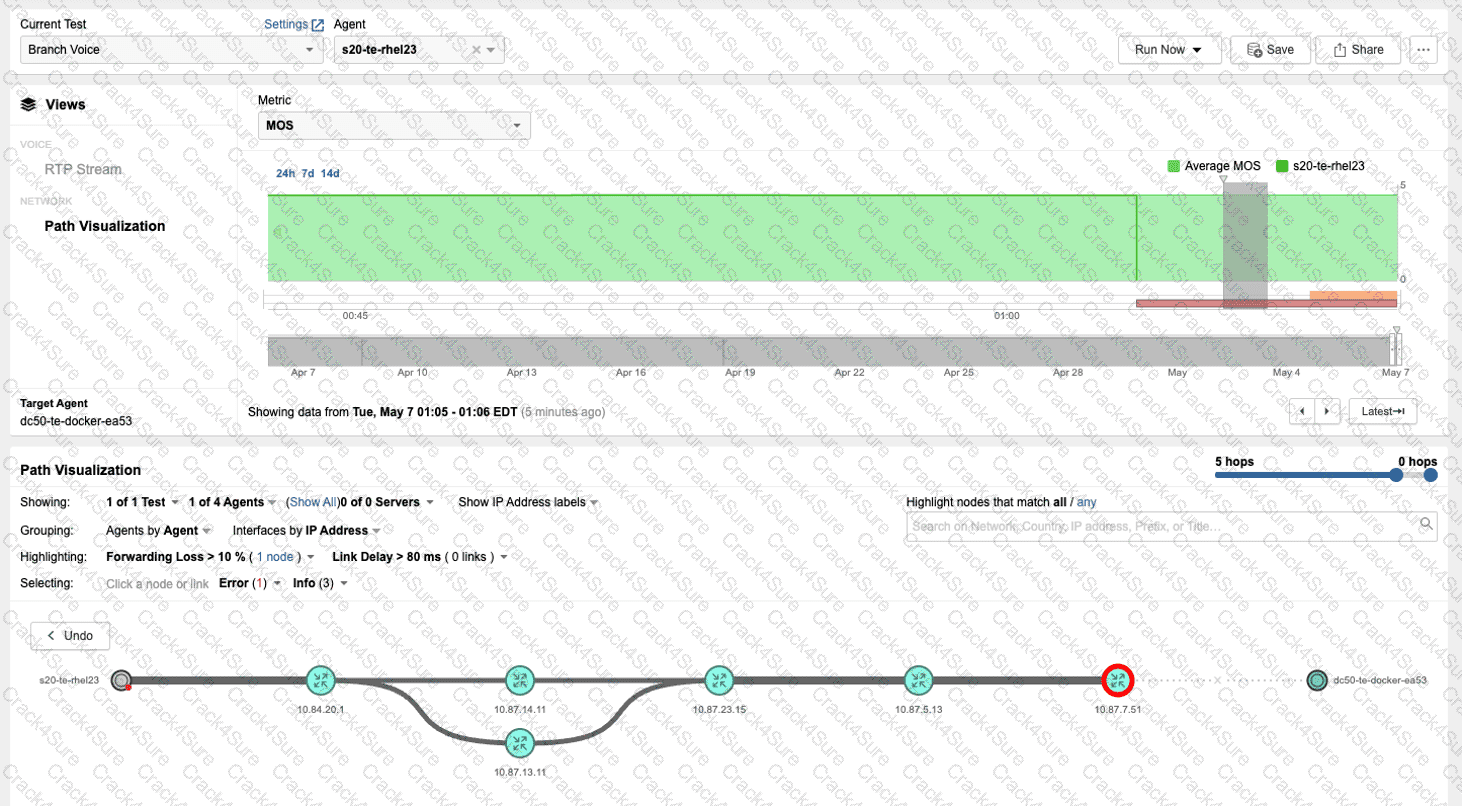

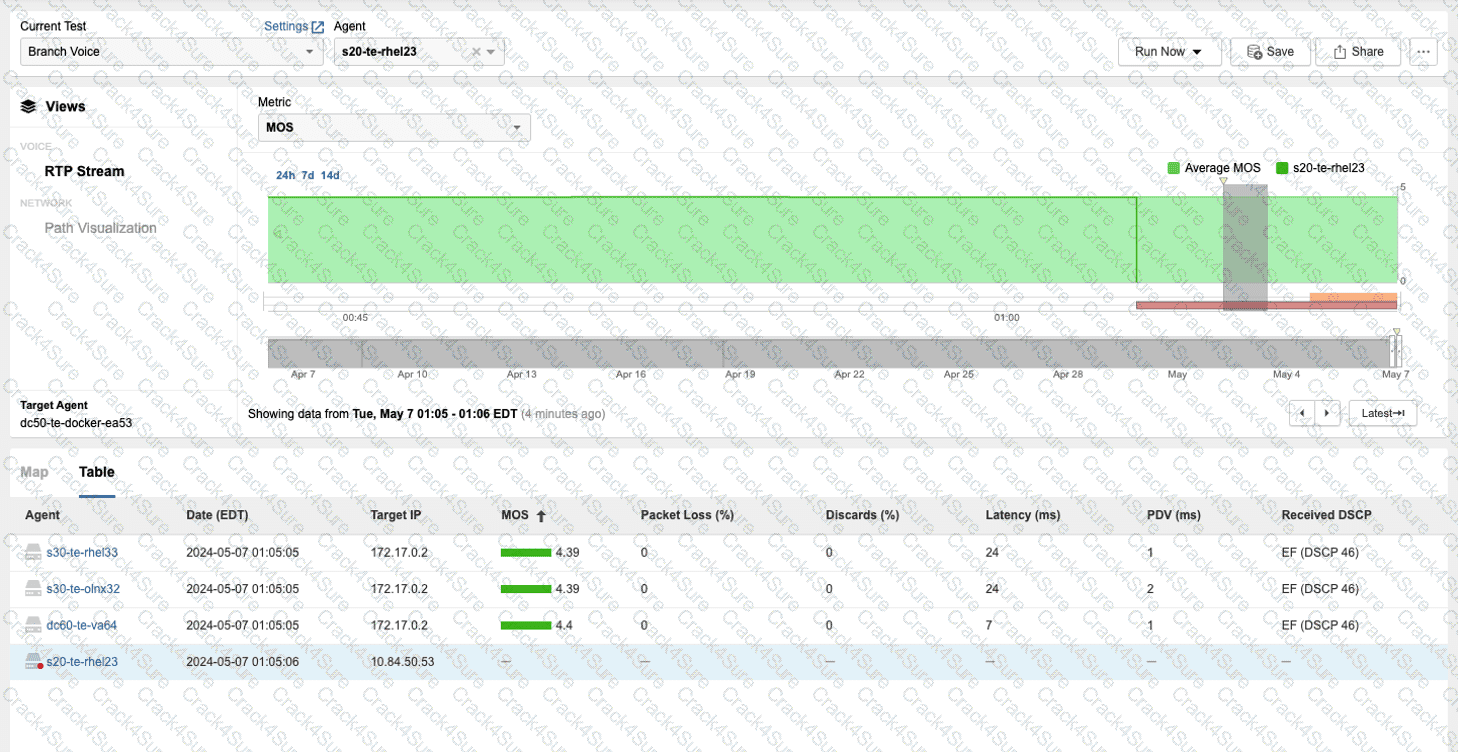

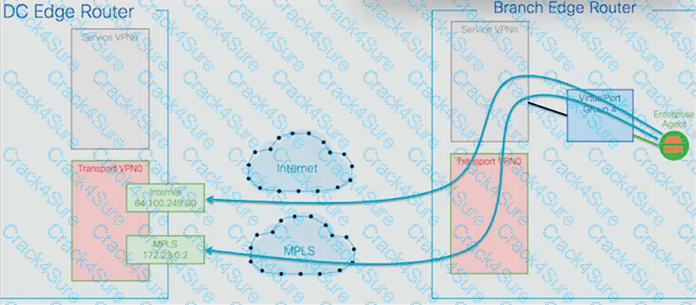

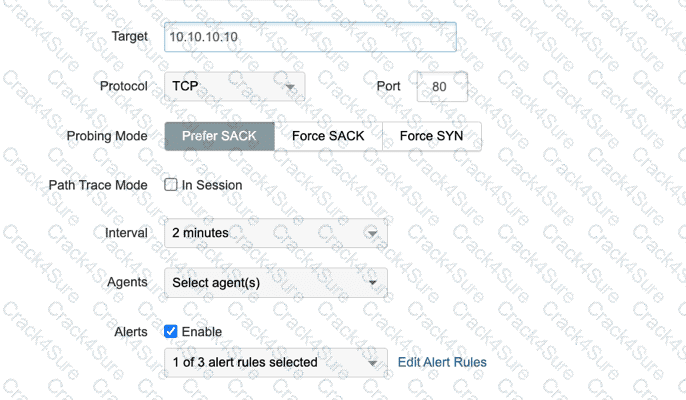

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical challenge in active synthetic monitoring is ensuring that test probes accurately reflect user traffic without being dropped by intermediate security appliances. Standard network tests often utilize separate connections for measuring performance metrics (latency/loss) and for path discovery (hop-by-hop visualization). This behavior can be flagged by stateful firewalls or Intrusion Prevention Systems (IPS) as suspicious or malicious scanning activity.

To mitigate this, the engineer should enable Path Trace Mode: In Session (Option A). When this mode is active, ThousandEyes performs path discovery using the exact same TCP session established for the performance measurement. By embedding path discovery probes within an active, established session, the traffic appears to firewalls as part of a legitimate, ongoing communication stream rather than an independent series of probes with varying TTL values that might trigger " anti-spoofing " or " scanning " alerts.

Reviewing the alternative options:

Protocol: TCP (Option B): While using TCP is generally more firewall-friendly than ICMP, the exhibit shows TCP is already selected. The issue is not the protocol itself, but how the path discovery probes are handled relative to the session.

Port: 5000 (Option C): Changing the port to a non-standard value like 5000 often makes traffic more likely to be scrutinized or blocked by default firewall policies compared to standard web ports like 80.

Probing Mode: Force SYN (Option D): Forcing SYN packets is a technique used to bypass certain types of load balancers but does not address the fundamental issue of path discovery probes being seen as a separate, malicious scan by stateful inspection engines.

Therefore, enabling In Session path trace mode is the most effective way to ensure consistent visibility through security-hardened environments.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , measuring the " lived experience " of an end-user requires data collection from the actual device being used to access the services. Unlike server-side or infrastructure-side monitoring, user experience (UX) monitoring must account for local variables like Wi-Fi signal quality, CPU/memory usage, and browser-level pe 21 rformance.

The Endpoint Agent (Option D) is the correct choice for this architecture. It is a lightweight software service installed directly on Windows or macOS workstations, as well as RoomOS devices. The Endpoint Agent provides a dual-monitoring approach: Real User Monitoring (RUM) and Scheduled Synthetic Tests . 24 RUM captures actual browser sessions to SaaS (e.g., Salesforce, Microsoft 365) or internal apps, providing a " Experience Score " and a detailed waterfall view of page load components. 25 Simultaneously, the agent can run background synthetic network tests to measure latency and path visualization from the user ' s specific location, whether they are in a branch office, at home on a VPN, or in a coffee shop.

Comparing other agents:

Enterprise Agents (Option B) can simulate a user at a branch office, but they cannot provide insight into the specific health of an individual ' s laptop or their unique Wi-Fi environment.

Cloud Agents (Option C) are entirely outside the user ' s network and cannot measure the performance of internal web applications or the " last mile " connectivity of the employee.

Synthetic Agent (Option A) remains a distractor term.

By deploying Endpoint Agents , the architect ensures they have granular, contextual data that correlates application performance directly with the user’s device and local network environment.

Alert fatigue is a major operational challenge in network assurance. To make a CPU utilization alert for Endpoint Agents less sensitive and reduce " noise, " an engineer must implement statistical filters that ignore transient spikes or isolated events.

The two most effective methods are:

Increase the agent count (Option A): By requiring a higher number or percentage of agents to simultaneously exceed the threshold, the system ensures the alert represents a widespread environmental issue rather than a single user running a CPU-intensive background process.

Require more rounds of data (Option C): Instead of alerting on a single measurement (1 of 1 round), the engineer can configure the rule to require the threshold to be breached for multiple consecutive checks (e.g., 2 of 3 rounds). This filters out brief, non-impactful CPU spikes that occur naturally during OS updates or browser startups.

Other options would have the opposite effect:

Option B: Lowering the percentage threshold (e.g., from 90% to 50%) would cause the alert to trigger much more frequently, increasing noise.

Option D: Enabling the alert on more agents increases the pool of potential triggers, which typically leads to more notifications unless the logic in Option A is also applied.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, ThousandEyes provides a suite of native, " out-of-the-box " integrations specifically designed for alert notifications . These integrations are configured via the Manage > Integrations or Alert Rules > Notifications tabs and allow the platform to push instant event data to a variety of collaboration, IT operations, and observability tools.

The verified list of native notification integrations includes:

ServiceNow (A): Facilitates direct incident management and automated ticketing workflows.

PagerDuty (B): Allows for automated incident escalation and on-call routing based on ThousandEyes alerts.

MS Teams (C) & Slack (H): Enable real-time chatops by pushing alert details and permalinks directly into specified channels for team collaboration.

Splunk (D): Utilizes the Cisco ThousandEyes App for Splunk to ingest alert data for historical analysis and correlation within a SIEM or logging platform.

AppDynamics (F): Sends alert notifications directly into an AppDynamics instance, allowing application owners to correlate network issues with APM metrics. 12

Webex (G): Integrates with the Webex Control Hub and specific Webex spaces to provide unified visibility for collaboration performance. 34

AWS (Option E) is not a native alert notification destination 5 in this context; instead, ThousandEyes integrates with AWS for " Cloud Insights " (ingesting VPC Flow Logs) and " Test Recommendations " rather than acting as a receiver for event notifications like a chat or ITSM tool. By utilizing these native integrations, enterprise teams ensure that the right stakeholders are notified through their preferred communication channels the moment a performance threshold is breached, drastically improving response times across the organization.

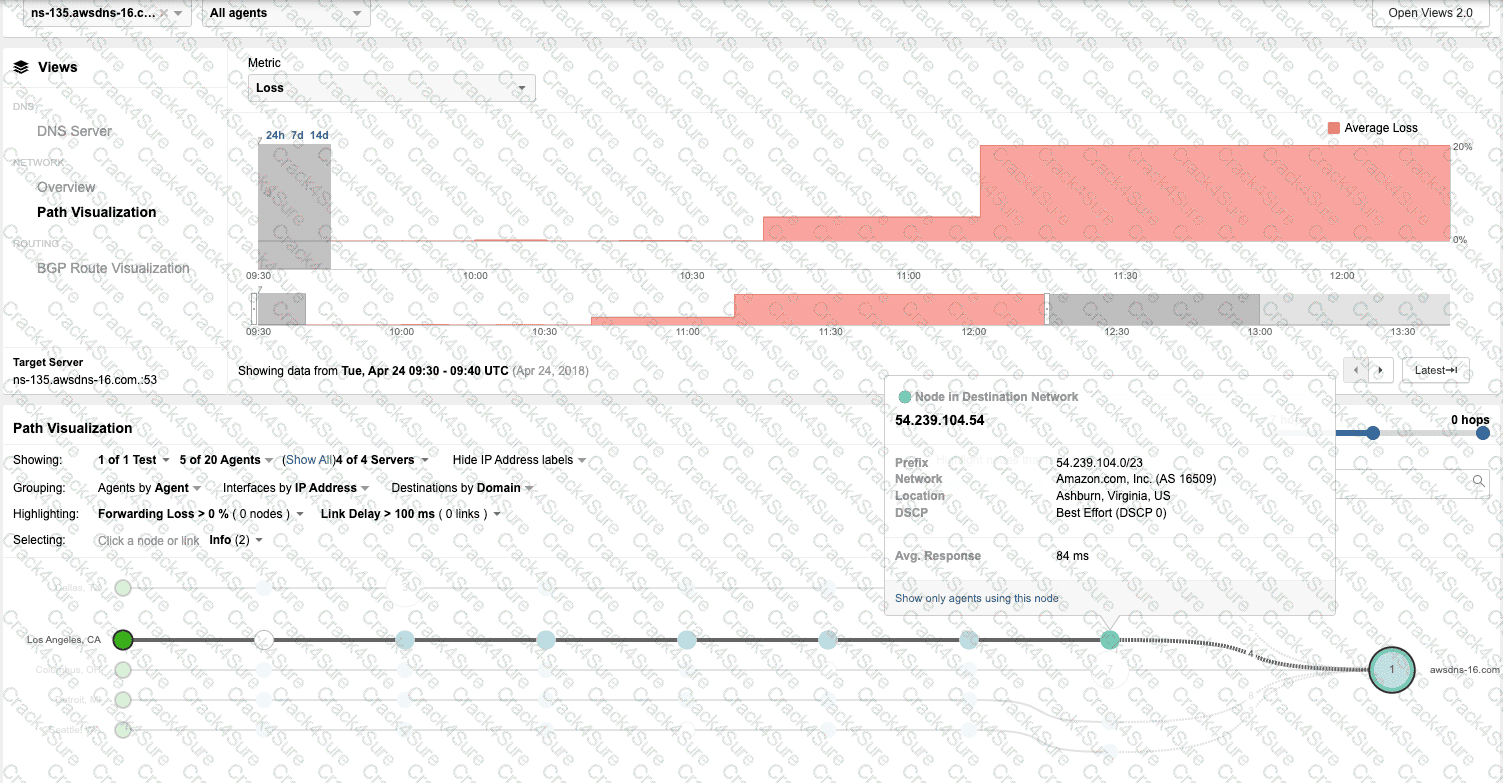

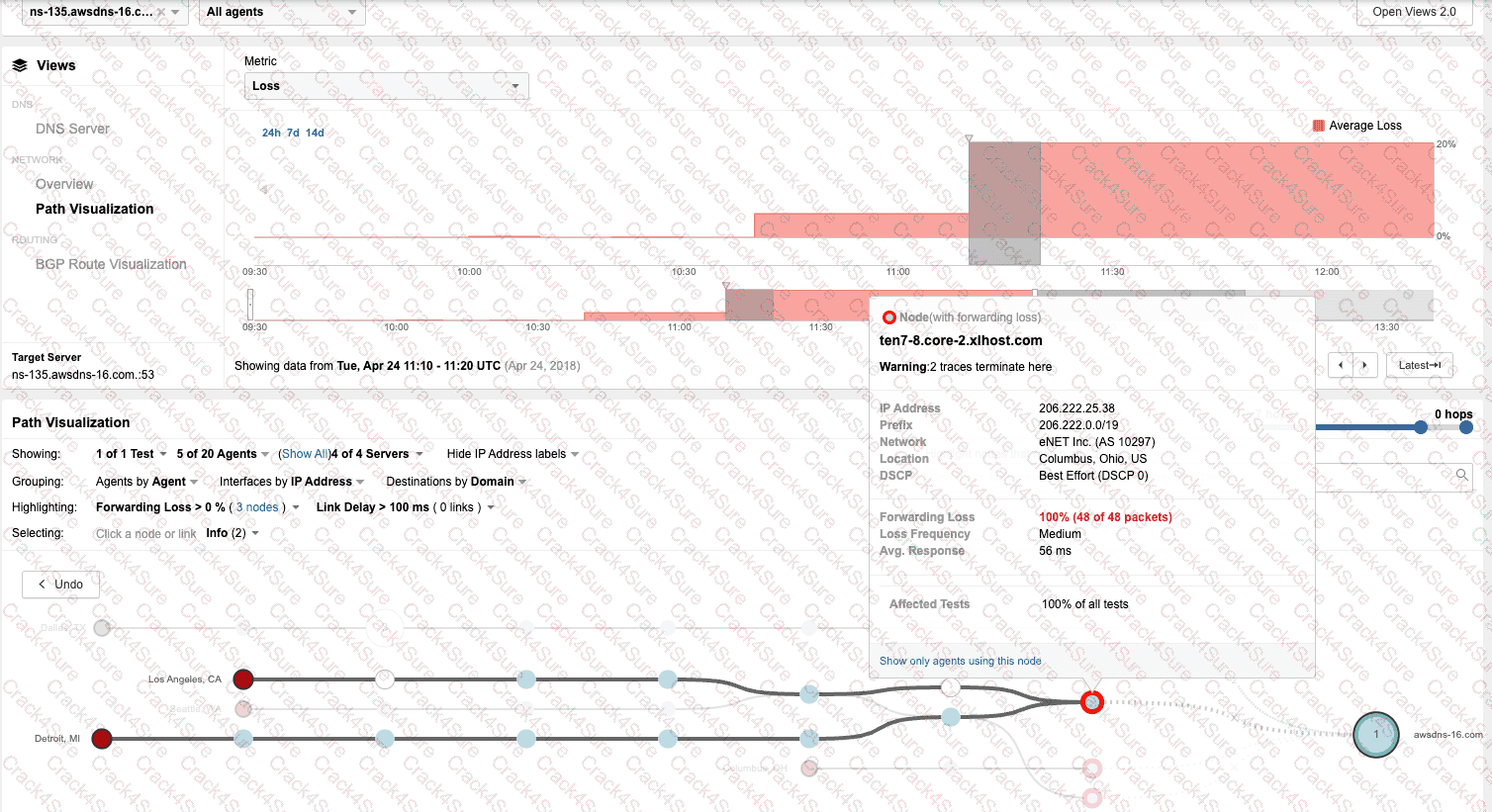

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, identifying routing anomalies such as BGP Hijacking is a critical aspect of external network assurance. A BGP Hijack occurs when an Autonomous System (AS) illegitimately announces a prefix it does not own, causing traffic intended for the rightful owner to be misdirected.

By contrasting Exhibit 3.4-1 (Before the Outage) and Exhibit 3.4-2 (During the Outage), a definitive change in the routing path is observed. In the baseline view (Exhibit 3.4-1), traffic from the Los Angeles agent reaches the destination network 54.239.104.0/23, which is correctly associated with Amazon.com, Inc. (AS 16509) . However, during the outage (Exhibit 3.4-2), the path visualization shows the traffic being redirected into a different network: eNET Inc. (AS 10297) . At this new location, the traffic encounters 100% Forwarding Loss at the node ten7-8.core-2.xlhost.com.

The change in the Autonomous System (AS) number from 16509 to 10297 (Option B) is the most concrete indicator of a BGP Hijack. While symptoms such as Availability Drop (Option A), Response Delay (Option C), and Packet Loss (Option D) are clearly visible in the ThousandEyes telemetry, these symptoms are generic and could be caused by various other issues like physical link failures or congestion. The shift in the AS path—specifically to an AS that does not legitimately host the target ' s IP prefix—provides the forensic evidence needed to identify the root cause as a routing takeover. This visualization allows network administrators to bypass internal troubleshooting and immediately focus on external remediation with upstream providers.

In Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , dashboard widgets must be mapped to the correct telemetry data source and statistical measure. When an agent is installed as a Linux package on an organization ' s infrastructure, it is classified as an Enterprise Agent .

The correct configuration for this widget is Cloud & Enterprise Agents and Mean (Option B).

Data Source: Since the Linux-based agent is an Enterprise Agent, it shares the same data source category as Cloud Agents in the ThousandEyes dashboard configuration menu.

Measure: To display the " average " packet loss as requested, the Mean (the arithmetic average) is the appropriate statistical measure.

Other options are unsuitable:

Option A: Endpoint Agents are those installed on Windows/macOS user devices, not typically a standard Linux server package used for infrastructure monitoring. Median would show the middle value, not the average.

Option C: Routing refers to BGP data, which does not report packet loss in the same way as synthetic network tests.

Option D: Devices refers to hardware monitored via SNMP, and an nth Percentile is a specific statistical cutoff (like 95th percentile) rather than a simple average.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the integration of ThousandEyes with the Cisco SD-WAN fabric is a cornerstone of modern wide-area network visibility. The primary agent type used in this native integration is the Enterprise Agent (Option C).

According to the ENNA implementation guidelines, ThousandEyes Enterprise Agents run as containerized applications directly on the Cisco IOS XE software stack (version 17.6.1 and later) of supported hardware, such as Cisco Catalyst 8000 Edge Platforms and ISR 4000 Series routers . 3 This deployment is orchestrated centrally through Cisco Catalyst SD-WAN Manager (formerly vManage), which handles the lifecycle management, including downloading the Docker-based agent image from the Cisco software repository and pushing the initial configuration to the branch edge devices. 4

Once deployed, these Enterprise Agents function as internal vantage points that can measure performance across both the underlay transport and the SD-WAN overlay . By placing the agent on the router, engineers can execute synthetic tests to monitor mission-critical SaaS applications or data center services directly from the branch ' s perspective, avoiding the need for extra hardware probes at each site. This " agent-on-router " architecture significantly reduces both CapEx and OpEx while providing high-fidelity network intelligence into ISP peering, regional outages, and fabric health.

Cloud Agents (Option A) are managed by Cisco in global data centers and cannot be " installed " on customer edge routers.

Endpoint Agents (Option D) are designed for user workstations or laptops and do not provide the infrastructure-level visibility required for SD-WAN transport monitoring.

Browser Agent (Option B) is not a specific standalone agent type in this context; rather, browser-level testing is a capability often performed by Endpoint or Enterprise Agents.

Therefore, the Enterprise Agent is the correct verified agent type for Cisco SD-WAN vManage integration.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) guidelines, troubleshooting widespread performance issues for a public or data center-hosted app 17 lication requires an " outside-in " perspective. When reports are widespread, 18 the goal is to determine if the issue is global, regional, or specific to certain ISP paths leading to the data center.

The Cloud Agent (Option D) is the most effective tool for this task because these agents are maintained by Cisco ThousandEyes in over 240+ locations worldwide within Tier 1, 2, and 3 ISPs and cloud provider regions. 19 Because they are pre-deployed and immediately available , a network engineer can instantly run tests from multiple global locations toward the data center-hosted application without having to install any software or manage any infrastructure. This allows the engineer to quickly compare performance metrics (latency, loss, and page load times) across different geographies. If Cloud Agents in London report no issues while those in New York report high packet loss, the engineer can immediately pinpoint the root cause as a regional ISP or peering issue rather than a failure within the data center itself.

Enterprise Agent (Option B): While these could be used if they were already installed in various branch offices, they require ownership of the infrastructure and deployment time. They are better suited for " inside-out " monitoring.

Endpoint Agent (Option C): These are useful for troubleshooting individual user experience but are not the " quickest " way to baseline global performance against a data center application during a widespread event.

Synthetic Agent (Option A): As noted previously, this is a generic term describing the underlying technology used by all ThousandEyes agent types.

Therefore, Cloud Agents provide the necessary breadth and immediate availability to perform rapid root cause analysis for widespread application performance issues.

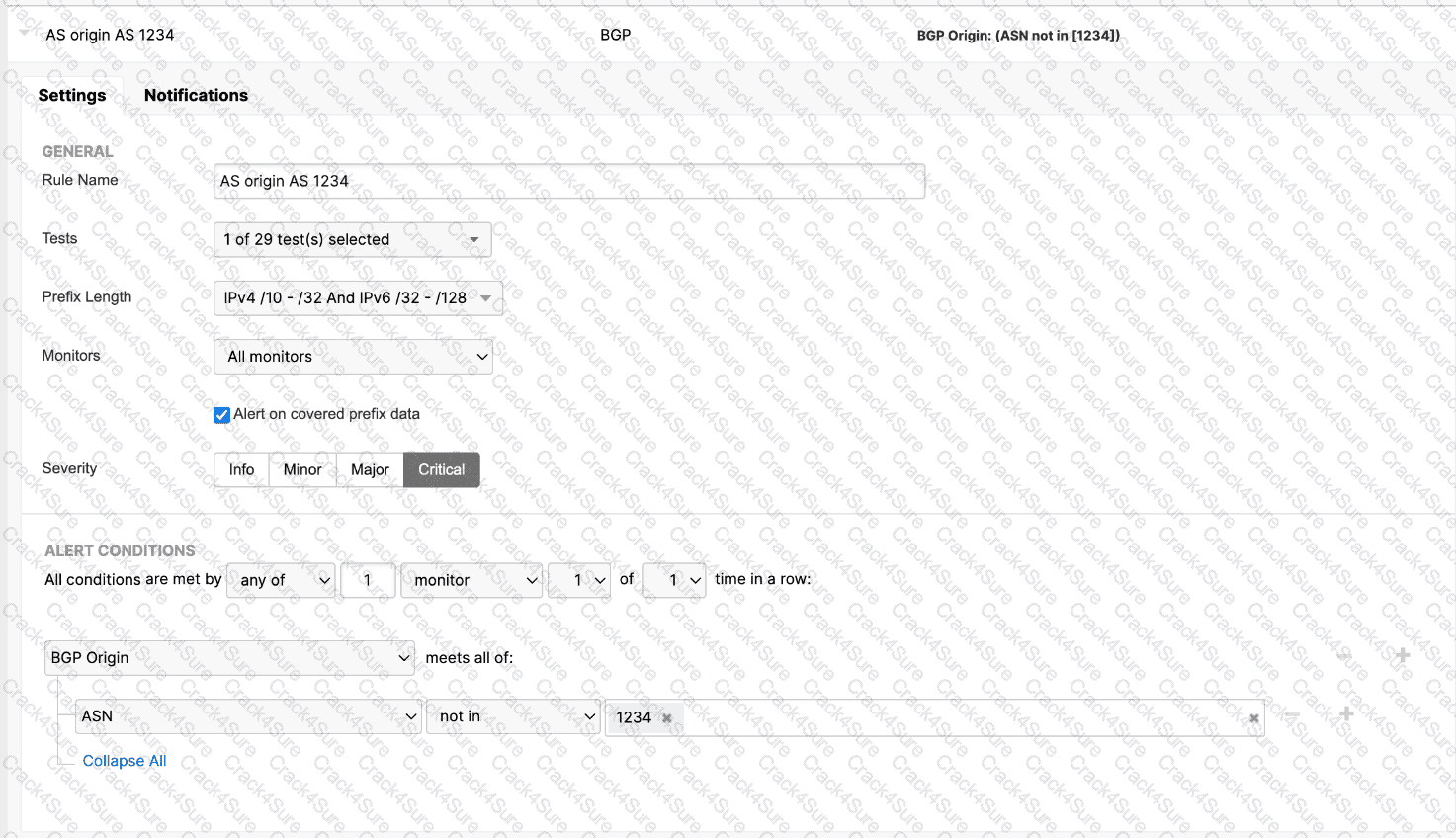

As shown in Exhibit 4.1-1 (image_6e19fb.png), the alert rule is configured for the BGP layer with the name " AS origin AS 1234 " . The critical logic is defined in the Alert Conditions section, which specifies: BGP Origin meets all of: ASN not in 1234.

This specific configuration is the standard method used in ThousandEyes to detect BGP hijacking (Option C). BGP hijacking occurs when an unauthorized Autonomous System (AS) announces a network prefix that it does not own, effectively stealing the traffic meant for the legitimate owner. By setting an alert that triggers when a monitored prefix is seen originating from an Autonomous System Number (ASN) that is not the expected authorized ASN (in this case, AS 1234), ThousandEyes provides immediate notification of a routing takeover.

Identifying this via BGP Origin alerts is superior to simple connectivity checks because it catches the issue at the routing control plane.

DNS Issues (Options B and D): These involve the translation of names to IPs and would be detected via DNS-specific tests rather than BGP Origin checks.

Route Poisoning (Option A): This is a generic term often referring to the manipulation of distance-vector protocol metrics to make a route unreachable; while related to routing, BGP Origin checks are the specific tool for detecting external prefix hijacks.

By monitoring the ASN origin, network engineers can quickly distinguish between a local ISP outage and a global security event where their traffic is being misdirected to an illegitimate network.

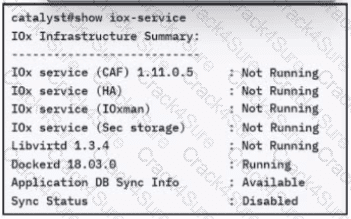

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) implementation guide, the Cisco IOS XE Application Hosting lifecycle is a critical concept for troubleshooting and configuration management. When an application environment variable—such as proxy settings—is modified in the app-hosting configuration, a simple restart of the container is insufficient.

The correct procedure involves moving the application back to the Configured state before bringing it back to Running . This requires a four-step lifecycle execution (Option C):

Stop: Terminates the current running instance of the container.

Deactivate: Releases the hardware resources (CPU, Memory, Virtual Interfaces) and, crucially, detaches the previous runtime configuration.

Activate: Re-allocates the resources and injects the new configuration parameters (including the updated proxy settings) into the container ' s environment.

Start: Initiates the container with the newly applied configuration.

Without the deactivate/activate sequence, the container will continue to use the environment variables present at the time of its initial activation, causing the agent to remain offline as it fails to reach the ThousandEyes portal without the proxy. Reinstalling (Option B) is an unnecessary and time-consuming step that involves re-downloading or re-copying the image, while No action (Option D) will result in no change to the agent ' s connectivity status.

In wireless network assurance, high channel utilization and increased retransmissions are clear indicators of RF interference or over-subscription. Retransmissions are particularly damaging to voice call quality because they introduce significant jitter and late-arrival packet loss that the jitter buffer cannot overcome.

The recommended optimization is to change the access point to a different, less congested channel (Option B). This directly reduces the competition for airtime (Channel Utilization) and the likelihood of collisions from neighboring access points (Co-Channel Interference), which in turn lowers the retransmission rate. Modern wireless controllers using Radio Resource Management (RRM) often automate this, but a manual adjustment based on SNMP telemetry is a valid operational fix.

Other options are technically flawed:

Option A: Increasing transmit power often increases interference and channel utilization for surrounding cells, making the problem worse for everyone.

Option C: Disabling all non-voice traffic is an extreme measure that is rarely feasible in a real business environment.

Option D: Admission control limits the number of users but doesn ' t solve the underlying issue of poor channel health for those already connected.

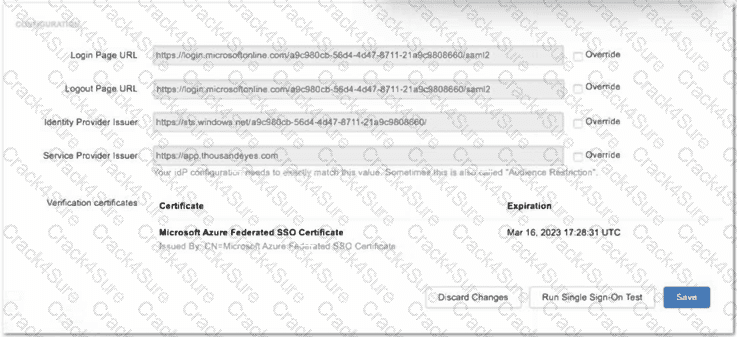

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, secure administrative access via Single Sign-On (SSO) is a critical component of platform governance. The exhibit illustrates the ThousandEyes SSO configuration panel being integrated with Microsoft Entra ID (formerly Azure AD). When configuring SAML-based authentication, the " Identity Provider Issuer " (Option D) is a unique identifier provided by the IdP (Microsoft) that must match exactly between the two systems.

According to ENNA implementation guidelines, ThousandEyes populates default fields based on standard SAML metadata. However, Microsoft Entra ID often utilizes a specific GUID-based format for the Issuer URL (e.g., https://sts.windows.net/tenant-id/) that may differ from the generic URL format expected by the platform ' s initial auto-fill. To ensure a successful SAML handshake, the engineer must select the " Override " checkbox next to the Identity Provider Issuer field. This action unlocks the field, allowing the engineer to manually paste the exact string provided in the Entra ID Federation Metadata document. If this value is not overridden and matched precisely, the SAML assertion will be rejected, resulting in a failed authentication attempt.

While the Login and Logout URLs (Options B and C) are also critical, they are typically correctly identified during the initial setup or metadata import; the Identity Provider Issuer is the most frequent point of mismatch requiring an manual override in Entra ID environments due to its strict " Audience Restriction " requirements. The Service Provider Issuer (Option A) is generally a fixed value (https://app.thousandeyes.com) that rarely requires overriding as it defines ThousandEyes ' own identity to the IdP.

Therefore, selecting the override for the Identity Provider Issuer is the necessary step to complete the integration and allow enterprise users to authenticate securely using their corporate credentials.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, selecting the appropriate test type is essential for isolating performance bottlenecks in complex web applications. When users report issues with specific multi-step workflows—such as logging into a portal or interacting with a shopping cart—the Transaction test type (Option C) is the most effective tool.

A Transaction test is a specialized Web-layer test that utilizes a script (typically written in JavaScript/TypeScript) to mimic real user interactions with a website. Unlike a simple HTTP Server test (Option A) that only checks for a 200 OK response from a single URL, or a Page Load test (Option B) that measures the rendering of a single page, a Transaction test follows a predefined user journey. For this retail scenario, the test can be configured to navigate to the homepage, enter credentials, click the login button, search for a product, and add it to the cart.

The primary advantage of this approach is that it provides granular, step-specific timing. It allows the engineer to identify precisely where the latency or failure occurs—for example, if the backend database takes too long to process the login or if an API call fails during the " add to cart " action. While Agent-to-server (Option D) and DNS Server (Option E) tests provide valuable network and infrastructure data, they cannot validate the functional logic of a web application. Agent-to-agent (Option F) is used for measuring throughput between two managed points and is irrelevant for public-facing website testing. Therefore, for troubleshooting interactive web processes, the Transaction test type is the definitive choice for pinpointing the source of the issue.

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) certification emphasizes that the primary value proposition of the Cisco " Assurance Stack " is the reduction of Mean Time to Identification (MTTI) and Mean Time to Resolution (MTTR) . The integration of ThousandEyes across Cisco ' s portfolio—including Catalyst, Meraki, and SD-WAN— allows for quick identification and resolution of performance issues (Option D). 12

By embedding ThousandEyes agents into the existing network infrastructure, Cisco enables " end-to-end visibility " that spans domains the enterprise traditionally does not control, such as the public internet and SaaS environments. 13 During troubleshooting, this cross-platform visibility allows network engineers to immediately correlate internal network health (from Catalyst Center or Meraki Dashboard) with external path visualization (from ThousandEyes). For example, when a user experiences poor video quality in a Webex meeting, the integration allows the engineer to " cross-launch " from the Webex Control Hub directly into a ThousandEyes path view. 14 This pinpoint accuracy avoids the " blame game " between network, application, and ISP teams by providing a " single source of truth " regarding where the packet loss or latency is occurring.

While some automation exists (Option C), the core benefit isn ' t automatic configuration changes based on feedback, but rather providing the actionable insights required for manual or policy-based remediation. Similarly, while it streamlines data gathering, its ultimate purpose is the speed of resolution in complex, hybrid environments.

Detailed Explanation:

This analysis requires extracting two specific browser-rendering metrics from the IT Operations Dashboard. By placing the cursor over the latest metrics data points:

Page Load time: 1479.6 ms.

DOM load time: 1354.3 ms.

By subtracting the DOM time from the Page Load time ($1479.6\text{ ms} - 1354.3\text{ ms} = 125.3\text{ ms}$), the engineer identifies the duration spent rendering the page after the initial document structure was established.
