300-620 Practice Exam Questions with Answers Implementing Cisco Application Centric Infrastructure (300-620 DCACI) Certification

In a Cisco ACI configuration with IEEE 802.1p ports, the traffic exits from the EPG untagged from leaf ports. This means that when the port is configured in Access (802.1p) mode and the access VLAN is the only VLAN deployed on the port, then traffic will be untagged on egress56.

The L3Out subnet configuration option that creates an inbound route map for route filtering is Import Route Control Subnet3. This option allows for the application of route maps to incoming routes from external networks, providing granular control over which routes are allowed into the ACI fabric3.

 To allow multiple external networks to communicate with internal ACI subnets and assign the prefix to the class ID of the external Endpoint Group, the engineer should configure subnets with the External Subnets for External EPG flag enabled1. This configuration allows the specified subnets to be associated with an external EPG, which facilitates communication between internal tenants and external routed networks via L3Outs1.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_01001.html

 In Cisco ACI, the object classes are used to categorize different types of managed objects within the ACI model. The output presented is indicative of a Tenant class object. Tenants in ACI are a top-level container for application policies, essentially providing a unit of isolation from other tenants. Each tenant can contain its own application policies, services, and network policies, and they are separate from other tenants to ensure multi-tenancy1.

References :=

Cisco ACI Policy Model Guide1

Object Renaming in Cisco ACI - Cisco2

Application Centric Infrastructure (ACI) REST API Guide - Cisco DevNet

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci /apic/sw/4-x/openstack/ACI-Installation-Guide-for-Red-Hat-Using-OSP13-Director/m-configuring-ironic-for-openstack.html

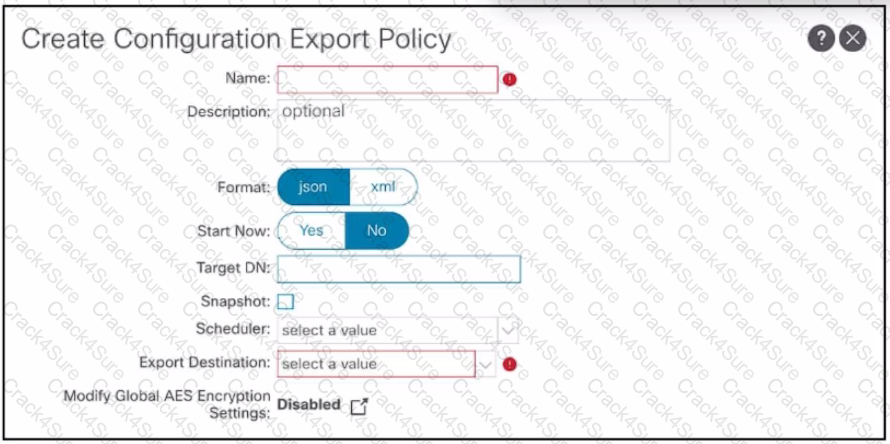

Enabling AES encryption ensures that sensitive data, such as credentials for VMMs and third-party integrations, is securely encrypted in the backup file. This is essential for a fully functional restore without requiring re-entry of sensitive details.

 After ARP flooding is enabled in Cisco ACI Multi-Pod, broadcast frames are forwarded within the pod and across the Inter-Pod Network (IPN) using the multicast address associated with the bridge domain. If the setting is ‘Flood’, the leaf switch floods to the Group IP (GIPo) multicast group allocated for the bridge domain, ensuring that both local and remote pods receive a flooded copy

The Cisco ACI site deployment feature that enables an engineer to control which bridge domains contain Layer 2 flooding across geographically separated data centers is Multi-Site. This feature allows for the extension of Layer 2 and Layer 3 connectivity between different locations with consistent policy enforcement5.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/aci_multi-site/sw/2x/fundamentals/Cisco-ACI-Multi-Site-Fundamentals-Guide-211/Cisco-ACI-Multi- Site-Fundamentals-Guide-211_chapter_011.html#id_51188

To meet the requirement of sending all faults and events related to endpoint groups, bridge domains, and VRFs to the new SNMP configuration and syslog servers, the network engineer should utilize common tenant monitoring policies in the Cisco APIC. The common tenant is used for global configurations that apply across the entire fabric, including monitoring policies.

To configure a bridge domain for an EPC called “Web Servers” that meets the specified requirements, the following steps should be taken:

Set L2 Unknown Unicast to Hardware Proxy: This setting ensures that only traffic to known MAC addresses is allowed, which helps to reduce noise by preventing unknown unicast flooding within the bridge domain1.

Configure L3 Unknown Multicast Flooding to Optimized Flood: This setting limits multicast traffic to the ports that are participating in multicast routing, which optimizes the delivery of multicast packets1.

Create an Endpoint Retention Policy with a Local Endpoint Aging interval of 1200 seconds (20 minutes): This policy ensures that endpoints within the bridge domain are kept in the endpoint table for 20 minutes without any updates, maintaining the stability of the network1.

By following these steps, the bridge domain will be configured to satisfy the requirements for the EPC called “Web Servers” in the Cisco APIC environment.

In a Cisco ACI fabric, when a silent host moves from one location to another without notifying the ACI leaf switch (e.g., via Gratuitous ARP), the detection mechanism depends on how the bridge domain is configured. Specifically, ARP flooding can help detect such silent hosts.

 To determine if a change in the behavior of the ACI fabric was due to human intervention, an ACI administrator should inspect the audit logs in the APIC UI. The audit logs provide a record of all user events, which includes actions performed by users, making it possible to trace any changes back to specific human activities1.

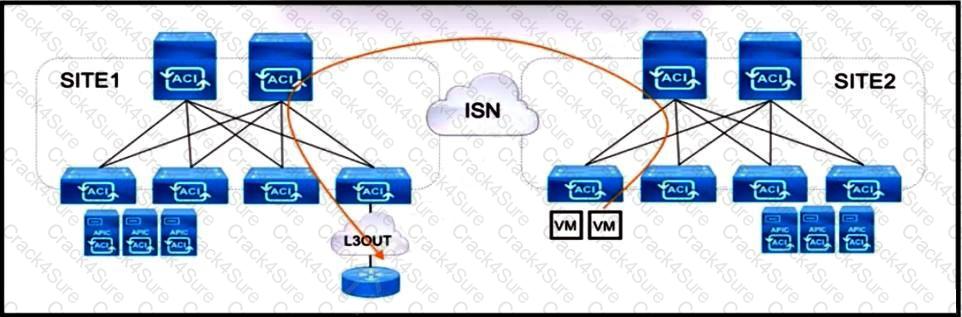

 In a Cisco ACI Multi-Site fabric, when the Inter-Site BUM Traffic Allow option is enabled for a stretched bridge domain, ingress replication on the spines in the source site is used to forward Broadcast, Unknown unicast, and Multicast (BUM) traffic to all endpoints in the same broadcast domain. This method ensures that BUM traffic is replicated and sent out through the spines to the destination sites.

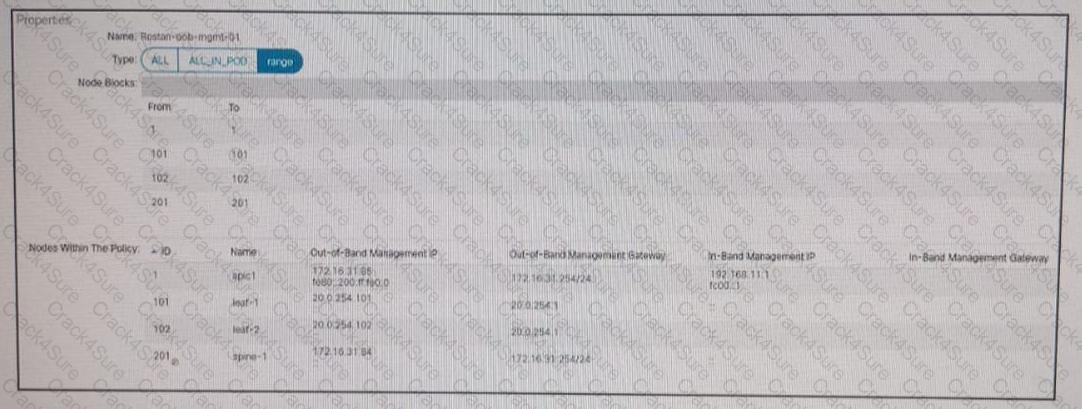

When configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes, the tenant used is the mgmt tenant1.

In Cisco ACI, when a packet is routed between two endpoints on different leaf switches, the VXLAN VNID that is applied to the packet corresponds to the Bridge Domain (BD). The BD VNID is used to encapsulate the packet for Layer 2 transport across the fabric. This VNID ensures that the packet is delivered to the correct bridge domain, maintaining the segmentation and policy enforcement required by the ACI fabric.

References :=

Cisco ACI Fabric Forwarding White Paper

Cisco ACI Basic Configuration Guide

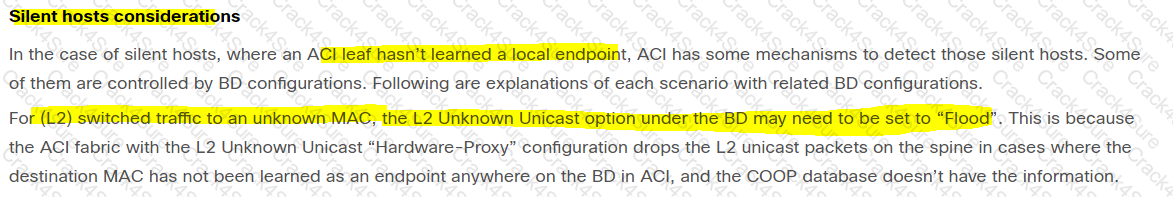

The question asks about the mechanism Cisco ACI uses to detect silent hosts when Layer 3 routed traffic is destined to the ACI fabric. A "silent host" refers to an endpoint that does not initiate traffic or send ARP requests, making detection challenging without specific mechanisms. Let’s evaluate the options based on Cisco ACI documentation and best practices.

Requirement Analysis

Layer 3 routed traffic implies that the ACI fabric is handling IP routing, and the detection mechanism must work within the context of the bridge domain and endpoint learning.

Silent hosts require passive detection methods since they do not generate active traffic (e.g., ARP requests).

The solution must align with ACI’s endpoint learning and proxy mechanisms.

Option Evaluation

A. Gratuitous ARP:

Gratuitous ARP (GARP) is a mechanism where a host announces its IP-to-MAC mapping to update network devices. However, this requires the host to send the GARP, which a silent host does not do. ACI can use GARP when hosts are active, but it is not the primary method for silent hosts.

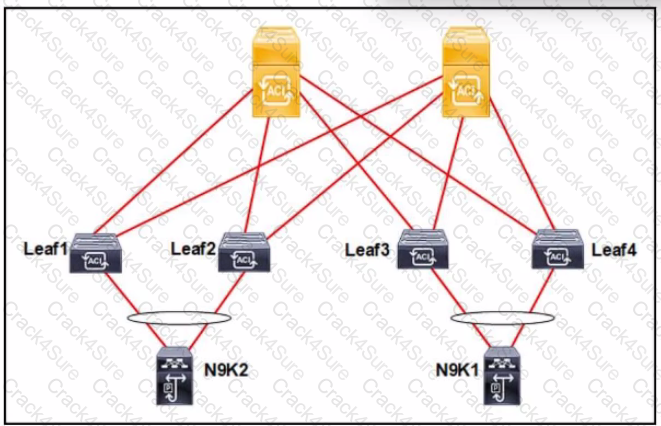

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.

To implement management policy and data plane separation in the Cisco ACI fabric, the ACI object that must be created in Cisco APIC is a Bridge domain

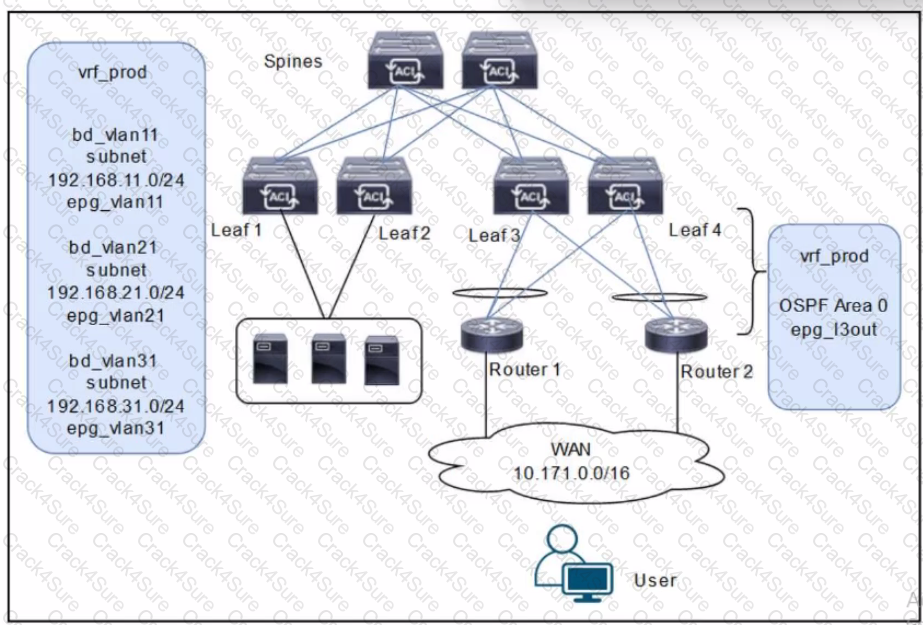

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.

Requirement Analysis

Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:

These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.

In ACI, the "Advertised Externally" scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).

Reachability to WAN users must be permitted only for servers in vrf_prod:

This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.

The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.

The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.

Option Evaluation

A. Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:

Setting 192.168.11.0/24 and 192.168.21.0/24 as "Private to VRF" means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.

Setting 192.168.31.0/24 as "Advertised Externally" incorrectly advertises this subnet to the WAN, which is not desired.

The "External Subnets for External EPG" scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.

Conclusion: Fails the first requirement (route advertisement).

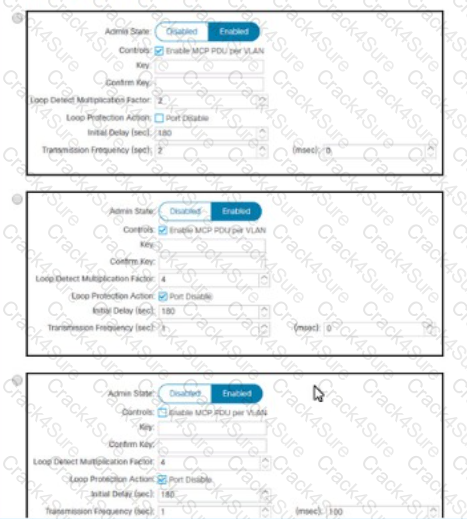

To configure a Cisco ACI system to detect network loops for both untagged and tagged traffic and to stop the loop by disabling an interface within 4 seconds, the following configuration must be used:

Enable Mis-Cabling Protocol (MCP): MCP detects loops from external sources and will err-disable the interface on which Cisco ACI receives its own packet. This is crucial for preventing loops in the network1.

Configure MCP Transmit Frequency: Set the MCP transmit frequency to a value that allows for quick loop detection. The Cisco ACI fabric provides faster loop detection with transmit frequencies from 100 milliseconds to 300 seconds. To meet the requirement of detecting and stopping a loop within 4 seconds, you would set the transmit frequency to a value less than 4 seconds2.

Set Action on Loop Detection: Configure the MCP policies to identify loops and decide how to act upon them. You can set the policy to generate a syslog message or disable the port upon loop detection2.

Implement Error Disabled Recovery Policy: Configure an error disabled recovery policy to automatically re-enable ports that were disabled due to loop detection after a configurable interval2.

By implementing these configurations, the Cisco ACI system will be able to detect and stop network loops quickly and efficiently, ensuring network stability and preventing potential disruptions.

References :=

Cisco APIC Online Help - Loop Detection2

Cisco ACI Best Practices Quick Summary

An EPG is extended outside of the ACI fabric by statically assigning a VLAN ID to a leaf port in an EPG. This method maps the traffic received on the leaf port to the EPG, and the policy for this EPG is enforced

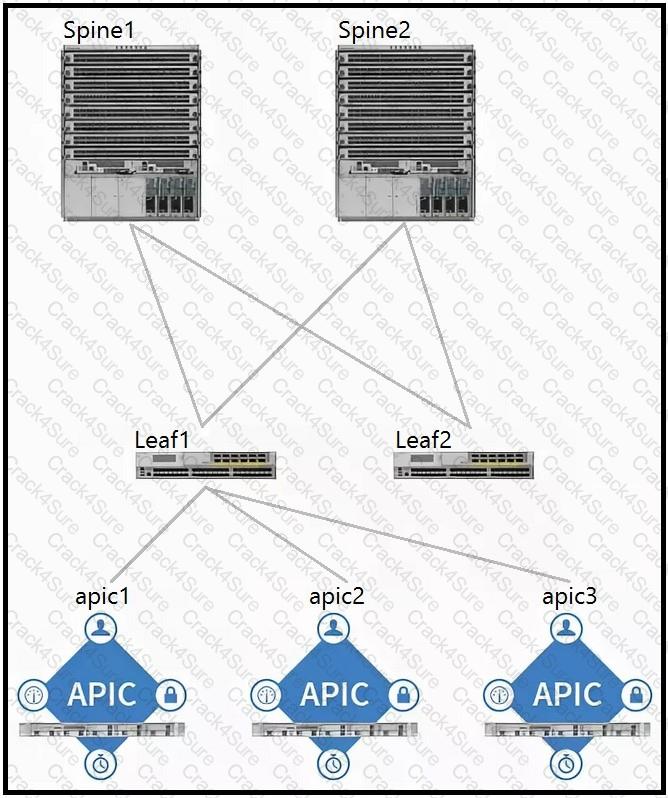

The initial APIC cluster discovery process involves each APIC using an internal private IP address from a pool to communicate with the nodes and other APICs in the cluster. The APICs discover the IP addresses of other APIC controllers through an LLDP-based discovery process

https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/security-configuration/cisco-apic-security-configuration-guide-release-52x/protocol-authentication-52x.html

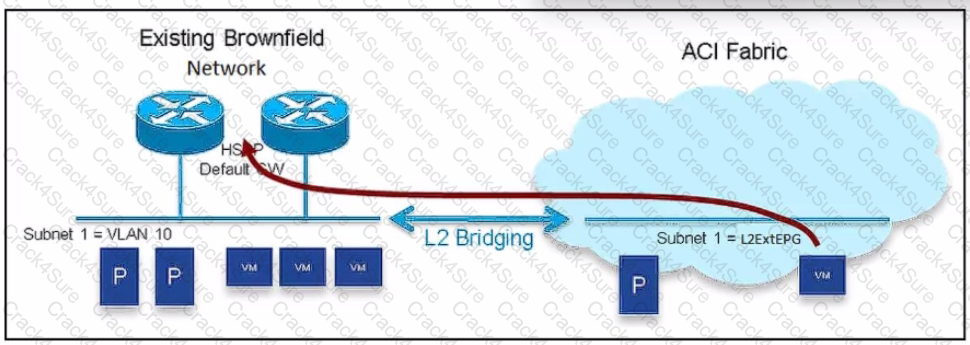

To move the gateway address for VLAN 1001 from the core outside the Cisco ACI fabric into the Cisco ACI fabric and ensure that endpoints in EPG-1001 route traffic to endpoints in other EPGs while minimizing flooded traffic in the fabric, the following configuration set is needed on the bridge domain:

Enable Hardware Proxy: This step involves enabling the hardware proxy feature, which allows the fabric to learn and maintain endpoint information more efficiently7.

Enable Unicast Routing: This step involves enabling unicast routing within the bridge domain, which allows for the routing of traffic between different EPGs and minimizes flooded traffic

 The two true statements regarding ACI Multi-Site are:

ACI Multi-Site is a solution that supports a dedicated APIC cluster per site1.

ACI Multi-Site is a solution that allows one APIC cluster to manage multiple ACI sites1.

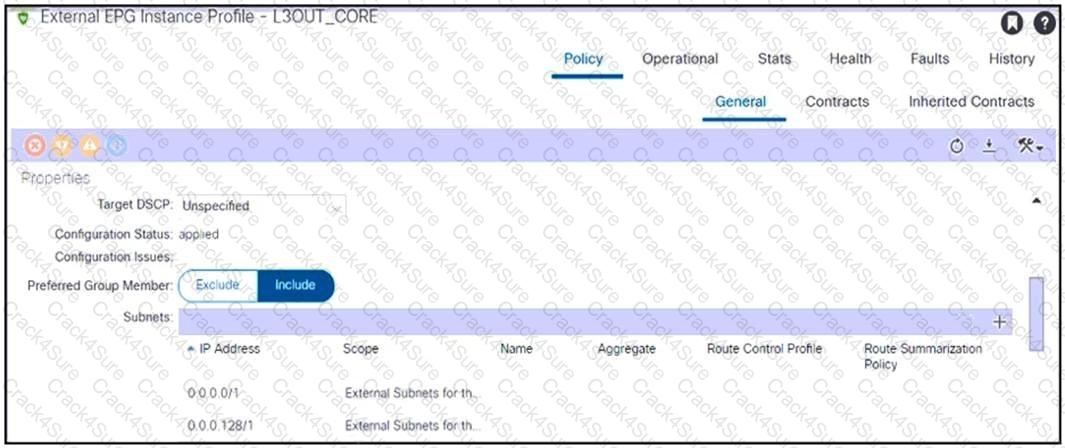

To enable connectivity for the external endpoints in the 172.16.1.0/24 subnet, the following actions should be taken:

Delete both external EPG subnets: This action removes any specific subnet configurations that might be causing routing issues or conflicts within the external EPG1.

Create the 0.0.0.0/0 subnet: By configuring a 0.0.0.0/0 subnet, you are effectively creating a default route that allows all traffic to be routed, ensuring that endpoints in any subnet, including the 172.16.1.0/24 subnet, can reach internal endpoints1.

This configuration change addresses the issue where traffic from the 172.16.1.0/24 subnet is not reaching the internal endpoints, likely due to a lack of a default route or misconfigured subnets within the external EPG

To implement a Layer 3 out (L3Out) inside the Cisco ACI fabric that meets the specified requirements, the following steps should be taken:

Configure the OSPF Protocol policy with an area of 0: This step involves setting up OSPF, a link-state routing protocol that supports hierarchical network design, as the routing protocol for the L3Out1.

Create Routed Outside object and Node Profile, selecting OSPF: This step involves creating a Routed Outside object and associating it with a Node Profile that specifies OSPF as the routing protocol1.

Build the Interface profile, selecting Routed Sub-interface and the appropriate VLAN: This step involves creating an Interface profile for the connection to the data center core switch, using 802.1Q tagging for VLAN separation2.

Configure the External Network object with a network of 0.0.0.0/0: This step involves setting up the External Network object to advertise routes to the rest of the network1.

 In the context of ACI Multi-Site, the information of an endpoint (MAC/IP) that belongs to site 1 is advertised to site 2 using the EVPN control plane as soon as the endpoint is discovered in one site. This allows for immediate visibility of the endpoint across sites.

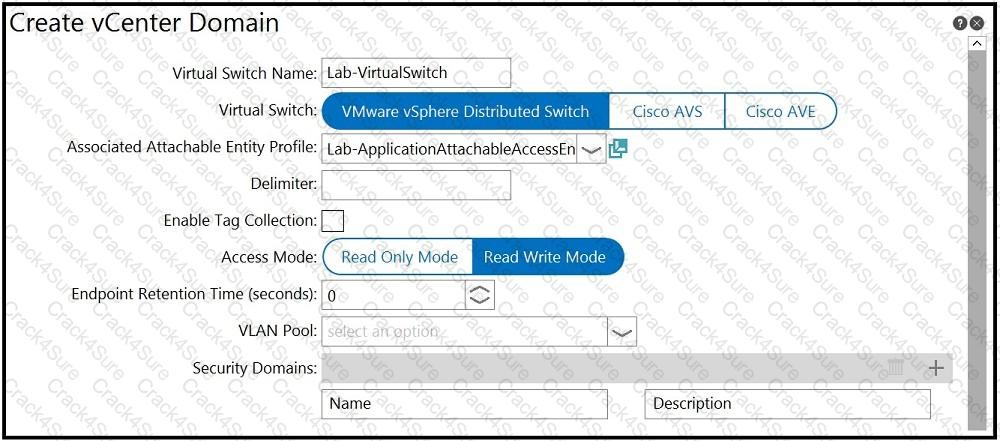

 In the Cisco ACI VMM domain configuration, to generate port groups with names formatted as “Tenant=Application=EPG”, the configuration option used is delimiter. The delimiter is a character that separates the elements of the port-group name. By changing the delimiter setting to “=”, the port-group names will be generated with the desired format.

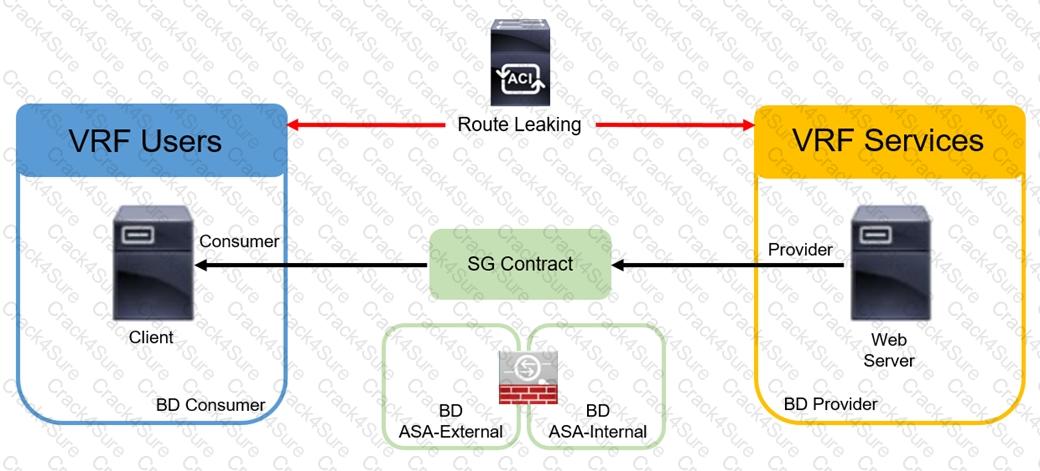

To implement the inter-tenant service graph, the set of actions that must be taken are:

Define the contract in the provider tenant and export it to the consumer tenant (Option B).

Define the L4-L7 device and service graph template in the provider tenant and the ASA bridge domains in the consumer tenant (Option B).

This approach allows for the proper configuration and association of the service graph between the provider and consumer tenants, ensuring that the services are correctly applied to the traffic flowing between them.

Storm control should be configured on port channel on a single leaf switch (Option B) and endpoint-facing trunk interface (Option D) to protect against broadcast traffic6. These interfaces are where storm control policies are typically applied to prevent disruptions caused by traffic storms6.

The correct statement about ACI syslog is that all syslog messages are sent to the destination through APIC1. This centralized approach allows for consistent logging and monitoring across the ACI fabric1.

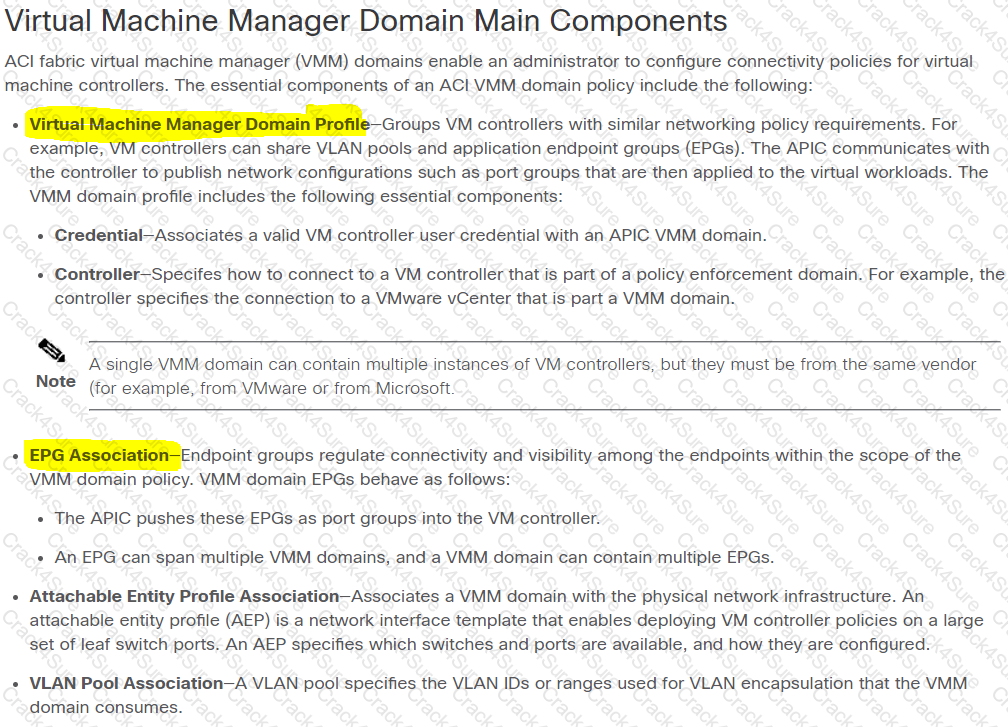

The two essential components of a Cisco ACI Virtual Machine Manager (VMM) domain policy configuration are:

VMM domain profile1.

EPG association1.

https://www.cisco.com/c/en/us/td/docs/switches/datac enter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html#concept_74EFC437C0AA44A391676F70ACE59DF3

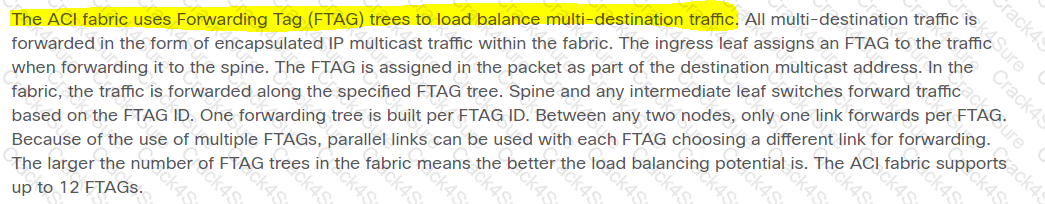

The method that the Cisco ACI fabric uses to load-balance multidestination traffic is forwarding tag trees3. This method involves assigning a forwarding tag (FTAG) to the traffic when it is forwarded within the fabric, ensuring efficient load balancing of multi-destination traffic3.

https://www.cisco.com/c/en/us/td/doc s/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

 When creating a subnet within a bridge domain in Cisco ACI, the configuration option used to specify the network visibility of the subnet is the scope12. The scope can be set to private, public, or shared, determining how the subnet is advertised and accessed within and outside of the ACI fabric12.

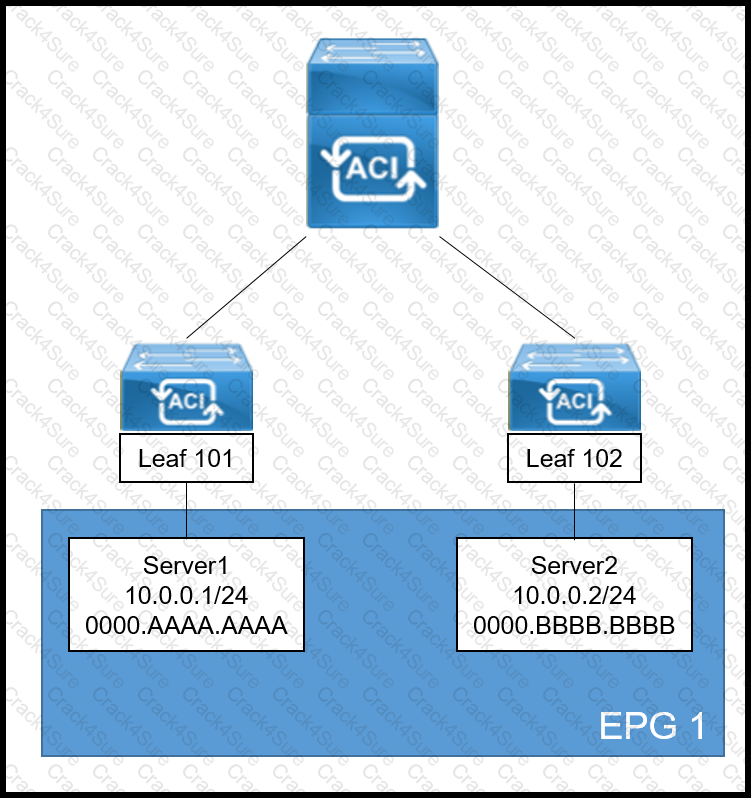

 In the scenario where Server2 information is missing from the Leaf 101 endpoint table and the COOP database of the spine, setting Layer 2 Unknown Unicast to Flood (Option B) is the correct action to meet the requirements. This setting will cause the ACI fabric to flood unicast packets destined for unknown destinations within the bridge domain. This ensures that packets from Server1 will reach Server2 even though its location isn’t known by Leaf 101 or the spine’s COOP database.https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-in frastructure/white-paper-c11-739989.html

On the egress leaf switch, when traffic is received from an L3Out, no source MAC or IP address of the traffic is learned as a remote endpoint1. The Cisco ACI fabric does not learn the IP addresses from the data plane in an L3Out domain; instead, it uses ARP to resolve next-hop IP and MAC relationships to reach the prefixes behind external routers1.

 To have the endpoint table learn the IP addresses of endpoints in a bridge domain, unicast routing must be enabled1. This allows the bridge domain to learn the IP addresses of endpoints through the data plane1.

When traffic is received from a Layer 3 Out (L3Out) on the ingress leaf switch in a Cisco ACI fabric, the source IP address of the traffic is learned as a remote endpoint. This is because the traffic is entering the ACI fabric from an external network, and the source IP is considered remote to the fabric.

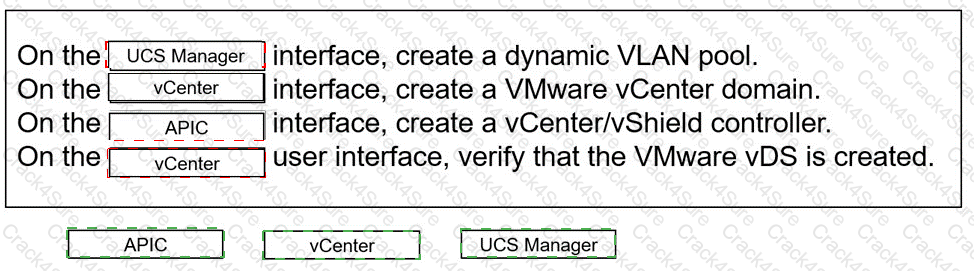

Associating the VMM domain with the EPGs (Endpoint Groups) that must be available in vCenter is the action that accomplishes the goal of creating port groups automatically in vSphere and propagating them to hypervisors when created in the ACI environment. This integration allows the APIC to automatically create port groups in the VMware vCenter under the VDS (vSphere Distributed Switch), which provisions the network policy in the VMware vCenter

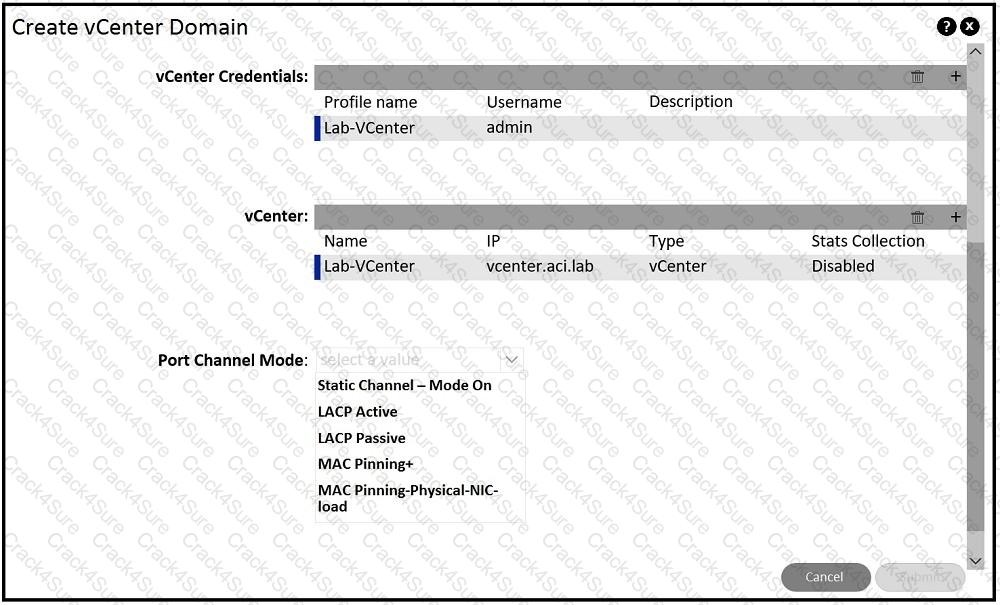

 For a blade server that lacks support of bonding, the port channel mode that results in “route based on originating virtual port” on the VMware VDS is MAC Pinning-Physical-NIC-load (Option B). This mode ensures that the virtual machine traffic is distributed across the available uplinks based on the MAC address of the originating virtual port1.

https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/6x/virtualization/cisco-aci-virtualization-guide-60x/ACI-Virtualization-Guide-60x-aci-with-vmware-vds.pdf

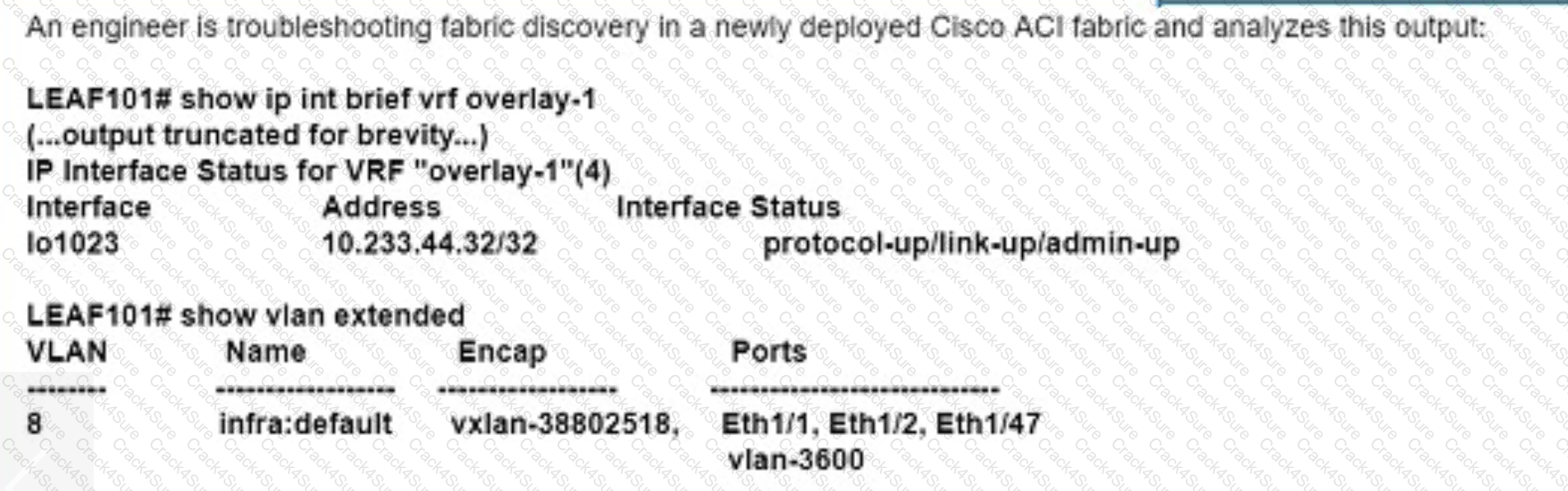

In Cisco ACI, the interface lo1023 is assigned as a fabric tunnel endpoint (FTEP). This is a pervasive address found on every leaf and it’s always the same. It is used mostly for AVS (Application Virtual Switch) when the infra VXLAN is extended out of the fabric1. The FTEP is crucial for the internal operation of the fabric, particularly for scenarios where the infrastructure VXLAN needs to be extended outside of the ACI fabric.

References :=

Default IP interfaces on Fabric nodes - Cisco Community1

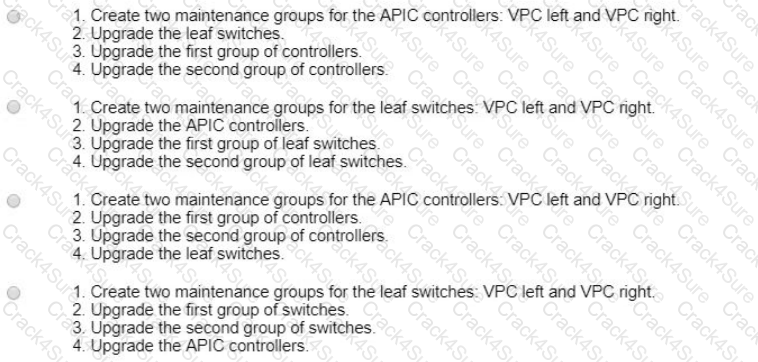

To minimize possible traffic impact during the upgrade of an ACI fabric with 3 APIC controllers and servers dual-homed to pairs of leaf switches configured in VPC mode, the fabric should be upgraded following Option A2. This option involves creating two maintenance groups for the APIC controllers, upgrading one group at a time, and then proceeding with the leaf switches2. This staged approach helps ensure that not all paths are affected simultaneously, thereby reducing the potential for traffic disruption2.

https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.security.doc/GUID-7DC6486F-5400-44DF-8A62-6273798A2F80.html

The scenario involves associating EPG-A with a Virtual Machine Manager (VMM) domain, setting the Deployment and Resolution preferences to Immediate, and attaching the host (generating endpoints for EPG-A) to Leaf-101 and Leaf-102 via eth1/1. However, no configuration for EPG-A is pushed to the leaf switches. This suggests an issue with the discovery or communication between the ACI fabric and the host. Let’s analyze the options based on Cisco ACI documentation.

Requirement Analysis

The VMM domain integration (e.g., VMware vCenter) relies on protocols like Cisco Discovery Protocol (CDP) or Link Layer Discovery Protocol (LLDP) to detect and map virtualized endpoints to the correct EPG.

The "Immediate" preference ensures that policies are applied as soon as endpoints are detected, but this requires proper protocol support for host discovery.

No configuration on the leaf switches indicates a failure in endpoint detection or policy application.

Option Evaluation

A. Enable CDP or LLDP on the host:

ACI uses CDP or LLDP to discover hosts and their interfaces when integrated with a VMM domain. If the host does not have CDP or LLDP enabled, the ACI fabric cannot detect the host’s attachment to Leaf-101 and Leaf-102, preventing EPG-A configuration from being pushed. Enabling these protocols on the host resolves the issue.

The characteristic of Cisco ACI Multi-Pod that makes it unsuitable for deploying three separate data centers is that it requires all pods to share the same Cisco APIC cluster. In a Multi-Pod deployment, all the pods are part of the same fabric and are managed by a single APIC cluster, which means that they are not completely isolated from each other.

 To prevent a fault from appearing that is not directly relevant to the environment, the ACI administrator should create a fault severity assignment policy that hides the fault. This can be done by selecting “Ignore Fault” under System -> Faults in the APIC UI2

In Cisco ACI, when a service graph is deployed under one tenant (e.g., Operations) and needs to be referenced by another tenant (e.g., Management), the Layer 4-Layer 7 (L4-L7) device export action is used. This allows the firewall or other L4-L7 devices defined in the service graph to be shared across tenants. By exporting the L4-L7 device, the configuration enables the Management tenant to reference and use the firewall deployed in the Operations tenant.

 In a Cisco ACI fabric, the spine switches are typically configured as route reflectors. This is because spine switches are central to the fabric’s architecture and are responsible for interconnecting all the leaf switches, making them ideal for reflecting BGP routes within the fabric. Therefore, the components that should be configured as route reflectors are:

Spine1 (Option A)

Spine2 (Option C)

To support cross-site connectivity in a production Multi-Site solution, where connectivity from EPGs from a specific site to networks reachable through a remote site L3OUT is required, the additional configuration that must be implemented in the Multi-Site Orchestrator is to add a new stretched external EPG to the existing L3OUT1. This allows the EPGs from one site to communicate with the networks defined in the L3OUT at the remote site, facilitating the required connectivity across sites.

References :=

Cisco ACI Multi-Site Configuration Guide1

In a Cisco ACI environment with multiple silent hosts that are often relocated between leaf switches, configuring IP Data-Plane Learning to ‘No’ will minimize the relocation impact and make the ACI fabric relearn the new location of the host faster. Disabling IP Data-Plane Learning prevents the fabric from learning IP addresses from the data plane, which can speed up the process of relearning host locations when they move3.

In a Cisco ACI Multi-Pod architecture, multiple pods (each with its own leaf-and-spine topology) are interconnected via an Inter-Pod Network (IPN). The key characteristic of the Multi-Pod setup is that it is managed as a single fabric by a single APIC cluster, simplifying operations and maintaining consistency across all pods.

Enabling the “disable Remote EP learn” feature in Cisco ACI has the effect of preventing border leaf switches from receiving routes through peering with external routers. This feature is particularly useful when there is a mix of Gen1 and Gen2 hardware in the fabric, as it clears all the remote endpoints from the border leaf only. Traffic will still use hardware proxy if the endpoint is not learned on the border leaf, ensuring no operational impact12.

References :=

ACI Fabric Endpoint Learning White Paper2

Cisco Community Discussion on Disable Remote EP Learn

https://unofficialaciguide.com/2018/11/29/aci-best-practice-configurations/

 When the VMM resolution immediacy is set to pre-provision in a Cisco ACI environment, policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship1. This setting ensures that the policies are in place on the leaf switches even before a VM controller is attached to the virtual switch1.

When a bridge domain is configured with the hardware-proxy option for Layer 2 unknown unicast traffic, if the spine switch is unable to find the MAC address in the proxy database, it will drop the Layer 2 unknown unicast packet4. This behavior is controlled by the hardware proxy option associated with a bridge domain4.

 The statement about the MTU value of MP-BGP EVPN control plane packets in Cisco ACI that is true for communication between spine nodes in different sites is that by default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets2. This ensures that the control plane traffic, which is not VXLAN encapsulated, can be properly handled across the sites2.

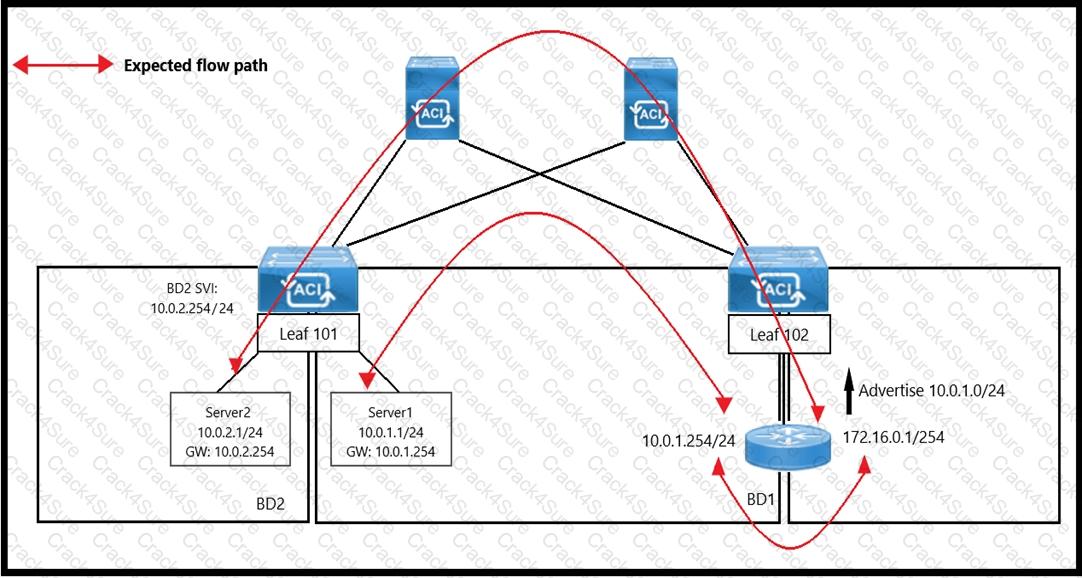

In the Cisco ACI environment, when an engineer wants to enforce a specific path for ICMP replies and prevent packets from taking a direct path, setting Layer 2 Unknown Unicast to Hardware Proxy on the bridge domain (BD1) is the appropriate action. This setting ensures that the unknown unicast traffic, which includes ICMP packets destined for an unknown MAC address, is forwarded to the spine proxy. The spine proxy then forwards the packets based on the endpoint table information, ensuring that the packets follow the expected path through the fabric and do not take any shortcuts or direct paths that bypass the intended routing.

 To redirect traffic to the firewall using a one-armed policy-based redirect service insertion, the following configuration set should be used:

Configure a service graph: This involves defining the service graph template that represents the logical flow of traffic through network services.

Associate the service graph with All_Traffic_Allowed: By associating the service graph with the contract named All_Traffic_Allowed, traffic that matches the contract will be redirected through the service graph to the firewall device.

References :=

Cisco ACI Fabric Administration Guide, Release 4.2(1)

Cisco ACI Virtualization Guide, Release 4.2(1)

The setting that prevents the learning of Endpoint IP addresses whose subnet does not match the bridge domain subnet is the “Limit IP learning to subnet” setting within the bridge domain1. This setting ensures that only IP addresses belonging to the subnets configured on the bridge domain are learned, preventing mis-learning of IP addresses that may not belong to the fabric1.

 In the process of discovering a new Cisco ACI fabric, after the discovery of leaf 1 has been completed, the next nodes expected to be discovered are the spine switches. This is because the spines are typically connected to the leaf switches and play a central role in the fabric’s topology6.

To implement the Inter-Site Network (ISN) for a Cisco ACI Multi-Site deployment, the following configuration steps are essential:

Configure OSPF on all ISN routers: OSPF (Open Shortest Path First) is a routing protocol that is used to ensure that all routers in the ISN have the necessary routing information to forward packets between sites.

Configure BIDIR-PIM on all ISN routers: BIDIR-PIM (Bidirectional Protocol Independent Multicast) is used for efficient multicast traffic forwarding across the ISN. This is particularly important for Cisco ACI Multi-Site deployments as it supports the replication of broadcast, unknown unicast, and multicast (BUM) traffic across sites.

References :=

Cisco ACI Multi-Site Configuration Guide

Cisco ACI Multi-Site Architecture White Paper

To enable the APIC in a Cisco ACI fabric using out-of-band management connectivity to access a routable host with an IP address of 192.168.11.2, you need to add a Fabric Access Policy that allows management connections. This involves configuring a contract that will be consumed and provided to your OOB devices. The contract will let the system know what traffic is allowed. In this case, you will use the default/common contract to permit any traffic. This is necessary because the APIC needs to be able to send traffic to and receive traffic from the management network1.

References :=

ACI: Configuring Out-of-Band (OOB) Access for Your Fabric - Cisco1

Troubleshoot ACI Management and Core Services - In-band and Out-of-band Management - Cisco2

To support the addition of new ESXi hosts to the existing VMM domain, the action that should be taken is to map the leaf interface selector to the AEP that is associated with the VMM domain (Option D). This ensures that the correct policies are applied to the interfaces where the new ESXi hosts are connected.
