300-720 Practice Exam Questions with Answers Securing Email with Cisco Email Security Appliance (300-720 SESA) Certification

If the McAfee antivirus scanning is enabled on the Cisco Secure Email Gateway and the virus scanning action is set to “scan for viruses only”, then no repair is attempted, and the attachment is either dropped or delivered based on the antivirus policy settings. The administrator can choose to drop or deliver the infected attachment by selecting the appropriate action in the antivirus policy. References: [Cisco Secure Email Gateway Administrator Guide - Configuring McAfee Antivirus Scanning]

With DomainKeys or DKIM email authentication, the sender signs the email using public key cryptography. Configuring DomainKeys and DKIM Signing A signing key is the private key stored on the appliance. https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_010101.html?bookSearch=true

STARTTLS is an SMTP extension that allows email servers to negotiate a secure connection using TLS or SSL encryption. Cisco ESA supports STARTTLS for both inbound and outbound email delivery.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 5-2.

You can configure Policy, Virus, and Outbreak Quarantines in any one of the following ways:

Choose Quarantine > Other Quarantine > View > +.

Choose Monitor > Policy, Virus, and Outbreak Quarantines and do one of the following.

Click Add Policy Quarantine.

Keep the following in mind, changing the retention time of the File Analysis quarantine from the default of one hour is not recommended.

https://www.cisco.com/c/en/us/td/docs/security/esa/esa14-0/user_guide/b_ESA_Admin_Guide_14-0/b_ESA_Admin_Guide_12_1_chapter_011111.html?bookSearch=true

The PVO cannot be enabled and shows this type of error message.

Unable to proceed with Centralized Policy, Virus and Outbreak Quarantines

configuration as host1 and host2 in Cluster have content filters / DLP actions

available at a level different from the cluster Level.

The error message can indicate that one of the hosts does not have a DLP feature key applied and DLP is disabled. The solution is to add the missing feature key and apply DLP settings identical as on the host that has the feature key applied. This feature key inconsistency might have the same effect with Outbreak Filters, Sophos Antivirus, and other feature keys.

https://www.cisco.com/c/en/us/support/docs/security/email-security-appliance/118026-technote-esa-00.html

A DMARC verification profile is a list of parameters that the mail flow policies of the appliance use for verifying DMARC. The name of the verification profile identifies the profile and allows you to apply it to different mail flow policies. The message action to take when the policy is reject/quarantine determines how the appliance handles messages that fail DMARC verification based on the sender’s DMARC policy.

References: User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment), Chapter: Email Authentication, Section: Configuring DMARC Verification

The default behavior of any listener for TLS communication is B. off. This means that TLS is not allowed for incoming connections to the listener and connections to the listener do not require encrypted Simple Mail Transfer Protocol (SMTP) conversations. This is stated in the web search result 1. To enable TLS for a listener, you need to configure the Use TLS option in the mail flow policy settings for the listener on the Mail Policies > HAT Overview page1. You can choose from three different settings for TLS: No, Preferred, or Required1.

The graymail management solution in the appliance comprises of two components: an integrated graymail scanning engine and a cloud-based Unsubscribe Service. The integrated graymail scanning engine identifies graymail messages using various criteria and assigns them to different categories. The cloud-based Unsubscribe Service provides an easy mechanism for end users to unsubscribe from unwanted messages by checking the reputation of the unsubscribe links and performing the unsubscribe process on behalf of the end user.

References: User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment), Chapter: Managing Graymail, Section: Graymail Management Solution in Email Security Appliance

To allow phishing simul-ations to bypass antispam scanning, the administrator must add two components to the allow list: domains and senders. Domains are the email domains that are used in the phishing simulations, such as example.com or test.com. Senders are the email addresses that are used to send the phishing simulations, such as phish@example.com or test@test.com. By adding these components to the allow list, the administrator can prevent them from being blocked by antispam scanning and allow them to reach the end users for testing purposes. References: [Cisco Secure Email Gateway Administrator Guide - Creating Allow Lists]

End user safelist is a feature that allows end users to specify email addresses or domains that they want to receive messages from, regardless of the spam verdict or action assigned by Cisco ESA. Messages from senders on the end user safelist are delivered to the end user’s inbox without any spam filtering.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-13.

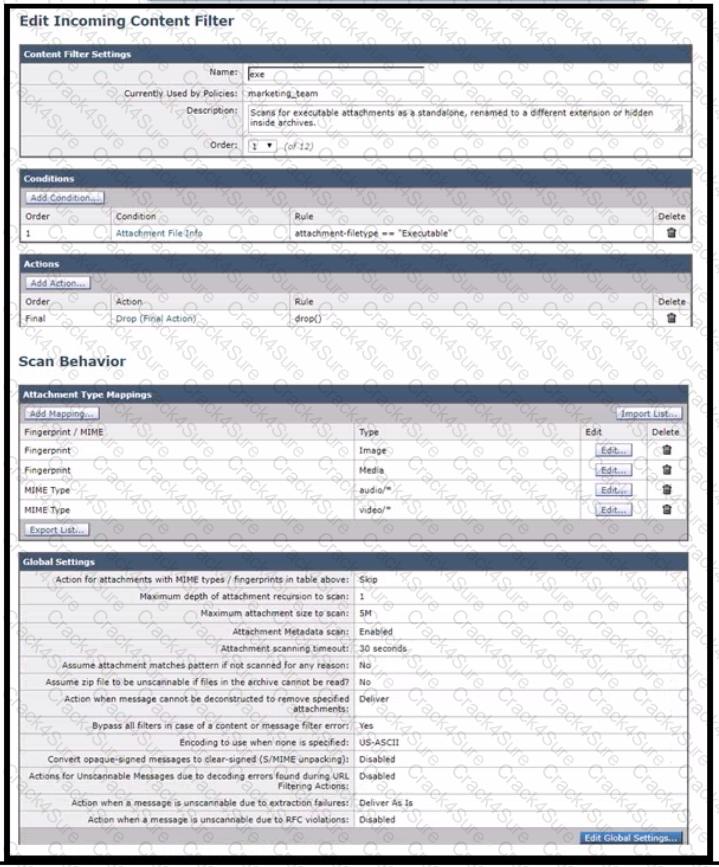

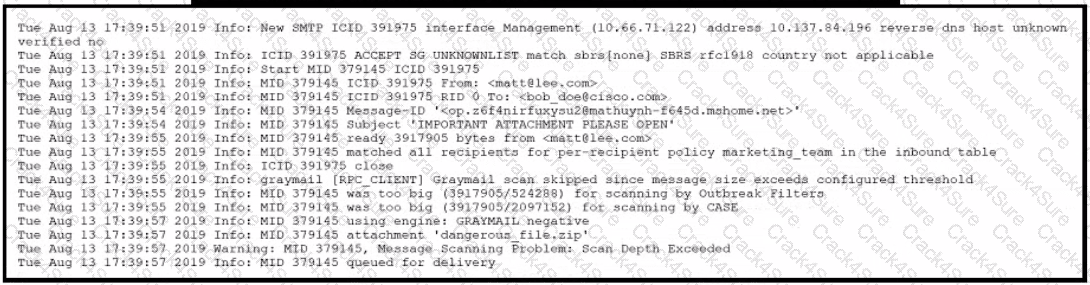

The recursion depth is the number of levels that the Cisco Secure Email Gateway will scan inside an archive file for executables and other file types. If the recursion depth is too low, some executables may not be detected and scanned by the content filter. To allow the appliance to scan for executables inside the archive file and apply the action as per the content filter, you need to configure the recursion depth to a higher value1. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Configuring File Reputation Filtering and File Analysis [Cisco Secure Email Gateway] - Cisco

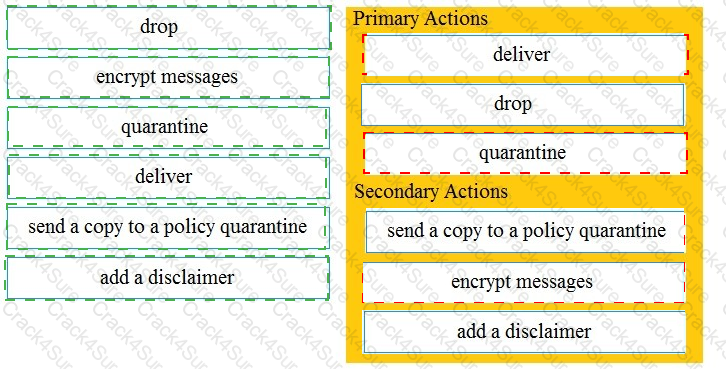

Non-final actions are actions that do not terminate the message filter evaluation, such as adding headers, setting variables, logging, etc. Final actions are actions that end the message filter evaluation and determine the fate of the message, such as accept, drop, bounce, quarantine, etc.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 3-4.

The safelist/blocklist (SLBL) is a feature that allows Cisco ESA to accept or reject messages from specific email addresses or domains, based on the configuration of mail flow policies or end user preferences.

The action that provides direct access to view the SLBL on Cisco ESA is to export the SLBL to a .csv file, which can be done from the web user interface by selecting Security Services > Safelist/Blocklist and clicking Export.

The other options do not provide direct access to view the SLBL on Cisco ESA.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-13 and page 6-14.

The type of attack that is prevented by configuring file reputation filtering and file analysis features is zero-day. Zero-day attacks are those that exploit unknown vulnerabilities in software or systems before they are patched or fixed. File reputation filtering and file analysis features help to protect against zero-day attacks by checking the reputation of files attached to email messages and sending them to a cloud-based service for dynamic analysis.

References: Securing Email with Cisco Email Security Appliance (SESA) v3.1, Module 9: Using Advanced Malware Protection, Lesson 1: Configuring File Reputation Filtering and File Analysis

To encrypt SMTP with TLS on a Cisco Secure Email Gateway appliance when the sender requires TLS verification, the components that are required are an X.509 certificate and matching private key from a CA. The certificate must be signed by a trusted CA and contain the domain name or IP address of the listener in the Subject or Subject Alternative Name fields. The private key must be unencrypted and match the certificate. References: [Cisco Secure Email Gateway Administrator Guide - Configuring TLS]

Outbreak filters and antivirus are two features that can be applied to either incoming or outgoing mail policies on Cisco ESA. Outbreak filters allow Cisco ESA to detect and block messages that contain new or emerging email threats, such as viruses, worms, phishing, or spam, by using real-time updates from Talos intelligence. Antivirus allows Cisco ESA to scan messages for known viruses and malware using one or two antivirus engines (Sophos and McAfee).

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-16 and page 7-2.

 The reason why the CEO did not receive an important message expected from a trusted sender after adding them to a safelist is because end-user safelists apply to antispam engines only. End-user safelists are lists of sender addresses or domains that end users can create and manage through their quarantine accounts or email clients. End-user safelists allow end users to accept or exempt messages from certain senders or domains from being identified as spam by the antispam engines. However, end-user safelists do not affect other filtering engines such as antivirus, outbreak filters, or content filters. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Safelists and Blocklists [Cisco Secure Email Gateway] - Cisco

 spam quarantine end-user authentication query is used to validate non administrative user access to the end-user quarantine via LDAP1. This query is configured in the System Administration > LDAP > LDAP Server Profile page and can be tested using the smtproutes command in the CLI1. The other queries are not related to this task. The spam quarantine alias consolidation query is used to consolidate multiple email addresses for a user into one login2. The spam quarantine external authorization query is used to authorize users to access an external spam quarantine on a separate Cisco Secure Email and Web Manager3. The local mailbox (IMAP/POP) authentication is an alternative method to authenticate users without using LDAP2.

To ensure that executive messages are originating from legitimate sending addresses, the administrator must take two steps:

• Create an incoming content filter with the Forged Email Detection condition. This will allow the administrator to detect and block messages that have a forged “From: header” that matches or is similar to any of the names in a content dictionary.
• Create a content dictionary including a list of the names that are being spoofed. This will allow the administrator to specify the names of the executives that are being targeted by spoofing attacks and use them in the Forged Email Detection condition. The other options are not relevant or sufficient for this task. References: [Cisco Secure Email Gateway Administrator Guide - Forged Email Detection] and [Cisco Secure Email Gateway Administrator Guide - Creating Content Dictionaries]

Custom policy is a type of DLP policy template that must be used to create a policy that meets this requirement. Custom policy allows the administrator to define their own criteria for detecting sensitive or confidential data in messages, such as keywords, regular expressions, file types, etc.

To create a custom DLP policy on Cisco ESA, the administrator can follow these steps:

• Select Mail Policies > DLP Policy Manager and click Add Policy.
• Enter a name and description for the DLP policy, such as Patent Protection.
• Under Policy Template, select Custom Policy.
• Click Submit.
• Under Content Matching Criteria, click Add Criteria.
• Choose a matching type, such as Keyword or Regular Expression, and enter a value that matches the proprietary patent documents, such as “patent number” or “\d{4}/\d{6}”.
• Click Submit.

The other options are not valid types of DLP policy templates to create a policy that meets this requirement, because they are predefined templates that do not match the proprietary patent documents.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 9-3 and page 9-5.

To use the centralized spam quarantine on the Cisco Secure Email and Web Manager appliance, the administrator must disable the local spam quarantine on the Cisco Secure Email Gateway appliances. This will prevent messages from being stored in both quarantines and avoid confusion for end users and administrators. References: [Cisco Secure Email and Web Manager User Guide - Configuring Centralized Spam Quarantine]

With DomainKeys or DKIM email authentication, the sender signs the email using public key cryptography. Configuring DomainKeys and DKIM Signing A signing key is the private key stored on the appliance. https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_010101.html?bookSearch=true

To perform DLP scanning on Cisco ESA, two components must be configured:

• Add a DLP policy to the DLP Policy Manager, which is a repository of predefined or custom DLP policies that specify what types of data to scan for and what actions to take if a match is found.
• Enable a DLP policy on the Outgoing Mail Policy, which is a set of rules that determine how outgoing messages are processed by Cisco ESA, including whether to apply DLP scanning or not.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 9-2 and page 9-4.

https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2019/pdf/BRKSEC-2240.pdf

The Outbreak Filters feature uses three tactics to protect your users from outbreaks:

Delay.

Redirect.

Modify.

https://www.cisco.com/c/en/us/td/docs/security/esa/esa12-0/user_guide/b_ESA_Admin_Guide_12_0/b_ESA_Admin_Guide_chapter_01110.html

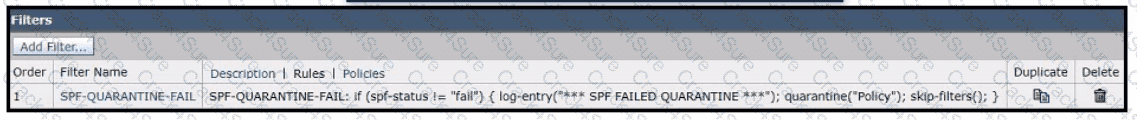

SPF verification is a feature that allows Cisco ESA to verify the authenticity of the sender’s domain by checking the sender’s IP address against a DNS record published by the domain owner. An SPF record is a TXT record that specifies the authorized IP addresses or hosts for sending emails from a domain, using a syntax of qualifiers, mechanisms, and modifiers.

The reason why the verification is not working properly is that SPF verification is disabled on the mail flow policy that applies to the messages sent from domain abc.com. A mail flow policy is a set of rules that determine how incoming or outgoing messages are processed by Cisco ESA, including whether to enable SPF verification or not.

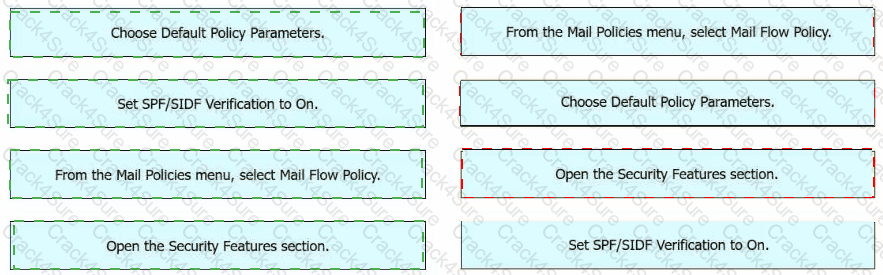

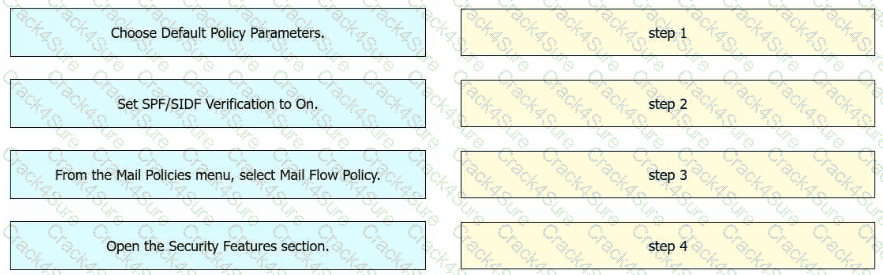

To enable SPF verification on the mail flow policy, the administrator can follow these steps:

• Select Mail Policies > Mail Flow Policies and click Edit Settings for the mail flow policy that applies to the messages sent from domain abc.com.
• Under Sender Authentication, select Enable SPF Verification and choose an SPF conformance level from the drop-down menu.
• Click Submit.

The other options are not valid reasons why the verification is not working properly, because they do not affect SPF verification on the mail flow policy.

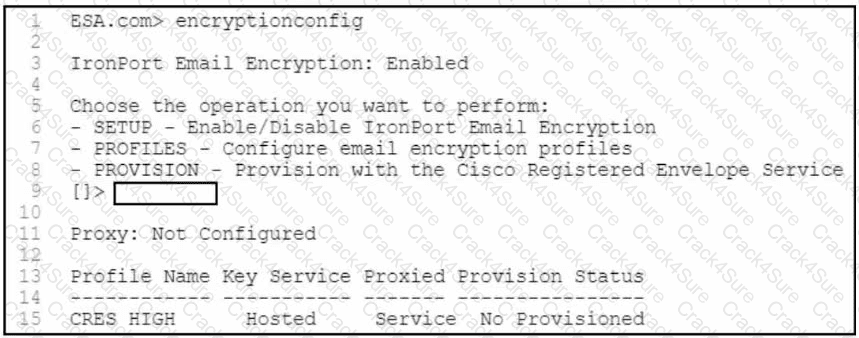

To allow the Cisco ESA to encrypt an email using the CRES (Cisco Registered Envelope Service), a provisioned email encryption profile must be configured on Cisco ESA. A provisioned email encryption profile is a type of encryption profile that specifies how messages are encrypted using CRES, such as the encryption key strength, the notification options, the branding settings, etc.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 12-4.

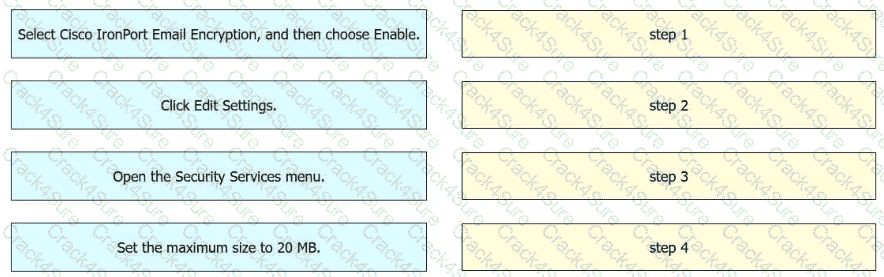

The maximum message size that can be configured for encryption on the Cisco ESA is 25 MB. This is the default value for the Maximum Message Size for Encryption setting in the Encryption Profile. Messages that exceed this size will not be encrypted and will be delivered as normal.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 12-6.

Enabling Logging of URLs and Message Tracking Details for URLs

Logging of URL-related logs, and display of this information in Message Tracking details, is disabled by default. This includes the logs for the following events:

Category of any URL in the message matches the URL category filters

Reputation score of any URL in the message matches URL reputation filters

Outbreak Filter rewrites any URL in the message

To enable logging of these events, use the outbreakconfig command in the command-line interface (CLI).

https://www.cisco.com/c/en/us/td/docs/security/esa/esa11-1/user_guide/b_ESA_Admin_Guide_11_1/b_ESA_Admin_Guide_chapter_01110.html?bookSearch=true

If you are unable to access the user interface of the Cisco Secure Email Gateway appliance after manipulating the subnet mask, you can use the serial or console port to perform the initial configuration. The serial or console port provides a command-line interface that allows you to configure basic network settings such as IP address, subnet mask, gateway, and hostname3. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Configuring Network Settings [Cisco Secure Email Gateway] - Cisco

Condition is a component that must be added to the content filter to trigger on failed SPF Verification or DKIM Authentication verdicts. Condition is a criterion that determines whether a message matches a content filter rule or not, such as message size, sender address, attachment type, etc.

To add a condition to the content filter that triggers on failed SPF Verification or DKIM Authentication verdicts, the administrator can follow these steps:

• Select Mail Policies > Content Filters and click Add Filter.
• Enter a name and description for the content filter.
• Under Conditions, click Add Condition.
• Choose SPF Verification or DKIM Authentication from the drop-down menu.
• Choose Fail from the drop-down menu.
• Click Submit.

The other options are not valid components to trigger on failed SPF Verification or DKIM Authentication verdicts, because they are not part of content filters.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 8-3 and page 8-4.

https://www.cisco.com/c/en/us/td/docs/security/esa/esa12-0/user_guide/b_ESA_Admin_Guide_12_0/b_ESA_Admin_Guide_chapter_01011.html

According to the User Guide for AsyncOS 12.0 for Cisco Email Security Appliances2, the order of virus scanning when multilayer antivirus scanning is configured is as follows:

• The McAfee engine scans the message first. If the McAfee engine detects a virus, the message is dropped or repaired, depending on the configuration. If the McAfee engine does not detect a virus, the message is passed to the next layer of scanning.
• The Sophos engine scans the message second. If the Sophos engine detects a virus, the message is dropped or repaired, depending on the configuration. If the Sophos engine does not detect a virus, the message is delivered to the recipient.

The safelist is a list of email addresses or domains that are considered legitimate and trustworthy by Cisco ESA. When an email is received from a sender on the safelist, Cisco ESA skips antispam scanning for that message and delivers it to the recipient without any spam filtering.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-13.

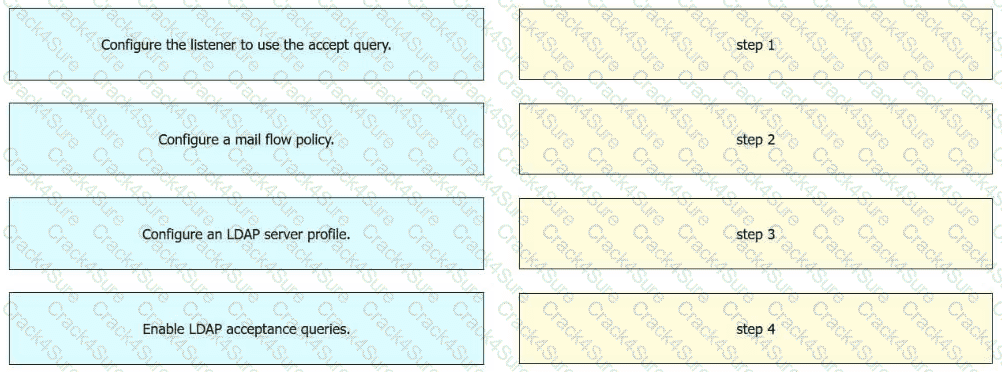

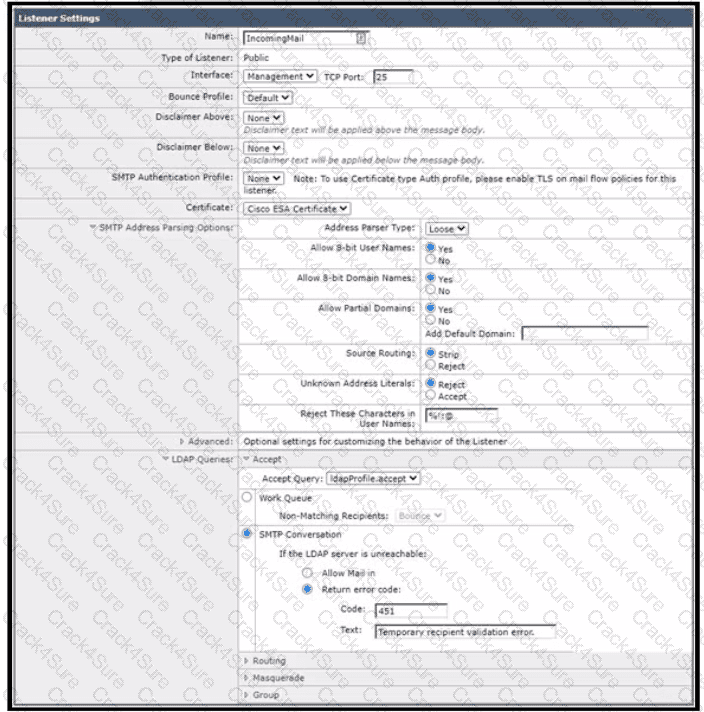

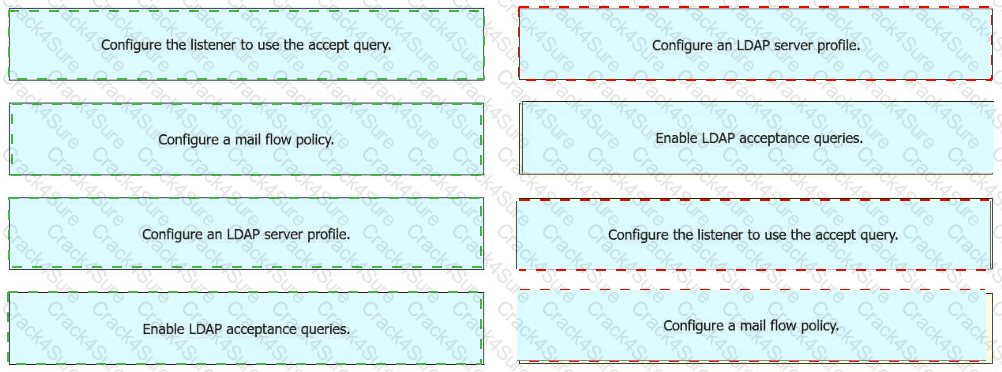

To enable LDAP recipient verification on a Cisco Secure Email Gateway appliance, you need to configure the LDAP query on a listener and configure LDAP server profiles. The LDAP query specifies the criteria for matching recipient addresses against an LDAP directory. The LDAP server profile defines the connection settings and authentication credentials for accessing an LDAP server2. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Configuring LDAP Queries [Cisco Secure Email Gateway] - Cisco

Load balancing and failover are two configurations that can be used on multiple LDAP servers to connect with Cisco ESA. Load balancing means that Cisco ESA will distribute the LDAP queries among the available LDAP servers in a round-robin fashion, improving the performance and efficiency of the LDAP queries. Failover means that Cisco ESA will switch to another LDAP server if the current one is unavailable or unresponsive, ensuring the continuity and reliability of the LDAP queries.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-8.

You can enter multiple host names to configure the LDAP servers for failover or load-balancing. Separate multiple entries with commas.

To disable local spam quarantine before external quarantine is enabled on Cisco ESA, two steps are needed:

• Select Security Services and click Spam Quarantine, which will open the Spam Quarantine settings page.
• Uncheck the Enable Spam Quarantine check box, which will disable the local spam quarantine feature on Cisco ESA.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 10-2.
