300-730 Practice Exam Questions with Answers Implementing Secure Solutions with Virtual Private Networks (SVPN) Certification

The following table lists the commands that are enabled with the IKEv2 Smart Defaults feature, along with the default values.

Device# show crypto ipsec profile default

IPSEC profile default

Security association lifetime: 4608000 kilobytes/3600 seconds

Responder-Only (Y/N): N

PFS (Y/N): N

Transform sets={

default: { esp-aes esp-sha-hmac },

}

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_ike2vpn/configuration/xe-3s/sec-flex-vpn-xe-3s-book/sec-cfg-ikev2-flex.html

https://integratingit.wordpress.com/2018/03/31/configuring-flexvpn-external-aaa-with-radius/

interface Tunnel0

ip address negotiated

tunnel source GigabitEthernet1

tunnel mode ipsec ipv4

tunnel destination 1.1.1.5

tunnel protection ipsec profile IPSEC_PROFILE

https://www.cisco.com/c/en/us/td/docs/security/asa/asa72/configuration/guide/conf_gd/webvpn.html

"If the end user disables antivirus or personal firewall after successfully establishing the VPN connection, our Advanced Endpoint Assessment feature attempts to re-enable that application within approximately 60 seconds." https://www.cisco.com/c/en/us/td/docs/security/vpn_client/anyconnect/anyconnect40/administration/guide/b_AnyConnect_Administrator_Guide_4-0/configure-posture.html#ID-1407-00000047

https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect-IKEv2-Remote-Access.pdf

HTTP (Hypertext Transfer Protocol) is used for transferring web resources, such as web pages and HTML documents, across the internet. CIFS (Common Internet File System) is used for sharing files and printers between computers on a network. ICA (Citrix), VNC (Virtual Network Computing), and RDP (Remote Desktop Protocol) are not enabled by default on the Cisco ASA Clientless SSL VPN portal.

https://www.cisco.com/c/en/us/td/docs/security/asa/asa94/config-guides/cli/vpn/asa-94-vpn-config/webvpn-configure-gateway.html

https://www.cisco.com/c/en/us/support/docs/security/flexvpn/116528-config-flexvpn-00.html

According to the Implementing Secure Solutions with Virtual Private Networks (SVPN) documents and learning resources available at cisco.com, the two features that provide headend resiliency for Cisco AnyConnect clients are:

• AnyConnect Backup Servers: This feature allows the AnyConnect client to automatically connect to a backup server in case the primary server is unreachable or fails. The backup server list is configured on the ASA or IOS headend and pushed to the client during the VPN connection establishment. The client can also manually select a backup server from the list if needed. This feature enhances the availability and reliability of the VPN service for the clients12.
• ASA failover: This feature enables two identical ASAs to be paired together as an active/standby or active/active pair. The ASAs synchronize their configuration and state information and monitor each other’s health. If the active ASA fails or becomes unreachable, the standby ASA takes over the traffic and VPN sessions without any disruption for the clients. This feature provides high availability and redundancy for the VPN headend34.

1: AnyConnect Backup Servers 2: Redundancy options for IOS Headend for AnyConnect Clients 3: ASA Failover 4: AnyConnect Implementation and Performance/Scaling Reference for COVID-19 Preparation

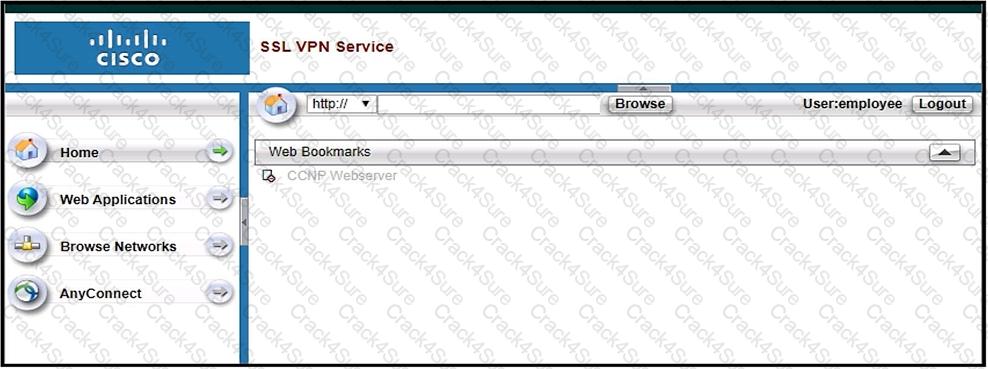

https://community.cisco.com/t5/network-security/missing-ssl-vpn-bookmarks/td-p/1597023

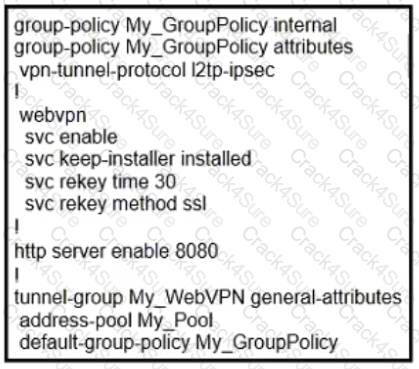

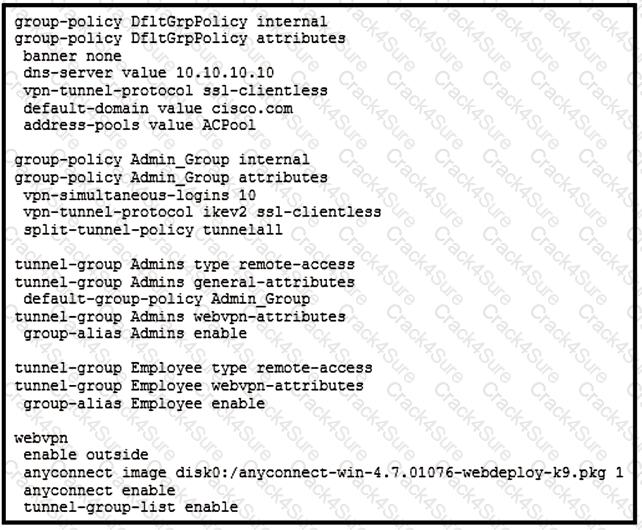

When you configure other group policies, any attribute that you do not explicitly specify takes its value from the default group policy. To view the default group policy. https://www.cisco.com/c/en/us/td/docs/security/asa/asa72/configuration/guide/conf_gd/vpngrp.html

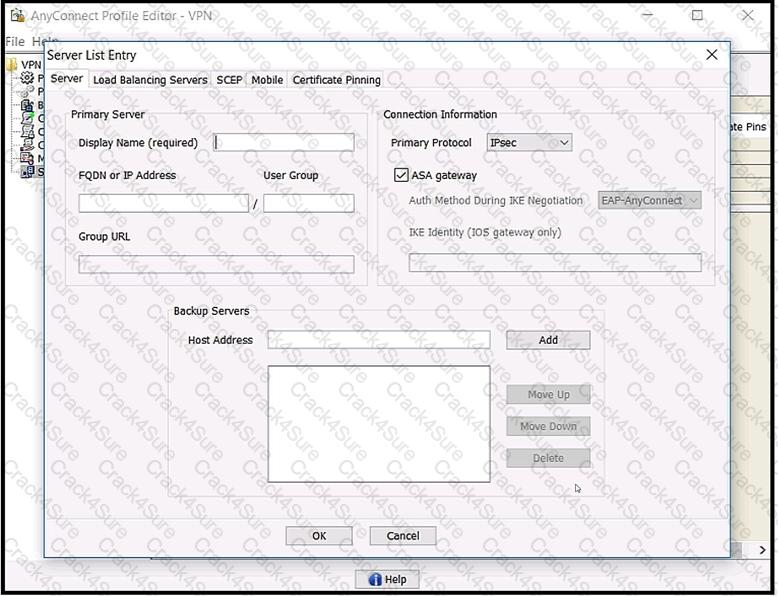

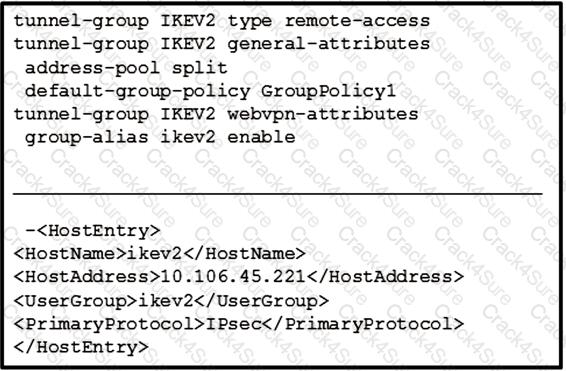

The user group is used in conjunction with Host Address to form a group-based URL. If you specify the Primary Protocol as IPsec, the User Group must be the exact name of the connection profile (tunnel group). For SSL, the user group is the group-url of the connection profile. https://www.cisco.com/c/en/us/td/docs/security/vpn_client/anyconnect/anyconnect40/administration/guide/b_AnyConnect_Administrator_Guide_4-0/anyconnect-profile-editor.html#ID-1430-0000026c

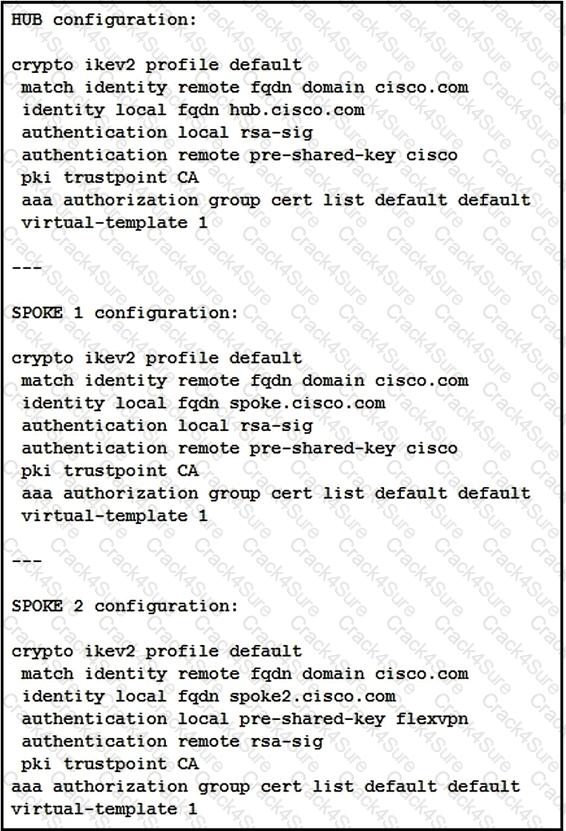

The correct answer is D. IKEv2 profile. A FlexVPN tunnel requires an IKEv2 profile to define the parameters for the IKEv2 negotiation and the IPsec security association. The IKEv2 profile references the IKEv2 keyring, the authentication method, the identity of the peers, and other options. The IKEv2 profile is then applied to a virtual tunnel interface (VTI) or a dynamic virtual tunnel interface (DVTI) to protect the tunnel with IPsec12. An EAP configuration is used for authentication with Extensible Authentication Protocol (EAP), which is optional for FlexVPN3. A multipoint GRE tunnel interface is used for DMVPN, not FlexVPN. An IKEv1 policy is used for IKEv1, not IKEv2, which is the protocol for FlexVPN.

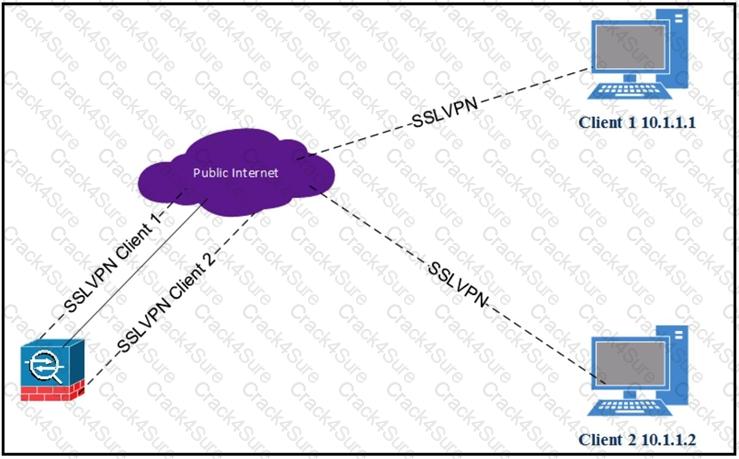

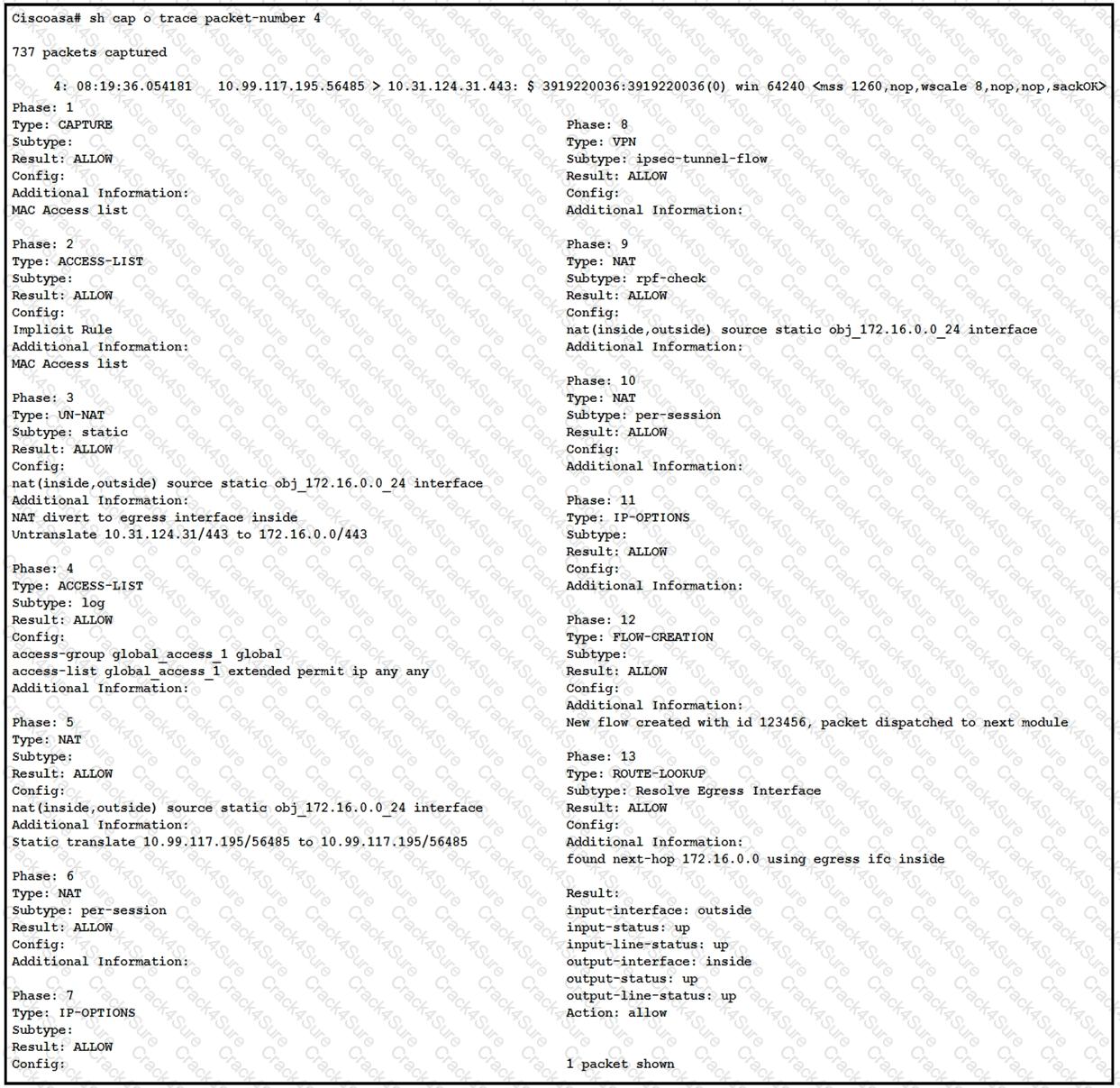

The same-security-traffic intra-interface command lets traffic enter and exit the same interface, which is normally not allowed. This feature might be useful for VPN traffic that enters an interface, but is then routed out the same interface. The VPN traffic might be unencrypted in this case, or it might be reencrypted for another VPN connection. For example, if you have a hub and spoke VPN network, where the security appliance is the hub, and remote VPN networks are spokes, for one spoke to communicate with another spoke, traffic must go into the security appliance and then out again to the other spoke.

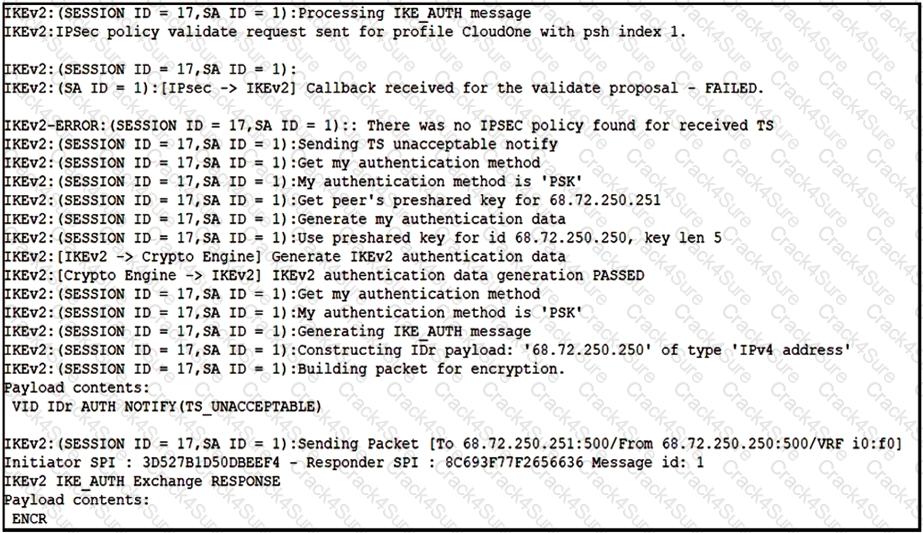

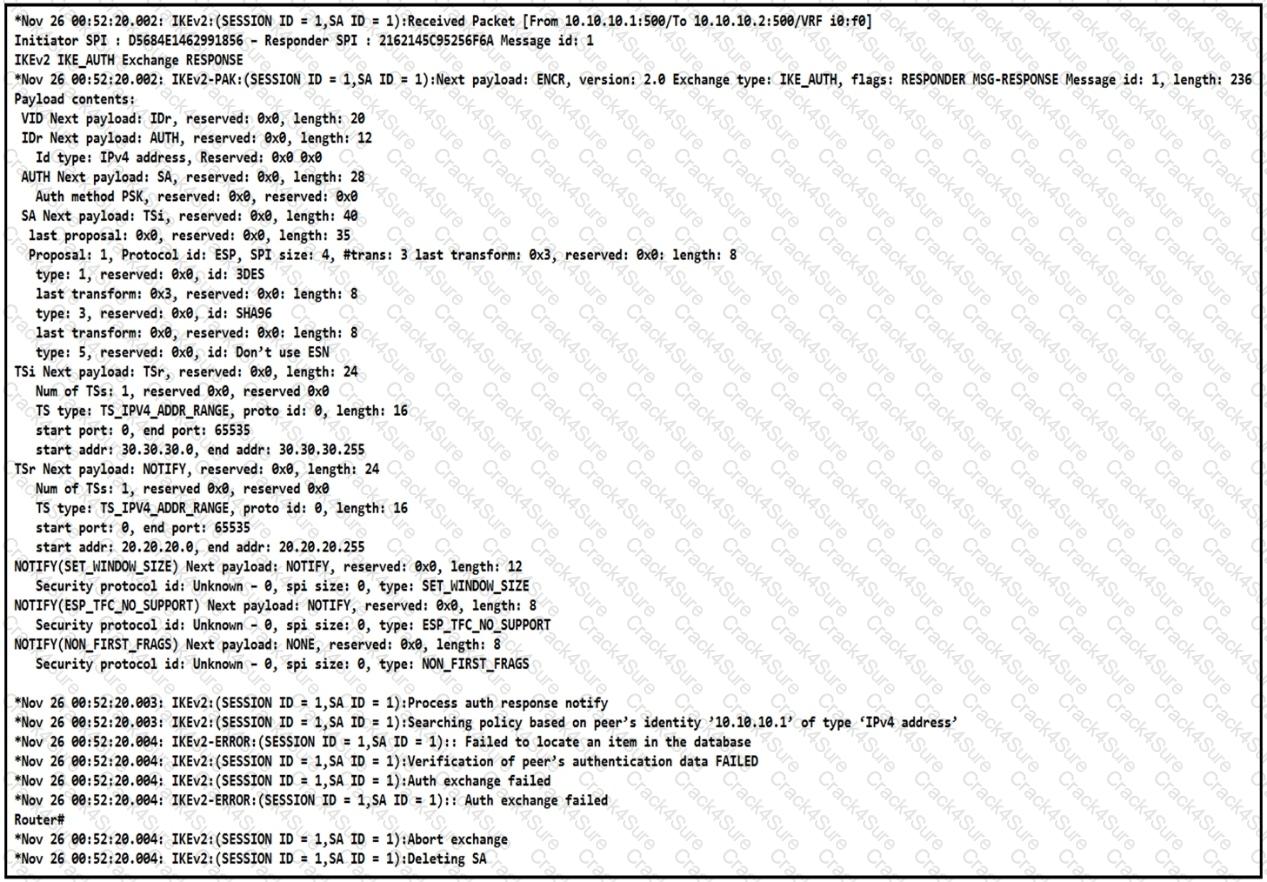

The first of the two TS payloads is known as TSi (Traffic Selector- initiator). The second is known as TSr (Traffic Selector-responder). TSi specifies the source address of traffic forwarded from (or the destination address of traffic forwarded to) the initiator of the Child SA pair. https://www.rfc-editor.org/rfc/rfc5996#page-40

If the responder's policy does not allow it to accept any part of the proposed Traffic Selectors, it responds with a TS_UNACCEPTABLE Notify message.

https://www.cisco.com/c/en/us/support/docs/security/dynamic-multipoint-vpn-dmvpn/111976-dmvpn-troubleshoot-00.html

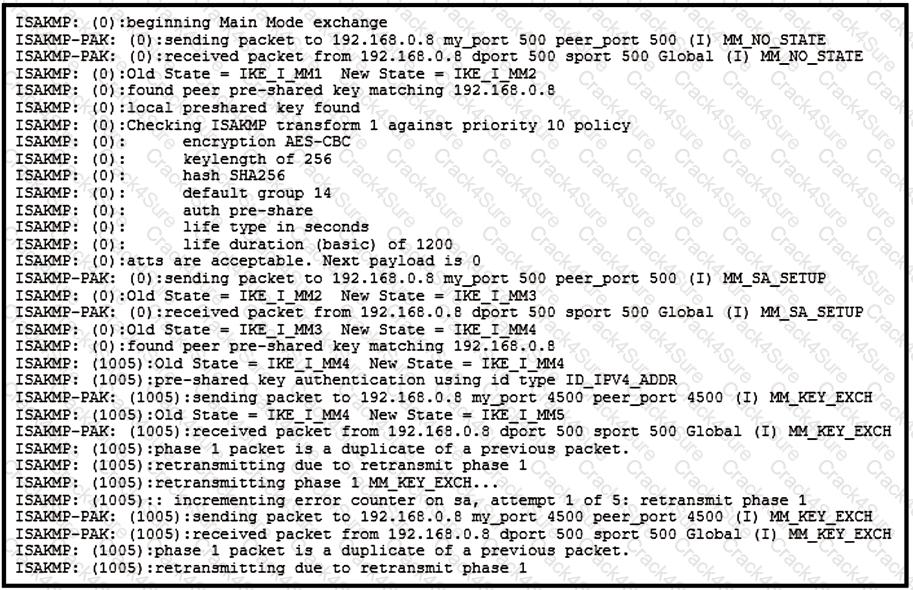

The MMNOSTATE failure occurs when the ISAKMP policy priority values are not configured correctly on both devices. The ISAKMP policy priority values are used to determine the order in which the ISAKMP policies are applied. If the priority values do not match between the two devices, the ISAKMP tunnel may not be established correctly, resulting in the MMNOSTATE failure. To resolve this issue, the engineer should ensure that the ISAKMP policy priority values are configured correctly on both the router and the peer.

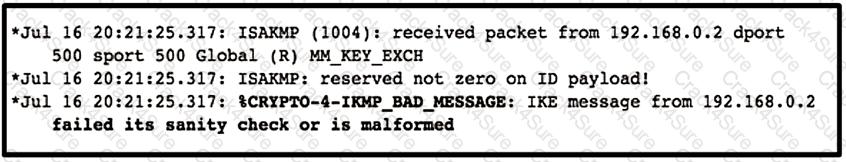

IKE Message from X.X.X.X Failed its Sanity Check or is Malformed

This debug error appears if the pre-shared keys on the peers do not match. In order to fix this issue, check the pre-shared keys on both sides.

1d00H:%CRPTO-4-IKMP_BAD_MESSAGE: IKE message from 198.51.100.1 failed its

sanity check or is malformed

https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/5409-ipsec-debug-00.html#anc17

https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/113594-trouble-ios-ike-00.html#anc12

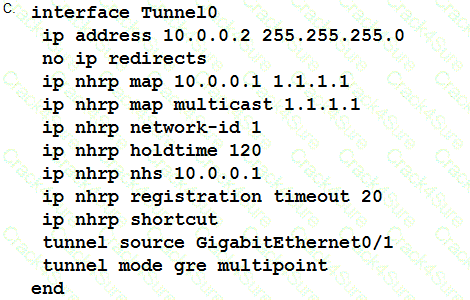

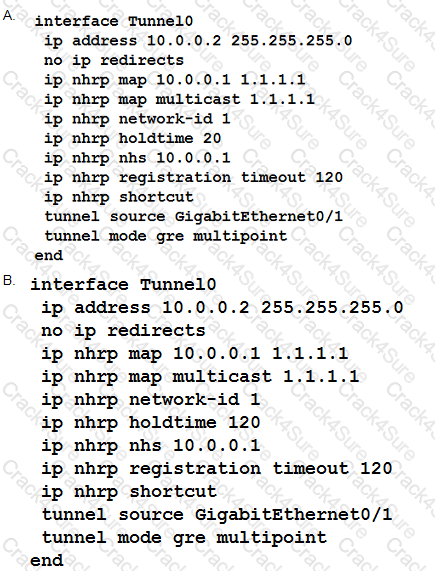

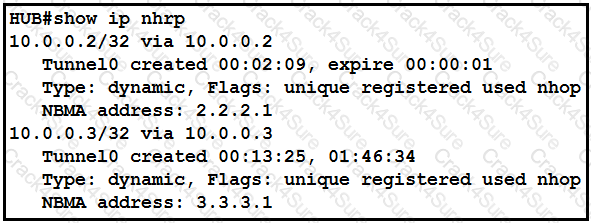

DMVPN disables the EIRGP next-hop-self with "no ip next-hop-self eigrp xxx" in DMVPN phase 2, and to go from Phase 2 to 3 you need use the NHRP protocol, and again enable EIRGP next-hop-self with "ip next-hop-self eigrp 134" under the tunnel interface https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn-dmvpn-15-mt-book/sec-conn-dmvpn-dmvpn.html#GUID-BF561439-BCC0-4AAF-80D9-1F7876CB7B81

The IKEv2 CREATE_CHILD_SA packet is used to establish a new security association (SA) between two peers. This packet contains the details of the exchange, including the traffic selectors, the cryptographic algorithms and keys to be used, and any other relevant information

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_ikevpn/configuration/xe-3s/sec-ike-for-ipsec-vpns-xe-3s-book/sec-call-addmsn-ike.html

https://www.globalknowledge.com/us-en/resources/resource-library/articles/understanding-next-hop-resolution-protocol-commands/

Reverse route injection (RRI) is a method that dynamically installs the network routes for remote tunnel endpoints. The RRI feature allows the router to automatically learn the routes for the remote networks and automatically install these routes into the routing table. This eliminates the need for the administrator to manually configure and maintain the routes for the remote networks. This feature is commonly used in VPN environments, where the router at the VPN endpoint needs to learn the routes for the remote networks behind the other VPN endpoint. The other options such as policy-based routing, CEF, and route filtering are not used to dynamically install the network routes for remote tunnel endpoints

On a FlexVPN hub-and-spoke topology where spoke-to-spoke tunnels are not allowed, the command that is needed for the hub to be able to terminate FlexVPN tunnels is interface virtual-template. The interface virtual-template command is used to configure a virtual template interface which provides a secure tunnel for FlexVPN connections. The other commands listed - interface virtual-access, ip nhrp redirect, and interface tunnel - are not related to FlexVPN and are not used to terminate FlexVPN tunnels.

KS (key server) is ‘caretaker’ of the GM group. Group registrations and authentication of GMs is taken care of by KS server. Any GM who wants to join the group is required to be successfully authenticated in the group and sends encryption keys and policy to be used within the group.

===

https://ipwithease.com/introduction-to-getvpn/
