Practice Free 300-830 Implementing Cisco Collaboration Cloud Customer ExperienceCLCCEv1.0 Exam Questions Answers With Explanation

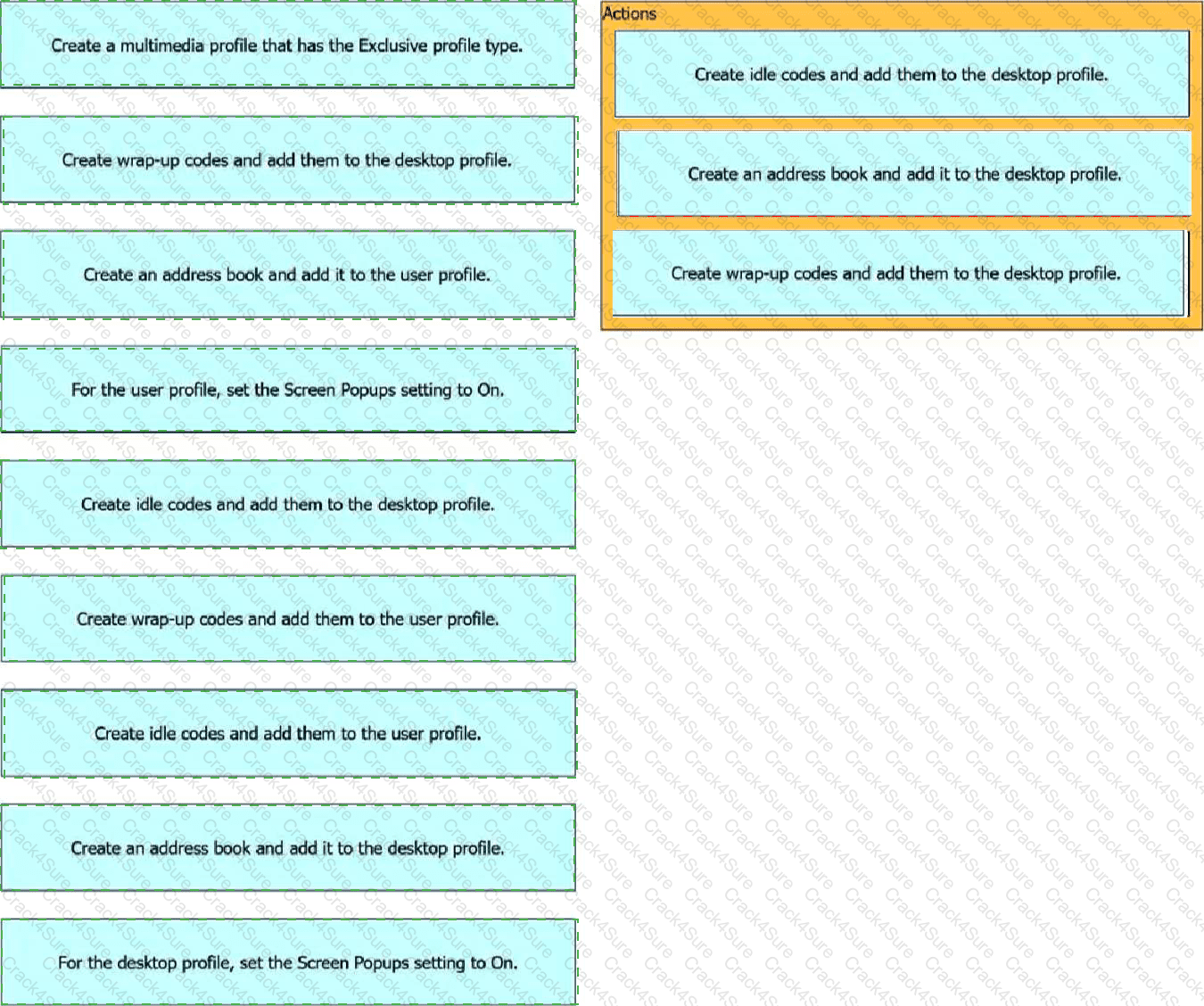

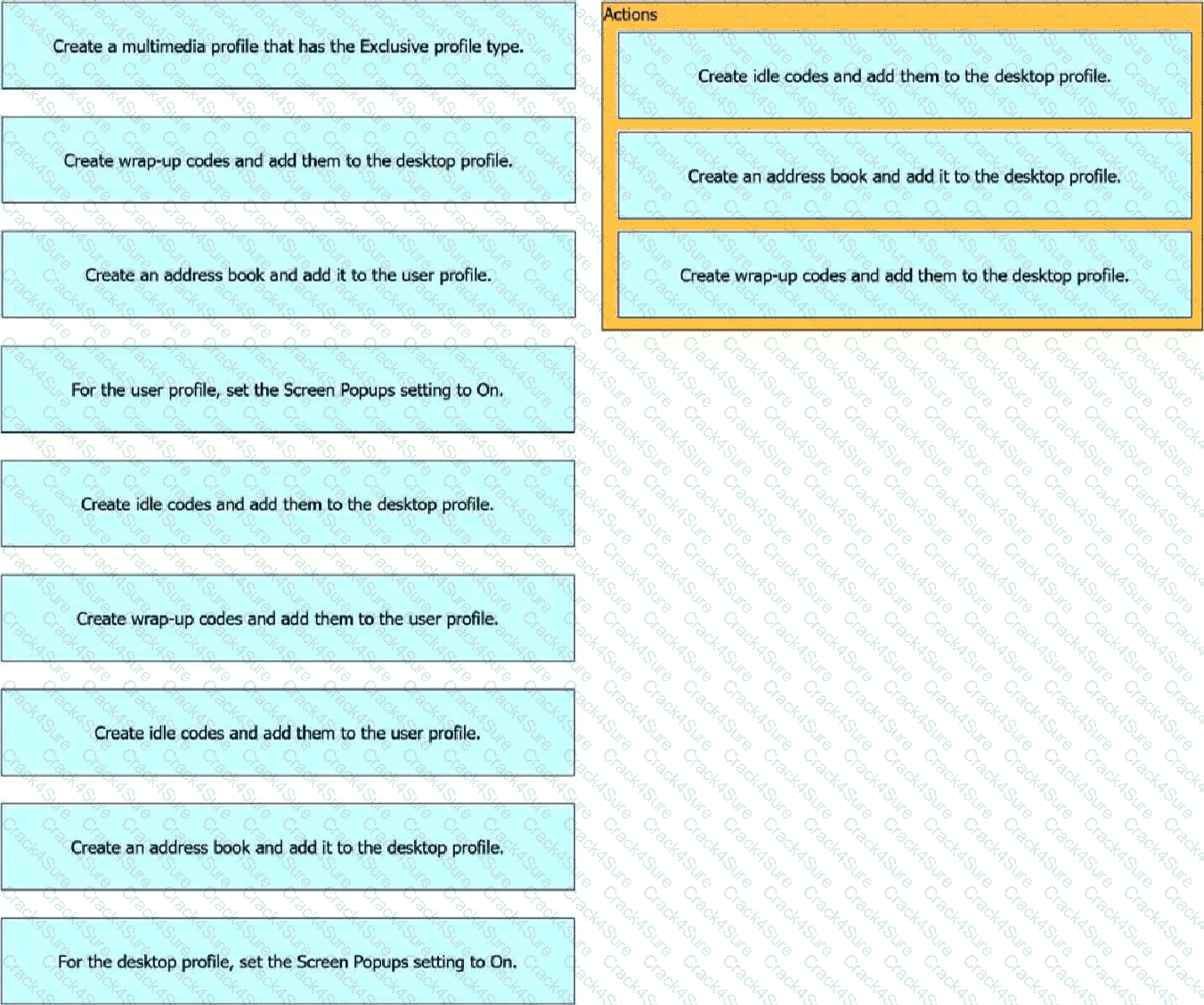

Create idle codes and add them to the desktop profile.

Create an address book and add it to the desktop profile.

Create wrap-up codes and add them to the desktop profile.

The requested desktop experience maps to three desktop-profile objects. First, to stop receiving inbound engagements without hurting KPIs, agents need an idle code configured in the desktop profile. Idle codes allow agents to move out of available status for recognized reasons rather than appearing as missed or mishandled contacts. Second, to transfer calls to frequent destinations, the administrator creates an address book and assigns it to the desktop profile so those destinations are available in Agent Desktop consult and transfer workflows. Third, to categorize the call intent, wrap-up codes must be created and added to the desktop profile so agents can classify the interaction after handling. A multimedia profile set to Exclusive would restrict simultaneous contacts, but it does not address transfer destinations, KPI-safe unavailable states, or call intent classification. Screen pop settings are related to CRM display behavior, not this stated goal. Reference: Cisco Help, Manage desktop profiles; Webex Contact Center Setup and Administration Guide.

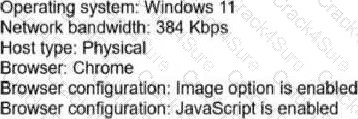

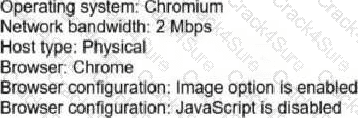

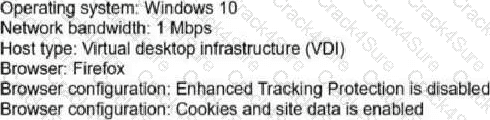

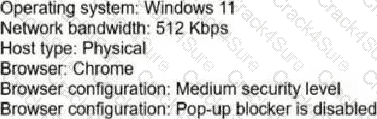

Option B is the only system profile that aligns with the Webex Contact Center Desktop WebRTC requirements shown in the exhibit. Cisco's desktop system requirements identify supported browsers and agent device models for calling, including Webex Calling desktop/app computer audio and WebRTC handling from Agent Desktop. A practical WebRTC station must have sufficient bandwidth, a supported operating system and browser, and browser settings that do not block required desktop behavior. Option A is weak because the 384 Kbps bandwidth value is below the practical WebRTC threshold shown by the comparison choices. Option C explicitly disables JavaScript, which prevents the browser-based desktop and WebRTC interaction logic from functioning properly. Option D uses a virtual desktop infrastructure condition, which is not the straightforward supported physical workstation profile presented by the question. Option B provides Windows 11, Chrome, physical host type, adequate bandwidth, a medium security level, and disabled pop-up blocking, making it the compliant choice. Reference: Cisco Help, System requirements for Webex Contact Center Desktop; Set up voice channels for Webex Contact Center.

The Webex App inside Agent Desktop is controlled through the desktop layout JSON, not merely by installing the Webex App separately. Cisco documentation for supervisor and desktop features points administrators to the webexConfigured setting in the Webex Contact Center desktop layout. The layout also uses the AgentX Webex component identifier to render the embedded Webex application area. That is why the two required parameter combinations are the desktopChatApp object with webexConfigured set to true and the component value agentx-webex. The value webex-app is not the documented component name for this layout object. A generic webexAppEnabled Boolean or webexApp enabled object may look plausible, but it is not the required JSON pattern in the Cisco desktop layout schema. The result is practical: if either the correct component or the webexConfigured flag is absent, the embedded Webex App will not display in Agent Desktop for agent-to-agent, supervisor, or SME collaboration. Reference: Cisco Help, Create custom desktop layout; Supervise your agents and teams.

To verify which contact sessions were recorded, the manager needs a contact-session report, not a team or site inventory report. Cisco's Analyzer stock reports include CSR reports that are based on Customer Session Record data. The CSR Report - Yesterday is a stock historical report suitable for reviewing completed customer sessions and whether those sessions include recording-related indicators. Team Contact Details and Site Contact Details can be useful for operational breakdowns by team or site, but the question asks which contact sessions were recorded, which aligns with the customer session record. A Usage Report is generally used for consumption or system usage and is not the direct stock report for contact session recording verification. The exam wording points to the standard Analyzer repository/reporting structure: CSR summarizes the end-to-end customer interaction and is the right source when validating recorded contact sessions. Reference: Cisco Help, Webex Contact Center Analyzer User Guide; Webex Contact Center Analyzer Stock Reports.

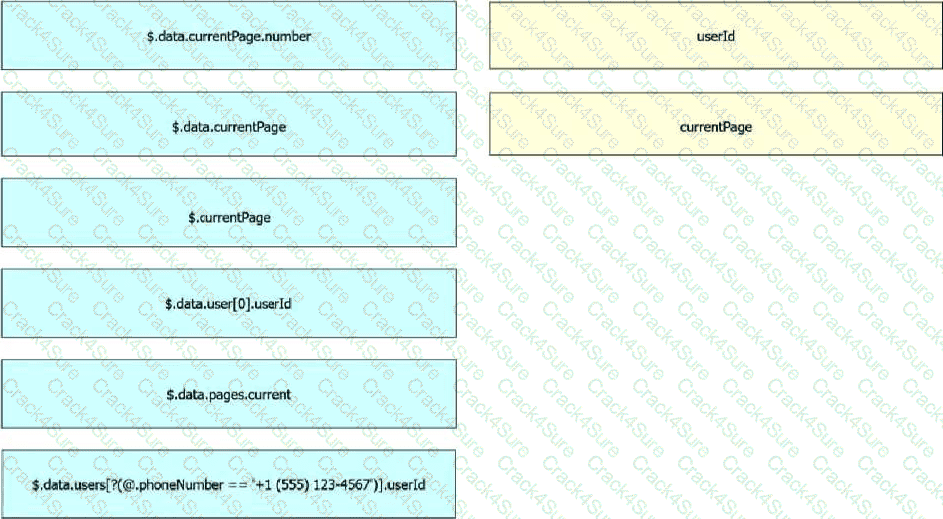

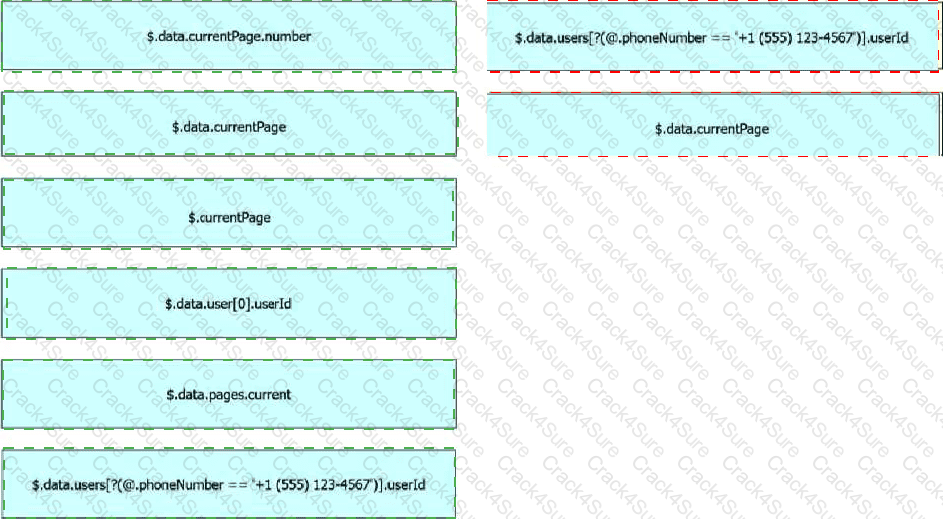

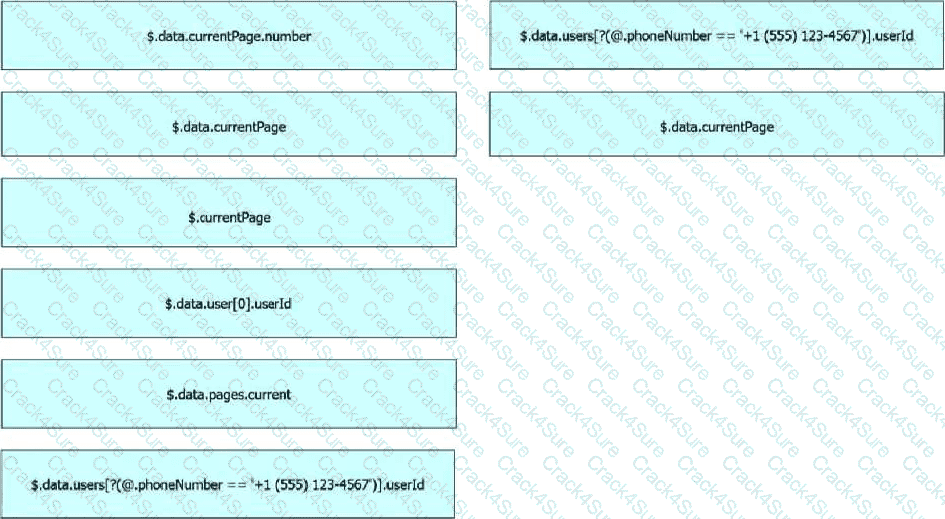

userId: $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId

currentPage: $.data.currentPage

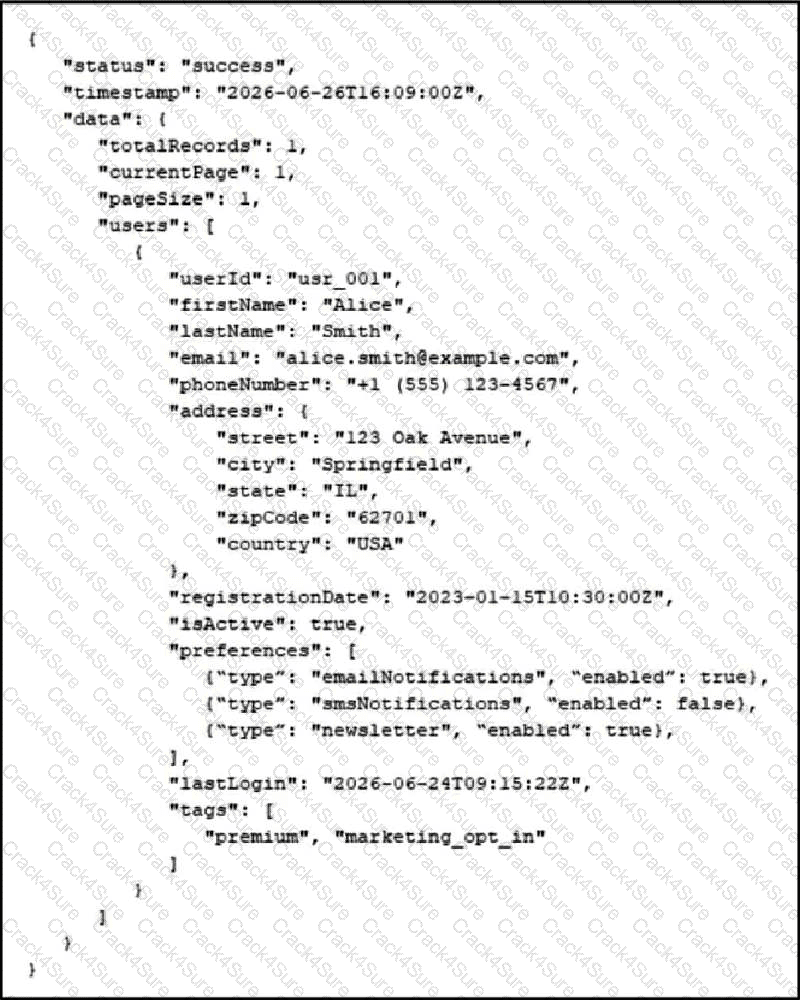

The JSONPath mapping must match the structure shown in the API response. The userId variable is not a simple top-level property; it sits inside the users array. The expression must filter the users array for the object whose phoneNumber equals +1 (555) 123-4567 and then return that object's userId. That is why the filtered JSONPath expression using $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId is the correct mapping. The currentPage variable is directly under data, so the correct expression is $.data.currentPage. Expressions such as $.currentPage miss the data wrapper, and $.data.currentPage.number assumes currentPage is an object with a number property, which the response does not show. $.data.user[0] .userId is also wrong because the array name in the response is users, not user, and it would take the first user rather than the matching phone number. Reference: Webex Connect Help, Custom Node Integration; Webex Connect flow data parsing guidance.

Cisco's Recording Control activity gives caller consent precedence over tenant, queue, and recording schedule settings. In the documented precedence order, if user consent is set to Yes in the flow, the call is recorded regardless of the recording configuration at those other levels. If the user does not consent, the call is not recorded, also regardless of those other settings. If the Recording Control activity is not configured in the flow, the system falls back to the normal recording hierarchy: if any applicable tenant, queue, or schedule configuration is Yes, the call is recorded; if all are No, it is not. That is why option B is true and option C is false. Option D is also true because removing the flow activity returns control to queue-level or other configured recording policy. Option E is false because explicit Yes consent in the flow takes precedence over a recording schedule set to No. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Build and manage flows with Flow Designer.

The Exclusive multimedia profile type is used when an agent must handle only one interaction at a time. Cisco's multimedia-profile model controls how many simultaneous contacts an agent can receive and how different media types are blended. A blended profile can allow multiple channels, and a blended real-time profile is designed for voice plus real-time digital interactions under concurrency rules. Voice Only would restrict agents to voice and would not satisfy a team that handles voice, email, and chat. The scenario is not asking to remove digital channels; it says a few agents cannot focus on multiple interactions. Exclusive solves that by allowing the agent to work one contact regardless of channel, preventing simultaneous assignments that could reduce quality or agent performance. This is a tenant and desktop-experience configuration decision, not a queue routing problem. The agent can still be eligible for the configured channels, but the desktop capacity model keeps workload to one active interaction. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Manage desktop profiles.

Webex Connect provides two relevant troubleshooting tools for failed transactions: Debug Console and Export Logs. Cisco's Webex Connect Debug Console documentation states that it displays transaction details and historical logs for API, flow, and rule executions, including status, timestamps, service name, transaction source, and errors. That makes it the interactive tool for investigating a specific failure path. Export Logs is the bulk-download mechanism for inbound and outbound transaction logs across channels and can cover the last seven days or more depending on log availability and tenant configuration. Reports are useful for aggregated channel performance and trends, but not for pulling all failed transactions from a specific service with enough technical detail. Watchtower is not the primary transaction log export mechanism in the option set. Templates are reusable message or channel assets, not troubleshooting tools. For a seven-day failure investigation, Debug Console plus Export Logs is the correct pair. Reference: Webex Connect Help, Debug Console; Webex Connect Help, Export Logs.

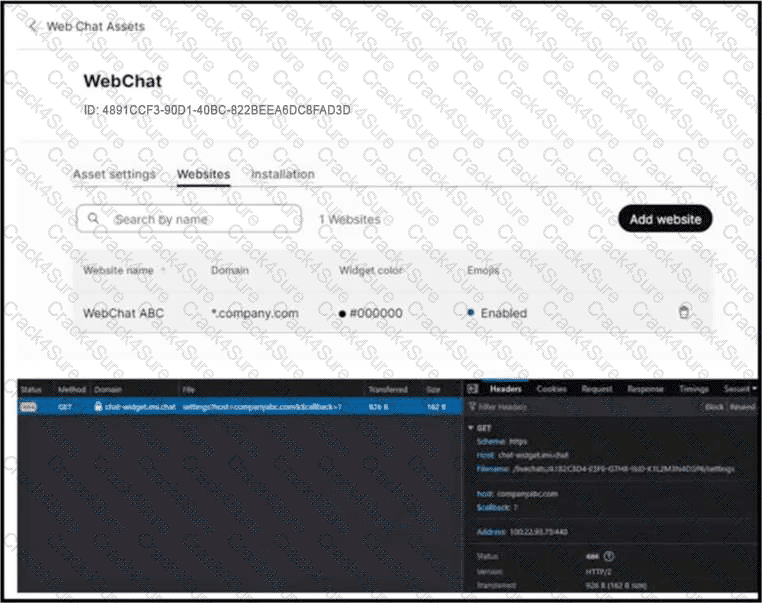

A Web Chat widget that is visible in configuration but does not load on the company website commonly points to an asset-domain mismatch. Cisco Webex Connect live chat assets require the website domain to be configured for the asset so the platform can validate where the widget is embedded. The exhibit shows the browser-side failure after widget code is implemented, which is consistent with the site domain not matching the domain configured for the Web Chat Asset. Missing Webex Connect flow configuration usually causes chat handling or routing failures after a chat is initiated, not the widget failing to load. A firewall block to a widget domain is possible in the real world, but the question says the engineer sees output in the browser while investigating Webex Contact Center, and the Cisco configuration control involved is the website domain on the asset. Content Security Policy allow-listing in Webex Contact Center is for desktop/embedded content behavior, not the primary asset-domain validation for web chat loading. Reference: Webex Connect Help, Livechat; Cisco Help, Set up digital channels in Webex Contact Center.

A Webex bot conversation must preserve conversation context between incoming messages. If each incoming message starts the Webex Connect flow from the beginning, the flow is treating every webhook event as a new start event instead of waiting for the next message from the same user. The Receive node is the correct mechanism for continuing the flow after the initial webhook trigger. It should use a custom event that matches the user email, because the user identity is what links the next inbound message to the same conversation path. Matching the bot email would identify the bot endpoint, not the specific human conversation participant. Creating multiple webhooks for different steps would fragment the design and still would not preserve state cleanly. A Call Flow node is useful for modularizing logic but does not by itself wait for and correlate the user's next message. The Receive node with the user-email custom event keeps the conversation from restarting. Reference: Webex Connect Help, Receive Node and flow debugging; Webex Connect Webex Chat/Webex Engage documentation.

For PSTN calls arriving at Webex Contact Center, the safe media statement is that the supported voice codecs are G.711 mu-law and G.711 A-law. Cisco's Webex Contact Center telephony material emphasizes PSTN and Local Gateway interoperability through standard SIP media, and the exam objective expects knowledge of codec compatibility at the service edge. Opus is widely used in WebRTC and collaboration media contexts, but it is not natively supported for PSTN ingress into Webex Contact Center without appropriate interworking or transcoding in the overall design. SIP early media support also must not be assumed as fully supported in every Webex Contact Center call path. DTMF handling is important, but the option saying it can use out-of-band is not the most accurate description of the PSTN media requirement in this question. The codec restriction is the definitive media requirement and is why option B is correct. Reference: Cisco Help, Set up voice channels for Webex Contact Center; Webex Contact Center architecture and telephony documentation.

A Scheduled Callback activity must know when the callback should occur and the timezone in which that schedule should be interpreted. Cisco's callback scheduling API and Webex Connect scheduling behavior use normalized date/time inputs so a callback is created at the expected customer time. The date format in the answer set is YYYY-MM-DD, which is the standard year-month-day format used by modern APIs and scheduling fields. The timezone is required because the same date and time can represent different UTC instants depending on the caller's or business's region. Customer name and phone ANI may be useful data in a broader callback workflow, but they are not the two key values asked here for configuring the Scheduled Callback node successfully. The YYYY-DD-MM format is not the accepted ordering and would create ambiguous or invalid schedules. The correct pair is therefore schedule date in YYYY-MM-DD format and schedule timezone. Reference: Webex Developer, Callback Schedule API; Webex Connect Help, Event Scheduler and scheduled flow activities.

The Queue Task node is the Webex Connect node that routes a digital interaction to Webex Contact Center for distribution. Cisco's Webex Connect documentation states that Queue Task calls the Webex CC Queue Task API to queue the contact at Webex Contact Center. In an email digital-channel flow, the channel receives or creates the conversation in Webex Connect, but a live-agent handoff requires creating or queueing a task so Webex Contact Center can apply routing, queue selection, skills, and agent assignment. A Screen Pop node provides information to an agent desktop after routing has occurred; it does not queue the email. Create Conversation creates the conversation object but does not distribute the work to a contact center agent. Add Participant is used to add a participant to a conversation, not to place the email interaction into the contact center routing engine. Therefore, Queue Task is the required node for contact distribution. Reference: Webex Connect Help, Queue Task - WXCC; Webex CC Task Integration Nodes and Node Authorizations.
