There are two operations in which a license can be applied, License more devices or Renew my dashboard license. This article will compare both operations and describe their behaviors. https://documentation.meraki.com/General_Administration/Licensing/Meraki_Licensing_-_License_More_Devices_vs_Renewal

These are the two operations that enable licenses to be applied in an organization that uses the Co-Termination licensing model. According to the Meraki Co-Termination Licensing Overview, there are two ways to add licenses to an organization:

• Renewing the Dashboard license: This option allows you to extend the co-termination date of your organization by purchasing new licenses for the same or longer term as your existing licenses. You can renew your Dashboard license from the Organization > Configure > License Info page or from the Meraki Dashboard homepage.
• Licensing more devices: This option allows you to add new devices to your organization by purchasing new licenses for them. You can license more devices from the Organization > Inventory page or from the Meraki Dashboard homepage.

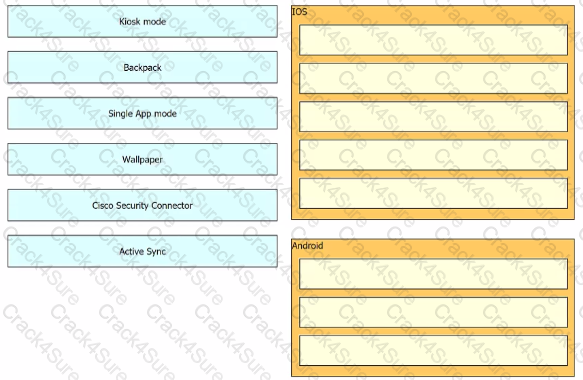

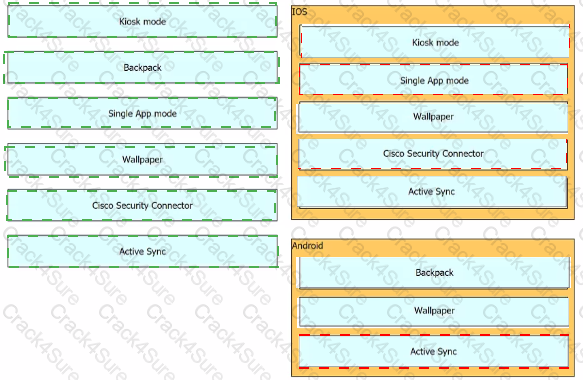

IOS:

• Kiosk mode
• Single App mode
• Wallpaper
• Cisco Security Connector
• Active Sync

Android:

• Kiosk mode
• Backpack
• Wallpaper
• Active Sync

This question is related to the topic of System Manager: Getting Started in the Cisco Meraki documentation. You can find more information about this topic in the [System Manager: Getting Started] article or the [System Manager Overview] page.

https://documentation.meraki.com/SM/Profiles_and_Settings/Configuration_Settings_Payloads

https://documentation.meraki.com/MX/Firewall_and_Traffic_Shaping/MX_Load_Balancing_and_Flow_Preferences#Load_Balancing

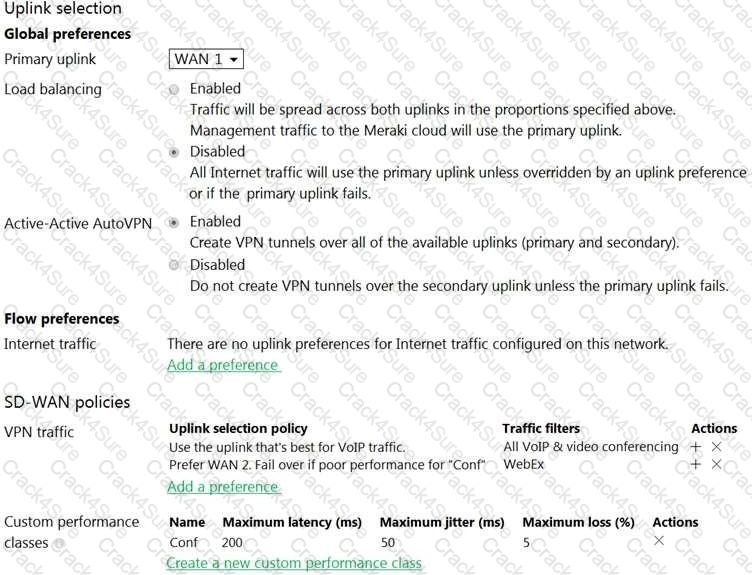

Assuming this MX has established a full tunnel with its VPN peer, the MX will route the WebEx traffic based on the SD-WAN policy configured in the exhibit. The SD-WAN policy has two performance classes: Conf and Default. The Conf performance class matches the traffic with destination port 9000, which is used by WebEx for VoIP and video RTP3. The Conf performance class has a preferred uplink of WAN 2 and a failover uplink of WAN 1. It also has thresholds for latency, jitter, and loss that determine when to switch from the preferred uplink to the failover uplink. Therefore, the WebEx traffic will prefer WAN 2 as long as it meets the thresholds in the Conf performance class. If WAN 2 exceeds the thresholds or goes down, the WebEx traffic will switch to WAN 1 as the failover uplink.

This is because the alert mentions 802.1X failure, which is a network access control method that is used with WPA2-enterprise and RADIUS servers1.

This question is related to the topic of Wireless Access Points Quick Start in the Cisco Meraki documentation. You can find more information about this topic in the Wireless Access Points Quick Start article or the Using the Cisco Meraki Device Local Status Page page.

Ports used to contact the VPN registry:

- Source UDP port range 32768-61000

- Destination UDP port 9350 or UDP port 9351

Ports used for IPsec tunneling:

- Source UDP port range 32768-61000

- Destination UDP port range 32768-61000

https://documentation.meraki.com/MX/Site-to-site_VPN/Meraki_Auto_VPN_-_Configuration_and_Troubleshooting

iOS devices that are using Apple's Device Enrollment Program (DEP) can be supervised and enrolled over-the-air anytime they are factory reset. DEP is the best way to permanently force your devices to be owned and managed by your organization, and it is important to assign your DEP settings properly before deployment. https://documentation.meraki.com/SM/Device_Enrollment/Enrolling_and_Supervising_iOS_Devices_using_Apple_Configurator_2.5_or_Later#:~:text=DEP%20is%20the%20best%20way,DEP%20settings%20properly%20before%20deployment .

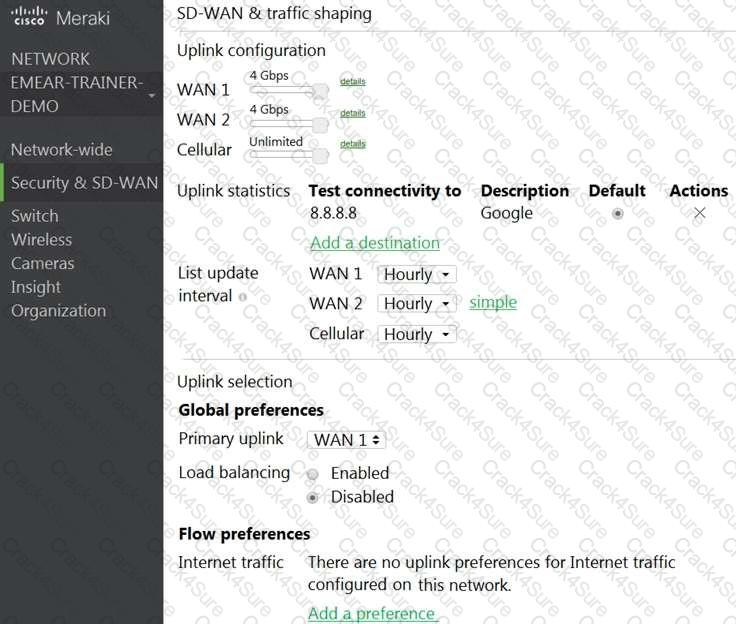

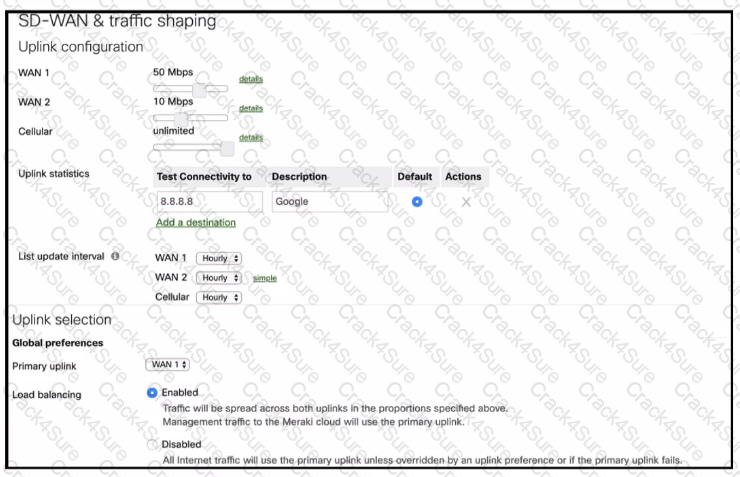

To clarify, to optimize load balancing asymmetrically with a 4:1 ratio between links, two actions that are required are:

• Enable load balancing: This option allows the MX to use both of its uplinks for load balancing. When load balancing is enabled under Security & SD-WAN > Configure > SD-WAN & Traffic shaping, traffic flows will be distributed between the two uplinks proportional to the WAN 1 and WAN 2 bandwidths specified under Uplink configuration1.
• Change the assigned speeds of WAN 1 and WAN 2 so that the ratio is 4:1: The assigned speed of a WAN link is a value that indicates the bandwidth available on that link. By changing the assigned speeds of WAN 1 and WAN 2 so that they reflect the desired load-balancing ratio, the administrator can ensure that the MX uses both links efficiently and proportionally1. For example, if WAN 1 has a bandwidth of 100 Mbps and WAN 2 has a bandwidth of 25 Mbps, then setting their assigned speeds to 100 Mbps and 25 Mbps respectively will achieve a 4:1 load-balancing ratio.

https://documentation.meraki.com/MR/MR_Splash_Page/Systems_Manager_Sentry_Enrollment

https://documentation.meraki.com/Architectures_and_Best_Practices/Cisco_Meraki_Best_Practice_Design/Best_Practice_Design_-_MX_Security_and_SD-WAN/MX_Templates_Best_Practices#:~:text=policy%2C%20choose%20Save-,Local%20Overrides,will%20override%20the%20template%20configuration .

See Monitoring Mesh section Mesh monitoring tools are located at the bottom of every AP detail page, which can be accessed by navigating to Wireless > Monitor > Access Points, then clicking on an Access Point. https://documentation.meraki.com/MR/Wi-Fi_Basics_and_Best_Practices/Wireless_Mesh_Networking

https://documentation.meraki.com/SM/Device_Enrollment/Containerization_with_Systems_Manager

These are the two features and functions that are supported when using an MX appliance in Passthrough mode. According to the [MX Addressing and VLANs] article, Passthrough mode allows the MX appliance to act as a layer 2 bridge, passing traffic between its LAN and WAN ports without performing any routing or address translation. However, some features such as intrusion prevention and site-to-site VPN are still available in this mode.
