Practice Free 800-150 Supporting Cisco Devices for Field Technicians (FLDTEC) Exam Questions Answers With Explanation

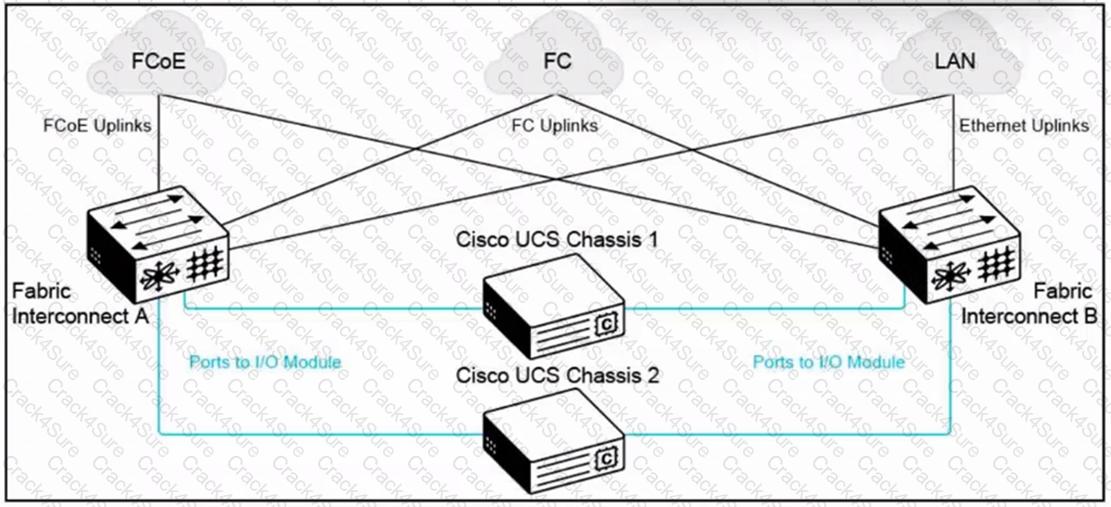

TheUCS Fabric Interconnectis the central management and communication hub of theCisco UCS (Unified Computing System)environment. It integrates compute, network, and storage access into a unified system.

Fabric Interconnects:

Manage all servers and I/O modules connected to the UCS domain

Provide connectivity and are the point of integration with the Cisco UCSManager

Offer high-availability and centralized policy management

Other options like the Nexus or MDS switches do not serve this unified management function in a UCS deployment.

Theboot systemcommand is used in globalconfiguration mode to specify the source and filename of the Cisco IOS software image that should be loaded during the device’s boot process. This command ensures that the device loads a specific IOS image, whether it's stored locally in flash or fetched from a TFTP server.

Syntax example:

boot system flash:c1900-universalk9-mz.SPA.157-3.M3.bin

boot image,boot ios, andboot sourceare invalid or non-existent in standard Cisco IOS.

Within theFLDTECtraining, especially underMaintenance and RMA Procedures, there is a strong emphasis on safely transferring and adapting configurations from failed or decommissioned devices to replacement units.

The official guidance includes the following:

"When reusing a configuration from an old device, make sure to retain the necessary security elements such as username entries. This ensures the replacement device is still accessible under the correct user credentials."

Here's a breakdown of why the correct answer isB:

A. Remove all configurations under line vty 0 4:This would eliminate remote access settings, making it harder to manage the device.

B. Retain all username entries:Correct. Keeping the username entries ensures continued secure access and avoids loss of administrative control.

C. Keep all access-list commands intact:Not always required — ACLs are often tailored to interface-specific settings or environments which may differ between devices.

D. Add the enable password cisco command:Not a best practice. Default passwords (like cisco) should be avoided for security reasons, and it's not required if enable secret is already in use.

===========

After disconnecting the network cable from an SFP transceiver, theimmediate next step is to reinstall the dust plugsinto the optical bores. This action prevents contamination from dust or debris that can damage the optical interfaces or degrade performance.

It’s important to protect the exposed optical port before handling the rest of the transceiver module. Dust plugs help maintain the integrity of the component until a new cable or module is connected.

To back up the startup configuration of a Cisco device to a USB drive, the commandcopy startup-config usbflash0:[filename]is used. This command copies the contents of the startup configuration file stored in NVRAM to a specified file on the USB flash drive. This is particularly useful for creating backups before performing upgrades or replacements.?Option A:Copies the startup configuration to a TFTP server, not a USB drive.

Option B:Attempts to copy from the USB drive to the startup configuration, which is the reverse of the desired operation.

Option D:Copies the running configuration, not the startup configuration, to the USB drive.?

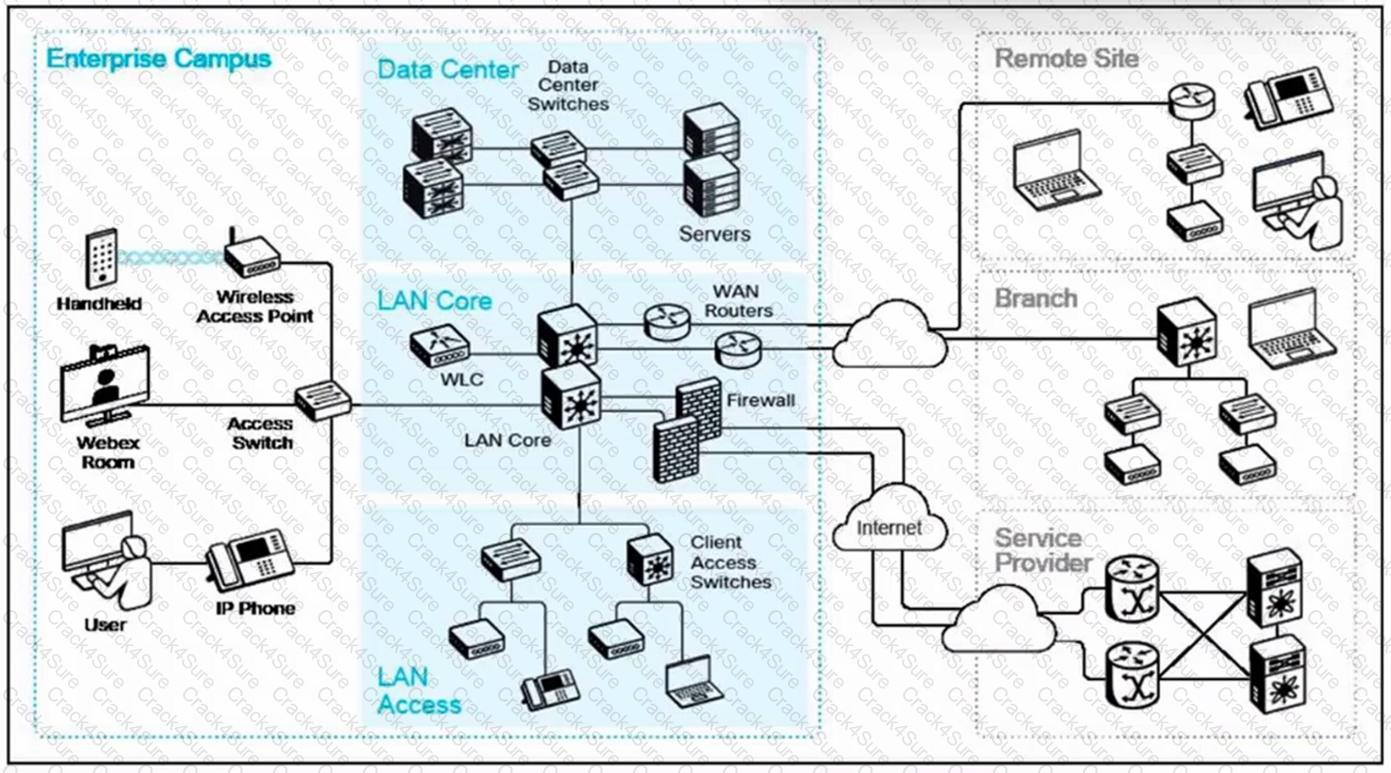

In an enterprise network,Virtual Local Area Networks (VLANs)are the key Layer 2 technology used to logically segment a network into multiple broadcast domains. VLANs allow network administrators to assign individual switch ports to specific VLANs, enabling effective network segmentation and traffic management.

This configuration extends to access layer devices, such as switches where end-user devices connect. By isolating traffic into VLANs, administrators can improve network performance, enhance security by separating sensitive departments (such as finance and HR), and simplify network management.

Unlike routing protocols such as BGP and OSPF, which operate at Layer 3, or MPLS, which is a Layer 2.5 forwarding technology used primarily in service provider networks, VLANs are explicitly designed for Layer 2 segmentation within LAN environments.

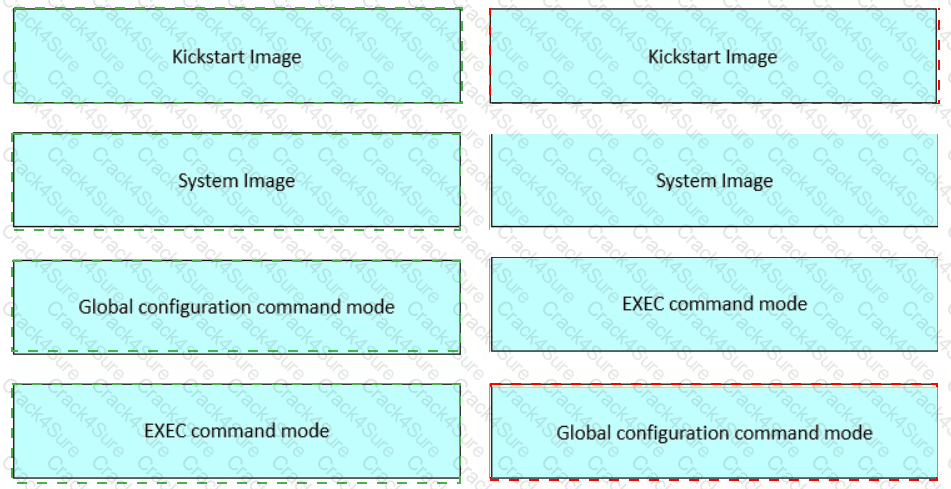

Kickstart Image? Specialized bootloader that initializes the hardware

System Image? Contains the full NX-OS kernel and operating system

Global configuration command mode? Provides access to the broadest range of commands that affect the device as a whole

EXEC command mode? Allows for displaying device status and configuration information

This knowledge is covered underCisco IOS/NX-OS Software Basicsin the FLDTEC training:

Kickstart Image:Alightweight bootloader image that initializes hardware and launches the system image. It's comparable to ROMMON in traditional IOS devices.

System Image:Includes the full NX-OS operating system, services, drivers, and kernel required to run the device.

Global Configuration Mode:After entering privileged EXEC mode (enable), this mode allows changes to system-wide settings such as interfaces, routing protocols, and VLANs.

EXEC Mode:Has two levels—User EXECandPrivileged EXEC. User EXEC provides limited diagnostic commands, while Privileged EXEC allows more extensive system views (show commands, reload, etc.).

Understanding these layers is essential when maintaining or restoring NX-OS devices in field environments.

To ensure asmooth replacementof a Cisco UCS C-Series Rack-Mount Server, two critical actions are:

Back up the server configuration using the Cisco Integrated Management Controller (CIMC): This preserves all configuration data such as BIOS settings, RAID setup, and network configuration. After replacing the hardware, this configuration can be restored to minimize setup time.

Decommission the server if it is integrated in a Cisco UCS domain: Before physically replacing the server, decommissioning it ensures the UCS Manager properly releases it from the inventory, preventing configuration conflicts or orphaned profiles.

Other options, like reconfiguring DHCP or disabling firewalls, are not required procedures for a UCS C-Series hardware swap.

Theprimary reasonfor placing heavier equipment, such as UPS units or core switches, at thebottom of a rackis tomaintain stability. A lower center of gravity reduces the risk of tipping, especially when the rack is not yet bolted or braced.

This is a standard safety precaution in network hardware installation and is particularly important when racks are being serviced or relocated.

When connectingtwo devices of the same type(e.g., two routers, two switches, or two DTEs), acrossover cableis required. This cable swaps the transmit and receive pairs to allow direct communication between devices without the need for an intermediate device like a switch.

Straight-through cablesare used to connect different types of devices (e.g., PC to switch).

Rolled cablesare used for console access.

USB Type A to Bcables are typically used for peripheral device connections, not networking.

When diagnosing network connectivity issues between a Windows PC and a Cisco device, the combination ofipconfig /allandpingcommands provides comprehensive information:?

ipconfig /all:Displays detailed IP configuration information, including IP addresses, subnet masks, default gateways, DNS servers, and MAC addresses for all network adapters. This information is crucial for verifying correct network settings.?

ping:Tests the reachability of a host on an IP network and measures the round-trip time for messages sent from the originating host to a destination computer. It's a fundamental tool for checking connectivity between devices.?

While other commands likenetstat,tracert,nslookup,arp -a, androute printprovide valuable information,ipconfig /allandpingare typically the first and most informative commands used in initial troubleshooting steps.?

In theFLDTEC course, the process for removing or replacing asupervisor module— especially thestandbysupervisor— in a modular switch like theCisco MDS 9700is clearly outlined. Cisco documentation states:

"Before removing a standby supervisor module, it must first be placed into out-of-service mode using the CLI command system no supervisor <slot-number> or via the appropriate management interface."

This action ensures the systemacknowledges the supervisor is no longer participating in redundancy, allowing a safe and controlled removal without impacting system operations.

Why not the other options?

A. Shut down the entire switch? Not required; MDS switches are built for high availability and allow hot-swap operations.

C. Disconnect all network interface cables? This applies to line cards or interfaces, not to supervisor removal specifically.

D. Perform a manual failover? Failover is requiredwhen removing the active supervisor, not the standby one.

During the password recovery process on Cisco devices, ROMMON (ROM Monitor) mode is utilized to perform specific actions that facilitate the recovery. Two critical actions typically performed in ROMMON mode are:?

Change the Configuration Register:The configuration register is modified to instruct the device to ignore the startup configuration during the next boot. This is commonly achieved by setting the configuration register to0x2142. This action prevents the device from loading the saved configuration, allowing access without requiring the existing passwords.?

Reboot the Device:After changing the configuration register, the device is rebooted to apply the new settings. This reboot enables the device to bypass the startup configuration, facilitating the password recovery process.?

These steps are essential in the password recovery procedure, allowing administrators to regain access to the device without erasing the existing configuration.?

A ? Power supply modules

B ? Fan tray assembly

C ? Line card slots 1 and 2

D ? Supervisor modules

E ? Line card slots 5, 6, and 7

The power supply units (A) are at the top, the fan tray (B) is a vertical module on the left, line cards (C and E) span multiple slots horizontally, and supervisor modules (D) are typically placed centrally for control functions.

In theFLDTEC courseunderCisco Modular Hardware Overview, the Cisco Catalyst 9400 series is broken down into clearly defined FRU zones:

Power Supply Modules (A):Located at thetop of the chassis, these provide redundant, hot-swappable power to the switch.

Fan Tray Assembly (B):Mounted vertically on the left, this ensures proper cooling and airflow throughout the chassis.

Line Card Slots 1 and 2 (C):Located in the upper section for network expansion.

Supervisor Modules (D):Positioned centrally, they handle control plane operations, management, and switching logic.

Line Card Slots 5, 6, and 7 (E):Lower slots for high-density port expansion.

Correct FRU identification ensures successful maintenance, upgrades, and hardware replacement during field operations.

TheCisco Integrated Management Controller (CIMC)is the embedded management solution designed specifically forstandalone Cisco UCS C-Series rack servers and E-Series servers. It allows administrators to perform out-of-band management functions such as BIOS configuration, firmware updates, remote console access, and power control.

Cisco UCS Manageris used for managing UCS blade chassis environments.

Cisco UCS Centralis intended for centralized management across multiple UCS domains.

Cisco Intersightis a cloud-based management platform that can extend CIMC functionality but is not the embedded, standalone option.

After upgrading the firmware on aCisco UCS C-Series serverusing theHost Upgrade Utility (HUU), it is critical toverify the update statusto ensure thatall targeted components(such as BIOS, CIMC, and RAID controller firmware) have beensuccessfully updated.

Firmware upgrades often involve multiple subsystems, and partial or failed updates can result in inconsistencies or even device instability. Verifying the update status allows the technician to identify any missed components and perform corrective actions if necessary.

Options like generating compliance reports, third-party application checks, or license activations are not the primary reasons for this verification step in the HUU process.

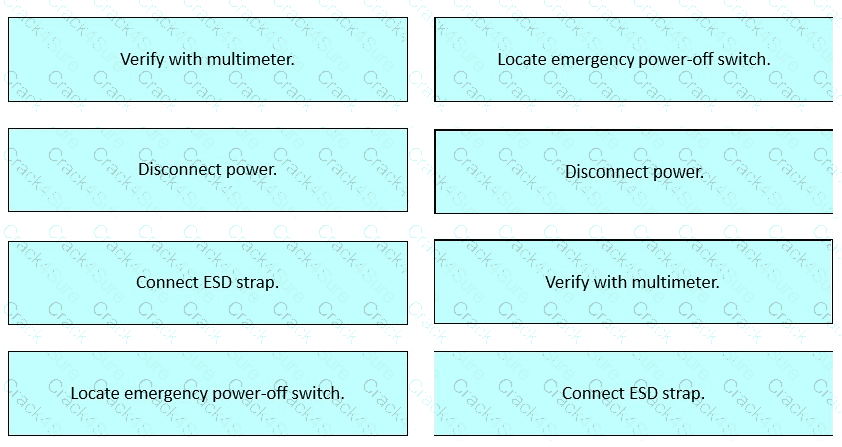

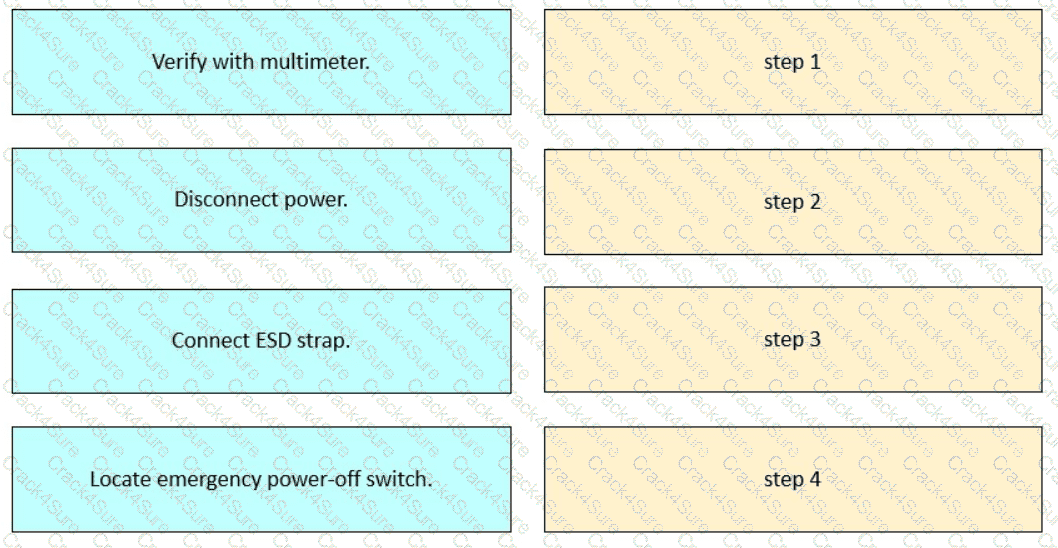

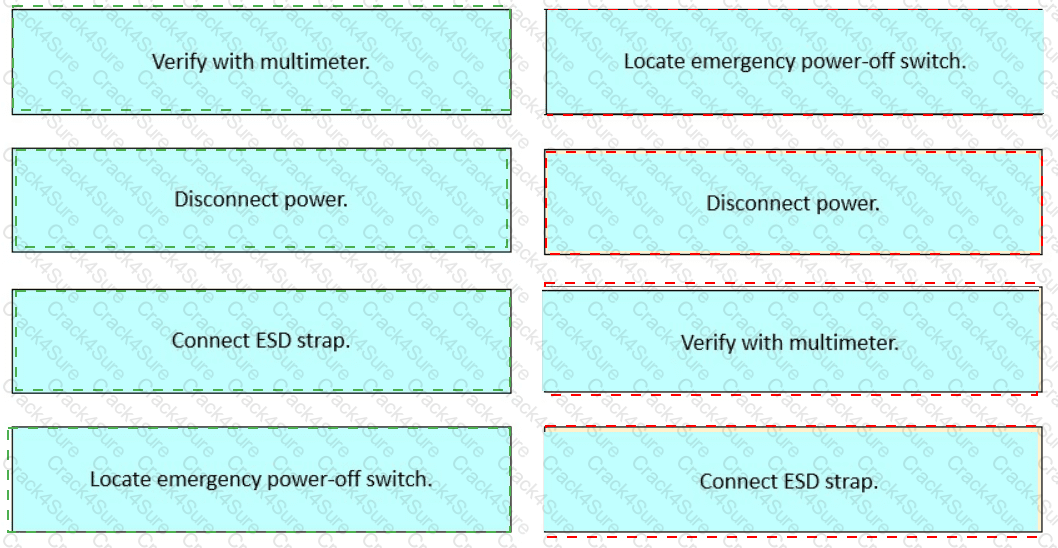

In theFLDTEC course, underSafety and ESD Procedures, Cisco outlines the following safety workflow before working on any network hardware:

Locate Emergency Power-Off Switch: Identifying how to cut power quickly is essential in case of an electrical fault or emergency.

Disconnect Power: Always ensure the power source is turned off and disconnected before handling any components.

Verify with Multimeter: Use a multimeter to confirm that no voltage is present before proceeding.

Connect ESD Strap: Once confirmed safe, attach your ESD strap to a grounded point to prevent electrostatic damage to sensitive components.

Following this process is critical not only forpersonal safetybut also forequipment protection, especially duringhardware installation, maintenance, or RMA replacements.

The main advantage ofCisco Intersightis itscloud-based architecture, which allows IT administrators tomanage infrastructure from any locationwithout needing to install or maintain traditional on-premises management tools.

This provides:

Centralized visibility and control over UCS servers and HyperFlex infrastructure

Remote firmware upgrades and configuration

Policy-driven automation

Unlike on-premises tools, Intersight eliminates the overhead of maintaining dedicated infrastructure for management.

Cisco Unified Communications Manager (CUCM) is typically deployed onCisco UCS C-Series servers. These rack-mount servers provide the necessary computing resources to support CUCM's call control and session management functions in enterprise environments. The UCS C-Series servers offer scalability, reliability, and integration capabilities essential for unified communications deployments.?

Options A (Cisco ASR routers), B (Cisco Catalyst switches), and C (Cisco ISR routers) are networking devices designed for routing and switching functions and are not intended as platforms for deploying CUCM.?

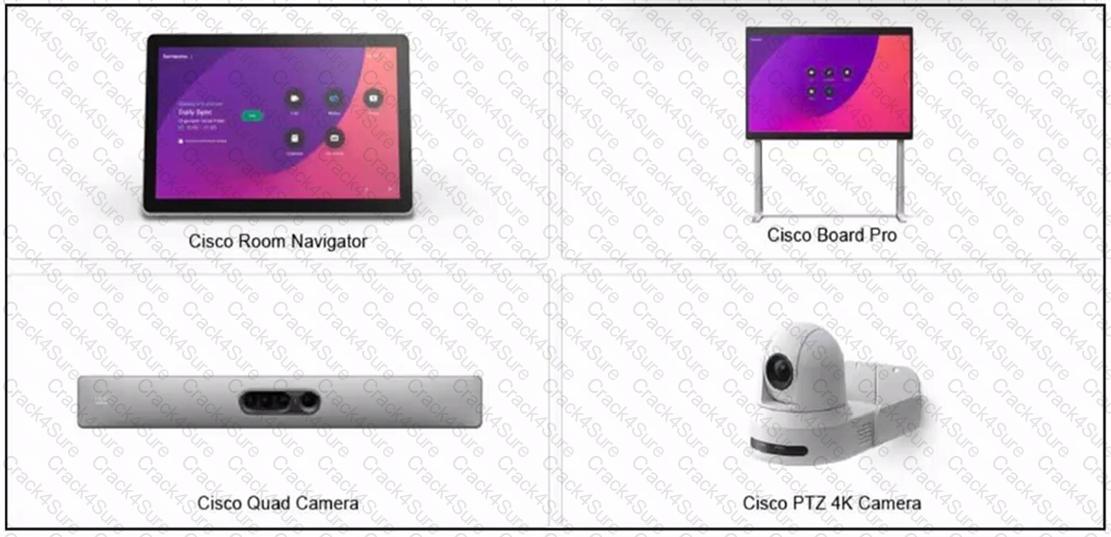

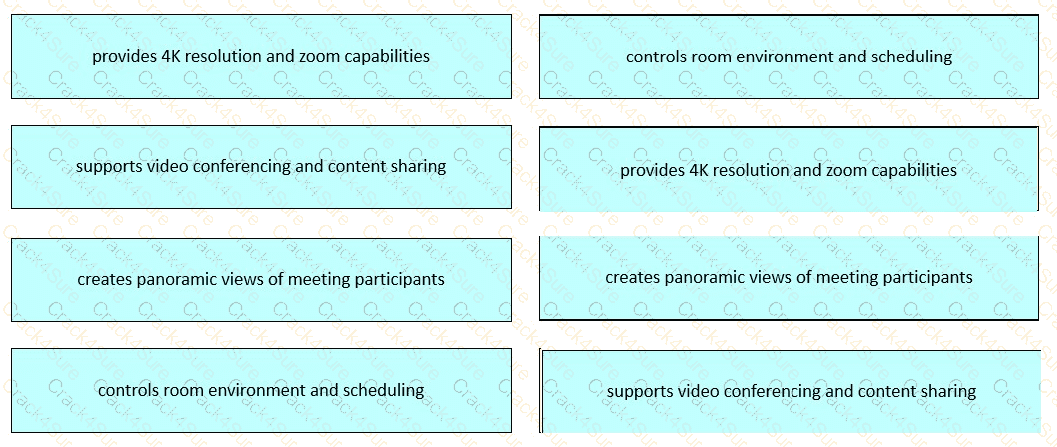

According to theCisco FLDTEC training and product documentation:

Cisco PTZ 4K Camera: Offers high-definition video capture with pan-tilt-zoom features and 4K resolution — ideal for large conference spaces.

Cisco Webex Board Pro: Interactive collaboration device that combines video conferencing, whiteboarding, and wireless content sharing.

Cisco Quad Camera: Features multiple cameras for wide-angle views, speaker tracking, and automatic framing — great for medium to large meeting rooms.

Cisco Room Navigator: A touchscreen device that provides intuitive control for room settings, scheduling, and call management.

Cisco NX-OSis the operating system specifically developed forCisco Nexus series switches, which are widely used in modern data centers. NX-OS is optimized forscalability, high availability, and virtualization features.

It differs from IOS and IOS XE (used in traditional routers and switches) and IOS XR (used in carrier-grade platforms). NX-OS includes advanced features such as Virtual Port Channels (vPC), FabricPath, and integrated Layer 2/3 capabilities tailored for data center networks.

Apre-service checklistis a procedural step followed before replacing an endpoint. Its primary purpose is toconfirm that all resources, tools,documentation, and personnel are in placeto execute the replacement efficiently and without delays.

It helps avoid service interruptions and ensures a smooth replacement by ensuring that every necessary component and action is accounted for ahead of time.

A speed mismatch occurs when two connected Ethernet devices are configured to operate at different speeds. In scenario A, one device is manually set to 1 Gbps, while the other is set to 100 Mbps. Since both ends are hard-coded to different speeds, they cannot successfully negotiate a common speed, leading to a mismatch and resulting in a failed or unstable link.?

In contrast, scenario B, where both ends are manually set to the same speed, ensures compatibility and stable communication. Scenario C can lead to a duplex mismatch rather than a speed mismatch; the auto-negotiating end may default to half-duplex if it cannot determine the duplex setting of the manually configured end. Scenario D is less common; if auto-negotiation fails, devices may revert to their lowest common speed, but this typically results in reduced performance rather than a complete mismatch.?

These components are part of theCisco Collaboration System Architecture (CSA), and are reviewed in theFLDTEC trainingunderCisco Equipment and Collaboration Basics:

Call Control: Managed by services likeCisco Unified Communications Manager (CUCM), it routes and connects calls.

Collaboration Applications: Provide added value services such asvoicemail (Unity),messaging (IM&P), presence, and more.

Edge Devices: IncludeCisco ExpresswayandCUBE(Cisco Unified Border Element), offering secure access and traversal for mobile/remote endpoints.

Conferencing: Powered by platforms likeCisco Meeting ServerorWebex, enabling multi-party conferencing.

Endpoints: Include bothhardware (IP phones, video units)andsoftware (Webex app)that users interact with directly.

Bundle modesimplifies the installation and operation of Cisco IOS XE Software by using a monolithic image file. In thismode, the switch runs directly from the bundled image, eliminating the need to manage individual software packages. This approach is straightforward and reduces complexity, making it suitable for environments where simplicity is a priority.?

However, it's important to note that:?

Bundle mode may result in slower boot times compared to Install mode.

It does not support the independent installation or upgrade of individual packages.

Thepackages.conffile is not utilized in Bundle mode; it's specific toInstall mode.?
