220-1101 Practice Exam Questions with Answers CompTIA A+ Certification Exam: Core 1 Certification

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

https://en.wikipedia.org/wiki/Power-on_self-test#POST_beep_codes_on_CompTIA_A.2B_certification_exam

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

To increase the performance of a laptop working with a large database stored on drive C, a systems administrator should increase the RAM and migrate to an SSD. Increasing the RAM will help the laptop to better handle the large database, while migrating to an SSD will improve the speed at which the laptop can access the database. Configuring RAID 1, installing a hybrid drive, upgrading to a 1GB NIC, and upgrading the power supply will not directly improve the laptop's performance when working with a large database. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.1

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

The symptoms suggest that the charging cable falls out of the phone, indicating that the charge port may contain foreign objects such as lint, which can interfere with the connection between the charging cable and the phone.

The technician should run diagnostics on the faulty hard drive using a boot disk first when a computer that contains critical data has not been backed up and will not boot past a S.M.A.R.T. error that indicates imminent hard disk failure. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 376

Metered utilization of cloud resources refers to payments made only for resources that are used. Cloud providers offer a pay-as-you-go model where customers are charged based on their usage of resources. Customers can easily scale up or down their usage of resources as per their needs and only pay for what they use. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 642)

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

Upgrading to a solid-state drive (SSD) provides more storage space and faster read/write speeds, which resolves both the “insufficient storage” error and slow application loads.

Option B (USB): Not intended for permanent application storage or performance improvements.

Option C (HDD): Could solve storage capacity but would not improve speed.

Option D (RAM): Affects multitasking and memory-intensive tasks, not storage capacity directly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

If you want to install Windows 11 on a virtual machine using Hyper-V, you will have to use a “Generation 2” VM and enable the “trusted platform module” (TPM) and Secure Boot options. Otherwise, the OS won’t install.

Starting with Windows 11, Microsoft is changing the system requirement and making TPM 2.0 and Secure Boot a prerequisite to perform an in-place upgrade or clean install the new version on any device. This is in addition to the new 4GB of RAM and at least 64GB of storage.

quoted from here:

https://pureinfotech.com/enable-tpm-secure-boot-hyperv-install-windows-11/

Furthermore, Multithreading is not a requirement for hyper-v hosting.

To create virtual machines on a workstation, the technician needs to enable Trusted Platform Module (TPM) in the system BIOS. TPM is a hardware-based security feature that helps protect the system from unauthorized access and tampering. It is required for many virtualization technologies, including Hyper-V, VirtualBox, and VMware. References: CompTIA A+ Certification Exam Objectives - 220-1002: 2.7 Explain the basics of virtualization.

A network tap is used to intercept the signals passing over a cable and send them to a packet or protocol analyzer. Taps are either powered or unpowered:

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References: https://www.pacificoffice.com/how-to-fix-lines-on-copier/

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

By requiring a code or badge before releasing a print job, it ensures that only authorized personnel can collect the printouts. This method is effective in preventing waste and in keeping sensitive documents confidential. Sending reminders, enabling duplex printing, and billing departments are useful strategies for reducing paper utilization but may not necessarily prevent waste caused by uncollected printouts.

Requiring a code or badge before releasing a print job is the best solution to prevent the waste of printed materials, as it ensures that only the user who initiated the print job is able to pick up the printed materials. This can be achieved by implementing print release software or requiring users to enter a PIN code at the printer. References: CompTIA A+ Certification Exam Objectives 1001, 2.10

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

https://www.vingle.net/posts/4651722

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

Rapid elasticity is only suitable for a domain whose resource requirements suddenly up and down for a specific time interval. Referring to the question the online retailer wants to migrate to public cloud services during peak season, then wants it to be removed "automatically" when the peak is over.

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

When a printer is offline for one user but works for others, the issue often lies in the user's print queue settings, such as a paused queue or failed print jobs. Checking and clearing the print queue can resolve the problem.

Why Not B (Check the printer's IP address): If other users can print, the printer’s IP address is not the issue.

Why Not C (Check the user's network settings): Network issues are unlikely if the user can access other resources on the network.

Why Not D (Check the printer's firmware version): Firmware issues would affect all users, not just one.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.4, printer troubleshooting?.

This is a safe and sensible option if you value your data more than anything else. You don’t want to risk losing your data by trying other methods that may worsen the situation. You can use a software tool or a service provider to recover your data before attempting any repairs.

The cloud model that BEST addresses the company’s need is the Community cloud model. A community cloud is a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements. The concept of a community cloud is akin to a community garden, where different individuals grow produce on a single piece of shared land1.

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

Based on the given information, it seems that the projector is experiencing issues with overheating or a faulty power supply. The fact that it shuts off and cannot be turned back on until it has cooled down for 15 minutes suggests that the projector is overheating or there is a problem with the power supply. Therefore, the next logical step would be to clean the filter to ensure proper ventilation and airflow, as a dirty filter can cause overheating.

Domain Name System (DNS) is an Internet service that translates domain names (e.g., its.umich.edu) into IP addresses. Dynamic Host Configuration Protocol (DHCP) is a protocol for automatically assigning IP addresses and other configurations to devices when they connect to a network.

Switches only send data to the specific computer, while hubs send data to all computers inside the network. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 323

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

eSIM is cost-effective, avoids physical SIM distribution, and provides flexibility in professional environments.

Option Evaluation:

A. Forward a company number to the employee's mobile phone: Temporary and lacks professionalism. Incorrect.

B. Offer a company SIM card: Requires physical handling and less secure than eSIM. Incorrect.

C. Give a company mobile phone: Expensive and not necessarily required. Incorrect.

D. Issue a company eSIM to the employee: Ensures cost-effectiveness and secure deployment. Correct.

ference: Domain 1.7 highlights the importance of device provisioning in corporate environments??.

Two-factor authentication (2FA) is a security process that requires users to provide two different authentication factors to verify their identity. This means that in addition to providing something they know (such as a password or PIN), they must also provide something they have (such as a smart card or token) or something they are (such as a fingerprint or retinal scan).

In this case, the correct answer would be C. Password/thumbprint. This option meets the requirement for two-factor authentication because it combines two different types of authentication factors: something the user knows (the password) and something the user is (the thumbprint). The other options do not meet the requirement for 2FA because they either use only one type of authentication factor (A and D) or use two instances of the same type of factor (B).

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

When print jobs remain stuck in the printer queue despite successful network communication (indicated by successful ping replies) and no issues with paper supply or toner levels, a common reason can be that the first job in the queue requires manual intervention, such as paper to be fed into a manual feed tray. Printers often pause the entire print queue if the first job requires a specific type of paper or manual insertion that hasn't been addressed, preventing subsequent jobs from processing.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

https://www.lifewire.com/fix-it-when-webcam-is-not-working-4588517

If a laptop's external webcam software is running, but it shows no image or video, the first step the technician should perform is to reseat the webcam. Reseating the webcam involves disconnecting it from the motherboard and then reconnecting it. If this doesn't work, the technician should then check the webcam drivers or software. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 502)

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

A web server is a software application that serves HTTP (Hypertext Transfer Protocol) requests by delivering web pages and other files to users' web browsers. The main function of a web server is to host home pages and business portals, making them accessible to users via the internet. References: CompTIA A+ Certification Exam Objectives 220-1001 - Networking - 1.6

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Loud fans and immediate shutdown under stress are indicators of overheating.

Option Evaluation:

A. Install a liquid cooling unit: Premature without diagnosing the issue. Incorrect.

B. Monitor the core CPU and system temperatures: Confirms overheating and pinpoints thermal issues. Correct.

C. Reapply thermal paste to the processor heat sink: This may help but needs confirmation of the issue first. Incorrect.

D. Clean and test all fans: Ensures airflow but does not isolate the root cause immediately. Incorrect.

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

A Storage Area Network (SAN) is primarily used for data archiving and large-scale storage. SANs provide high-speed, block-level storage for enterprise environments.

Why Not A (PAN): Personal Area Networks are for connecting personal devices like phones and smartwatches.

Why Not B (MAN): Metropolitan Area Networks are for city-wide data communication, not storage.

Why Not D (LAN): Local Area Networks are for general connectivity, not dedicated storage.

Why Not WAN: Wide Area Networks are for connecting geographically dispersed networks, not storage.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network types and purposes?.

The technician failed to properly diagnose the issue by not establishing a theory of probable cause. Instead of investigating why the network drives were accessible wirelessly but not when docked, the technician assumed a faulty network card and ordered a new laptop. Proper troubleshooting involves developing a theory of what might be causing the problem, based on the symptoms and available information, and then testing that theory. In this case, the issue could have been related to docking station settings, network configurations, or hardware issues specific to the docking connection.

A digitizer is a component that handles touch-screen operation on a mobile device. It is a layer of material that detects and converts the touch of a finger or a stylus into an electrical signal that can be processed by the device12. A digitizer works with a display screen to create a touch-screen interface that allows a user to interact with the device by touching pictures or words on the screen.

A failing power supply can cause random system crashes and degraded performance as it struggles to maintain a consistent voltage, especially as the system demands increase over time. The CMOS battery only affects system time and settings, while the video card typically causes display issues rather than system-wide crashes. System memory issues often result in specific errors or performance issues rather than gradual slowdowns. CompTIA A+ Core 1 objectives highlight troubleshooting power supply issues as part of hardware and system maintenance.

A smartphone that takes more than a day to fully charge may be due to a charger that is not powerful enough. The technician should verify that the charger is rated for the smartphone’s battery capacity and that it is providing the correct voltage and amperage123.

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

Older motherboards use 20-pin connectors, while newer power supplies use 24-pin connectors. An adapter resolves the compatibility issue cost-effectively.

Why Not A (Adjust the input voltage): Input voltage adjustment is unrelated to connector compatibility.

Why Not B (Install a modular power supply): While modular supplies are versatile, this doesn’t address the connector issue directly.

Why Not C (Rebuild the failed power supply): Rebuilding is costly and complex compared to using an adapter.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, power supply compatibility?.

Using the duplex setting allows the printer to print on both sides of the paper, effectively reducing paper usage by half for multipage documents. This option is ideal for conserving resources in a high-volume environment. According to the CompTIA A+ Core 1 objectives, duplexing is a standard function in multifunction devices, helping reduce paper usage and optimize printing efficiency. This method not only lowers costs but is also environmentally beneficial. Other options like "Orientation" only affect page layout, "Tray settings" adjust paper source without conserving resources, and "Quality" affects print resolution but not resource consumption.

If the system reports “Bootable device not found”, and the BIOS is configured correctly, the next step is to run diagnostics on the hard drive to check for physical or logical failure. It could be a sign of a failing drive or corrupt boot sector.

Option A: Reformatting the drive would erase data — not a diagnostic step.

Option C: RAM does not affect whether a drive is bootable.

Option D: Replacing the drive should only be done after diagnostics confirm failure.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

Input voltage must be validated to ensure desktop PCs can operate in different regions with varying power standards (e.g., 110V in North America vs. 220V in Europe). Failure to verify input voltage compatibility can lead to hardware damage or operational issues.

Option B (BIOS language support): Incorrect. While language support may be helpful, it is not critical for hardware deployment across regions.

Option C (Supply chain security): Incorrect. This refers to ensuring secure sourcing of components but does not directly impact deployment.

Option D (Power efficiency): Incorrect. Power efficiency may be important for energy savings but is not relevant to regional compatibility.

A loopback plug allows a technician to verify that the cable functions as expected by looping the signal back for testing. While a punchdown tool installs cables in a panel, it does not test functionality, and Wi-Fi analyzers and toner probes serve other network diagnostics. This is in line with CompTIA A+ Core 1 objectives for validating cable installation and connectivity.

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

Reasoning: A docking station is designed to provide a central connection point for multiple peripherals, such as monitors, keyboards, mice, and network cables. It allows users to quickly connect or disconnect all devices by simply docking or undocking their laptop, improving mobility and reducing wear and tear on individual ports.

Why the Other Options Are Incorrect:

A. Serial interfaces:

Serial interfaces are outdated and rarely used in modern laptops or peripherals. They are not practical for facilitating the connection of multiple devices.

C. Network switch:

A network switch is used to connect multiple devices to a network, but it does not simplify the connection of peripherals to a laptop.

D. USB hub:

A USB hub can extend the number of available USB ports but lacks the full functionality of a docking station, such as video output or Ethernet connectivity.

Practical Example:

A user with a laptop, external monitors, keyboard, and mouse can use a docking station to connect all devices with a single action, instead of plugging in each device manually.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Explain device interfaces, connection types, and usage of docking stations.

VDI (Virtual Desktop Infrastructure) allows users to access a desktop environment that is running on a server in the data center rather than on the local machine. This is particularly useful for employees who need to work remotely on various devices (A), as it provides a consistent and secure environment regardless of the endpoint device. For a bank with security concerns regarding employee activity (D), VDI offers a centralized management of desktops, enhancing security by keeping sensitive data and applications within the data center and not on the local devices, thus reducing the risk of data breaches.

A digitizer is the component in a two-in-one laptop that enables finger-based or stylus input on the screen. It is responsible for converting touch inputs into digital signals that the device can interpret.

Why Digitizer?

A digitizer is integrated into the screen assembly and works to detect and process inputs such as taps, swipes, or pinches.

This is a standard feature in modern touchscreens, enabling functionality for both finger-based and stylus-based interactions.

Incorrect Options:

A. Fingerprint Scanner: Used for biometric authentication, not for touch input on screens.

C. Stylus: An accessory that interacts with the digitizer but does not provide the input functionality itself.

D. Inverter: Used in older displays to power backlights, especially in LCD screens with CCFL technology, and has no role in touch input.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 1.2 and 1.3: Covers mobile device components, including digitizers and input methods?.

The most likely cause is third-party or ill-fitting cases obstructing the contact between the stylus and the tablet charging mechanism. Some cases may not be designed with stylus charging in mind, particularly if users are purchasing their own accessories.

Option B: A software update might fix OS-related issues, but would not typically affect physical charging.

Option C: If some devices had defects, the issue would likely be consistent, not isolated to some users.

Option D: Firmware issues could be a factor but are less likely than physical obstructions when users are using different accessories.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

Virtual Desktop Infrastructure (VDI) hosts desktop environments on centralized servers. This allows rapid deployment and consistent configuration across multiple users, minimizing manual setup and easing IT management.

Option A: VDI still uses standard authentication methods.

Option B: Licensing can actually be more expensive due to virtualization software and backend servers.

Option D: VDI centralizes the desktop environment — viruses would affect the virtual session, not be "contained locally."

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

A degraded RAID 1 array usually means one of the drives has failed or is failing. The correct next step is to run diagnostics on each drive to identify the faulty one. RAID 1 uses mirroring, so one good drive should still contain all the data.

Option B: chkdsk checks file system integrity, not hardware drive health.

Option C: Rebuilding should only occur after identifying and replacing a faulty drive.

Option D: RAID 0 offers no redundancy and would destroy data in this context.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

A bulging tablet casing is a classic sign of a swollen lithium-ion battery, often caused by age, overheating, or overcharging. This is a dangerous condition, as swollen batteries can rupture or catch fire. It also explains why the tablet only works when plugged in — the battery is no longer holding a charge.

Option A: Power supply issues wouldn’t cause physical bulging.

Option B: A bad charge port wouldn’t cause screen damage or physical distortion.

Option D: A broken screen could cause display issues, but not the bulging chassis.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

D. Crimper:

A crimper is used to terminate an RJ45 cable properly by attaching the connector to the twisted-pair wires.

If the termination is not done correctly, the connection will be intermittent or fail entirely.

Incorrect Options:

A. Toner probe: Used to locate cables or trace their path, not for terminating RJ45 connectors.

B. Cable tester: Useful for testing connectivity but does not fix termination issues.

C. Punchdown: Used to connect wires to a patch panel or keystone jack, not for RJ45 connectors.

Key Takeaway: A crimper is the proper tool for fixing an improperly terminated RJ45 connection.

Badging is a form of authentication that requires employees to use a badge or ID card to release print jobs. This solution reduces unnecessary printing by ensuring only authorized users print.

Why Not A (Access control list): While ACLs manage permissions, they are not used for physical authentication at printers.

Why Not B (Audit logging): Audit logs track actions but do not restrict printer access.

Why Not D (Print server): A print server manages print jobs but doesn’t enforce authentication.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, authentication mechanisms?.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Multiple peripherals are non-functional, and the USB-C hub is a common point of failure.

Option Evaluation:

A. Verify the AC adapter voltage: Power issue could cause shutdowns, not device failure. Incorrect.

B. Repair the operating system: Not relevant since alternate devices are tested. Incorrect.

C. Replace the user's USB-C hub: Faulty hubs cause multiple peripheral failures. Correct.

D. Reinstall the drivers for affected devices: Driver issues wouldn’t affect all peripherals. Incorrect.

E. Make sure the printer is not drawing too much power: This is uncommon for peripherals via a hub. Incorrect.

Given the network information for the server “InternalToolCentral” with an IP address of “192.130.230.5” and a subnet mask of “255.255.255.0”, the gateway address should be within the same network range. However, the gateway address is listed as “192.130.230.1”, which is correct and within the same subnet. Therefore, the issue is not with the gateway settings.

The DNS servers are listed as “8.8.8.8” and “4.2.2.1”, which are public DNS servers and should be able to resolve domain names correctly if they are reachable.

The open ports listed include 25 (SMTP), 80 (HTTP), 110 (POP3), 443 (HTTPS), and 3306 (MySQL), which are standard ports for their respective services.

Considering the provided options and the network settings, the most likely explanation for users being unable to access resources on the file server is: A. Applicable ports have been closed during routine hardening. This could prevent users from connecting to the necessary services on the file server.

Reasoning: A cable tester capable of testing Power over Ethernet (PoE) functionality can verify whether the switchport is providing the required power to the phone. This tool measures both the presence of data and the voltage or wattage being provided through the Ethernet cable.

This is the most effective way to confirm that PoE is available on the port.

Why the Other Options Are Incorrect:

A. Network tap:

A network tap is primarily used to monitor network traffic, not to test for PoE availability. It cannot verify if power is being supplied through the Ethernet cable.

C. Loopback plug:

A loopback plug is used to test the functionality of a network port by creating a loop for transmitted and received signals. It does not measure or verify PoE availability.

D. Toner probe:

A toner probe is used for tracing and identifying network cables. It cannot test for PoE functionality.

Practical Example:

A PoE phone might not turn on due to a misconfigured or faulty switchport. Using a cable tester capable of measuring PoE would help the technician determine if the switchport is supplying sufficient power to the phone.

CompTIA A+ Exam Objective Alignment:

Objective 2.1: Identify common networking hardware and tools, including PoE-enabled devices and cable testers.

Paper jams and smudging in high-volume printers are often caused by dirty or worn rollers. Rollers are responsible for feeding the paper through the printer. Over time, they accumulate dust, toner residue, or wear out, resulting in misfeeds or jams. Cleaning or replacing them typically resolves this issue.

Option A (Factory reset): A full reset does not directly address mechanical issues like dirty rollers or smudging. It’s a last resort and more relevant to configuration or software-related issues.

Option C (Change toner cartridges): While toner quality can affect print quality, it won’t usually cause jams or widespread smudging unless the cartridge is leaking — which is less likely across multiple users.

Option D (Replace the fuser): A damaged fuser could cause smudging, but this is typically after extensive use and is not the first thing to check. Fuser issues also usually present more persistent, uniform smudges.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Identifying changes made to the system is the next step to troubleshoot why an application no longer launches, as recent changes often cause such issues.

Why Not A (Research the symptoms): Research is broader and should come after identifying changes.

Why Not C (Determine which steps need to be performed): This comes after identifying the issue.

Why Not D (Check the vendor's website): This is a later step if further guidance is needed.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology?.

Changing the connector setting on the monitor is a possible solution for a PC and its monitor that display the error message "No input signal detected". This error can be caused by an incorrect input selected on the monitor, so changing the connector setting to the correct input should resolve the issue. References: CompTIA A+ Certification Exam Objectives 1001, 1.10

Top of Form

Regenerate response

Bottom of Form

A spam gateway filters unsolicited emails at the server level, significantly reducing spam before it reaches user inboxes.

Why Not A (Load balancer): Load balancers distribute traffic but don’t filter spam.

Why Not C (Mail forwarding): Forwarding doesn’t filter spam.

Why Not D (Proxy servers): Proxies control web traffic, not email filtering.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.10, email security controls?.

High resource usage along with frequent pop-ups are strong signs of a malware infection. The next logical step is to update anti-malware definitions and run a full scan to detect and remove threats.

Option A: Network performance is likely not the root cause — local system behavior points to malware.

Option B: Drivers affect hardware functionality; they don’t resolve malware-related slowness.

Option D: DHCP issues usually cause IP conflicts or no network access, not CPU spikes or pop-ups.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.2: Given a scenario, detect, remove, and prevent malware using appropriate tools and methods.

B. PAN (Personal Area Network):

A PAN is a network established between devices in close proximity, such as between a smartphone and a Bluetooth headset.

Bluetooth technology is specifically designed for short-range communication, making it a type of PAN.

Incorrect Options:

A. MAN (Metropolitan Area Network): A MAN covers a city or metropolitan area and is not relevant to Bluetooth connections.

C. SAN (Storage Area Network): A SAN is used for large-scale data storage, unrelated to Bluetooth connections.

D. WAN (Wide Area Network): A WAN spans large geographical areas (e.g., the internet) and is not relevant to this scenario.

Key Takeaway: Bluetooth connections, such as those between a headset and a device, create a Personal Area Network (PAN).

SSH (Secure Shell) encrypts data communications for secure remote login and management of network devices, ensuring all console connections are encrypted.

Why Not B (LDAP): LDAP is used for directory services and does not encrypt by default.

Why Not C (FTPS): FTPS encrypts file transfers, not console communications.

Why Not D (SMTP): SMTP is used for email transmission, not for securing login sessions.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network security protocols?.

A Community Cloud is designed for use by several organizations with shared concerns (e.g., security, compliance, jurisdiction). It’s common in industries like healthcare or finance where multiple entities benefit from a common infrastructure with shared policies.

Option A (Public): Open to general public or large industry group — less secure.

Option B (Hybrid): Mix of public and private — does not imply industry collaboration.

Option D (Private): Dedicated to a single organization.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.1: Compare and contrast cloud computing concepts.

If performance is not a primary concern and the user requires large, cost-effective storage, a 2TB 5400rpm SATA HDD is ideal. It offers high capacity at a lower price point than SSDs and faster HDDs.

Option A: NVMe drives offer exceptional speed but are significantly more expensive per GB and not necessary when read/write speed is not a concern.

Option B: RAID 1 improves redundancy but cuts usable capacity in half and uses expensive SSDs.

Option D: SAS drives are fast and reliable but are enterprise-grade and expensive — overkill for desktop use.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.3: Given a scenario, install and configure storage devices.

Syslog is used to log system events and tasks performed by applications, providing a centralized record of activity.

Why Not A (Fileshare): Fileshares store files but are not designed for event logging.

Why Not C (Database): Databases can store logs but are not a logging mechanism themselves.

Why Not D (SAN): A SAN is a storage solution, not a logging tool.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, system monitoring and logging?.

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

If the filesystem check shows that all files are accessible and the filesystem is clean, but a hard drive error message persists, it's possible that the hard drive is experiencing S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) failure. This is a warning system built into hard drives to alert users of potential issues before they become critical. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

DKIM (DomainKeys Identified Mail) is an email authentication method that attaches a digital signature to outgoing emails to verify the email’s authenticity and detect email spoofing.

SPF (Sender Policy Framework): Specifies which mail servers are authorized to send emails for a domain but does not involve digital signatures.

DNS Pointer (PTR): Used for reverse DNS lookups, not email authentication.

MX Records: Specify mail servers for email delivery but do not authenticate emails.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.4, email security and authentication?.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

The most likely cause of the problem is that the printing trays are not configured to match the paper size of the print jobs. The technician should verify that the printing trays are correctly set for 8.5in x 14in (216mm x 356mm) paper and that the printer driver settings match the tray settings. This will ensure that the printer can feed and print the paper correctly without cutting off any part of the document.

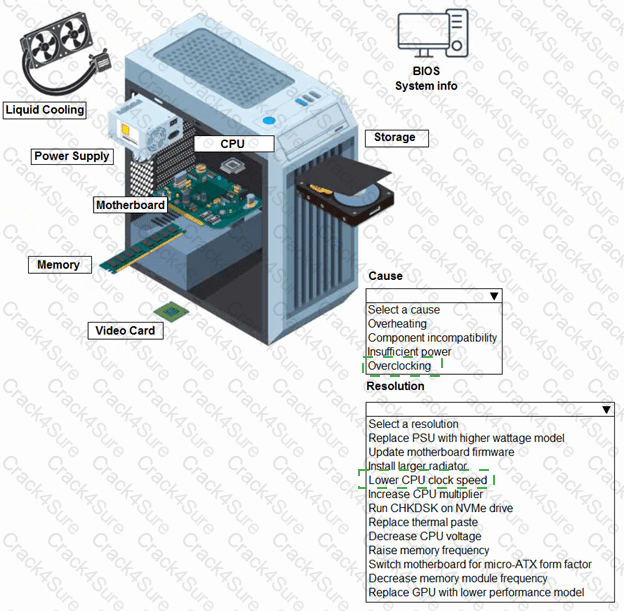

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

an inverter is a device that converts DC power from the laptop’s battery or AC adapter to AC power for the backlight of the LCD panel. If the inverter is defective, the backlight will not work and the LCD panel will appear blank or very dim. The user can still see a faint image if they shine a flashlight into the LCD because the LCD itself is still working.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

Cross-platform virtualization allows different operating systems, such as Linux and Windows, to run on the same hardware or software platform. This enables users to access applications and data from different operating systems without switching devices or rebooting.

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

DNS stands for Domain Name System and is a service that translates domain names (such as www.example.com) into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 81)

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

A hotspot is a wireless access point that provides internet access to devices that are connected to it. The technician can use a hotspot to check if the laptop's wireless NIC is functional by connecting the laptop to the hotspot and then trying to browse the internet. If the laptop is able to browse the internet, then the wireless NIC is functional.

Near-field communication (NFC) is a wireless technology that allows two devices to communicate with each other when they are in close proximity. NFC is not typically used to check if a wireless NIC is functional.

An Ethernet tap is a device that is used to monitor network traffic. An Ethernet tap is not typically used to check if a wireless NIC is functional.

A spectrum analyzer is a device that is used to measure the frequency spectrum of a signal. A spectrum analyzer is not typically used to check if a wireless NIC is functional.

Therefore, the correct answer is A. Hotspot.

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

RAID 0 is a configuration that stripes data across multiple disks without parity or redundancy. It provides the fastest speed and maximum storage capacity among the RAID types listed, but it also has no fault tolerance. RAID 1 mirrors data across two disks, providing redundancy but halving the storage capacity. RAID 5 stripes data across three or more disks with parity, providing fault tolerance but reducing the storage capacity by one disk. RAID 10 combines mirroring and striping across four or more disks, providing both speed and redundancy but reducing the storage capacity by half.

This is because a docking station can connect multiple monitors to a laptop without using USB ports, which are disabled in this scenario. A splitter cable would only allow two monitors to be connected, not three. A discrete graphics card would require opening the laptop and installing hardware, which may not be feasible or allowed in a high-security environment. An HDMI switch would only allow one monitor to be active at a time, not all three simultaneously.

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

The most appropriate way for the technician to receive the latest official drivers for a USB Wi-Fi card is to download them from the vendor’s website. This ensures that the drivers are compatible, updated, and secure. Allowing the OS to install the drivers automatically may not provide the latest or best drivers for the device. Utilizing a third-party, non-OEM driver could cause compatibility or security issues. Running the autoinstall CD could install outdated or unnecessary software along with the drivers

By documenting the findings, action, and outcomes of issues, the technicians can create a knowledge base that can be used to resolve similar issues in the future more quickly and efficiently. The documentation can also help identify patterns or trends that can lead to preventive measures or root cause analysis. Documenting the issues can also improve communication and collaboration among technicians and users, as well as provide evidence of service quality and performance. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 4)

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

To configure a printer for network communications, the technician must configure its network settings, such as gateway, subnet mask, and IP address. The gateway is the IP address of the router or device that connects the printer to other networks or the internet. The subnet mask is a value that defines which part of the IP address identifies the network and which part identifies the host or device on that network. The IP address is a unique identifier that allows the printer to communicate with other devices.

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

The flashing green and orange LEDs on the NIC indicate connection issues. The technician should first check for loose connections, pinched bends, and physical damage, which are the most common causes of connection problems. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 14

The symptoms—flashing green and orange LEDs on the workstation’s NIC—suggest a connectivity issue. In networking troubleshooting, flashing LEDs typically indicate activity (green for link/activity, orange for speed or errors, depending on the NIC), but the combination and context imply an unstable or degraded connection. The cable length of 275ft (84m) is within the maximum distance for Cat 5 UTP (100 meters or 328 feet), so length alone isn’t the immediate problem. However, physical issues like loose connections, pinched bends, or damage could degrade signal quality, causing intermittent or erroneous data transmission.

The CompTIA A+ Core 1 Study Guide emphasizes a systematic troubleshooting approach, starting with the simplest and most common causes before escalating to more complex solutions. Checking the cable’s physical integrity—ensuring proper termination, no sharp bends, and no cuts or interference—is a fundamental first step in network troubleshooting. This aligns with Objective 5.5 ("Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power") and Objective 5.2 ("Given a scenario, troubleshoot and diagnose problems with storage drives and RAID arrays"), which extend to networking in practice.

Option A (Check for loose connections, pinched bends, and physical damage): This is the least invasive, most immediate step to rule out common cabling issues, as recommended by CompTIA’s methodology.

Option B (Install a powered hub halfway): Adding a hub or repeater could extend signal strength, but the length is within spec, and this assumes a distance issue without evidence. It’s not the first step.

Option C (Replace with Cat 5 STP): Shielded twisted pair reduces interference, but there’s no indication of EMI yet, and replacing the cable is premature without basic checks.

Option D (Upgrade to multimode fiber): Fiber eliminates distance and interference issues but is a costly, last-resort solution, not a first step.

The study guide prioritizes physical inspection and basic diagnostics before hardware replacements or upgrades, making Option A the correct initial action.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.6, Networking Hardware:

"Twisted Pair Cabling: The maximum length of a twisted pair cable run (such as Cat 5, Cat 5e, or Cat 6) is 100 meters (328 feet). This includes both patch cables and the main run. Beyond this length, signal degradation (attenuation) becomes significant, and a repeater or switch is needed to boost the signal."

Implication: At 275ft (84m), the cable is within spec, so length isn’t the primary concern.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"No connectivity or intermittent connectivity—Check the following: Ensure that all cables are securely connected at both ends (NIC and switch or wall jack). Inspect the cable for damage, such as cuts, crimps, or excessive bending, which can disrupt signal integrity… Verify that the cable length does not exceed the maximum specification for the cable type (e.g., 100 meters for twisted pair)."

"LED indicators—Most NICs and switches have LED indicators to show link status and activity. A solid green light typically indicates a good connection, while flashing may indicate activity. Amber or orange lights can indicate speed (e.g., 10/100 Mbps vs. 1 Gbps) or errors, depending on the device."

Section 5.4, Troubleshooting Methodology:

"Identify the problem… Gather information… Establish a theory of probable cause… Test the theory to determine cause (e.g., check physical connections before replacing components)."

These excerpts highlight that checking physical connections and cable condition is the first step when LEDs indicate potential issues, especially before assuming hardware failure or specification limits are exceeded.

Additional Reasoning:

LED Behavior: Flashing green and orange LEDs vary by NIC manufacturer, but per the study guide, green flashing often means activity, and orange flashing could signal errors or a speed mismatch. This suggests a link is established but unstable, pointing to cabling issues.

Cable Length: At 275ft, the run is well under 328ft, ruling out immediate need for a hub or fiber upgrade.

Common Issues: Loose RJ45 connectors, pinched cables (exceeding bend radius), or physical damage are frequent causes of intermittent connectivity, easily checked first.

Alternatives: Installing a hub (B) or replacing the cable (C, D) assumes a specific failure without evidence, violating CompTIA’s step-by-step approach.

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

If a technician is implementing a SOHO wireless solution with three access points and wants to avoid high latency, the technician should configure all devices with different channels. By configuring all devices with different channels, the technician can ensure that the wireless signals from each access point do not interfere with each other, which can cause high latency.

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

VDI is a technology that allows a company to provide desktop environments to third-party developers while still maintaining control over the corporate network. VDI creates virtual desktops on a remote server, and each user gets their own desktop environment that is isolated from the other users. This allows the company to maintain control over the corporate network, as the virtual desktops are not directly connected to the corporate network.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-a-fuser

The primary security concern with virtual machine escape is compromising the hypervisor, which can allow attackers to gain access to other virtual machines or the host system. Virtual machine escape refers to an attack that allows a guest virtual machine to break out of its isolated environment and access other parts of the system.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

https://www.cablewholesale.com/support/technical_articles/whats_your_port.php#:~:text=Lightning%20Connector%3A%20Apple%20introduced%20this,pin%20connector%20and%20is%20reversible.

802.11ax, also known as Wi-Fi 6, has the longest range and the highest wireless throughput of all the wireless technologies listed. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 3

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

IaaS is a cloud computing model where a third-party provider hosts infrastructure components such as servers, storage, and networking on behalf of customers. This allows the startup to immediately expand its data center without the need for additional personnel or space to manage everything internally. Additionally, IaaS allows remote users to easily access the required computational and storage resources from multiple small offices.

Infrastructure as a Service (laaS) can provide the startup with the necessary computational and storage solutions without the need for internal management. laaS allows organizations to rent computing resources from a third-party provider instead of owning and maintaining them in-house.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

Reducing the frequency of location checks using cellular location services will consume less battery power while still allowing the user to view weather forecasts while travelling. The other options may not solve the battery drain issue while using the weather application.

Configuring less frequent location checks using cellular location services is the best option for the salesperson to view weather forecasts while traveling without draining the battery too quickly. References: https://www.makeuseof.com/tag/5-ways-improve-battery-life-android-phone/

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

NFC (Near Field Communication) is a wireless communication technology that is commonly used for contactless payments, mobile payments, and other mobile transactions. It allows two devices to communicate with each other when they are placed in close proximity.

Contactless payments commonly use NFC (Near Field Communication). NFC is a wireless communication technology that allows two devices to communicate with each other when they are in close proximity. Contactless payments use NFC to enable customers to make payments by simply tapping their contactless card or mobile device on a payment terminal.

Application virtualization allows legacy software to run in a virtualized environment while the operating system remains current. It isolates the application from the OS, ensuring compatibility without downgrading the OS.

Why Not A (Shared resources): This relates to resource sharing, not application compatibility.

Why Not B (System sandbox): Sandboxes isolate applications for security testing, not compatibility.

Why Not C (Test development): Test environments are used for development, not running legacy applications.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.2, virtualization concepts?.

TPM stands for Trusted Platform Module, and it is a special chip installed on a computer’s motherboard that stores encryption keys, passwords, and digital certificates. It can also securely store a user’s PIN, allowing them to access the laptop without having to enter the PIN every time they log on. TPM is a secure way to store and protect sensitive data, making it ideal for use in laptops that need to securely store a PIN.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

A Storage Area Network (SAN) is a dedicated, high-speed network that connects servers to data storage devices. SANs are used in server rooms to provide high-speed storage access to virtual servers.

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

A docking station is a hardware accessory that allows laptops to connect to multiple peripherals and devices with a single connection. A docking station with DisplayPort would provide the necessary connectivity for the dual monitors, and it can also support the required peripherals such as the keyboard, mouse, and speakers. In addition, it will provide a wired network connectivity for faster and more reliable network access.

The company should buy Coaxial cables to be used with F-type connectors.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

Punchdown tools are used to make connections between wires in a 66/110 block at the demarcation point. The tool is used to insert the wire into the appropriate holes in the block, and it can be used to add additional lines to the demarcation point. The other options are not the correct tools for adding lines to the demarcation point. A toner is used to identify cable pairs, a network tap is used to monitor network traffic, and a crimper is used to terminate cables.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

A network tap (Test Access Point) is a device used for monitoring network traffic. It allows the technician to passively observe the traffic between two network nodes in real-time without introducing latency or affecting the network's performance. By using a network tap, the technician can analyze the data packets flowing through the network to identify if packet loss is occurring, which could be contributing to the slow network traffic in the branch office.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

Enabling secure boot will verify the digital signature of the bootloader and operating system, ensuring that the system only boots from trusted and authorised sources. This can prevent booting from an unauthorised live CD or other external media.

The best way to prevent booting from a live Linux CD on a computer in a shared space on campus is to enable secure boot. Secure boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs.

Secure Boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs. Secure Boot is an important security feature designed to prevent malicious software from loading when your PC starts up (boots)1.

Booting from a live Linux CD is a process that allows you to run a Linux operating system from a CD or DVD without installing it on your hard drive. This can be useful for testing or troubleshooting purposes. To boot from a live Linux CD, you need to insert the CD or DVD into your computer’s CD/DVD drive and restart your computer. Most systems are set up to automatically boot from the CD/DVD drive, but if your system is not set up this way, you may need to change a system setting to boot from a Linux CD/DVD23.

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

The correct answer is D. 5,400rpm HDD.

A 5,400rpm HDD (Hard Disk Drive) is a type of storage device that uses spinning magnetic disks to store data. A 5,400rpm HDD is the least expensive per gigabyte among the options given, as it has a lower rotational speed and performance than other types of HDDs or SSDs (Solid State Drives). A 5,400rpm HDD is suitable for archiving a large number of photos that are not accessed frequently, as it can offer high capacity and reliability at a low cost.

the average cost per gigabyte of a 5,400rpm HDD is around $0.02 to $0.0312, while the average cost per gigabyte of the other options are:

NVMe SSD: $0.10 to $0.1534

SCSI RAID: $0.20 to $0.305

15,000rpm SAS: $0.30 to $0.40

Therefore, a 5,400rpm HDD is the cheapest option among the four.

The answer is C. Clean the air filter.

A flashing LED code on a projector usually indicates a problem with the projector’s hardware, such as the lamp, the fan, the temperature sensor, or the air filter. According to the web search results, some possible causes and solutions for this problem are:

Projector is too hot: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. Make sure the environmental temperature is not too hot12.

Projector has overheated and turned off: Leave it turned off to cool down for five minutes. Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter. If operating the projector at high altitude, turn on High Altitude Mode12.

Low air flow through the projector or air filter: Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects. Clean or replace the air filter12.

The first step to troubleshoot a dim laptop display is to check the settings of the laptop display, such as the brightness level, the power plan, and the adaptive brightness feature. These settings can affect the brightness of the screen and can be adjusted by the user or by Windows automatically. If the settings are not optimal for the user’s preference or environment, the screen may appear too dim even at full brightness. Therefore, the technician should check and modify these settings before trying other solutions.

The correct answer is B. Duplex.

Duplex printing is the process of printing on both sides of a sheet of paper automatically or manually. Duplex printing can save paper, reduce clutter, and create professional-looking documents. To print on both sides of the paper, the printer must support duplex printing or the user must manually reinsert the pages to print the second side.

Orientation is the direction in which the paper is printed, either portrait (vertical) or landscape (horizontal). Orientation does not affect the ability to print on both sides of the paper.

Quality is the resolution or sharpness of the printed image, measured in dots per inch (dpi). Quality does not affect the ability to print on both sides of the paper.

Print tray is the part of the printer that holds and feeds the paper into the printer. Print tray does not affect the ability to print on both sides of the paper.

To enable duplex printing on a Windows PC, follow these steps1:

Open the document for printing, then select File > Print.

In Settings, select Manually Print on Both Sides, then Print.

Follow the instructions on the screen to flip and reinsert the pages.

To enable duplex printing on a Mac, follow these steps2:

Open the document for printing, then select File > Print.

In Layout, select Two-Sided, then Long-Edge binding or Short-Edge binding.

Click Print.

The internal antennas are the components that allow the laptop to receive and transmit wireless signals. If the internal antennas are not connected properly, the laptop may have a weak or no Wi-Fi signal. The technician should verify that the internal antennas are connected to the wireless card and routed correctly inside the laptop case. The internal antennas may have been disconnected or damaged during the screen replacement. The device having the latest OS updates, the wireless device drivers being the latest version, airplane mode being disabled, and the battery being charging are not related to the issue, as they do not affect the physical connection of the internal antennas. References: https://www.comptia.org/blog/what-is-a-laptop-antenna

A crimper is a tool that is used to attach connectors to network cables, such as RJ-45 or RJ-11. A technician might need a crimper to create a longer cable for the router access point or to replace a damaged connector.

A Wi-Fi analyzer is a software or hardware tool that can scan and measure the wireless signal strength, interference, channel usage, and security of a Wi-Fi network. A technician might need a Wi-Fi analyzer to find the optimal location and configuration for the router access point to improve the signal coverage for the SOHO client.

Relocating a router access point (AP) farther from the modem to optimize signal coverage involves two key aspects: physically extending the network connection (likely via Ethernet cabling) and ensuring the wireless signal is optimally placed. The CompTIA A+ Core 1 Study Guide emphasizes tools for cabling and wireless network configuration in such scenarios, aligning with Objective 2.6 ("Given a scenario, install and configure basic wired/wireless networks") and Objective 5.4 ("Given a scenario, troubleshoot wired and wireless network problems").

B. Crimper: A crimper is essential for creating or modifying Ethernet cables, such as attaching RJ45 connectors to twisted pair cabling (e.g., Cat 5e or Cat 6) to extend the connection from the modem to the new AP location. Since the AP is moving farther away, a longer Ethernet cable may be needed, and the technician might need to terminate a new cable or repair an existing one. This is a common task in SOHO network setups.

E. Wi-Fi analyzer: After relocating the AP, a Wi-Fi analyzer is used to assess signal strength, identify interference, and optimize placement for maximum coverage. This tool ensures the relocation achieves the goal of improving wireless performance, a critical step in the process.

Evaluation of Other Options:

A. Punchdown tool: Used to terminate wires into a patch panel or keystone jack, not typically for connecting a router AP directly to a modem via Ethernet. It’s less likely unless the relocation involves structured wiring termination, which isn’t implied here.

C. Clamp-style wire stripper: Useful for stripping insulation from wires during cable preparation, but it’s a secondary tool to a crimper, which both strips and attaches connectors. The crimper is more directly tied to completing the cable.

D. Network tap: A diagnostic tool for monitoring network traffic, not relevant to relocating or optimizing an AP’s signal coverage.

F. Loopback plug: Used to test network ports for functionality, not for cabling or wireless optimization in this scenario.

The combination of crimper (for physical connection) and Wi-Fi analyzer (for signal optimization) directly supports the relocation and coverage goals, making them the most likely tools.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.2, Tools for Networking:

"Crimper: A crimper is used to attach connectors (such as RJ45) to the ends of twisted pair cabling. It presses the metal contacts in the connector into the wires to make a solid electrical connection. Many crimpers also include a stripper function to remove insulation from the cable."

Implication: The crimper is key for preparing Ethernet cables to extend the AP’s connection.

Section 2.6, Wireless Networking:

"Wi-Fi analyzer: A Wi-Fi analyzer is a software tool or handheld device that scans the wireless spectrum to identify signal strength, channel usage, and interference. It’s invaluable when setting up or troubleshooting wireless networks to ensure optimal access point placement and channel selection."

Implication: Essential for verifying and optimizing signal coverage after relocation.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"Poor wireless signal—Use a Wi-Fi analyzer to check signal strength and interference… Relocate the access point to a more central location or away from obstructions… Ensure the wired connection to the access point is secure and within cable length specifications."

These excerpts confirm the crimper’s role in cabling and the Wi-Fi analyzer’s role in optimizing wireless performance, aligning with the task’s requirements.

Additional Reasoning:

Physical Relocation: Moving the AP farther from the modem likely requires extending the Ethernet cable connecting them. A crimper is the primary tool for creating a custom-length cable with RJ45 connectors, a common SOHO task.

Signal Optimization: The goal is to "optimize signal coverage," which involves more than just moving the AP—it requires verifying the new location improves Wi-Fi performance. A Wi-Fi analyzer provides data on signal strength and channel conflicts, ensuring the relocation succeeds.

SOHO Context: In a small office/home office, technicians often use basic tools like crimpers for cabling and software/apps (Wi-Fi analyzers) for wireless setup, rather than specialized tools like punchdown tools unless structured wiring is involved.

The most likely explanation for the distorted image on the projector is that the projector’s aspect ratio is set incorrectly. The aspect ratio is the ratio of the width to the height of the image, and it affects how the image is displayed on the screen. If the aspect ratio of the projector does not match the aspect ratio of the laptop, the image may appear stretched, squashed, cropped, or letterboxed.

To fix the distorted image, the technician should follow these steps:

Check the aspect ratio of the laptop and the projector. The aspect ratio of the laptop can be found in the display settings of the operating system, such as Windows or Mac OS. The aspect ratio of the projector can be found in the user manual or the on-screen menu of the projector. Common aspect ratios are 4:3, 16:9, and 16:10.

Adjust the aspect ratio of the projector to match the aspect ratio of the laptop. The technician can use the remote control or the buttons on the projector to access the on-screen menu and select the appropriate aspect ratio option. Some projectors may have a dedicated aspect ratio button on the remote control or the projector itself.

Verify that the image is displayed correctly on the screen. The technician can use the zoom, focus, or keystone buttons on the projector or the remote control to fine-tune the image quality and alignment.

A virtual sandbox is an isolated environment that mimics the characteristics of a real system, but does not affect or interact with it1. A virtual sandbox can be used to run potentially unsafe or malicious code and observe its behavior without risking harm to the host machine or network2. This is useful for cybersecurity researchers who want to test and analyze malware samples, such as viruses, worms, ransomware, etc., and understand how they work and how to prevent or mitigate them3.

The administrator should use RAID 0 for a video-rendering workstation at minimal cost. RAID 0, also known as striping, is a RAID configuration that splits data evenly across two or more disks, without parity information, redundancy, or fault tolerance. RAID 0 has the following advantages and disadvantages:

High read/write performance: RAID 0 can increase the data transfer rate by using multiple disks in parallel. This can improve the speed and efficiency of video rendering, which involves processing large amounts of data. RAID 0 can also reduce the latency and seek time of the disks, as the data is distributed across multiple spindles.

Maximum drive storage utilization: RAID 0 can use the full capacity of the disks, without wasting any space for parity or mirroring. This can lower the cost and increase the storage space for the workstation. For example, if two 500 GB disks are used in RAID 0, the total capacity of the array will be 1000 GB.

No redundancy or fault tolerance: RAID 0 does not provide any protection against data loss or disk failure. If one disk fails, the entire array will fail and the data will be unrecoverable. Therefore, RAID 0 should only be used for non-critical data that is backed up elsewhere, or for temporary files that can be recreated.

The correct answer is C. Check the RAID drive status LEDs.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, or both1. RAID can be implemented using hardware or software, and there are different levels of RAID that use different methods of data distribution and redundancy1.

One of the common issues with RAID is disk failure, which means that one or more of the disks in the array stop working properly. Disk failure can affect the performance and availability of the network fileshares, depending on the RAID level and the number of failed disks2. For example, RAID 0, which uses striping to split data across multiple disks, has no redundancy and will lose all data if any disk fails. RAID 1, which uses mirroring to duplicate data on two disks, can tolerate one disk failure and still function. RAID 5, which uses striping with parity to distribute data and error correction information across three or more disks, can also tolerate one disk failure and still function1.

One of the ways to detect disk failure is to check the RAID drive status LEDs, which are lights that indicate the health and activity of each disk in the array. Different RAID controllers may have different LED patterns and colors, but generally, a green LED means that the disk is working normally, a red LED means that the disk has failed or is offline, an amber LED means that the disk is degraded or rebuilding, and a blinking LED means that the disk is active or busy34.

The first step that a technician should perform when troubleshooting network fileshare issues is to check the RAID drive status LEDs to see if any disk has failed or is degraded. This can help identify the cause of the problem and determine the appropriate solution. For example, if a disk has failed in a RAID 1 or RAID 5 array, the technician can replace the failed disk and rebuild the array to restore performance and redundancy. If a disk has failed in a RAID 0 array, the technician will need to restore the data from a backup2.

The other options are not the best steps to perform first. Defragmenting the files on the network share may improve performance by reducing fragmentation, but it will not solve the problem if there is a disk failure in the RAID array. Asking the users to perform a network speed test may help diagnose network issues, but it will not help identify disk issues in the RAID array. Starting the process of rebuilding the array may be necessary after replacing a failed disk, but it should not be done before checking the RAID drive status LEDs.

Virtualization is a technology that allows creating multiple virtual machines (VMs) on a single physical server. Each VM can run its own operating system and applications, and share the resources of the physical server, such as CPU, memory, disk, and network1. Virtualization can help improve server utilization and management in several ways, such as:

•Reducing the number of physical servers needed to run the same workload, which can lower the costs of hardware, power, cooling, and maintenance1.

•Increasing the flexibility and scalability of the server infrastructure, as VMs can be created, deleted, moved, or resized on demand without affecting the other VMs or the physical server1.

•Enhancing the availability and reliability of the server applications, as VMs can be backed up, restored, or migrated to another physical server in case of failure or maintenance1.

•Improving the security and isolation of the server data, as VMs can be configured with different levels of access and protection, and separated from each other and the physical server1.

Upgrading to an SSD (Solid State Drive) is the best way to meet the user’s requirements because it will improve the performance and storage capacity of the laptop. SSDs are faster than HDDs (Hard Disk Drives) because they have no moving parts and can access data more quickly. SSDs also have lower power consumption, lower heat generation, and higher reliability than HDDs. Therefore, upgrading to an SSD will make the laptop more responsive, boot faster, and handle large files better.

According to some web sources, SSDs are the best hard drives for video editing because they can streamline the workflow and store masses of footage in one easy-to-access place1. SSDs are also one of the most common PC upgrades that can make a dramatic difference, especially for aging systems2. Additionally, Adobe recommends using SSDs for Premiere Pro and After Effects because they can handle large media files and cache data more efficiently3.

If a user reports that a PC occasionally fails to boot and makes a strange, repetitive, ticking noise, it indicates that the hard drive is suffering from a mechanical failure, also known as the click of death. This means that the hard drive is likely to fail completely soon and lose all the data stored on it. Therefore, the technician should try to extract or backup the data as soon as possible before replacing the hard drive with a new one.

The answer is A. High availability and B. Elasticity.

High availability is the ability of a system to remain operational and accessible with minimal or no downtime, even in the event of failures, disasters, or disruptions. High availability can be achieved by designing a system that has redundancy, fault tolerance, and disaster recovery capabilities. For example, a cloud engineer can design a system that replicates data and resources across multiple regions, zones, or availability domains, and uses load balancing and failover mechanisms to distribute the workload and handle failures gracefully12.

Elasticity is the ability of a system to scale up or down automatically in response to changes in demand or utilization. Elasticity can be achieved by designing a system that can dynamically allocate and deallocate resources based on predefined metrics, policies, or triggers. For example, a cloud engineer can design a system that uses auto-scaling groups, horizontal or vertical scaling strategies, and on-demand or spot instances to optimize the performance and cost of the system32.

By implementing high availability and elasticity, a cloud engineer can ensure that the solution is able to immediately fail over to another region in case of an outage and also scale up in the event of high utilization. These are two important aspects of building reliable and scalable cloud architectures. Therefore, options A and B are the correct answers.

DNS servers are responsible for translating domain names into IP addresses, which are used to access websites. If the phone has limited internet connectivity, it might be because the DNS servers are not working properly or are blocked by the network. The technician should check the DNS settings on the phone and try to use a different DNS server, such as Google DNS (8.8.8.8 or 8.8.4.4) or Cloudflare DNS (1.1.1.1 or 1.0.0.1).

References

•9 Best Ways to Fix Wi-Fi Showing Limited Connectivity in Android

•7 Easy Ways to Fix Limited Wi-Fi Connectivity on Android

•How to Fix Limited Connectivity Issue in Android Wi-Fi

A USB (universal serial bus) connection is the most suitable option for a headset that can be physically connected to a laptop for online conference calls. A USB connection is a digital interface that can transfer both power and data between devices using a standard cable. A USB headset can plug into any available USB port on the laptop and communicate with the audio and microphone drivers without requiring additional software or hardware. A USB headset can also offer enhanced features, such as inline controls, noise cancellation, surround sound, or LED lighting, depending on the model and manufacturer.

Other connections, such as Bluetooth, DVI, or Thunderbolt, are not appropriate for a headset that can be physically connected to a laptop. Bluetooth is a wireless technology that uses radio waves to pair devices over a short distance, and it requires a battery or a charger for the headset. DVI (digital visual interface) is a video interface that can transmit digital or analog signals between a display device and a video source, and it is not compatible with audio or microphone devices. Thunderbolt is a high-speed interface that can support multiple protocols, such as DisplayPort, USB, or PCI Express, and it requires a special cable and port that may not be available on all laptops.

The best tool to identify the correct cable is C. Toner probe.

A toner probe is a device that can be used to locate and trace a specific cable within a network rack or a wall outlet. A toner probe consists of two parts: a tone generator and a tone detector. The tone generator is connected to one end of the cable and sends an audible signal through the cable. The tone detector is used to scan the other end of the cable and pick up the signal. The tone detector emits a sound or a light when it detects the signal, indicating the correct cable.

A toner probe can be useful for network technicians who need to locate an end user’s Cat 6 cable within a network rack that is poorly documented and has no cable management system. A Cat 6 cable is a type of twisted pair cable that can support high-speed data transmission over Ethernet networks. A network rack is a frame that holds network equipment, such as servers, switches, routers, or patch panels. A cable management system is a set of devices or methods that organize and secure the cables within a network rack .

The other options are not the best tools to identify the correct cable, because they have different purposes or limitations. A cable tester (option A) is a device that can be used to test the functionality and quality of a cable, such as its continuity, resistance, or interference. A cable tester can help diagnose and troubleshoot faulty cables, but it cannot locate or trace specific cables within a network rack. A network tap (option B) is a device that can be used to monitor and analyze the traffic and data that pass through a network. A network tap can help capture and inspect network packets, but it cannot locate or trace specific cables within a network rack. A loopback plug (option D) is a device that can be used to test the functionality and connectivity of a port or an interface. A loopback plug can help verify if a port or an interface is working properly, but it cannot locate or trace specific cables within a network rack.

For more information about toner probes and other network tools, you can refer to the following web search results: [What Is a Toner Probe?], [What Is Cat 6 Cable?], [What Is a Network Rack?], [What Is a Cable Tester?], [What Is a Network Tap?], [What Is a Loopback Plug?].

The most likely reason for the error is that the DNS server is not configured correctly. The technician should check the DNS server settings and make sure they are correct.

DNS, or Domain Name System, is a service that translates domain names, such as www.example.com, into IP addresses, such as 192.168.1.1, that computers use to communicate with each other. DNS is essential for joining a Windows client to a domain, which is a logical group of computers that share a common directory and security policy. A domain name, such as example.com, identifies the domain and its members on the network.

To join a Windows client to a domain, the client needs to resolve the hostname of the domain controller, which is the server that manages the domain and its resources. The client sends a DNS query to the DNS server, asking for the IP address of the domain controller. The DNS server responds with the IP address, and the client uses it to establish a connection with the domain controller and complete the domain join process.

However, if the DNS server is not configured correctly, the client may not be able to resolve the hostname of the domain controller, and receive the error: An attempt to resolve the hostname has failed. This can happen if the DNS server is not reachable, not authoritative, or not updated. For example, the DNS server may have an incorrect IP address, a wrong DNS suffix, a missing or outdated DNS record, or a firewall blocking the DNS traffic.

To fix the error, the technician should verify that the DNS server settings on the client and the domain controller are correct and consistent. The technician can use the ipconfig /all command to display the DNS server settings, such as the IPv4 address, the subnet mask, the default gateway, and the DNS suffix. The technician can also use the nslookup command to test the DNS resolution and the ping command to test the connectivity. The technician should make sure that the client and the domain controller are using the same DNS server, and that the DNS server can resolve the hostname of the domain controller.

Allow listing is a security technique that allows only specific IP addresses or domains to access a network or a service. By adding the office IP address as an exception, the company can prevent two-factor authentication from being triggered when users are connected to the office Wi-Fi, since the office network is considered trusted. This way, users will only be prompted for two-factor authentication when working outside of the office, which enhances security.

A physical firewall is a hardware device that filters and blocks unwanted or malicious traffic from entering or leaving a network. A physical firewall can be configured with rules and policies to allow or deny traffic based on various criteria, such as source and destination IP addresses, ports, protocols, applications, etc. A physical firewall can also provide logging and monitoring capabilities to detect and prevent network attacks12.

A physical firewall is the most appropriate tool for a technician to use to mitigate threats to web clusters, which are groups of web servers that work together to provide high availability and scalability for web applications. Web clusters are often exposed to the internet and face various types of threats, such as denial-of-service (DoS) attacks, brute force attacks, SQL injection attacks, cross-site scripting (XSS) attacks, etc. A physical firewall can protect the web clusters’ public-facing interface by filtering and blocking the unwanted or malicious traffic before it reaches the web servers, thus reducing the risk of compromise or downtime34.

The other options are not as effective or relevant as a physical firewall for mitigating threats to web clusters. Device encryption is a process of transforming data into an unreadable form using a secret key, which can prevent unauthorized access to the data if the device is lost or stolen. However, device encryption does not prevent network attacks or filter traffic, and it may not apply to web clusters that use shared storage or cloud services. Intrusion detection system (IDS) is a software or hardware tool that monitors network traffic and alerts the administrator of any suspicious or malicious activity. However, IDS does not block or filter traffic, and it may not be able to prevent or stop an attack in progress. IDS is often used in conjunction with a firewall, not as a replacement. Antivirus/anti-malware is a software tool that scans and removes viruses, worms, trojans, spyware, ransomware, and other malicious software from a device. However, antivirus/anti-malware does not filter or block network traffic, and it may not be able to detect or prevent some web-based attacks, such as XSS or SQL injection. Antivirus/anti-malware is also often used in conjunction with a firewall, not as a replacement.

The correct answer is A. Examine the application and device mute controls.

One of the possible reasons for the USB headset microphone not working is that the microphone is muted in the application or device settings. The technician should check if the mute button on the headset or the microphone icon in the application is active. If so, the technician should disable them and try to record sound again.

Some applications may also have their own settings for the microphone input. The technician should make sure that the USB headset is selected as the input device and that the volume level is appropriate. The technician can also test the microphone in different applications to see if the problem is specific to one application or not.

The other options are less likely to solve the problem, because:

•Connecting the headset to a different USB port may not make any difference if the device is already installed and recognized by the system.

•Checking the device’s driver release date may not be relevant if the microphone was working before and no updates were installed recently.

•Increasing the speaker volume setting may not affect the microphone input at all, and may only make the audio playback louder.

For more information and tips on how to fix USB headset problems, you can visit these links:

•USB Headset Mic Not Working? Here Are All Possible Fixes - TechNorms

•Fix microphone problems - Microsoft Support

•USB Headset Not Working? Try These Fixes - Tech News Today

Lightning is a proprietary connection type that is used by Apple devices, such as iPhones, iPads, and iPods, to transfer data, charge, and connect to accessories. Lightning cables have a reversible 8-pin connector that can be plugged into a USB port on a workstation or a power adapter. USB-C, serial, and NFC are not compatible with Apple phones.

The correct answer is A. Tethering.

Tethering is the process of sharing a mobile device’s internet data connection with other devices, such as laptops, tablets, or other phones. Tethering can be done by using a Wi-Fi hotspot, a Bluetooth connection, or a USB cable. A Wi-Fi hotspot creates a wireless network that other devices can join, a Bluetooth connection pairs the devices and allows data transfer, and a USB cable connects the devices physically and enables data sharing.

A PAN, or personal area network, is a type of network that connects devices within a short range, usually up to 10 meters. A PAN can be used for various purposes, such as transferring files, printing documents, or accessing the internet. A PAN can be created by using Bluetooth, Wi-Fi, or infrared technologies.

A technician can use a PAN to connect a group of users on a field project by using tethering on a mobile device. The technician can activate the tethering service on the mobile device and choose the preferred method of sharing the internet data connection. The other devices can then connect to the mobile device and access the internet through it.

The other options are incorrect because they are not services that can share the internet data connection on a mobile device. Pairing is the process of establishing a connection between two Bluetooth devices, but it does not necessarily share the internet data connection. Bluetooth is a technology that can create a PAN and enable tethering, but it is not a service that can be activated on a mobile device. Hotspot is a term that can refer to a Wi-Fi hotspot created by tethering on a mobile device, but it is not a service that can be activated on its own.

One of the possible causes of the error message “No input source” is that the LCD projector is not receiving any signal from the connected device, such as a laptop1. This could be due to a loose or faulty cable or connector, or an incorrect input source selected on the projector2. Therefore, the first troubleshooting step that the technician should take is to check the physical cabling and make sure it is properly connected and secured12.

three beeps and a black screen indicate a memory error of some sort123. This means that the RAM may not be properly installed or connected to the motherboard. Reseating the RAM means removing each stick and re-inserting it, making sure it clicks into place. This can sometimes solve the problem by ensuring a good contact between the RAM and the motherboard.

Replacing the power supply, reattaching the hard drive, or flashing the BIOS are unlikely to fix this issue, since they are not related to the memory error. The power supply provides power to the whole system, the hard drive stores data, and the BIOS is the firmware that controls the boot process. None of these components would cause three beeps and a black screen if they were faulty.

Category 7 (Cat 7) cables provide the best performance with the least Electromagnetic Interference (EMI) due to their enhanced shielding. Cat 7 cables are designed to support higher speeds and bandwidth while reducing interference compared to Cat 5 or Cat 6.

Why Not A (Cat 5): Cat 5 cables have limited shielding and are prone to EMI, making them unsuitable for high-performance requirements.

Why Not B (Cat 6): Cat 6 offers better shielding than Cat 5 but less than Cat 7.

Why Not D (Coaxial): While coaxial cables are resistant to EMI, Cat 7 offers better performance overall for networking applications.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and their performance characteristics?.

When configuring a network device like a printer, assigning it a static IP address ensures that it always uses the same IP address. If a static IP cannot be set due to security restrictions, the next best solution is to configure a reservation in the DHCP (Dynamic Host Configuration Protocol) server. This reservation ensures that the device (in this case, the printer) always receives the same IP address based on its MAC address, even if the router restarts.

A. Reservation: A DHCP reservation ties a specific IP address to the MAC address of a device, ensuring it always receives the same IP address from the DHCP server.

Why the other options are incorrect:

B. Scope: A DHCP scope defines the range of IP addresses that can be assigned to devices. It doesn’t ensure that a specific device always gets the same IP.

C. Lease: A lease refers to the length of time a device is assigned an IP address from the DHCP server. It doesn’t guarantee that the same IP will be re-assigned after the lease expires.

D. Exclusion: An exclusion in DHCP configuration excludes specific IP addresses from being assigned dynamically. This is used to prevent certain addresses from being given out but doesn’t ensure a device will always get the same IP.

This topic is covered under the Networking domain of the CompTIA A+ Core 1 exam?.

A sandbox is an isolated virtual environment used to test or run applications securely without risk to the host or network. It prevents the VM from communicating with external systems, making it ideal for testing malware or suspicious software.

Option A (VDI): Virtual Desktop Infrastructure allows network communication; it does not restrict it.

Option B (Private cloud): Refers to a cloud deployment model, not a communication barrier.

Option D (Type 1 hypervisor): Runs VMs directly on hardware and does not inherently block communication.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========
