Mobile devices can share their LTE or cellular data connection using a feature called tethering, more commonly known as hotspot mode. According to CompTIA A+ objectives on mobile networking technologies, a hotspot allows a smartphone or tablet to become a mini wireless router, broadcasting a Wi-Fi signal that nearby devices can connect to. The LTE (or 5G) connection is then shared over Wi-Fi, enabling laptops, tablets, or other phones to access the internet through the mobile device.

Bluetooth is capable of tethering but provides much lower bandwidth and slower speeds—not ideal for sharing LTE widely. NFC is used for close-range data exchange or payment transactions and cannot share internet service. "Cellular" refers to the phone’s own mobile network connection, not the mechanism for sharing it with others.

Hotspot functionality is specifically built into modern mobile OSs and supports WPA2/3 encryption, password protection, and device whitelisting. This makes it the most common and efficient method to share LTE connectivity with multiple nearby devices.

Thus, Hotspot (D) is the correct answer.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

CompTIA networking fundamentals describe VLANs (Virtual Local Area Networks) as a method to segment network traffic logically, even while using the same physical switch hardware.

A VLAN allows a company to:

Separate traffic by department

Improve security

Reduce broadcast domains

Control inter-department access

To separate accounting and customer service networks, VLANs are the industry-standard and the CompTIA-approved method.

Why the other options are incorrect

A. VPN – Used for secure remote connections, not internal LAN segmentation.

B. DNS – Resolves hostnames to IPs, not used for network separation.

D. DHCP – Assigns IP addresses; does not isolate network groups.

Final Answer: C

A common reason for aPOST failureafter a motherboard installation isimproperly seated RAM. The system requires working memory to successfully complete POST. Reseating (removing and reinserting) the RAM ensures it's making proper contact with the motherboard.

Option A:Flashing the BIOS is not possible if the system won’t POST.

Option B:A dead CMOS battery can cause BIOS settings to reset, but it usually won’t prevent POST entirely.

Option D:Reinstalling the old motherboard is premature basic troubleshooting steps should be completed first.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Assigning astatic IP addressto a network printer ensures it always retains the same address, allowing users and print servers to consistently reach it even after a reboot or network refresh.

Option B (Private address):Refers to address ranges (e.g., 192.168.x.x) doesn't guarantee address persistence.

Option C (Wi-Fi):Is a connection method, not a method of IP assignment.

Option D (Dynamic addressing):Via DHCP, which can change over time unless reservations are made (less reliable).

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

Comprehensive and Detailed Explanation (From CompTIA A+ 220-1201 Concepts):

A consistent Wi-Fi SSID across all APs allows users to roam throughout the office while maintaining access to local resources without reconnecting manually.

CompTIA Core 1 Study Guide Concept Reference:

Wireless networking configuration

SSID broadcast and roaming

WLAN infrastructure

The study guide explains that a common SSID enables seamless roaming and uninterrupted access to network resources.

Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

Choppy or unintelligible audio is typically caused by issues with the microphone, such as poor quality, hardware defects, or misconfiguration.

Why Not A (Webcam): The webcam handles video, not audio.

Why Not B (Digitizer): A digitizer relates to touchscreens, not audio.

Why Not C (Inverter): Inverters manage power for displays, not audio.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.6, audio troubleshooting?.

The scan-to-SMB feature allows the printer to send scanned documents to a shared folder (SMB share) on the network. Setting up a network share enables the device to securely and conveniently save files for user access.

Portable devices such as laptops, small-form-factor computers, and mini-PCs use SODIMM (Small Outline DIMM) memory modules. CompTIA A+ explains that SODIMMs are physically smaller and consume less power than standard DIMMs, making them ideal for mobile systems where space and energy efficiency are critical. Unlike ECC memory, which is primarily used in servers, or RAID which is a storage redundancy methodology rather than a memory type SODIMM is specifically designed for compact computing devices. SATA is a storage interface, not a memory form factor.

The A+ study guide clearly lists SODIMM as the standard laptop memory type because of its compact footprint and compatibility with mobile motherboard layouts. This makes SODIMM the most widely implemented memory technology in portable devices.

The workstation's IP configuration (192.168.1.27/24 with gateway 192.168.1.1) shows that it has a correct IP address, correct subnet mask, and expected default gateway for a typical small office network. Because the IP is in the correct private range and not an APIPA address (169.254.x.x), this also confirms that DHCP is functioning properly. Therefore, option D (DHCP) cannot be the cause.

The user then pings the default gateway at 192.168.1.1, which should be the router—the device providing routing between local devices and outside networks. The repeated "Request timed out" responses indicate the workstation cannot reach the router at all. This type of failure points directly to a router outage, a powered-off router, a failed router interface, or a physical disconnection of the router from the switch.

If DNS (C) were the issue, the user would still be able to ping the IP address of the gateway because DNS is not required for IP-to-IP connectivity. A web server (A) has no relation to local gateway communication and does not affect workstation access.

Since the workstation has a valid IP but cannot reach its default gateway, the failure point is the router.

Adocking stationconnects to a laptop’sproprietary port or USB-C/Thunderbolt, providing access tomultiple additional ports(USB, Ethernet, video, audio, etc.). It allows users to transform a laptop into a full desktop workstation.

Option A (NFC adapter):Used for short-range communication, not port expansion.

Option C (Port replicator):Similar to a dock but usually less powerful and often lacks charging or video output.

Option D (USB dongle):Adds a single function (like Wi-Fi or storage), not full port expansion.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

PoE (Power over Ethernet) allows both data and electrical power to be delivered over the same Ethernet cable. A PoE injector adds power to Ethernet cables for devices that need it.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Networking hardware:

“Power over Ethernet (PoE) technology and PoE injectors enable both power and data transmission to compatible network devices like access points and IP cameras.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

Display flickering is most commonly caused by an incorrect or unstable refresh rate setting. The refresh rate is the number of times per second (measured in Hz) that a monitor redraws the image. CompTIA A+ teaches that LCD, LED, and especially older CRT displays can exhibit flickering if the refresh rate is set too low or to a value unsupported by the monitor.

For modern displays, typical refresh rates are 60 Hz, 75 Hz, 120 Hz, 144 Hz, and higher. If the refresh rate is mismatched—such as manually set above the monitor’s rated capability—the screen may flicker, blank intermittently, or show instability. Similarly, if the refresh rate is set too low, the user may perceive visible flicker, eye strain, or shimmering on the display.

Checking and adjusting the refresh rate through the operating system’s display settings (or GPU control panel) is the first and most direct troubleshooting step for flickering issues.

The LCD type (A) has no bearing on flickering once installed. Screen resolution (C) affects clarity and scaling but does not cause flicker by itself. Pixel density (D) is a hardware characteristic and cannot cause flickering.

Thus, the correct component to check when diagnosing display flicker is the refresh rate.

The requirement to separate corporate and personal data on employee smartphones is a core function of Mobile Device Management (MDM). CompTIA A+ describes MDM as an enterprise toolset used to enforce security policies, manage applications, configure email profiles, and separate work-related data from personal user data. This separation is typically achieved through features such as containerization, where corporate data is stored in a protected, encrypted workspace that is isolated from the personal side of the device.

This ensures security, prevents data leakage, and enables IT administrators to remotely wipe corporate data without affecting the user’s personal information. MDM solutions are widely used in BYOD (Bring Your Own Device) environments and corporate-issued devices.

Encryption (A) protects data but does not create separation. Network access control (B) restricts network access but does not manage mobile apps or data separation. Endpoint protection (D) refers to antivirus/antimalware, not data partitioning.

Thus, Mobile Device Management (MDM) is the correct solution.

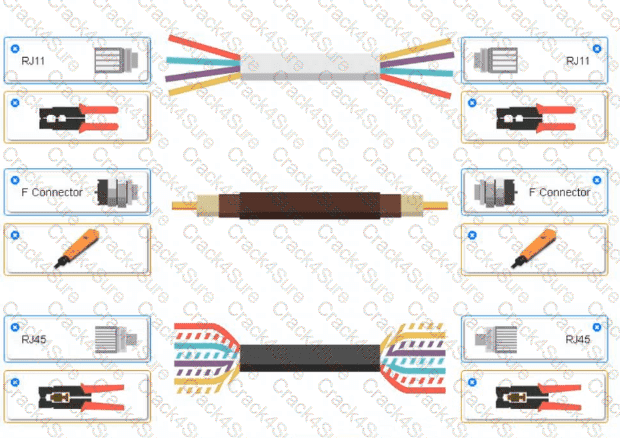

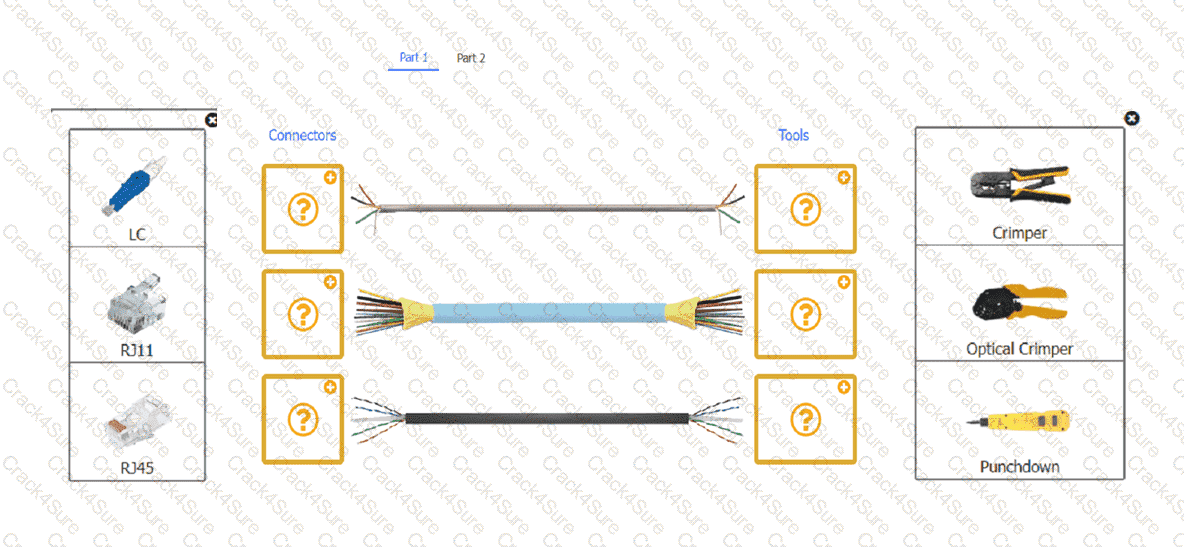

D. Crimper:

A crimper is used to terminate an RJ45 cable properly by attaching the connector to the twisted-pair wires.

If the termination is not done correctly, the connection will be intermittent or fail entirely.

Incorrect Options:

A. Toner probe: Used to locate cables or trace their path, not for terminating RJ45 connectors.

B. Cable tester: Useful for testing connectivity but does not fix termination issues.

C. Punchdown: Used to connect wires to a patch panel or keystone jack, not for RJ45 connectors.

Key Takeaway: A crimper is the proper tool for fixing an improperly terminated RJ45 connection.

AnMX (Mail Exchange)record defineswhich mail servers are responsible for receiving emailfor a domain. If you want to change or redirect email traffic, theMX recordmust be updated with the correct server information.

Option B (TXT):Stores text-based info used for SPF, DKIM, etc.

Option C (SPF):Part of email authentication stored in a TXT record; doesn’t redirect traffic.

Option D (CNAME):Alias for another domain name not used for email routing.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.4: Compare and contrast common networking hardware.

===========

PCIe (Peripheral Component Interconnect Express) is required for high-end video cards.

NVMe (Non-Volatile Memory Express) utilizes the M.2 or PCIe interface for the fastest SSD performance.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Motherboard expansion slots and storage interfaces:

“High-end video cards require a PCIe slot, while NVMe drives use M.2 (PCIe) slots for the highest data transfer rates.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Motherboard and Storage

CompTIA Exam Objectives 220-1101, Domain 3.2

============

Whenever a CPU heat sink is removed or replaced, thermal paste must be reapplied. Thermal paste fills microscopic gaps between the CPU heat spreader and the heat sink, ensuring efficient heat transfer. Without it, there is a significant air gap, which acts as an insulator, causing CPU temperatures to rise dramatically even under light load. CompTIA A+ stresses thermal compound application as a key step in CPU cooling installation.

The scenario indicates that temperatures increased drastically after upgrading to a better heat sink. A higher-performing heat sink should improve temperatures, not worsen them—unless a critical installation step was missed. Missing thermal paste is the most common cause of this symptom and easily explains the sudden overheating.

Decreased CPU voltage would lower temperatures, not raise them. Higher fan RPM increases cooling efficiency, not reduces it. Airflow interruption is possible but less likely in a simple heat sink upgrade scenario unless the technician installed the CPU cooler incorrectly; however, the most direct and common cause described by CompTIA is missing thermal paste.

Thus, D is the correct answer.

User authentication allows access to device functions (like printing and copying) to be restricted to authorized personnel. This is typically implemented on networked multifunction devices for security and auditing.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.4 – Printer and device security:

“Enable user authentication on shared multifunction devices to restrict access to specific features for authorized users only.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Printer Security

CompTIA Exam Objectives 220-1101, Domain 3.4

A RAID 1 array uses disk mirroring, meaning all data is written identically to two drives. When one drive fails, the other contains a complete, current copy of the data. CompTIA A+ emphasizes that RAID 1 is designed for fault tolerance, allowing continued operation even after a disk failure.

The correct action is to replace the defective drive and allow the RAID controller to rebuild (sync) the mirror onto the new disk. This restores redundancy and ensures ongoing data protection. The system can typically continue running during the rebuild process.

Option A is incorrect because attempting to repair a failed drive is unreliable and unnecessary—RAID 1 already provides a healthy copy. Option B ignores the importance of restoring redundancy, leaving the system vulnerable to data loss if the remaining drive fails. Option D (restore from backup) is unnecessary because RAID 1 already preserves the data.

Therefore, the best solution is to install a new drive and resynchronize the array, preserving all data with minimal disruption.

Bluetooth audio issues are typically related to distance and signal strength, not internet connectivity or Wi-Fi access points. Bluetooth devices—especially headsets—generally have a limited effective range of around 10 meters (33 feet) for Class 2 Bluetooth, which is common in consumer laptops and headsets. When the user leaves the room and walks into adjacent offices, they are likely moving beyond the optimal Bluetooth range or passing through walls that weaken the signal.

CompTIA A+ highlights that Bluetooth uses low-power radio frequencies easily disrupted by physical obstructions, distance, and interference. Since the laptop remains stationary and the user moves, the headset becomes progressively further from the laptop, causing intermittent audio dropouts, stuttering, or loss of connection.

The number of APs (A) is irrelevant because the headset is not using Wi-Fi. Mesh mode (C) applies only to wireless AP-to-AP communication. The internet connection (D) is high-quality fiber and conference calls work fine when stationary, so the issue is not bandwidth or WAN throughput.

Thus, the most likely cause is that the user is moving in and out of Bluetooth range.

If the user is on a guest network and cannot access internal resources like printers, connecting to the corporate Wi-Fi will place the device on the correct subnet to access the printer.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Network segmentation:

“Guest networks are isolated from internal resources for security. Connect to the main corporate Wi-Fi to access shared devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Networking

CompTIA Exam Objectives 220-1101, Domain 2.2

============

Gaming laptops prioritize speed, low latency, fast read/write times, and quick loading. CompTIA A+ explains that NVMe M.2 SSDs provide the fastest consumer storage available due to their use of the PCIe bus, which delivers significantly higher performance compared to SATA-based drives.

HDDs (Options A and C) are mechanical and have slow seek times, making them unsuitable for high-performance gaming. SAS SSDs (Option D) are enterprise-grade, rarely used in laptops, and require SAS controllers not found in consumer systems.

Thus, a 512GB NVMe M.2 SSD offers the best performance, fastest boot times, rapid texture loading, and optimal gaming responsiveness fully aligning with A+ hardware performance recommendations.

Tethering refers to sharing a mobile phone’s internet connection with another device, such as a laptop, either through USB, Bluetooth, or Wi-Fi. Tethering effectively turns the mobile phone into a personal hotspot for internet access.

Option A (IR): Incorrect. Infrared (IR) is used for short-range communication, such as remote controls, but it does not support internet sharing.

Option B (NFC): Incorrect. Near-field communication (NFC) is used for close-proximity data transfer, not for internet sharing.

Option C (Wi-Fi Direct): Incorrect. Wi-Fi Direct enables device-to-device communication but does not inherently provide internet sharing.

The baseline documentation says the valid network range ends at 192.168.232.255, but the user’s gateway is 192.168.233.1, which is outside the permitted network range. CompTIA A+ emphasizes that devices must have a gateway inside their own subnet.

Given a mask of 255.255.255.0, the user’s subnet is 192.168.223.x, so the gateway must be in 192.168.223.x, not 192.168.233.x.

DNS settings are public and acceptable. The IP address and subnet mask are valid within the documented address space.

Therefore, the incorrect setting is the gateway, which prevents external routing. Correcting it resolves the connection issue, matching CompTIA’s routing and TCP/IP troubleshooting procedures.

Reasoning: Projectors have air filters that prevent dust from entering the internal components. A clogged filter can cause the projector to overheat, resulting in shutdowns and even strange smells due to overheating components. Cleaning the filter is a standard troubleshooting step when projectors exhibit overheating symptoms.

Why the Other Options Are Incorrect:

A. Replace the bulb:

While a failing bulb may eventually cause issues, it would not typically result in a strange smell or repeated shutdowns after a fixed period. Bulb issues usually manifest as dim or flickering images.

B. Check the projector configuration:

Configuration settings, such as resolution or input options, would not cause overheating or shutdowns. This option does not address the described symptoms.

D. Adjust the gamma settings:

Gamma settings affect display brightness and contrast but have no impact on overheating or strange smells.

Practical Example:

Dust accumulation in projectors is a common issue, especially in environments with poor air circulation. A clogged filter causes restricted airflow, leading to overheating and automatic shutdowns to protect internal components. Cleaning the filter typically resolves this issue.

CompTIA A+ Exam Objective Alignment:

Objective 5.5: Troubleshoot common video, projector, and display issues.

ANetwork Interface Card (NIC)is the hardware responsible for network connectivity. If the NIC is failing or underperforming (e.g., due to a bad driver, hardware fault, or misconfiguration), it can causeslow or unstable network speeds.

Option A (CPU):A failing CPU affects overall system performance but not specifically network speed.

Option C (HDD):A slow hard drive causes application lag, but not poor network performance.

Option D (RAM):Affects multitasking and speed, not network throughput.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to wired and wireless networks.

===========

Amodular power supplyallows a technician toconnect only the power cables that are needed, reducing clutter and improving airflow. This is ideal when aiming for a clean build withminimal visible internal cables.

Option A (SATA drive connections):Still require both power and data cables, adding to cable count.

Option B (Liquid cooling):May reduce some bulk from large air coolers, but adds tubing and still needs cabling.

Option D (Wireless NIC):Adds wireless capability but has no relation to internal cabling cleanliness.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.3: Given a scenario, apply the appropriate PC configuration.

Since only one user experiences the issue in a shared environment where everyone else has stable connectivity, CompTIA A+ suggests that the problem is most likely with the client device, not the network. The wireless card may be failing, overheating, or experiencing intermittent hardware faults.

If other Wi-Fi signals or EMI (electromagnetic interference) were the cause, multiple users would be affected. Frequency congestion (Option B) also impacts groups, not a single device.

CompTIA stresses that isolating whether the issue affects one user or many helps determine whether the fault lies with the network or device. Because the problem is isolated, the most probable cause is a malfunctioning wireless NIC in the user’s laptop.

Scan-to-email functions rely on the printer sending scanned documents to an email server. CompTIA A+ identifies SMTP (Simple Mail Transfer Protocol) as the protocol responsible for sending email messages from clients to mail servers. When configuring scan-to-email, the technician must enter:

SMTP server address

Authentication credentials

Port number (25, 465, or 587)

Encryption type (TLS/SSL)

Without SMTP, the printer cannot transmit emails.

SMS (A) refers to text messaging. SFTP (C) is secure file transfer, common for scan-to-folder workflows, not email. SMB (D) is used for Windows file sharing.

Therefore, the correct protocol is SMTP.

Fiber optic connections provide the highest data transfer rates and symmetrical upload and download speeds. This makes fiber the ideal choice for applications requiring high-speed connectivity, such as video conferencing, large file transfers, and cloud-based workflows.

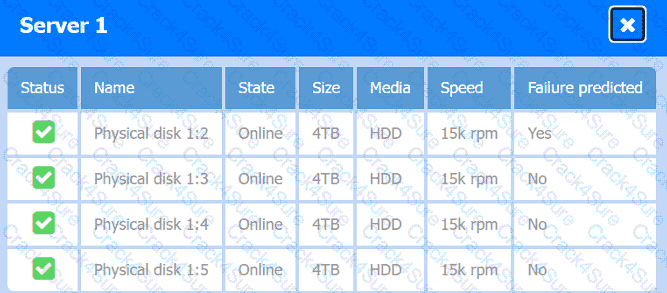

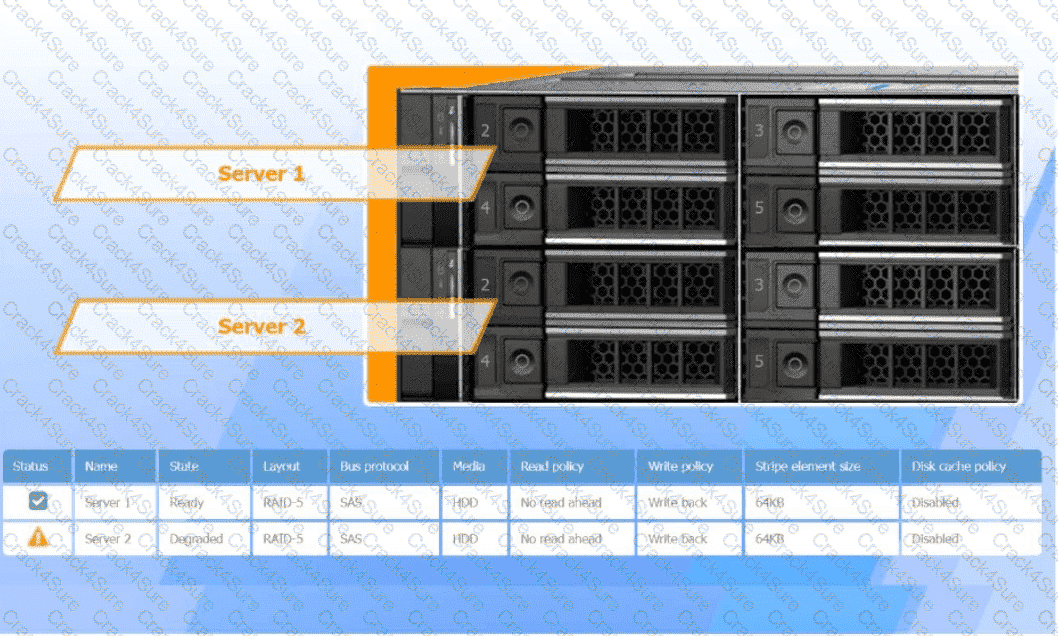

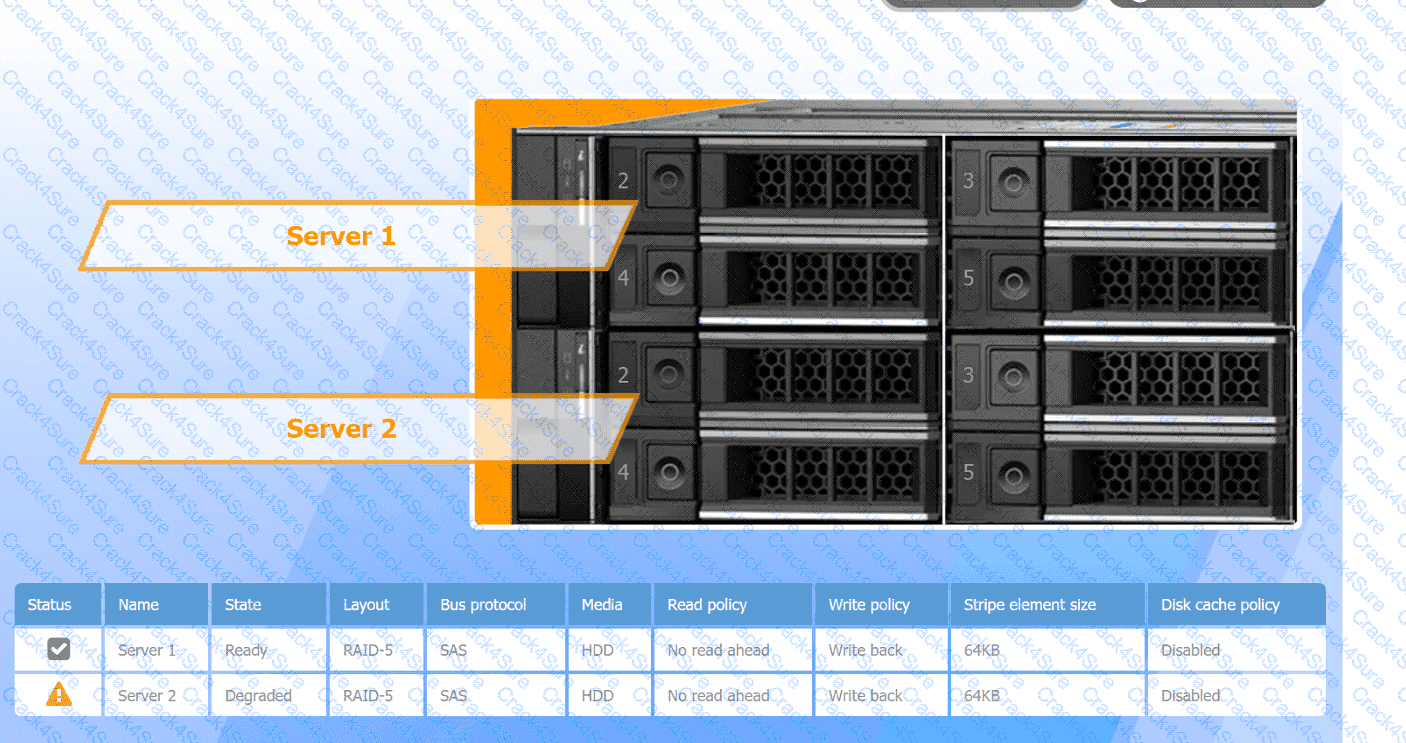

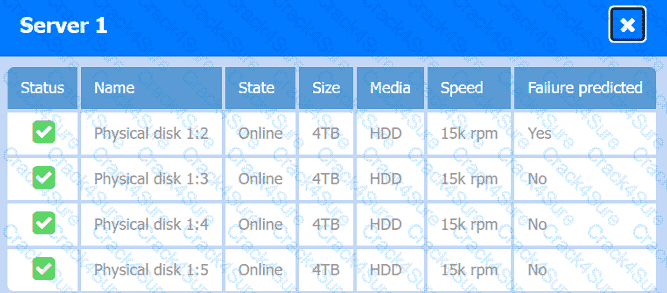

CompTIA A+ teaches that S.M.A.R.T. warnings indicate imminent drive failure. Even if the RAID controller reports the array as “healthy,” a S.M.A.R.T. alert means the drive should be replaced immediately.

RAID 5 provides redundancy for one drive failure, but technicians should replace the degrading drive before it fails fully, ensuring the rebuild happens proactively.

Running chkdsk affects file systems, not drive health. Disabling write caching is unrelated. Rebuilding the array should only occur after replacing the faulty drive.

Replacing the drive prevents a catastrophic dual-drive failure scenario, which RAID 5 cannot survive.

This approach aligns with CompTIA troubleshooting guidelines for RAID maintenance and S.M.A.R.T. diagnostics.

Software as a Service (SaaS) provides users access to fully managed applications hosted in the cloud. CompTIA A+ explains that SaaS is subscription-based and typically billed monthly or annually, which aligns perfectly with the phrase “recurring fee.” Business productivity applications—such as Microsoft 365, Google Workspace, Zoom, Slack, and Salesforce—are classic examples of SaaS offerings.

SaaS applications run entirely in the provider’s cloud environment, eliminating the need for installation, maintenance, or management by the customer. This makes SaaS ideal for businesses that need reliable, scalable tools without maintaining their own infrastructure.

DaaS (Desktop as a Service) provides virtual desktops.

PaaS (Platform as a Service) offers a development framework for building applications.

IaaS (Infrastructure as a Service) provides virtual servers, storage, and networking—not end-user productivity apps.

Thus, SaaS is the correct and only model that matches the description of subscription-based access to productivity applications.

Containers provide lightweight virtualization, ideal for deploying microservices because they are isolated, portable, and require fewer resources than traditional VMs.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Virtualization and cloud computing:

“Containers package applications and their dependencies, making them ideal for running microservices efficiently and independently.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud and Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

============

A Layer 3 switch is the optimal solution when multiple VLANs must intercommunicate while maintaining high performance and minimal hardware complexity. CompTIA A+ explains that Layer 3 switches combine the capabilities of switching (Layer 2) and routing (Layer 3), allowing VLAN traffic to be routed internally at wire speed, without the latency typically associated with traditional routers.

Layer 3 switches use hardware-based routing, meaning they forward inter-VLAN traffic using ASICs (Application-Specific Integrated Circuits). This allows them to achieve extremely fast throughput, ideal for environments like computer training institutes where multiple VLANs may be used for student labs, instructor networks, and administrative traffic.

A router (D) can route between VLANs but introduces more latency due to software-based routing and typically requires additional equipment. A Web application firewall (A) and DDoS appliance (B) are security devices unrelated to internal VLAN communication.

Because the institute requires minimal hardware and high-speed inter-VLAN communication, the Layer 3 switch is the only CompTIA-supported device that meets both requirements simultaneously.

Quality of Service (QoS) prioritizes VoIP traffic on the network, reducing jitter, latency, and packet loss to improve call quality.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Network troubleshooting:

“Enabling QoS in the router ensures time-sensitive traffic, like VoIP, receives network priority, reducing dropped or lagging calls.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

A sandbox is a secure, isolated environment used to test potentially harmful software or code. It prevents the software from affecting the main system, allowing safe malware testing. Thismethod is standard in cybersecurity best practices.

A VLAN (Virtual Local Area Network) segments a physical network into separate logical networks, enhancing security by isolating traffic.

Why Not A (Minimizes collision domains): VLANs manage broadcast domains, not collision domains.

Why Not B (Provides private access to cloud resources): VLANs operate within a local network, not cloud-specific.

Why Not C (Increases network address space): VLANs do not affect address space.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, VLAN concepts?.

Comprehensive and Detailed Explanation From Exact Extract:

PIN printing (also known as secure printing) ensures that documents are held in a queue until the authorized user enters a PIN directly at the printer. This prevents unauthorized viewing of confidential documents.

Upgrading to asolid-state drive (SSD)providesmore storage spaceandfaster read/write speeds, which resolves both the “insufficient storage” error and slow application loads.

Option B (USB):Not intended for permanent application storage or performance improvements.

Option C (HDD):Could solve storage capacity but would not improve speed.

Option D (RAM):Affects multitasking and memory-intensive tasks, not storage capacity directly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

solution as

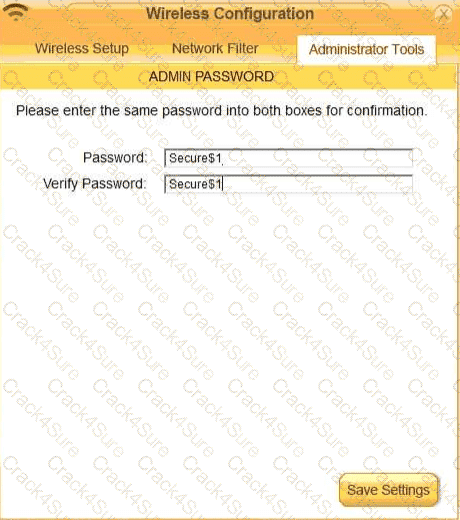

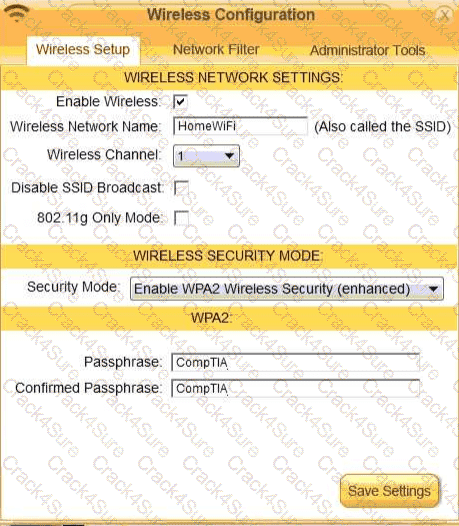

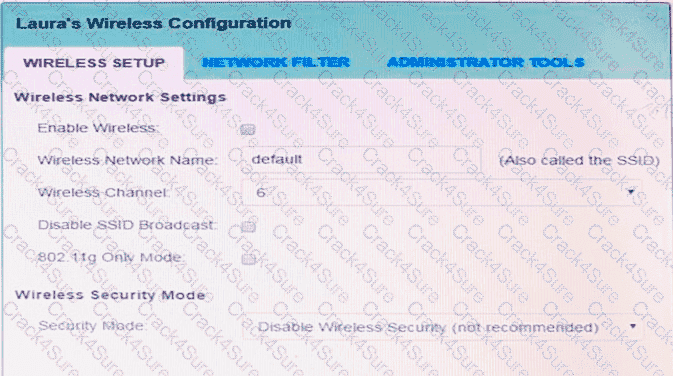

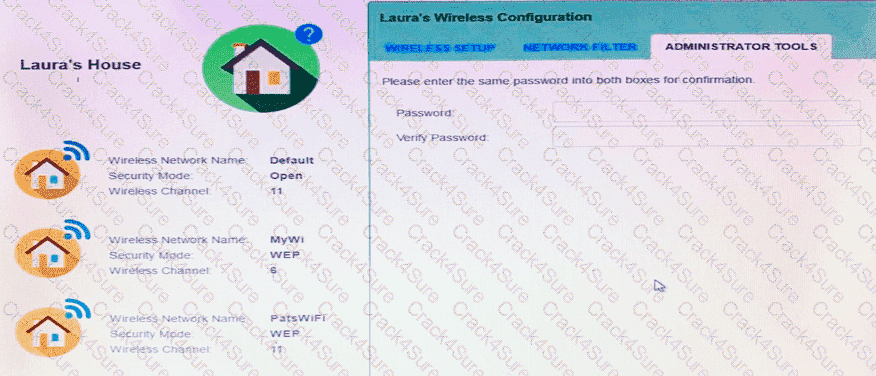

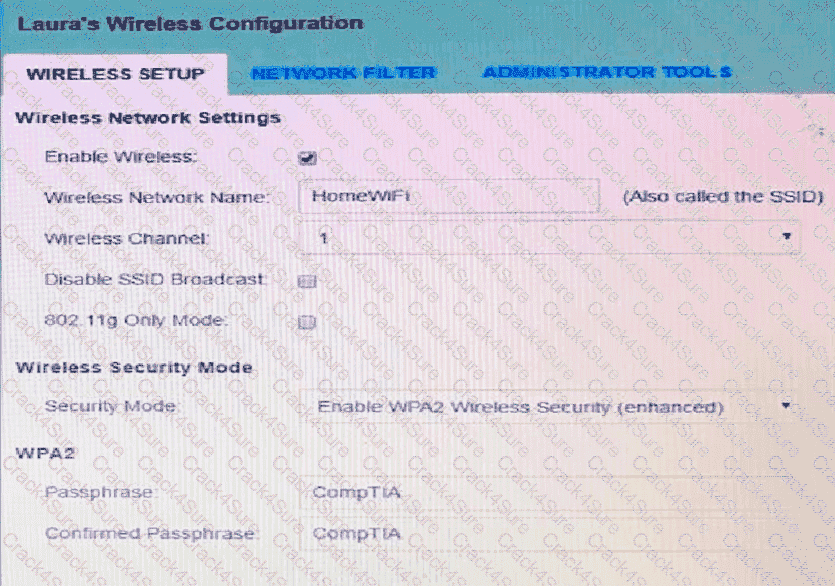

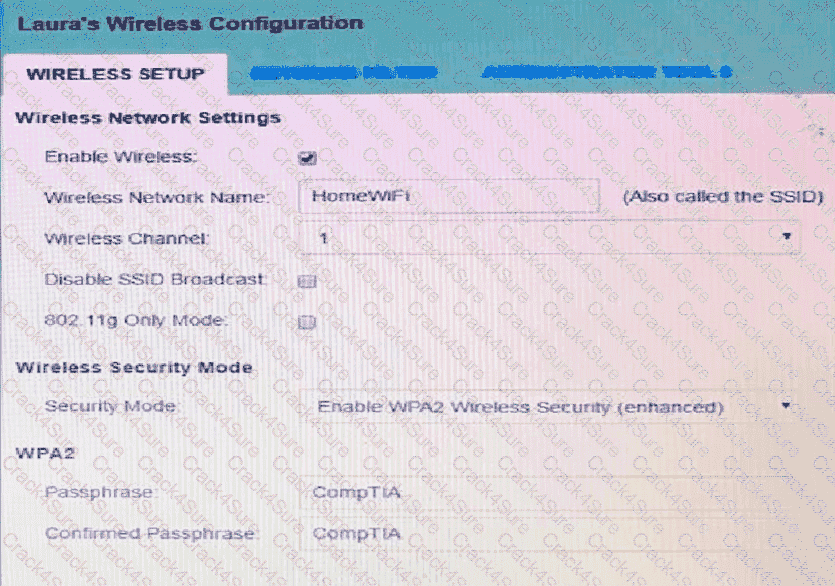

A screenshot of a network settings AI-generated content may be incorrect.

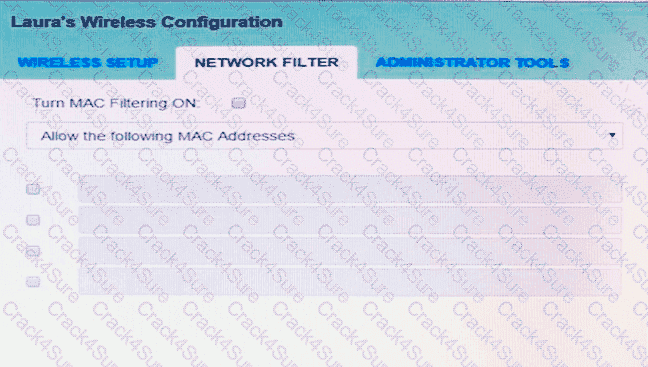

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

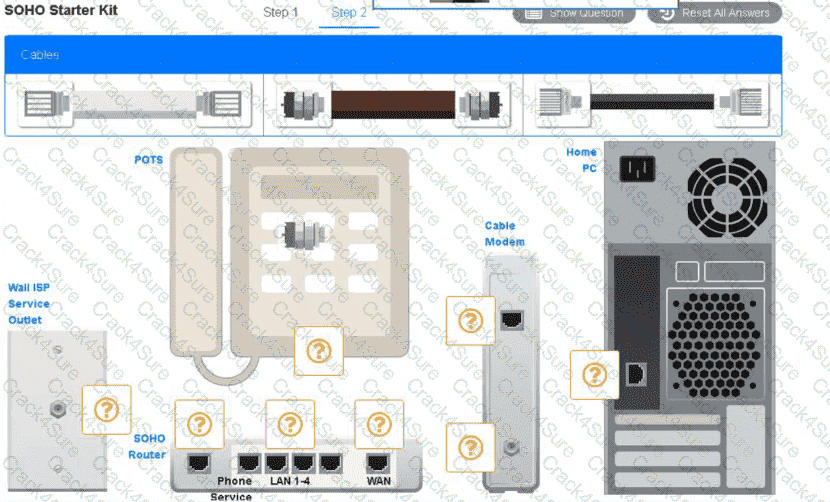

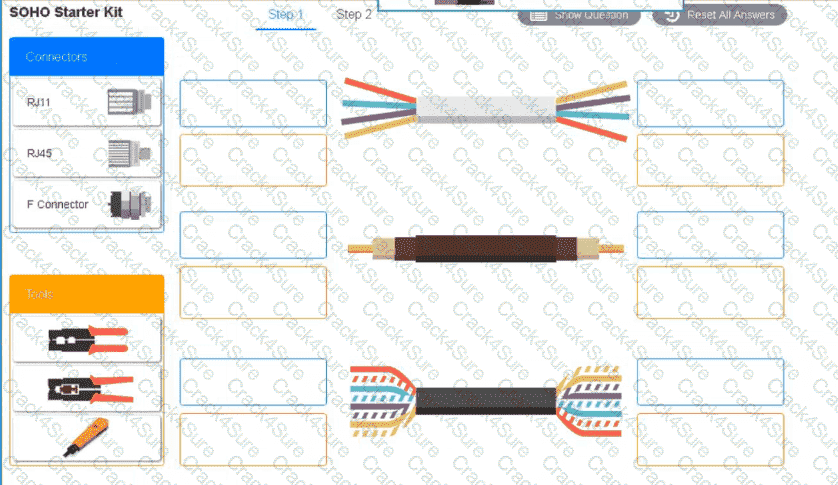

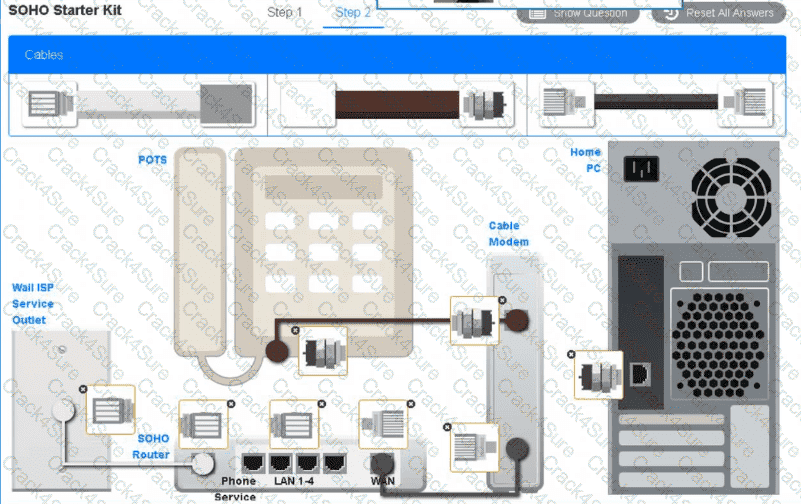

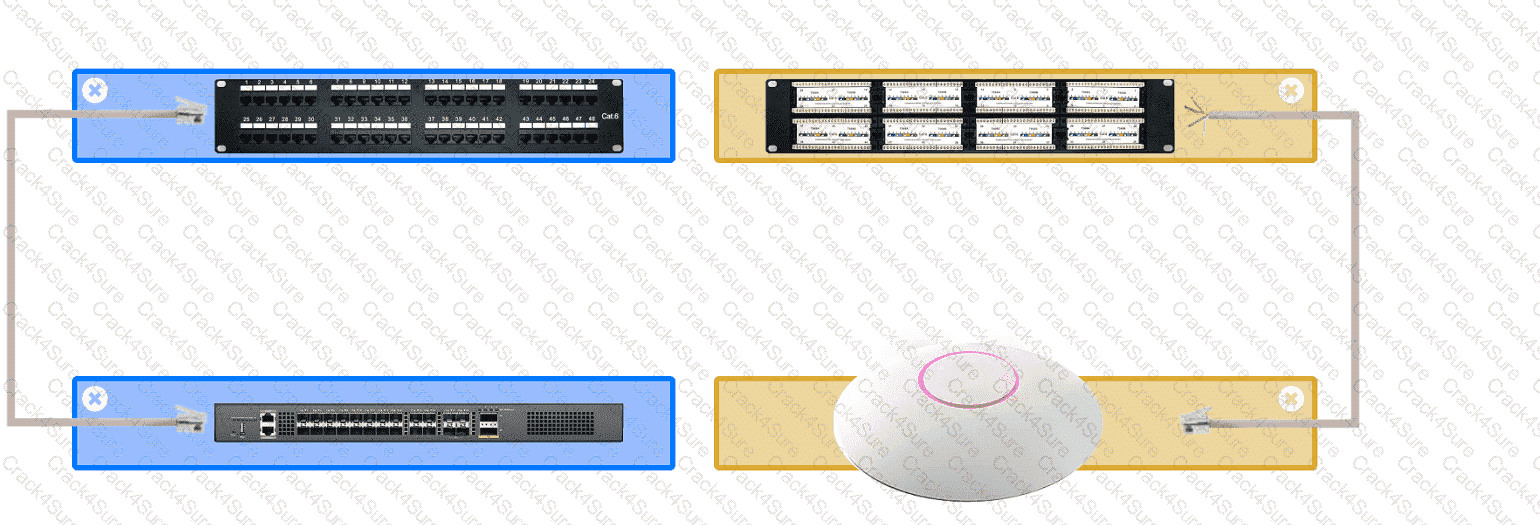

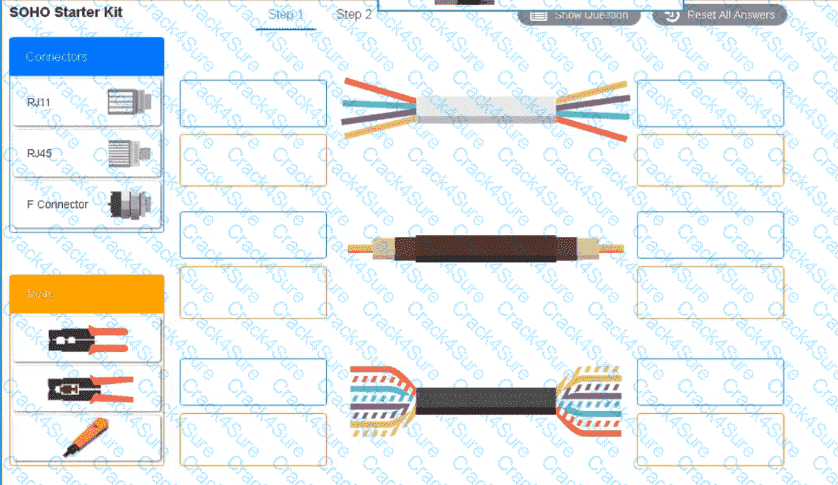

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

Answer of both steps below.

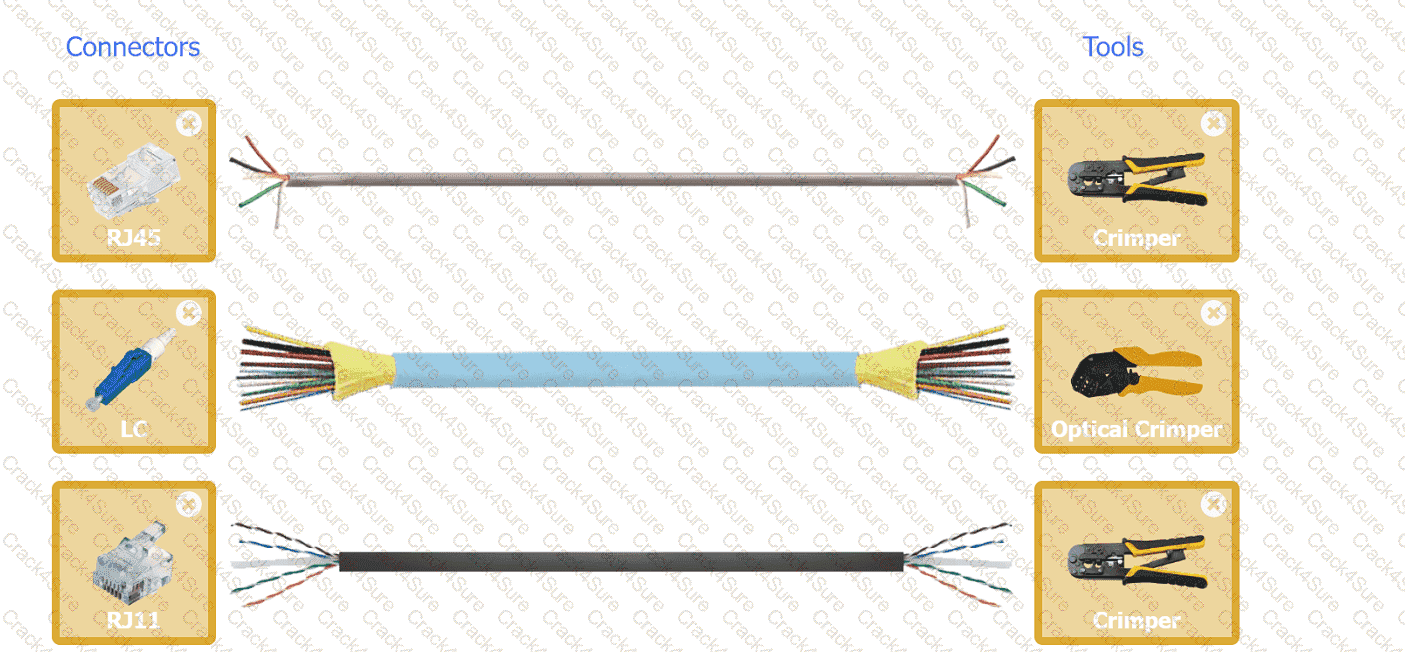

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

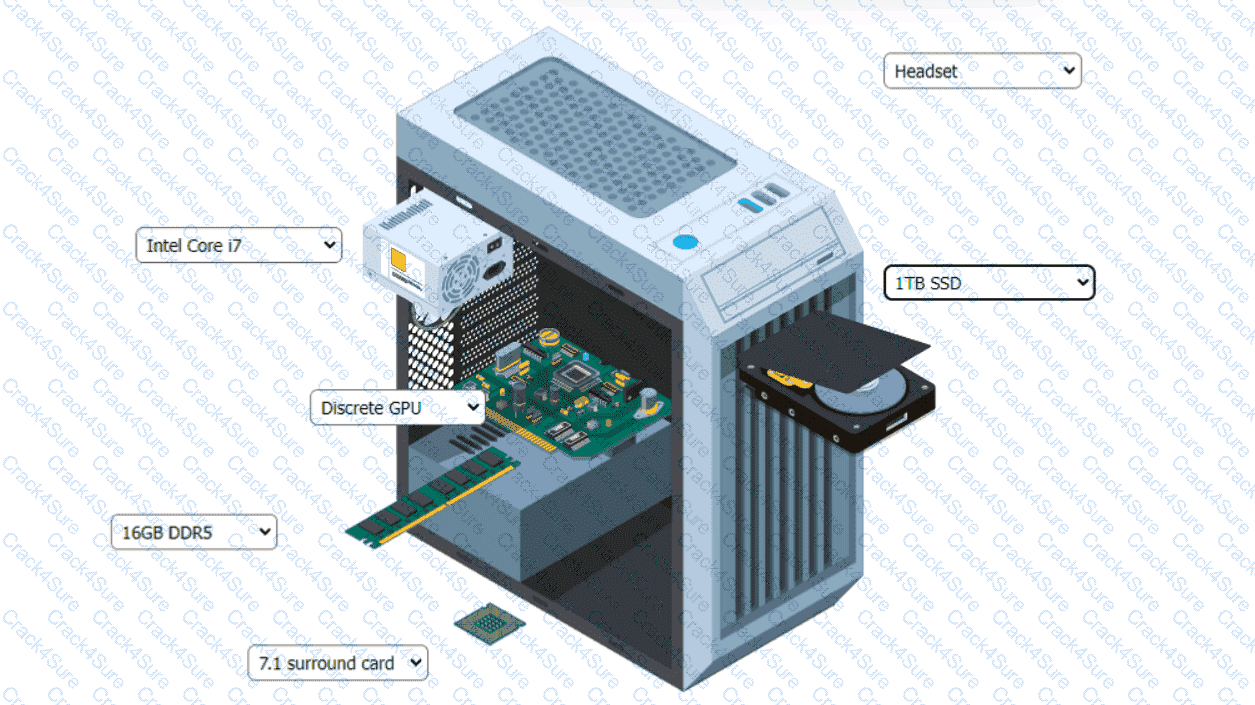

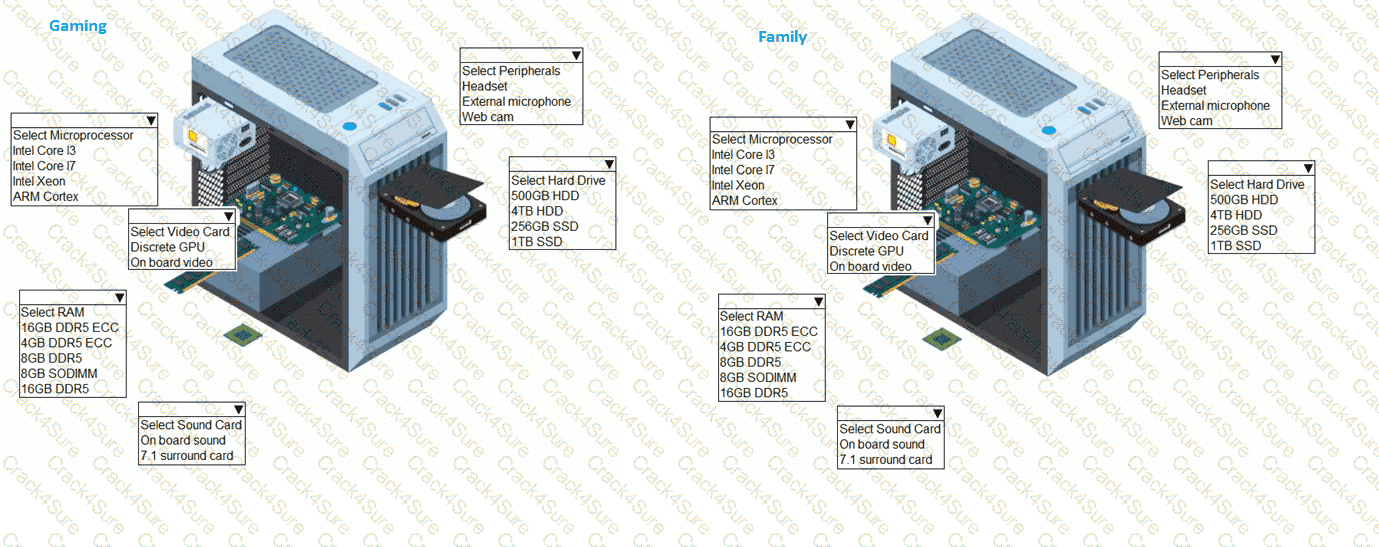

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

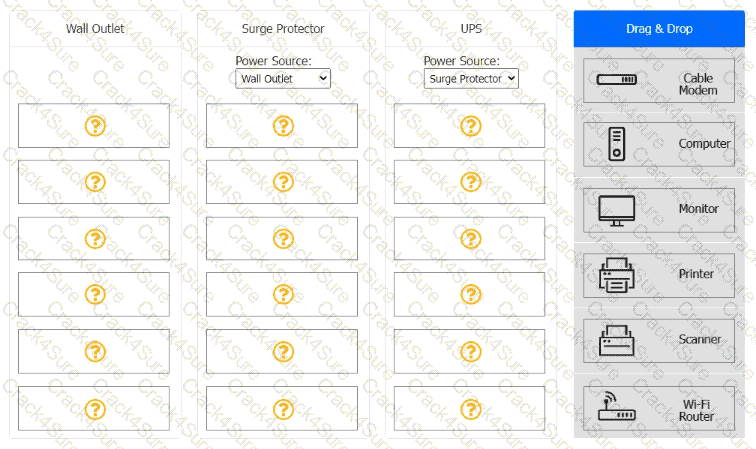

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

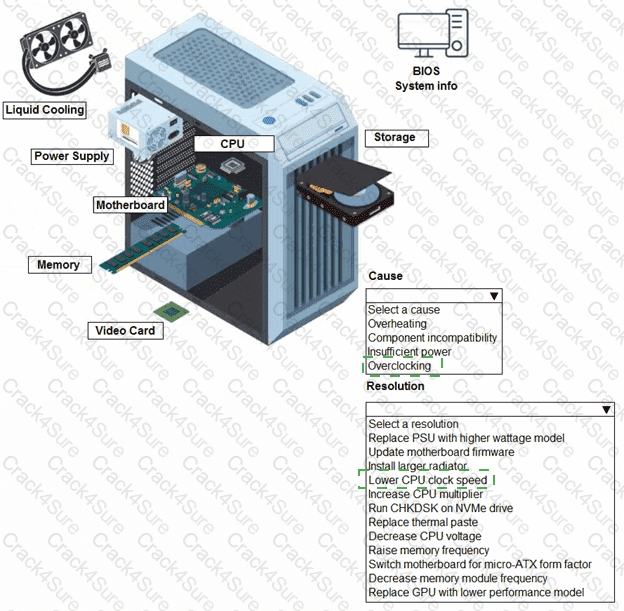

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

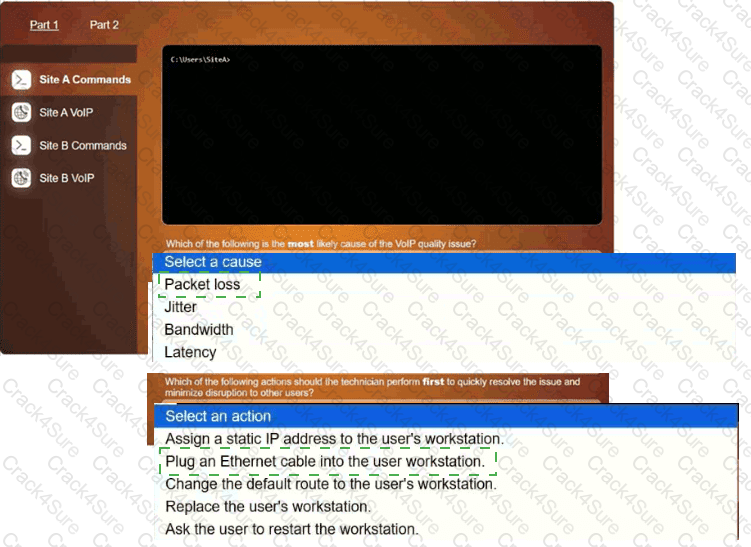

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

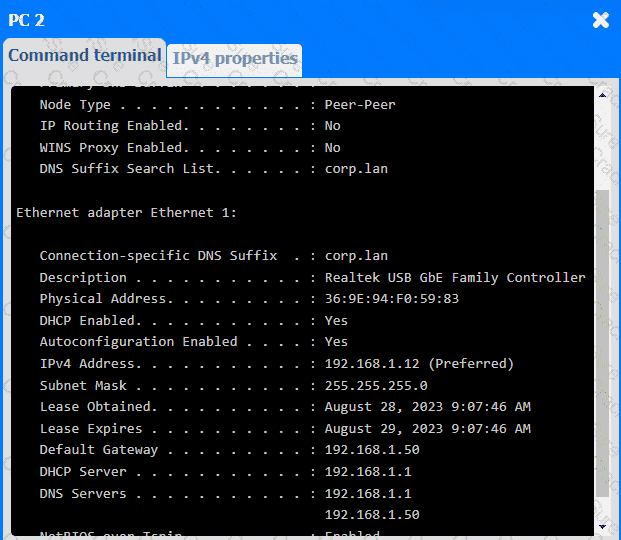

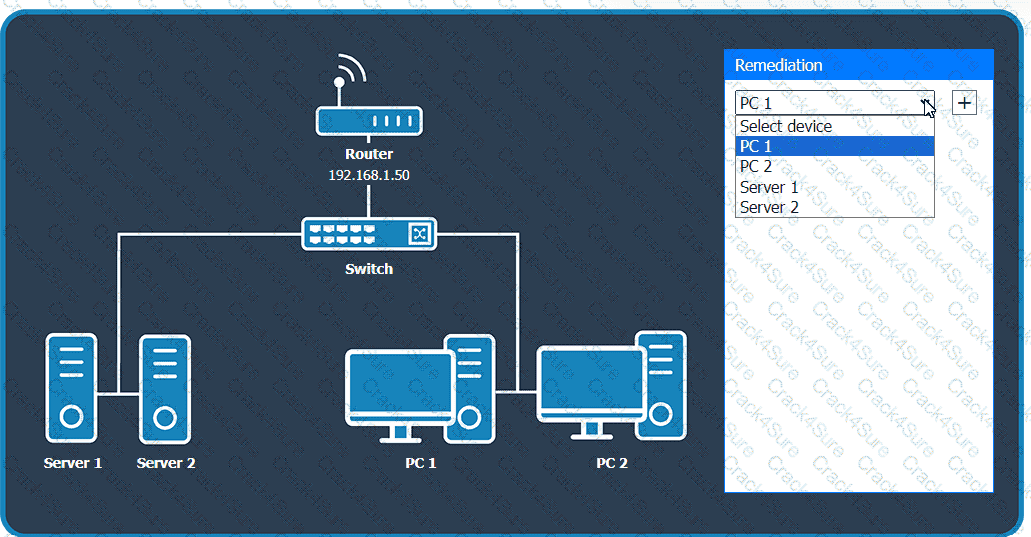

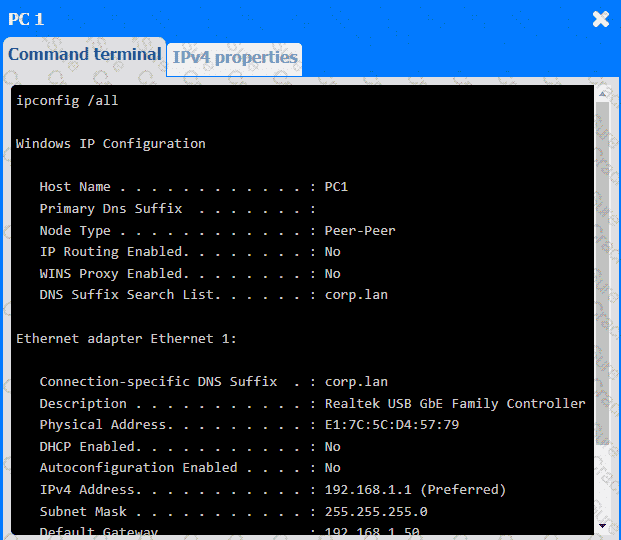

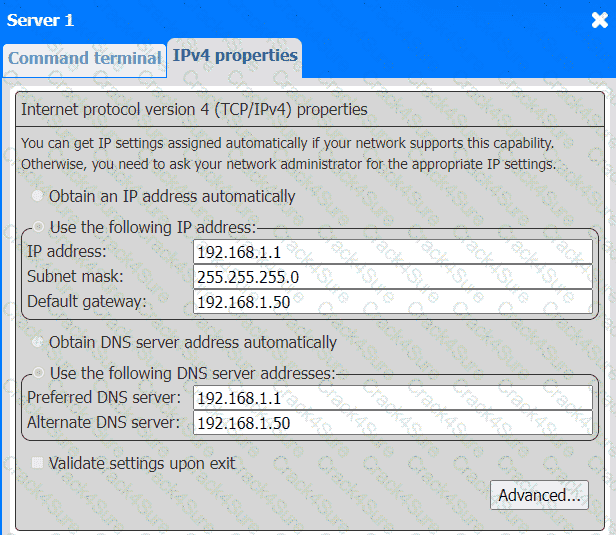

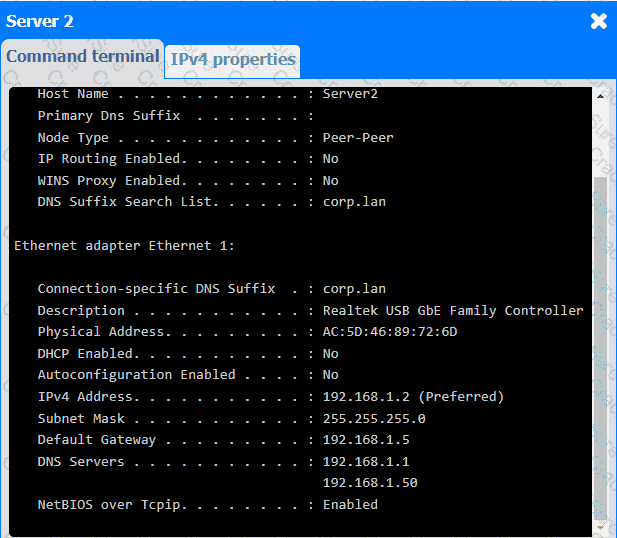

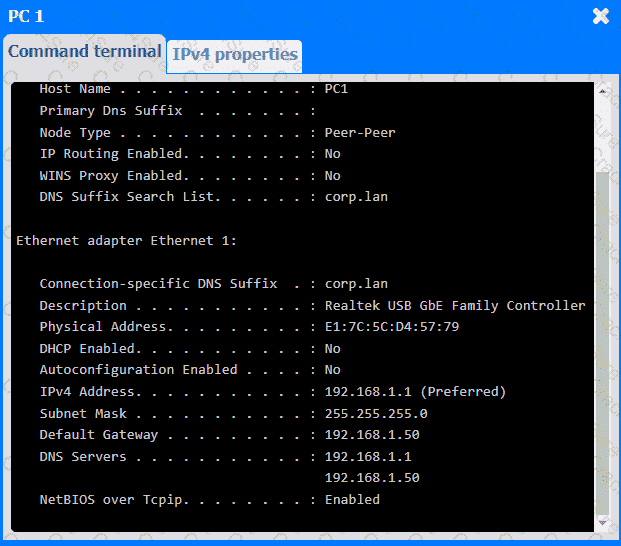

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

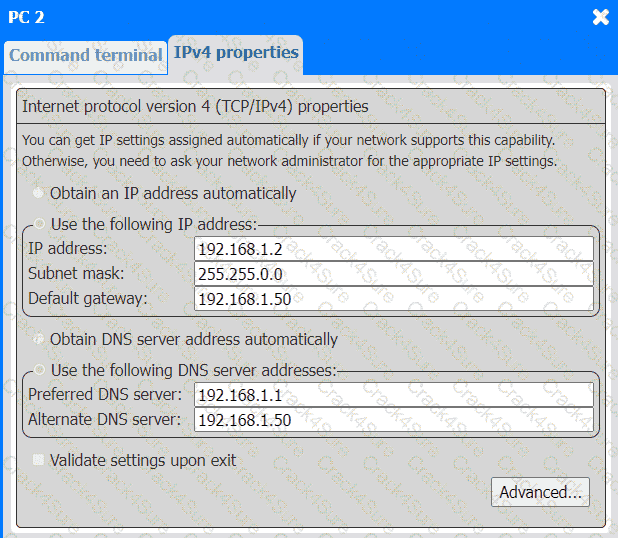

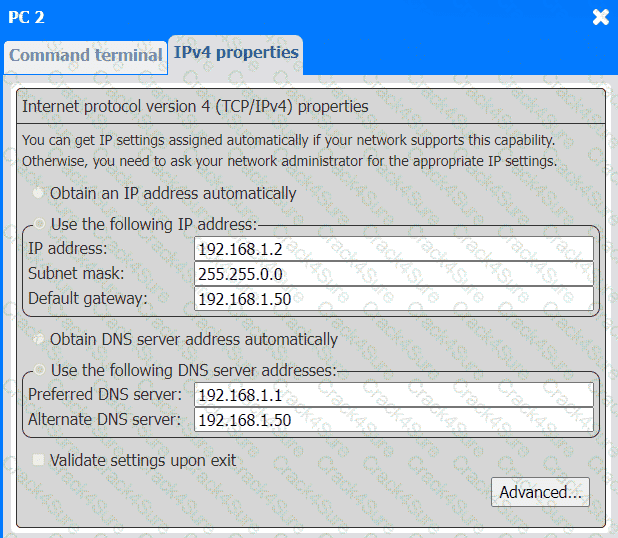

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

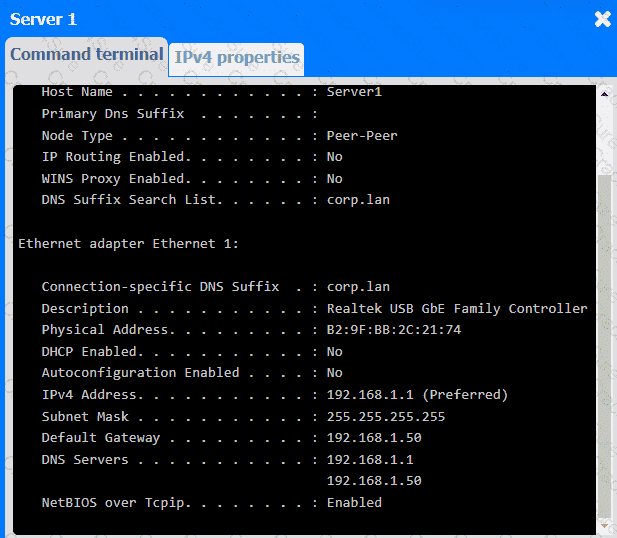

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

A printer with text boxes AI-generated content may be incorrect.

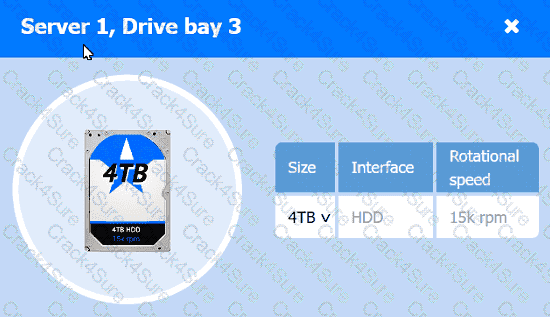

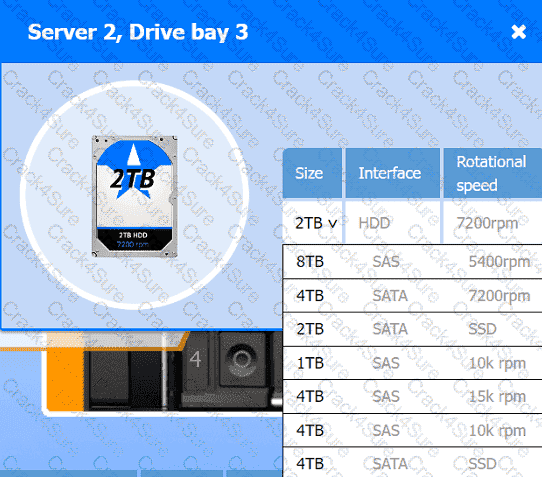

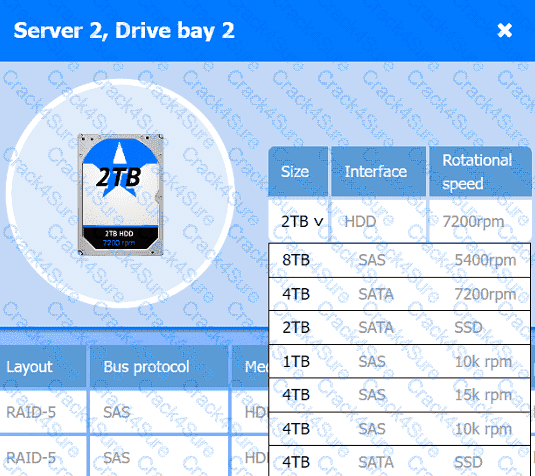

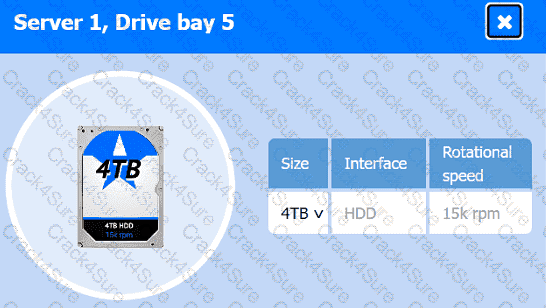

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated
