Practice Free D-ISM-FN-23 Dell Information Storage and Management Foundations 2023 Exam Exam Questions Answers With Explanation

Encryption is the security control mechanism that helps to secure data during replication over a public network to a cloud. By encrypting data, it ensures that even if the data is intercepted during transmission, it cannot be read or tampered with by unauthorized parties. Encryption algorithms transform the data into a secure format that can only be decrypted by authorized users with the correct decryption key, thereby protecting the data's confidentiality and integrity.References:= Dell Information Storage and Management V5 course materials

NVMe (Non-Volatile Memory Express) uses an embedded PCIe (Peripheral Component Interconnect Express) controller to connect hosts to M.2 storage devices. This direct connection allows for high-speed data transfer and low latency, making NVMe suitable for performance-intensive applications.

References:

• Dell EMC Information Storage and Management V5, Module: Storage Technologies

According to 1, a remote data protection and recovery solution is a solution that enables data backup and recovery across geographically dispersed locations. It can be implemented using various technologies such as remote replication, cloud backup, and backup appliances.

One of the key benefits for deploying a remote data protection and recovery solution in a data center environment is that it maximizes application and information availability1. This means that it ensures that critical applications and data are always accessible and recoverable in case of any disaster or disruption. A remote data protection and recovery solution can also provide other benefits such as reducing costs, improving security, and simplifying management.

Amazon S3 (Simple Storage Service) is a cloud-based file sharing protocol that provides file sharing through a REST API interface. S3 allows users to store and retrieve any amount of data at any time, using a simple web interface. It is widely used for cloud storage and integrates seamlessly with various applications and services.References:= Dell Information Storage and Management V5 course materials

Pre-integrated systems are vendor-provided solutions that combine compute, network, storage, and management functions as a single engineered solution. This approach is also known as a converged infrastructure or a hyper-converged infrastructure. The vendor provides pre-configured, pre-tested hardware and software components that work together seamlessly. The pre-integrated system reduces the complexity of building and deploying IT infrastructure, while also improving performance, scalability, and reliability. This approach is different from a DIY (do-it-yourself) approach, where an organization builds its infrastructure from individual components, and a DCaaS (Data Center as a Service) approach, where the organization outsources its entire data center to a third-party provider. Reference: Section 1.7 Converged Infrastructure, page 62.

According to 1, vulnerabilities are weaknesses that can be exploited by attackers to compromise the confidentiality, integrity, or availability of data or systems. Vulnerabilities can exist at various levels of a data center environment, such as applications, operating systems, networks, devices, and physical infrastructure.

One of the ways to manage vulnerabilities in a data center environment is to minimize the attack surfaces and maximize the work factors1. This means that you should reduce the number of entry points and exposure areas that an attacker can exploit (attack surfaces) and increase the amount of effort and resources that an attacker needs to overcome your defenses (work factors). This can be achieved by applying various security measures such as patching, hardening, encryption, authentication, authorization, monitoring, auditing, and testing.

A software-defined data center (SDDC) is an architecture that extends virtualization concepts such as abstraction, pooling, and automation to all of the data center's resources and services. In an SDDC, IT resource components like computing, networking, storage, and security are all virtualized, except for the commodity hardware used to create resource pools. This virtualized environment enables more efficient resource management and scalability.

References:

• Dell EMC Information Storage and Management V5 documentation.
• Dell Certification Overview

Log files in a VM environment record the activities and events that occur within the VM. These logs include information about system operations, user actions, errors, and other significant events. Log files are crucial for troubleshooting because they provide detailed records that help administrators diagnose and resolve issues. They can indicate what processes were running, what errors occurred, and provide a timeline of events leading up to a problem, making them an essential tool for maintaining VM health and performance.

References:

• Dell EMC Information Storage and Management V5 Course, Module 8: Managing the Storage Infrastructure.
• Dell EMC ISM V5 Student Guide, Page 210-211.

Platform as a Service (PaaS) provides a cloud service model that offers middleware, development tools, and database management systems for application development and deployment. PaaS solutions deliver a development and deployment environment in the cloud, with resources that enable users to build and deliver applications. PaaS includes infrastructure (servers, storage, and networking), as well as middleware (development frameworks, database management systems, etc.), which helps developers to create applications without worrying about the underlying infrastructure.References:= Dell Information Storage and Management V5 course materials

A Demilitarized Zone (DMZ) is a physical or logical subnetwork that contains and exposes an organization's external-facing services to an untrusted network, usually the internet. The purpose of a DMZ is to add an additional layer of security to an organization's local area network (LAN). The external-facing resources in the DMZ can be accessed from the internet, but the DMZ provides a barrier that prevents external access to the organization's internal network. This setup ensures secure access to internal assets while enabling internet-based access to selected resources.References: Dell Information Storage and Management V5, Security Mechanisms and Controls,Dell Certification Resource

https://www.mycloudwiki.com/san/fc-san-protocols/

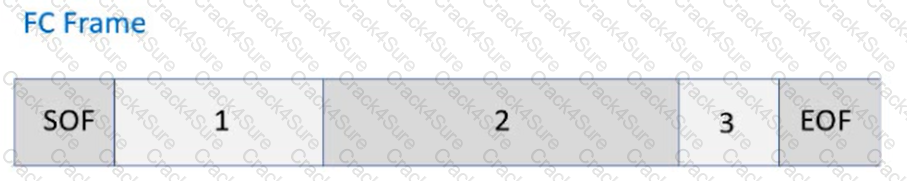

an FC frame consists of five parts: start of frame (SOF), frame header, data field, cyclic redundancy check (CRC), and end of frame (EOF). The SOF and EOF act as delimiters. The frame header is 24 bytes long and contains addressing information for the frame.

In a software-defined networking (SDN) architecture, the control layer is responsible for establishing communication between the infrastructure layer (data plane) and the interface layer (application plane). The control layer abstracts the underlying network infrastructure and provides a centralized management interface to define and enforce network policies, ensuring that the network can be managed and programmed more efficiently.References:= Dell ISMv5 Course Module 10: Networking in Cloud Computing.

A capacity planning report for storage infrastructure provides current and historical information about the utilization of storage, file systems, and ports. This information is crucial for understanding storage consumption patterns, predicting future storage needs, and ensuring that storage resources are efficiently allocated and utilized. It helps in making informed decisions about storage upgrades and expansions.

References:

• Dell Information Storage and Management V5 course materials, section on capacity planning
• Dell EMC documentation on storage capacity planning

The Dell EMC ViPR Controller is a software-defined storage (SDS) platform that abstracts, pools, and automates a data center’s physical storage infrastructure. It provides a unified storage management platform that simplifies storage provisioning, improves utilization, and automates storage workflows. ViPR Controller supports heterogeneous storage environments, making it a versatile solution for modern data centers.References: Dell Information Storage and Management V5, Software-Defined Storage Solutions,Dell Certification Resource

Cache tiering automatically allocates a large capacity secondary cache using Solid State Drives (SSDs) and Storage Class Memory (SCM). This method optimizes storage performance by dynamically assigning frequently accessed data to faster storage tiers, such as SSDs and SCM, while less frequently accessed data remains on slower storage tiers.

References:

• Dell EMC Information Storage and Management V5, Module: Storage Systems

In a full mesh topology, every switch is connected to every other switch, providing multiple paths for redundancy and performance. This setup is ideal for meeting performance requirements and ensuring that there is always a path available even if one link fails, fulfilling the need for redundant ISLs.

References:

• Dell EMC Information Storage and Management V5 course material, Module on Fibre Channel SAN.

In a data archiving environment, the archive agent is responsible for scanning primary storage to identify files that need to be archived. The agent looks for files based on specific criteria such as age, size, and access frequency, then initiates the archiving process by moving or copying the files to the archive storage. This helps in managing storage efficiently by freeing up space on primary storage.References: Dell Information Storage and Management V5 documents, ExamTopics.

Differential backups are more efficient than incremental backups because, instead of backing up only the changes made since the last backup, they back up all of the data that has changed since the last full backup. This means that, unlike incremental backups, the size of the differential backup is not limited and can expand to contain more data than an incremental backup. Additionally, differential backups are faster to restore since they only need to read the differential backup and last full backup, rather than all of the incremental backups.

File-level virtualization is a technique used in data center environments to manage and optimize the use of NAS (Network Attached Storage) systems. By abstracting the file storage location from the clients, it allows for the seamless movement of files across different NAS devices without disrupting user access. This mobility improves the efficiency and flexibility of storage management, enables load balancing, and enhances data availability.References: Dell Information Storage and Management V5, File-level Virtualization,Dell Certification Resource

Asynchronous remote replication is used when data centers are separated by large distances. This method does not impact application response time as much as synchronous replication because the write operations are completed on the source storage systembefore being sent to the remote site. This helps in minimizing the performance impact over long distances like 1600 km.

References:

• Dell EMC Information Storage and Management V5 documentation.
• Dell Certification Overview

In a software-defined networking (SDN) architecture, the infrastructure layer is responsible for data packet forwarding or dropping. This layer includes the physical network devices (such as switches and routers) and the software that controls them. It receives instructions from the control layer, which makes decisions about how traffic should be managed based on policies and network conditions. The infrastructure layer then implements these decisions, forwarding packets to their destinations or dropping them if necessary, ensuring efficient and secure data transmission across the network.

References:

• Dell EMC Information Storage and Management V5 Course, Module 6: Cloud Computing and Virtualization.
• Dell EMC ISM V5 Student Guide, Page 145-146.

A passive attack in IT security involves unauthorized monitoring and gaining access to data without altering it. This type of attack is often used for data gathering and eavesdropping, where the attacker gains access to sensitive information without modifying or disrupting the system’s operations.

References:

• Dell EMC Information Storage and Management V5, Module: Security in Storage

Data replication is a critical function in data center environments as it creates copies of data across different locations. This redundancy ensures that in the event of a hardware failure, natural disaster, or other disruptions, the data remains accessible from the replicated copies. Consequently, data replication is essential for maintaining business continuity, minimizing downtime, and ensuring that critical operations can continue without interruption.References: Dell Information Storage and Management V5 documents.

Solid State Drives (SSDs) use flash memory to provide non-volatile data storage. Flash memory is a type of non-volatile memory that can be electronically erased and reprogrammed. Unlike RAM, flash memory retains data even when the power is turned off, making it ideal for permanent storage in SSDs. The primary types of flash memory used in SSDs are NAND flash, which is cost-effective and has high storage density, and NOR flash, which offers faster read speeds but is more expensive.

References: Dell Information Storage and Management V5 course material -Dell Education

The Management plane of the Software-Defined Data Center (SDDC) architecture provides a graphical user interface (GUI) and command-line interface (CLI) for IT administrators to manageand configure the infrastructure, including storage resources. The management plane is responsible for providing visibility, automation, and orchestration of the SDDC components. It enables IT administrators to monitor and manage the infrastructure, configure policies, and allocate resources as needed. Reference: Section 1.1 Introduction to Software-Defined Data Center (SDDC), page 5.

Cloud-based backup solutions provide flexibility and scalability, allowing organizations to select and adjust their backup technologies based on demand. This means that as data storage needs grow or change, the backup technology can be scaled up or modified without the need for significant capital investment or infrastructure changes. Cloud-based backups also offer features such as offsite data storage, disaster recovery, and accessibility from various locations, making them a versatile and efficient solution for dynamic data protection requirements.

References: Dell Information Storage and Management V5 Course Materials, Backup and Data Protection Solutions Section.

A Brownfield infrastructure building process allows organizations to repurpose existing infrastructure components and provides cost benefits. Brownfield projects involve upgrading or integrating with existing systems and infrastructure rather than starting from scratch (as in Greenfield projects). This approach leverages the existing investments in infrastructure, reduces costs, and minimizes disruption while still achieving modernization and improvements.

References: Dell Information Storage and Management V5 course material -Dell Education

• Storage Class Memory (SCM): SCM is a new class of storage that bridges the gap between traditional volatile memory (DRAM) and non-volatile storage (flash).
• Addressing Level: SCM can be addressed at finer granularity, such as the bit or word level, unlike traditional storage which typically addresses data at the block level.
• Speed and Performance: SCM is faster than traditional flash storage but not as fast as DRAM. It provides a balance of speed and non-volatility which is beneficial for certain applications.

References: Dell ISM V5 Course, Module on Emerging Storage Technologies.

A hypervisor is a layer of software that runs directly on top of a physical server and provides a virtualization layer. It allows multiple virtual machines (VMs) to run on the same physical hardware, sharing the underlying resources such as CPU, memory, and storage. The hypervisor isolates the VMs from each other and provides a virtual machine monitor (VMM) that manages the virtual machines' access to physical resources. The VMM is responsible for managing the VMs' creation, configuration, and removal, as well as their access to the physical resources of the host system. T

Graphical user interface, application Description automatically generated

FC SANs components include network adapters, cables, and interconnecting devices. The interconnecting devices can be FC switches or FC directors, which are more scalable and reliable than FC hubs. The ports on these devices can be FC E_Ports, which connect two switches or directors together to form a fabric, or FC F_Ports, which connect to host or storage devices with FC N_Ports.

FCIP (Fibre Channel over IP) is used to extend Fibre Channel networks over IP networks. It connects local Fibre Channel SANs to remote Fibre Channel SANs, enabling long-distance connectivity and disaster recovery solutions.

References: Dell EMC ISM V5 Module 7, "Storage Network Connectivity," provides details on FCIP and its use cases.

• Total Operational Hours (Monday to Friday): 24 hours/day * 5 days = 120 hours
• Failure Times:
• Total Failure Hours: 1 + 4 + 1 = 6 hours
• Mean Time Between Failures (MTBF):MTBF=Total Operational HoursNumber of Failures=1203=40 hoursMTBF=Number of FailuresTotal Operational Hours?=3120?=40 hours

References: Dell ISM V5 Course, Module on Availability and Performance Management.

The disk service time of a hard disk drive (HDD) is calculated using several factors:

• Seek Time: The time it takes for the read/write head to move to the track where the data is stored.
• Rotational Latency: The time it takes for the platter to rotate and position the correct sector under the read/write head.
• Data Transfer Rate: The speed at which data can be read from or written to the disk once the read/write head is in position.

Together, these factors determine the overall performance and speed of the HDD in accessing and retrieving data.References: Dell Information Storage and Management V5 documents.

A Fibre Channel Storage Area Network (SAN) typically comprises the following components:

• FC HBA (Fibre Channel Host Bus Adapters): These are the network interface cards that connect servers to the SAN.
• Switches: These devices are used to connect multiple HBAs and storage devices in a SAN.
• Fiber optic cables: These cables are used to connect the HBAs, switches, and storage devices, providing high-speed data transfer.

References:

• Dell EMC Information Storage and Management V5 documentation.
• Dell Certification Overview

The Cisco MDS-9132T switch model supports NVMe over Fibre Channel (FC) in a 32Gb/s SAN fabric. NVMe (Non-Volatile Memory Express) is a protocol designed for SSDs to exploit the performance potential of flash technology and provides faster data access compared to traditional SCSI protocols. The MDS-9132T is optimized for modern data centers requiring high-performance storage connectivity.

References:

• Dell EMC Information Storage and Management V5 course material, Module on Fibre Channel SAN.
• Cisco MDS 9000 Series Multilayer Switches data sheet.

• DRAM (Dynamic Random-Access Memory) offers the highest I/O performance due to its extremely low latency and high-speed access capabilities.
• SCM (Storage Class Memory) follows DRAM, providing high performance but with slightly higher latency than DRAM.
• SSDs (Solid State Drives) come next, offering fast access times but slower than SCM and DRAM.
• SATA (Serial ATA) drives are the slowest among these options, as they typically use mechanical components (in the case of HDDs) and have lower data transfer rates compared to SSDs.

References: Dell Information Storage and Management V5 documents Dell Technologies Info Hub?(Dell Technologies Info Hub)

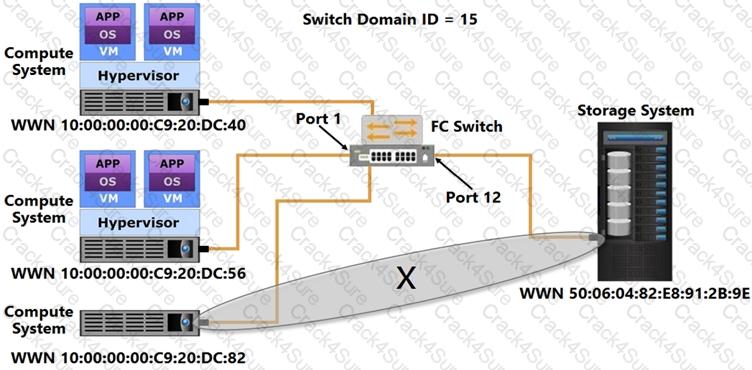

• WWN Zoning: WWN zoning uses the World Wide Name (WWN) of the devices to control access in a SAN environment.
• Diagram Context: The "X" in the diagram represents the connection managed by WWN zoning, ensuring that only authorized devices can communicate through the Fibre Channel switch.

References: Dell ISM V5 Course, Module on Storage Networking and Zoning Techniques.

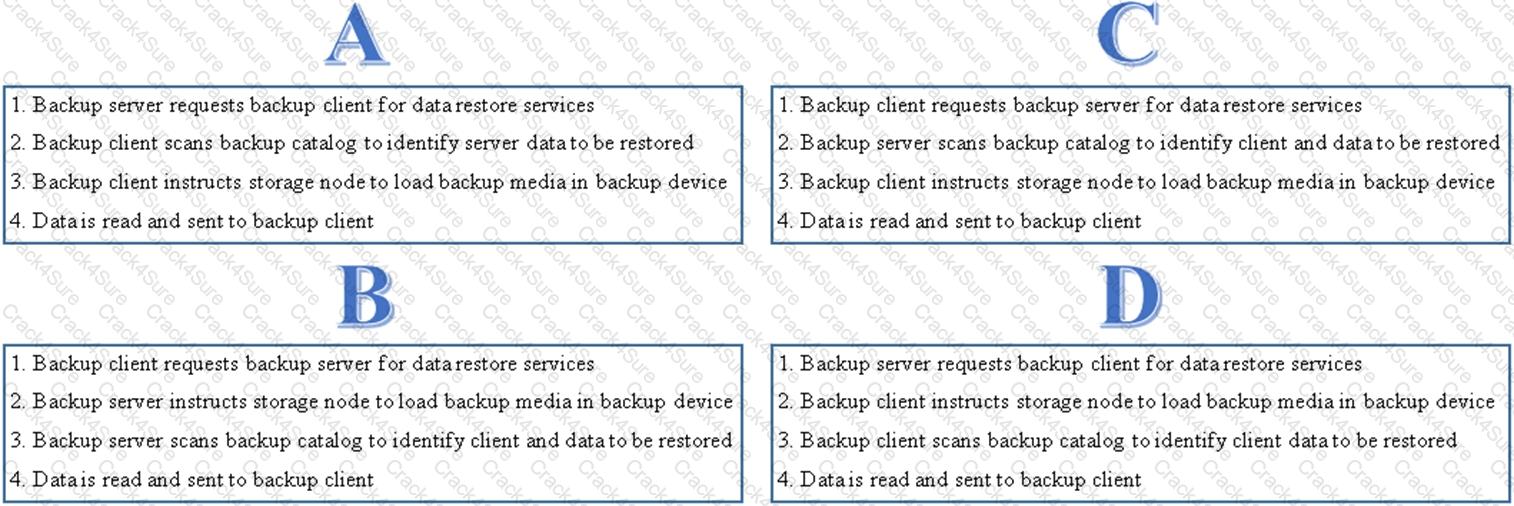

The correct sequence of steps to perform a data recovery operation is as follows:

• Backup client requests backup server for datastore services.
• Backup server instructs storage node to load backup media in the backup device.
• Backup server scans backup catalog to identify the client and data to be restored.
• Data is read and sent to the backup client.This sequence ensures that the appropriate data is identified and restored efficiently.References:

• Dell EMC Information Storage and Management V5, Module on Data Backup and Recovery

The backup server is the component that maintains the catalog containing details about the backups that have occurred. The catalog is a database that stores information about the backup jobs, such as the date, time, and type of backup that occurred, as well as the files that were backed up. The catalog also stores other information, such as the status of the backup jobs, as well as the type of data that was backed up. The backup server is responsible for managing the catalog and ensuring that the details stored in the catalog are accurate.

Gateways are an essential component of an IoT architecture, providing the connection between user devices and the network. Gateways act as a bridge between the device layer and the cloud layer, enabling the remote monitoring and control of user devices. Gateways also provide security features such as data encryption and authentication, which helps protect user data. Additionally, gateways provide additional features, such as data aggregation and protocol conversion, which can help increase the efficiency of the overall IoT architecture.

A Defense-in-depth strategy involves multiple layers of security controls to protect data and IT resources. By having various defense mechanisms, the risk of a security breach is minimized, as compromising one layer does not compromise the entire system. This layered approach significantly reduces the overall risk and impact of potential security threats.

References:

• Dell EMC Information Storage and Management V5, Module: Security in Storage

The purpose of the policy engine in a data archiving environment is to automate the process of moving the appropriate data from primary storage into archive storage. It does this by monitoring data access patterns in primary storage and automatically moving the data that is least accessed into an archive storage device. This process allows for more efficient use of primary storage and also reduces storage costs.

Supervised Learning is a type of machine learning that explicitly requires splitting the data into training and testing datasets before running an algorithm against that data. In supervised learning, the algorithm is trained on a labeled dataset, which means that each training example is paired with an output label. The model learns from this labeled data and makes predictions or decisions based on the input data. The testing dataset, which is separate from the training dataset, is used to evaluate the model's performance and ensure it generalizes well to new, unseen data.

References: Dell Information Storage and Management V5 course material -Dell Education

Dell EMC PowerScale is designed to handle both file and object storage. It provides a scalable and flexible storage solution that can manage unstructured data in various formats.

References: Dell EMC ISM V5 Module 6, "Storage Solutions," includes information on different Dell EMC products and their capabilities.

A Demilitarized Zone (DMZ) is a physical or logical subnetwork that contains and exposes an organization's external-facing services to a larger, untrusted network, typically the Internet. The purpose of a DMZ is to add an additional layer of security to an organization's local area network (LAN); an external attacker only has access to equipment in the DMZ, rather than any other part of the network. This mechanism secures internal assets while allowing Internet-based access to selected resources.

References:

• Dell EMC Information Storage and Management V5 documentation.
• Dell Certification Overview

Scale-out NAS (Network-Attached Storage) systems allow for the horizontal scaling of storage resources by adding more nodes to the storage cluster. Each node contributes additional processing power, storage capacity, and network bandwidth, thereby improving overallperformance and capacity. This architecture provides a flexible and scalable solution to accommodate growing data storage needs.References: Dell Information Storage and Management V5 documents, ExamTopics.

The Transport layer (Layer 4) of the OSI reference model provides logical end-to-end connections, sequencing, and data integrity. This layer is responsible for delivering data across network connections, ensuring that the data is transferred accurately and reliably. It handles error correction, data flow control, and retransmission of lost or corrupted data packets. Examples of protocols operating at this layer include TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).References:= Dell Information Storage and Management V5 course materials

The "variability" characteristic of big data refers to the changing and often unpredictable nature of the data and its context. Variability highlights the need for systems to adapt and understand the context in which the data is used to extract meaningful information. This is crucial for making accurate and timely decisions based on data that can vary greatly in form and meaning depending on the situation.References: Dell Information Storage and Management V5, Big Data Characteristics,Dell Certification Resource
