Practice Free D-XTR-DY-A-24 Dell XtremIO Deploy Achievement Exam Questions Answers With Explanation

RecoverPoint offers data protection and disaster recovery for heterogeneous storage environments. However, when it comes to XtremIO-to-XtremIO replication, RecoverPoint supports homogeneous replication, meaning it can replicate data between XtremIO arrays. This ensures that the advanced data services provided by XtremIO, such as deduplication and compression, are maintained during the replication process1.

Homogeneous Replication: RecoverPoint’s homogeneous replication capability allows for consistent replication between similar storage systems, which is essential for maintaining data efficiency features.

XtremIO Integration: When integrated with XtremIO, RecoverPoint utilizes the storage array’s native capabilities to ensure efficient replication.

Data Services Continuity: By supporting homogeneous replication, RecoverPoint ensures that XtremIO’s data services like deduplication and compression are preserved during replication, optimizing storage utilization and performance1.

Disaster Recovery: This integration allows for robust disaster recovery solutions, ensuring that data is protected and can be recovered in the event of a site failure.

Scalability: While RecoverPoint can scale up with additional RecoverPoint Appliances (RPAs) in other environments, the replication between XtremIO arrays is designed to work within the XtremIO ecosystem1.

When powering up an XtremIO X2 multi X-Brick cluster, both the Disk Array Enclosures (DAEs) and the Storage Controllers will automatically power up once the rack Power Distribution Units (PDUs) are turned on. This process ensures that the essential components for storage and data management are operational immediately, facilitating a seamless startup of the storage environment. The DAEs contain the SSDs for data storage, while the Storage Controllers manage the data operations, ensuring high performance and reliability.

References:

Dell EMC XtremIO X2 documentation explains that upon powering the PDUs, the DAEs and Storage Controllers automatically power up as part of the system's startup process?

When creating a volume on an XtremIO X2-S array, one of the options that can be selected is Tags. Tags are used to organize and manage volumes by assigning descriptive labels, making it easier to group and identify volumes based on specific criteria. References := Dell Deployment Services

The RESTful API method used to retrieve an existing configuration from an XtremIO system is the HTTP GET methD. This is a standard method used in RESTful APIs for retrieving resources. In the context of XtremIO, the GET method would be used to call endpoints that return information about the system’s configuration. For example, a GET request to /api/json/v2/types/clusters would retrieve information about the clusters1. The Official Dell XtremIO Deploy Achievement document will contain specific details on the API calls and should be referred to for the most accurate instructions.

Cable Management: Proper cable management is crucial for maintaining an organized and efficient data center environment.

Rack Units: For an XtremIO X2-R four X-Brick cluster, it is recommended to allocate 6U for the cable management ducts.

Space Allocation: This ensures that there is enough space to manage and organize cables without causing congestion or interfering with airflow.

References:

Dell XtremIO Hardware Installation Guide

Dell XtremIO Rack and Cable Management Documentation

XtremIO management can be performed through the XtremIO Management Server (XMS). The virtual XMS is a scalable solution that can manage multiple X-Brick clusters, specifically up to four. This allows for centralized management of the storage infrastructure, providing flexibility and efficiency. The capability of managing up to four clusters with a virtual XMS makes it a versatile tool for handling large storage environments.

References:

Dell XtremIO Deployment and Learning Course Materials

XtremIO Management and Configuration Guide

1.

The largest size supported for each volume in a new XtremIO X2-S single X-Brick cluster, as per the Official Dell XtremIO Deploy Achievement documents, is 64 TB. This information is verified through the official documentation which outlines the capabilities and specifications of the XtremIO X2 systems. The documents provide a detailed description of the critical components, features, and implementation solutions in customer environments, which includes the storage capacity specifications for XtremIO systems1.

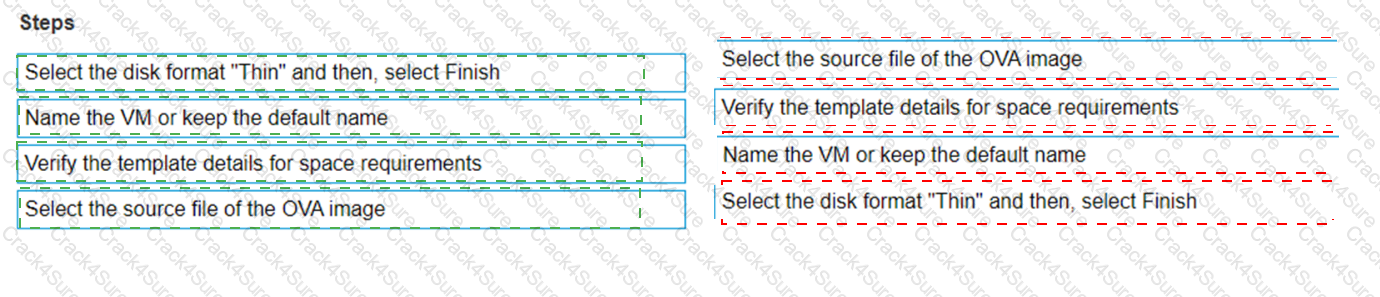

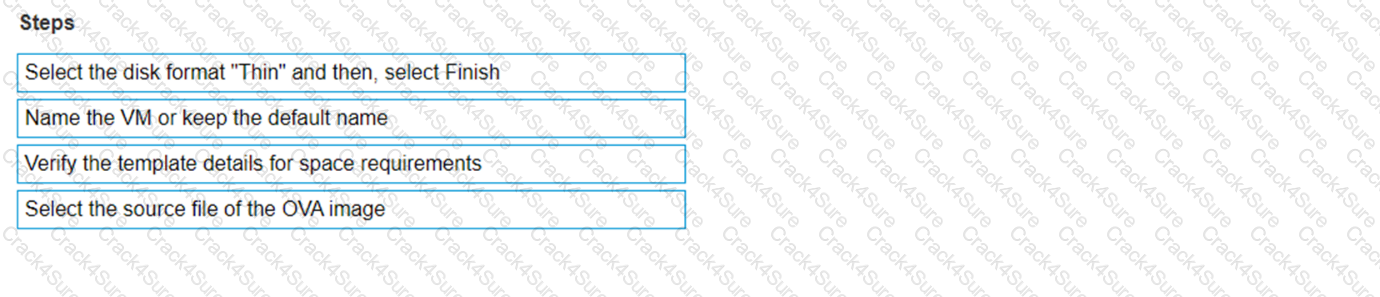

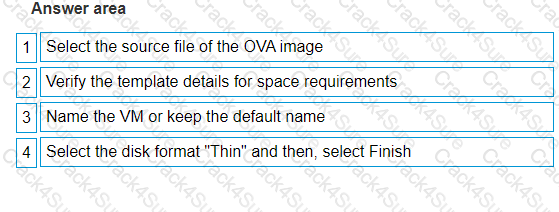

The documented sequence of steps to deploy an XMS OVF template includes:

Select the source file of the OVA image.

Verify the template details for space requirements.

Name the VM or keep the default name.

Select the disk format “Thin” and then, select Finish.

Select the Source File: Begin by selecting the source file of the OVA image, which is the package containing all files for the VM1.

Verify Template Details: Check the template details to ensure there is enough space on the datastore for the VM1.

Name the VM: Assign a unique name to the VM or retain the default name provided in the OVA template1.

Select Disk Format: Choose the “Thin” disk format to save storage space, as it allocates space as needed rather than upfront1.

Complete the Deployment: Finalize the deployment process by selecting ‘Finish’, which will deploy the VM to your environment1.

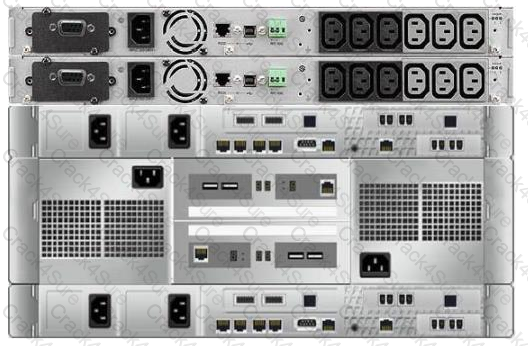

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.

Understanding Execution Throttle: The Execution Throttle setting controls the maximum number of concurrent I/O operations that can be sent from a host to a storage array. This setting is crucial for optimizing performance and preventing overloading of the storage array.

QLogic Fibre Channel HBAs: QLogic Host Bus Adapters (HBAs) are used for connecting servers to Fibre Channel storage networks. The recommended settings for these HBAs can significantly impact the performance and reliability of the storage network.

Best Practices for XtremIO and VMware:

According to best practices for connecting VMware clusters to XtremIO arrays, especially when using QLogic Fibre Channel HBAs, the Execution Throttle value is set to optimize performance.

The recommended value for the Execution Throttle setting for QLogic HBAs in a VMware environment connected to an XtremIO array is 65535. This value helps ensure that the host can handle a high number of I/O operations efficiently without overwhelming the storage array.

References:

Dell XtremIO Best Practices Guide for VMware

QLogic HBA Configuration and Performance Tuning Guides

Dell XtremIO Deployment Services

VMware and XtremIO Integration Documentation.

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

To align the partitions on XtremIO volumes after an upgrade from Windows Server 2003 to Windows Server 2008, the following steps should be taken:

Backup the Data: First, ensure that all data on the existing misaligned partitions is backed up to a secure location to prevent any data loss.

Run Diskpart: Use the Diskpart utility, which is a command-line tool in Windows, to delete the existing partitions and create new aligned partitions. Diskpart allows for more control over the alignment process compared to graphical tools.

Recreate the Partition: After deleting the misaligned partitions, create new partitions using Diskpart with the correct alignment settings as per the XtremIO best practices.

Restore the Data: Once the new partitions are created and properly aligned, restore the data from the backup to the newly aligned partitions.

This process ensures that the partitions are aligned correctly, which can significantly improve performance due to more efficient disk access patterns1. It’s important to follow the detailed procedures outlined in the official Dell XtremIO Deploy Achievement documentation to ensure proper alignment and to avoid any potential issues during the process.
