The subnet address for 10.57.126.156/29 is 10.57.126.152. To find the subnet address, we need to perform a bitwise AND operation between the IP address and the subnet mask. The subnet mask for /29 is 255.255.255.248, which in binary is 11111111.11111111.11111111.11111000. The IP address in binary is 00001010.00111001.01111110.10011100. The result of the AND operation is 00001010.00111001.01111110.10011000, which in decimal is10.57.126.152. References: Ericsson IP Networking - IP Addressing, Software Installation and Upgrade Overview (Junos OS)

Two protocols that apply to both IPv4 and IPv6 are:

• SNMP: This stands for Simple Network Management Protocol, which is a protocol that allows network administrators to monitor and manage network devices such as routers, switches, servers, printers, etc. SNMP uses a client-server model, where an SNMP manager (client) can query or configure an SNMP agent (server) on a network device using SNMP messages. SNMP can operate over both IPv4 and IPv6 networks56.
• DNS: This stands for Domain Name System, which is a protocol that translates human-readable domain names (such as www.example.com) into numerical IPaddresses (such as 192.0.2.1 or 2001:db8::1) that identify network devices. DNS uses a hierarchical distributed database of name servers that store and resolve domain names and IP addresses. DNS can support both IPv4 and IPv6 addresses78.

References: Simple Network Management Protocol - Wikipedia, SNMP over IPv6 - Cisco, Domain Name System - Wikipedia, DNS for IPv6 - Cisco

An LDP implicit null label causes penultimate hop popping by a downstream router. LDP is a protocol that distributes labels for MPLS forwarding along the shortest path calculated by an IGP. An implicit null label is a special label value of 3 that indicates that the downstream router does not need a label to forward the packet to its destination. When an upstream router receives an implicit null label from a downstream router, it removes (or pops) the label from the packet before sending it to the downstream router. This process is called penultimate hop popping (PHP) and it reduces the load on the downstream router, which can forward the packet based on its IP header or another label in the stack59.

References: MPLS Label Distribution Protocol Commands - Cisco, Solved: Implicit null and Explicit null - Cisco Community

A BGP session is established between two routers by sending a unicast OPEN message. BGP uses TCP as its transport protocol, which means that before exchanging any BGP information, a TCP connection must be established between the routers. The TCP connection uses port 179 as both source and destination port. After establishing a TCP connection, each router sends an OPEN message to its neighbor, containing parameters such as BGP version number, AS number, hold time, BGP identifier, and optional capabilities. The OPEN message also serves as a keepalive message for BGP. If both routers agree on these parameters, they proceed to exchange UPDATE messages containing routing information and establish a BGP session.

A BGP router does not send a NOTIFICATION message to establish a session, but rather to terminate a session due to an error or a manual shutdown. A BGP router does not send a CONNECT message, as this is a TCP state, not a BGP message. A BGP router does not send a multicast HELLO packet, as this is an OSPF message, not a BGP message. References: BGP Neighbor States > BGP Fundamentals | Cisco Press, Demystifying BGP Session Establishments - Packet Pushers, The TCP/IP Guide - BGP Connection Establishment: Open Messages

A label-edged router (LER) is a PE router. A PE router is a provider edge router, which is a router that connects an MPLS network to a customer network. A LER is a term used in MPLS to describe a router that resides at the ingress and egress points of an MPLS network, handling both labelled and unlabelled packets. A LER performs label operations such as adding, removing, or swapping labels on packets entering or leaving the MPLS network34.

References: What is Label Edge Router (LER)? - Definition from Techopedia, LER - Label Edge Router - Mpirical

The command that is used to begin making changes to the router settings in an Ericsson Router 6000 is configure. This command enters the configuration mode, where various commands can be used to modify the router parameters, such as interfaces, protocols, services, security, etc. To exit the configuration mode, the command end can be used. To save the changes made in the configuration mode, the command commit can be used56.

References: Router 6000 Series - Ericsson, Ericsson Router 6000 series (6471/6672/6675) Commands for 2G/3G/4G/5G technologies… - YouTube

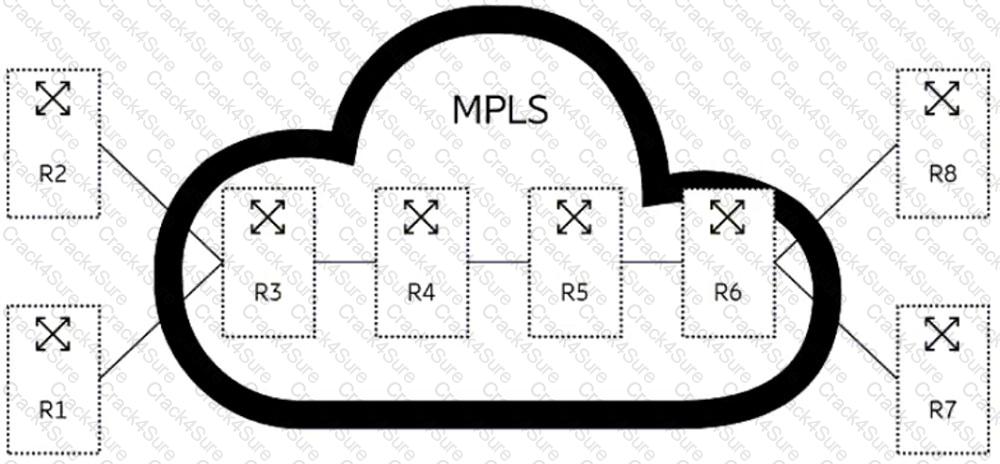

In the exhibit, router R4 is performing a swap action. This means that router R4 is replacing the incoming label with a new label and forwarding the packet to the next hop along the LSP. In this case, router R4 receives a packet with label 20 from router R3 and swaps it with label 30 before sending it to router R5.

The exhibit shows an example of an MPLS network with four routers: R1, R2, R3, and R4. Router R1 is the ingress PE router and router R4 is the egress PE router. Router R2 and R3 are P routers. Router R1 assigns label 10 to the packet and sends it to router R2. Router R2 swaps label 10 with label 20 and sends it to router R3. Router R3 swaps label 20 with label 30 and sends it to router R4. Router R4 removes label 30 from the packet and forwards it based on its IP header or another label in the stack.

Therefore, the answer is D.

References: MPLS Label Switching | MPLS Operation | Push, Swap,Push ? IPCisco, A Complete Guide to Multiprotocol Label Switching (MPLS) - G2, Multiprotocol Label Switching - Wikipedia

 IPv6 link-local addresses are designed to be used in three situations: for neighbor discovery, for local IP communication on the IPv6 capable routers, and for addressing on a single link for purposes such as auto-address configuration. Neighbor discovery is a protocol that allows IPv6 nodes to discover each other and learn their link-layer addresses on a local network. Neighbor discovery uses link-local addresses to send and receive messages such as router advertisements, router solicitations, neighbor advertisements, and neighbor solicitations34. Local IP communication on the IPv6 capable routers refers to the ability of routers to exchange routing information or management traffic using their link-local addresses as source and destination addresses. This reduces the need for global unicast addresses on router interfaces that are not reachable from outside the local network35. Addressing on a single link for purposes such as auto-address configuration refers to the use of link-local addresses to enable IPv6 nodes to obtain an address without manual configuration or a DHCP server. Link-local addresses can be automatically derived from the interface identifier in the modified EUI-64 format or randomly generated. Link-local addresses can also be used to test the connectivity of a link before obtaining a global unicast address36.

References: Understand the IPv6 Link-Local Address - Cisco, Link Local Address - GeeksforGeeks, IPv6 Address Types | Link-Local, Global Unicast, etc.? IPCisco, MPLS Label Distribution Protocol Commands - Cisco

Priority queuing (PQ) is a queuing method that establishes four interface output queues that serve different priority levels: high, medium, normal, and low. Traffic in the highest priority queue will experience the least amount of jitter and delay compared to traffic in the other queues, because PQ always services the higher-priority queues first. However, this can also cause traffic in lower priority queues to be starved of bandwidth, especially if the highest priority queue is oversubscribed. Traffic in the highest priority queue is not only reserved for voice traffic, but can also include network control and routing traffic. Traffic in all queues are not always guaranteed a minimum bandwidth, because PQ does not provide any bandwidth reservation mechanism. References: Quality of Service (QoS) Queues and Queuing Explained, Chapter: Configuring Priority Queueing - Cisco

The correct abbreviation for the IP address BFEA:DACA:0000:0000:9390:0000:0000:D91 is BFEA:DACA::9390:0:D91. IPv6 addresses are represented in hexadecimal notation, with eight 16-bit segments separated by colons. To simplify the address representation, IPv6 supports two types of abbreviations. The first abbreviation allows us to skip leading zeros within a segment, while the second abbreviation allows us to drop one or more consecutive segments that contain only zeros, using a double colon (::) instead. However, the double colon can be used only once in an address, to avoid ambiguity34.

References: IPv6 Address Types, Notation, and Structure Explained, IPv6 address - Wikipedia

In the exhibit, the action performed by router R3 for traffic arriving from router R2 towards router R4 is PHP, which stands for penultimate hop popping. PHP is a process in which the penultimate hop router (the router before the egress router) removes the top label from an MPLS packet before forwarding it to the egress router. This reduces the label stack depth of the packet and relieves the egress router from performing a label lookup operation. In the exhibit, router R3 is the penultimate hop for traffic arriving from router R2 towards router R4. Router R3 will perform a PHP operation, removing the top label from the incoming packet before forwarding it to router R478.

References: PHP Tutorial - W3Schools, PHP: Downloads

The code that is commonly used to assign higher priority to VoIP traffic is EF, which stands for Expedited Forwarding. EF is a per-hop behavior (PHB) defined by the Differentiated Services (DiffServ) model for QoS. EF provides low delay, low jitter, and low loss for real-time applications such as VoIP. EF is marked by setting the DSCP value to 101110, which corresponds to decimal 4678. AF31, which stands for Assured Forwarding class 3 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF. AF31 is marked by setting the DSCP value to 011010, which corresponds to decimal 2678. DF, which stands for Default Forwarding, is a PHB defined by DiffServ that provides best-effort service for unmarked traffic. DF is marked by setting the DSCP value to 000000, which corresponds to decimal 078. AF11, which stands for Assured Forwarding class 1 low drop probability, is another PHB defined by DiffServ, but it provides lower priority than EF and AF31. AF11 is marked by setting the DSCP value to 001010, which corresponds to decimal 1078.

References: Differentiated services - Wikipedia, Solved: Cisco VoIP Phone traffic marking - Cisco Community

The protocol that would be used to bundle multiple Ethernet ports into a virtual link with an aggregated bandwidth is LACP, which stands for Link Aggregation Control Protocol. LACP is a protocol that allows two or more devices to negotiate the formation of a link aggregation group (LAG), also known as an EtherChannel or a port channel. A LAG combines multiple physical links into one logical link that provides increased bandwidth, load balancing, and redundancy. LACP is defined in IEEE 802.3ad and 802.1AX standards12.
