Practice Free F5CAB1 BIG-IP Administration Install, Initial Configuration, and Upgrade Exam Questions Answers With Explanation

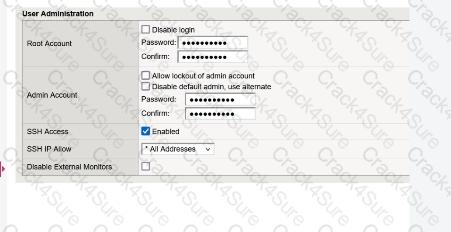

The screenshot shown is from the User Administration section of the BIG-IP GUI.

This section controls:

Root and Admin passwords

SSH Access

SSH IP Allow settings

However, it does not contain any controls for restricting access to the WebUI (TMUI) .

BIG-IP does not provide TMUI access restrictions from this part of the GUI.

Access to the web-based Configuration Utility is controlled by the httpd allow list , configured through TMSH:

tmsh modify /sys httpd allow { < IP/subnet > }

This setting is not displayed in the User Administration panel, and in many BIG-IP versions, the httpd allow list is only configurable from the CLI , not the GUI.

Therefore, the administrator cannot find the setting in the screen shown because:

TMUI access restriction is not located in this GUI section

It must be configured using tmsh under /sys httpd allow

This is why Option A is correct.

BIG-IP hardware platforms use chassis LEDs to indicate system health states.

A solid yellow status LED typically indicates a warning condition , such as:

A non-critical hardware alert

A temperature threshold nearing limit

A minor fan or sensor irregularity

Other non-fatal environmental or system conditions

This state reflects a warning-level alarm , meaning the unit is operational but requires investigation.

Why the other options are incorrect

A. Halted or EUD mode

This is associated with different LED patterns (usually flashing conditions or specific color codes), not a solid yellow status LED.

B. Standby in device group

HA state is not indicated by the chassis status LED.

Standby status is a logical device state, not a hardware LED state.

D. Power supply failure

Power supply indicators use separate LEDs located on each power module (usually flashing amber/red), not the system status LED.

Thus, a solid yellow status indicator signifies a warning-level alarm .

BIG-IP licensing information, including the Service Check Date , is stored in the file:

/config/bigip.license

This file contains all license attributes downloaded from the F5 licensing server, including:

License key

Licensed modules

Useful life date

Service check date

The Service Check Date determines whether the system is eligible for upgrades to specific TMOS versions. When reviewing upgrade readiness, administrators extract this value directly from the license file with:

grep " Service check date " /config/bigip.license

Why the other options are incorrect:

/config/bigip.conf stores BIG-IP configuration objects, not license metadata.

/config/svc_chk_date.dat is not a valid file in the licensing system; it does not contain license parameters.

/config/BigDB.dat stores internal database values, not licensing attributes.

Thus, only the bigip.license file contains the correct licensing information required for verifying upgrade eligibility.

In BIG-IP, software images are installed on boot volumes (for example, HD1.1, HD1.2, HD1.3, etc.).

To install software on a new volume , the administrator must instruct the system to create a new boot location before installation.

There are two correct ways to create a new volume:

A. tmsh command (with correct syntax)

tmsh install software image /shared/images/BIGIP- < version > .iso volume HD1.5 create-volume

This syntax correctly includes:

install software image

full path to ISO (/shared/images/...)

volume name (HD1.5)

create-volume keyword

This instructs BIG-IP to create the new boot volume as part of the installation.

C. Using the GUI ? System > Disk Management

From the Disk Management menu, the administrator can:

Select “New Volume”

Enter the volume identifier (e.g., HD1.5)

Apply changes

This GUI method is officially supported and explicitly creates a new boot volume before installing the software.

Why the other options are incorrect:

B. Incorrect tmsh syntax

Missing /shared/images/ path

Incorrect command structure

D. Incorrect command structure

Missing required keywords and correct command hierarchy

E. Software Management ? Install does NOT create volumes

This installs to an existing volume only

The GUI install dialog does not create new boot volumes

Thus, only Option A and Option C properly create a new software volume.

When installing a software upgrade with a HotFix on BIG-IP, the correct workflow requires:

Install the base TMOS image on an unused boot volume

Install the corresponding HotFix onto that same boot volume

Activate the updated boot volume to boot into the new software

This method ensures:

The existing active system (HD1.1) is untouched

The upgrade occurs in a new, clean volume (HD1.2)

The HotFix applies properly to the same base image

The administrator can revert to HD1.1 if issues occur

Option C matches the correct F5 upgrade sequence:

1. Install base image on HD1.2

2. Install HotFix on HD1.2

3. Activate HD1.2

Why the other options are incorrect:

A. Install HotFix before base image

HotFixes must be applied after the base image; not valid.

B. Installing a HotFix on the active boot location (HD1.1)

Not recommended and does not use a clean new volume.

Also does not involve installing the base image.

D. Activating HD1.2 before installing anything

Cannot activate an empty or invalid boot volume.

Thus, Option C is the correct sequence.

When upgrading to a newer TMOS software version, BIG-IP validates whether the current license is permitted to run that version.

This is controlled by the Service Check Date in the device’s license file.

If the Service Check Date is older than the minimum required for the target version:

The system boots into the new volume ,

But fails to load the configuration ,

And will instead present messages indicating that the configuration cannot be applied due to an invalid or outdated license .

This is a well-known behavior:

An outdated license, not reactivated before upgrade, causes configuration load failure after reboot into the new software.

Why the other options are incorrect:

A. Performed on the standby unit

Upgrading a standby unit does not cause configuration load failure.

Standby-only upgrades are standard best practice.

C. Two reboots required

BIG-IP does not require two reboots during an upgrade.

One reboot into the new volume is sufficient.

D. DNS connectivity failure

DNS connectivity does not affect configuration loading.

DNS is only needed for automatic license activation, not for applying config at boot.

Thus, the configuration failed to load because the license was not reactivated before the upgrade , making Option B correct.

Self-IPs implement a security feature known as Port Lockdown , which limits which services are reachable on a Self-IP.

However, certain services required for BIG-IP device-to-device communication bypass Port Lockdown to ensure cluster and HA functionality.

TCP 4353

TCP port 4353 is used by Device Service Clustering (DSC) for:

Device trust establishment

Configuration synchronization

Failover communication

Because BIG-IP devices must always be able to communicate for HA functions to remain operational, port 4353 is exempt from Port Lockdown rules .

Why the other options are incorrect

A. TCP 443

Not required for device trust or synchronization.

HTTPS access is fully controlled by Port Lockdown.

C. UDP 53

DNS traffic is not required for synchronization and has no exemption under Port Lockdown.

A newly deployed BIG-IP Virtual Edition (VE) in VMware requires initial configuration of its management-ip address so it can be accessed over the network. F5 provides several valid mechanisms during initial console access:

A. Running the config utility

The config script is available on new BIG-IP installations and VE deployments.

It launches a guided text-based wizard allowing configuration of:

Management IP

Netmask

Default route

This is a standard and recommended method during first-time setup.

B. Using TMSH with create sys management-ip

Administrators can enter TMSH directly from the console and run:

create sys management-ip < ip > / < mask >

The management-ip object resides under sys , not under ltm or any other module.

This is the correct tmsh method for defining the management interface address.

Why the other options are incorrect:

C. create ltm management-ip

There is no such object under /ltm.

LTM handles traffic objects (virtual servers, pools), not system management interfaces.

D. Running the setup command

The setup command is used for general system configuration but does not configure the management-ip .

It is not the supported method for initial management IP assignment on VE deployments.

Therefore, the valid methods are running the config utility and using the sys management-ip command within TMSH.

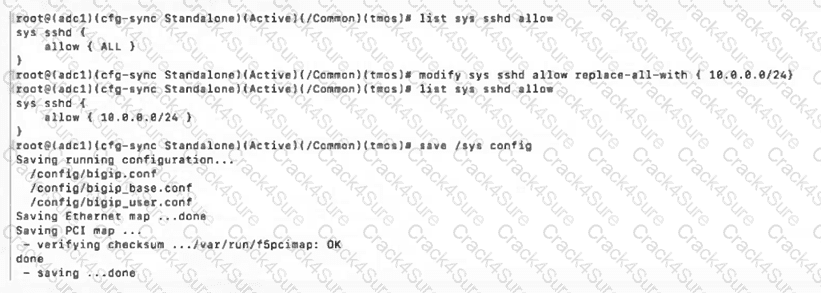

From the exhibit, the administrator performs the following actions:

Displays the current SSH allow configuration:

tmsh list sys sshd allow

allow { ALL }

Replaces the existing SSH allow list with a specific subnet:

tmsh modify sys sshd allow replace-all-with { 10.0.0.0/24 }

Confirms the updated configuration:

tmsh list sys sshd allow

allow { 10.0.0.0/24 }

This configuration restricts SSH access to only hosts that fall within the 10.0.0.0/24 network.

Evaluation of the options

A. 10.0.0.100

This address is within the 10.0.0.0/24 subnet and is a valid host address, so SSH access is permitted.

B. 10.0.0.254

This address is also within the 10.0.0.0/24 subnet and is a valid host address, so SSH access is permitted.

C. 10.0.0.256

This is not a valid IP address because an IPv4 octet cannot exceed 255.

D. 100.0.1.10

This address is outside the configured 10.0.0.0/24 subnet and will not be allowed.

E. 100.0.0.10

This address is also outside the configured subnet and will not be allowed.
