Practice Free F5CAB2 BIG-IP Administration Data Plane Concepts (F5CAB2) exam Exam Questions Answers With Explanation

The BIG-IP processing flow follows a specific sequence of events as a packet moves through the system.

TCP Handshake: Before any application-layer data (like HTTP) can be processed, a TCP connection must be established.

The First Event: The very first event triggered when a client completes the 3-way handshake with the virtual server is CLIENT_ACCEPTED .

Profile Influence: Even if an HTTP profile is attached, the system must first " accept " the connection at the protocol level. HTTP_REQUEST only triggers after the client sends data that the BIG-IP recognizes as a valid HTTP request. If a client connects but never sends a request, CLIENT_ACCEPTED will have fired, but HTTP_REQUEST will not.

When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.

iRule Properties: Within the BIG-IP Configuration Utility, navigating to Local Traffic > iRules and selecting a specific iRule provides a " Statistics " or " Usage " tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.

Centralized Management: Instead of manually checking 235 individual Virtual Servers under the " Virtual Servers " menu, the iRules menu acts as a central point of reference for that specific logic.

Data Plane Impact: Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.

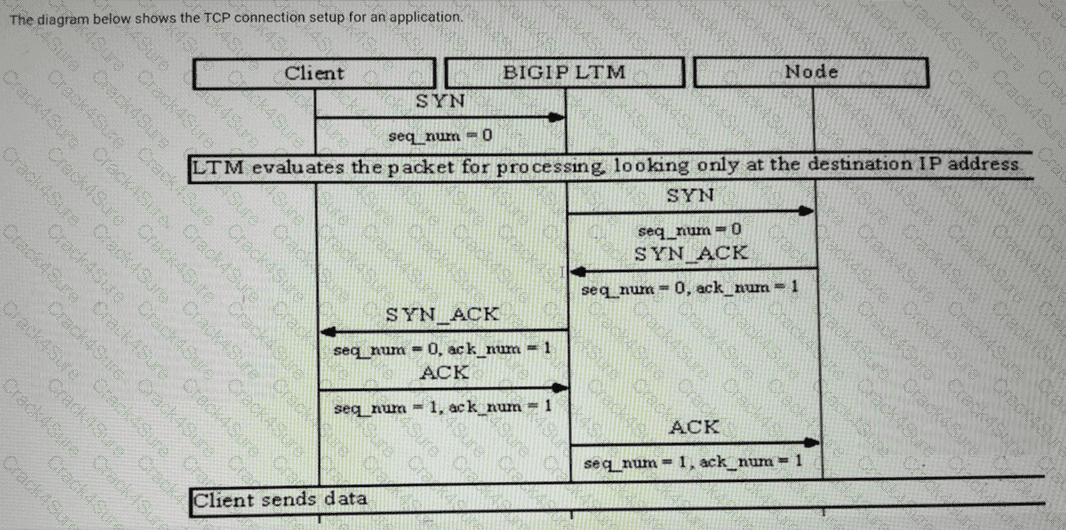

The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:

Initial Packet Processing : The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address . This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system ' s routing table to make forwarding decisions instead of load balancing to a pool of members.

Handshake Sequence : Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client ' s original SYN packet directly to the destination node.

Response Timing : The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially " passes through " the handshake signals while still maintaining a state entry in the connection table to track the flow.

Packet-by-Packet Logic : While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.

Why other options are incorrect:

Standard virtual server : A Standard virtual server is a " full proxy. " It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.

Stateless virtual server : A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.

BIG-IP uses a virtual server matching and precedence algorithm to determine which virtual server processes an incoming connection. This decision is made entirely in the data plane and is based on how specifically a virtual server matches the destination IP address and port.

BIG-IP Virtual Server Selection Rules (Simplified):

When multiple virtual servers could match a packet, BIG-IP selects the most specific match , using the following precedence:

Exact IP address and exact port

Exact IP address with wildcard port (port 0 / any)

Wildcard IP address with exact port

Wildcard IP address and wildcard port

Applying the Rules to This Scenario:

Incoming traffic destination: 1.0.0.10:8080

Option C: 1.0.0.10:8080

Exact IP match

Exact port match

Highest possible specificity

If the virtual server is available (green), it wins the match

Option B: 1.0.0.10:any

Exact IP match, but wildcard port

Lower priority than an exact IP + exact port match

Option D: 0.0.0.0:8080

Wildcard IP, exact port

Lower priority than an exact IP match

Option A: 0.0.0.0:any

Wildcard IP and wildcard port

Lowest priority, used only if no more specific virtual server exists

Final Determination:

Because a virtual server configured with destination 1.0.0.10:8080 exactly matches both the IP address and port of the incoming connection—and is available—it will always be selected to process the traffic.

Key Data Plane Concept Reinforced:

BIG-IP always processes traffic using the most specific matching virtual server . Exact destination IP and port matches take precedence over any wildcard or forwarding virtual server definitions.

===========

The F5 BIG-IP upgrade process for HA pairs requires a specific " staggered " approach to maintain uptime.

Version Mismatch: When one unit is upgraded to a newer version of TMOS (e.g., from 15.1 to 16.1), it enters a 26 " Version Mismatch " 27 state with its peer.

Configuration Sync: Because the configuration schemas between different versions are often incompatible, ConfigSync should not be performed . Attempting to sync a newer configuration to an older system (or vice-versa) can cause configuration corruption or system instability.

Failover Capability: Generally, a pair with a version mismatch can still fail over to ensure traffic continuity during the upgrade window, but administrative changes and syncs must be paused until both units are on the same version.

12

In the BIG-IP system, pool selection must occur on the client-side of the connection, before the system attempts to connect to a pool 3 member. The events listed 4 are the primary entry points for making these decisions:

CLIENT_ACCEPTED (E): This is a Layer 4 event triggered when the BIG-IP accepts a TCP connection. It is the earliest point where a pool can be assigned based on the client ' s source IP address or the destination port.

CLIENT_DATA (A): This event is triggered when the system receives a " chunk " of data on the client-side. It is often used for non-HTTP protocols (like custom TCP protocols) to inspect the payload and select a pool based on its contents.

HTTP_REQUEST (C): This is a Layer 7 event. It occurs once the BIG-IP has fully parsed the HTTP headers. This is the most common event for pool selection, allowing the administrator to route traffic based on the URI, Host header, or cookies.

Events like SERVER_SELECTED or SERVER_CONNECTED occur after the load balancing decision has already been made, and HTTP_RESPONSE or SERVER_DATA occur after the server has already started communicating back, making them too late for initial pool selection.

In a High Availability (HA) environment, a failover event occurs when the active BIG-IP system stops processing traffic and the standby unit takes over. This transition can cause a brief disruption in network traffic because the surrounding switches need to update their ARP tables to associate the Virtual IP (VIP) and floating Self-IPs with the MAC address of the new active unit.

MAC Masquerade Functionality: To minimize this impact, an administrator can configure MAC masquerading . This feature allows the administrator to assign a unique, " shared " MAC address to a traffic group.

Seamless Transition: When a failover occurs, the new active unit begins using this shared MAC address immediately. Since the MAC address for the traffic group remains the same regardless of which physical device is active, the upstream switches do not need to update their ARP tables or learn a new MAC-to-port mapping.

Packet Loss Reduction: By maintaining a constant MAC address, MAC masquerading significantly reduces the time it takes for traffic to resume, effectively eliminating the " gratuitous ARP " dependency and minimizing packet loss during the handover.

Why other options are incorrect:

External monitors: These are used for advanced health checking of pool members and do not directly impact the speed or smoothness of a device-level failover.

OneConnect profile: This is a performance optimization tool that aggregates multiple client-side requests into a single server-side TCP connection; it is not a failover mechanism.

Clone pool: This is used to replicate traffic for IDS or monitoring purposes and has no role in high availability or failover optimization.

Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts/Course Guide/topics:

BIG-IP evaluates a new connection against eligible virtual servers using increasingly specific traffic-matching criteria. F5 ' s certification material states that, for BIG-IP 11.3 and later, virtual-server precedence considers destination address first, source address second, and service port third , with the most specific applicable listener taking precedence. F5, Inc.

Option B initially appears attractive because it specifies the exact destination 10.16.2.100:445. However, its source 192.168.5.1/32 restricts that virtual server to traffic originating from that single source. The actual packet originates from 10.10.1.1 , so B is not an eligible match. F5 explicitly documents that the source address setting can restrict a virtual server to packets originating from a defined address or range.

Option C is eliminated because its destination is 10.120.6.10, not 10.16.2.100. Option D is the broad catch-all forwarding virtual (0.0.0.0:any, protocol any). Option A , however, is an applicable TCP forwarding virtual for the requested traffic and is preferred over the generic catch-all forwarding listener.

Study Guide References/Topics: Virtual Server Order of Precedence; Source Address Matching; Forwarding (IP) Virtual Servers; FastL4 Processing; Virtual Server Traffic Matching.

4647

Virtual Servers have a setting called VLAN and Tunnel Traffic which defines where the BIG-IP " listens " for new connections. 4849

Ingress Logic: A virtual server is an entry point. It must be enab 50 led on the VLAN where the Client resides. If a client is on the " 51 Internal " VLAN, the Virtual Server must be enabled there to receive the traffic.

Egress Logic: The BIG-IP system uses the TMM Routing Table and Self-IPs to reach pool members. It does not need the Virtual Server to be " enabled " on the destination VLAN (External) to send traffic there.

Default Behavior: By default, Virtual Servers are enabled on " All VLANs. " However, if restricted for security, the administrator must ensure the Virtual Server is active on the client-facing (ingress) VLAN.

The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:

The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4 . In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.

The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use). A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.

It is not a Forwarding IP virtual server: A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.

Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C) .

The behavior of a health monitor is determined by its Send String and Receive String .

Default HTTP Monitor: The pre-configured default HTTP monitor on a BIG-IP system has an empty Receive String .

Success Criteria: When the Receive String is blank, the BIG-IP system considers the health check successful if it receives any valid HTTP response from the server.

Status Code Interpretation: Because a 404 Not Found is a valid HTTP status code (it is a properly formatted response from a running web server process), the BIG-IP interprets this as the application being " alive " .

Result: All three members (including the two returning 404s and the one returning 200) will be marked as UP/Available (Green).

In BIG-IP high availability (HA) deployments, one of the primary causes of traffic disruption during failover is Layer 2 and Layer 3 relearning by upstream network devices (switches and routers). When traffic groups move from the Active device to the Standby device, the network must quickly associate the IP addresses with the new device.

Why MAC Masquerading Minimizes Failover Impact:

MAC masquerading allows a traffic group to use a floating, shared MAC address for its Self IPs. This MAC address moves with the traffic group during failover.

Key benefits:

The MAC address does not change when failover occurs

Upstream switches do not need to relearn ARP entries

Traffic resumes almost immediately after failover

Dramatically reduces packet loss and connection interruption

From BIG-IP Administration Data Plane Concepts:

MAC masquerade is specifically designed to provide fast failover

It is a best practice for HA pairs, especially in environments sensitive to latency and connection loss

Why the Other Options Are Incorrect:

A. External monitors

Used to check the availability of external resources

Do not reduce network convergence or failover disruption

B. Clone pool

Used for traffic mirroring or security analysis

Has no impact on failover behavior

C. OneConnect profile

Optimizes server-side TCP connections

Does not address ARP or MAC relearning during failover

Key HA Concept Reinforced:

To minimize failover impact on live traffic, BIG-IP administrators should ensure Layer 2 continuity . MAC masquerading is the primary mechanism that enables near-instant failover by preventing ARP and MAC table reconvergence delays.

===========

In BIG-IP terminology, a Trunk is the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to " interface binding " or " EtherChannel " with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol): This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy: By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

Data Plane Logic: The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B: Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not " list " MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D: Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess " LACP profiles, " nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

In the Traffic Management Shell (TMSH), there is a distinct difference between list and show commands.

List Command : Used to view the configuration of an object (what is stored in the config file). list net route would show you the static routes you have manually configured.

Show Command : Used to view the status, statistics, and real-time state of an object.

TMM Routes : Because the routing table (RIB/FIB) is a dynamic entity that includes both static routes and learned routes (such as those from a routing protocol or connected subnets), the show net route command is required to see the active routing table as it exists in the Traffic Management Microkernel (TMM).

Key Command Breakdown :

show net route: Displays the active TMM routing table, including destination, gateway, and the status of the route.

In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node , Pool , and Pool Member .

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked " down " specifically for that pool.

Node Level: If a monitor is applied at the Node level ( Local Traffic > Nodes ), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level: Applying a monitor at the Pool > Members level allows for specific " per-member " monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the " Health Monitors " configuration section.

A Traffic Group is a collection of related configuration objects that fail over together from one BIG-IP device to another. Only " floating " objects can be members of a traffic group.

Virtual Addresses (C): A virtual address (the IP part of a Virtual Server) is a floating object. It is assigned to a traffic group so that the entire IP moves to the standby unit during a failover.

Floating Self IPs (E): These are used as gateways for backend servers or SNAT addresses. By associating them with a traffic group, they remain reachable by the backend network regardless of which BIG-IP is currently active.

Why other options are incorrect:

iRules (A): iRules are configuration logic files; they are synchronized across devices but are not " hosted " by a traffic group.

VLANs (D): VLANs are local to the hardware interfaces/trunks of each specific device and do not fail over.
