In FortiGate captive portal workflows (local or external):

Client connects to SSID / interface that has captive portal enabled.

Client makes an HTTP/HTTPS request.

FortiGate intercepts and redirects to alogin page(local or external URL).

The portal form is submitted viaPOSTback to FortiGate.

To prevent tampering and to tie the POST back to thecorrect user session, FortiGate includes a special hidden parameter in the redirect and expects it in the POST:

The parameter is namedmagic.

The magic value:

Is aunique tokengenerated per captive-portal session.

Encodes/session-links the user’s IP, interface, and session info.

Allows FortiGate to ensure that:

The POST comes from the user who initiated the original request.

The request is not a random or replayed submission.

When troubleshooting:

If the external portal does notpreserve and resendthe magic parameter back to FortiGate exactly as received, authentication fails, and you’ll see errors like “session not found” or “invalid magic”.

Why the other fields are not used for this purpose

A. username– Just the login ID; multiple users can use the same username from different locations, so it can’t uniquely track the browser session.

B. redir– Contains the URL the user originally requested, so they can be sent back there after login. It is not a session integrity token.

D. email– Optional field used in some guest/registration flows; irrelevant to session validation.

From the exhibits:

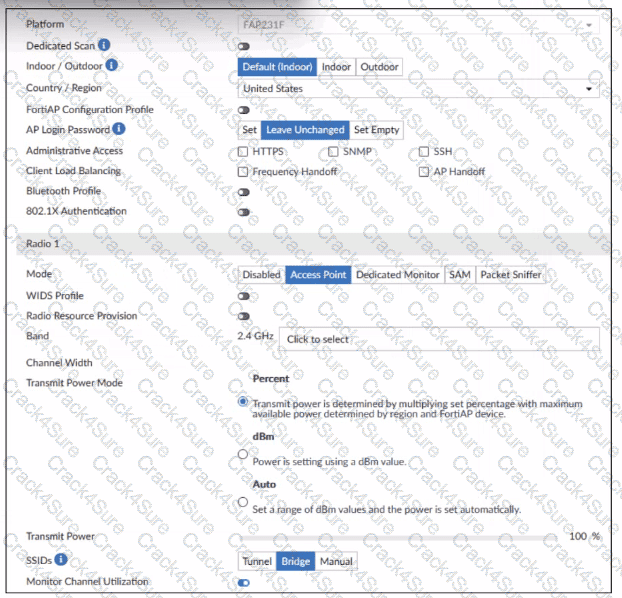

The AP profile shows:

SSIDs: Tunnel | Bridge | Manual

The current setting isBridge, not Manual.

WhenBridgeorTunnelis selected, the AP profiledoes NOT automatically broadcast SSIDsunless the corresponding VAPs were explicitly mapped in the AP profile.

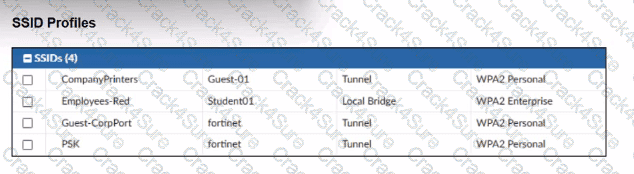

FortiManager SSID profiles are created, but unless these are explicitly applied underManual SSIDs selection, the AP will not broadcast any SSID.

Fortinet documentation states:

“To control which SSIDs an AP broadcasts, the AP Profile must have SSIDs set toManual, and the desired SSIDs must be selected.”

Therefore, to make the AP broadcast the intended SSIDs:

?You must switch the SSIDs setting to Manual, and manually select the SSIDs (CompanyPrinters, Student01, Guest-CorpPort, PSK).

Why the other options are incorrect:

A. Adjust AP profile to avoid mixing bridge/tunnelMixed modes ARE supported. Not the issue.

B. Change platformThe platform (FAP231F) already supports all listed SSIDs.

D. Set transmit power mode to autoPower settings have nothing to do with SSID broadcasting.

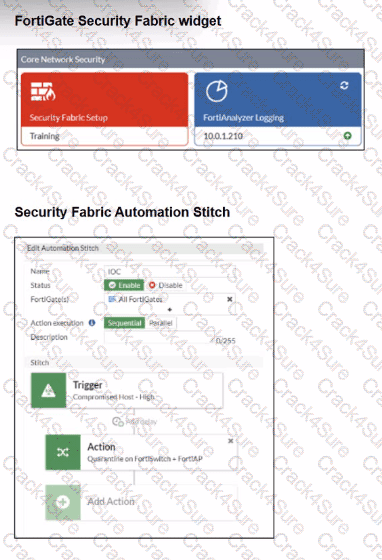

In this scenario:

FortiGate + FortiAnalyzer are part of theSecurity Fabric

AnAutomation Stitchis configured:

Trigger:Compromised Host – High(IOC from FortiAnalyzer)

Action:Quarantine on FortiSwitch + FortiAP

A test device10.0.2.1visits a malicious website.

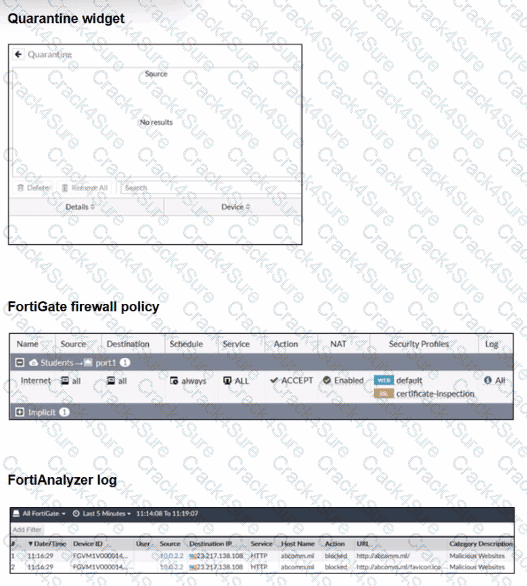

FortiAnalyzer logs show the event, butFortiGate does NOT quarantine the device.

This means theautomation did not receive an IOC trigger, OR theFabric did not classify it as a compromise.

Let's evaluate each answer option.

?C. The malicious website is not recognized as an indicator of compromise (IOC) by FortiAnalyzer.

?Correct.

For FortiGate to quarantine a device:

FortiAnalyzer must classify the event as aCompromised Host ? High / Medium / Critical

FortiAnalyzer must generate anIOC event

FortiGate must receive that IOC through the Fabric

Even though the FAZ log shows:

Action = blocked

Category = Malicious Websites

? That doesNOTautomatically mean an IOC was generated.

A blocked website event isnot always an IOCunless:

It is included in theIOC database

FAZ’sAnalytics / UTM / IOCengine marks it as a compromise

Thus, if FAZ only logs a “Malicious Website” event butdoes not classify it as an IOC,
