Associate-Cloud-Engineer Practice Exam Questions with Answers Google Cloud Certified - Associate Cloud Engineer Certification

As part of your workload, there might be certain VM instances that are critical to running your application or services, such as an instance running a SQL server, a server used as a license manager, and so on. These VM instances might need to stay running indefinitely so you need a way to protect these VMs from being deleted. By setting the deletionProtection flag, a VM instance can be protected from accidental deletion. If a user attempts to delete a VM instance for which you have set the deletionProtection flag, the request fails. Only a user that has been granted a role with compute.instances.create permission can reset the flag to allow the resource to be deleted.

Ref: https://cloud.google.com/compute/docs/instances/preventing-accidental-vm-deletion

https://cloud.google.com/logging/docs/audit

Data Access audit logs Data Access audit logs contain API calls that read the configuration or metadata of resources, as well as user-driven API calls that create, modify, or read user-provided resource data.

https://cloud.google.com/logging/docs/audit#data-access

https://cloud.google.com/bigquery/docs/quickstarts/quickstart-web-ui?authuser=4

https://support.google.com/cloudidentity/answer/6262987?hl=en &ref_topic=7558767

"Run gcloud configurations list to start the Compute Engine instances". How the heck are you expecting to "start" GCE instances doing "configuration list".

Each gcloud configuration has a 1 to 1 relationship with the region (if a region is defined). Since we have two different regions, we would need to create two separate configurations using gcloud config configurations create

Ref: https://cloud.google.com/sdk/gcloud/reference/config/configurations/create

Secondly, you can activate each configuration independently by running gcloud config configurations activate [NAME]

Ref: https://cloud.google.com/sdk/gcloud/reference/config/configurations/activate

Finally, while each configuration is active, you can run the gcloud compute instances start [NAME] command to start the instance in the configurations region.

https://cloud.google.com/sdk/gcloud/reference/compute/instances/start

A deployment is responsible for keeping a set of pods running. A service is responsible for enabling network access to a set of pods.

Comprehensive and Detailed In Depth Explanation:

The core requirements are secure access to a specific BigQuery dataset from a Compute Engine instance, using short-lived credentials, adhering to Google's best practices, and minimizing operational overhead.

A. Project-level IAM role: Granting the BigQuery Data Viewer role at the project level gives the service account broad access to all BigQuery datasets within that project. This violates the principle of least privilege, a fundamental security best practice, as the application should only have access to the designated dataset.

B. Hourly new service account with dataset-level role: While this aims to achieve short-lived credentials, the operational burden of creating, attaching, and managing IAM policies for a new service account every hour is significant and not a Google-recommended practice for routine access. It introduces unnecessary complexity and potential for errors.

C. Custom service account with dataset-level IAM role: This is the recommended and most efficient approach. You create a dedicated Google Cloud service account specifically for this application. You then grant this service account the necessary IAM role (e.g., BigQuery Data Viewer, or a more specific custom role) directly on the target BigQuery dataset. When the Compute Engine instance runs as this service account, the Google Cloud client libraries automatically handle the acquisition and rotation of short-lived OAuth 2.0 access tokens from the instance's metadata server. This eliminates the need to manage long-lived credentials (like service account keys) and ensures the application only has access to the intended dataset. This adheres to the principle of least privilege and minimizes operational costs.

D. Hourly new service account with project-level role: This option combines the high operational overhead of frequently creating new service accounts with the security risk of granting overly permissive project-level access. It is not a recommended practice.

Therefore, the most secure, cost-effective, and operationally efficient solution is to create a custom service account, attach it to the Compute Engine instance, and grant it the appropriate BigQuery IAM role specifically on the target dataset. The platform handles the short-lived credentials automatically.

Google Cloud Documentation References:

Creating and enabling service accounts for instances: https://cloud.google.com/compute/docs/access/create-enable-service-accounts-for-instances - Explains how to create and associate service accounts with Compute Engine VMs.

Granting, changing, and revoking access to resources: https://cloud.google.com/iam/docs/granting-changing-revoking-access - Details how to manage IAM policies and grant roles to service accounts on specific resources (like BigQuery datasets).

BigQuery IAM roles: https://cloud.google.com/bigquery/docs/control-access - Provides information on the various IAM roles available for controlling access to BigQuery resources at different levels (project, dataset, table, etc.).

Best practices for using service accounts: https://cloud.google.com/iam/docs/best-practices-for-using-service-accounts - Emphasizes the importance of the principle of least privilege and avoiding the management of long-lived service account keys when possible (relying on the metadata server for short-lived tokens).

Let's analyze each option to find the one that meets the requirements of no startup time for new traffic, two idle instances, and minimal administrative overhead:

A. Unchecking "Serve this revision immediately" and using a traffic simulation tool: Unchecking "Serve this revision immediately" does prevent the new revision from receiving traffic immediately. However, manually using a traffic simulation tool adds administrative overhead. It also doesn't guarantee that two idle instances will be ready before traffic is shifted; you would need to monitor and adjust traffic manually based on the simulation.

B. Configuring service autoscaling and setting the minimum number of instances to 2: Service-level autoscaling applies to all revisions of the service. Setting the minimum instances at the service level would ensure at least two instances are running across all active revisions, not specifically for the new revision before traffic shift.

C. Configuring revision autoscaling for the new revision and setting the minimum number of instances to 2: This is the correct approach. By configuring revision autoscaling specifically for the new revision and setting the minimum number of instances to 2, Cloud Run will ensure that at least two instances of the new version are running and ready to serve traffic before you redirect any traffic to it. This eliminates startup latency when you do shift traffic. It also minimizes administrative overhead as Cloud Run manages the instance scaling based on this configuration.

D. Configuring revision autoscaling for the existing revision and setting the minimum number of instances to 2: This would ensure the existing version has at least two idle instances, which doesn't directly address the requirement of having idle instances ready for the new version before traffic redirection.

Google Cloud Documentation References:

Cloud Run Autoscaling: https://cloud.google.com/run/docs/configuring/min-instances - This document explains how to configure minimum and maximum instances for Cloud Run services and revisions. It clarifies that you can set minimum instances at the revision level to ensure instances are always ready.

Cloud Run Traffic Management: https://cloud.google.com/run/docs/managing/traffic - This describes how to deploy new revisions and gradually shift traffic between them. Combining minimum instances on the new revision with traffic splitting allows for zero-downtime deployments with pre-warmed instances.

===========

You write a lifecycle management rule in XML and push it to the bucket with gsutil lifecycle set config-xml-file. is not right.

gsutil lifecycle set enables you to set the lifecycle configuration on one or more buckets based on the configuration file provided. However, XML is not a valid supported type for the configuration file.

Ref: https://cloud.google.com/storage/docs/gsutil/commands/lifecycle

Write a script that runs gsutil ls -lr gs://myapp-gcp-ace-logs/ to find and remove items older than 90 days. Repeat this process every morning. is not right.

This manual approach is error-prone, time-consuming and expensive. GCP Cloud Storage provides lifecycle management rules that let you achieve this with minimal effort.

Write a script that runs gsutil ls -l gs://myapp-gcp-ace-logs/ to find and remove items older than 90 days. Schedule the script with cron. is not right.

This manual approach is error-prone, time-consuming and expensive. GCP Cloud Storage provides lifecycle management rules that let you achieve this with minimal effort.

Write a lifecycle management rule in JSON and push it to the bucket with gsutil lifecycle set config-json-file. is the right answer.

You can assign a lifecycle management configuration to a bucket. The configuration contains a set of rules which apply to current and future objects in the bucket. When an object meets the criteria of one of the rules, Cloud Storage automatically performs a specified action on the object. One of the supported actions is to Delete objects. You can set up a lifecycle management to delete objects older than 90 days. gsutil lifecycle set enables you to set the lifecycle configuration on the bucket based on the configuration file. JSON is the only supported type for the configuration file. The config-json-file specified on the command line should be a path to a local file containing the lifecycle configuration JSON document.

Ref: https://cloud.google.com/storage/docs/gsutil/commands/lifecycle

Ref: https://cloud.google.com/storage/docs/lifecycle

Predefined roles

The following table describes Identity and Access Management (IAM) roles that are associated with Cloud Storage and lists the permissions that are contained in each role. Unless otherwise noted, these roles can be applied either to entire projects or specific buckets.

Storage Object Creator (roles/storage.objectCreator) Allows users to create objects. Does not give permission to view, delete, or overwrite objects.

https://cloud.google.com/storage/docs/access-control/iam-roles#standard-roles

When you intially click on Monitoring(Stackdriver Monitoring) it creates a workspac(a stackdriver account) linked to the ACTIVE(CURRENT) Project from which it was clicked.

Now if you change the project and again click onto Monitoring it would create an another workspace(a stackdriver account) linked to the changed ACTIVE(CURRENT) Project, we don't want this as this would not consolidate our result into a single dashboard(workspace/stackdriver account).

If you have accidently created two diff workspaces merge them under Monitoring > Settings > Merge Workspaces > MERGE.

If we have only one workspace and two projects we can simply add other GCP Project under

Monitoring > Settings > GCP Projects > Add GCP Projects.

https://cloud.google.com/monitoring/settings/multiple-projects

Nothing about groupshttps://cloud.google.com/monitoring/settings?hl=en

https://cloud.google.com/vpc/docs/vpc-peering

https://cloud.google.com/compute/docs/troubleshooting/troubleshooting-migs

https://cloud.google.com/compute/docs/instance-templates#how_to_update_instance_templates

1. Create an ingress firewall rule with the following settings: "¢ Targets: all instances with tier #2 service account "¢ Source filter: all instances with tier #1 service account "¢ Protocols: allow TCP:8080 2. Create an ingress firewall rule with the following settings: "¢ Targets: all instances with tier #3 service account "¢ Source filter: all instances with tier #2 service account "¢ Protocols: allow TCP: 8080

"Google Cloud VPC Network Peering allows internal IP address connectivity across two Virtual Private Cloud (VPC) networks regardless of whether they belong to the same project or the same organization."

https://cloud.google.com/vpc/docs/vpc-peering

while

"Cloud Interconnect provides low latency, high availability connections that enable you to reliably transfer data between your on-premises and Google Cloud Virtual Private Cloud (VPC) networks."

https://cloud.google.com/network-connectivity/docs/interconnect/concepts/overview

and

"HA VPN is a high-availability (HA) Cloud VPN solution that lets you securely connect your on-premises network to your VPC network through an IPsec VPN connection in a single region."

https://cloud.google.com/network-connectivity/docs/vpn/concepts/overview

https://console.cloud.google.com/marketplace/details/gc-launcher-for-mongodb-atlas/mongodb-atlas

Best practices for persistent disk snapshots

You can create persistent disk snapshots at any time, but you can create snapshots more quickly and with greater reliability if you use the following best practices.

Creating frequent snapshots efficiently

Use snapshots to manage your data efficiently.

Create a snapshot of your data on a regular schedule to minimize data loss due to unexpected failure.

Improve performance by eliminating excessive snapshot downloads and by creating an image and reusing it.

Set your snapshot schedule to off-peak hours to reduce snapshot time.

Snapshot frequency limits

Creating snapshots from persistent disks

You can snapshot your disks at most once every 10 minutes. If you want to issue a burst of requests to snapshot your disks, you can issue at most 6 requests in 60 minutes.

If the limit is exceeded, the operation fails and returns the following error:

https://cloud.google.com/compute/docs/disks/snapshot-best-practices

they require cloud storage for archival and the want to automate the process to upload new medical image to cloud storage, hence we go for gsutil to copy on-prem images to cloud storage and automate the process via cron job. whereas Pub/Sub listens to the changes in the Cloud Storage bucket and triggers the pub/sub topic, which is not required.

Cloud Billing export to BigQuery enables you to export detailed Google Cloud billing data (such as usage, cost estimates, and pricing data) automatically throughout the day to a BigQuery dataset that you specify. Then you can access your Cloud Billing data from BigQuery for detailed analysis, or use a tool like Looker Studio to visualize your data.

https://cloud.google.com/storage/docs/parallel-composite-uploads

https://cloud.google.com/storage/docs/uploads-downloads#parallel-composite-uploads

Set budgets and budget alerts Overview Avoid surprises on your bill by creating Cloud Billing budgets to monitor all of your Google Cloud charges in one place. A budget enables you to track your actual Google Cloud spend against your planned spend. After you've set a budget amount, you set budget alert threshold rules that are used to trigger email notifications. Budget alert emails help you stay informed about how your spend is tracking against your budget. 2. Set budget scope Set the budget Scope and then click Next. In the Projects field, select one or more projects that you want to apply the budget alert to. To apply the budget alert to all the projects in the Cloud Billing account, choose Select all.https://cloud.google.com/billing/docs/how-to/budgets#budget-scop

gcloud compute ssh ensures that the user’s public SSH key is present in the project’s metadata. If the user does not have a public SSH key, one is generated using ssh-keygen and added to the project’s metadata. This is similar to the other option where we copy the key explicitly to the project’s metadata but here it is done automatically for us. There are also security benefits with this approach. When we use gcloud compute ssh to connect to Linux instances, we are adding a layer of security by storing your host keys as guest attributes. Storing SSH host keys as guest attributes improve the security of your connections by helping to protect against vulnerabilities such as man-in-the-middle (MITM) attacks. On the initial boot of a VM instance, if guest attributes are enabled, Compute Engine stores your generated host keys as guest attributes.

Compute Engine then uses these host keys that were stored during the initial boot to verify all subsequent connections to the VM instance.

Ref: https://cloud.google.com/compute/docs/instances/connecting-to-instance

Ref: https://cloud.google.com/sdk/gcloud/reference/compute/ssh

When applied to a dataset, this role provides the ability to read the dataset's metadata and list tables in the dataset. When applied to a project, this role also provides the ability to run jobs, including queries, within the project. A member with this role can enumerate their own jobs, cancel their own jobs, and enumerate datasets within a project. Additionally, allows the creation of new datasets within the project; the creator is granted the BigQuery Data Owner role (roles/bigquery.dataOwner) on these new datasets.

https://cloud.google.com/bigquery/docs/access-control

Creating and starting a preemptible VM instance This page explains how to create and use a preemptible virtual machine (VM) instance. A preemptible instance is an instance you can create and run at a much lower price than normal instances. However, Compute Engine might terminate (preempt) these instances if it requires access to those resources for other tasks. Preemptible instances will always terminate after 24 hours. To learn more about preemptible instances, read the preemptible instances documentation. Preemptible instances are recommended only for fault-tolerant applications that can withstand instance preemptions. Make sure your application can handle preemptions before you decide to create a preemptible instance. To understand the risks and value of preemptible instances, read the preemptible instances documentation.https://cloud.google.com/compute/docs/instances/create-start-preemptible-instance

This aligns with Googles recommended practices. By creating a new project, we achieve complete isolation between development and production environments; as well as isolate this production application from production applications of other departments.

Ref: https://cloud.google.com/docs/enterprise/best-practices-for-enterprise-organizations#define-hierarchy

https://cloud.google.com/sdk/gcloud/reference/compute/networks/subnets/expand-ip-range

gcloud compute networks subnets expand-ip-range - expand the IP range of a Compute Engine subnetwork gcloud compute networks subnets expand-ip-range NAME --prefix-length=PREFIX_LENGTH [--region=REGION] [GCLOUD_WIDE_FLAG …]

https://cloud.google.com/vpc/docs/vpc#manually_created_subnet_ip_ranges

https://cloud.google.com/monitoring/alerts#alerting-example

Comprehensive and Detailed Explanation From Exact Extract:

The setup requires a publicly accessible (External) and secure (HTTPS) Layer 7 load balancer that can perform URL-based routing to send different types of requests to different backends (Compute Engine for dynamic content, Cloud Storage for static content).

Global External Application Load Balancer is necessary for public access and global traffic distribution.

The URL Map is crucial for routing requests based on the URL path (e.g., /images/*) to a Cloud Storage backend bucket, a core feature of external Application Load Balancers.

A managed SSL certificate is the Google-recommended method to enable HTTPS securely and easily on the Load Balancer itself.

Autopilot is more reliable and stable release gives more time to fix issues in new version of GKE

https://cloud.google.com/bigquery/external-data-sources

An external data source is a data source that you can query directly from BigQuery, even though the data is not stored in BigQuery storage.

BigQuery supports the following external data sources:

Amazon S3

Azure Storage

Cloud Bigtable

Cloud Spanner

Cloud SQL

Cloud Storage

Drive

Pub/Sub is a scalable and reliable messaging service that can handle large volumes of data from different sources at different rates. It allows you to decouple the producers and consumers of the data, and provides a durable and persistent storage for the messages until they are delivered. Cloud Functions is a serverless platform that can execute code in response to events, such as messages published to a Pub/Sub topic. It can scale automatically based on the load, and you only pay for the resources you use. By using Pub/Sub and Cloud Functions, you can optimize the storage and processing of the votes, as you can handle the variable rates of incoming votes, process them in real time or near real time, and avoid managing servers or VMs. References:

Pub/Sub documentation

Cloud Functions documentation

Choosing a messaging service for Google Cloud

Granting more permissions than necessary violates the principle of least privilege, a fundamental security best practice. While option A grants the necessary permissions (as subsets exist in two predefined roles), it might also grant more permissions than the Operations team strictly requires for their tasks on GKE and Cloud SQL. Option D is too broad; 'Admin' roles grant extensive permissions that likely exceed the specific needs.

Google Cloud's best practices strongly recommend adhering to the principle of least privilege. Creating a custom role allows you to precisely define the set of permissions the Operations team needs for their specific tasks on the GKE cluster and the Cloud SQL instance, without granting any unnecessary permissions. This minimizes the potential blast radius in case of accidental or malicious actions.

Google Cloud Documentation References:

IAM best practices: https://cloud.google.com/iam/docs/best-practices - This document explicitly recommends granting the minimum necessary permissions.

Creating and managing custom roles: https://cloud.google.com/iam/docs/creating-managing-custom-roles - This explains how to create roles tailored to specific job functions.

Understanding roles: https://cloud.google.com/iam/docs/understanding-roles - This outlines the concepts of predefined and custom roles and their use cases.

===========

https://gtseres.medium.com/using-service-accounts-across-projects-in-gcp-cf9473fef8f0

You create the service account in proj-sa and take note of the service account email, then you go to proj-vm in IAM > ADD and add the service account's email as new member and give it the Compute Storage Admin role.

https://cloud.google.com/compute/docs/access/iam#compute.storageAdmin

https://cloud.google.com/compute/docs/instance-groups

https://cloud.google.com/load-balancing/docs/network/transition-to-backend-services#console

In order to enable auto-healing, you need to group the instances into a managed instance group. Managed instance groups (MIGs) maintain the high availability of your applications by proactively keeping your virtual machine (VM) instances available. An auto-healing policy on the MIG relies on an application-based health check to verify that an application is responding as expected. If the auto-healer determines that an application isnt responding, the managed instance group automatically recreates that instance.

It is important to use separate health checks for load balancing and for auto-healing. Health checks for load balancing can and should be more aggressive because these health checks determine whether an instance receives user traffic. You want to catch non-responsive instances quickly, so you can redirect traffic if necessary. In contrast, health checking for auto-healing causes Compute Engine to proactively replace failing instances, so this health check should be more conservative than a load balancing health check.

Keywords: - continually -> Standard - mission-critical analytics -> dual-regional

auto-provisioning = Attaches and deletes node pools to cluster based on the requirements. Hence creating a GPU node pool, and auto-scaling would be betterhttps://cloud.google.com/kubernetes-engine/docs/how-to/node-auto-provisioning

cell phones are sending UDP packets and the only that can receive that type of traffic is a External Network TCP/UDPhttps://cloud.google.com/load-balancing/docs/network

https://cloud.google.com/load-balancing/docs/choosing-load-balancer#lb-decision-tree

https://cloud.google.com/kuberun/docs/rollouts-rollbacks-traffic-migration

https://cloud.google.com/kuberun/docs/architecture-overview#components_in_the_default_installation

Keywords, Financial data (large data) used globally, data stored and queried using relational structure (SQL), clients should get exact identical copies(Strong Consistency), Multiple region, low latency to end user, select storage option to minimize latency.

https://cloud.google.com/sql/docs/mysql/backup-recovery/backups#can_i_export_a_backup

https://cloud.google.com/sql/docs/mysql/import-export#automating_export_operations

When we create subnets in the same VPC with different CIDR ranges, they can communicate automatically within VPC. Resources within a VPC network can communicatewith one another by using internal (private) IPv4 addresses, subject to applicable network firewall rules

Ref: https://cloud.google.com/vpc/docs/vpc

https://cloud.google.com/sdk/gcloud/reference/projects/create

Quickstart: Creating a New Instance Using the Command Line

Before you begin

1. In the Cloud Console, on the project selector page, select or create a Cloud project.

2. Make sure that billing is enabled for your Google Cloud project. Learn how to confirm billing is enabled for your project.

To use the gcloud command-line tool for this quickstart, you must first install and initialize the Cloud SDK:

1. Download and install the Cloud SDK using the instructions given on Installing Google Cloud SDK.

2. Initialize the SDK using the instructions given on Initializing Cloud SDK.

To use gcloud in Cloud Shell for this quickstart, first activate Cloud Shell using the instructions given on Starting Cloud Shell.

https://cloud.google.com/ai-platform/deep-learning-vm/docs/quickstart-cli#before-you-begin

Comprehensive and Detailed In Depth Explanation:

The key requirement is to migrate applications that rely on hard-coded internal IP addresses without modifying the application code. To achieve this, the migrated VMs in Google Cloud need to retain their original internal IP addresses.

A. Non-overlapping CIDR ranges and new static IPs: This option requires changing the IP addresses of the migrated workloads, which would necessitate modifying the application code to reflect these new addresses. This violates a core requirement.

B. Migrating DNS and using ephemeral IPs: While migrating DNS can be beneficial in the long run, using ephemeral internal IP addresses for the migrated workloads means their IPs could change upon restart, breaking the hard-coded IP address dependencies.

C. Single subnet with Cloud NAT and static NAT IP: Cloud NAT allows instances without external IP addresses to access the internet, but it doesn't help in preserving the internal IP addresses that the applications use to communicate with each other. The internal IP addresses of the VMs would still be within the VPC subnet range and might conflict if they are the same as the on-premises IPs.

D. Same CIDR ranges and same static IPs: Creating a VPC with the same CIDR ranges as the on-premises network and assigning the same static internal IP addresses to the migrated workloads is the only way to ensure that the applications can continue to communicate using their hard-coded IP addresses without any code changes. This approach effectively extends the on-premises network's IP address space into Google Cloud (though without direct connectivity initially, as stated in the problem). Once the workloads are migrated, future steps can involve establishing connectivity (e.g., using VPN or Interconnect) if needed for hybrid scenarios.

Google Cloud Documentation References:

VPC Network Overview: https://cloud.google.com/vpc/docs/vpc - This document explains the fundamentals of VPC networks and their IP addressing. While it doesn 't explicitly detail lift-and-shift scenarios with identical IP ranges without connectivity, it lays the groundwork for understanding VPC configuration.

Considerations for planning IP address ranges: https://cloud.google.com/vpc/docs/subnets#ip-ranges - This section discusses IP address planning, and while overlapping ranges are generally discouraged for connected networks, for isolated migration scenarios as described, it 's a necessary step to avoid application changes. The problem statement explicitly says the environments are not connected during the initial migration.

===========

https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset

https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset#usage_patterns

DaemonSets attempt to adhere to a one-Pod-per-node model, either across the entire cluster or a subset of nodes. As you add nodes to a node pool, DaemonSets automatically add Pods to the new nodes as needed.

In GKE, DaemonSets manage groups of replicated Pods and adhere to a one-Pod-per-node model, either across the entire cluster or a subset of nodes. As you add nodes to a node pool, DaemonSets automatically add Pods to the new nodes as needed. So, this is a perfect fit for our monitoring pod.

Ref: https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset

DaemonSets are useful for deploying ongoing background tasks that you need to run on all or certain nodes, and which do not require user intervention. Examples of such tasks include storage daemons like ceph, log collection daemons like fluentd, and node monitoring daemons like collectd. For example, you could have DaemonSets for each type of daemon run on all of your nodes. Alternatively, you could run multiple DaemonSets for a single type of daemon, but have them use different configurations for different hardware types and resource needs.

https://cloud.google.com/iam/docs/best-practices-for-using-and-managing-service-accounts

If an application uses third-party or custom identities and needs to access a resource, such as a BigQuery dataset or a Cloud Storage bucket, it must perform a transition between principals. Because Google Cloud APIs don't recognize third-party or custom identities, the application can't propagate the end-user's identity to BigQuery or Cloud Storage. Instead, the application has to perform the access by using a different Google identity.

https://cloud.google.com/compute/docs/access/service-accounts#associating_a_service_account_to_an_instance

Shared VPC allows an organization to connect resources from multiple projects to a common Virtual Private Cloud (VPC) network, so that they can communicate with each other securely and efficiently using internal IPs from that network. When you use Shared VPC, you designate a project as a host project and attach one or more other service projects to it. The VPC networks in the host project are called Shared VPC networks. Eligible resources from service projects can use subnets in the Shared VPC network

https://cloud.google.com/vpc/docs/shared-vpc

"For example, an existing instance in a service project cannot be reconfigured to use a Shared VPC network, but a new instance can be created to use available subnets in a Shared VPC network."

https://cloud.google.com/appengine/docs/standard/python/splitting-traffic#gcloud

as gcloud config configurations list can help check for the existing configurations and activate can help switch to the configuration.

gcloud config configurations list  lists existing named configurations

gcloud config configurations activate  activates an existing named configuration

Obtains access credentials for your user account via a web-based authorization flow. When this command completes successfully, it sets the active account in the current configuration to the account specified. If no configuration exists, it creates a configuration named default.

Creating or upgrading a cluster by specifying the version as latest does not provide automatic upgrades. Enable node auto-upgrades to ensure that the nodes in your cluster are up-to-date with the latest stable version.

https://cloud.google.com/kubernetes-engine/versioning-and-upgrades

Node auto-upgrades help you keep the nodes in your cluster up to date with the cluster master version when your master is updated on your behalf. When you create a new cluster or node pool with Google Cloud Console or the gcloud command, node auto-upgrade is enabled by default.

Ref: https://cloud.google.com/kubernetes-engine/docs/how-to/node-auto-upgrades

Change your default zone and region in the metadata server Note: This only applies to the default configuration. You can change the default zone and region in your metadata server by making a request to the metadata server. For example: gcloud compute project-info add-metadata \ --metadata google-compute-default-region=europe-west1,google-compute-default-zone=europe-west1-b The gcloud command-line tool only picks up on new default zone and region changes after you rerun the gcloud init command. After updating your default metadata, run gcloud init to reinitialize your default configuration.https://cloud.google.com/compute/docs/gcloud-compute#change_your_default_zone_and_region_in_the_metadata_server

Comprehensive and Detailed In Depth Explanation:

Let's evaluate each database option against the requirements: automatic scaling, multi-region support, and low latency for a growing social media platform:

A. Bigtable: Bigtable is a highly scalable NoSQL database designed for large analytical and operational workloads with low latency. It offers excellent horizontal scalability and can be deployed across multiple regions for high availability and lower latency for a global user base. However, it's a NoSQL database and might require significant changes to your existing PostgreSQL data model and application code.

B. BigQuery: BigQuery is a fully managed, serverless data warehouse optimized for analytical queries on large datasets. It's not designed for low-latency transactional workloads that a social media platformwould require for real-time user interactions. While it's globally available, its primary use case is not operational database needs.

C. Spanner: Spanner is a globally distributed, horizontally scalable relational database service with strong consistency. It offers automatic scaling, built-in multi-region and multi-continental configurations for high availability and low latency across a global user base, and supports standard SQL (with some extensions). This makes it a strong candidate for a rapidly growing platform needing scalability, global presence, and low latency. While it's not directly PostgreSQL, it offers a relational model and tools to aid migration.

D. Cloud SQL for PostgreSQL: Cloud SQL offers managed PostgreSQL instances with automatic scaling capabilities. It supports high availability within a region and cross-region read replicas for disaster recovery and read scaling. However, its multi-region capabilities for write operations and automatic scaling across regions are more limited compared to Spanner. For a rapidly growing platform with a primarily North American user base but future global expansion in mind and a need for low latency, Spanner's architecture is better suited for true multi-region write capabilities and consistent low latency globally.

Considering the requirements for automatic scaling, multi-region support for both reads and writes with low latency for a growing user base, Spanner is the most appropriate choice.

Google Cloud Documentation References:

Cloud Spanner Overview: https://cloud.google.com/spanner/docs/overview - This document highlights Spanner 's global scalability, strong consistency, and multi-region capabilities.

Cloud Bigtable Overview: https://cloud.google.com/bigtable/docs/overview - While scalable and low-latency, it 's a NoSQL database, which might require significant application changes.

BigQuery Overview: https://cloud.google.com/bigquery/docs/introduction - Focuses on analytics, not low-latency transactional workloads.

Cloud SQL for PostgreSQL Overview: https://cloud.google.com/sql/docs/postgres/overview - While it offers scaling and regional HA, its multi-region write capabilities are not as robust as Spanner 's.

===========

The gcloud projects get-iam-policy command displays the IAM policy for a project, which includes the roles and members assigned to those roles. The Project Owner role grants full access to all resources and actions in the project. By using this command, you can review who has been granted this role and make any necessary changes. References:

1: Associate Cloud Engineer Certification Exam Guide | Learn - Google Cloud

2: gcloud projects get-iam-policy | Cloud SDK Documentation | Google Cloud

3: Understanding roles | Cloud IAM Documentation | Google Cloud

M1 machine series Medium in-memory databases such as SAP HANA Tasks that require intensive use of memory with higher memory-to-vCPU ratios than the general-purpose high-memory machine types. In-memory databases and in-memory analytics, business warehousing (BW) workloads, genomics analysis, SQL analysis services. Microsoft SQL Server and similar databases.

https://cloud.google.com/compute/docs/machine-types

https://cloud.google.com/compute/docs/machine-types#:~:text=databases%20such%20as-,SAP%20HANA,-In%2Dmemory%20databases

https://www.sap.com/india/products/hana.html#:~:text=is%20SAP%20HANA-,in%2Dmemory,-database%3F

This is the most optimal solution. Rather than recreating all nodes, you create a new node pool with GPU enabled. You then modify the pod specification to target particular GPU types by adding node selector to your workloads Pod specification. YOu still have a single cluster so you pay Kubernetes cluster management fee for just one cluster thus minimizing the cost.

Ref: https://cloud.google.com/kubernetes-engine/docs/how-to/gpus

Ref: https://cloud.google.com/kubernetes-engine/pricing

Example:

apiVersion: v1

kind: Pod

metadata:

name:my-gpu-pod

spec:

containers:

name:my-gpu-container

image: nvidia/cuda:10.0-runtime-ubuntu18.04

command: [/bin/bash]

resources:

limits:

nvidia.com/gpu: 2

nodeSelector:

cloud.google.com/gke-accelerator: nvidia-tesla-k80# or nvidia-tesla-p100 or nvidia-tesla-p4 or nvidia-tesla-v100 or nvidia-tesla-t4

Cloud Debugger helps inspect the state of an application, at any code location, without stopping or slowing down the running app //https://cloud.google.com/debugger/docs

You can use the Google Cloud Pricing Calculator to total the estimated monthly costs for each GCP product. You dont incur any charges for doing so.

Ref: https://cloud.google.com/products/calculator

HTTP(S) load balancing is a Google-recommended practice for distributing web traffic across multiple regions and zones, and providing high availability, scalability, and security for web applications. It supports both IPv4 and IPv6 addresses, and can handle SSL/TLS termination and encryption. It also integrates with Cloud CDN, Cloud Armor, and Cloud Identity-Aware Proxy for enhanced performance and protection. A MIG can be used as a backend service for HTTP(S) load balancing, and can automatically scale and heal the VM instances that host the web application.

To configure DNS for HTTP(S) load balancing, you need to create an A record in your DNS public zone with the load balancer’s IP address. This will map your domain name to the load balancer’s IP address, and allow users to access your web application using the domain name. A CNAME record is not recommended, as it can cause latency and DNS resolution issues. A private zone is not suitable, as it is only visible within your VPC network, and not to the public internet.

HTTP(S) Load Balancing documentation

Setting up DNS records for HTTP(S) load balancing

Choosing a load balancer

Text Description automatically generated with low confidence

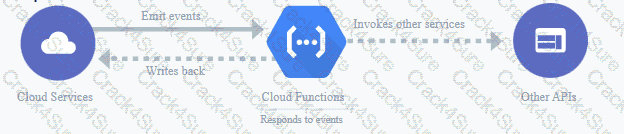

Cloud Functions is Google Cloud’s event-driven serverless compute platform. It automatically scales based on the load and requires no additional configuration. You pay only for the resources used.

Ref: https://cloud.google.com/functions

While all other options i.e. Google Compute Engine, Google Kubernetes Engine, Google App Engine support autoscaling, it needs to be configured explicitly based on the load and is not as trivial as the scale up or scale down offered by Google’s cloud functions.

Adding an API as a type provider

This page describes how to add an API to Google Cloud Deployment Manager as a type provider. To learn more about types and type providers, read the Types overview documentation.

A type provider exposes all of the resources of a third-party API to Deployment Manager as base types that you can use in your configurations. These types must be directly served by a RESTful API that supports Create, Read, Update, and Delete (CRUD).

If you want to use an API that is not automatically provided by Google with Deployment Manager, you must add the API as a type provider.

https://cloud.google.com/deployment-manager/docs/configuration/type-providers/creating-type-provider

C:\GCP\appeng>gcloud config list

[core]

account = xxx@gmail.com

disable_usage_reporting = False

project = my-first-demo-xxxx

https://cloud.google.com/endpoints/docs/openapi/troubleshoot-gce-deployment

You can deploy to a different project by using –project flag.

By default, the service is deployed the current project configured via:

$ gcloud config set core/project PROJECT

To override this value for a single deployment, use the –project flag:

$ gcloud app deploy ~/my_app/app.yaml –project=PROJECT

Ref:https://cloud.google.com/sdk/gcloud/reference/app/deploy

https://www.cloudskillsboost.google/focuses/1035?parent=catalog#:~:text=custom%20role%20at%20the%20organization%20level

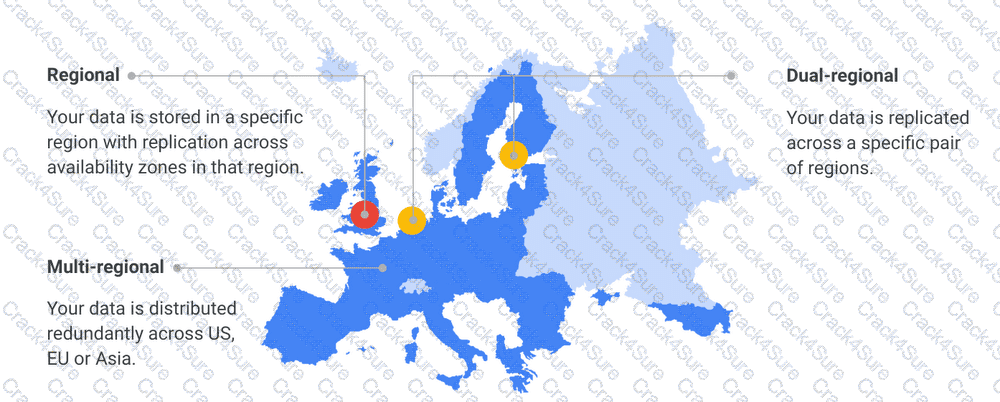

Choosing a region and zone You choose which region or zone hosts your resources, which controls where your data is stored and used. Choosing a region and zone is important for several reasons:

Handling failures

Distribute your resources across multiple zones and regions to tolerate outages. Google designs zones to be independent from each other: a zone usually has power, cooling, networking, and control planes that are isolated from other zones, and most single failure events will affect only a single zone. Thus, if a zone becomes unavailable, you can transfer traffic to another zone in the same region to keep your services running. Similarly, if a region experiences any disturbances, you should have backup services running in a different region. For more information about distributing your resources and designing a robust system, see Designing Robust Systems. Decreased network latency To decrease network latency, you might want to choose a region or zone that is close to your point of service.https://cloud.google.com/compute/docs/regions-zones#choosing_a_region_and_zone

https://developer.mozilla.org/en-US/docs/Web/HTTP/Basics_of_HTTP/MIME_Types#importance_of_setting_the_correct_mime_type

Types of audit logs Cloud Audit Logs provides the following audit logs for each Cloud project, folder, and organization: Admin Activity audit logs Data Access audit logs System Event audit logs Policy Denied audit logs *Data Access audit logs contain API calls that read the configuration or metadata of resources, as well as user-driven API calls that create, modify, or read user-provided resource data.https://cloud.google.com/logging/docs/audit#types

https://cloud.google.com/logging/docs/audit#data-access Cloud Storage: When Cloud Storage usage logs are enabled, Cloud Storage writes usage data to the Cloud Storagebucket, which generates Data Access audit logs for the bucket. The generated Data Access audit log has its caller identity redacted.

https://cloud.google.com/architecture/best-practices-vpc-design#shared-service Cloud VPN is another alternative. Because Cloud VPN establishes reachability through managed IPsec tunnels, it doesn 't have the aggregate limits of VPC Network Peering. Cloud VPN uses a VPN Gateway for connectivity and doesn't consider the aggregate resource use of the IPsec peer. The drawbacks of Cloud VPN include increased costs (VPN tunnels and traffic egress), management overhead required to maintain tunnels, and the performance overhead of IPsec.

The goal is to create a landing zone facilitating private IP communication across production projects and apply organization-wide firewall rules, following best practices and minimizing operational costs.

Network Structure:Individual VPCs with Peering (A, B): While VPC Peering allows private connectivity, managing a full mesh or complex peering topology across many projects becomes operationally complex and can hit peering limits. It's not the recommended pattern for centralized connectivity in a landing zone.

Shared VPC (C, D): This is the Google-recommended practice for scenarios where resources from multiple projects need to communicate privately within a common VPC network. A central host project owns the network, and service projects use it. This simplifies network administration and connectivity.

Firewall Rules:Organization Policies (A, C): These enforce organizational constraints (e.g., disable external IPs, restrict locations) but do not define specific network firewall rules (like allowing TCP ports).

Hierarchical Firewall Policies (B, D): These allow defining firewall rules at the Organization or Folder level, which are inherited by resources in descendant projects/folders. This is the mechanism to apply consistent firewall rules (like allowing specific TCP ports) across all VMs in the organization (or a specific folder) efficiently, without managing rules in each individual VPC or project.

Combining Shared VPC for the network structure (best practice for cross-project private communication and central management) with Hierarchical Firewall Policies (for applying organization-wide firewall rules) meets all requirements efficiently and follows Google recommendations.

https://cloud.google.com/resource-manager/docs/organization-policy/org-policy-constraints This list constraint defines the set of domains that email addresses added to Essential Contacts can have. By default, email addresses with any domain can be added to Essential Contacts. The allowed/denied list must specify one or more domains of the form @example.com. If this constraint is active and configured with allowed values, only email addresses with a suffix matching one of the entries from the list of allowed domains can be added in Essential Contacts. This constraint has no effect on updating or removing existing contacts. constraints/essentialcontacts.allowedContactDomains
