Practice Free HPE0-S59 HPE Compute Solutions Exam Questions Answers With Explanation

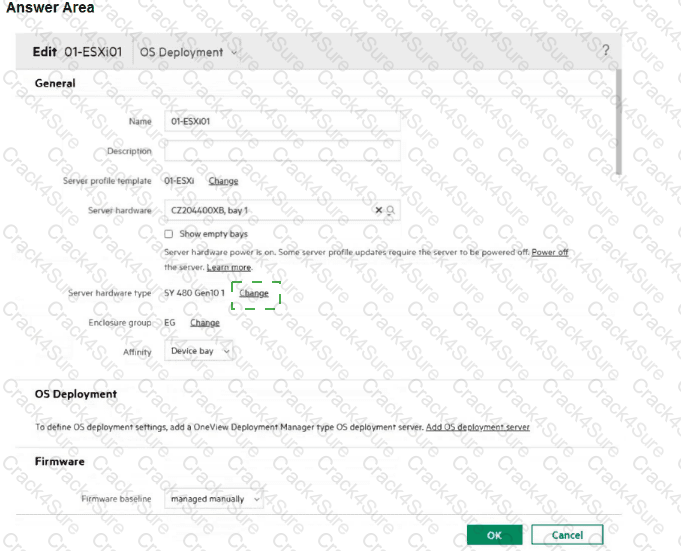

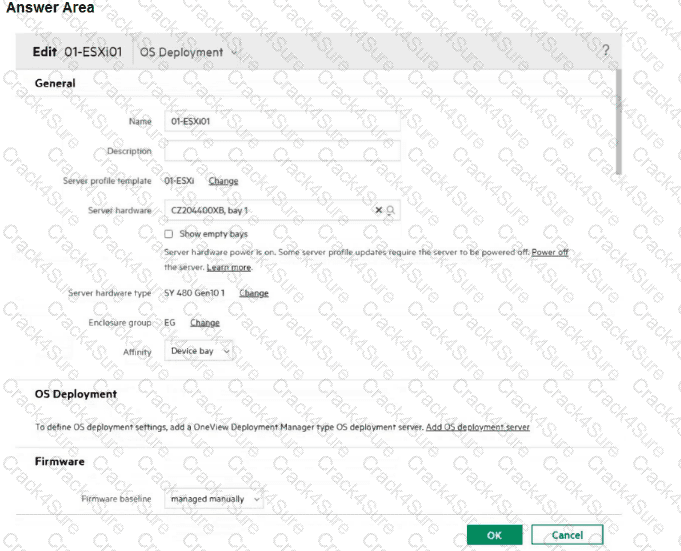

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.

The HPE Synergy 480 Gen10 Plus Compute Module supports 8 memory channels and can accommodate memory DIMMs of up to 256GB. This capability ensures high memory bandwidth and large memory capacity, which are essential for demanding workloads and applications.

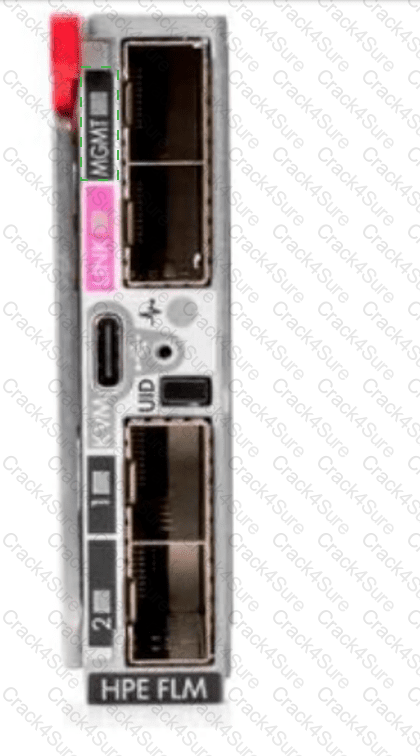

The port labeled " MGMT " (Management) in the upper right section of the HPE Frame Link Module (FLM) is the correct port used to include an HPE Synergy frame in the management ring. This port is crucial for linking the frame into the management network of the Synergy infrastructure.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

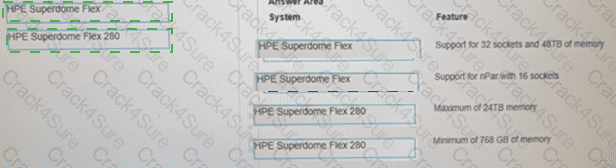

Here are the correct matches for each HPE Superdome Flex system with its respective feature:

HPE Superdome Flex

Support for 32 sockets and 48TB of memory

Support for nPar with 16 sockets

HPE Superdome Flex 280

Maximum of 24TB memory

Minimum of 768 GB of memory

HPE Superdome Flex:

Support for 32 sockets and 48TB of memory: The HPE Superdome Flex system is designed for extremely large-scale workloads and can support configurations with up to 32 CPU sockets and 48TB of memory.

Support for nPar with 16 sockets: This system supports nPartitions (nPars) with configurations that can include up to 16 CPU sockets, providing flexible partitioning and resource allocation.

HPE Superdome Flex 280:

Maximum of 24TB memory: The HPE Superdome Flex 280 supports a maximum memory capacity of 24TB, suitable for large but not as massive workloads compared to the full Superdome Flex.

Minimum of 768 GB of memory: The minimum memory configuration for the HPE Superdome Flex 280 is 768 GB, ensuring a base level of performance and capacity for smaller deployments.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

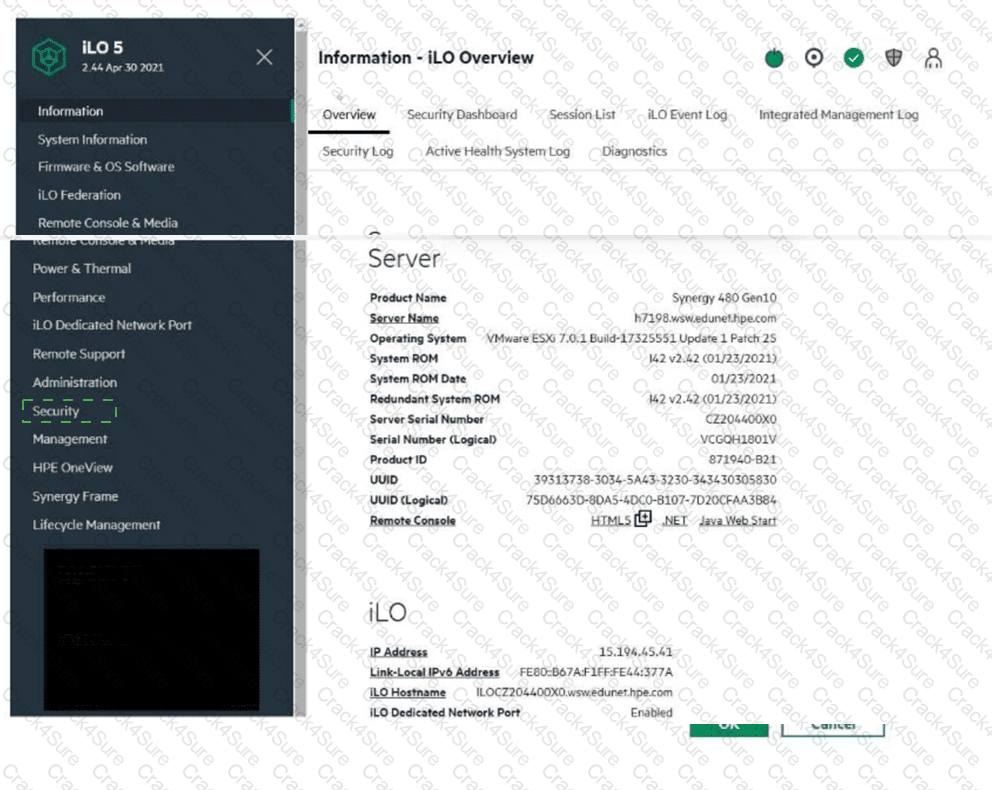

The area to check for the HPE OneView SSO certificate is under Security , then HPE SSO .

Here ' s why:

Security: This section deals with all security-related settings, including certificates.

HPE SSO: This stands for " Single Sign-On " and is the specific technology that HPE OneView uses for integrated authentication. The certificate will be listed here if it ' s properly applied.

To get to this section, you would click on " Security " in the left-hand navigation menu, and then " HPE SSO " in the main content area.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

When updating HPE OneView to version 6.1, it is necessary to first update to version 6.0, which is a milestone edition. Milestone editions include significant architectural changes and updates that are prerequisites for subsequent versions. This step ensures that the system is properly prepared and compatible with the new features and improvements introduced in version 6.1.

Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availability and minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.

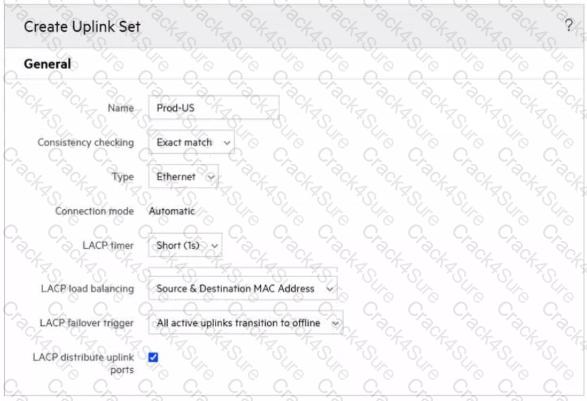

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure the LACP failover trigger within the uplink set. By setting the LACP failover trigger to " All active uplinks transition to offline, " the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

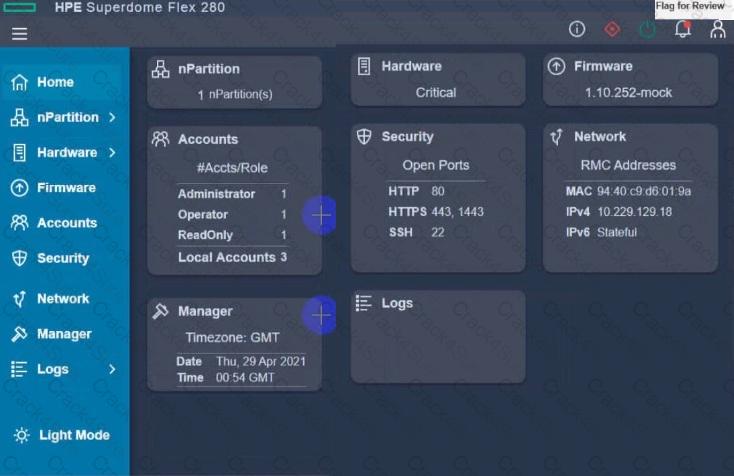

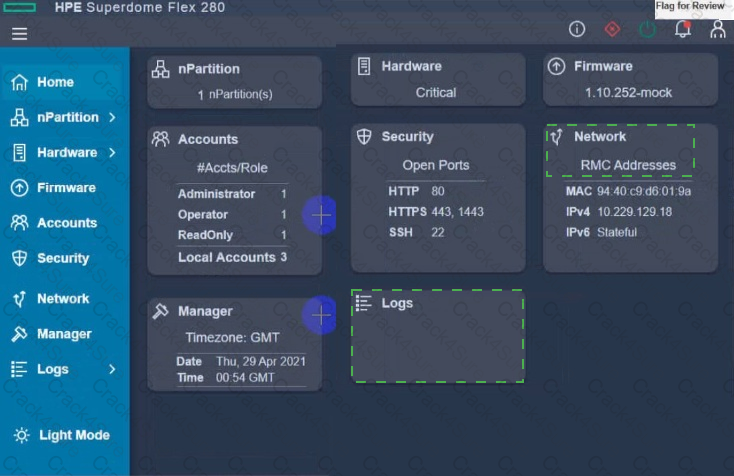

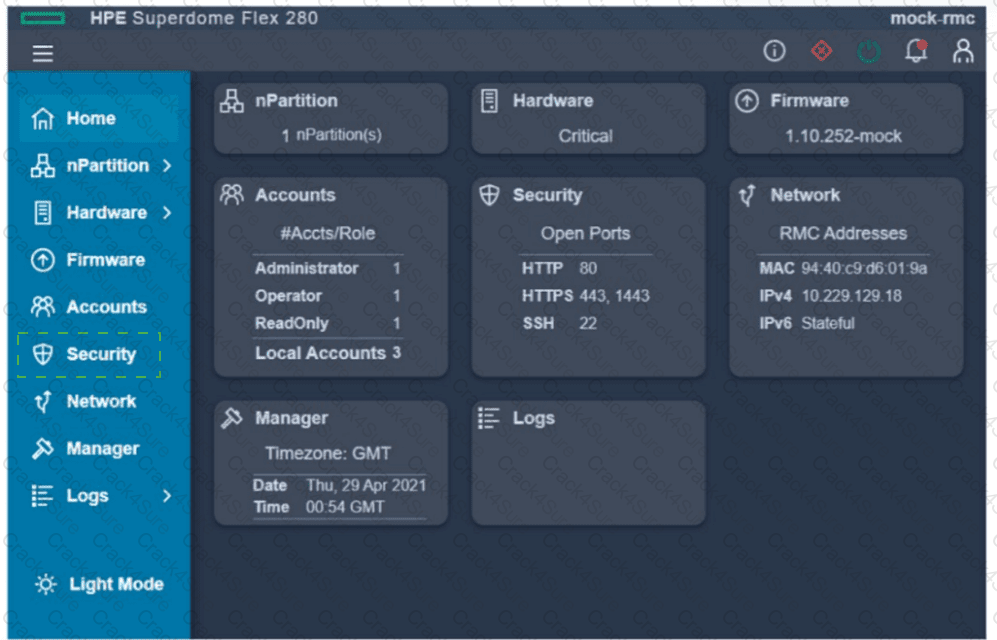

To check the network protocol status and SSL certificate in the HPE Superdome Flex 280 management interface, you should click on the " Security " section on the left-hand menu. This section typically provides access to details about protocols like HTTPS, SSL certificates, and port configurations.

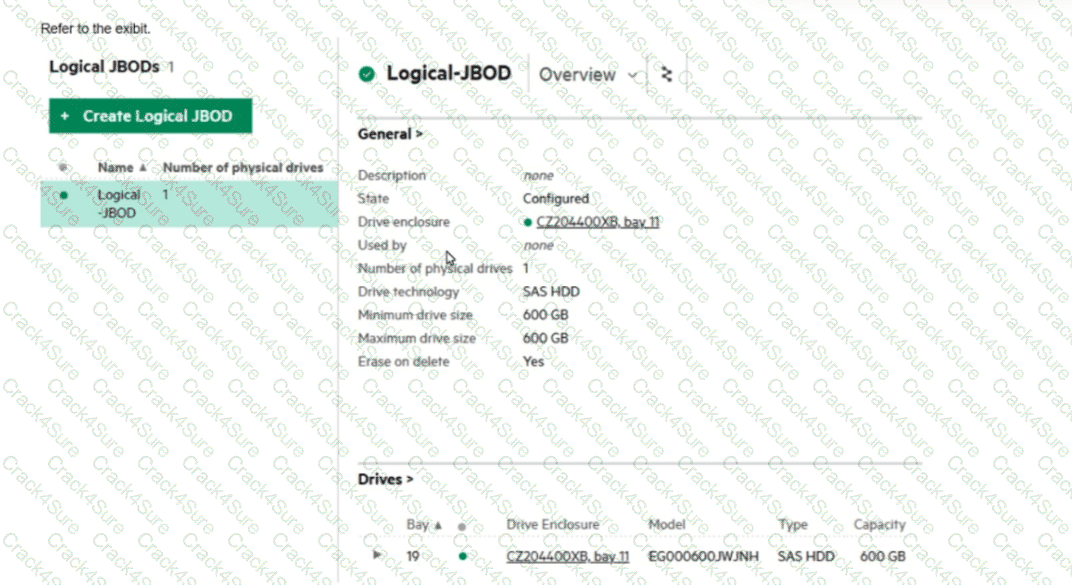

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be presented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

HPE OneView can manage both Synergy and ProLiant systems, allowing for centralized management of all infrastructure components. By adding the HPE ProLiant DL385 Gen10 Plus v2 systems to the existing HPE OneView instance used for Synergy, the customer can streamline management processes and maintain a unified management interface for all systems.

HPE OneView is designed to provide a unified and consistent management experience across its entire software-defined storage portfolio. When a customer transitions from HPE 3PAR StoreServ to HPE Primera (or even newer Alletra 9000 systems), the core management workflows within HPE OneView remain essentially identical:

Storage Systems and Pools: In both cases, the storage system is added to the HPE OneView appliance. Once connected, HPE OneView discovers the available storage pools, which are referred to as Common Provisioning Groups (CPGs) on both 3PAR and Primera.

Volume Management: The process of creating, provisioning, and managing volumes is the same. Administrators use the same templates and server profiles to attach storage, regardless of the underlying hardware generation.

Automation and Templates: Because HPE OneView uses a software-defined approach, the " Logical " definitions of the infrastructure are decoupled from the physical hardware. This allows for a frictionless transition where existing automation scripts and REST API calls typically do not need to be modified when swapping a 3PAR array for a Primera array.

Licensing: Management of storage in HPE OneView does not require a different " type " of license when moving from 3PAR to Primera; the integration is built into the standard storage management capabilities of the appliance.

Why other options are incorrect:

Option B: While HPE Primera has many advanced internal features (like AI-driven optimizations via HPE InfoSight), these are handled at the array level. Within HPE OneView, CPG management and other basic provisioning features are functionally identical to those provided for 3PAR.

Option C: HPE OneView provides full support for HPE Primera. Far from being " limited, " Primera is a core platform for HPE’s " Intelligent Storage " strategy.

Option D: There is no " dedicated " license required specifically for Primera management that differs from the existing 3PAR management model in OneView.

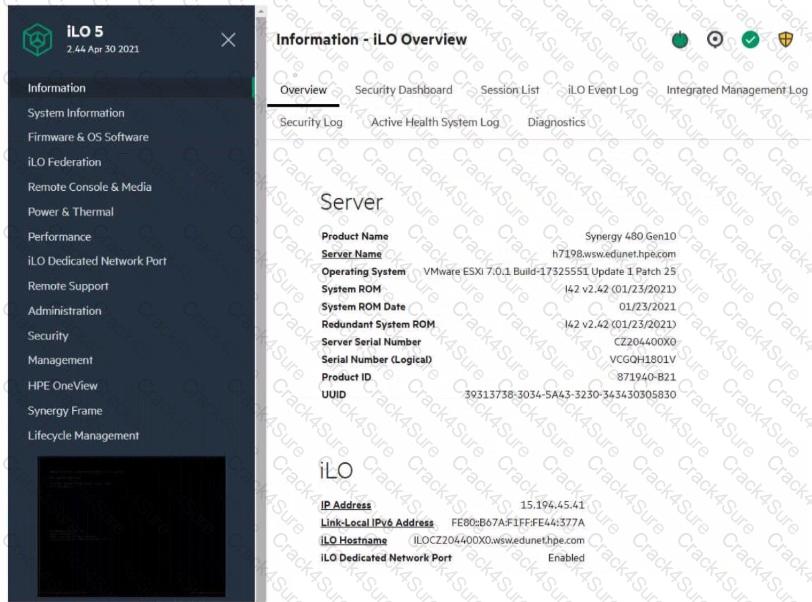

The Performance section within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server ' s performance, helping to optimize workloads and manage resources efficiently.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

New HPE SimpliVity deployments offer customers the flexibility to choose between different hypervisors, such as VMware vSphere and Microsoft Hyper-V. This flexibility allows customers to select the hypervisor that best fits their existing infrastructure and operational preferences.

In the HPE AI Essentials software stack—which provides the orchestration and management layer for AI workloads— Prometheus is the industry-standard component used for system observability.

Metric Collection (Scraping): Prometheus is responsible for " scraping " or collecting real-time numerical data (metrics) from across the environment. This includes hardware statistics from GPU-accelerated nodes (via the NVIDIA DCGM exporter) and performance data from Kubernetes pods.

Time-Series Database: It stores these metrics in a time-series format, allowing administrators to visualize performance over time and identify historical trends in resource consumption.

Alerting Framework: Prometheus includes a built-in alerting engine. Administrators can define specific thresholds (e.g., if a GPU temperature exceeds a certain limit or if a training job stalls). When these conditions are met, Prometheus generates an alert and forwards it to the Alertmanager for notification.

Infrastructure Health: By providing a unified view of the cluster ' s health, Prometheus ensures that the AI platform remains stable and that bottlenecks are identified before they impact model development.

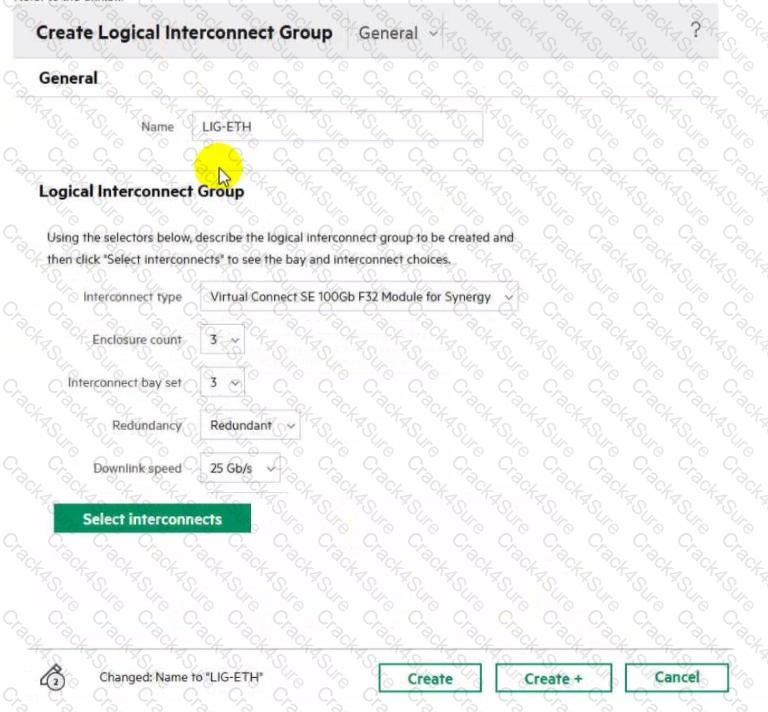

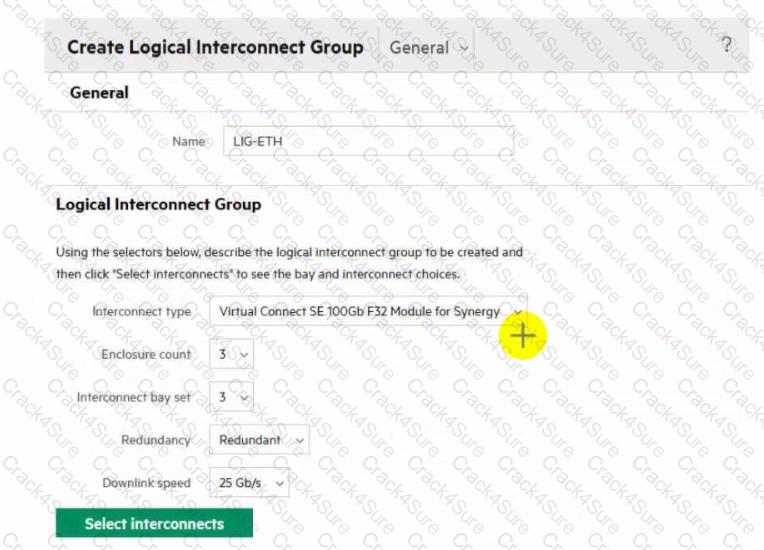

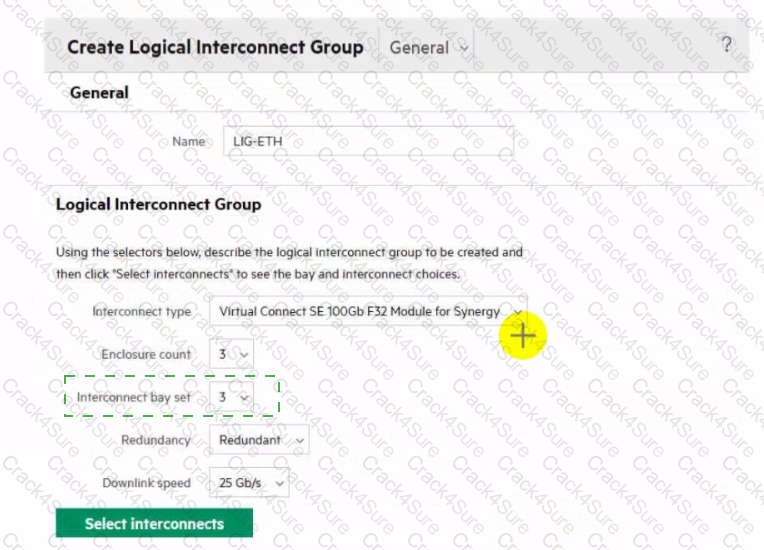

The exhibit shows the creation of a Logical Interconnect Group (LIG) using HPE Virtual Connect SE 100Gb F32 Modules . Here is the breakdown of why Option C is correct and why the others are not:

Master Module Placement (Option C): In a redundant HPE Synergy configuration, the two " Master " (or Primary) interconnect modules must be installed in the same frame (referred to as the Master Frame). These modules are placed in the redundant bays of the chosen bay set (e.g., Bay 3 and Bay 6). The other frames in the logical enclosure (Enclosure count: 3) will house Interconnect Link Modules (ILMs) , which act as satellite modules to extend the fabric from the masters. This architecture ensures a single management point and a unified control plane for the entire multi-frame fabric.

Bay Set Mapping (Option A): The exhibit explicitly shows the Interconnect bay set is set to 3 . In the HPE Synergy 12000 Frame, bay sets map to specific bays:

Bay Set 1: Bays 1 and 4

Bay Set 2: Bays 2 and 5

Bay Set 3: Bays 3 and 6 Since the LIG is configured for bay set 3, the master modules will be in bays 3 and 6 , making Option A incorrect.

Frame Scalability (Option B): The HPE Virtual Connect SE 100Gb F32 Module supports a master/satellite architecture that can scale up to five (5) frames in a single fabric (1 Master Frame + 4 Satellite Frames). The exhibit shows an enclosure count of 3 , which is well within the supported limit and not the maximum for a 25 Gb/s downlink configuration.

Compute Node Form Factor (Option D): Both half-height (e.g., Synergy 480) and full-height (e.g., Synergy 660) compute modules can use interconnect bay set 3. Half-height modules have three mezzanine slots, where slot 3 connects to bay set 3. Full-height modules have six mezzanine slots, where slot 3 and slot 6 can connect to these fabrics. There is no requirement that nodes must be half-height to utilize this fabric.

HPE Tech Care is the operational support experience for HPE hardware and software. It was designed to go beyond traditional " break-fix " support by integrating advanced digital tools and direct access to expertise.

Digital Experience and Insights: A core component of the HPE Tech Care experience is the personalized digital dashboard accessible via the HPE Support Center. Within this portal, customers have access to My Insights Dashboards , which include a specific Software Dashboard .

Software Dashboard Functionality: This dashboard provides a centralized view of all the customer ' s covered HPE products. It automatically identifies the currently installed software and firmware versions and compares them against the latest available versions released by HPE. This allows IT teams to proactively identify systems that are out of date, reducing security risks and ensuring they are running on the most stable code.

Proactive vs. Reactive: While traditional support (like HPE Foundation Care) focused on reacting to failures, the Software Dashboard in Tech Care helps customers stay ahead of issues by providing " actionable intelligence " regarding their software and firmware lifecycle.

Comparison to Other Options:

Option A: HPE OpsRamp is an IT Operations Management (ITOM) platform that is typically bundled with HPE Complete Care (formerly Pointnext Complete Care) or available as a standalone subscription, but it is not a standard benefit of the base Tech Care service.

Option B: Multivendor support is a hallmark of HPE Complete Care , which provides a single point of contact for the entire data center environment, including non-HPE hardware. Tech Care is primarily focused on the support of HPE products.

Option D: An assigned or dedicated account team (personalized support) is a feature of HPE Complete Care . HPE Tech Care offers " Direct access to product-specific specialists " (expert-to-expert) rather than a dedicated, named account team that manages the customer ' s specific environment profile.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.

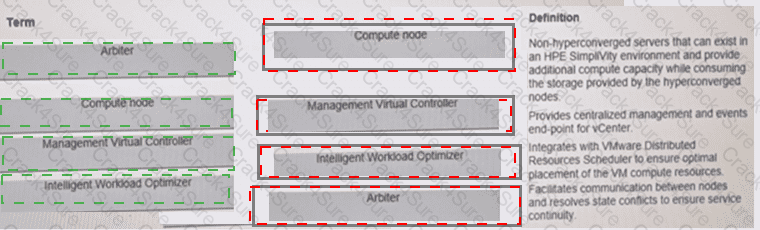

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Arbiter: This component is essential for ensuring that the HPE SimpliVity nodes communicate properly and that any state conflicts are resolved, which is critical for maintaining service continuity.

Compute node: These are non-hyperconverged servers that add additional compute capacity to the HPE SimpliVity environment. They utilize the storage resources provided by the hyperconverged nodes.

Management Virtual Controller: This controller is responsible for centralized management and acts as the events end-point for vCenter, allowing for streamlined management of the SimpliVity environment.

Intelligent Workload Optimizer: This tool integrates with VMware ' s Distributed Resources Scheduler (DRS) to ensure that virtual machine (VM) compute resources are placed optimally across the infrastructure.
