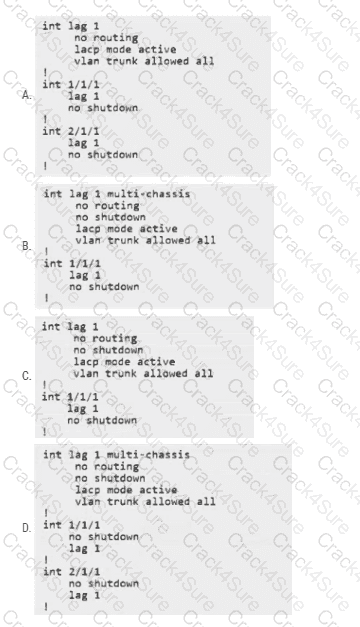

LACP fallback is specifically designed to preserve connectivity when a device connected to an LACP-enabled LAG is temporarily unable to participate in LACP negotiation. This is particularly relevant to an HPE Aruba Networking Mobility Gateway during provisioning, reprovisioning, or an upgrade cycle, when the Gateway can temporarily operate without its normal LACP configuration.

HPE Aruba Networking ' s validated campus design guidance states that LAGs with LACP Fallback allow an active LACP interface to establish forwarding behavior before receiving LACP protocol data units from its peer. In Gateway deployments, Aruba also recommends enabling LACP fallback on the attached switching infrastructure to accommodate periods during which the Gateway does not yet have its LACP configuration available. Aruba Networks

This eliminates the operational requirement to remove the physical interfaces from the LAG merely to preserve connectivity during the transition. Once the Gateway resumes sending valid LACP PDUs, normal dynamic LAG negotiation and aggregation can resume.

LACP active and passive only determine which participant initiates LACP negotiation. They do not provide forwarding when the peer is temporarily unable to negotiate LACP. A static LAG likewise changes the aggregation method rather than providing transitional LACP behavior.

Study Guide References: Link Aggregation; LACP Operation; LACP Fallback; Gateway Port Channels; VSX MC-LAG; Gateway Provisioning and Reprovisioning.

===============

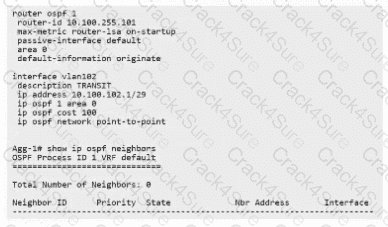

OSPF neighbors not forming adjacency and stuck in the 2WAY state typically indicates that the interface is set to passive mode, preventing OSPF Hello packets from being sent or received on that interface.

Removing passive mode on VLAN 182 allows OSPF Hello messages to be exchanged and adjacency to form.

Options involving network type or costs do not affect adjacency states related to passive interfaces.

The max-metric router-lsa on-startup affects LSA advertisements, not adjacency formation.

Therefore, the fix is to configure no passive-interface vlan182.

In OSPF, when an Autonomous System Boundary Router (ASBR) redistributes routes into the OSPF domain, it assigns them a " Type. " Understanding the difference between Type 1 (E1) and Type 2 (E2) is fundamental for controlling traffic flow out of the network.

Type 2 (E2) Routes (Default): The cost of an E2 route is only the external cost (seed metric) assigned by the ASBR. OSPF does not add the internal path cost to reach the ASBR when comparing two E2 routes.

Tie-Breaking: If two ASBRs advertise the same prefix with the same E2 metric, OSPF then uses the internal cost to the ASBR as a tie-breaker. It will choose the path to the ASBR that is mathematically " closest " in terms of OSPF cost.

Closest Exit Point Strategy (Option D): This is a very common design in Aruba campus networks with multiple Internet or Data Center exits. By configuring all ASBRs to use the same E2 seed metric (the " appropriate " metric), you ensure that every switch in the network will automatically choose its own closest exit point based on the local topology.

Type 1 (E1) Routes: These routes calculate the total cost as External Cost + Internal Path Cost. Use E1 when you want the internal network ' s performance/hops to always influence the path choice, even if external costs differ.

Why other options are incorrect:

Option B: This is the definition of an E1 route, not E2.

Option C: While E2 with the same metric can result in ECMP (Equal Cost Multi-Path), this only happens if the internal costs to both ASBRs are also identical. The more fundamental architectural goal for E2 is favoring the closest exit.

Option A: You can achieve primary/backup with either E1 or E2; it is not a requirement to use E1.

Aruba Central utilizes a " Top-Down " management model for UI Groups. To maintain the integrity of the network and ensure that the central dashboard remains the " Source of Truth, " specific logic is applied during the onboarding process.

Configuration Conflict Prevention: If a group in Central already has a configuration defined (VLANs, DNS, NTP, etc.), and you add a switch that has its own local startup-configuration, Central detects a conflict. It does not know whether to trust the local switch settings or the group settings.

The Factory Default Rule: To protect the network from unintended configuration overwrites, Central will only automatically sync and push group settings to a switch that is in a Factory Default state. If the switch has an existing configuration, Central marks it as having a " Config Conflict " and stops the synchronization process until an administrator manually intervenes to choose which configuration should " win. "

Evaluating other options:

Option B: If Central weren ' t enabled, the switch wouldn ' t even show up as " connected " or " online " in the dashboard, let alone fail a sync within a group.

Option C: Central supports VSX monitoring and management (particularly through Template groups or specific UI workflows).

Option D: Authorization happens at the " Device Inventory " level. If you have already added it to a group, the device is already authorized.

An eBGP relationship is established between BGP routers belonging to different autonomous systems . In this scenario, the local Aruba AOS-CX switch operates in AS 65010 , while the neighboring router belongs to AS 65100 , making the relationship external BGP. AOS-CX defines the neighbor ' s AS with the neighbor < IP-address > remote-as < AS-number > configuration; for this topology, the remote AS would be 65100 . HPE Aruba documentation confirms that an eBGP neighbor ' s remote AS must differ from the local BGP AS. Aruba Networks Developer Hub

By default, AOS-CX permits an external BGP session to be established with a directly connected external peer . HPE Aruba specifically documents that eBGP peers on non-directly-connected networks require neighbor ... ebgp-multihop; therefore, ordinary eBGP operation assumes direct connectivity. Aruba Networks

A route reflector is an iBGP scaling mechanism , not an eBGP establishment requirement. Option D is also incorrect because AOS-CX uses address-family ipv4 unicast, rather than an “ipv4 internal” address family. Option A specifies AS 65001, which does not correspond to the stated remote AS 65100.

Study Guide References: BGP Fundamentals; eBGP Neighbor Establishment; neighbor remote-as; eBGP Multihop; IPv4 Unicast Address Family.

===============

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode, client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode, the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

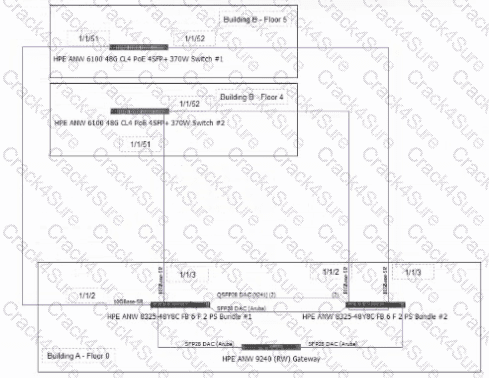

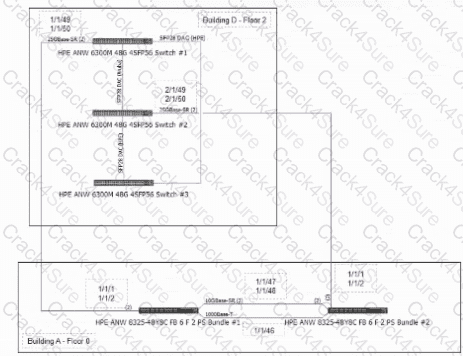

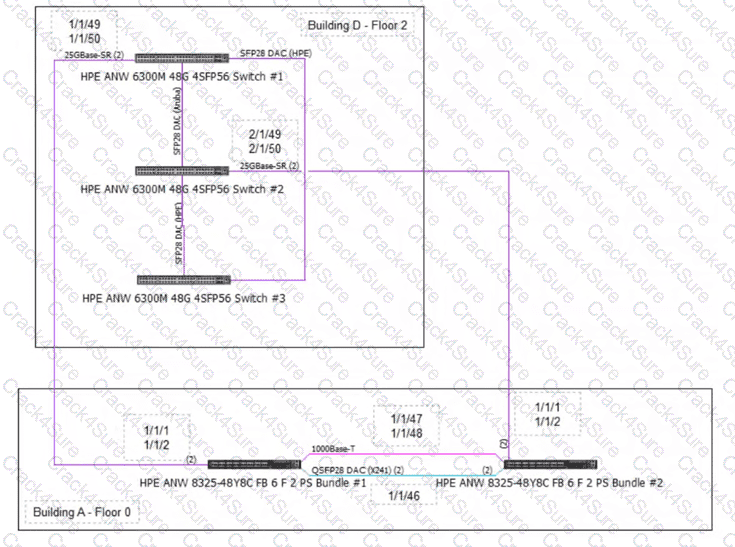

For the CX 8325 48Y8C , the default interface profile groups the SFP28 front-panel interfaces into groups of 12 contiguous ports , and those groups operate at 25 Gbps by default . Therefore, interface-group 1 encompasses ports 1 through 12 , with its default speed set to 25G , making option D correct. HPE Aruba documents the default profile as group 1 = ports 1–12, group 2 = 13–24, group 3 = 25–36, and group 4 = 37–48. Aruba Networks

The exhibit uses 25GBASE-SR connections from the CX 6300M access layer toward ports 1/1/1 and 1/1/2 on the CX 8325. This matches the CX 8325 ' s default 25G interface-group configuration, so there is no requirement to change group 1 to 10G.

The physical medium is also valid. HPE Aruba specifies that a 25G SFP28 SR transceiver supports up to 100 meters over OM4 multimode fiber . The stated inter-building distance of 90 meters is therefore within the supported optical reach. Aruba Networks

If 1G or 10G optics were instead required on these ports, the entire applicable interface group would need to be changed to 10G-compatible mode; that is not required in this design.

Study Guide References: CX 8325 Interface Groups; Default Port Speeds; SFP28; 25GBASE-SR; OM4 Multimode Fiber; Physical-Layer Design.

To monitor BGP neighbor state changes and automatically create a helpdesk ticket, the NAE (Network Analytics Engine) action to use is a REST API call. This allows integration with external ticketing or automation systems, enabling automated ticket creation when a monitored event occurs.

Executing shell commands, sending emails, or generating logs are limited to internal actions and do not integrate as seamlessly with helpdesk systems.

REST API calls allow custom integration and automation.

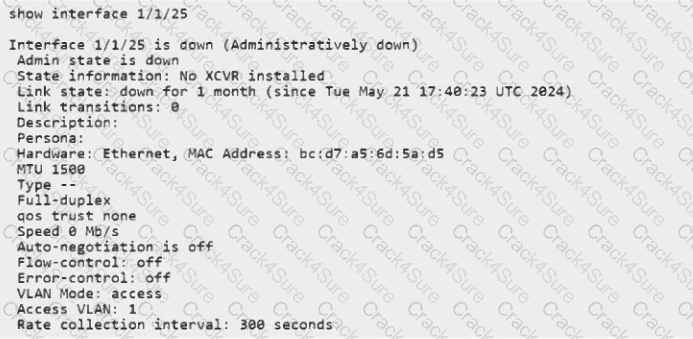

The ISP connection should be implemented as a routed physical interface , not as an access port attached to a VLAN/SVI. On AOS-CX, the routing command places a physical interface into Layer 3 mode, allowing an IP address to be assigned directly to that interface. HPE Aruba explicitly defines routing as enabling routing support and creating a Layer 3 interface; conversely, no routing makes the interface operate as Layer 2. Aruba Networks

The exhibit also shows interface 1/1/25 as administratively down , so no shutdown is required. HPE Aruba documents no shutdown as the command that enables an interface. Aruba Networks The resulting configuration is therefore:

interface 1/1/25

no shutdown

routing

ip address 10.10.10.2/30

This creates a dedicated point-to-point Layer 3 adjacency toward the ISP router. Because the port is no longer participating as a switched VLAN access interface, it removes unnecessary Layer 2 forwarding and the associated risk of creating a Layer 2 loop. Aruba validated configurations for CX 8325 similarly use no shutdown, routing, and an interface IP address for routed point-to-point links. Aruba Networks

Options A and D retain Layer 2 access-port operation, while B incorrectly uses enable instead of the AOS-CX interface command no shutdown.

Study Guide References: Routed Interfaces; routing; no shutdown; Layer 2 versus Layer 3 Ports; ISP/WAN Point-to-Point Design.

To interpret AOS-CX event logs correctly for the ACP-S exam, you must understand the syntax used by the VSX Daemon (hpe-vsxd) when reporting the status of Multi-Chassis Link Aggregation Groups (MC-LAGs).

Anatomy of the Log Message:

hpe-vsxd: This indicates the message is generated by the VSX synchronization process.

VSX 2: This refers specifically to Virtual Port Channel (or VSX LAG) ID 2. It does not refer to the switch member ID, but the logical LAG ID.

State local down: This means the physical member ports assigned to LAG 2 on the switch you are currently logged into (the " local " switch) are operationally down.

remote up: This indicates that via the Inter-Switch Link (ISL), the switch has learned that its VSX peer (the " remote " switch) still has its physical member ports for LAG 2 in an " up " state.

Operational Impact: In a healthy VSX environment, an MC-LAG should ideally show " local up, remote up. " When a log shows " local down, remote up, " it signifies a partial failure of the multi-chassis aggregation. Traffic destined for the device connected to LAG 2 will now only flow through the peer switch.

Why other options are incorrect:

Option A: If the secondary switch were down entirely, the " remote " status would typically be reported as " down " or " unknown " because the ISL/Keepalive synchronization would be lost.

Option B: If it were down on both, the log would read " local down, remote down. "

Option D: Keepalive failures are reported with different Event IDs (typically involving the " keepalive " keyword) and affect the overall VSX role state (Split-Brain recovery), not a specific LAG ID.

Key Practice Tip: Always look for the keywords local and remote in VSX logs. They provide an immediate health snapshot of the synchronized state between the two core switches.

The configuration explicitly contains ip igmp version 2 , which overrides the normal AOS-CX IGMP version selection for this Layer 3 VLAN interface. HPE Aruba Networking documents the default IGMP version as IGMPv3 . The ip igmp version < VERSION > command permits either version 2 or version 3, and removing the explicit version configuration restores the interface to the default of IGMPv3 . Therefore, configuring version 2 represents a custom, non-default IGMP version , making option D correct. Aruba Networks

The commands have separate multicast functions. ip igmp enable enables IGMP operation on VLAN 2222 so the Layer 3 interface can process multicast membership information from attached receivers. ip pim-sparse enable enables PIM Sparse Mode on that routed interface, allowing the switch to participate in multicast routing and build multicast distribution trees toward other PIM routers. HPE Aruba configuration examples show PIM-SM and IGMP enabled together on receiver-facing routed interfaces. Aruba Networks

PIM is therefore not a requirement for ordinary Layer 2 multicast forwarding , and neither is it required merely to perform generic local Layer 3 unicast routing. Its role is specifically multicast routing between Layer 3 interfaces .

Study Guide References: IGMP Configuration; IGMPv2/IGMPv3; PIM Sparse Mode; Multicast Receiver Membership; Layer 3 Multicast Routing.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

Colorless ports allow network devices to move or replace endpoints without changing port-level configurations, typically by automatically assigning network policies dynamically to any port.

HPE Aruba’s solution for colorless ports is the VNBT (Virtual Network Boundary Tagging) feature. VNBT allows dynamic segmentation of traffic, so ports can automatically take on the policies assigned to devices regardless of physical port location.

VRRP is a first-hop redundancy protocol and unrelated to port colorlessness.

VSF (Virtual Switching Framework) is for switch stacking.

VRF (Virtual Routing and Forwarding) is for traffic segmentation.

Thus, VNBT is the correct feature to meet colorless port requirements.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

To make configuration changes using multi-edit in Aruba Central when encountering the shown condition, you must enable edit config mode using the gear icon. This unlocks the configuration for editing and allows you to make batch changes safely.

Selecting configuration status or device in multi-edit alone is not sufficient.

Overriding state is not a standard approach in Aruba Central for editing configs.

When deploying HPE Aruba VSX switches parallel to existing HPE Comware switches, choosing a first-hop redundancy protocol compatible with both platforms is essential. VRRP (Virtual Router Redundancy Protocol) is widely supported across multiple vendors and is suitable for multi-vendor environments.

HSRP is Cisco proprietary and not supported on Aruba Comware or CX.

Active Forwarding and Active Gateway are Aruba VSX internal mechanisms, not standard first-hop redundancy protocols.

VRRP provides seamless failover and is supported in Comware and Aruba CX platforms.

Thus, VRRP is the suitable choice.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

On AOS-CX, the authorized DHCP server list is configured at global/VRF scope rather than within an individual VLAN . The relevant configuration is therefore to enable DHCPv4 snooping globally and add 10.100.100.10 to the authorized-server list. HPE Aruba documents the command as dhcpv4-snooping authorized-server < IPV4-ADDR > [vrf < VRF-NAME > ]; in newer AOS-CX releases, the dhcpv4-snooping keyword has been superseded by dhcp-snooping. Aruba Networks

The authorized-server mechanism causes DHCP replies received through trusted paths to be accepted only when their server address appears in the permitted list. HPE ' s DHCP snooping sample configuration shows the same operational sequence: enable DHCP snooping globally, enable it on the required client VLANs, configure the trusted server-facing/uplink interface, and then configure the authorized DHCP server globally. Aruba Networks

Therefore, neither VLAN 100 nor VLAN 20 is the configuration context for the authorized-server command. Option D is also syntactically incorrect because dhcpv4-snooping trust is an interface-level operation; it trusts the port/path, not a server IP address. For VLAN 20 to be protected, DHCP snooping must additionally be active on VLAN 20. Aruba Networks

Study Guide References: DHCPv4 Snooping; Authorized DHCP Servers; Trusted/Untrusted Interfaces; DHCP Relay Across VLANs; DHCP Snooping Security.

After enabling ARP protection, many users lose network access because ARP protection relies on DHCP snooping to build IP-to-MAC binding tables. Without DHCP snooping enabled and correctly configured, ARP inspection cannot verify ARP packets, causing legitimate traffic to be dropped.

Enabling DHCP snooping allows ARP inspection to validate ARP requests and responses.

Other options like dynamic IP lockdown, IGMP snooping, or DHCP reservations are unrelated or secondary.

To influence BGP path selection, you must understand the BGP Best Path Selection Algorithm used by AOS-CX. When multiple paths to the same prefix exist, the switch evaluates attributes in a specific order.

The Decision Order:

Highest Weight (Proprietary/Local to the switch).

Highest Local Preference (Standard, used within an AS).

Locally originated.

Shortest AS Path.

Lowest MED (Metric).

Local Preference (LP): Although Local Preference is an attribute that is typically passed between iBGP peers, it is the most common tool used on an ingress (import) policy from an eBGP peer to tell the local switch (and the rest of the AS) " this is our preferred exit/entry point. "

The default Local Preference is 100.

By creating a route-map that sets the Local Preference to 200 and applying it to Peer A on import, the switch will see Peer A ' s route as having a higher LP than Peer B ' s route (which remains at 100).

Local Preference vs. Metric (MED): Local Preference is evaluated before the Metric (MED) in the decision process.

Option C works because LP 200 is higher than 100.

Option B is incorrect because setting a higher Metric (200) actually makes a route less preferred (lower metric wins).

Option D would technically make Peer A preferred (because Peer B would have a higher/worse metric), but because Local Preference is higher in the decision-making hierarchy, Option C is the more robust and standard BGP engineering choice in Aruba architectures.

Example CLI Logic:

Bash

route-map PREFER_A permit seq 10

set local-preference 200

!

router bgp 65001

neighbor < Peer_A_IP > route-map PREFER_A in

To protect a network from Layer 2 man-in-the-middle attacks, AOS-CX switches utilize two closely related security features: DHCP Snooping and Dynamic ARP Protection.

DHCP Snooping: This feature acts as a firewall between untrusted hosts and trusted DHCP servers. When enabled, the switch categorizes ports as either trusted (connected to a legitimate DHCP server or another switch) or untrusted (connected to end-user devices). If a " malicious " DHCP server on an untrusted port attempts to send a DHCP OFFER or ACK message, the switch drops the packet.

The Snooping Binding Table: As a byproduct of monitoring legitimate DHCP exchanges, the switch builds a DHCP Snooping Binding Table. This table is a " source of truth " that maps a client ' s MAC address to its assigned IP address and the specific physical port it is connected to.

Dynamic ARP Protection: ARP poisoning (or spoofing) occurs when an attacker sends fake ARP messages to link their MAC address with the IP address of a legitimate server or gateway. When ARP protection is enabled, the switch intercepts all ARP packets on untrusted ports and validates them against the DHCP Snooping Binding Table. If the MAC-to-IP mapping in the ARP packet does not match the entry in the table, the packet is discarded.

Integration: These two features must work together. Without the binding table created by DHCP Snooping, ARP Protection has no data to validate against. This combination ensures that only the device that legitimately received an IP via DHCP can claim that IP in ARP responses.

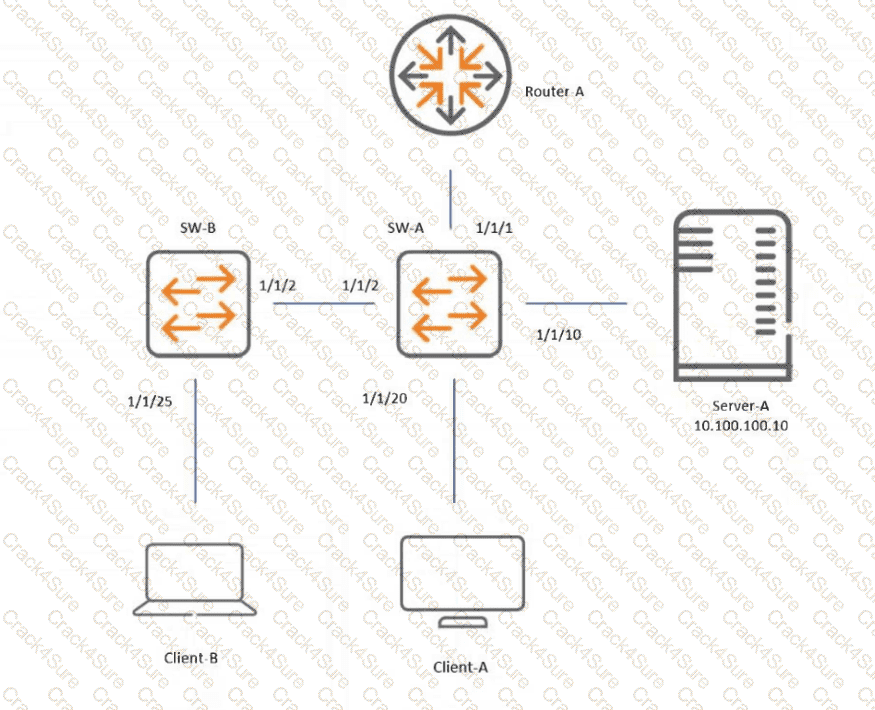

For a rapid connectivity check, AOS-CX tcpdump is the most efficient diagnostic method because the administrator only needs to establish whether the expected connection request is followed by a server response. AOS-CX provides diag utilities tcpdump specifically for packet-level troubleshooting and supports filters for source/destination IP addresses, source/destination ports, protocol, packet count, and verbosity. This permits the engineer to isolate the client-server conversation and observe the exchange directly from the switch CLI in real time. Aruba Networks

For example, the capture can be constrained to the server IP or application port so that TCP SYN/SYN-ACK behavior, resets, or other responses are immediately apparent. Where transit data-plane traffic must be redirected internally, AOS-CX supports CPU mirroring in conjunction with its diagnostic capture facilities. Aruba Networks

The other choices are valid techniques for different requirements but introduce additional work. ERSPAN is preferable for remote full-packet analysis , a destination-port mirror requires a physically attached capture device, and TShark-to-PCAP is appropriate when a persistent capture must subsequently be examined or transferred. For the stated objective— quickly confirming whether the server responds —real-time tcpdump inspection is the appropriate choice.

Study Guide References: AOS-CX Monitoring; Mirroring; diag utilities tcpdump; Packet Filtering; Troubleshooting Client-to-Server Connectivity.

===============

For an availability-sensitive WLAN deployment, the appropriate AOS-CX capabilities are Quick PoE and Always-on PoE . They address two different switch power-transition conditions and together minimize interruption to PoE-powered APs.

Always-on PoE maintains PoE delivery to already powered devices during a soft reboot , including scheduled switch reboots and firmware upgrade operations. Consequently, an AP-615 does not unnecessarily lose electrical power and perform a complete hardware boot merely because the CX switch ' s operating system is restarting. HPE Aruba specifically identifies this capability on the CX 6300 as part of its high-availability PoE functionality. Aruba Networks

Quick PoE addresses a cold reboot/power-up condition. HPE Aruba defines it as allowing the PSE to restore power to connected powered devices shortly after the switch powers up, rather than waiting for the complete network operating system initialization sequence. Aruba Networks Developer Hub

Using both features therefore covers both major restart scenarios: Always-on PoE preserves existing power across software restarts, while Quick PoE accelerates AP power restoration following a cold startup. For hospital WLANs supporting critical endpoints, this combination provides the highest AP power availability among the listed choices.

Study Guide References: CX 6300 PoE Architecture; Always-on PoE; Quick PoE; High-Availability Campus Design; AP Power Resiliency.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100.

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1. If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

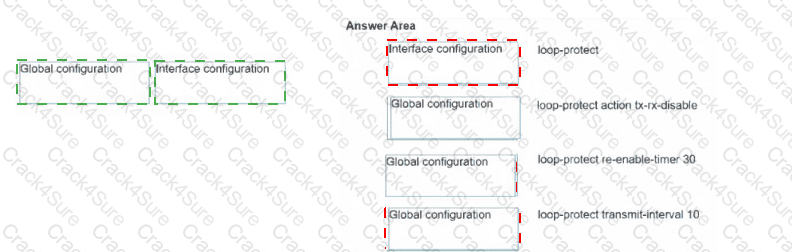

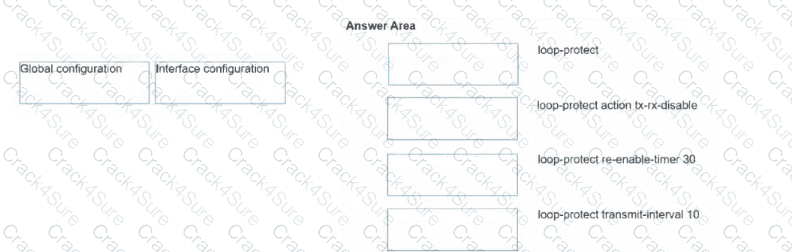

In network environments where users might connect unauthorized, " dumb " (unmanaged) switches or hubs, standard Spanning Tree Protocol (STP) may not be sufficient to prevent loops.

The Limitation of STP and BPDU Guard: BPDU Guard is an excellent feature that disables a port if it receives a Bridge Protocol Data Unit (BPDU). However, many unmanaged switches do not participate in STP and therefore do not originate BPDUs. Some may simply forward BPDUs or drop them entirely. If a loop is created through an unmanaged switch that doesn ' t send BPDUs, BPDU Guard will never trigger.

How Loop Protection Works: AOS-CX Loop Protection is specifically designed for this scenario. The switch sends out proprietary Loop Protection packets at a configured interval. If the switch receives its own Loop Protection packet back on the same port (or a different port in the same VLAN), it knows a loop exists.

Action on Detection: Upon detecting the loop, the switch can be configured to send an SNMP trap and, more importantly, disable the port to stop the broadcast storm and prevent a network outage.

Best Practice: Loop protection is commonly recommended for " Access " or " Colorless " ports where end-user devices connect, as it provides a safety net against loops caused by non-STP aware devices.

In AOS-CX architecture, management services (such as SSH, HTTPS, and SNMP) are VRF-aware. This is a security hardening feature designed to separate management traffic from data traffic.

Default Behavior: By default, AOS-CX switches enable the HTTPS server only on the mgmt VRF (the Out-of-Band Management port). This means the Web UI and REST API are only accessible through the dedicated physical management port.

In-Band Management: When you create an SVI (Switch Virtual Interface) like SVI 100, that interface resides in the default VRF (unless you manually assign it to a custom VRF). To manage the switch " in-band " through this SVI using a web browser, you must explicitly instruct the AOS-CX operating system to listen for HTTPS requests on that specific VRF.

The Command: The command https-server vrf default tells the switch to start the web server process for the default VRF. Without this command, any attempt to access the switch ' s IP address on SVI 100 via port 443 will be dropped by the switch ' s internal control plane protection, as the service is not active for that network context.

Verification of Options:

Option A: This command is typically already part of the factory default configuration to allow OOBM access; it does nothing for an SVI in the default VRF.

Option B: Incorrect, as HTTPS is restricted to the mgmt VRF out of the box for security.

Option C: This is a true statement regarding the default state, but it describes the problem rather than providing the solution to the requirement.

Option D: This is the correct administrative action to enable the service for the data plane (where SVI 100 lives).

When managing a network through HPE Aruba Networking Central, administrators have access to specialized reporting tools designed for lifecycle management and expansion planning.

Purpose of the Switch Capacity Planning Report: This specific report is engineered to give a clear overview of physical and electrical headroom within the switching infrastructure. When preparing to add new Access Points (APs), two variables are critical:

Port Density: The report identifies the number of available (unused) ports across various speeds (1GbE, 2.5GbE, 5GbE, etc.).

PoE Budgeting: High-performance APs (such as Wi-Fi 6E or Wi-Fi 7 models) require significant Power over Ethernet (PoE) wattage (PoE+ or UPoE). The report calculates the Total PoE Budget vs. the Currently Allocated PoE, allowing you to see if the switch power supplies can handle the additional load.

Evaluating Other Options:

Option A (Infra Inventory): This report focuses on asset management. it provides details like serial numbers, MAC addresses, hardware models, and firmware versions. It does not provide real-time or historical port usage or PoE consumption data.

Option C (Network): This is a broader summary report that typically focuses on connectivity, client counts, and overall network health rather than specific hardware resource limits.

Option D (Resource Utilization): While this report is useful, it generally focuses on System Resources such as CPU usage, Memory (RAM) consumption, and temperature sensors rather than physical port availability or PoE power budgets.

Best Practice: In an Aruba Central environment, running the Switch Capacity Planning report before a hardware refresh or expansion is a mandatory step to avoid " PoE starvation " or physical port shortages during the installation phase.

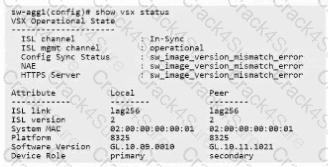

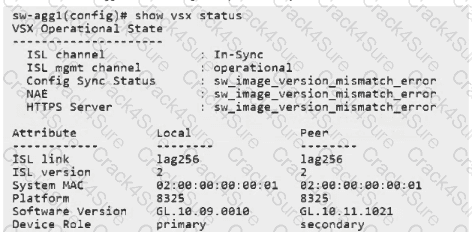

When VSX peers are being managed through HPE Aruba Networking Central, VSX configuration synchronization must be handled carefully , particularly when the configuration state of the two peers is not identical or one peer is incomplete. Therefore, VSX sync can have configuration synchronization issues , making option B correct.

HPE Aruba documents multiple VSX configuration-sync conditions, including CONFIGURATION_SYNC_CONFLICT and CONFIGURATION_SYNC_MISSING_REFERENCE . A conflict can occur when configuration on the primary is marked for synchronization but corresponding configuration on the secondary creates a synchronization conflict; a missing-reference condition occurs when synchronized configuration depends on an object or configuration element that is absent. Aruba Networks

Central documentation additionally warns against enabling or manipulating certain vsx-sync configurations through Central , because synchronization can modify the peer and potentially leave it in an unknown configuration state. In MultiEdit specifically, HPE states that vsx-sync commands in subcontexts should not be added, edited, or deleted. Aruba Networks

This does not mean MultiEdit itself is unavailable, eliminating A. Central also supports AOS-CX configuration through its UI, eliminating D. There is likewise no general requirement that VSX switches must run 10.13.x or later merely for Central management; Central Managed mode supports substantially earlier AOS-CX releases. Aruba Networks

Study Guide References: VSX Configuration Synchronization; vsx-sync; Central MultiEdit; Configuration Sync Conflicts; VSX Peer Management.

MACsec (Media Access Control Security) is the correct solution when the requirement is to provide encryption, integrity protection, and authentication for Ethernet traffic at Layer 2 . MACsec is defined by IEEE 802.1AE and protects Ethernet links on a hop-by-hop basis between MACsec-capable devices.

HPE Aruba Networking describes MACsec as Layer 2 security for wired LAN connections. Once the peers establish the secure association and validate the required cryptographic keys, Ethernet payloads are encrypted before transmission. The receiving device validates frame integrity and decrypts successfully authenticated traffic; invalid or modified protected frames can be discarded. This protects against threats such as eavesdropping and man-in-the-middle manipulation on the physical Ethernet link. Aruba Networks

This directly satisfies the requirement for securing Ethernet frames between compatible AP uplinks and CX switching infrastructure. Platform and interface MACsec support must, of course, be confirmed for the selected AP and CX models.

MAC authentication does not encrypt Ethernet frames; it authenticates a client based primarily on its MAC address through port-access mechanisms and RADIUS. Aruba Networks Sticky MAC provides MAC-based port security rather than cryptographic protection, while “MAC-TLS” is not the applicable Aruba Ethernet encryption technology.

Study Guide References: MACsec; IEEE 802.1AE; MKA; Layer 2 Encryption; Ethernet Frame Integrity; CX Security Architecture.

===============

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

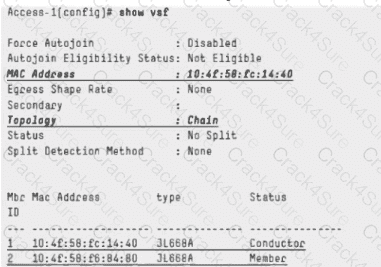

Analyzing the Exhibit:

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

Comprehensive Detailed Explanation:

VLAN 1 is often configured as the native VLAN on interfaces to support Zero Touch Provisioning (ZTP). During ZTP, devices communicate over VLAN 1 by default to download their configuration and updates.

LLDP and UBT are unrelated to native VLAN configuration for provisioning.

MSTP relates to spanning tree but does not dictate native VLAN usage.

Thus, VLAN 1 as native VLAN facilitates ZTP processes.

Bidirectional Forwarding Detection (BFD) is used in conjunction with OSPF to provide sub-second failure detection. However, running standard BFD (Control Mode) for many neighbors can place a significant load on the switch ' s Control Plane CPU, as the CPU must process every BFD control packet.

Control Mode vs. Echo Mode:

Control Mode: Both peers exchange BFD packets that are processed by their respective CPUs. This ensures the BFD state machine is synchronized but is CPU-intensive.

Echo Mode: The switch sends a BFD Echo packet to its neighbor. The neighbor simply " reflects " the packet back in the data plane (ASIC) without sending it to its own CPU. The originating switch then processes the returned packet.

Efficiency of Echo Mode: In the Aruba AOS-CX architecture, BFD Echo Mode is highly efficient because it offloads the " heartbeat " processing from the CPU to the hardware (ASIC) on supported platforms. By enabling echo mode, the frequency of control packets reaching the CPU is reduced, which effectively resolves high CPU utilization issues while maintaining fast failover.

Evaluating Other Options:

Option A: ICMP is not part of the BFD mechanism for OSPF adjacency tracking.

Option B: OSPF does not form adjacencies on passive interfaces, so BFD would not run there and would not contribute to CPU usage.

Option D: ICMP redirects are unrelated to the BFD protocol ' s internal processing logic.

In the exhibit, the CX8325 switch ports 1/1/47 and 1/1/48 are connected in a VSX setup. According to Aruba VSX best practices, ports on the CX8325 switch that serve as ISL or VSX interconnects should use SFP28 optics for 25Gbps links. If SFP56 optics are used, it would be incorrect because CX8325 ports are designed to support SFP28 modules for these speeds.

CX6300 ports use SFP56 or QSFP28 depending on model and link speed.

CX8300 series ports designed for QSFP28 for higher speeds.

Hence, the best practice is to use SFP28 on CX8325 for the interconnect links.

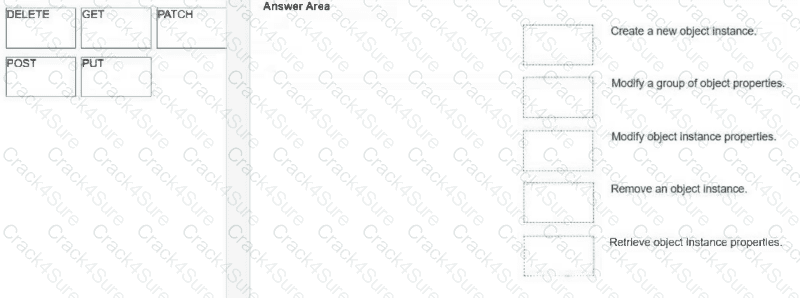

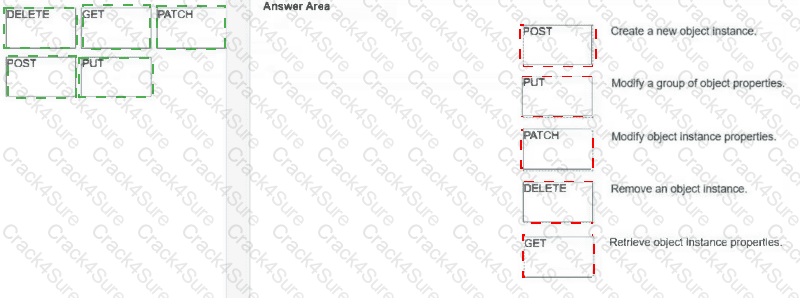

POST: Create a new object instance.

PUT: Modify a group of object properties.

PATCH: Modify object instance properties.

DELETE: Remove an object instance.

GET: Retrieve object instance properties.

AOS-CX is built with a REST-first architecture, where the Web UI and CLI both interact with the same internal database via an API. Understanding these standard HTTP methods is essential for network automation.

POST (Create): Used to create a new resource. For example, creating a new VLAN entry in the database.

GET (Read/Retrieve): Used to fetch information about a resource. It is a " read-only " operation used to check the status of a port or the contents of the routing table.

PUT (Replace/Modify Group): In the Aruba API context, PUT is used for a " complete update. " It essentially replaces the current object with a new set of properties. If you omit properties in a PUT request, they may return to default values.

PATCH (Partial Update/Modify Instance): PATCH is used for incremental changes. It allows you to modify only a specific subset of an object ' s properties (like changing only the description of a port) without having to resend the entire object configuration.

DELETE (Remove): Used to remove a specific resource instance from the switch database (e.g., deleting a VLAN or a static route).

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

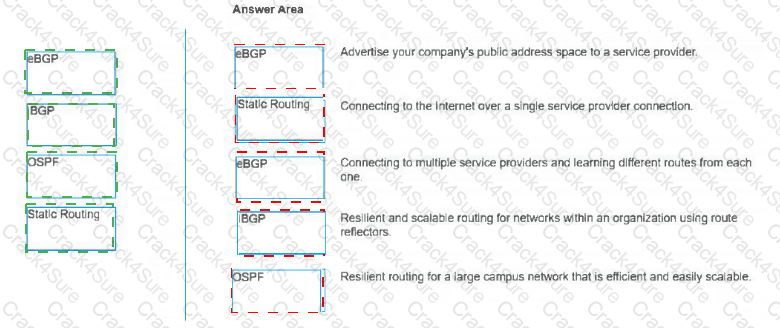

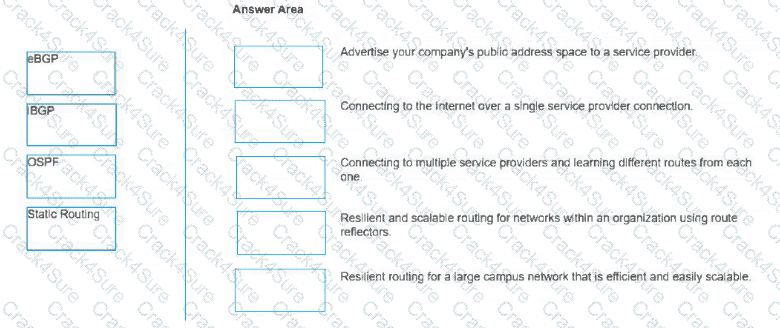

Answer Area:

Advertise your company ' s public address space to a service provider: eBGP

Connecting to the Internet over a single service provider connection: Static Routing

Connecting to multiple service providers and learning different routes from each one: eBGP

Resilient and scalable routing for networks within an organization using route reflectors: iBGP

Resilient routing for a large campus network that is efficient and easily scalable: OSPF

In AOS-CX design, selecting the right routing protocol is based on the boundary of the administrative control and the required scale.

Advertise public address space to a service provider (eBGP): External BGP (eBGP) is the industry-standard protocol used to exchange routing information between different Autonomous Systems (AS). To let the world know how to reach your public IP block, you must " speak " eBGP with your ISP.

Single service provider connection (Static Routing): When a network has only one exit point (a " stub " connection) to the Internet, dynamic protocols are unnecessary. A simple default static route (0.0.0.0/0) pointing to the ISP gateway is the most efficient and least resource-intensive method.

Multiple service providers / Multi-homing (eBGP): When you have two or more ISPs, your switch needs to make a decision on which path is better based on attributes like AS-Path length or MED. eBGP is required here to receive and process these external path attributes.

Internal organization routing with route reflectors (iBGP): Internal BGP (iBGP) is used to carry BGP prefixes within an AS. Because iBGP requires a " Full Mesh " by default (every router connected to every other router), it does not scale well. Route Reflectors are the architectural solution used to allow a central switch to reflect routes to others, ensuring scalability within the organization.

Large campus network (OSPF): Open Shortest Path First (OSPF) is a Link-State Interior Gateway Protocol (IGP). It is the preferred choice for Aruba campus environments because of its fast convergence, hierarchical design (Areas), and ability to handle large numbers of internal subnets efficiently.

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping. When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings.

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

To answer this correctly, it is vital to distinguish between VSF (Virtual Switching Framework) and VSX (Virtual Switching Extension).

VSF (Virtual Switching Framework) Logic: The CX 6200 and 6300 series use VSF to form a " stack. " In a VSF stack, multiple physical switches operate as a single logical device with a single control plane and a single configuration file.

LAG Configuration in VSF: Because a VSF stack is a single logical entity, creating a Link Aggregation Group (LAG) that spans multiple members is handled exactly like a standard LAG on a single switch. You simply create the interface lag X and then assign physical ports from different members (e.g., member 1 and member 2) to that same LAG ID.

The " multi-chassis " Keyword: The keyword multi-chassis (seen in Options B and D) is specific to VSX, which is used on high-end switches like the CX 6400 and 8000 series. VSX involves two separate control planes that synchronize information. In VSX, you must use the multi-chassis command to let the switches know the LAG is split across two different chassis. In VSF, this keyword is not used and would result in a syntax error on a 6200 switch.

Analyzing the Options:

Option A (Correct): It uses standard interface lag 1 syntax. It assigns port 1/1/1 (from member 1) and port 2/1/1 (from member 2) to the same LAG. This perfectly fulfills the requirement for redundant ports from both switches in a VSF stack.

Option B: Incorrect because it uses the multi-chassis keyword (VSX only).

Option C: Incorrect because it only configures a port from one switch (1/1/1), failing the requirement for redundancy across both switches.

Option D: Incorrect because it uses the multi-chassis keyword (VSX only).

Key Takeaway for the ACP-S Exam: * VSF (6200/6300) = Standard LAG configuration across members.

VSX (6400/8000) = Requires multi-chassis keyword under the LAG interface.

When making changes remotely to critical configurations such as Control Plane ACLs on a CX switch, to protect against accidental lockout due to misconfiguration, you should enable checkpoint auto before committing the changes.

Checkpoint auto creates an automatic rollback timer. If the administrator loses connectivity (e.g., because of the ACL change), the system automatically rolls back the change after the timer expires, preventing lockout.

checkpoint commit is used after committing to save the checkpoint explicitly, but it does not provide automatic rollback.

Running checkpoint auto before committing is essential to have the rollback safety net.

HPE Aruba Networking AOS-CX is a cloud-native, database-driven operating system designed to move away from traditional, " brittle " management methods toward Network Automation and AIOps.

REST API (Option A): In AOS-CX, the entire system state is stored in a database (ASDB). The switch provides a 100% " REST-ful " API, meaning every single feature, configuration, and statistical counter that can be accessed via the CLI can also be accessed programmatically via REST. This allows for modern automation, integration with custom dashboards, and DevOps workflows.

NAE (Network Analytics Engine) (Option D): This is a hallmark " modern " feature of AOS-CX. NAE provides a built-in framework for monitoring and troubleshooting. It uses Python-based agents to monitor the local database for specific events (like a spike in CPU or an OSPF state change) and can take automated actions (like capturing a packet trace or generating a log). It provides a graphical representation of network health directly in the Web UI.

Why other options are incorrect:

Option C (SNMP): While supported, SNMP is considered a legacy protocol. It is relatively slow, lacks security (in v1/v2c), and is typically used for monitoring only, rather than the " modern management " and automation logic found in REST or NAE.

Options B and E: YAML and XML are data serialization formats. While they are used by modern management tools (like Ansible using YAML or NETCONF using XML), they are not management " approaches " or native switch features in the same way that a REST API or an Analytics Engine is.
