Practice Free HPE7-J01 Advanced HPE Storage Architect Written Exam Exam Questions Answers With Explanation

Sites

The Zerto Virtual Replication Appliance (VRA) is a critical architectural component of the Zerto solution. It is a lightweight Linux-based virtual machine that must be installed on every hypervisor host (ESXi or Hyper-V) in both the production and recovery sites that will host protected virtual machines. The VRA is responsible for intercepting the I/O writes from the VMs and asynchronously replicating them to the recovery site.

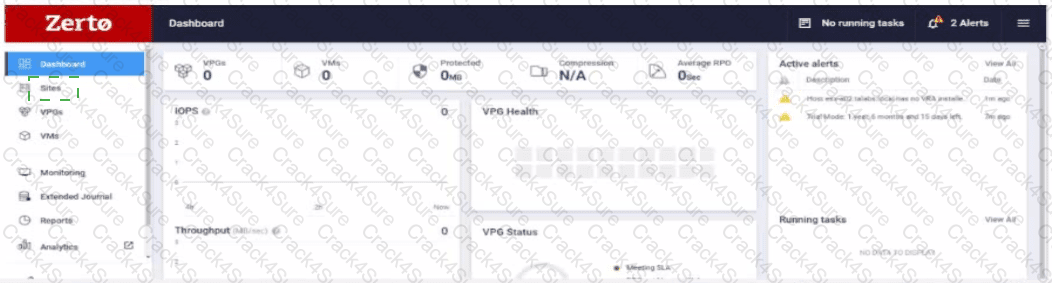

In the Zerto Virtual Manager (ZVM) web interface shown in the exhibit (image_649973.png), the management of site-level infrastructure is centralized within the "Sites" tab. By clicking on this tab, the administrator accesses the view for both local and paired remote sites. Within the Local Site details, there is a sub-tab for "VRAs" or "Hosts" where the administrator can see a list of all hosts managed by the connected vCenter or SCVMM.

To deploy a VRA, the administrator selects the host(s) currently missing the appliance and clicks the "Install" button. The ZVM then automates the deployment, configuring the VRA with the necessary network settings and registering it with the hypervisor. Notably, the "Active alerts" window in the exhibit explicitly provides a hint: it shows an alert stating that "Host esx-e02.telabs.local has no VRA installed". Clicking on the "Sites" tab is the foundational step to resolve this alert and finalize the infrastructure setup required to begin creating Virtual Protection Groups (VPGs).

The requirements provided point toward a "Secondary Storage" use case where the data must be more than just a "cold" backup; it needs to be "active" for DevOps and testing. The HPE Alletra 5000 (the successor to the HPE Nimble Storage Adaptive Flash arrays) is specifically engineered for this hybrid role.

Architecturally, the Alletra 5000 utilizes the CASL (Content Aware Storage Architecture) file system. This allows it to perform high-speed inline deduplication and compression, making it a cost-effective repository for long-term retention. Crucially for the customer's DevOps requirement, Alletra 5000 supports Zero-Copy Clones. This means the storage administrator can instantly create multiple copies of production datasets for development and testing without consuming additional storage space or impacting the performance of the primary backup repository.

When paired with Veeam Backup & Replication, the solution meets the "fast granular restore" and "instant recovery" requirements perfectly. Veeam’s vPower technology enables Instant VM Recovery, which allows a virtual machine to be started directly from the compressed and deduplicated backup file on the Alletra 5000. Because the Alletra 5000 includes a flash tier for metadata and frequently accessed data, it provides the necessary IOPS to run these recovered VMs or DevTest workloads with near-production performance.

In contrast, while Cohesity (Option B) is a strong secondary platform, HPE dHCI is a primary infrastructure solution and not just a backup repository. Scality RING (Option C) is an object storage solution geared toward massive scale and petabyte-level archives, but it lacks the performance characteristics for "instant recovery" and seamless DevOps cloning found in the Alletra 5000. HPE Alletra 4000 (Option D) is a high-density data server (formerly Apollo) which provides the raw hardware but lacks the integrated CASL-based intelligence and "Better Together" orchestration that the Alletra 5000/Veeam partnership offers for this specific customer profile.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

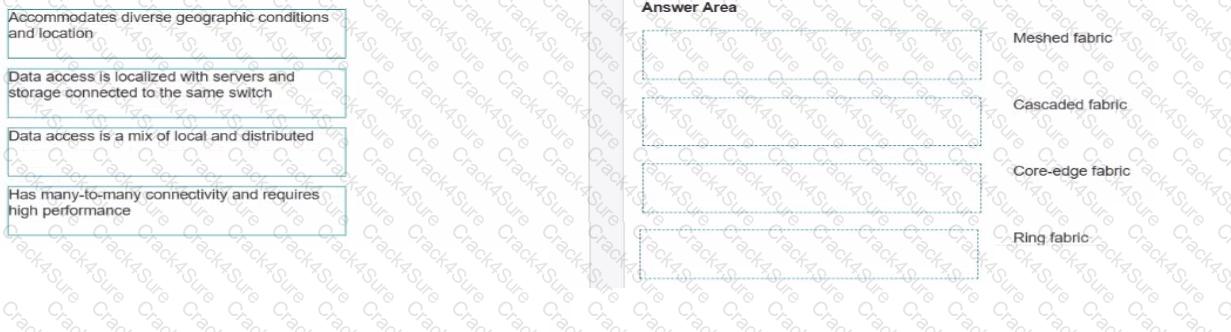

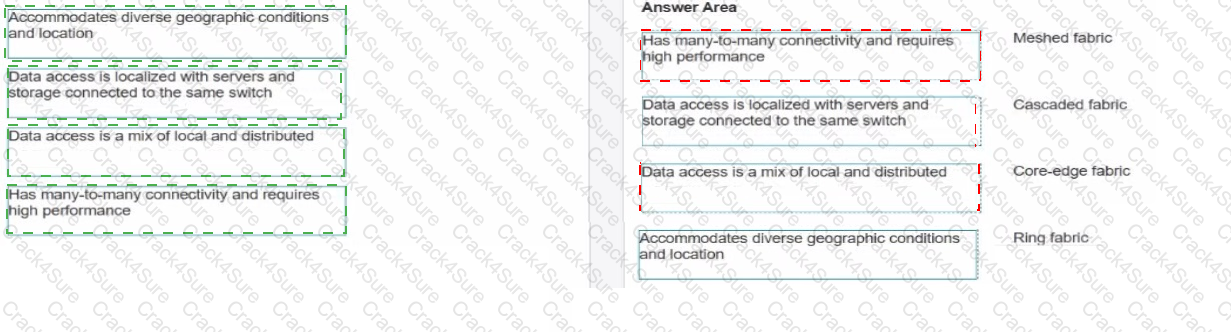

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

Performance Estimation

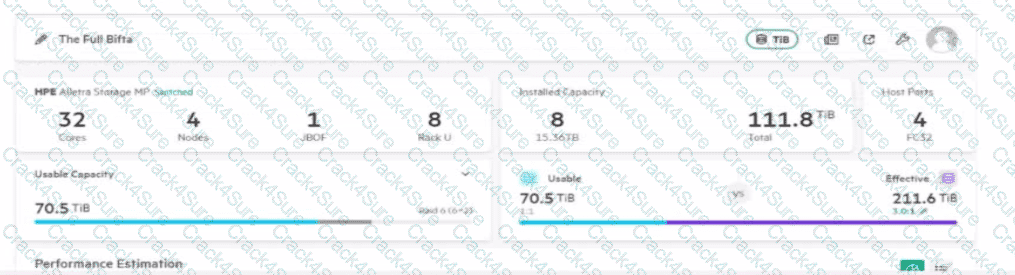

The HPE Ninja Sizer is a vital tool for storage architects to model the "Performance vs. Capacity" trade-offs of the HPE Alletra MP B10000 disaggregated architecture. In this scenario, the current configuration (as shown in the exhibit) consists of 4 nodes and 1 JBOF (with 8 drives of 15.36TB each).

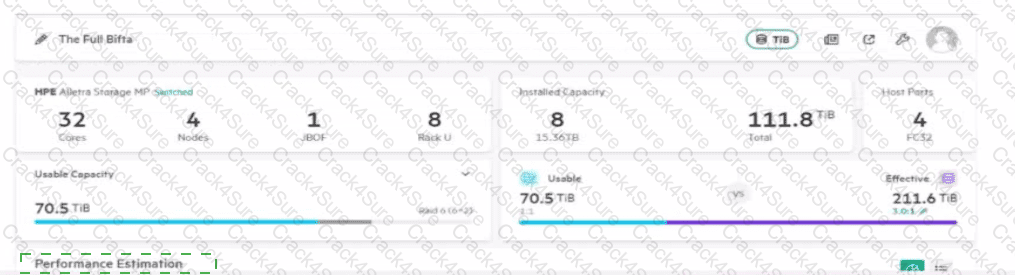

To address poor read/write performance in Ninja Sizer, the partner must analyze the Performance Estimation pane. By clicking the chart/graph icon in the bottom right of the summary dashboard, the tool opens a detailed breakdown of the IOPS, throughput, and latency limits for the selected hardware. In a disaggregated shared-everything (DASE) architecture like the Alletra MP, performance is a direct function of the "node-to-drive" ratio. A configuration with only 8 drives (as seen in image_6491d0.png) may be "disk-bound," meaning the controllers have more compute power than the backend drive count can support in parallel.

By accessing the performance details, the partner can see if the bottleneck is at the node level (CPU/Cores) or the drive level (Flash bandwidth). To "correct this issue" and optimize the sizing, the partner would typically need to increase the drive count within the JBOF to allow for more parallel I/O streams or add additional JBOFs to scale the backend bandwidth. The Ninja Sizer provides real-time feedback; as the partner adds more 15.36TB drives, they will see the Performance Estimation bars move from yellow/red toward green, indicating an appropriately balanced solution that meets the customer's latency and throughput SLAs.

For workloads like NoSQL databases (e.g., MongoDB, Cassandra), Big Data analytics (e.g., Hadoop, Spark), and high-throughput data lakes, the primary performance bottleneck is often the latency and bandwidth between the compute and the storage media. When a customer specifies they are running on bare-metal servers to achieve "most efficient performance," they are looking for a solution that minimizes the overhead of hypervisors and provides direct, high-speed access to storage.

The HPE Alletra Storage Server 4000 series, and specifically the Alletra 4110, is purposefully engineered for this "Data-First" server-based storage market. The Alletra 4110 is a 1U, all-NVMe ultra-dense storage server that supports dual 4th or 5th Gen Intel Xeon Scalable processors and PCIe Gen5 throughput. Unlike traditional storage arrays that connect via a SAN, the Alletra 4110 functions as high-performance Software-Defined Storage (SDS) infrastructure. It is designed to run the application and the data storage on the same high-density nodes, or to act as a high-speed storage tier for bare-metal clusters.

Other options are less suitable for this specific "bare-metal NoSQL" requirement:

HPE SimpliVity (B) is a Hyperconverged Infrastructure (HCI) solution that is inherently tied to a hypervisor (VMware or Hyper-V), which contradicts the customer’s bare-metal requirement.

HPE Alletra dHCI (C) is a disaggregated HCI solution that automates a SAN environment but is also centered around VMware virtualization.

HPE GreenLake for Private Cloud Business Edition (A) is a service-oriented offering primarily for managing virtualized private clouds.

The Alletra 4110 provides the massive I/O throughput (up to 315 GB/s of PCIe Gen5 bandwidth to SSDs) and the low-latency NVMe performance that NoSQL and analytics workloads demand, making it the superior architectural choice for bare-metal, data-intensive environments.

In a Brocade FCIP (Fibre Channel over IP) environment, an extension trunk (or tunnel) can be composed of multiple circuits to provide both increased bandwidth and high availability. The operational state of these circuits—whether they are active or standby—is determined by the Metric assigned to each individual circuit.

According to the Brocade Fabric OS Extension Configuration Guide, all circuits within a tunnel or trunk have a metric of either 0 or 1.

Metric 0: This is the default value and indicates an active circuit. If multiple circuits are configured with Metric 0, they will operate in an active-active mode, and the load will be balanced across them.

Metric 1: This indicates a standby (or passive) circuit. Standby circuits with Metric 1 are not used for data transmission unless all Metric 0 circuits within that tunnel/failover group fail.

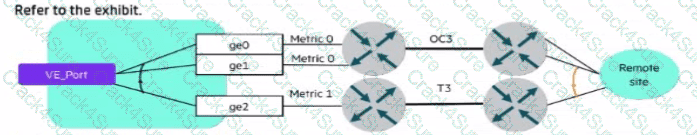

In the provided exhibit, there is a single VE_Port (Virtual E_Port) trunking three individual IP circuits:

ge0 is configured with Metric 0 (Active).

ge1 is configured with Metric 0 (Active).

ge2 is configured with Metric 1 (Standby).

Therefore, this is a valid configuration where the system will utilize the two Metric 0 circuits (ge0 and ge1) simultaneously for data traffic, providing an active-active load-balanced connection. The third circuit (ge2) will remain in a standby state, only becoming active to maintain the link if both primary circuits go offline. Options A and B are incorrect because trunks do not require an even number of circuits, and FCIP trunks are specifically established over Ethernet (ge) ports, not native Fibre Channel ports.

To protect Oracle databases using HPE StoreOnce, the preferred architectural method is using HPE StoreOnce Catalyst for Oracle RMAN. This integration allows Oracle Database Administrators (DBAs) to manage backups directly from their native RMAN (Recovery Manager) tools while leveraging the deduplication and performance benefits of the StoreOnce appliance.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the implementation involves two distinct stages: configuration on the StoreOnce appliance and configuration on the database server. First, the storage administrator must log into the StoreOnce UI and, under the Data Services section, navigate to Catalyst. Here, they must create a Catalyst Store. This store acts as the target repository for the backup data. During creation, the administrator sets permissions (client access) to allow the Oracle server to communicate with this specific store.

The second, and crucial, part of the implementation (as noted in Option D) is the installation of the HPE StoreOnce Catalyst Plug-in for Oracle RMAN on the actual Oracle database server. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN requires to talk to a non-disk/non-tape target. Without this plug-in installed on the host, RMAN has no way of translating its commands into the Catalyst protocol. Once the plug-in is installed and configured with the StoreOnce details, the DBA can allocate channels to the "SBT_TAPE" device and run backup jobs directly to the Catalyst Store created in the UI. Options A, B, and C are incorrect because the StoreOnce UI does not have an "Oracle RMAN option" toggle or "Database Library" creator; the intelligence resides in the combination of the Catalyst Store and the host-side plug-in.

A foundational principle of the HPE CloudPhysics partner program is transparency and collaboration. When an HPE Partner invites a customer to run a CloudPhysics assessment (using the "Invite Customer" workflow in the Partner Portal), it establishes a shared view of the customer's data center environment.

According to the HPE CloudPhysics Partner and Customer User Guides, both the partner and the customer have access to the same set of analytics "cards" within the platform. This shared visibility is intentional; it allows the partner to act as a "trusted advisor" by walking the customer through the same data visualizations and insights that the partner is using to build their proposal. Whether looking at the "Storage Inventory," "VM Rightsizing," or "Global Health Check" cards, both parties see the same data points, ensuring there is no "black box" logic in the assessment process.

While partners have additional administrative tools in their specific Partner Portal (like the ability to manage multiple customer invitations or use the Card Builder for advanced custom queries), the actual environment assessment and the standard reports are based on the core cards available to both accounts. Option A is incorrect because CloudPhysics provides a robust library of pre-built "Assessment" cards specifically designed for storage and compute sizing, eliminating the need for custom coding. Option C is incorrect as the typical assessment engagement is 30 days (though data remains in the SaaS data lake), and the 90+90 day cycle is not a standard hard-coded limit. Option D is incorrect because HPE provides these assessments at no cost to both the partner and the end customer to facilitate the transition to HPE solutions.

Hardware

To expand a single-array configuration into a multi-array scale-out cluster (known as an HPE Nimble/Alletra 6000 Group), the administrator must navigate to the physical resource management section of the interface. In the HPE Alletra 6000 and legacy Nimble Storage UI, this is located under the Hardware tab in the primary navigation menu.

Once the administrator clicks on Hardware, the system displays the "Arrays" view. If a second, uninitialized Alletra 6000 array is physically connected to the same network and has been discovered by the management software (via the Discovery protocol), it will appear in a list of "Discovered Arrays" or within the main hardware pane with an option to be added to the current group. By selecting the uninitialized array and clicking the add/plus icon within that specific Hardware sub-menu, the administrator triggers the group expansion process. This process non-disruptively integrates the new array's controllers and capacity into the existing management plane, allowing for seamless data migration and performance scaling across the member arrays.

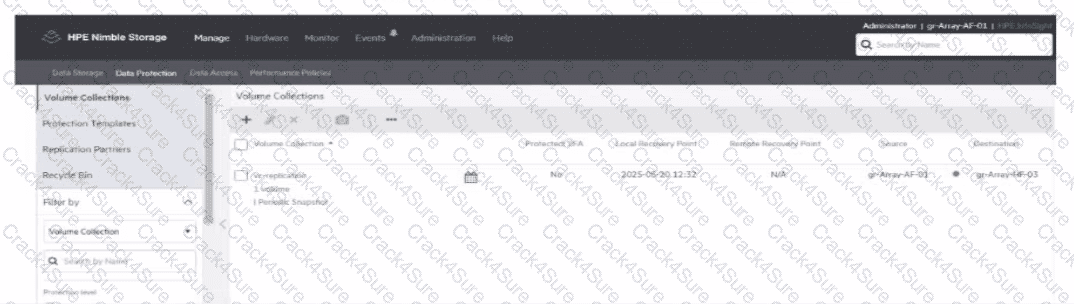

The exhibit provided (image_64b359.png) currently shows the Data Protection sub-tab under the Manage menu. This area is dedicated to managing volume collections, snapshots, and replication partners rather than hardware membership. To perform the hardware-level task of adding a new physical node to the cluster, the administrator must first move away from the "Manage" view and select Hardware. This architectural separation ensures that logical data management tasks are distinct from physical infrastructure scaling. Once the second array is added, the "Manage" view will then reflect the combined resources of both arrays, allowing for group-wide volumes that can span the performance and capacity of the entire scale-out solution.

In the context of HPE StoreOnce Catalyst and NAS replication, security is governed by a bi-directional trust or permission-based handshake. When configuring replication between two StoreOnce appliances, the "Target" (Secondary) system acts as the gatekeeper. The error described occurs because the primary system is attempting to push data or create a mapping to a destination that has not authorized it.

According to the HPE StoreOnce documentation regarding Replication Permissions, the secondary appliance must explicitly grant permission to the source appliance before any mapping or data transfer can occur. This is a security measure designed to prevent unauthorized data ingestion or "rogue" replication tasks from consuming storage resources on the target system. To resolve the permission error, the administrator must log into the Secondary StoreOnce appliance (the target) and navigate to the replication settings. There, they must add the Primary StoreOnce appliance as an authorized "source" by specifying its network address (FQDN or IP) and providing the necessary credentials (username and password) that the primary system will use to authenticate.

Unlike simpler protocols where a "Public Access" setting (Option B) might exist, HPE StoreOnce requires a defined relationship for NAS and Catalyst replication to ensure data integrity and multi-tenancy security. Option A refers to token-based authentication, which is more common in modern cloud-native Alletra environments via DSCC, but not the standard for legacy StoreOnce NAS replication. Options D is incorrect because the permission must be granted at the receiving end, not the sending end. Once the secondary system has the primary's details stored in its Replication Permissions list, the primary appliance will be able to successfully "discover" the target libraries and establish the mapping without further permission errors.

The HPE Solutions for Qumulo utilize a modern, distributed file system designed specifically for the era of multi-petabyte unstructured data management. Unlike traditional block storage systems that organize data into LUNs or volumes, Qumulo uses a single, unified namespace where all data is organized into a hierarchical structure of Directories.

According to the HPE Qumulo Administration Guide, all advanced data services—including snapshots, quotas, and replication—are applied at the Directory level. When a storage administrator wants to protect a dataset, they create a snapshot of a specific directory (and all its subdirectories). The Snapshot Locking feature is an extension of this capability, designed to provide "immutable" data protection against ransomware or accidental deletion.

When snapshot locking is implemented, it is associated with a snapshot policy that targets a specific Directory path. Once a snapshot is locked, the metadata associated with that directory at that specific point in time becomes immutable; it cannot be deleted, modified, or shortened in its expiration period until the lock period has expired. This is fundamentally different from legacy architectures where you might lock a whole "Volume" (Option B), which can be inefficient for large datasets. Because Qumulo is a scale-out file system without the concept of traditional volumes or LUNs, "Directory" is the most granular and correct object for implementing these protection policies. This allows for massive flexibility, enabling administrators to set different retention and locking policies for different departments or projects (e.g., /marketing vs /research) all within the same physical cluster without needing to pre-allocate storage pools (Option D).

Configure

In a VMware vSphere environment, integrating HPE Alletra storage typically involves the installation of the HPE Storage Peer Motion Utility or the HPE Storage Connection Manager for VMware, which provides the VASA (vSphere APIs for Storage Awareness) provider functionality. This integration allows vCenter to manage storage arrays directly for tasks such as provisioning Virtual Volumes (vVols) and monitoring storage health.

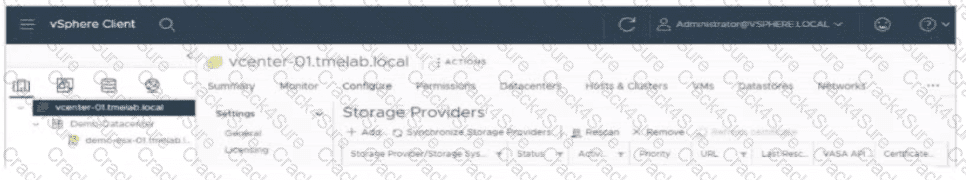

According to the HPE Alletra Integration Guide for VMware, after the plug-in or provider is registered with vCenter, an administrator can verify its status through the vSphere Client UI. As shown in the exhibit (image_64a7b7.png), the administrator is currently viewing the Storage Providers section under the Configure tab of the vCenter object. This specific view is the correct location to verify that the HPE VASA provider is active and communicating. The list under "Storage Provider/Storage System" should show the Alletra array's URL and a status of "Active" or "Online."

If the administrator wants to verify the registration of the UI-based plug-in itself (which adds specific HPE menus and dashboards), they should click the three dots (...) at the end of the navigation bar. This reveals additional hidden tabs where specialized vendor extensions, such as the HPE Storage dashboard, are located. Successful installation is confirmed if the HPE-specific provider is listed with a valid certificate and the "Last Rescan" time is current. Failure to see the provider in this list indicates that the registration process (typically performed via the array's management console or a separate appliance) was not completed successfully, which would prevent the use of advanced features like Storage Policy Based Management (SPBM).
