H12-811_V1.0 Practice Exam Questions with Answers HCIA-Datacom V1.0 Exam Certification

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

In VRP, to enter the configuration view for a specific OSPF area, the syntax [Huawei-ospf-1] area 0.0.0.0 is used. This command specifies Area 0 in the correct format (dotted decimal notation) as required by VRP, which supports OSPF multi-area configuration by designating specific area views?.

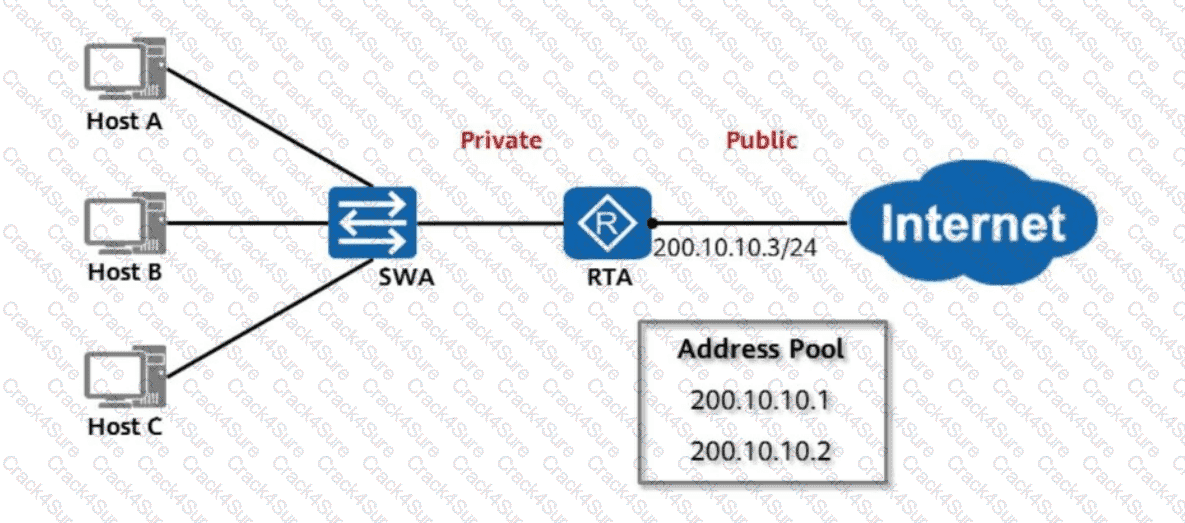

Comprehensive Explanation: Static NAT (Network Address Translation) can implement both one-to-one and many-to-one mappings. In a one-to-one mapping, each private IP address is mapped to a unique public IP address. However, in some cases, static NAT can be configured to map multiple private addresses to a single public address, particularly for services that do not require incoming connections. This flexibility allows for more efficient use of limited public IP address space.

Detailed Explanation:The Priority Code Point (PCP) field in an 802.1Q VLAN tag is 3 bits long, which gives it a value range of 0 to 7. This field is used to indicate the priority of the frame, with higher values indicating higher priority??.

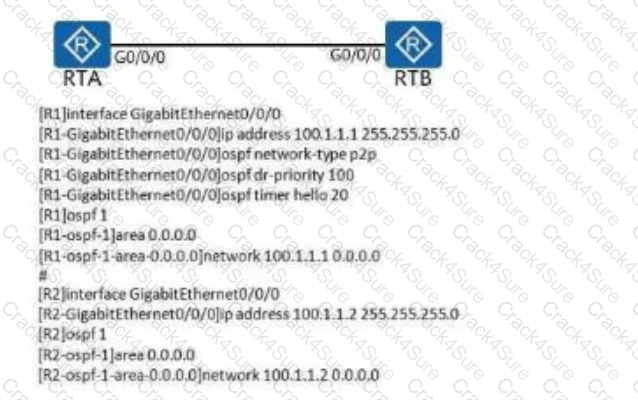

OSPF Network Types Overview:OSPF (Open Shortest Path First) supports different network types based on the underlying physical or logical topology:

A. Broadcast: OSPF assumes a fully meshed network, like Ethernet. DR/BDR elections occur.

B. Point-to-Point: A simple two-node network where no DR/BDR elections occur.

C. NBMA: OSPF operates over WAN technologies like Frame Relay. DR/BDR elections occur.

D. Point-to-Multipoint: OSPF operates on logically defined topologies where broadcast or multicast is not supported.

OSPF Flexibility:OSPF accommodates all these network types to ensure compatibility with a variety of link-layer technologies.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 6: OSPF Fundamentals.

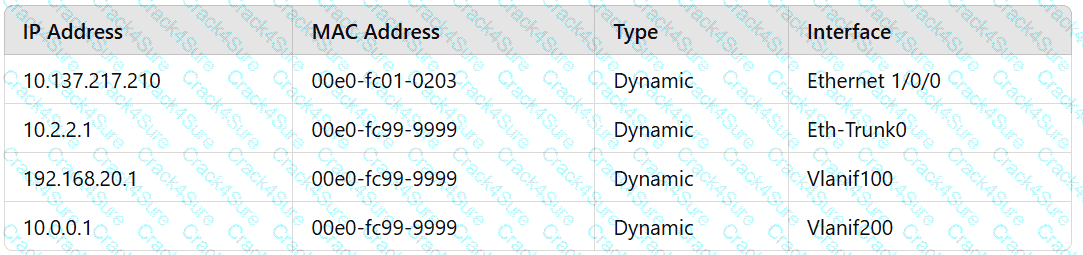

Understanding ARP Entries:

Each ARP entry associates a MAC address with an IP address dynamically or statically.

In the table, the MAC address 00e0-fc99-9999 is linked to multiple IP addresses across different interfaces.

Dynamic MAC Address Assignment:

As the host changes its IP address, the MAC address remains consistent.

Conclusion:

The statement is TRUE because the MAC address 00e0-fc99-9999 appears with three different IP addresses dynamically.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 5: ARP Protocol.

Command Output Overview:

The command display startup is used to check the configuration of the startup system software, configuration files, license files, and other related settings on Huawei routers. The output in this case provides details about:

The current system software (ar2220-v200r003c00spc200.cc).

The next startup system software (ar222b-v200r003c00spc200.cc).

Backup and saved configuration files, which are not defined (null).

Analysis of Options:

Option A: "The system file for next startup cannot be modified."This statement is false because the system file for the next startup can be modified using the startup system-software command. The file path for the next startup system software (ar222b-v200r003c00spc200.cc) indicates that it has been configured and can be changed by the administrator. The command syntax is supported as per Huawei's documentation??.

Option B: "The startup system software command can be used to modify the system software for next startup."This is true and matches the functionality provided by Huawei's routers. The command allows administrators to specify the software package to be used at the next system reboot??.

Option C: "The running configuration file is not saved."This is true as the Startup saved-configuration file is listed as null, meaning that no configuration file has been saved for startup. Saving the running configuration is necessary to ensure settings persist after a reboot??.

Option D: "The system file used for the current startup is ar2220-v200r003c00spc200.cc."This is true as per the output under Startup system software, which confirms the system file used in the current boot process??.

Correct Statement Selection:Based on the analysis, the statement "The system file for next startup cannot be modified" is false. This matches the system's behavior, where administrators are allowed to modify the next startup file using relevant commands.

References:

Huawei HCIA-Datacom V1.0 Training Material and Lab Guide??.

Command-line operations from Huawei routers, as documented in the training materials and lab environments??.

Comprehensive Explanation: DHCP (Dynamic Host Configuration Protocol) involves several packet types used in the process of assigning IP addresses. These include:

DHCP Discover: The client broadcasts this packet to find available DHCP servers.

DHCP Offer: The DHCP server responds with an IP address offer to the client.

DHCP Request: The client requests the offered IP address from the server.There is no such thing as a "DHCP Rollover" packet. The process continues with the DHCP server sending an acknowledgment to finalize the IP address lease.

Comprehensive Explanation: The country code setting on wireless devices like access points determines the allowable transmission frequencies and maximum transmission power based on the regulatory requirements of the specific region. For example, certain frequency channels or power levels may be restricted in different countries to avoid interference with other services, and the country code configuration ensures that the device operates within those legal limits.

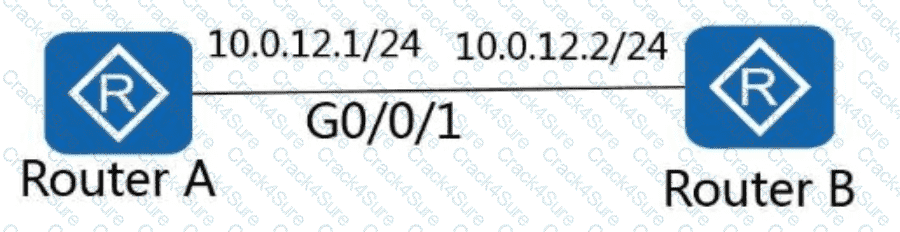

The command defines a static route to the network 10.0.12.0 with a 255.255.255.0 subnet mask, using 192.168.1.1 as the next-hop address. Static routes are manually set routes with fixed paths, and by default, they have higher priority than dynamic routes, but the specific preference value depends on configuration. This setup enables targeted routing for traffic towards the specified destination?.

Detailed Explanation:LSAs (Link-State Advertisements) are the fundamental OSPF messages used to convey network topology information. LSU (Link-State Update), LSR (Link-State Request), and LSACK (Link-State Acknowledgment) are all types of messages related to OSPF's operations, but "LSA" alone is not a valid OSPF message type?.

Detailed Explanation:APs can be added to an AC using multiple methods. You can add them when they are online, offline, or allow the AC to automatically discover them. Additionally, unauthorized APs can be manually confirmed for security?.

Comprehensive Explanation: In OSPF (Open Shortest Path First), a router first synchronizes its Link-State Database (LSDB) with its neighbors by exchanging link-state information. Only after this synchronization process is complete does the router transition to the Full state. The Full state indicates that the router has fully converged with its OSPF neighbors and has a complete and up-to-date view of the network topology. Therefore, the router enters the Full state after synchronizing its LSDB, not before.

Comprehensive and Detailed Explanation:

Link Aggregation (LACP - IEEE 802.3ad):

Combines multiple physical links into a single logical link.

Provides load balancing and redundancy in case a link fails.

Stacking Technology:

Multiple switches are combined into a single logical unit, improving redundancy and simplifying management.

If one switch in the stack fails, others continue functioning without disrupting the network.

Both technologies significantly enhance network reliability, especially in campus networks, ensuring minimal downtime and higher availability.

? Reference: HCIA-Datacom Network Principles Guide – Chapter on Link Aggregation & Stacking

Comprehensive Explanation: In Software-Defined Networking (SDN), the control plane (which makes decisions about where to send traffic) is separated from the forwarding plane (which actually moves packets to their destinations). This separation allows for centralized control and management of the network, enabling programmability and greater flexibility. SDN controllers manage the control plane, while individual switches or routers handle the forwarding of data.

Routing preference (administrative distance) is the first criterion used when multiple paths exist.

If multiple routes have the same preference, the router then compares the cost (metric) to choose the best path.

Lower cost values indicate better paths and are preferred by the router.

If multiple paths have the same cost, the router may perform load balancing (depending on the routing protocol).

Thus, the correct answer is A (TRUE).

Comprehensive Explanation: The wildcard mask 0.0.254.255 corresponds to a range of IP addresses where the second octet can vary between 2 and 4, and the third octet can vary between 0 and 255. This means the ACL rule matches IP addresses in the range 10.0.2.0 to 10.0.4.255. The only option that falls within this range is 10.0.4.5, making it the correct answer.

DHCP (Dynamic Host Configuration Protocol) can allocate various network parameters, including:

IP address: Assigns a unique IP to each client.

Gateway address: Provides the default gateway for routing traffic.

DNS server address: Allows domain name resolution. The DHCP server does not assign an operating system, as this is outside its scope?.

Detailed Explanation:The Type/Length field value of 0x0800 indicates that the upper-layer protocol is IPv4. However, the length of the IPv4 header can range from 20 to 60 bytes, not the length of the entire upper-layer packet. The field refers to the type of the encapsulated protocol, and the length is not constrained to the header alone??.

Dynamic Routing Protocol Purpose:A dynamic routing protocol's primary function is to dynamically generate and maintain routing tables by learning and sharing routing information between routers in real time. This ensures efficient path selection and adaptation to network changes??.

Analysis of Options:

Option A: "Generate an IP address" is unrelated to routing protocols; IP address assignment is handled by DHCP or manual configuration.

Option B: "Manage routers" is inaccurate, as dynamic routing protocols do not manage router hardware or administrative tasks.

Option C: "Generate a routing table" is correct because routing protocols dynamically compute and update routing tables based on network topology changes.

Option D: "Control the status of router interfaces" refers to interface management, which is not a function of dynamic routing protocols.

Correct Answer:The main function of a dynamic routing protocol is C (Generate a routing table).

Detailed Explanation:In a tree topology, nodes are arranged hierarchically with root nodes at the top and leaf nodes at the base. This structure is often used in larger networks because it supports scalability and easy addition of nodes. However, if a higher-level node (e.g., root or intermediate node) fails, all dependent nodes in its subtree lose connectivity. Therefore, faults at higher layers have a more significant impact than faults at the leaves. (Reference: HCIA-Datacom Training Material, Network Topology Types)

Detailed Explanation:Static MAC address entries are manually configured and stored in the switch's configuration file, making them persistent across reboots. These entries remain in the MAC address table after a restart, unlike dynamic entries, which are lost. (Reference: HCIA-Datacom Training Material, MAC Address Table Types)

Comprehensive Explanation: The IEEE 802.11g standard operates exclusively in the 2.4 GHz frequency band, offering data rates up to 54 Mbps. Other standards, such as 802.11a, operate in the 5 GHz band, while 802.11n and 802.11ax support both 2.4 GHz and 5 GHz frequency bands, making 802.11g the only standard in this list that is limited to 2.4 GHz.

Bridge Priority Overview:

Bridge Priority is a key parameter in Spanning Tree Protocol (STP) and is used to elect the root bridge.

The default bridge priority for Huawei switches is 32768, which is the default for many vendors.

How STP Uses Bridge Priority:

Lower bridge priority values are preferred during root bridge elections.

Administrators can modify this value for desired root bridge placement.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 8: Spanning Tree Protocol.

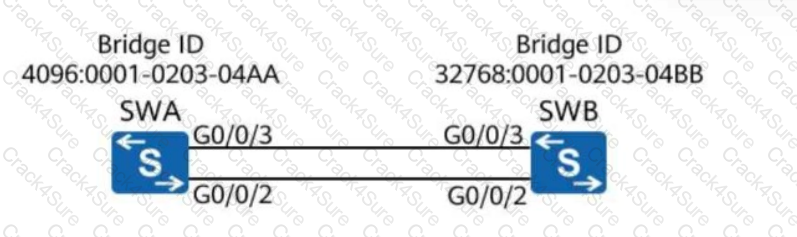

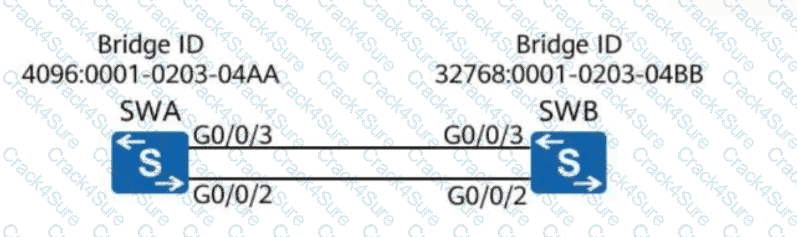

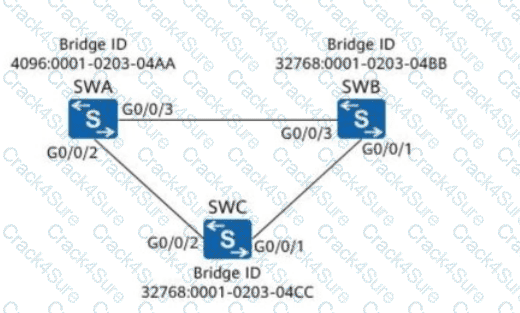

Comprehensive Explanation: In STP (Spanning Tree Protocol), the root bridge is elected based on the lowest Bridge ID. The Bridge ID consists of two parts: the bridge priority and the MAC address of the switch. The switch with the lowest Bridge ID is elected as the root bridge. If two switches have the same priority, the switch with the lowest MAC address becomes the root. Other parameters such as Port ID and Root path cost are used in subsequent decisions to determine the best paths to the root bridge, but they are not used in the root bridge election itself.

Detailed Explanation:RSTP (Rapid Spanning Tree Protocol) employs a synchronization mechanism with the proposal/agreement handshakes to prevent loops during topology changes. By synchronizing states between switches, RSTP avoids temporary loops while quickly transitioning ports to the forwarding state. (Reference: HCIA-Datacom Training Material, RSTP Mechanisms and Synchronization)

Detailed Explanation:The Time to Live (TTL) field in an IP packet is decremented by 1 each time the packet passes through a router. When the TTL reaches zero, the packet is discarded to prevent it from circulating indefinitely. (Reference: HCIA-Datacom Training Material, IP Packet Structure)

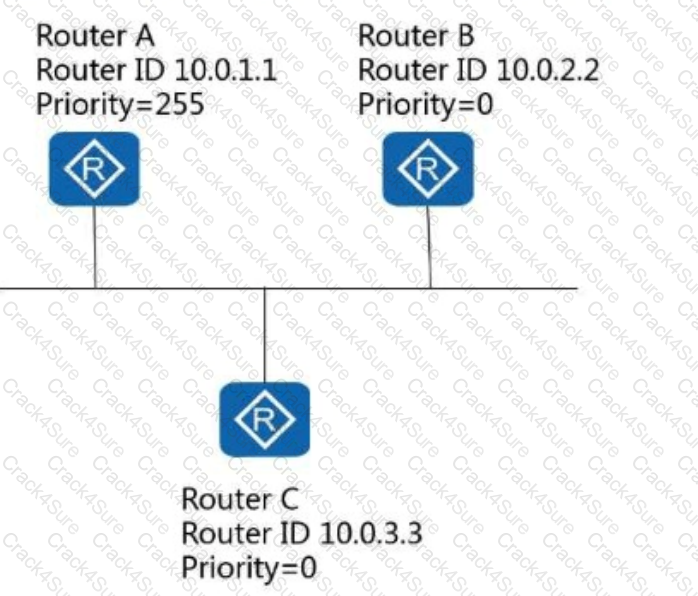

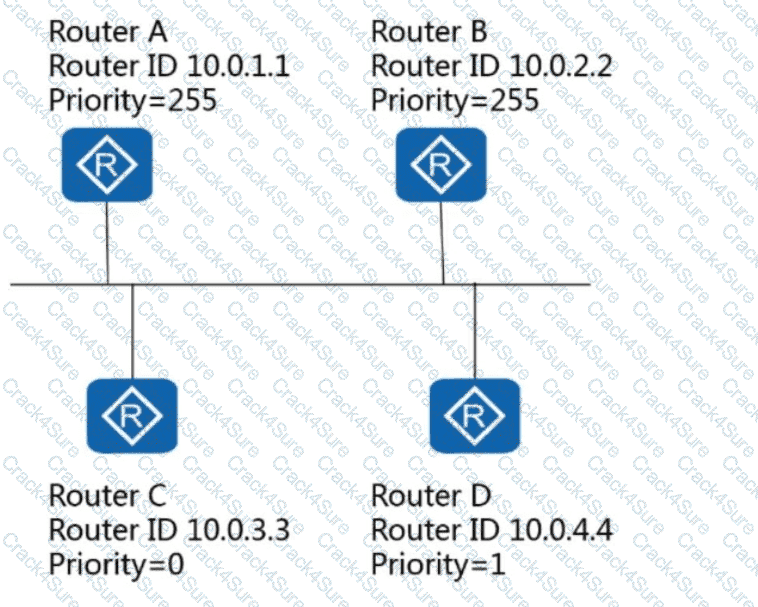

Statement A (Correct): DR and BDR must form an adjacency relationship to maintain routing information exchange.

Statement B (Incorrect): The router with the higher priority is elected as DR, not the lower one.

Statement C (Incorrect): DR is elected by routers within a broadcast/multi-access network, not necessarily all routers in the same network segment.

Statement D (Correct): If two routers have the same priority, the one with the higher Router ID becomes the DR.

VLAN Assignment Overview:VLAN (Virtual Local Area Network) assignment is a critical step in campus network planning. It involves logically segmenting a network to improve manageability, security, and performance. Huawei recommends various approaches based on specific needs.

Analysis of Options:

Option A: "VLAN assignment by service type"This method groups devices based on the type of service they require (e.g., voice, video, data). It helps in isolating traffic for different service types, improving QoS and security. This is a common practice in network planning??.

Option B: "VLAN assignment by logical area"Logical area-based assignment groups devices based on their logical function in the network (e.g., core, access, distribution). It ensures proper segmentation and alignment with network topology?.

Option C: "VLAN assignment by geographic area"Assigning VLANs based on geographic areas (e.g., floors in a building, departments) helps localize traffic within a region, reducing unnecessary cross-network traffic??.

Option D: "VLAN assignment by personnel structure"While this option suggests assigning VLANs based on organizational structure (e.g., employees, managers), it is not a typical practice in VLAN assignment. It lacks scalability and alignment with network topology, making it an inefficient approach?.

Correct Answers:The valid VLAN assignment methods in campus network planning are:

A. By service type

B. By logical area

C. By geographic area

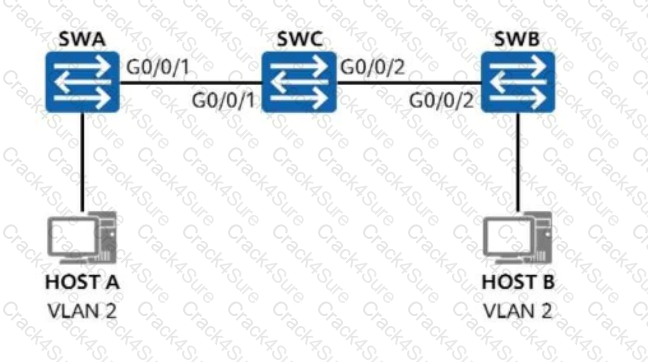

Switch Forwarding Behavior:

If the destination MAC is not found in the MAC address table, the switch floods the frame.

Broadcasting Within VLANs:

VLAN tagging ensures the frame remains within its designated VLAN.

The frame is not sent to all interfaces but only within the VLAN.

Why Other Options Are Incorrect:

A: Does not consider VLAN segmentation.

C: Switches do not discard unknown unicast frames unless configured to do so.

D: Includes access interfaces only, but flooding happens on all VLAN interfaces.

Conclusion:

The switch floods the frame within the VLAN, making the correct answer B.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 4: Switch Forwarding Mechanisms.

WEP (Wired Equivalent Privacy) supports open authentication, which allows any client to associate with the network without verifying credentials. This form of authentication is considered insecure by modern standards, as it provides minimal protection for network access. WPA and WPA2 rely on pre-shared keys or 802.1X authentication, which are more secure and do not use open authentication?.

Comprehensive and Detailed Explanation:

IPv6 supports several extension headers:? Fragment Extension Header ? Handles packet fragmentation.? Destination Options Header ? Stores information for destination nodes.? Hop-by-Hop Options Header ? Used for router-specific instructions.

? Incorrect Option:

VLAN extension header does not exist in IPv6. VLAN tagging is handled at Layer 2 (Ethernet).

? Reference: HCIA-Datacom Network Principles Guide – IPv6 Packet Structure

Comprehensive Explanation: A routing table contains information necessary for the router to determine the best path to forward packets. This includes the destination network or subnet (Destination/Mask), the next-hop address (the IP address of the next device in the path), and the cost (metric) associated with the route. MAC addresses are used at the Data Link layer (Layer 2) for local network communication and are not part of the routing table, which operates at the Network layer (Layer 3).

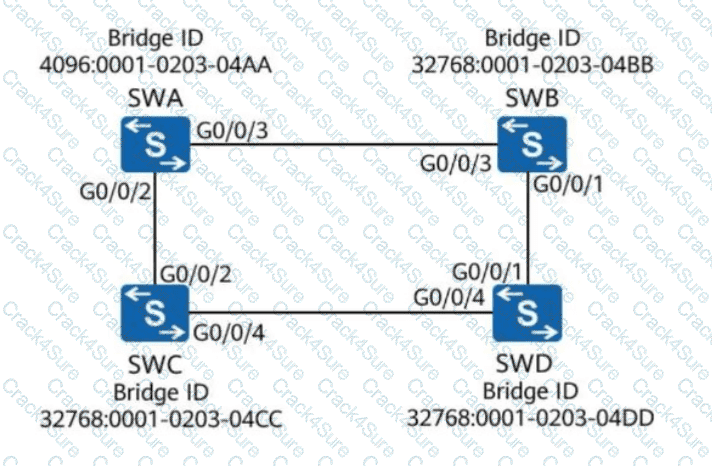

Comprehensive Explanation: In STP (Spanning Tree Protocol), the Bridge ID (BID) is used to uniquely identify a switch in the network. It consists of a bridge priority and a MAC address. A BID with a bridge priority of 0 and a MAC address starting with 00-01 is reserved for special purposes and cannot be used in a configuration BPDU (Bridge Protocol Data Unit) sent by a regular switch. This prevents conflicts with reserved MAC addresses.

Detailed Explanation:An MPLS (Multiprotocol Label Switching) header includes the following fields:

Label: Identifies the MPLS path.

TTL (Time to Live): Limits the lifetime of the MPLS packet.

EXP (Experimental): Used for QoS marking. The Tos (Type of Service) field is part of the IP header, not MPLS.

(Reference: HCIA-Datacom Training Material, MPLS Header Fields)

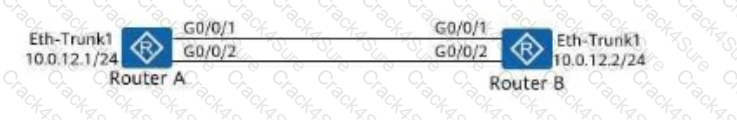

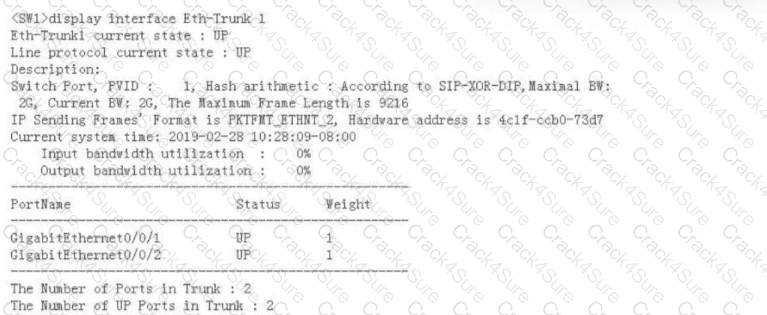

A (Correct) - Load Balancing: Link aggregation distributes traffic across multiple physical links, reducing congestion and improving performance.

B (Correct) - Improved Bandwidth: Multiple links act as a single logical link, increasing the total available bandwidth.

C (Correct) - Enhanced Reliability: If one link in an aggregated group fails, traffic is rerouted through the remaining links, improving network resilience.

D (Incorrect) - Improved Security: Link aggregation does not inherently improve security; it primarily enhances performance and fault tolerance.

Thus, the correct answers are A, B, and C.

TPID Definition:

TPID (Tag Protocol Identifier) is a field in the Ethernet frame header that indicates the presence of an 802.1Q VLAN tag.

IEEE 802.1Q defines the TPID value as 0x8100.

Why Other Options Are Incorrect:

0x9100: Used in some proprietary protocols but not IEEE standard.

0x8200 and 0x7200: Not valid TPID values.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 4: VLAN Basics.

Comprehensive Explanation: The "-i" parameter in the Ping command on Huawei VRP (Versatile Routing Platform) is used to specify the source IP address for sending an Echo Request (ping) packet. This is useful in cases where the router has multiple interfaces and you want to control which interface is used to initiate the ping. By defining the source IP address, the ping request can be sent from a specific interface on the router, enabling network administrators to test connectivity from that interface.

In PPP (Point-to-Point Protocol) authentication, if the authentication fails, the authenticator sends an Authenticate-Reject message.

Option A (Incorrect - Authenticate-Ack): Sent when authentication is successful.

Option B (Incorrect - Authenticate-Reply): Not a valid PPP authentication message.

Option C (Correct - Authenticate-Reject): Sent when authentication fails, and the connection is rejected.

Option D (Incorrect - Authenticate-Nak): Used for PPP negotiation, not authentication failure.

Thus, the correct answer is C.

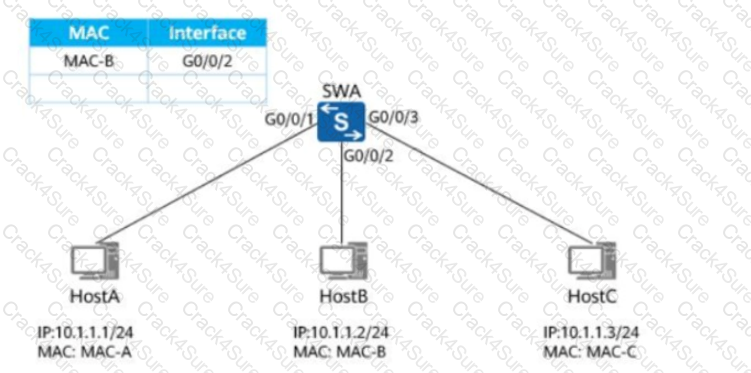

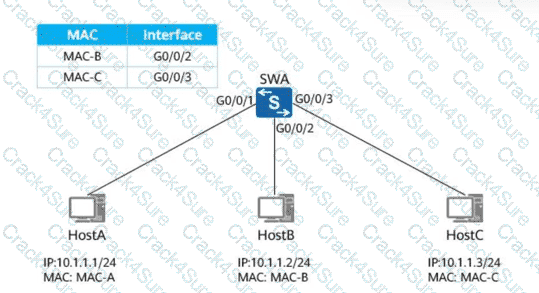

The MAC address table does not contain an entry for 5489-98EC-F011.

When a switch receives a frame with an unknown destination MAC address, it performs flooding.

Flooding sends the frame out of all interfaces except the one it was received on.

A (Incorrect): The switch does not discard unknown frames; it floods them.

B (Incorrect): No request is sent; flooding occurs instead.

D (Incorrect): ICMP is used for network-layer (IP) communication, not Ethernet switching.

Thus, the correct answer is C (Floods the frame on all interfaces except the incoming one).

Detailed Explanation:The EUI-64 format splits a MAC address into two parts and inserts "FFFE" in the middle. The Universal/Local (U/L) bit is flipped, so a valid EUI-64 address would be 02E0-FCEF-FFFE-0FEC?.

Detailed Explanation:The priority (preference) of static routes can indeed be manually specified in Huawei devices. By default, static routes have a preference of 60, but this can be changed to create backup routes or prioritize certain routes over others.

Configuration Analysis:

The router has two DHCP pools (pool1 and pool2).

Interface Gi/0/0 is assigned the IP address 10.10.10.1/24 and is configured to use global DHCP.

Reasoning:

The IP address 10.10.10.1 indicates that the interface belongs to the 10.10.10.0/24 network segment.

DHCP assigns IP addresses based on the network of the interface. Therefore, the host will receive an IP address from pool1 (10.10.10.0/24).

Comprehensive Explanation: A routing table contains several key elements:

Cost: Also known as metric, this indicates the cost associated with reaching a specific destination, such as the number of hops or link speed.

Next-hop address: This is the IP address of the next device along the route that packets should be forwarded to.

Protocol: The routing protocol (e.g., OSPF, RIP) that determined the route.

Interface: The physical or logical interface through which the router sends packets to reach the destination.

Destination/Mask: The destination network or subnet and the associated subnet mask define the range of IP addresses for which this route is valid. These elements together allow routers to efficiently forward traffic to the correct destinations.

Detailed Explanation:The default preference of static routes on Huawei routers is 0. This means that if a static route is present, it will always take precedence over routes with higher preferences, such as dynamically learned routes, unless a lower preference is manually assigned??.

To ensure communication between Host A and Host B, we need to analyze the network topology, VLAN configuration, and the role of SWC as an intermediate switch. Let’s break it down step by step, based on VLAN and trunking principles as outlined in HCIA Datacom documentation:

Understanding the Current Network Configuration:

Host A and Host B: Both are connected to SWA and SWB, respectively, via access ports assigned to VLAN 2. Access ports carry untagged traffic for a single VLAN (in this case, VLAN 2), so Host A and Host B are part of VLAN 2.

SWA and SWB Trunk Interfaces: G0/0/1 on SWA and G0/0/2 on SWB are configured as trunk interfaces allowing all VLANs. Trunk ports carry tagged traffic for multiple VLANs (including VLAN 2 in this case) and are used to interconnect switches, enabling VLAN traffic to pass between them. Since these trunk ports allow all VLANs, VLAN 2 traffic can traverse between SWA and SWB.

SWC: SWC is the intermediate switch connecting SWA and SWB via its G0/0/1 (connected to SWA’s G0/0/1) and G0/0/2 (connected to SWB’s G0/0/2). However, the diagram and question do not specify SWC’s current VLAN or port configurations. By default, if no VLAN or trunk configuration exists on SWC, VLAN 2 traffic cannot pass through SWC, preventing communication between Host A and Host B.

Requirements for Communication Between Host A and Host B:

For Host A and Host B (both in VLAN 2) to communicate across the network, VLAN 2 traffic must be able to traverse SWC. This requires:

VLAN 2 to be created on SWC so that the switch recognizes and processes traffic for that VLAN.

The interfaces on SWC (G0/0/1 and G0/0/2) connecting to SWA and SWB must be configured as trunk ports to carry tagged VLAN 2 traffic, matching the trunk configuration on SWA’s G0/0/1 and SWB’s G0/0/2.

Trunk ports are necessary because they can carry traffic for multiple VLANs (tagged) and are typically used between switches to maintain VLAN consistency across the network.

Evaluating Each Option:

A. Create VLAN 2 on SWC.

Creating VLAN 2 on SWC is necessary, but it alone is insufficient. Without configuring the ports (G0/0/1 and G0/0/2) as trunk interfaces allowing VLAN 2, the VLAN traffic cannot pass through SWC. This option is incomplete and incorrect.

B. Configure G0/0/1 on SWC as a trunk interface that allows packets from VLAN 2 to pass through.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is part of the solution, but it only addresses the connection to SWA. G0/0/2 (connected to SWB) also needs to be configured as a trunk interface allowing VLAN 2 for bidirectional communication between Host A and Host B. This option is incomplete and incorrect.

C. Create VLAN 2 on SWC, and configure G0/0/1 and G0/0/2 as trunk interfaces that allow packets from VLAN 2 to pass through.

This option addresses all requirements:

Creating VLAN 2 on SWC ensures the switch recognizes VLAN 2 traffic.

Configuring both G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 ensures that tagged VLAN 2 traffic can pass between SWA and SWB through SWC, enabling communication between Host A and Host B.

This is the complete and correct solution, aligning with VLAN and trunking principles in HCIA Datacom.

D. On SWC, configure G0/0/1 as a trunk interface that allows packets from VLAN 2 to pass through, configure G0/0/2 as an access interface, and set the PVID to 2.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is correct for the connection to SWA. However, configuring G0/0/2 as an access interface with PVID 2 (Port VLAN ID) is incorrect for this scenario:

Access ports carry untagged traffic for a single VLAN and are typically used for end devices, not for interconnecting switches. Since SWB’s G0/0/2 is a trunk interface allowing all VLANs, G0/0/2 on SWC must also be a trunk interface to match and carry VLAN 2 traffic.

Using an access port on G0/0/2 would prevent VLAN 2 traffic from passing correctly, as it would expect untagged traffic only for VLAN 2, which conflicts with SWB’s trunk configuration.

This option is incorrect because it mixes access and trunk port types inappropriately for inter-switch links.

Conclusion:

To ensure communication between Host A and Host B (both in VLAN 2), SWC must:

Create VLAN 2.

Configure G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 traffic.

Option C fulfills these requirements, making it the correct answer.

Answer: C

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access and Trunk Port Configurations

HCIA Datacom V3.0, Chapter 4: VLAN Trunking and Inter-VLAN Routing – Configuring Trunk Ports for VLAN Traffic

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – VLAN Creation and Port Link Types

The Bridge ID, a combination of bridge priority and MAC address, is used to determine the root bridge in STP. The switch with the lowest Bridge ID becomes the root bridge. If bridge priorities are identical, the switch with the lowest MAC address is selected as the root bridge?.

Comprehensive Explanation: In STP (Spanning Tree Protocol), ports can be in several states, including:

Discarding: The port is not forwarding traffic, either because it is in a blocking state or not participating in active forwarding.

Listening: The port is processing BPDUs and is preparing to transition to either the learning or forwarding state. No data frames are forwarded during this state.

Forwarding: The port is actively forwarding traffic as part of the active network topology.

The "Disabled" state is not part of the STP protocol but rather represents a port that is administratively shut down or not participating in the STP process.

OSPF does not use TCP or UDP because it has its own reliable transmission mechanisms.

OSPF packets are encapsulated directly in IP packets using protocol number 89.

TCP (A) is used for connection-oriented communication, but OSPF does not rely on it.

UDP (C) is used for connectionless communication, but OSPF does not use it.

HTTP (B) is an application-layer protocol and irrelevant here.

Thus, the correct answer is D (IP).

An Ethernet II frame has a standard length range of 64 to 1518 bytes, including the Ethernet header. This range accounts for both the minimum frame size (to prevent collisions) and the maximum frame size (to avoid excessive delay). This specification is in line with IEEE 802.3 standards for Ethernet frames?.

Detailed Explanation:Based on the provided configuration, the interfaces on LSW1 and LSW2 are both configured as trunk ports that allow VLAN 10 to pass. This ensures that data frames tagged with VLAN 10 can be transmitted and received across the trunk link between LSW1 and LSW2 without issues??.

In Huawei’s VRP, the default preference value for OSPF routes is generally 10, but this value can be adjusted based on configuration requirements. Therefore, it is not necessarily always set to 10, as network administrators may alter the preference to prioritize different routes. This flexibility allows customization based on the network's specific routing needs?.

Eth-Trunk Functionality:An Eth-Trunk interface can operate as both a Layer 2 and Layer 3 interface depending on the configuration. For example:

As a Layer 2 interface, it can aggregate Ethernet links for switching.

As a Layer 3 interface, it can aggregate links for routing?.

Correct Answer:FALSE. Eth-Trunk interfaces can function as both Layer 2 and Layer 3 interfaces.

Comprehensive Explanation: It is possible for the load balancing modes at both ends of an Eth-Trunk (Ethernet Trunk) to be different, as long as the devices at both ends support the different modes. Load balancing modes control how traffic is distributed across multiple links in the trunk. Although the modes may differ, they must be compatible in terms of ensuring that traffic is appropriately handled across the multiple physical interfaces bundled in the trunk.

The basic IPv6 header has a fixed length of 40 bytes. Unlike IPv4, the IPv6 header is streamlined, omitting some fields (like header checksum) and standardizing the header size. This simplification reduces processing overhead, enhancing routing efficiency and scalability for modern networks?.

Detailed Explanation:In manual load balancing mode, all active interfaces forward traffic, distributing it evenly across links without LACP. This allows for static load balancing. Option B is incorrect because LACP (Link Aggregation Control Protocol) is not involved in manual mode. (Reference: HCIA-Datacom Training Material, Link Aggregation and Manual Load Balancing)

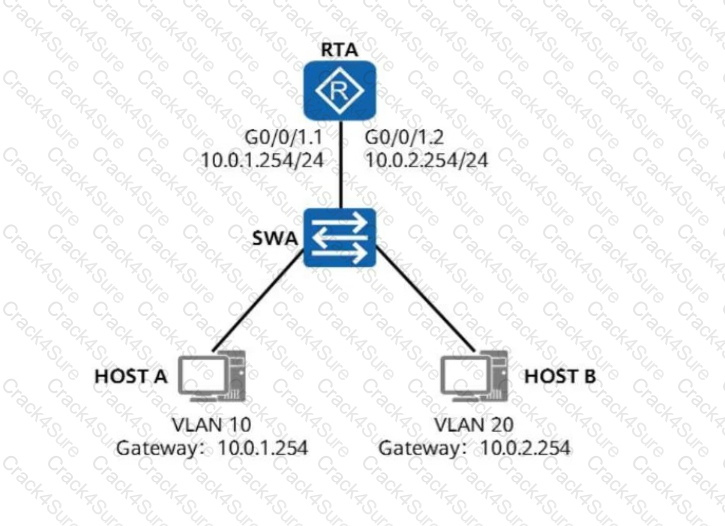

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) ? Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) ? Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) ? Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) ? Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

Comprehensive Explanation: An ACL (Access Control List) is used to define rules for permitting or denying packets based on criteria such as IP addresses, protocols, or ports. However, the ACL only takes effect when it is applied to a service module, such as an interface or a firewall rule. This ensures that traffic is filtered according to the ACL rules as it passes through the device. Without being applied, the ACL rules are inactive and do not influence traffic.

Detailed Explanation:

The subnet 200.200.200.200/30 allows two usable IP addresses, 200.200.200.201 and 200.200.200.202. These two addresses can communicate with each other directly, without the need for routing .

Comprehensive and Detailed Explanation:

Huawei's Versatile Routing Platform (VRP) supports various shortcut keys for efficient command-line navigation:

CTRL+Z ? Moves the user back to User View from any configuration mode. ?

Left Cursor Key (?) ? Moves the cursor one character left. ?

CTRL+C ? Stops the execution of a command. ?

Incorrect Option:

TAB ? Does not display the latest command; instead, it auto-completes commands. ?

? Reference: HCIA-Datacom Command Line Guide – CLI Keyboard Shortcuts

Comprehensive Explanation: Netstream is a protocol for flow-based network traffic analysis, not a method for logging into a VRP system. The valid methods for accessing the VRP system include Telnet, Web, and SSH, which are used for remote management and configuration of network devices?

Detailed Explanation:Making a call on a landline telephone involves network communication. Though it uses a traditional telephone network (Public Switched Telephone Network, PSTN), the process of sending and receiving voice data through a wired system qualifies as network communication. The voice signals are converted into electrical signals, transmitted over the network, and then converted back into voice signals on the receiving end .

Detailed Explanation:The ACL (Access Control List) configuration only permits IP address 172.16.105.2. By applying this ACL to the Telnet server, only devices from this IP can establish a Telnet connection, while all others are denied access. (Reference: HCIA-Datacom Training Material, ACLs and Telnet Access Control)

A direct route (also called a connected route) is automatically created when an interface is assigned an IP address and is up.

Option A (Incorrect): The administrator does NOT need to manually configure a direct route. It is automatically added when an IP is assigned to an interface.

Option B (Incorrect): Direct routes have a higher priority than dynamic routes (e.g., OSPF, RIP, etc.).

Option C (Correct): Direct routes have the highest priority among all routing types (default priority = 0, which is the highest).

Option D (Incorrect): Static routes have a lower priority (default 60) than direct routes (0).

Thus, the correct answer is C (The direct route has the highest priority.)

Detailed Explanation:

• Option A: Incorrect. UDP (User Datagram Protocol) does not use SYN or ACK flags, as it is a connectionless protocol and does not establish a connection before data transfer. SYN and ACK flags are features of TCP (Transmission Control Protocol), which establishes connections using a three-way handshake. (Reference: HCIA-Datacom Training Material, Transport Layer Protocols)

• Option B: Incorrect. UDP is suitable for delay-sensitive traffic (such as video or voice) because of its low overhead. However, UDP does not have a sequence number field or support reassembly, as it does not guarantee packet order or reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

• Option C: Correct. TCP requires a three-way handshake to establish a connection and a four-way handshake to terminate it, involving SYN, ACK, FIN flags for reliability. (Reference: HCIA-Datacom Training Material, TCP Connection Establishment and Termination)

• Option D: Correct. The well-known port number range is defined as 0 to 1023, and these are reserved for widely used protocols such as HTTP, FTP, and DNS. (Reference: HCIA-Datacom Training Material, Port Numbering)

In DHCP (Dynamic Host Configuration Protocol):

The client starts renewal at 50% (0.5) of the lease time to extend its lease with the DHCP server.

If unsuccessful, it tries again at 87.5% (0.875) before the lease expires.

Option A (Incorrect - 0.875): This is the second attempt if the first renewal fails.

Option B (Correct - 0.5): The first renewal attempt occurs when the lease reaches 50% of its duration.

Option C (Incorrect - 0.25): No renewal attempt happens at 25%.

Option D (Incorrect - 1): At 100% lease expiration, the IP is released and a new request is needed.

Thus, the correct answer is B.

Disabling STP on a network with redundant paths between switches leads to a Layer 2 loop, which can cause broadcast storms and network congestion. STP is essential for preventing such loops by blocking redundant paths until needed for redundancy, ensuring network stability?.

Understanding Switch Stacking:

Switch stacking allows multiple physical switches to operate as a single logical switch.

Huawei iStack technology supports stacking multiple switches.

Benefits of Stacking:

Simplified Management: Single configuration and management point.

Increased Redundancy: Failover and link aggregation improve reliability.

Scalability: More switches can be added as needed.

Conclusion:

More than two switches can be stacked, making the statement TRUE.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 9: Huawei iStack.

The default Link Aggregation Control Protocol (LACP) system priority on Huawei switches is 32768. This priority helps determine which device takes the active role in link aggregation when multiple switches are involved. A lower value indicates a higher priority for managing the aggregated link?.

Detailed Explanation:A device running Standard Spanning Tree Protocol (STP) is not compatible with Rapid Spanning Tree Protocol (RSTP) BPDUs and will discard them upon receipt. STP devices cannot interpret the additional RSTP fields, leading to discarded BPDUs. (Reference: HCIA-Datacom Training Material, STP and RSTP Compatibility)

On Huawei VRP (Versatile Routing Platform), the command history feature allows administrators to recall previously executed commands. The Upper cursor key (? arrow key) can be used to navigate through the command history and re-execute previously entered commands.

Ctrl+P is not a valid shortcut for recalling command history.

Ctrl+U is typically used to delete an entire line of input in command-line interfaces, not to recall history.

Left cursor key (?) is used for moving the cursor within a command line but does not invoke command history.

Thus, the correct answer is B. Upper cursor key (? arrow key).

Detailed Explanation:Layer 2 switches operate at the data link layer, handling frames based on MAC addresses. They maintain a MAC address table to record mappings between MAC addresses and interfaces, allowing efficient frame forwarding within the local network. (Reference: HCIA-Datacom Training Material, Layer 2 Switching and MAC Address Learning)

Detailed Explanation:When a command entered on Huawei’s Versatile Routing Platform (VRP) is incomplete, VRP generates an error message indicating that the command is incomplete at a specific position (designated by 'A'). This message helps administrators identify where additional parameters are needed to complete the command syntax. Other error messages indicate issues such as excess parameters or ambiguous commands. (Reference: HCIA-Datacom Lab Guide, VRP Command Syntax)

Detailed Explanation:In a Layer 2 WLAN, an Access Controller (AC) typically handles authentication and management but does not act as a gateway. Instead, a Layer 3 device, such as a router, serves as the gateway. (Reference: HCIA-WLAN Training Material, WLAN Layer 2 and Layer 3 Concepts)

Detailed Explanation:When bridge priorities are identical, STP elects the switch with the lowest MAC address as the root. Here, Switch B has the lowest MAC address (00-e0-fc-00-00-10), making it the root switch. (Reference: HCIA-Datacom Training Material, STP Root Bridge Election)

Detailed Explanation:Each Virtual Access Point (VAP) on an AP is identified by a unique Basic Service Set Identifier (BSSID), which is the MAC address used at the data link layer. The SSID is a human-readable network name, while the BSSID is the technical identifier?.

Tracert (Traceroute) works by sending packets with progressively higher TTL (Time-to-Live) values, causing them to expire at each router along the path. When TTL expires, the router sends back an ICMP "Time Exceeded" message, which includes the source IP address of that router. This allows Tracert to record the IP addresses of each router on the path to the destination?.

An ARP (Address Resolution Protocol) packet includes several fields essential for mapping IP addresses to MAC addresses. The fields include:

Source Protocol Address: Identifies the IP address of the requesting device.

Source Hardware Address: Contains the MAC address of the source.

Hardware Type: Indicates the hardware type, typically Ethernet.

Operation Code: Specifies the operation (request or reply). These fields collectively allow devices to resolve IP addresses to physical MAC addresses, enabling direct communication within the local network?.

Comprehensive and Detailed Explanation:

OSPF neighbor states occur in the following sequence:

Down ? No Hello packets received.

Init ? Hello received, but no bidirectional communication yet.

2-Way ? Bidirectional Hello exchange, DR/BDR election happens here.

ExStart ? Master/slave relationship is determined (B is correct).

Exchange ? Routers exchange Database Description (DD) packets to describe their LSDBs (A and D are correct).

Loading ? Link State Requests (LSR) and Link State Updates (LSU) occur.

Full ? LSDB synchronization is complete (C is correct).

? Reference: HCIA-Datacom Routing Guide – OSPF Neighbor States

Step 1: Understanding MAC Address Table Lookup

When Host A sends a frame with MAC-B as the destination, SWA checks its MAC address table to determine the correct port to forward the frame.

According to the MAC table, MAC-B is associated with interface G0/0/2.

Step 2: Forwarding Behavior

Since SWA knows the destination MAC address and its associated interface, it will forward the frame only through G0/0/2.

Step 3: Analyzing the Answer Choices

Option A (Correct - Forwards only through G0/0/2): ?

SWA correctly forwards the frame to G0/0/2, where HostB is connected.

Option B (Incorrect - Forwards through G0/0/3): ?

MAC-B is not associated with G0/0/3, so the switch will not forward the frame there.

Option C (Incorrect - Floods the frame): ?

Flooding occurs only when the MAC address is unknown, but in this case, MAC-B is known.

Option D (Incorrect - Discards the frame): ?

The switch only discards frames if there’s a security violation or filtering rule, which is not mentioned here.

Comprehensive Explanation: In RSTP (Rapid Spanning Tree Protocol), G0/0/3 of SWB is an Alternate Port because it provides a redundant path to the root bridge, while G0/0/3 of SWA is a Designated Port, forwarding traffic away from the root bridge. Similarly, G0/0/2 of SWA is also a Designated Port because it forwards traffic to other segments of the network. Alternate Ports are used to provide backup paths, while Designated Ports are the forwarding ports on a given segment.

Comprehensive Explanation: Router Advertisement (RA) packets in IPv6 are part of the Neighbor Discovery Protocol, which uses ICMPv6 (Internet Control Message Protocol for IPv6). RA messages are sent by routers to inform hosts about the presence of routers on the network and provide them with information needed for stateless address auto-configuration, such as the network prefix and default gateway.
