ACL 2001 is a basic IPv4 ACL because Huawei numbered basic ACLs use the range 2000 to 2999. A basic ACL can match relatively simple conditions such as source IP address and an effective time range, but it does not support matching the IP protocol, destination IP address, or TCP/UDP source and destination port numbers. The attempted rule includes tcp, destination-port eq telnet, and a destination network, all of which require an advanced ACL. Huawei advanced ACLs use the 3000 to 3999 range and can match protocol type, source and destination addresses, and Layer 4 port values. Therefore, even after correcting the obvious command typo from ad 2001 to acl 2001, the rule syntax is still incompatible with a basic ACL 2001 and cannot be successfully configured in that ACL view. To implement the intended policy, the administrator should create an advanced ACL and express the TCP Telnet and destination conditions there. Consequently, the statement that the rule cannot be configured successfully is TRUE, option A.

When multiple static routes exist to the same destination prefix and all next hops are reachable, the device selects the route with the highest priority , which on Huawei devices means the lowest preference value . In this question, all four static routes point to the same destination network 20.0.0.0/30, but they have different preference values.

The route through 10.1.1.2 uses the default static route preference , which is 60 on Huawei devices. The route through 10.1.2.2 has a preference of 70 , the route through 10.1.3.2 has a preference of 50 , and the route through 10.1.4.2 has a preference of 100 . Since 50 is the lowest value among them, the route via 10.1.3.2 is preferred and installed in the routing table. Therefore, option D is correct. HCIA-Datacom emphasizes that when prefix length is identical, route preference determines which route is active. This principle is widely used in route backup design, where primary and floating backup static routes are configured using different preference values to control failover behavior.

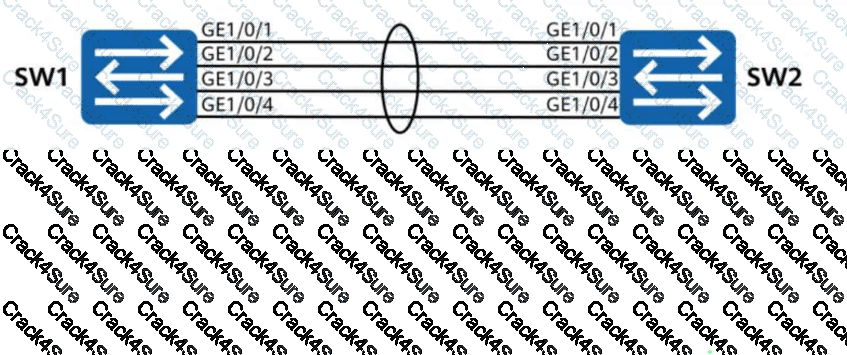

In an Eth-Trunk working in manual mode , multiple physical member links are bundled into one logical interface to provide higher bandwidth and link redundancy. If one of four 1 Gbit/s member links fails, the Eth-Trunk does not go down as long as at least one valid member link remains active. Therefore, statement A is correct. Since one link has failed and three member links remain available, the total available bandwidth becomes 3 Gbit/s , so statement B is also correct.

Statement C is incorrect because the traffic originally hashed to the failed link is not permanently stopped. Instead, after the link failure is detected, traffic is redistributed across the remaining active member links according to the trunk load-balancing mechanism. Statement D is also incorrect because Eth-Trunk provides link-level redundancy. Existing upper-layer sessions such as TCP are not necessarily interrupted and re-established simply because one member link fails. HCIA-Datacom emphasizes that Eth-Trunk improves reliability and bandwidth utilization by allowing traffic to continue across surviving links when a single member fails. This is one of the main advantages of link aggregation in campus and data center switching networks.

The nat server configuration creates a static mapping so that an internal Telnet server at private address 192.168.1.1 can be reached from the public network using global address 100.0.23.2 on the Telnet TCP port. The purpose of NAT Server is to expose an internal service through a reachable public address and translate incoming packets to the inside host. A public user therefore initiates the connection to the configured global address, for example telnet 100.0.23.2, assuming routing and security policies allow the session. The user does not normally issue telnet 192.168.1.1 from the public network because that is the private inside address and is not the destination on which the public-side NAT mapping is matched. After the packet reaches R1 addressed to 100.0.23.2, R1 translates the destination to 192.168.1.1 and forwards it internally. Thus the configuration can make the private server reachable, but the command stated in the question uses the wrong destination address. The statement is FALSE, option B.

Modern cloud data centers require horizontal scalability, high east-west bandwidth, virtualization support, and flexible tenant network extension. A spine-leaf physical topology provides predictable low-hop connectivity between leaf switches by connecting each leaf to the spine layer. VXLAN provides an overlay that can create large numbers of logical Layer 2 segments over the Layer 3 underlay and is well suited to virtualized and multi-tenant cloud environments. The combination of Spine-Leaf and VXLAN is therefore a standard architecture for cloud-based general-purpose data center networks. M-LAG with Eth-Trunk can provide device and link redundancy but does not by itself provide the scalable overlay architecture expected for a cloud fabric. PFC and ECN are lossless-network and congestion-management technologies rather than a complete general-purpose data center architecture. STP with VRRP represents more traditional Layer 2 redundancy and gateway protection and does not offer the same cloud-fabric scalability. Consequently, the architecture described in the question is Spine-Leaf + VXLAN, making option B correct.

This statement is true . Traditional VLANs use a 12-bit VLAN ID , which means that only about 4094 usable VLANs are available. In modern data centers, especially in cloud and virtualization environments, that scale is often insufficient because a very large number of tenants, services, and virtual machines need isolated network segments.

VXLAN addresses this limitation by introducing the VNI (VXLAN Network Identifier) , which is 24 bits long. This allows support for up to about 16 million logical segments , greatly expanding the number of isolated Layer 2 networks that can be created across an IP underlay. Because of this, VXLAN is widely used in modern data centers to provide scalable tenant isolation, flexible service deployment, and large Layer 2 extension across physical boundaries. HCIA-Datacom highlights VXLAN as a key overlay technology that solves the VLAN scale problem in virtualized data center environments. It allows a much larger number of VMs and tenants to be isolated than traditional VLAN-based solutions can support, making it essential for modern cloud-oriented and large-scale data center networking.

The IEEE 802.11 channel plan for the 2.4 GHz ISM band defines channels numbered 1 through 14, with adjacent channel center frequencies separated by 5 MHz. Because a traditional 20 MHz Wi-Fi channel occupies substantially more spectrum than the 5 MHz center-frequency spacing, neighboring channels overlap. This is why WLAN planning normally uses a limited set of non-overlapping or minimally overlapping channels, such as 1, 6, and 11 in many regulatory domains. The fact that fourteen channel numbers exist in the standard does not mean that every country permits operation on every one of them. Regulatory domains restrict the usable subset; for example, channel 14 is not generally available worldwide and has historically been associated with specific Japanese operation. Huawei APs apply the configured regulatory domain to determine which channels may actually be selected. The statement concerns the standard channelization itself rather than regional permission to use every channel. On that basis, the statement is TRUE and option A is correct.

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer , using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

Duplicate Address Detection ( DAD ) is an IPv6 mechanism used to verify that a unicast address is not already in use before the address is assigned to an interface. DAD is implemented using Neighbor Solicitation (NS) and Neighbor Advertisement (NA) messages, which are part of the ICMPv6 Neighbor Discovery protocol. Therefore, options A and D are correct.

When a host wants to verify a tentative IPv6 address, it sends an NS message for that address. If another node on the link is already using that address, that node responds with an NA message, indicating the address is duplicated and cannot be assigned. If no NA is received within the required period, the host assumes the address is unique and can use it. Options B and C are incorrect because Router Solicitation (RS) and Router Advertisement (RA) are used for router discovery, prefix advertisement, and stateless address autoconfiguration, not for DAD itself. HCIA-Datacom emphasizes the distinction between Neighbor Discovery functions, including address resolution, next-hop reachability, router discovery, and duplicate address detection in IPv6 networks.

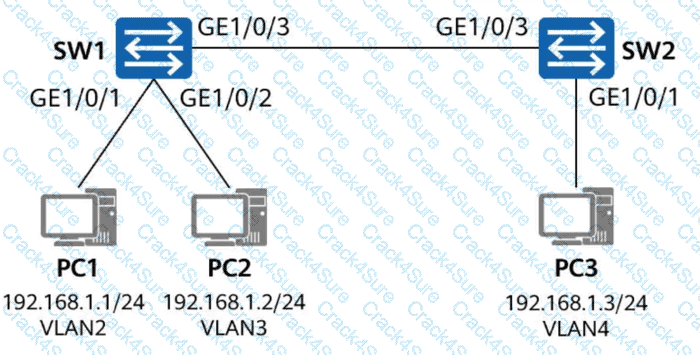

PC1 and PC2 are in different VLANs on SW1, while PC3 is in VLAN 4 on SW2. To allow traffic from VLAN 2 and VLAN 3 users to reach PC3 through the inter-switch link, SW1 must be able to send frames from PC1 and PC2 toward SW2 in a form that SW2 can place into VLAN 4.

Option B is valid because a hybrid interface on SW1 can send frames from VLAN 2 and VLAN 3 untagged , and setting the PVID to VLAN 4 allows untagged inbound frames on the peer side to be associated appropriately when matched with the SW2 configuration. Option C is also valid because configuring SW2’s GE1/0/3 as a trunk allowing VLAN 4 and setting its PVID to VLAN 4 means untagged frames arriving from SW1 are treated as belonging to VLAN 4 and can then be forwarded to PC3 through its access interface.

Option A is incomplete because only configuring SW2 does not solve the VLAN handling on SW1. Option D is incorrect because a trunk on SW1 would send VLAN 2 and VLAN 3 frames tagged, which would not match the VLAN 4-only expectation on SW2 in this scenario.

The uploaded key marks this statement TRUE, but the Huawei VRP operating behavior makes FALSE the technically correct answer as the question is written. Creating Eth-Trunk 1 with the interface Eth-Trunk 1 command does not, by itself, enable LACP. The default Eth-Trunk working mode is manual load balancing on the relevant VRP platforms. In manual mode, the local switch does not depend on LACP negotiation with the remote switch to decide whether locally added, physically Up member interfaces can make the aggregation operational. If SW1 ' s member interfaces are physically normal and correctly added to Eth-Trunk 1, failing to add the corresponding SW2 interfaces to its Eth-Trunk can certainly break end-to-end forwarding, but it is not in itself a sufficient explanation for the local Eth-Trunk on SW1 being Down. In LACP mode, missing peer membership can prevent correct aggregation because LACPDUs are not exchanged as expected. Since LACP mode is not specified here, option B is the verified answer.

A /27 subnet mask is 255.255.255.224, which means each subnet contains 32 IP addresses. The subnet increments in blocks of 32 in the last octet: 0, 32, 64, 96, 128, 160, 192, 224. The address 192.168.1.200/27 belongs to the subnet 192.168.1.192/27.

For this subnet, the network address is 192.168.1.192, the broadcast address is 192.168.1.223, and the valid host range is from 192.168.1.193 to 192.168.1.222. Therefore, 192.168.1.221/27, 192.168.1.193/27, and 192.168.1.222/27 are all valid host addresses in the same subnet and are reachable at Layer 2 without routing. That makes A, C, and D correct.

Option B is not correct because 192.168.1.192/27 is the network address of the subnet and cannot be assigned to a host by default. This question checks IP subnetting and the ability to identify valid hosts within the same broadcast domain.

The root path cost (RPC) of a switch is the total path cost from that switch to the root bridge along the selected spanning-tree path. Since SW1 is given as the root bridge, its RPC is 0. Each link in the topology has a path cost of 20 . To determine SW4’s RPC, you identify the shortest active STP path from SW4 to SW1.

Based on the topology used in the question, SW4 reaches SW1 through a path containing two links . Therefore, the total root path cost is 20 + 20 = 40 , which makes option B correct. This is a standard STP calculation. HCIA-Datacom uses RPC as one of the main comparison parameters in root-port election on non-root switches. A lower RPC means a better path toward the root bridge. If multiple candidate ports have the same RPC, the switch then compares the sender’s bridge ID and port ID. This question checks whether the learner understands that RPC is cumulative across the spanning-tree forwarding path and is not simply the cost of a single directly connected link unless the switch is directly attached to the root bridge.

Comprehensive and Detailed 150 to 200 words of Explanation From Datacom knowledge:

The false statement is B . From the AAA configuration output, the value of Remote-admin-user block time is clearly shown as 5 Min(s) , which means the account lockout duration is 5 minutes , not 30 minutes.

Option A is true because Remote-admin-user block retry-time : 3 indicates that after 3 consecutive authentication failures , the account will be blocked. Option C is also true because the displayed Domain Name Delimiter is @ , which is the separator used in usernames such as user@huawei.com. Option D is true as well because the output shows Local-user : total: 512 used: 2 , meaning that the device supports a maximum of 512 local users , and currently 2 local users have been created.

This question checks the ability to correctly read AAA configuration output on Huawei devices. In HCIA-Datacom knowledge, it is important to distinguish between retry interval , retry count , and block time , because these values represent different security control parameters and are often confused during troubleshooting or configuration review.

The destination address FF-FF-FF-FF-FF-FF is the Ethernet broadcast address. A switch floods a broadcast frame through the other eligible ports in the same VLAN, so both Host B and Host C can receive the frame. Option C, 53-80-C2-00-00-01, is a multicast MAC address because the individual/group bit, which is the least significant bit of the first octet, is 1. The first octet 0x53 has a binary least significant bit of 1, identifying a group address. Multicast frames may therefore be delivered to multiple receivers in the same Layer 2 domain, depending on multicast handling and membership behavior. By contrast, the first octets in options B and D, 0x98 and 0x34, have a least significant bit of 0 and are unicast addresses. A unicast frame is intended for a single MAC destination and is not normally delivered simultaneously to both hosts. Therefore A and C are the correct choices. This classification is fundamental when predicting whether a switched Ethernet frame is delivered to one station or replicated to multiple receivers simultaneously.

This statement is false . On Huawei devices, the domain to which a user belongs is usually determined by the domain part carried in the user name, for example user@huawei.com. However, if the specified domain is not configured on the NAS device, authentication does not necessarily fail immediately . In many cases, the device can use a default domain for authentication processing, depending on the AAA configuration.

Huawei AAA supports both an administrator user default domain and a normal user default domain . If a user name does not match a configured domain, or the domain carried in the user name is unavailable, the device may fall back to the default domain and continue authentication according to the configured policy. Therefore, the statement is incorrect because it treats authentication failure as unavoidable in every such case. HCIA-Datacom emphasizes domain-based AAA processing because it allows different groups of users to use different authentication, authorization, and accounting methods. At the same time, learners must understand the function of default domains, which provide flexibility in real deployments and prevent unnecessary authentication failures in some login scenarios.

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

IPv6 text representation permits zero compression to make long addresses easier to read and write. One or more consecutive 16-bit groups containing only zeros can be replaced by a double colon, subject to the rule that the double-colon compression is used only once in a single IPv6 address; otherwise the number of omitted groups would be ambiguous. In the address 2001:DBFF:130F:0:0:0:0:130B, four consecutive zero groups appear between 130F and 130B. Replacing that run with :: produces 2001:DBFF:130F::130B, which expands back unambiguously to the original eight groups. Leading zeros within an individual 16-bit group can also be omitted, but that is a separate abbreviation rule. The example in the question follows valid IPv6 notation and does not alter the numeric address. Consequently, the statement that the address can be compressed in the manner shown is TRUE. The correct answer is A. The compression changes only the written representation of the IPv6 address; it does not change the underlying 128-bit address value itself in any way.

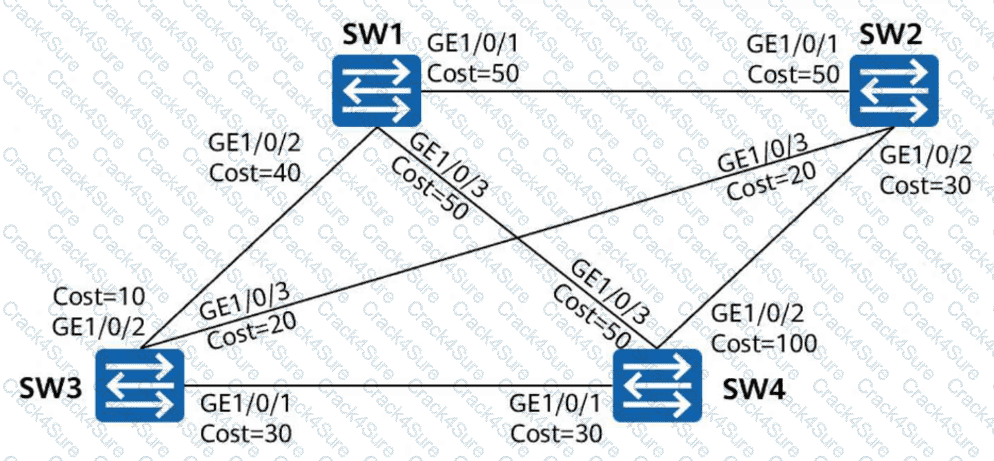

In STP, the root bridge has all its active ports elected as designated ports on each connected segment. On non-root switches, one port is selected as the root port , and on each LAN segment, one designated port is elected based on the best BPDU. Since SW1 is the root bridge and all links have equal cost, the election depends first on the path cost to the root, then on bridge ID, and then on port ID if needed.

According to the topology, the ports that become designated are GE1/0/2 of SW2 , GE1/0/1 of SW2 , and GE1/0/3 of SW3 , which correspond to option A , B , and C . Option D is not a designated port in this topology because that segment has another port with a superior BPDU and therefore SW4’s port does not win the designated-port election. HCIA-Datacom emphasizes that designated ports are elected per segment , not per switch, and that every non-root switch must compare received BPDUs to determine root and designated roles. This question tests the ability to apply STP election logic rather than simply memorizing port-role definitions.

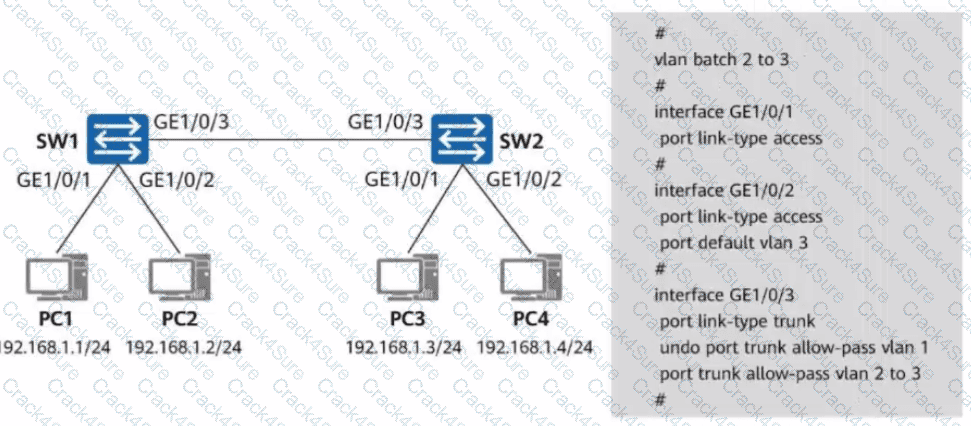

The exhibit shows GE1/0/2 as an access port in VLAN 3 on both switches, so PC2 and PC4 belong to the same Layer 2 broadcast domain. The inter-switch GE1/0/3 link is a trunk that permits VLANs 2 and 3, allowing VLAN 3 frames to pass between SW1 and SW2. Therefore, PC2 and PC4 can communicate at Layer 2, making statement B true. GE1/0/1 remains an access interface in the default VLAN 1 because no other default VLAN is configured. VLAN 1 is not permitted across the shown trunk, so PC1 cannot communicate with PC3 across the switches. PC1 and PC2 are also in different VLANs locally, and PC2 and PC3 are in different VLANs. Devices in different VLANs cannot exchange Layer 2 traffic directly; a Layer 3 gateway is required for inter-VLAN communication. Accordingly, statements A, C, and D are the false statements, which makes A, C, and D the correct selections.

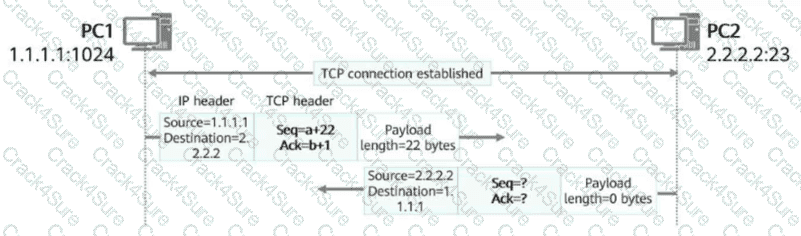

In TCP, the acknowledgment number indicates the next byte that the receiver expects to receive. In the figure, PC1 sends a TCP segment to PC2 with sequence number = a+22 and payload length = 22 bytes . Since TCP sequence numbers count bytes, the last byte carried in this segment corresponds to sequence number a+43 . Therefore, after PC2 successfully receives this data, it sends back an ACK indicating that the next expected byte is a+44 .

That is why option B is correct. This is a standard TCP reliability mechanism. TCP does not acknowledge “packets” as units; it acknowledges the byte stream. The ACK number always points to the next byte expected from the peer. The source and destination port numbers identify the session, but the sequence and acknowledgment numbers track ordered delivery. HCIA-Datacom uses this mechanism to explain connection-oriented transport, reliable delivery, retransmission, and traffic control. Understanding how the payload length affects sequence progression is essential when analyzing packet captures and troubleshooting TCP communication problems in enterprise networks.

The false statements are A and D . Option A is considered false in HCIA-Datacom wording because intelligent computing data center networks aim to build a lossless Ethernet fabric through coordinated technologies such as high-bandwidth interfaces, deep buffers, PFC, ECN, congestion control, and optimized forwarding. The exam-oriented knowledge point treats these technologies as solutions for a zero packet loss network design goal rather than stating that a truly lossless network cannot be achieved.

Option D is also false because RDMA is used to reduce end-to-end communication latency and CPU overhead between servers, especially for east-west traffic in AI and high-performance computing clusters. It is not specifically described as reducing latency between GPU servers and physical switches . That wording is inaccurate. Option B is true because PFC and ECN are standard lossless Ethernet technologies applied in intelligent computing networks. Option C is also true because AI training and distributed computing generate massive data synchronization traffic, requiring very high single-port bandwidth such as 200GE or 400GE . HCIA-Datacom highlights bandwidth, low latency, and lossless transport as the core requirements of intelligent computing data center networks.

In STP, the root bridge is elected based on the lowest bridge ID (BID). A BID is composed of the bridge priority and the MAC address of the switch. The device with the smallest BID becomes the root bridge. Therefore, if an administrator wants SW2 to become the root bridge, the most direct and correct method is to configure a lower system priority on SW2, making option C correct.

Option A is incorrect because port priority affects port-role selection in some tie-breaking scenarios, but it does not determine root-bridge election. Option B is the opposite of what is required, because a higher system priority makes the BID larger and reduces the chance of being elected as root. Option D is also incorrect because root path cost is used by non-root bridges to select the best path to the existing root bridge; it does not determine which switch becomes the root bridge in the first place. HCIA-Datacom stresses that bridge priority tuning is the standard administrative method used to control root bridge placement in campus networks for stable and predictable Layer 2 topology design.

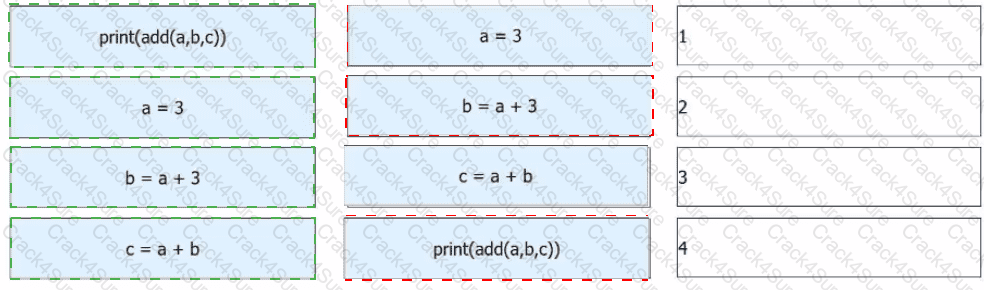

1) a = 3; 2) b = a + 3; 3) c = a + b; 4) print(add(a, b, c))

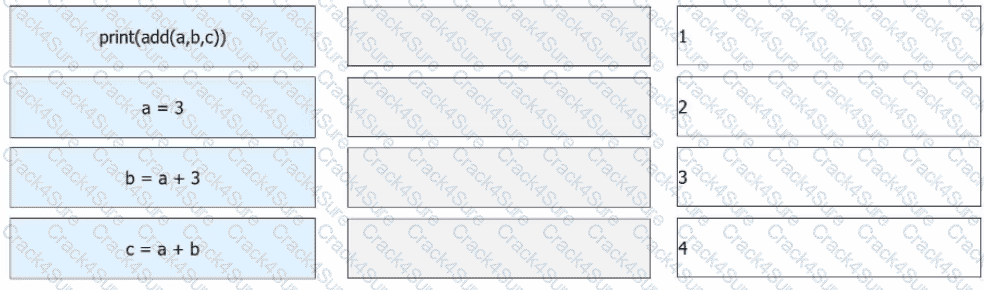

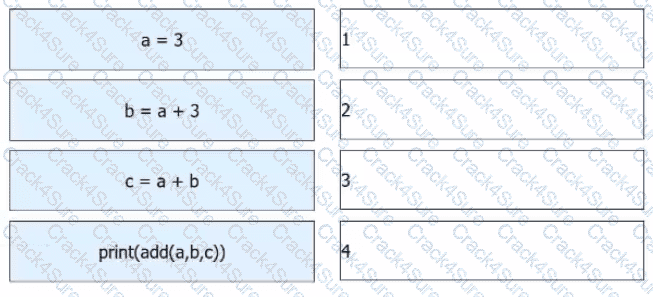

The statements must be executed in dependency order. The function add(a, b, c) can be called only after values have been assigned to the variables that are passed as its three arguments. First, a must be set to 3. The next statement, b = a + 3, depends on a already existing, so it must follow the assignment to a. The statement c = a + b depends on both a and b, so it must be executed after b has been calculated. Finally, print(add(a, b, c)) can run only after a, b, and c all have valid values. With this order, a equals 3, b equals 6, and c equals 9. The function therefore returns 3 + 6 + 9, and print displays 18. Executing the statements in another order would attempt to reference an undefined variable and raise a NameError. The correct sequence is: a = 3, b = a + 3, c = a + b, then print(add(a, b, c)).

The address 224.0.0.1/24 cannot be configured as a normal host IP address by default because it belongs to the Class D multicast address range . IPv4 multicast addresses range from 224.0.0.0 to 239.255.255.255 and are reserved for multicast group communication rather than assignment to host interfaces as ordinary unicast addresses. Therefore, option D is correct.

The other three options are all private unicast address ranges and can be configured on hosts in private networks. 10.0.0.1/8 belongs to the 10.0.0.0/8 private range, 172.16.1.1/16 belongs to the 172.16.0.0/12 private range, and 192.168.1.1/24 belongs to the 192.168.0.0/16 private range. These are commonly used in enterprise and campus networks. HCIA-Datacom teaches that host IP address planning must distinguish between unicast, multicast, loopback, broadcast, and other special-purpose ranges. Multicast addresses identify multicast groups and are processed differently by hosts and network devices, so they are not valid default host addresses for ordinary end-to-end IP communication.
