Comprehensive and Detailed Step-by-Step Explanation:

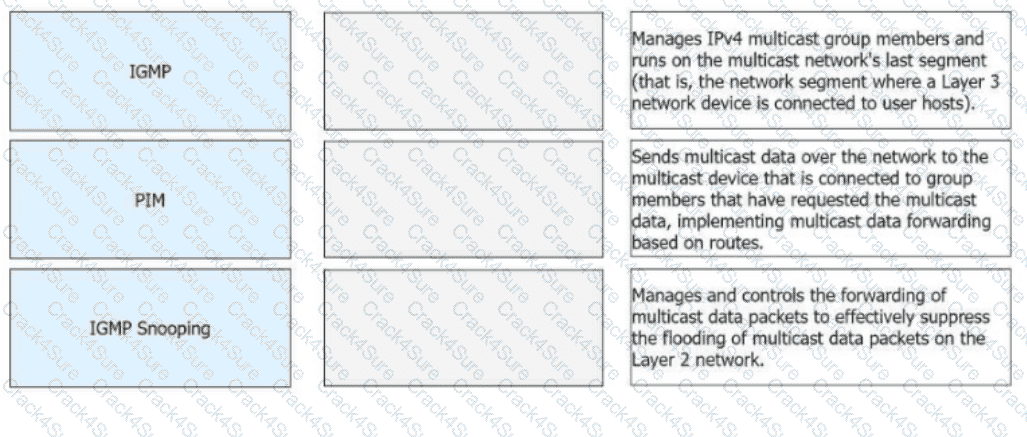

1. Understanding IGMP (Internet Group Management Protocol):

IGMP is used in multicast networking to manage membership of devices in multicast groups.

Key parameters in the configuration provided:

Interface IP Address: 192.168.1.1

IGMP Version: 2

Query Interval (Configured): 60 seconds

Maximum Query Response Time: 10 seconds

Querier Address: 192.168.1.1

2. Analysis of Each Statement:

Option A: The IP address of the interface is 192.168.1.1.

Correct (True Statement).

The configuration clearly shows that the IP address of the interface is 192.168.1.1.

Option B: The maximum response time to Query messages is 10s.

Correct (True Statement).

The configuration explicitly mentions: Value of maximum query response time for IGMP: 10 s.

Option C: The interval for sending Group-Specific Query messages is 60s.

Incorrect (False Statement).

The 60-second value refers to the query interval , which is the time interval between general queries sent by the querier.

The interval for group-specific queries is not specified in this configuration. It is determined dynamically based on the multicast environment and is usually shorter than the general query interval.

Option D: The IGMP version is IGMPv2.

Correct (True Statement).

The configuration specifies: Current IGMP version is 2.

3. Why Option C is False:

The 60-second value is for general query interval , not group-specific query interval.

The statement misinterprets the configuration, making it false .

4. Summary:

Correct Answer: C (The interval for sending Group-Specific Query messages is 60s).

Comprehensive and Detailed In-Depth Explanation:

Type 1 LSAs (Router LSAs) are generated by every OSPF router to describe its directly connected links and their states.

The Router ID (RID) must be unique in an OSPF domain; otherwise, OSPF calculations will fail due to ambiguous paths .

If two routers in the same area have the same Router ID , OSPF will fail to calculate Shortest Path First (SPF) correctly, leading to routing inconsistencies.

To prevent this, Huawei routers automatically detect duplicate Router IDs and prevent OSPF from functioning properly until the issue is resolved.

???? Reference: Huawei HCIA-Datacom Study Guide, Chapter on OSPF LSAs and Router ID Uniqueness.

IGMP Version Mismatch

If the IGMP snooping version on the device is earlier than the IGMP version on user hosts, the device may fail to parse IGMP Report messages correctly. As a result, the device forwards these messages only to router ports without generating group member ports or forwarding entries.

Consequently, users cannot receive multicast data.

HCIP-Datacom-Core Reference

Multicast and IGMP snooping behaviors under mismatched conditions are described in the multicast configuration chapters??.

A is false – The default value of Local_Pref is 100 , not 0.

B is false – Local_Pref is not advertised to EBGP peers , it is only sent to IBGP peers .

C is correct – The Local_Pref value stays constant unless modified by a route-policy or filter.

D is correct – Higher Local_Pref values indicate preferred paths , so BGP prefers the path with the highest Local_Pref among multiple options.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“Local_Pref is used to select the best outbound path for traffic leaving the AS. It is only shared among IBGP peers and defaults to 100. The higher the value, the more preferred the route.”

(Chapter: BGP Path Attributes – Section: Local Preference)

A is correct – Removing unused accounts helps minimize the risk surface .

B is false – Email is not a secure method for transferring sensitive information like passwords, even if encrypted.

C is correct – Unique administrator accounts help with accountability and tracking.

D is false – Long-term password validity reduces security. Passwords should be rotated regularly.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“To secure admin access, avoid account sharing, delete inactive users, and periodically update credentials through secure channels.”

(Chapter: Device Security – Section: Account Management)

Option A correctly configures the DHCP relay agent (AC) to forward requests to the DHCP server using VLAN 10.

Option B correctly configures the DHCP server (AR) with the correct IP pool ( 10.1.1.0/24 ), gateway, and excluded IP addresses. The static route to 10.1.1.0 through 172.21.1.1 ensures proper routing ?.

=========

The correct command for configuring the VRRP (Virtual Router Redundancy Protocol) preemption delay is vrrp vrid 1 preempt-delay 20 . This command sets the delay before a higher-priority VRRP router preempts the master role, ensuring stable operation during network transitions ?.

Comprehensive and Detailed Step-by-Step Explanation:

HSB (Hot Standby Backup) Service:

HSB is used on WLAN controllers to back up critical information in real time to a backup device, ensuring service continuity in case of failures.

Backed-Up Information:

CAPWAP Tunnel Information (A): Essential for maintaining connections between APs and controllers.

AP Entries (C): Information about connected APs is backed up.

User Data Information (D): Includes client authentication and session details.

Incorrect Option:

DHCP Address Information (B): Not part of HSB ' s responsibilities, as DHCP is handled separately.

By default, Huawei firewalls create security zones named untrust , dmz , trust , and local . These zones facilitate security policies for inbound, outbound, and inter-zone traffic control ?.

? In asynchronous mode , BFD control packets are exchanged periodically to detect faults.

? In demand mode , once the session is established, BFD stops sending periodic control packets and relies on external mechanisms to verify connectivity.

? Asynchronous mode is the most commonly used mode. However, the Echo function is supported in asynchronous mode, making Option B incorrect ?.

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the Prefix List Configuration:

The command ip ip-prefix test index 10 permit 10.0.0.0 8 less-equal 32 defines the following:

The prefix base is 10.0.0.0 with a mask length of 8 bits.

The less-equal 32 condition allows routes with mask lengths ranging from 8 to 32 bits to match.

2. Analysis of Each Route:

Option A: 10.1.1.1/32

Correct .

The prefix 10.1.1.1/32 falls within the 10.0.0.0/8 network range and has a mask length of 32 bits, which satisfies the less-equal 32 condition.

Option B: 10.1.1.0/6

Incorrect .

The prefix 10.1.1.0/6 has a mask length of 6 bits, which is shorter than the base prefix length of 8. It does not satisfy the condition.

Option C: 10.1.1.0/24

Correct .

The prefix 10.1.1.0/24 falls within the 10.0.0.0/8 network range and has a mask length of 24 bits, which satisfies the less-equal 32 condition.

Option D: 10.0.0.0/16

Correct .

The prefix 10.0.0.0/16 falls within the 10.0.0.0/8 network range and has a mask length of 16 bits, which satisfies the less-equal 32 condition.

3. Summary:

The prefixes that match the configuration are 10.1.1.1/32, 10.1.1.0/24, and 10.0.0.0/16.

By default, Huawei firewalls create security zones such as Trust, Untrust, and Local. The DMZ (Demilitarized Zone) is a security zone explicitly created by users. A DMZ is used to isolate an internal network from the external one, providing an additional layer of security by placing public-facing services (e.g., web servers) in this intermediary zone. This setup ensures that if a public-facing service is compromised, the internal network remains secure. Huawei Firewall configuration steps confirm this zoning principle, making DMZ creation an explicit user-driven action ?.

The Forwarding Information Base (FIB) is derived from the router ' s routing table and contains the exact forwarding entries used to route packets. It directly guides packet forwarding decisions by matching incoming packets with the correct output interface or next-hop address ?.

The IPv6 address 2001:0DBB:B8:0000:C030:0000:0000:09A0:CDEF can be compressed by removing leading zeros in each segment and collapsing consecutive zero groups into ::. The result is 2001:DBB:B8:0:C030::9A0:CDEF ?.

For first-time configuration of a newly purchased network device, administrators typically use the console port. This direct connection is secure and independent of network configuration, making it suitable for initial setups. Telnet, SNMP, or FTP require prior IP configuration, which is not feasible during the initial setup phase ?.

The hardware modules of Huawei modular devices and their functions are:

Main Processing Unit (MPU): Provides control and management planes for the entire system, responsible for protocol processing, system security, and software upgrades.

Switch Fabric Unit (SFU): Provides the data plane, enabling high-speed data switching between service modules.

Line Processing Unit (LPU): Manages data forwarding, offering various interfaces (optical and electrical) for data access??.

The virtual MAC address for a VRRP virtual router is determined by the formula 00-00-5E-00-01-[VRID in hexadecimal] . For VRID 3, the hexadecimal equivalent is 03 . Thus, the virtual MAC address is 00-00-5E-00-01-03 ?.

Comprehensive and Detailed In-Depth Explanation:

OSPF network types affect how protocol packets (Hello, LSA updates) are transmitted:

NBMA (Non-Broadcast Multi-Access) networks (e.g., Frame Relay) do not support multicast , so routers must unicast OSPF packets to neighbors.

Broadcast networks (e.g., Ethernet) support multicast and use 224.0.0.5 for Hello packets and 224.0.0.6 for DR/BDR communication .

The statement is false because:

NBMA does not unicast all packets —only Hello packets must be manually configured to be unicast.

LSAs and routing updates can still be multicast if an NBMA network is configured as point-to-multipoint .

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Network Types and Packet Transmission.

High-availability Stateful Backup (HSB) ensures synchronization between active and standby devices. If the HSB channel fails to establish, the following causes are possible:

TCP channel not established : The HSB channel relies on a TCP connection. If the TCP session cannot be established, the backup process cannot start.

Mismatched retransmission settings : If the retransmission count and interval for HSB service packets are inconsistent between the two devices, the synchronization process fails.

Incorrect source and destination configurations : If the source IP address and port number on one device do not match the destination IP address and port number on the other, the channel cannot be established.

Option C is incorrect because the priority of the two ACs affects active/standby roles but does not directly impact HSB channel establishment ?.

The mandatory parameters for BGP peer configuration are the peer IP address ( peer ip-address ) and AS number ( as-number ). A password is optional for MD5 authentication, and a description is an optional comment for reference. These are not required for establishing the peer relationship ?.

Comprehensive and Detailed In-Depth Explanation:

BFD (Bidirectional Forwarding Detection) detects link failures faster than traditional mechanisms.

Session states during setup :

AdminDown ? Initial state (session is administratively disabled).

Down ? The session is being established but has not yet exchanged valid control packets.

Init ? The session is partially established (one side has detected the peer).

Up ? The session is fully operational (not part of the setup process).

Since AdminDown, Down, and Init are involved in session setup , the correct answers are B, C, D .

???? Reference: Huawei HCIA-Datacom Study Guide, BFD Session Establishment and States.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

To establish an OSPF neighbor relationship, the following conditions must be met:

The routers must share a common network segment.

Their Hello and Dead intervals must match.

Their OSPF network types must be compatible.

The IP subnet masks must match.

If two OSPF routers are on different network segments and have different subnet masks , one solution is to change the OSPF network type to Point-to-Point (P2P) on both interfaces.

Point-to-Point (P2P):

In a P2P network type, OSPF ignores the subnet mask mismatch and establishes the neighbor relationship regardless of the network mask.

This is ideal for directly connected links between two routers.

NBMA (Non-Broadcast Multi-Access):

This network type is used for networks like Frame Relay or ATM, where a single physical interface connects to multiple neighbors.

It is not applicable to solving subnet mask mismatches for a single link.

P2MP (Point-to-Multipoint):

This type treats the link as multiple P2P links. It is mainly used in hub-and-spoke topologies.

While it can be configured to solve subnet mask mismatches, it is more complex and less commonly used compared to the P2P type.

Broadcast:

This type requires all routers on the same segment to agree on subnet masks, so it cannot resolve the subnet mask mismatch issue.

Therefore, the correct answer is A. Point-to-point.

? GRE Characteristics

GRE does not inherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B. Supports multicast transmission.

C. Acts as a Layer 3 VPN encapsulation technology.

D. Can work with VPN protocols like IPsec for better security.

? HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters??.

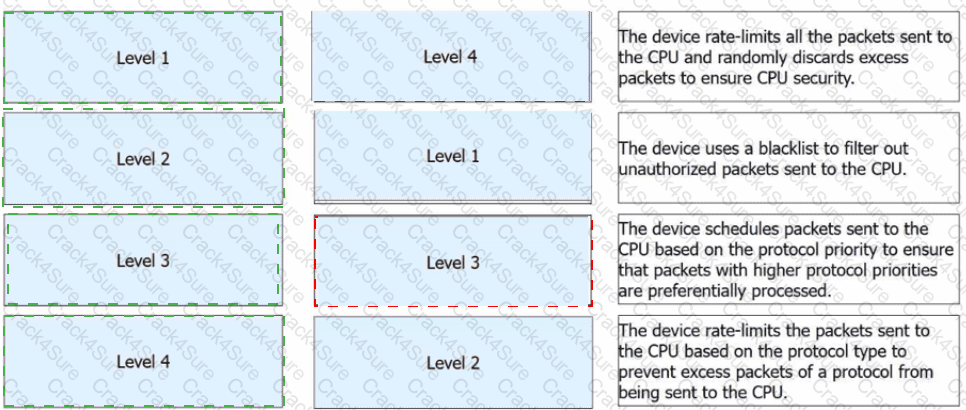

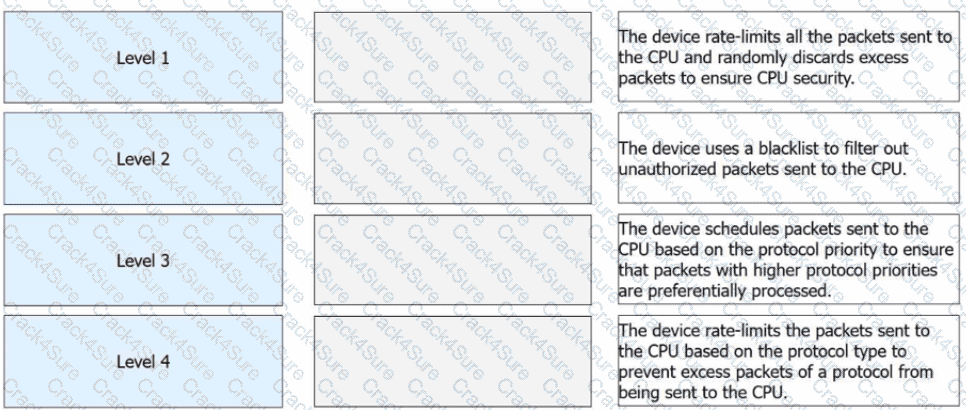

The traffic limiting policy feature supports not only limiting the number of connections initiated by or received by an IP address but can also apply other traffic metrics such as bandwidth or packet rates. This expanded capability makes the statement false ?.

One multicast MAC address maps to 32 multicast IP addresses due to the limited number of bits used in the mapping process. Specifically, the lower 23 bits of the MAC address map to the lower 23 bits of the multicast IP address, while the high 24 bits of the MAC address are fixed as 0x01005E. Thus, Option B is false ?.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In an Intermediate System to Intermediate System (IS-IS) network, a Designated Intermediate System (DIS) is elected on broadcast networks to perform the following functions:

Represent the broadcast network as a pseudonode.

Generate and update the Link State Protocol Data Units (LSPs) for the pseudonode.

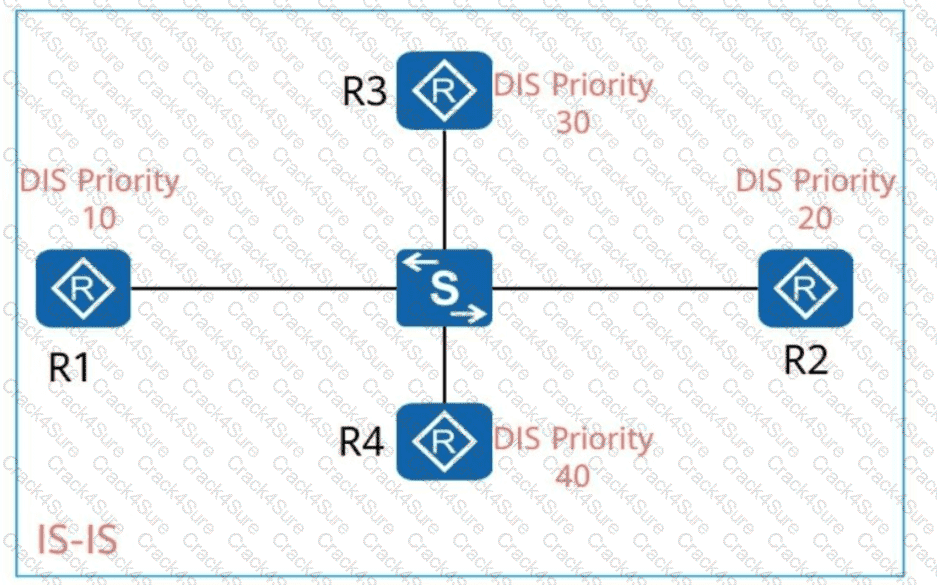

The DIS is elected based on the DIS priority value, which is configured on IS-IS interfaces. If two routers have the same priority, the router with the higher MAC address becomes the DIS.

The default DIS priority for IS-IS interfaces is 64 , which can be modified depending on the network requirements.

Option A (200): Incorrect. This is not the default value.

Option B (64): Correct. This is the default DIS priority value.

Option C (1): Incorrect. This is not the default value.

Option D (100): Incorrect. This is not the default value.

OSPF routers refresh and flood LSAs in the Link-State Database (LSDB) every 30 minutes by default to maintain topology consistency. OSPF does not rely on TCP; it uses its own acknowledgment mechanism. It also uses the Dijkstra algorithm, not Bellman-Ford. The flooding interval for LSU packets is shorter, typically 5 seconds ?.

The Designated Intermediate System (DIS) in an IS-IS broadcast network sends Complete Sequence Number PDUs (CSNPs) at a default interval of 30 seconds. This interval ensures periodic synchronization of the Link State Database (LSDB) among IS-IS neighbors ?.

Application Specific Packet Filtering (ASPF) is a feature that allows the firewall to understand and handle multi-channel protocols such as FTP, H.323, and SIP. ASPF inspects the control channel to dynamically create temporary rules for the data channels, enabling the firewall to secure and manage complex application protocols. This feature ensures that appropriate security policies are applied to these multi-channel applications ?.

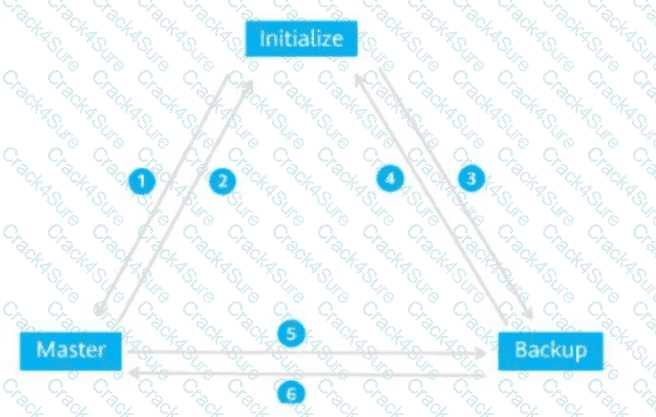

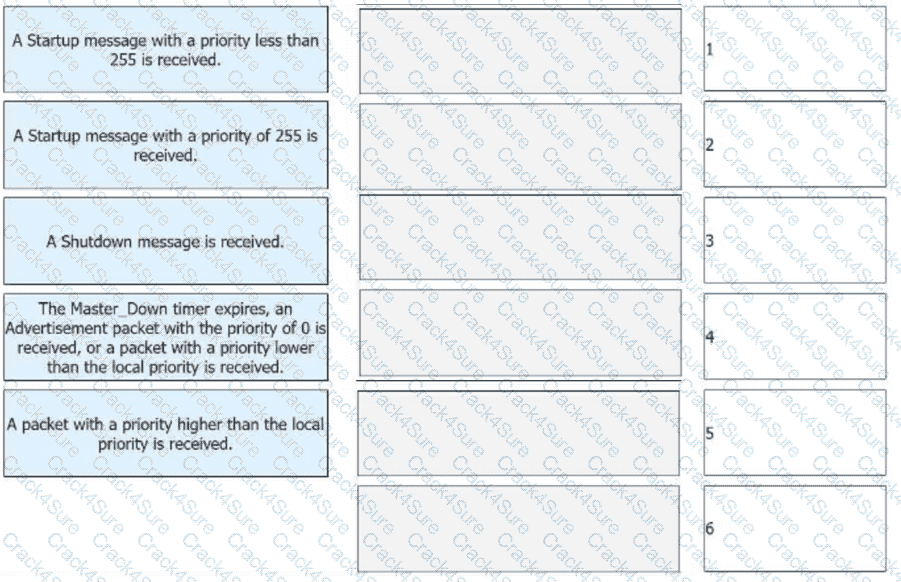

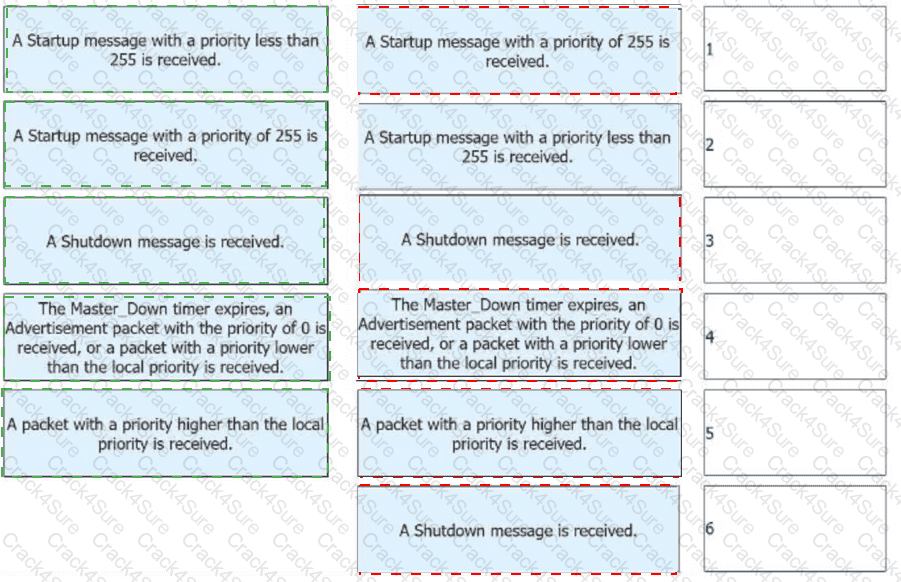

1 ? A Startup message with a priority of 255 is received.

2 ? A Startup message with a priority less than 255 is received.

3 ? A Shutdown message is received.

4 ? The Master_Down timer expires, an Advertisement packet with the priority of 0 is received, or a packet with a priority lower than the local priority is received.

5 ? A packet with a priority higher than the local priority is received.

6 ? A Shutdown message is received.

???? Reference: Huawei HCIA-Datacom Study Guide, VRRP Status Transitions.

Comprehensive and Detailed In-Depth Explanation:

A NET (Network Entity Title) consists of three parts:

Area Address ? Identifies the IS-IS area.

System ID ? Uniquely identifies the router.

SEL (NSEL - N-selector) ? Always 0 in IS-IS.

The Area Address part contains:

AFI (Authority and Format Identifier) ? Identifies the address type.

IDI (Initial Domain Identifier) ? Identifies the routing domain.

System ID is NOT part of the Area Address , so the correct answers are B (AFI) and C (IDI) .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Addressing and NET Structure.

The provided BGP error display shows the error timestamp as 12:40:39 on March 22, 2010 . The error message confirms a mismatch in the peer AS number, as indicated in the " Incorrect remote AS " error info. This eliminates options related to other causes, and the timestamp in Option A is incorrect ?.

IPv4 supports three main transmission modes:

Unicast : One-to-one communication.

Broadcast : One-to-all communication within a network.

Multicast : One-to-many communication to a group of interested receivers. Anycast is not a native IPv4 mode but is introduced in IPv6 ?.

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Three-Way Handshake:

IS-IS uses a three-way handshake to establish neighbor relationships.

This process is applied on both point-to-point (P2P) and broadcast network types to confirm bidirectional communication.

P2P Networks:

Routers directly exchange IS-IS Hello (IIH) packets to establish adjacency.

Broadcast Networks:

IS-IS also uses the three-way handshake on broadcast networks to ensure that the Designated Intermediate System (DIS) election and adjacency formation are correct.

Route summarization in OSPF is restricted to specific routers: Area Border Routers (ABRs) and Autonomous System Boundary Routers (ASBRs). These devices perform summarization to reduce routing table size and minimize advertised routing information between areas or across AS boundaries. Regular routers cannot perform route summarization, making this statement false ?.

Configuration Analysis:

On R2 , the following configuration has been applied:

acl 200

rule deny source 10.1.0.0 0.0.3.0

rule permit

#

ospf 1

filter-policy 2000 import

This configuration uses ACL 200 to filter routes during import into the OSPF routing table on R2.

Rule deny source 10.1.0.0 0.0.3.0: Blocks routes in the range 10.1.0.0/24 to 10.1.3.0/24 (inclusive).

Rule permit: Allows all other routes to be imported.

Impact of ACL 200 on Route Import:

10.1.0.0/24 to 10.1.3.0/24: These subnets are explicitly denied by ACL 200 and will not appear in R2 ' s routing table.

10.1.4.0/24 and beyond: These subnets are permitted by the rule permit statement and will be imported into R2 ' s routing table.

Routing Table Entries on R2:

Option A (10.1.4.0/24): Exists in R2 ' s routing table because it is permitted.

Option B (10.1.3.0/24): Does not exist because it is denied by ACL 200.

Option C (10.1.2.0/24): Does not exist because it is denied by ACL 200.

Option D (10.1.1.0/24): Does not exist because it is denied by ACL 200.

A (10.1.4.0/24)

? OSPF Authentication Overview

OSPF supports three authentication modes:

Null Authentication : No authentication (default).

Plaintext Authentication : Uses clear-text passwords.

MD5 Authentication : Secure cryptographic authentication.

? Interface-Level Priority

When both interface-level and area-level authentication are configured, OSPF prioritizes interface-level authentication . This ensures that interface-specific security overrides area-wide configurations for greater granularity and security.

? HCIP-Datacom-Core Reference

OSPF authentication hierarchy and configurations are detailed in the OSPF security configuration chapter?.

In RSTP, a port in the discarding state neither forwards data frames nor learns MAC addresses. A port in the learning state does not forward data frames but starts learning MAC addresses. Therefore, options A and B are correct, while C and D are incorrect due to misunderstandings of these states ?.

Routing Entries in PIM

(S, G) entries : Represent the shortest path tree (SPT) from a specific source ( S ) to a specific multicast group ( G ). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM , multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM , multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters??.

Comprehensive and Detailed Step-by-Step Explanation:

IGMPv1 Querier Selection:

In IGMPv1, there is no built-in querier election mechanism. Querier selection depends on the multicast routing protocol (e.g., PIM).

IGMPv2 and IGMPv3 Querier Selection:

In IGMPv2 and IGMPv3, the router interface with the largest IP address in the multicast group is selected as the querier.

Correct Statement:

The statement accurately describes the querier selection mechanisms in IGMP versions.

Comprehensive and Detailed In-Depth Explanation:

NET (Network Entity Title) is a special form of NSAP (Network Service Access Point) used in IS-IS routing .

NET consists of three fields :

AFI (Authority and Format Identifier) + IDI (Initial Domain Identifier) + Area Address ? Identifies the area .

System ID ? Uniquely identifies a router within an area (similar to an OSPF Router ID).

SEL (NSEL - N-selector) ? Always 0 in a NET, as IS-IS operates at Layer 3.

Since System ID uniquely identifies a host/router within an area , the correct answer is A .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Addressing and NET Structure.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is L2TP (Layer 2 Tunneling Protocol)?

L2TP is a tunneling protocol used to transport Layer 2 frames over IP networks.

It is commonly used to establish VPNs but does not provide built-in encryption or security for the transmitted data.

2. Why L2TP Requires Additional Security Measures:

Since L2TP does not encrypt traffic, it is vulnerable to eavesdropping and tampering.

To secure L2TP tunnels, it is often paired with IPsec, which provides strong encryption and authentication. The combination of L2TP and IPsec is known as L2TP/IPsec .

3. Why the Statement is TRUE:

The statement accurately describes the limitation of L2TP (lack of encryption) and the need for additional security measures like IPsec.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is a Firewall Session?

A firewall session is an entry used to maintain the connection state of a protocol.

When a packet is forwarded, the firewall creates a session for it and tracks subsequent packets for the same connection to ensure efficient forwarding and security enforcement.

2. Analysis of Each Option:

Option A: Subsequent fragment

Incorrect.

A session is created for the initial fragment of a packet. Subsequent fragments are matched to the existing session and do not trigger the creation of a new session.

Option B: ICMP error packet

Incorrect.

ICMP error packets (e.g., Destination Unreachable) are considered exceptions and do not create new sessions.

Option C: GRE (Generic Routing Encapsulation)

Correct.

GRE is a tunneling protocol that encapsulates packets. A firewall creates a session for GRE traffic to track the state of the encapsulated connection.

Option D: TCP (Transmission Control Protocol)

Correct.

TCP is a connection-oriented protocol, and firewalls create sessions for TCP connections to track their state (e.g., SYN, SYN-ACK, FIN).

3. Summary:

The firewall creates sessions for GRE and TCP protocols.

Comprehensive and Detailed In-Depth Explanation:

The Flag field in a routing table entry provides specific information about the route.

G (Gateway flag) : This flag indicates that the next hop is a gateway (another router) rather than a directly connected destination.

S (Static flag) : This flag indicates that the route was manually configured as a static route .

H (Host flag) : This flag means that the destination is a directly connected host , not a network.

D (Dynamic flag) : This flag is used for dynamically learned routes from protocols like OSPF, EIGRP, or BGP.

Since we are looking for the flag that indicates the next hop is a gateway , the correct answer is G .

???? Reference: Huawei HCIA-Datacom Study Guide, Chapter on Routing Table and FIB Entries.

The filter-policy command in IS-IS is used to control the advertisement and filtering of routing information. However, it does not directly filter LSPs (Link State Packets); instead, it controls route advertisements. The false statement here is that it filters LSPs ?.

Comprehensive and Detailed In-Depth Explanation:

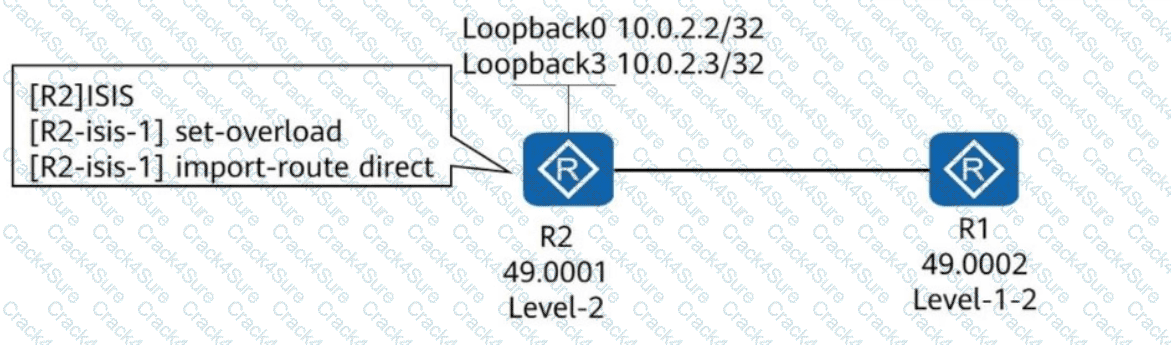

In IS-IS , routes are distributed differently based on router levels :

Level-1 (L1) routers ? Maintain specific routes only within their own area .

Level-2 (L2) routers ? Maintain specific routes for the entire network (inter-area routing).

Level-1-2 (L1/L2) routers ? Store both L1 and L2 routes and act as area border routers .

In the diagram, R2 and R3 are L1/L2 routers , meaning they store specific routes for both their area and other areas .

R1 is only an L1 router , meaning it only has intra-area routes , and R7 is an L2-only router , meaning it does not store all specific routes.

Therefore, R2 and R3 have specific routes for the entire network.

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Routing Levels and Route Distribution.

If VRRP is not configured to track uplink interfaces, a failure in the master device ' s uplink or link will not trigger a switchover, resulting in a traffic blackhole. The VRRP mechanism relies on interface tracking to monitor connectivity and ensure role transitions upon faults. Without this configuration, no failover occurs, and traffic directed toward the master device is lost ?.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is NETCONF?

NETCONF (Network Configuration Protocol) is an XML-based protocol used for network device configuration and management.

It enables reading, modifying, deleting, and restoring configurations programmatically.

2. Supported Operations:

Option A: Modifying configurations

Correct.

NETCONF allows you to modify existing configurations on network devices.

Option B: Deleting configurations

Correct.

Configurations can be deleted using NETCONF operations.

Option C: Restoring configurations

Correct.

NETCONF can restore configurations by applying previously saved configuration data.

Option D: Backing up configurations

Correct.

NETCONF can retrieve and save the current configuration as a backup.

3. Summary:

NETCONF supports all listed operations: modifying, deleting, restoring, and backing up configurations.

Understanding DIS Election in IS-IS:

On an IS-IS broadcast network, a Designated Intermediate System (DIS) is elected to create and update pseudonodes for efficient communication.

The election is based on the following criteria:

DIS Priority: The router with the highest priority is elected as the DIS.

Router ID (tie-breaker): If priorities are equal, the router with the highest Router ID is elected.

Analyzing the DIS Priorities and Router IDs:

R1: Priority = 64, Router ID = 1.1.1.1

R2: Priority = 1, Router ID = 2.2.2.2

R3: Priority = 127, Router ID = 3.3.3.3

R4: Priority = 10, Router ID = 4.4.4.4

Among the routers, R3 has the highest DIS priority (127) , making it the DIS.

Correct Option:

Option B (R3): Correct, as R3 has the highest priority.

Option A (R1): Incorrect, as its priority is lower (64).

Option C (R4): Incorrect, as its priority is lower (10).

Option D (R2): Incorrect, as its priority is the lowest (1).

Comprehensive and Detailed Step-by-Step Explanation:

BGP Router ID Selection Rules:

If a router ID is not manually configured:

The largest loopback address is selected as the router ID.

If no loopback interfaces exist, the largest active physical interface address is selected.

Default Behavior:

This ensures that a stable and unique router ID is chosen automatically, even without manual configuration.

The Origin attribute in the display bgp routing-table output is marked as i , indicating that the route was injected into the BGP routing table using the network command. The other options are incorrect because the AS path is not displayed, the MED is 0 , and the route is marked as the best ( > ), meaning it is the optimal route ?.

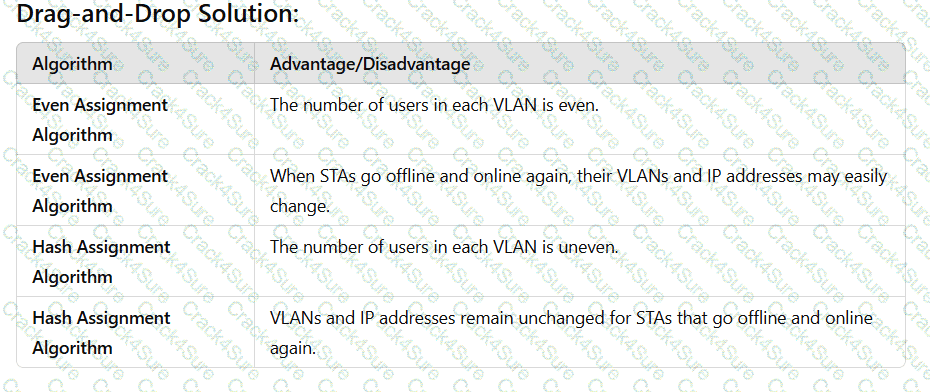

Explanation of VLAN Pool Assignment Algorithms:

In WLANs, VLAN pools help reduce broadcast domains and improve network performance by distributing users across multiple VLANs. Two algorithms are used for VLAN assignment:

Even Assignment Algorithm:

The number of users in each VLAN is even.

This algorithm assigns users evenly across VLANs, ensuring a balanced distribution of users in each VLAN.

When STAs go offline and online again, their VLANs and IP addresses may easily change.

Since the assignment is based on maintaining even distribution, a device (STA) may not be assigned the same VLAN when it reconnects, leading to potential IP address changes.

Hash Assignment Algorithm:

The number of users in each VLAN is uneven.

The hash algorithm assigns users to VLANs based on a hash value (e.g., derived from the MAC address). This may result in an uneven distribution of users across VLANs.

VLANs and IP addresses remain unchanged for STAs that go offline and online again.

The hash algorithm ensures that a device reconnects to the same VLAN, preserving its IP address.

A screenshot of a computer Description automatically generated

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of the OSPF Neighbor State:

Router ID 10.0.5.5:

On interface 10.0.235.2 (GigabitEthernet0/0/1), the neighbor state is Full, indicating that adjacency is established.

The Designated Router (DR) is 10.0.235.5, which is the same as the neighbor ' s address.

Router ID 10.0.4.4:

On interface 10.0.24.2 (Serial1/0/1), the neighbor state is also Full, meaning adjacency is established.

The DR/BDR election status shows None, indicating that the interface is on a point-to-point link where DR/BDR election does not apply.

Validation of Each Option:

Option A: Correct. The DR IP address is explicitly shown as 10.0.235.5.

Option B: Correct. The neighbor state for both 10.0.5.5 and 10.0.4.4 is Full, confirming adjacency is established.

Option C: Incorrect. DR/BDR elections are irrelevant on point-to-point links like Serial1/0/1.

Option D: Correct. The Router IDs of R2 ' s neighbors are explicitly listed as 10.0.5.5 and 10.0.4.4.

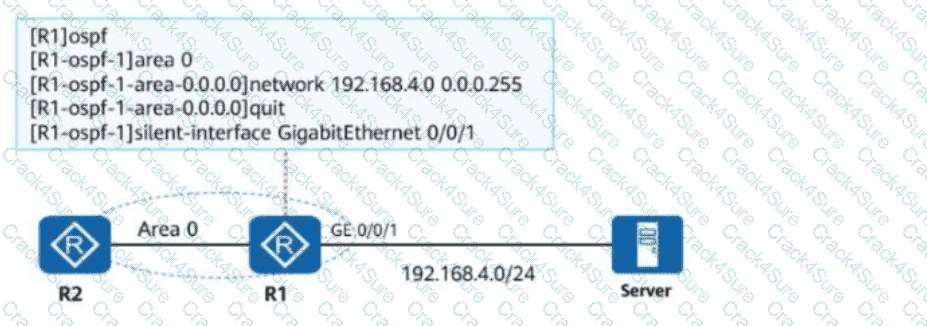

The silent-interface command disables the sending of OSPF packets, including Hello packets, on the specified interface, which prevents the establishment of OSPF neighbor relationships. However, the interface can still advertise directly connected routes through other interfaces, making Option C incorrect ?.

Comprehensive and Detailed In-Depth Explanation:

Intermediate System to Intermediate System (IS-IS) routers send IS-to-IS Hello (IIH) packets to establish neighbor relationships.

The Reserved/Circuit Type field in IIH packets indicates which level of IS-IS adjacency the router is trying to establish:

00 ? Level-0 (Not used in IS-IS).

01 ? Level-1 router.

10 ? Level-2 router.

11 ? Level-1-2 router (Both levels supported) .

Since the question asks for the field value in an L1-L2 router’s IIH packets , the correct answer is 11 (B) .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Neighbor Discovery and IIH Packet Format.

In OSPF, Database Description (DD) packets are used during the database synchronization process. In the first DD packet a router sends during neighbor establishment, three control bits are set:

I bit (Initial) = 1 ? This indicates that the DD packet is the first in the sequence.

M bit (More) = 1 ? This means more DD packets will follow.

MS bit (Master/Slave) = 1 ? Set by the router assuming the master role in the exchange process.

Setting all three bits to 1 is a standard part of the DD exchange initiation.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“In the initial DD packet, the I, M, and MS bits are set to 1 by the master router initiating database exchange.”

(Chapter: OSPF Operation Mechanism – Section: Neighbor State Machine)

IGMPv1 supports general queries but does not define a Leave message. IGMPv2 introduces the Leave message type, which allows hosts to notify routers when they wish to leave a multicast group, improving efficiency. These distinctions align with the functionality of IGMP versions ?.

The information provided indicates that the configured query interval is 60 seconds, which applies to general queries. Group-specific queries are sent at a shorter interval, usually derived from the maximum response time. Therefore, the statement about a 60-second interval for group-specific queries is false. Other statements regarding maximum response time (10s), IP address, and IGMP version (V2) are correct ?.

The MED (Multi-Exit Discriminator) is an optional, non-transitive attribute used to influence the exit path. MED is considered after attributes such as Local-Preference, AS-Path, and Origin during route selection. By default, if a MED value is missing, it is treated as 0 unless the bestroute med-none-as-maximum command is configured to treat it as 4294967295 ?.

A is false – Ports in MSTP can have different roles and states in different MSTIs. Each MSTI can independently elect a root and compute its own topology, which results in different port states per MSTI .

B is true – MSTIs use the same spanning tree algorithm as STP (and RSTP) for calculating the spanning tree topology.

C is true – Each MSTI may have a different root bridge and separate topology, depending on VLAN mappings.

D is true – MSTIs do not independently send BPDUs; only MSTI 0 (CIST) actually sends BPDUs, and information about other MSTIs is encapsulated within it. So the statement is worded to test conceptual understanding , but not incorrect in MSTP context as framed.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“MSTP allows different MSTIs to have different topologies. A port may be forwarding in MSTI 1 but blocking in MSTI 2. This independence improves VLAN-based traffic engineering.”

(Chapter: MSTP Concepts – Section: MSTI Behavior and Port Roles)

In an OSPF broadcast or NBMA network with at least two routers, one router must act as the DR (Designated Router), and another as the BDR (Backup Designated Router) to ensure efficient communication and reduce the number of adjacencies. This is a requirement for OSPF operation in such network types ?.

Comprehensive and Detailed Step-by-Step Explanation:

BGP Route Filtering:

BGP provides flexible policies for route filtering to optimize routing table size and reduce network resource usage.

By configuring route filters , a device can advertise only required routes to peers, thereby improving efficiency.

Purpose of Filtering:

Reduces the routing table size.

Decreases CPU and memory usage on routers.

Limits unnecessary route propagation.

1 – Idle

2 – Connect

3 – OpenSent

4 – OpenConfirm

5 – Established

6 – Active

The BGP finite state machine defines how a BGP speaker transitions through various states when establishing and maintaining a BGP session. Below is the role of each state:

Idle (1) – BGP is waiting to start a connection. Initial state of the BGP process.

Connect (2) – BGP initiates a TCP connection to the peer.

OpenSent (3) – TCP connection is established; BGP sends an OPEN message and waits for one from the peer.

OpenConfirm (4) – BGP has received a valid OPEN message and is now expecting a KEEPALIVE.

Established (5) – BGP session is fully established; UPDATE messages can now be exchanged.

Active (6) – If the TCP connection fails in Connect state, BGP transitions to Active and will retry connection.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP goes through the following states in order: Idle ? Connect ? Active ? OpenSent ? OpenConfirm ? Established. The transition depends on the success or failure of TCP connection setup and BGP message exchanges.”

(Chapter: BGP Principles – Section: BGP State Machine)

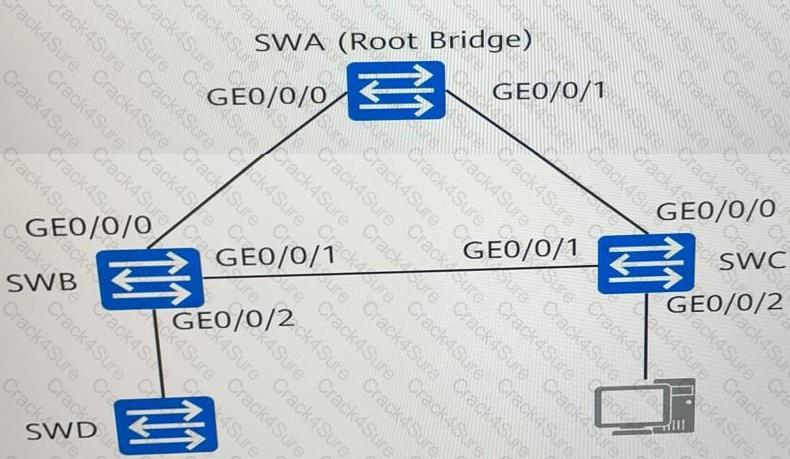

? Edge Port Behavior

An edge port transitions directly to the Forwarding state but reverts to participating in RSTP calculations if it receives a valid configuration BPDU. Thus, statement C is false.

? HCIP-Datacom-Core Reference

The behavior of edge ports and their transitions are discussed in the RSTP enhancement sections??.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

OSPF routers establish neighbor relationships and progress through various states during the adjacency formation process. The ExStart state is where routers negotiate the master and slave roles. This negotiation is critical because the master initiates the Data Description (DD) packet exchange process.

Here’s a breakdown of the relevant OSPF states:

ExStart State :

This is the phase where the routers determine which one will act as the master and which will be the slave.

The decision is based on the Router IDs of the two routers. The router with the higher Router ID becomes the master.

Exchange State :

After the master-slave roles are established, the routers exchange DD packets. These packets contain summaries of the LSAs in their respective LSDBs.

2-way State :

This state indicates that bidirectional communication has been established between the two routers, but it occurs before master-slave negotiation.

Init State :

This is an early state where a router has sent a Hello packet to its neighbor but has not yet received a Hello packet in response.

Key Point:

The negotiation of master and slave roles happens exclusively in the ExStart state , making D. ExStart the correct answer.

? OSPF Authentication Overview

The Auth Type field in the OSPF packet header determines the authentication mode. If the Auth Type is 1, plaintext authentication is used.

Plaintext authentication involves transmitting the password in an easily readable format, which is less secure compared to MD5.

? HCIP-Datacom-Core Reference

Authentication mechanisms, including plaintext authentication, are detailed in the OSPF security configuration chapter, confirming that Auth Type = 1 corresponds to plaintext??.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In IS-IS, the interface cost is a metric used to determine the best path to a destination. Lower-cost paths are preferred over higher-cost paths. By default, IS-IS interface costs can range from 1 to 63 .

Default Cost Range:

IS-IS allows the configuration of interface costs within the range of 1–63 by default. This range is sufficient for most networks.

Maximum Configurable Cost:

The maximum value that can be configured by default is 63 . If there is a requirement for a higher cost range, the metric-style can be changed to wide , which allows the cost range to extend beyond 63.

Option A (67): Incorrect. 67 is not the maximum default value.

Option B (63): Correct. This is the maximum default cost value.

Option C (64): Incorrect. This is beyond the default range.

Option D (68): Incorrect. This is beyond the default range.

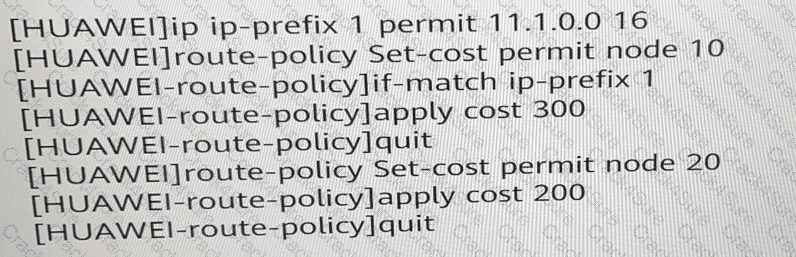

The operator between if-match clauses under a node is AND, meaning all conditions must be satisfied. However, the operator between nodes is OR, meaning a route matching any node will pass the route-policy ?.

Comprehensive and Detailed Step-by-Step Explanation:

1. Single-Hop BFD Session:

A single-hop BFD session is used to detect link failures between directly connected devices.

It is bound to the local IP address and the peer IP address , and the session relies on these parameters to establish connectivity.

2. Why Modifications Require Deletion:

BFD sessions are tightly bound to their configuration parameters (e.g., local and peer IP addresses).

Modifying these parameters is not supported for an existing session. Instead, you must delete the session and recreate it with the updated parameters.

3. Why the Statement is TRUE:

The statement correctly describes the behavior of BFD sessions, where modifying an existing session is not possible without deleting it first.

In IPv6 , fragmentation is handled only at the source node . Intermediate routers do not fragment packets . Instead, if a packet is too large for the next link, the router sends back an ICMPv6 Packet Too Big message to the source, which then adjusts its packet size.

This design:

Reduces processing load on intermediate devices.

Supports Path MTU Discovery (PMTUD).

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“In IPv6, routers do not perform fragmentation. Only the source device fragments packets if needed, based on ICMPv6 feedback.”

(Chapter: IPv6 Fundamentals – Section: Fragmentation and PMTUD)

? ACL in Routing Policies

ACLs are frequently used in routing policies to match specific routes based on criteria such as source IP, destination IP, and more. This allows ACLs to influence route redistribution, filtering, and forwarding decisions.

? HCIP-Datacom-Core Reference

ACL applications in routing policies are discussed in the routing policy chapters??.

In Layer 3 roaming scenarios, STAs (stations) remain on different subnets before and after roaming. To ensure that user traffic reaches the original subnet, it must be tunneled back over a CAPWAP tunnel. This technique prevents disruptions in communication and enables seamless roaming. Huawei’s Layer 3 roaming design guidelines emphasize the use of CAPWAP tunnels for user traffic forwarding ?.

? Permanent Group Addresses for Routing Protocols

The range 224.0.0.0 to 224.0.0.255 is reserved for local network protocols, including routing protocols. Examples include OSPF (224.0.0.5/6) and RIP (224.0.0.9).

? HCIP-Datacom-Core Reference

Reserved multicast address ranges are detailed in the multicast configuration sections??.

When STP and RSTP coexist in a network, RSTP switches will downgrade their operation to STP to ensure compatibility. However, this disables RSTP ' s rapid convergence features, as the protocol behaves like STP to maintain interoperability ?.

Comprehensive and Detailed In-Depth Explanation:

Type 7 LSAs (NSSA External LSAs) are used in Not-So-Stubby Areas (NSSAs) to carry external routing information.

These LSAs are generated only by ASBRs within an NSSA , and later converted to Type 5 LSAs by the ABR .

Stub areas do not allow ASBRs , meaning Type 7 LSAs cannot exist in a stub area .

The question incorrectly states that Type 7 LSAs can be generated in stub areas , which is false .

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF LSA Types and Area Configurations.

The CAPWAP heartbeat detection interval is typically multiplied by a predefined factor to determine the switchover time. For instance, in Huawei devices, a common default is three missed heartbeats before a switchover is triggered. With a detection interval of 20 seconds, the switchover occurs after 60 seconds (20 x 3). This ensures that transient network issues do not cause unnecessary switchovers ?.

Explanation of IS-IS Packet Types and Synchronization Process:

In the given scenario, R2 requests LSPs from R1 to synchronize its Link State Database (LSDB). The following IS-IS packet types are involved in this synchronization process:

1. P2P IIH (Point-to-Point IS-IS Hello):

Purpose: Establishes and maintains IS-IS neighbor relationships.

Step: This packet is exchanged initially to detect and maintain the adjacency between R1 and R2.

2. PSNP (Partial Sequence Number PDU):

Purpose: Requests missing or outdated LSPs (Link State PDUs) from a neighbor to synchronize the LSDB.

Step: In this case, R2 sends a PSNP to R1 to request the missing or outdated LSP.

3. LSP (Link State PDU):

Purpose: Contains routing information and is used to update the LSDB.

Step: R1 sends the requested LSPs to R2 for synchronization.

4. CSNP (Complete Sequence Number PDU):

Purpose: Lists all LSPs in the sender ' s LSDB to help neighbors verify and request missing LSPs.

Step: R1 sends a CSNP during retransmission timeout to notify R2 of its LSPs.

? Notification Message Purpose

BGP Notification messages are used to report errors or terminate a connection. They do not request peers to resend routing information after routing policies are changed.

Routing updates following policy changes require manual resynchronization, not Notification messages.

? HCIP-Datacom-Core Reference

The purpose and usage of Notification messages are discussed in the BGP operation chapters??.

Comprehensive and Detailed Step-by-Step Explanation:

1. Port Priority in RSTP:

RSTP (Rapid Spanning Tree Protocol) elects root and designated ports based on port priority and port ID.

Port priority is a configurable value that helps determine which port becomes the root or designated port when multiple ports are eligible.

The port ID consists of the port priority and port number. When priorities are equal, the port number is used as a tiebreaker.

2. Default Port Priority on Huawei Switches:

On Huawei switches, the default port priority is 128 .

This value can be adjusted in increments of 16 using the command stp port priority.

3. Analysis of Options:

Option A: 1

Incorrect . This is not the default port priority value.

Option B: 128

Correct . This is the default port priority value on Huawei switches.

Option C: 4096

Incorrect . This is not a valid default port priority value.

Option D: 32768

Incorrect . This is the default bridge priority, not the port priority.

4. Summary:

The default port priority on Huawei switches is 128 .

Option B is false . By default, when the aggregate command is used without any options , BGP generates a summary route , and suppresses the specific routes that fall under that summary. To advertise both specific and summary routes, you must explicitly configure the detail-suppressed option to control whether specifics are suppressed or not.

Explanation of the other options:

A is correct: When suppress-policy is specified, only specific routes matching the policy are advertised; others are suppressed.

C is correct: The summary automatic command causes summarization based on classful boundaries, which is a legacy behavior.

D is correct: With detail-suppressed, only the summary route is advertised, not specific prefixes.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“The aggregate command suppresses specific routes by default unless explicitly configured otherwise. Use of suppress-policy or detail-suppressed allows control over which routes are advertised.”

(Chapter: BGP Advanced Features – Section: Route Aggregation)

Router LSAs (Type 1) and Network LSAs (Type 2) are advertised only within a single OSPF area, as they describe the topology within the area. In contrast, Summary LSAs (Type 3) and AS External LSAs (Type 5) are used for inter-area and external routing, respectively ?.

In OSPF, DR and BDR listen on the multicast address 224.0.0.6, while all OSPF routers (including DR others) listen on 224.0.0.5. DR others establish neighbor relationships with DR and BDR, but they do not listen on 224.0.0.6. This makes Option D incorrect, as only DR and BDR use 224.0.0.6 ?.

The forwarding plane of a switch consists of data forwarding hardware, such as line cards or forwarding engines, and is responsible for tasks like encapsulating/decapsulating packets, providing high-speed data channels, and collecting packet statistics. However, main control boards are part of the control plane, not the forwarding plane. This distinction ensures a separation of data forwarding and control functionalities ?.

? VRRP and BFD Association :

VRRP (Virtual Router Redundancy Protocol) is used to provide gateway redundancy by electing a master and backup router.

Associating VRRP with BFD (Bidirectional Forwarding Detection) allows faster detection of faults on the master device or the link between the master and the backup.

? ACL Matching in Huawei Routers:

Access Control Lists (ACLs) are used to filter packets based on specific criteria, such as source/destination IP, ports, or protocols.

When a packet arrives, the Huawei router processes it against the configured ACL rules to decide whether to permit or deny the packet.

In OSPF (Open Shortest Path First), each router maintains a Link-State Database (LSDB) , which must be synchronized with other routers in the same area. When an OSPF router receives an LSA (Link-State Advertisement) that it does not already have in its LSDB , it takes the following steps:

It updates its LSDB with the new LSA.

It floods the LSA to all its other OSPF neighbors (except the one from which it received the LSA).

This ensures that all routers in the OSPF area eventually converge to the same network topology.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“When an LSA is received and it is newer or not present in the LSDB, the router updates the LSDB and floods the LSA to other neighbors to ensure database synchronization.”

(Chapter: OSPF Fundamentals – Section: LSDB Synchronization)

Comprehensive and Detailed Step-by-Step Explanation:

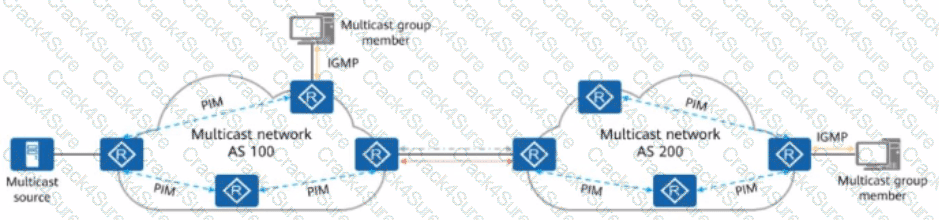

1. Overview of IP Multicast:

IP multicast is a method of delivering data from one source to multiple destinations simultaneously.

Unlike unicast (one-to-one communication) or broadcast (one-to-all communication), multicast is one-to-many , allowing data to be sent only to subscribers (multicast group members).

This significantly conserves bandwidth and reduces the load on the network because the source only sends a single stream of data, which is replicated by multicast routers as needed.

2. Use Cases for IP Multicast:

IP multicast is widely used in network services that involve real-time or large-scale data delivery, such as:

IPTV (Internet Protocol Television): Broadcasting live TV streams.

Real-Time Data Transmission: Delivering stock market data, sensor updates, etc.

Multimedia Conferencing: Supporting group calls, webinars, and online meetings.

3. Why the Statement is TRUE:

IP multicast reduces unnecessary traffic and maximizes efficiency, making it ideal for these types of network services.

BFD control packets are encapsulated in UDP packets, and the destination port number for multi-hop BFD control packets is 4784. This is a standardized port for multi-hop BFD operation ?.

Comprehensive and Detailed In-Depth Explanation:

A. TRUE ? Firewalls maintain session tables with a default session timeout ; adjusting it depends on network conditions .

B. FALSE ? Fast session aging does not affect persistent connection sessions . Persistent connections (e.g., TCP keepalives) maintain sessions even if aging settings change.

C. TRUE ? Sessions must be constantly matched with ongoing traffic to remain active .

D. TRUE ? Even without stateful inspection , the firewall creates session entries for non-first packets to maintain continuity of services .

???? Reference: Huawei HCIA-Datacom Study Guide, Firewall Session Table Mechanism.

In dual-link MSB networking with load balancing, the new AP will connect to the AC with the lower number of connected APs. In this case, AC2 has only 20 connected APs, while AC1 has 100. Therefore, the new AP will connect to AC2 ?.

Comprehensive and Detailed Step-by-Step Explanation:

Firewall Session Table:

A session table is used to track active sessions. If a session remains idle for longer than the configured aging time, it is removed to free resources and enhance security.

TCP Session Timeout:

If the interval between two packets exceeds the session timeout, the firewall deletes the session information, requiring the session to be re-established.

BGP routes have a variety of path attributes that describe their characteristics and influence route selection. These attributes include well-known mandatory attributes like AS-PATH and NEXT-HOP, as well as optional attributes like MED and LOCAL_PREF.

In Huawei devices, there is a Huawei-specific attribute called " preference " , which is a local parameter used to influence BGP route selection on the device.

Key Characteristics of " preference " :

It is valid only locally on the router.

It is not shared with BGP peers.

It helps the router determine the best route when multiple routes exist for the same prefix.

It appears in the BGP routing table output in lowercase as preference.

Thus, the correct answer is preference (entered in lowercase as required).
