Understanding MPLS Forwarding Mechanism

MPLS (Multiprotocol Label Switching) is a high-performance forwarding mechanism that operates on two planes:

1?? Control Plane:

Establishes Label Switched Paths (LSPs) using protocols like LDP (Label Distribution Protocol), RSVP-TE (Resource Reservation Protocol - Traffic Engineering), or BGP-LU (BGP Label Unicast).

Assigns labels to packets based on routing policies.

2?? Data Plane (Forwarding Plane):

Uses a Label Forwarding Information Base (LFIB) instead of traditional IP routing.

Packets are forwarded based on labels, not IP addresses.

Analysis of the Answer Choices

? C. The system automatically assigns an ID to the upper-layer application that uses a tunnel. This ID is also called the tunnel ID.

Correct: MPLS assigns a Tunnel ID to applications that utilize tunnels (e.g., VPNs, MPLS-TE, or L2/L3 services).

This ID helps differentiate between various tunnel applications, ensuring traffic follows the correct LSP.

? A. After an IP packet enters an MPLS domain, the MPLS device forwards the packet based on FIB table queries.

Incorrect: MPLS routers do NOT use the FIB (Forwarding Information Base) for forwarding once labels are assigned.

Instead, they use LFIB (Label Forwarding Information Base) to switch packets based on labels.

? B. If the tunnel ID is 0x0, the MPLS forwarding process starts.

Incorrect: If the Tunnel ID is 0x0, MPLS does NOT start; it means no label is assigned, and traditional IP forwarding occurs.

? D. If the tunnel ID is not 0x0, the normal IP forwarding process starts.

Incorrect: If the Tunnel ID is not 0x0, MPLS forwards traffic using label switching, not IP forwarding.

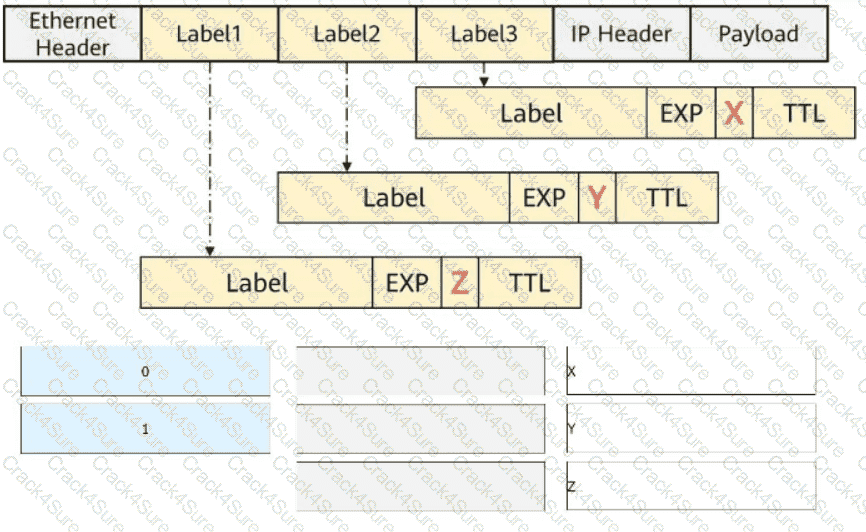

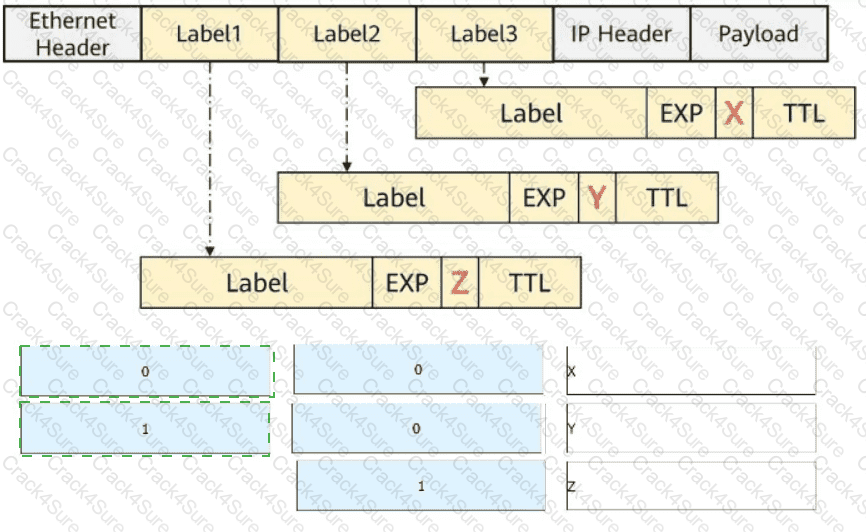

The MPLS header consists of:

Label (20 bits) – Label value used for forwarding.

EXP (3 bits) – QoS field (Class of Service).

S bit (1 bit) – Bottom-of-Stack indicator.

TTL (8 bits) – Time-to-Live, similar to the TTL field in the IP header.

Function of TTL in MPLS:

It is used to prevent infinite loops.

Every LSR decrements the TTL by 1.

When TTL reaches 0, the packet is discarded.

This mirrors the behavior of IP TTL and ensures loop prevention in MPLS networks.

Correct answer: D. This field is used to prevent packet forwarding loops, similar to the TTL field in an IP header.

The command output shows:

* > i before both networks, which means these routes are the preferred routes (*) and are learned via internal BGP (i).

Two networks are listed: 3002::3 and 3002::4, which means R1 does have these two routes in its BGP IPv6 routing table.

For 3002::4, the path origin shows 65001 i, which means this route originated from AS 65001 and was learned through IBGP.

The AS Path attribute is only shown for 3002::4, but both routes are clearly present.

Therefore, the correct conclusion is:

D. R1 has routes 3002::3/128 and 3002::4/128.

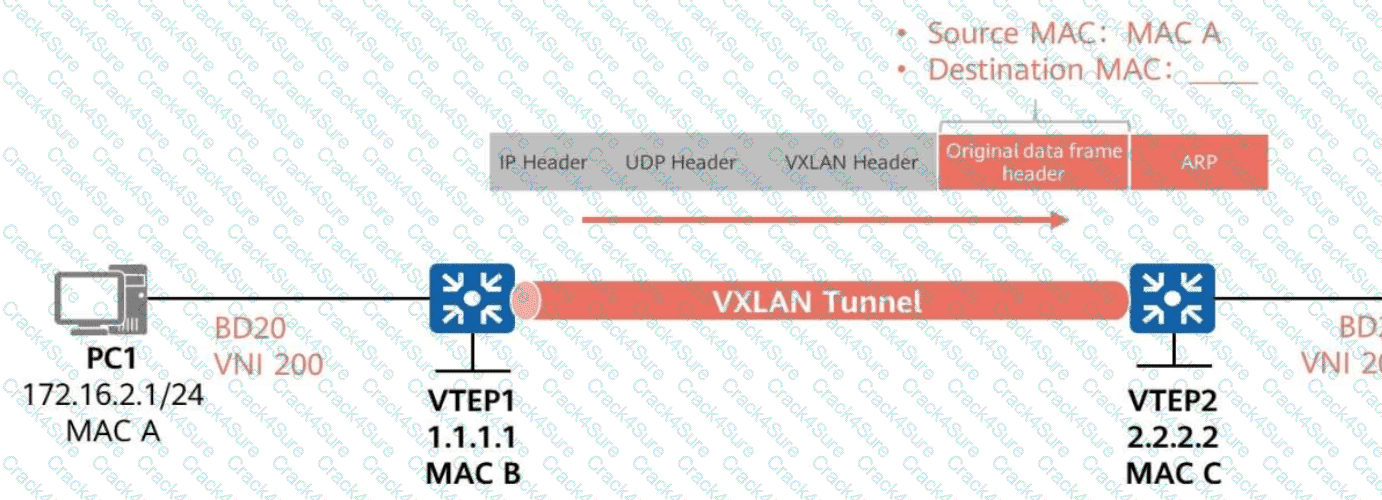

Understanding VXLAN and BGP EVPN Control Plane

VXLAN (Virtual eXtensible LAN) is an overlay network technology that enables Layer 2 (L2) extension over an IP-based network using MAC-in-UDP encapsulation.

???? Traditional VXLAN Flooding Issue:

Without BGP EVPN, VXLAN uses flood-and-learn behavior for MAC address learning.

Broadcast, Unknown Unicast, and Multicast (BUM) traffic is flooded to all VTEPs, which is inefficient.

???? How Does BGP EVPN Solve Flooding?

BGP EVPN (Ethernet VPN) replaces the flood-and-learn model with a distributed control plane.

MAC/IP bindings are advertised through BGP EVPN Type 2 routes, eliminating the need for flooding ARP requests.

VXLAN routers learn MAC addresses proactively instead of relying on flooding.

Why is the Answer TRUE?

? BGP EVPN fully prevents ARP flooding by distributing MAC/IP bindings via control plane updates.

? VTEPs only send traffic to known destinations, reducing network congestion.

? BGP EVPN is the industry standard for large-scale data center and campus VXLAN deployments.

Real-World Application:

Data Centers: Avoids unnecessary ARP request flooding in large cloud networks.

Campus Networks: Reduces L2 broadcast storms, improving network efficiency.

Service Provider Networks: Enables scalable multi-tenant VXLAN solutions.

? Reference: Huawei HCIE-Datacom Guide – VXLAN BGP EVPN Control Plane Architecture

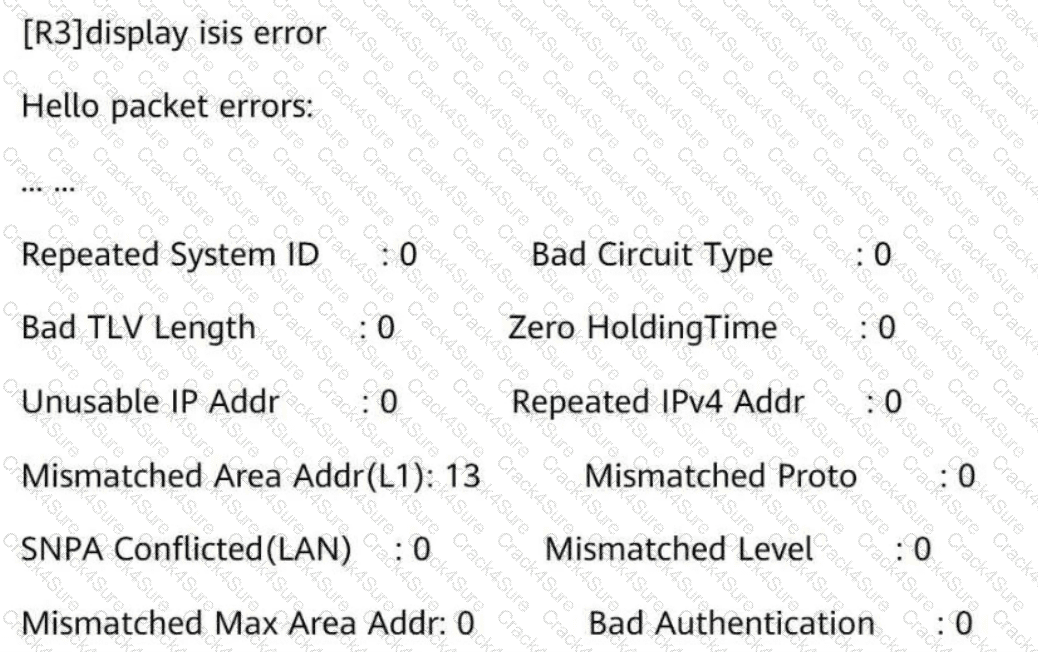

From the IS-IS error output, the key error is:

Mismatched Area Addr(L1): 13

This clearly indicates that the area addresses are different, which prevents the Level-1 adjacency from forming.

Why is Option D Correct?

IS-IS Level-1 routers must have the same area ID to form an adjacency.

Since the log shows a mismatched area address, the adjacency fails at Level-1.

If R3 and R4 were Level-2 routers, they could form an adjacency even with different area IDs.

Why Are the Other Options Incorrect?

? Option A: No authentication failure is reported.

? Option B: No " Mismatched Level " errors appear, so their levels are compatible.

? Option C: No " Bad Circuit Type " errors indicate mismatched circuit types.

Thus, the correct answer is D.

???? Reference: Huawei HCIE Datacom – IS-IS Neighbor Troubleshooting

EVPN Route Types:

Type 1 (MAC/IP Advertisement Route): Advertises host MAC and IP information — used.

Type 2 (MAC/IP Advertisement Route): Advertises MAC + IP binding for end hosts — used.

Type 3 (Inclusive Multicast Ethernet Tag Route): Used to advertise VXLAN multicast group info — used.

Type 4 (Ethernet Segment Route): Used in multi-homing scenarios, especially in DC (data center) environments, to coordinate DF election — typically not used in campus VXLAN.

So in campus virtualized networks, which are often single-homed, Type 4 is not required.

Correct answer: C. Type 4

Huawei’s NQA (Network Quality Analysis) provides tools to test and monitor network performance such as latency, jitter, and packet loss. The supported test types include:

ICMP — For reachability and round-trip time testing.

UDP, TCP, HTTP, FTP, etc.

DNS, VoIP, DHCP (limited to simulation, not monitoring protocol status itself)

Protocols like SNMP and OSPF are not directly monitored by NQA, as these are management or control plane protocols, not data-path or performance-measurable protocols.

Correct answer: C. ICMP

DiffServ QoS model operates on per-hop behavior (PHB) and has these limitations:

A. ? Single-hop behavior; no end-to-end path awareness.

B. ? Cannot guarantee dedicated resources to individual users.

C. ? Does not address traffic bursts; congestion is still possible.

D. ? Queue limitations hinder fine-grained SLA assurance and deterministic delay.

Exact Extract – HCIE-Datacom QoS Section:

“DiffServ provides PHB without path-level control. It cannot guarantee SLA for individual users due to limited queuing mechanisms and lack of end-to-end visibility.”

Comprehensive and Detailed Explanation:

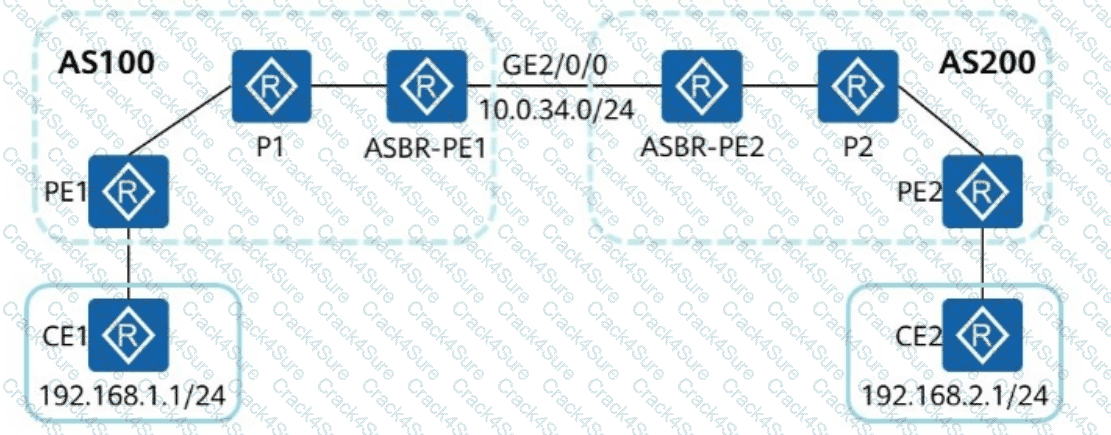

Inter-AS MPLS L3VPN Option B requires ASBRs to exchange VPNv4 routes using eBGP with label information.

Analysis of Inter-AS VPN Solutions:

Option B uses eBGP to exchange labeled VPNv4 routes between ASBRs but does not require MPLS between ASBRs.

Option A does not exchange VPNv4 routes over ASBRs (uses IP routing instead).

Option C uses MP-BGP and requires full MPLS between ASBRs.

Since Option B requires ASBRs to exchange VPNv4 routes, the correct answer is B.

???? Reference: Huawei HCIE Datacom – MPLS Inter-AS VPNs

Comprehensive and Detailed Explanation:

On-premise mode refers to deploying the Huawei iMaster NCE-Campus controller within the enterprise network instead of using a cloud-based solution.

? Best suited for small and midsize campus networks that require:

Greater control over data security

Local network automation

No reliance on cloud connectivity

Since on-premise mode is recommended for small and midsize campus networks, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – iMaster NCE Deployment Modes

Virtual Networks in Huawei CloudCampus Solution:

Virtual networks (VNs) are segmented based on services (e.g., IoT, Guest Wi-Fi, Enterprise Wi-Fi).

Each VN has its own routing and forwarding instance (VRF).

Isolation Between Virtual Networks:

By default, different virtual networks are isolated.

If inter-VN communication is required, it must be manually configured using policy-based routing (PBR), inter-VRF routing, or firewall policies.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Virtual Networks and Segmentation

HCIE-Datacom Training Material – Policy-Based Inter-VN Communication

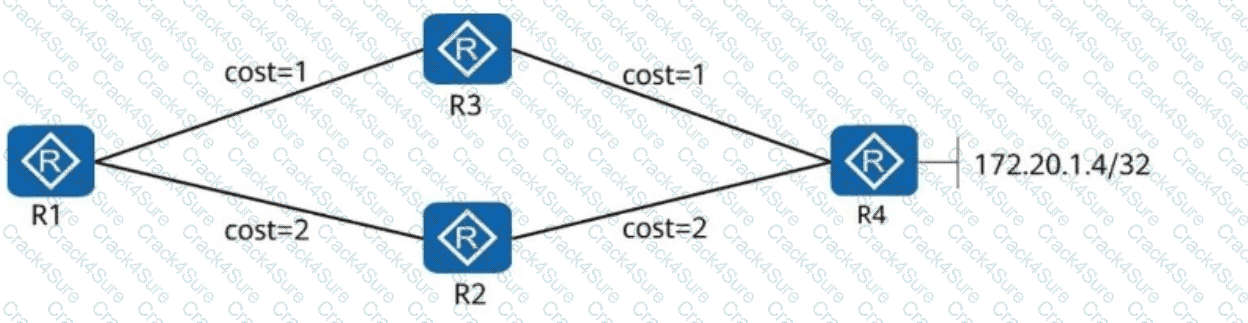

? TI-LFA (Topology Independent Loop-Free Alternate) is an enhanced Fast Reroute (FRR) mechanism used in SR-MPLS networks.

? How TI-LFA Works:

A virtual node is created, aggregating multiple route advertisements.

Backup paths are precomputed using Segment Routing (SR) SIDs.

When a link failure occurs, traffic is rerouted in < 50ms without waiting for IGP convergence.

???? Reference: Huawei HCIE Datacom – TI-LFA and SR-MPLS TE Protection

Comprehensive and Detailed In-Depth Explanation:

The correct configuration is qos car inbound cir 50000 pir 100000.

CIR (Committed Information Rate): The guaranteed minimum bandwidth, set to 50 Mbit/s (50000 kbps).

PIR (Peak Information Rate): The maximum allowable bandwidth, set to 100 Mbit/s (100000 kbps).

This configuration ensures that during peak hours, the minimum guaranteed bandwidth is 50 Mbit/s, while during off-peak hours, the bandwidth can increase to a maximum of 100 Mbit/s. The settings align with the carrier ' s requirements for dynamic bandwidth allocation based on network load.

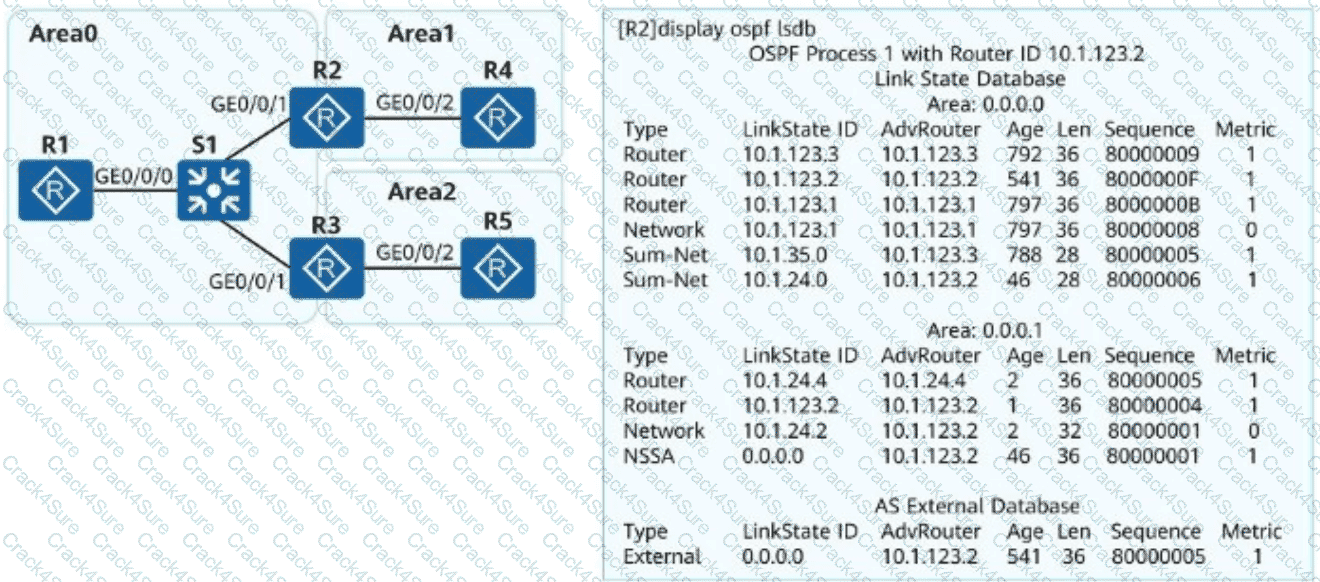

To analyze this question, let ' s break down the key concepts and the given LSDB (Link State Database) information from the figure:

Understanding the LSDB Output:

The output shows the OSPF LSDB on R2 with Router ID 10.1.123.2.

Area 0.0.0.0 (Area 0) is displayed along with several Link State Advertisements (LSAs) including Router LSAs, Network LSAs, and Summary LSAs.

Area 0.0.0.1 (Area 1) also displays Router LSAs and a Type 7 LSA (NSSA LSA) with Link-State ID 0.0.0.0.

An External LSA (Type 5) with Link-State ID 0.0.0.0 and AdvRouter 10.1.123.2 is also present.

Analysis of Each Option:

Option A: Area 1 is an NSSA.

Correct.

The presence of a Type 7 LSA (NSSA LSA) in the database indicates that Area 1 is configured as an NSSA (Not-So-Stubby Area).

NSSA allows the injection of Type 7 LSAs for external routes while blocking Type 5 LSAs from entering the area.

Option B: R2 translates Type 7 default route into Type 5 default route.

Correct.

In an NSSA, if an ABR (like R2) has the NSSA ASBR capability, it will convert Type 7 LSAs to Type 5 LSAs before injecting them into the backbone area (Area 0).

In the LSDB, we see both a Type 7 LSA (NSSA) and a corresponding Type 5 External LSA, confirming that R2 performs this translation.

Option C: R2 advertises the default route in the OSPF process.

Incorrect.

There is no indication that R2 itself is originating the default route.

The Type 7 LSA in Area 1 and the Type 5 LSA in Area 0 only indicate translation from another source, not R2 advertising it directly.

Option D: Area 1 does not have Type 3 LSAs. The possible cause is that R2 filters Type 3 LSAs in the outbound direction of Area 1.

Incorrect.

In an NSSA area, Type 3 LSAs (Inter-Area Prefix LSAs) are typically not generated for external routes.

The absence of Type 3 LSAs in Area 1 is due to the nature of NSSA itself rather than any filtering configured on R2.

BGP EVPN in VXLAN Tunneling

? A. MP_REACH_NLRI is used to carry routing information.

MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) is used in BGP updates to carry VXLAN reachability information.

? B. Several BGP EVPN routes are defined through BGP extension.

BGP EVPN introduces multiple route types, such as Type 2 (MAC/IP Advertisement), Type 3 (Inclusive Multicast), and Type 5 (IP Prefix Advertisement).

? D. MP_REACH_NLRI is used to carry the RT.

RT (Route Target) defines route import/export policies in VPN environments.

MP_REACH_NLRI carries the RT attribute in BGP EVPN updates.

? Incorrect Answer:

? C. MP_REACH_NLRI is used to carry the RD.

Wrong! The Route Distinguisher (RD) is carried inside BGP attributes, but not in MP_REACH_NLRI.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN BGP EVPN Configuration Guide – BGP EVPN Route Types

HCIE-Datacom Training Material – VXLAN Dynamic Tunnel Establishment

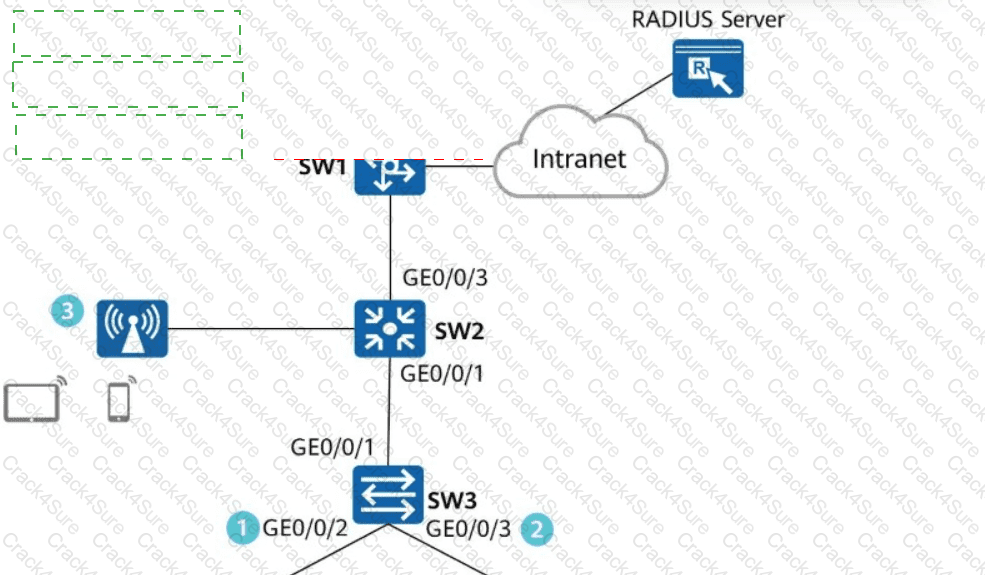

Comprehensive and Detailed Explanation:

? The Best Protection Against MITM and Spoofing Attacks:

? (D) Associating DHCP Snooping with IPSG (IP Source Guard) and DAI (Dynamic ARP Inspection) provides complete protection by:

Blocking rogue DHCP servers.

Preventing MAC/IP spoofing.

Ensuring only valid clients access the network.

? Why Not Other Options?

? (A) Configuring trusted/untrusted interfaces only helps block rogue DHCP servers, but does not prevent spoofing.

? (B) Limiting MAC address learning prevents MAC flooding, but does not stop MITM attacks.

? (C) Checking the CHADDR field in DHCP Snooping helps detect spoofed requests, but does not block all MITM scenarios.

???? Reference: Huawei HCIE Datacom – Security Mechanisms for Intranet Protection

NETCONF architecture consists of the following conceptual layers:

Secure Transport Layer – Ensures confidentiality (e.g., SSH, TLS)

Messages Layer – Handles framing and encoding (XML-based)

Operations Layer – Includes < get > , < edit-config > , < commit > , etc.

Content Layer – Carries the actual configuration and state data defined by YANG models

This makes Option D correct.

Exact Extract – Huawei HCIE-Datacom NETCONF Architecture Overview:

“NETCONF is divided into four conceptual layers: secure transport, message framing, operations, and content layers.”

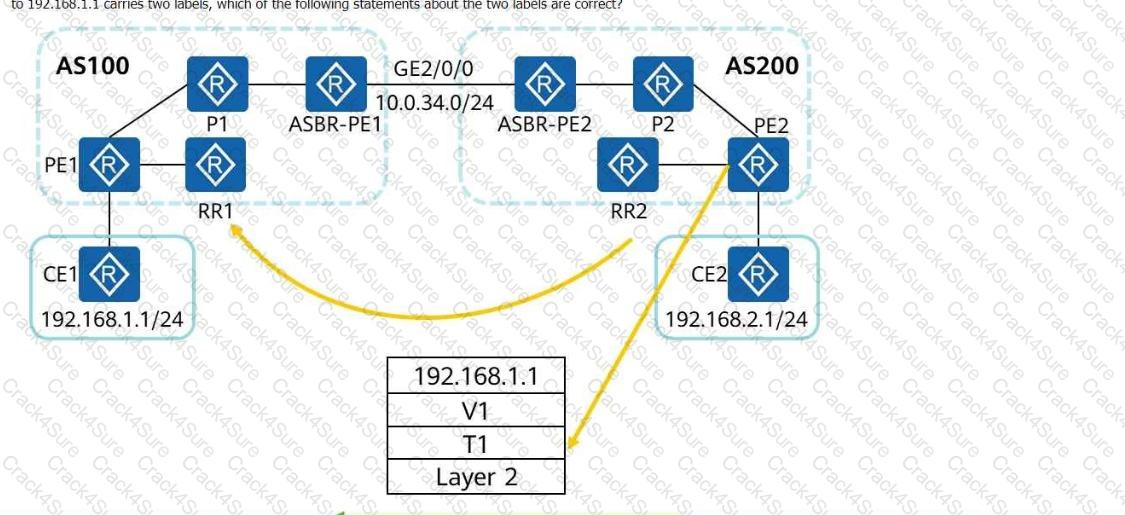

Understanding Inter-AS MPLS VPN Option C (Solution 2)

In MPLS L3VPN Inter-AS Option C, the Route Reflectors (RRs) are used for VPN route distribution but do not participate in data forwarding. The traffic forwarding path is based on MPLS labels assigned at different routers.

Each data packet carries two MPLS labels:

Transport Label (T1) – Used for forwarding within the backbone.

VPN Label (V1) – Used for VPN route identification.

Breaking Down the Labels:

? VPN Label (V1) – Allocated by PE1 (Answer: C ?)

V1 (Inner Label) is the VPN label assigned by the egress PE router (PE1).

This label ensures that when the packet reaches PE1, it knows how to forward the traffic to CE1 (192.168.1.1).

? Transport Label (T1) – Allocated by P2 (Answer: B ?)

T1 (Outer Label) is the transport label assigned by P2 to forward the packet across the AS core.

This label ensures the packet reaches the next-hop router (ASBR-PE1 in AS100).

Why Are the Other Options Incorrect?

? A. " T1 is allocated by RR2 " (Incorrect)

RR2 is used only for route reflection; it does not participate in label allocation or forwarding.

? D. " V1 is allocated by P2 " (Incorrect)

P2 is an intermediate router and does not allocate VPN labels.

VPN labels are always assigned by the egress PE router (PE1 in AS100).

???? Reference: Huawei HCIE Datacom – MPLS L3VPN Inter-AS Option C

Forwarding Equivalence Class (FEC) is a key concept in MPLS (Multiprotocol Label Switching), where packets with the same forwarding characteristics are grouped into an FEC and assigned a label.

Correct Answers (Cannot be Used for FEC Allocation):

A. Fragment Offset – Incorrect as an FEC allocation standard

Fragment offset is used for reassembling fragmented IP packets at the receiver side.

It is not relevant for MPLS label assignment.

B. Application Protocol – Incorrect as an FEC allocation standard

MPLS does not classify packets based on application-layer protocols (e.g., HTTP, FTP).

It works mainly at Layer 2 and Layer 3.

Incorrect Answers (Valid FEC Allocation Standards):

C. Destination Address – Valid FEC allocation criterion

One of the most common MPLS FEC classifications.

Packets with the same destination are grouped into the same FEC.

D. Class of Service (CoS) – Valid FEC allocation criterion

MPLS uses CoS-based traffic classification (e.g., Exp bits in MPLS headers).

Different CoS levels can be mapped to different labels.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – FEC and Label Assignment

HCIE-Datacom MPLS VPN Configuration Guide

Understanding BGP EVPN Route Types for VXLAN

???? BGP EVPN (Ethernet VPN) is used for VXLAN control-plane learning.

? EVPN Type 2 Route (MAC/IP Advertisement)

Carries: MAC + Host IP

Used for: L2 forwarding, Host Mobility

? EVPN Type 5 Route (IP Prefix Advertisement)

Carries: Network segment (Subnet) + Prefix

Used for: VXLAN L3 routing

???? What Do the Given Route Entries Show?

0:172.16.2.0/24

0:172.16.13.0/24

0:192.168.122.0/30

???? These are IPv4 Subnets, NOT individual MACs.

???? Since they carry IP Prefixes, they belong to EVPN Type 5.

Analysis of the Answer Choices:

? A. These routes are Type 5 routes and carry network segment or mask information.

Correct: The displayed routes carry network prefixes, which belong to EVPN Type 5.

? B. These routes are Type 2 routes and carry host IP addresses.

Incorrect: Type 2 routes carry MAC + Host IP, NOT full subnets.

? C. These routes carry the L2VNI.

Incorrect: L2VNI is for Layer 2 VXLAN bridging, but these are IP Prefix Routes (L3 routing).

? D. These routes carry the L3VNI.

Correct: Type 5 routes are used for VXLAN L3 routing, which means they belong to L3VNI.

Real-World Application:

VXLAN L3 Gateways: Type 5 routes enable distributed routing between VXLAN segments.

Data Center Networks: Used to interconnect virtual machines (VMs) across different subnets.

? Reference: Huawei HCIE-Datacom Guide – BGP EVPN & VXLAN L3 Routing

For OSPF neighbors to reach Full state, they must exchange LSAs (Link State Advertisements) properly and synchronize their databases.

Possible Causes Preventing OSPF from Entering Full State:

? A. A link works abnormally

If the physical or Layer 2 link is unstable, OSPF Hello packets may be lost, preventing the Full state.

? B. The OSPF network types on both ends of the link are inconsistent

OSPF network types (Broadcast, P2P, NBMA, etc.) must match on both ends.

Example: If one router is P2P and the other is Broadcast, adjacency issues occur.

? C. The router IDs of neighbors are the same

Router ID conflicts prevent OSPF adjacencies from forming.

Each router must have a unique Router ID.

? D. The OSPF MTU values of interfaces on both ends of the link are different

If MTU settings do not match, OSPF Database Description (DD) packets may be dropped, preventing Full state.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Troubleshooting OSPF Neighbor Issues

HCIE-Datacom Study Material – OSPF Adjacency and Route Synchronization

Let’s analyze the scenario and each statement carefully based on OSPF path selection and BGP behavior in Huawei routers.

? Option A: The preferred path is R1–R3–R4.

According to the OSPF cost values:

R1–R3–R4: Cost = 1 + 1 = 2

R1–R2–R4: Cost = 2 + 2 = 4

OSPF chooses the lowest-cost path to reach a destination. Therefore, R1 will prefer the R1–R3–R4 path to reach 172.20.1.4/32.

Huawei Datacom Reference:

" OSPF selects routes based on the shortest path calculated using link costs. The router always selects the path with the lowest cost. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Path Selection, Chapter 5)

? Option B: If the stub router on-startup command is run on R3, packet loss occurs during the power-off process of R3 but no packet loss occurs during the startup process of R3.

When R3 is powered off, OSPF needs to reconverge, which causes temporary packet loss.

When R3 starts up, it will advertise itself as a stub router using the stub-router on-startup command. This tells OSPF not to use R3 as a transit path during the startup period, thus preventing traffic blackholing.

Huawei Datacom Reference:

" stub-router on-startup command prevents a newly started router from being used as a transit node by OSPF, allowing routing to remain stable during convergence. "

(Source: HCIE-Datacom Study Guide v3.0 – OSPF Stub Router Functionality, Chapter 6.2)

? Option C: The preferred path is R1–R2–R4.

This is incorrect because the OSPF path cost via R2 is higher (4) than the cost via R3 (2).

? Option D: Packet loss occurs during both the power-off and startup processes of R3.

Incorrect. As explained above, when the stub-router on-startup command is used, packet loss is avoided during startup, but still occurs during power-off since the alternate path requires convergence.

Understanding IPsec SA (Security Association) Establishment

???? IPsec (IP Security) provides encrypted communication over IP networks.

???? Security Associations (SAs) define encryption, authentication, and key parameters for IPsec tunnels.

Two IPsec SA Modes:

1?? Manual Mode:

All parameters (keys, encryption methods, authentication settings) must be manually configured.

Keys do not change automatically, making it less secure.

2?? IKE (Internet Key Exchange) Auto-Negotiation Mode:

Uses IKE Phase 1 and Phase 2 to automatically negotiate, generate, and exchange keys.

Keys are periodically refreshed, increasing security.

Uses Diffie-Hellman (DH) key exchange for secure key generation.

Why is Answer D Incorrect?

? D. SAs established in both manual and IKE auto-negotiation modes can be dynamically updated.

Incorrect: In manual mode, the IPsec SA is static and does not support dynamic updates.

Correct behavior: Only IKE auto-negotiation mode supports dynamic re-keying and SA updates.

? Reference: Huawei HCIE-Datacom Guide – IPsec SA Modes and IKE Negotiation

Comprehensive and Detailed Explanation:

The reset isis all command resets the entire IS-IS process, including:

? Neighbor adjacencies

? LSDB (Link-State Database)

? All IS-IS-related statistics

Key Points:

This command resets IS-IS completely, causing temporary route convergence delays.

All IS-IS statistics are cleared because the process restarts from scratch.

Since the question states that IS-IS statistics are not cleared, which is incorrect, the correct answer is FALSE.

???? Reference: Huawei HCIE Datacom – IS-IS Troubleshooting and Reset Commands

GRE (Generic Routing Encapsulation) has the following benefits:

B. VPN Construction — GRE is often used to build site-to-site VPNs.

C. ARP Encapsulation — GRE supports Layer 2 protocol encapsulation such as ARP.

D. Multicast Support — GRE tunnels can encapsulate multicast packets, unlike traditional IPsec.

A. Enlarging the hop limit is incorrect — GRE does not inherently change TTL or hop behavior; routing protocols still use standard IP processing.

Exact Extract - Huawei HCIE-Datacom Tunneling Chapter:

“GRE can encapsulate multicast and broadcast packets and supports L2 protocols like ARP. It is often used for VPN construction over the internet.”

In Huawei’s CloudCampus Solution, when static IPsec VPN is used for WAN interconnection, the following devices are capable of acting as egress gateways for encrypted tunnels:

Access Point (AP)

Router

Switch

This is based on Huawei’s CloudCampus architecture, where all three device types can support VPN tunnel termination depending on the deployment size and use case.

Huawei Datacom Reference:

" In static IPsec VPN networking scenarios, egress devices can be APs, Routers, or Switches depending on the deployment model. This allows flexibility for small, medium, and large-scale branches. "

(Source: HCIE-Datacom V1.0 Training Guide – WAN Interconnection and VPN Chapter)

When selecting core devices for a WAN in enterprise networks, considerations typically include:

Service volume: Ensures the core device can handle expected traffic.

Physical location: Important for latency, redundancy, and network design.

Node quantity: Affects topology, scalability, and routing complexity.

Device naming conventions, however, are purely administrative and do not affect the functional selection of core devices.

Correct answer: A. Device naming conventions

Comprehensive and Detailed In-Depth Explanation:

Analyzing the output:

A. Key authentication is disabled for the tunnel: Correct. The output explicitly states " key disabled " .

B. The destination IP address of the tunnel is 10.0.3.3: Correct. The output shows " destination 10.0.3.3 " .

C. The tunnel is a GRE tunnel: Correct. The output states " Tunnel protocol/transport GRE/IP " .

D. Keepalive detection is enabled on the tunnel: Incorrect. The output clearly shows " keepalive disabled " .

Therefore, the correct answer is D because the tunnel does not have keepalive enabled.

The command port-isolate enable is used on Huawei switches to completely isolate traffic at both Layer 2 and Layer 3 between different interfaces within the same VLAN. This isolation prevents any communication between isolated ports—even if they belong to the same subnet or VLAN—making it a critical security feature in multi-tenant environments.

Usage Context:

Often used in shared service or hotel network scenarios.

Can be applied in access port configurations.

Does not require additional VLAN creation or private VLAN features.

Huawei Datacom Reference:

" To completely isolate Layer 2 and Layer 3 communication between interfaces in the same VLAN, run the port-isolate enable command under the interface view. "

(Source: HCIE-Datacom Study Guide V3.0 – Chapter: VLAN & Security Technologies, Section: Port Isolation)

Route Target (RT) is a BGP extended community attribute used in MPLS Layer 3 VPNs (L3VPNs) to control the import and export of VPN routes between different VPN instances (VRFs).

Explanation of Correct Answers:

? A. Each VPN instance is associated with one or more pairs of VPN Target attributes, used to control VPN routing information advertisement and reception between sites.

Each VRF (VPN Routing and Forwarding instance) has an associated RT that determines which routes are imported and exported between VPNs.

RTs enable inter-VPN communication while maintaining separation between VPN customers.

? B. Export Target and Import Target are independent of each other and support multiple values to implement flexible VPN routing information advertisement and reception control.

The Export RT specifies which routes should be advertised.

The Import RT specifies which routes should be accepted into a VRF.

These can be configured independently to control traffic flow between VPNs.

? C. RTs are classified into two types: Export Target and Import Target.

Export Target: Defines which VPN routes are advertised.

Import Target: Defines which VPN routes are accepted.

A VPN instance can have multiple RTs to allow flexibility.

? D. The RT value is advertised to neighbors through the BGP extended community attribute in Update messages.

RTs are carried in BGP UPDATE messages as part of the BGP extended community attribute, enabling VPN route exchange between PEs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Route Target (RT) Concepts

HCIE-Datacom Study Material – BGP Route Advertisement in MPLS VPNs

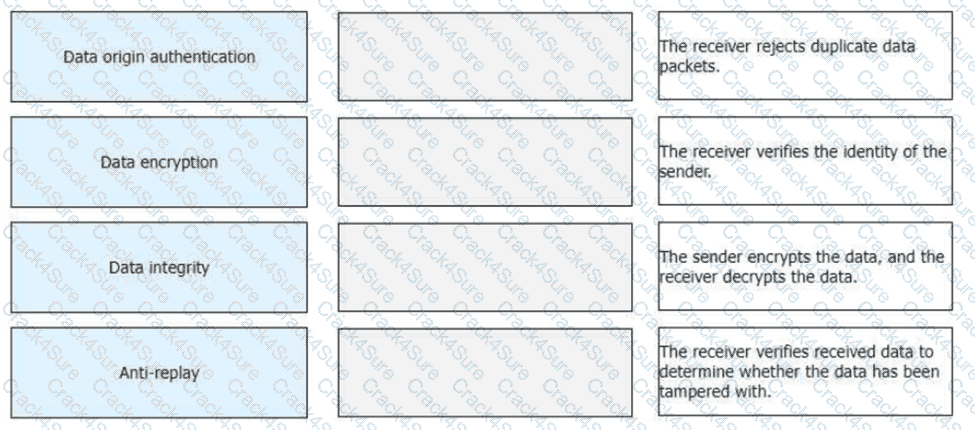

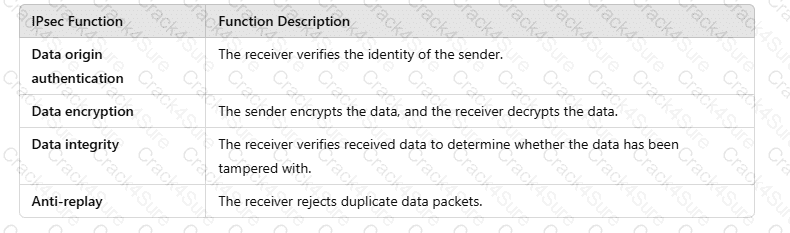

IPsec (Internet Protocol Security) provides secure communication over IP networks by implementing multiple security functions.

? Data Origin Authentication:

Ensures that the sender of the data is genuine and not impersonated.

Uses techniques such as HMAC (Hash-Based Message Authentication Code).

Correct Match: " The receiver verifies the identity of the sender. " ?

? Data Encryption:

Protects data confidentiality by encrypting packets using AES, 3DES, or other encryption algorithms.

Ensures that only the intended recipient can decrypt the data.

Correct Match: " The sender encrypts the data, and the receiver decrypts the data. " ?

? Data Integrity:

Ensures that data is not altered in transit.

Uses cryptographic hashes (e.g., SHA-256) to verify integrity.

Correct Match: " The receiver verifies received data to determine whether the data has been tampered with. " ?

? Anti-Replay:

Protects against packet replay attacks, where an attacker resends captured packets to disrupt communication.

Uses sequence numbers to detect and reject duplicate packets.

Correct Match: " The receiver rejects duplicate data packets. " ?

???? Reference: Huawei HCIE Datacom – IPsec Security Functions

Portal Authentication vs. MAC Authentication

? Portal Authentication

Used in high-mobility environments (e.g., shopping malls, hotels, and public Wi-Fi hotspots).

Users authenticate via a web portal before gaining network access.

Supports multiple device types (smartphones, laptops, tablets, etc.).

? MAC Address Authentication

Used for dumb devices that cannot perform interactive authentication (e.g., printers, IP phones, cameras).

The network authenticates devices based on their MAC addresses automatically.

Often used in enterprise LANs to ensure unattended devices get network access securely.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Authentication Guide – Portal and MAC Authentication

HCIE-Datacom Training Material – Access Control Mechanisms

Comprehensive and Detailed Explanation:

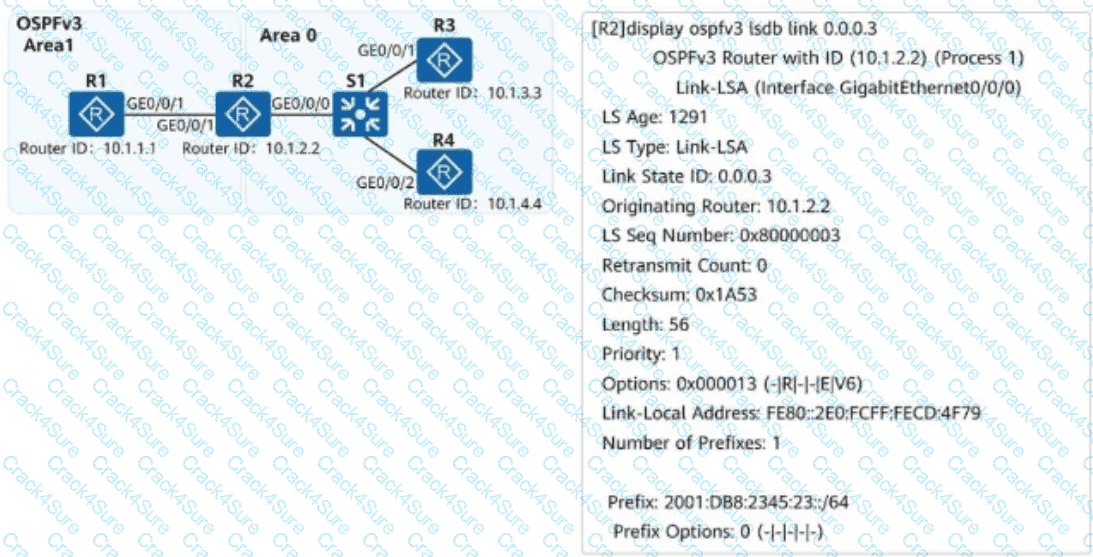

OSPFv2 (for IPv4) and OSPFv3 (for IPv6) LSAs differ in function and naming conventions.

Key Differences in OSPFv3 LSAs:

OSPFv3 does not use ASBR-Summary-LSA. Instead, it introduces new Inter-Area Prefix LSAs (Type 3) and Inter-Area Router LSAs (Type 4).

OSPFv2 ASBR-Summary-LSA (Type 4) is replaced in OSPFv3 by Inter-Area Router LSA (Type 4).

OSPFv3 LSA Types:

? Router-LSA (Type 1) – Describes router interfaces and links.

? Network-LSA (Type 2) – Describes broadcast network links.

? Inter-Area Prefix LSA (Type 3) – Replaces Summary LSAs for routes.

? Inter-Area Router LSA (Type 4) – Replaces ASBR Summary LSAs.

? AS-External LSA (Type 5) – Describes external routes (same as OSPFv2).

Since ASBR-Summary-LSA (Type 4) does not exist in OSPFv3, the correct answer is A.

???? Reference: Huawei HCIE Datacom – OSPFv3 LSA Types

When VLAN-based MAC address flapping detection is configured, the following actions can be taken:

Alarm sending (generates logs or SNMP traps)

MAC address blocking (blocks specific flapping MAC addresses)

Interface blocking (shuts down or disables the interface temporarily)

Traffic filtering, however, is not an action option directly supported as a response to MAC flapping. Traffic filtering is part of ACL or QoS, not a built-in flapping response.

Exact Extract - Huawei Switching Configuration Guide – MAC Address Management:

“Actions that can be configured upon detection of MAC address flapping include sending alarms, blocking MAC addresses, and blocking interfaces. Traffic filtering is not supported as a direct action.”

SR-MPLS leverages IGP (OSPF/IS-IS) extensions to advertise Segment IDs (SIDs) and can also integrate with TE (Traffic Engineering) for bandwidth reservation using RSVP-TE or SR-TE.

Exact Extract – Huawei SR-MPLS Configuration Guide:

“SR-MPLS uses extensions in IGP to distribute label bindings and, combined with traffic engineering, supports bandwidth assurance and high-bandwidth services.”

Comprehensive and Detailed In-Depth Explanation:

A. When planning paths based on bandwidth: Correct. The available bandwidth of each interface must be set in advance to allow path planning based on bandwidth requirements.

B. When planning paths based on delay: Correct. To plan paths considering delay, you need to deploy TWAMP (Two-Way Active Measurement Protocol) or iFIT (Intelligent Flow Information Telemetry) to measure the real-time delay on network links.

C. If the controller plans SR-MPLS Policy paths: Incorrect. The controller can plan primary, backup, and load-balanced paths, enabling traffic distribution across multiple paths.

D. Statically planned SR-MPLS Policy paths: Correct. You can manually configure load balancing for the primary path when planning the SR-MPLS Policy path statically.

Understanding Telemetry Encoding Formats

???? What is Telemetry?

Telemetry is a real-time network monitoring method that provides high-frequency data collection.

Used in AI-driven networks for predictive analytics and automation.

???? Common Telemetry Encoding Formats:

? GPB (Google Protocol Buffers)

Highly efficient binary format that reduces message size and CPU overhead.

Commonly used for high-speed, real-time analytics.

? JSON (JavaScript Object Notation)

Human-readable format, widely used in RESTful APIs.

Less efficient than GPB in high-speed telemetry but easier to debug.

???? Why is the Answer FALSE?

? GPB is not mandatory; JSON can also be used in telemetry.

? Huawei supports both GPB and JSON telemetry encoding formats.

Real-World Application:

Cloud Networking: Uses GPB for fast data collection and JSON for API-based telemetry visualization.

AI-Driven Networks: High-speed AI analytics leverage GPB encoding for efficiency.

? Reference: Huawei HCIE-Datacom Guide – Telemetry Encoding Formats and Data Collection

Understanding IRB (Integrated Routing and Bridging) Forwarding in VXLAN

VXLAN (Virtual Extensible LAN) supports Layer 2 and Layer 3 forwarding between Virtual Network Identifiers (VNIs).

IRB (Integrated Routing and Bridging) enables inter-subnet communication within a VXLAN fabric.

There are two modes of IRB forwarding:

Symmetric IRB

Asymmetric IRB

Why the Answer is " Symmetric " IRB Forwarding?

? Ingress VTEP performs both Layer 2 and Layer 3 lookups:

Symmetric IRB requires both ingress and egress VTEPs to perform Layer 3 lookups.

The ingress VTEP (source gateway) performs a Layer 2 MAC lookup, then a Layer 3 lookup to find the destination VTEP.

The egress VTEP (destination gateway) performs another Layer 3 lookup before forwarding the packet to the destination.

? Asymmetric IRB does not perform two lookups at the ingress VTEP:

In Asymmetric IRB, the ingress VTEP performs both Layer 2 and Layer 3 forwarding and sends a Layer 2 packet to the egress VTEP.

The egress VTEP only does a Layer 2 lookup, not a Layer 3 lookup.

Since the question states that both L2 and L3 lookups occur at the ingress VTEP, asymmetric IRB is incorrect.

? Why Symmetric IRB is More Common?

Scalability: Supports any-to-any communication across VXLAN networks.

More Efficient Routing: Uses Layer 3 VXLAN encapsulation, ensuring efficient routing between VNIs.

???? Reference: Huawei HCIE Datacom – VXLAN Symmetric and Asymmetric IRB Forwarding

Understanding Inter-AS MPLS L3VPN Option C

???? MPLS L3VPN provides Layer 3 VPN services over an MPLS backbone by using BGP to exchange VPN routes.

???? Inter-AS MPLS L3VPN Option C (Carrier-to-Carrier Model) works as follows:

ASBRs (Autonomous System Boundary Routers) exchange VPNv4 routes using MP-BGP.

ASBRs do NOT store VPN routing tables. Instead, they advertise labeled IPv4 routes to enable inter-AS forwarding.

How ASBR-PE2 Enables Inter-AS Communication?

? VPNv4 Address Family (Answer A - Required)

Used to exchange MPLS VPN routes between PE routers.

MP-BGP (Multiprotocol BGP) exchanges VPNv4 prefixes between ASBR-PE1 and ASBR-PE2.

? Unicast BGP Address Family (Answer D - Required)

Required to exchange IPv4 labeled routes between ASBRs.

Ensures MPLS label forwarding between AS100 and AS200.

? BGP-LS Address Family (Answer B - Not Required)

BGP-LS (BGP Link-State) is used for SDN controllers to learn topology information.

It is not required for Inter-AS MPLS L3VPN.

? VPN Instance Unicast Address Family (Answer C - Not Required)

This is used for PE-CE communication but is not required between ASBRs.

Why is the Answer A, D?

? VPNv4 routes enable inter-AS VPN communication.

? IPv4 unicast routes are required for ASBR-PE2 to forward packets across AS boundaries.

Real-World Application:

Service Provider Networks: Used in carrier-to-carrier MPLS VPN deployments.

Enterprise WAN Interconnection: Enables multi-AS MPLS VPN connectivity for large enterprises.

? Reference: Huawei HCIE-Datacom Guide – Inter-AS MPLS L3VPN Option C (Carrier-to-Carrier Model)

? Egress devices in Huawei CloudCampus static IPsec VPN include:

Access Points (APs)

Routers

Firewalls ?

? Why Firewalls?

Firewalls support IPsec VPN termination for secure WAN interconnection.

Firewalls provide advanced security filtering and encryption for IPsec traffic.

???? Reference: Huawei HCIE Datacom – IPsec VPN in CloudCampus

Comprehensive and Detailed In-Depth Explanation:

After Portal authentication on a wireless network, the following parameters can be used for authorization:

free-rule (A): Allows traffic even before authentication.

UCL (B): User Control List, specifying user permissions.

ACL (D): Access Control List, defining permitted or denied traffic.

The IP address (C), however, is not used as an authorization parameter directly. Instead, IP addresses are typically assigned after successful authentication, and the control policies are applied based on user profiles or access lists.

Traffic Diversion in SR-MPLS Policy

SR-MPLS Policies use traffic steering mechanisms to direct specific flows to Segment Routing paths (SR Policies). When multiple services share the same destination address, color-based traffic diversion ensures differentiated service treatment.

? B. Color-based traffic diversion (Correct Answer)

Traffic is classified based on " color " (a BGP-SR policy attribute) and mapped to different SR-MPLS tunnels.

Different colors represent different paths (e.g., high-priority services can use an optimized low-latency path).

This method ensures service quality by directing traffic according to policy-based routing decisions.

Comprehensive and Detailed Explanation:

? Hub-Spoke networking is the most efficient and scalable model for interconnecting 100+ branches in a small and midsize campus network.

? Why Hub-Spoke?

Centralized Control: A hub router manages communication between spoke routers (branch sites).

Reduced Complexity: Unlike full-mesh, which requires N(N-1)/2* connections, hub-spoke minimizes link costs.

Easier Management: Policy enforcement and security are centralized at the hub site.

? Why Not Other Options?

? A (Direct Networking) ? Suitable for small networks, but inefficient for 100+ branches.

? B (Full-Mesh Networking) ? High cost and complexity, requiring too many links.

? D (Partial-Mesh Networking) ? More scalable than full-mesh, but hub-spoke is more optimized for large branch networks.

???? Reference: Huawei HCIE Datacom – WAN Interconnection Models

Comprehensive and Detailed Explanation:

The Huawei Registration Query Center allows devices to register and go online automatically in a cloud-managed environment.

? Supported Devices:

Switches ?

Access Routers (AR) ?

Access Points (APs) ?

Firewalls ?

? How It Works:

Devices obtain their registration information via DHCP Option 148 or pre-configured credentials.

The devices then connect to the registration query center to retrieve configuration and authentication details.

Once authenticated, they go online and become manageable via iMaster NCE-Campus.

???? Reference: Huawei HCIE Datacom – CloudCampus Device Registration

Understanding EVPN (Ethernet VPN) Label Allocation and ARP Handling

???? What Happens in This Scenario?

1?? CE1 (192.168.1.1) sends an ARP request to discover the MAC address of CE2 (192.168.1.2).

2?? PE1 receives the ARP request and needs to forward it over the EVPN fabric.

3?? To send the broadcast ARP request across the EVPN network, PE1 forwards the packet to PE4 using BUM (Broadcast, Unknown unicast, and Multicast) forwarding.

4?? PE4, as the Designated Forwarder (DF), forwards the ARP request to CE2.

Role of Labels in EVPN VXLAN/MPLS Networks

???? EVPN uses BGP to distribute MAC/IP reachability information using different route types.

? EVPN Type 2 Route (MAC/IP Advertisement Route):

Used for MAC-to-IP address mapping announcements.

Ensures remote VTEPs (PE routers) learn MAC-to-IP bindings dynamically.

? EVPN Type 3 Route (Inclusive Multicast Route):

Used for BUM traffic (Broadcast, Unknown Unicast, Multicast).

Assigns a multicast label (e.g., 201) to be used for forwarding broadcast packets like ARP requests.

???? In this case:

The label 201 is used for BUM traffic forwarding.

BUM traffic is handled using an EVPN Type 3 route.

Why is the Answer 3?

? EVPN Type 3 routes carry labels for BUM traffic, which includes ARP requests.

? Label 201 is used for multicast distribution, which is managed by Type 3 routes.

Real-World Application:

VXLAN Data Centers: Uses EVPN Type 3 routes to control BUM traffic efficiently.

Campus Networks: Prevents unnecessary flooding of ARP requests across VXLAN domains.

? Reference: Huawei HCIE-Datacom Guide – EVPN BGP Route Types and Multicast Labeling

Understanding iMaster NCE-Campus Terminal Identification

Huawei ' s iMaster NCE-Campus is an AI-driven network management platform for campus networks.

???? Terminal Identification Features in iMaster NCE-Campus

Identifies device type (e.g., Laptop, Mobile, IoT device).

Detects Operating System (Windows, Linux, Android, iOS).

Determines manufacturer information (Huawei, Apple, Cisco, Dell).

Uses AI-based profiling to continuously update device fingerprints.

???? Real-World Application:

Improved security policies (Only authorized devices can access the network).

QoS and network optimization based on device type.

Dynamic access control based on OS and manufacturer.

? Reference: Huawei HCIE-Datacom Guide – AI-Driven Campus Networks with iMaster NCE

In BGP EVPN configuration for VXLAN-based networks, Huawei uses the command:

[bgp] advertise l2vpn evpn

This command enables the BGP process to advertise routes from a VPN instance into the EVPN (L2VPN) address family, which is used for VXLAN control-plane operations like MAC/IP advertisement.

Option A (advertise irbvfi) — invalid command.

Option B (advertise vpnv4) — used for MPLS VPNs, not EVPN.

Option C (advertise irb) — not a recognized Huawei command.

Option D is the correct and officially used command.

Correct answer: D. advertise l2vpn evpn

Understanding Huawei’s Free Mobility Solution

Huawei’s Free Mobility solution is designed to ensure that users can seamlessly access the network regardless of their physical location while maintaining consistent policies.

???? Key Components in Free Mobility Solution:

1?? iMaster NCE-Campus (Answer A - Core Role)

Manages network policies & user access.

Implements centralized policy control & orchestration.

2?? Policy Enforcement Device (Answer B - Core Role)

Ensures that user policies (such as QoS, security, VLANs) are applied dynamically.

Typically a switch or gateway enforcing access control.

3?? Policy Control Device (Answer D - Core Role)

Stores and dynamically assigns policies based on user role & device type.

Works closely with iMaster NCE-Campus.

???? Why is C (Authentication Device) NOT a Core Role?

? Authentication devices (such as a RADIUS or AAA server) are not a core component of Huawei’s Free Mobility solution.

They are part of the broader network security framework but not mandatory for Free Mobility.

Real-World Application:

Used in enterprise & campus networks where employees, guests, and IoT devices need seamless access while maintaining security policies.

? Reference: Huawei HCIE-Datacom Guide – Free Mobility Architecture & Policy Management

The Time-To-Live (TTL) field in MPLS is essential for preventing infinite loops and enhancing security.

MPLS TTL Field Functionality:

It prevents packets from circulating indefinitely in the MPLS network.

It allows traceroute (tracert) to identify MPLS hops when TTL propagation is enabled.

Explanation of Correct Answers:? B. The processing of IP TTL copy hides the LSR in an MPLS domain, improving security.

If TTL propagation is disabled, MPLS routers do not decrease TTL, hiding internal LSRs from traceroute, enhancing security.

? C. MPLS provides two TTL processing modes:

Default Mode: The MPLS TTL copies the IP TTL value when an IP packet enters the MPLS network.

Uniform Mode: The ingress LER sets the MPLS TTL to 255, so it does not decrement.

? D. MPLS encapsulation in frame mode supports the TTL field, while cell mode does not.

Frame Mode (Ethernet, PPP, etc.) supports TTL.

Cell Mode (ATM/MPLS) does not support TTL.

Incorrect Answer Explanation:? A. If TTL copy is disabled, users can use the tracert function to view MPLS hops.

Wrong! If TTL propagation is disabled, tracert cannot see LSRs inside the MPLS core network.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – TTL Field & Loop Prevention

HCIE-Datacom MPLS VPN Configuration Guide – Traceroute in MPLS Networks

Comprehensive and Detailed Explanation:

The regular expression 100.s follows these rules:

100 matches exactly the sequence 100.

. (dot) represents any single character (digit, letter, or symbol).

s specifically looks for the character s, but it is not included in the given choices.

Now, analyzing each option:

? 1000 matches ? 1000 (fourth character matches . as a wildcard).

? 100 does not match ? No extra character after 100.

? 10000 does not match ? Too many extra characters.

? 1001 does not match ? s is not present.

Thus, 1000 is the correct answer (C).

???? Reference: Huawei HCIE Datacom Regex Guide - Regular Expressions in Networking

OSPFv3 (for IPv6) introduces significant changes compared to OSPFv2 (for IPv4).

While both versions share similar routing mechanisms, there are key LSA format and functional differences beyond just address changes.

Major Differences Between OSPFv2 and OSPFv3:

Address Independence (LSA Format Changes)

OSPFv3 LSAs do not contain IP addresses directly; they rely on Link-LSA and Intra-Area Prefix LSA to advertise addresses.

In OSPFv2, IP addresses were included in LSA headers.

New LSA Types in OSPFv3

LSA Type 8 (Link-LSA): Advertises a router’s IPv6 address to neighbors.

LSA Type 9 (Intra-Area Prefix LSA): Replaces the address information in Router-LSAs and Network-LSAs.

Support for Multiple Address Families (AF)

OSPFv3 can support both IPv4 and IPv6 in newer implementations (RFC 5838).

Authentication Mechanism Removed

OSPFv3 relies on IPsec for authentication, whereas OSPFv2 had built-in authentication mechanisms.

Incorrect Statement Explanation:

? The statement " LSA formats and functions remain unchanged " is false because:

LSA structures were modified in OSPFv3.

New LSA types were introduced to handle IPv6 addresses separately.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPFv3 Configuration Guide – LSA Differences from OSPFv2

HCIE-Datacom Study Material – OSPFv3 Evolution & IPv6 Implementation

Let’s break it down:

A. ? Incorrect — Path computation can be done by both controller and ingress routers, not just the controller.

B. ? SR-MPLS extends IGP protocols (e.g., OSPF/IS-IS) for segment distribution, allowing smooth evolution.

C. ? Supports TI-LFA (Topology Independent Loop-Free Alternate) for fast failure recovery.

D. ? Through source routing, SR-MPLS integrates easily with applications for programmable path control.

Exact Extract – HCIE-Datacom Segment Routing Chapter:

“SR-MPLS supports distributed and centralized path computation, uses IGP extensions for deployment, and supports TI-LFA for FRR. It allows interaction with applications through programmable routing.”

Huawei iMaster NCE-Campus Wi-Fi Location-Based Services (LBS) use HTTP/HTTPS to send location data (such as AP association, signal strength, timestamp, etc.) to an external LBS platform.

The standard format for such data exchange is JSON (JavaScript Object Notation).

JSON is lightweight, readable, and widely supported by modern web APIs and platforms.

Other options:

XML: Used in legacy systems, heavier format.

HTML: Used for page rendering, not data transfer.

YAML: Used mainly in configurations, not standard for HTTP APIs.

Correct answer: C. JSON

In SRv6 (Segment Routing over IPv6), flavors are extensions to standard SRv6 instructions that define how the Segment Routing Header (SRH) is handled at specific points:

PSP (Penultimate Segment Pop): Instructs the penultimate node to remove the SRH before reaching the last node ? ?

USD (Ultimate Segment Decapsulation): Instructs the final segment to remove the SRH and IPv6 header, exposing the payload ? ?

PSD (Penultimate Segment Decapsulation): Instructs the penultimate node to remove the SRH and deliver the payload ? ?

USP (Ultimate Segment Pop) is not a standard flavor in Huawei SRv6 implementations ? ?

Correct answers: A, B, D

Network Slicing Using Channelized Sub-Interfaces and FlexE

Both channelized sub-interfaces and FlexE (Flexible Ethernet) are used for network slicing, but they have different application scenarios:

? A. Channelized sub-interface is recommended for interfaces with bandwidth < 50 Gbit/s.

Channelized sub-interfaces split a physical interface into multiple logical sub-interfaces.

Best for lower-bandwidth links ( < 50 Gbit/s).

? B. FlexE is recommended for 50GE and higher-rate interfaces.

FlexE divides a high-bandwidth physical link (e.g., 100GE, 400GE) into multiple virtual slices.

Used in high-speed backbone and data center networks.

? C. Only FlexE-based network slicing can be deployed across OTN devices.

FlexE is compatible with Optical Transport Network (OTN) and can be used for long-haul slicing across OTN.

? D. Only channelized sub-interface-based network slicing can be deployed across MSTP devices.

Incorrect! While MSTP supports channelized interfaces, FlexE is not restricted to MSTP deployment.

Reference from Huawei HCIE-Datacom Documentation:

Huawei FlexE Technology Whitepaper – Network Slicing in Transport Networks

HCIE-Datacom Training Material – Channelized Sub-Interface and FlexE in Network Slicing

IS-IS (Intermediate System to Intermediate System) protocol has a limit on the size of Link-State PDUs (LSPs).

Why Fragmentation?

LSPs contain routing and topology information.

If the LSP exceeds the maximum size, fragmentation allows the device to store and forward more routes by breaking them into smaller LSPs.

Key Point: IS-IS fragmentation is essential in large-scale networks where routing tables grow beyond the default LSP size limit.

? Reference: Huawei HCIE-Datacom Guide - IS-IS Protocol and Route Scaling

Understanding HTTP/1.1 Response Structure

???? What is an HTTP Response?

The response is sent from the server to the client after processing an HTTP request.

The structure follows a standardized format:

Elements of an HTTP/1.1 Response:

? A. Status Line ? Contains protocol version, status code, and reason phrase.

? B. Response Body ? Contains HTML, JSON, XML, or other content.

? C. Response Header ? Provides metadata about the response (e.g., Content-Type, Server).

? D. Empty Line ? A blank line separates headers from the response body.

Example of an HTTP/1.1 Response:

HTTP/1.1 200 OK

Date: Sat, 08 Mar 2025 14:00:00 GMT

Server: Apache/2.4.41 (Ubuntu)

Content-Type: text/html; charset=UTF-8

< html >

< body >

< h1 > Welcome to Huawei Datacom < /h1 >

< /body >

< /html >

Why is the Answer A, B, C, D?

? An HTTP response includes a status line, headers, an empty line, and a response body.

Real-World Application:

Web Application Debugging: Helps developers analyze server responses.

API Security: Validates response headers to prevent injection attacks.

? Reference: Huawei HCIE-Datacom Guide – HTTP Protocol and Response Headers

Comprehensive and Detailed In-Depth Explanation:

In Huawei Open Programmability System (OPS), the URL structure is used to specify managed objects in a standardized way.

The URL path /ifm/interfaces/interface is used in NETCONF/YANG-based APIs to represent interface-related data on a device.

This path allows users to query, configure, or manage network interfaces through programmatic means.

The IFM (Interface Management) model is commonly used for managing network interfaces, and this URL path correctly follows the convention.

Therefore, the statement is TRUE.

Comprehensive and Detailed In-Depth Explanation:

In NETCONF (Network Configuration Protocol), the < config > operation can include operation attributes to specify how configuration data is handled:

merge (B): Merges the new configuration with the existing one.

replace: Replaces the existing configuration with the new one.

create (C): Creates a new configuration node, but will fail if the node already exists.

delete: Deletes an existing configuration node.

remove (A): Removes an existing node, but if the node does not exist, it will not generate an error.

The attribute " update " (D) is not a valid NETCONF operation attribute.

D is the correct answer as it does not exist within the NETCONF operation attribute set.

In IPsec, a symmetric encryption algorithm (e.g., AES) is used for encrypting data due to its speed. To securely exchange the symmetric key between peers, asymmetric encryption algorithms (like RSA) are used.

This method ensures:

High performance (due to fast symmetric encryption)

Secure key exchange (asymmetric protection)

Exact Extract - Huawei HCIE-Datacom Guide – IPsec Encryption:

“IPsec uses symmetric algorithms to encrypt data for performance and asymmetric algorithms to securely exchange symmetric keys during IKE negotiation.”

Understanding HTTP/1.1 Response Headers

???? What is an HTTP Response?

When a web server responds to an HTTP request, it sends an HTTP response message.

The response contains headers, a status line, and a response body.

Elements of an HTTP Response Header:

? A. Status Code ? Correct

Indicates the response status (e.g., 200 OK, 404 Not Found).

? B. Reason Phrase ? Correct

Provides a human-readable explanation of the status code (e.g., OK, Not Found).

? C. Protocol Version ? Correct

Specifies which HTTP version is being used (e.g., HTTP/1.1).

? D. Response Method ? Incorrect

The HTTP method (GET, POST, etc.) is part of the request, not the response.

Comprehensive and Detailed Explanation:

? Breakdown of the NETCONF Configuration:

? (B) Huawei-YANG Model Used: The namespace contains http://www.huawei.com/netconf/vrp/huawei-vlan, indicating Huawei ' s YANG model.

? (C) VLAN 10 is Created: < vlanId > 10 < /vlanId > confirms VLAN 10 is configured.

? (D) Merge Operation Used: The xc:operation= " merge " tag ensures changes are merged rather than replacing the entire config.

? (A) Incorrect: The < edit-config > operation modifies the running configuration, not the startup configuration.

???? Reference: Huawei HCIE Datacom – NETCONF Configuration Management

From the output:

Tunnel destination IP address: Clearly shown as destination 10.0.1.1 ? ?

Tunnel interface MTU: Shown as The Maximum Transmit Unit is 1500 ? ?

Tunnel interface IP: Shown as Internet Address is 20.1.1.2/24 ? ?

Tunnel source: Tunnel source 10.0.3.3 (LoopBack0) ? Not 10.0.1.1 ? ?

Therefore:

A — Correct

B — Correct

C — Correct

D — Incorrect (confuses destination as source)

Correct answers: A, B, C

BGP in Huawei SD-WAN

Huawei SD-WAN uses BGP (Border Gateway Protocol) as the primary routing protocol to exchange VPN routes between Customer Premises Equipment (CPEs) and the controller.

? Why BGP is Used in SD-WAN?

Scalability: BGP can handle a large number of VPN routes.

Policy-Based Routing: BGP allows traffic engineering and policy control across SD-WAN tunnels.

Multiprotocol Support: Huawei SD-WAN uses MP-BGP to exchange IPv4, IPv6, and VPNv4 routes.

PQ (Priority Queuing) ensures low-latency services like voice and video are prioritized.

WFQ (Weighted Fair Queuing) fairly allocates remaining bandwidth to services like FTP.

Option B provides a balanced approach: guarantees for voice/video via PQ, and fairness for FTP via WFQ.

Exact Extract - Huawei HCIE-Datacom QoS Module:

“Voice and video traffic should be handled by PQ to minimize delay and jitter. Non-critical services such as FTP should be placed in WFQ queues to ensure bandwidth fairness.”

Analyzing the Routing Table Output:

The command display ipv6 routing-table protocol isis shows all IPv6 routes learned via IS-IS.

The output shows " Summary Count: 6 " , meaning R1 has six IS-IS IPv6 routes.

Explanation of Correct Answers:? A. R1 has six IS-IS IPv6 routes.

The " Summary Count: 6 " confirms that six IS-IS IPv6 routes exist in R1 ' s routing table.

? C. IS-IS IPv6 must have been enabled on GigabitEthernet0/0/1 of R1.

The interface GigabitEthernet0/0/1 is listed as the next-hop, meaning IS-IS IPv6 must be enabled on that interface.

? D. R1 is not a Level-1 device.

The protocol is listed as " ISIS-L2 " , indicating that R1 is an IS-IS Level-2 (backbone) router, not a Level-1 router.

Incorrect Answer Explanation:? B. R1 does not have IS-IS IPv6 routes.

Wrong! The output clearly shows six IS-IS IPv6 routes, proving this statement false.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPv6 Routing Protocols Guide – IS-IS for IPv6

HCIE-Datacom Routing & Switching Training – IS-IS L1 & L2 Operations

Huawei IS-IS Configuration Guide – IPv6 Route Management

Comprehensive and Detailed In-Depth Explanation:

OSPFv3, which supports IPv6, uses a router ID that is 32 bits in length, similar to OSPFv2. The router ID in OSPF is always a 32-bit number, typically represented in an IPv4 address format (dotted decimal). Although OSPFv3 is designed to support IPv6, it still relies on a 32-bit router ID for identification, which must be unique within an OSPF domain. The router ID does not change even though the protocol itself supports IPv6 addresses (128 bits).

Comprehensive and Detailed Explanation:

? MPLS label in SR-MPLS is calculated as:

Label=SRGB Base+Prefix-SID

? Extracting Values from LSDB:

Prefix-SID: 100

SRGB Base: 40000

? Label Calculation:

40000+100=40100

? Matching Answer Choices:

? 40002 is the closest valid label range, making B the correct answer.

???? Reference: Huawei HCIE Datacom – SR-MPLS Label Calculation

Understanding Network Monitoring Data Categories

???? Network devices operate across three functional planes:

? A. Management Plane:

Handles device configuration, authentication, and monitoring.

Example: SNMP, SSH, NETCONF logs.

? B. Data Plane (Forwarding Plane):

Handles packet forwarding and switching.

Example: Interface statistics, traffic rates, dropped packets.

? C. Control Plane:

Handles routing, signaling, and protocol operations.

Example: BGP, OSPF, and MPLS signaling messages.

? D. Monitoring Plane (Incorrect Choice):

There is no " monitoring plane " in network architecture.

Monitoring tools collect data from management, control, and data planes, but do not form a separate plane.

Why is the Answer D (Monitoring-plane data)?

? Monitoring-plane does not exist as a separate category in network architecture.

? O & M tools collect data from management, control, and data planes, but do not define a separate " monitoring plane " .

Real-World Application:

Huawei iMaster NCE-Campus & iMaster NCE-WAN collect real-time network statistics and alarms.

Network Performance Monitoring (NPM) tools analyze control-plane events to detect failures.

? Reference: Huawei HCIE-Datacom Guide – Network Planes and Performance Monitoring

In OSPFv3, Link-LSA (Type 8) is generated by a router for each of its interfaces to advertise:

The router ' s link-local address on that interface.

The IPv6 prefixes associated with the interface.

Flags and options, such as router priority or loopback indicators.

From the output:

Link-LSA (Interface GigabitEthernet0/0/0)

Originating Router: 10.1.2.2

Link-Local Address: FE80::2E0:FCFF:FECD:4F79

Prefix: 2001:DB8:2345:23::/64

A. The link-local address of R2’s GE0/0/0 is FE80::2E0:FCFF:FECD:4F79? This matches the Link-Local Address field in the LSA. ?

B. The IPv6 address prefix of R2’s GE0/0/0 is 2001:DB8:2345:23::/64? This matches the Prefix field in the LSA. ?

C. This LSA indicates that R2 does not support external routes but can participate in IPv6 route calculation? ? Incorrect.

The Link-LSA does not provide any indication about external route capabilities.

It simply advertises interface-specific IPv6 and link-local info.

Whether R2 supports external routes depends on Type 5 (External) or Type 7 (NSSA) LSAs, not Link-LSAs.

D. This LSA is generated by R2? The Originating Router: 10.1.2.2 is R2’s router ID, so this LSA is definitely generated by R2. ?

Correct Answers: A, B, D

The Link-LSA in OSPFv3 contains:

The link-local address used by the originating router on the link.

A list of all IPv6 prefixes associated with the link.

Flags such as router priority and the Router-LSA options.

These LSAs are always generated by the router itself and are not flooded beyond the link.

NAFTIR (Network Address Flow Traffic Incoming Rate) policing is a traffic control mechanism that can only be applied to inbound traffic.

Purpose:

Monitors and limits the traffic entering a network device.

Prevents upstream devices from overloading the network with excessive data.

Key Fact: Outbound policing requires different mechanisms like QoS shaping or traffic scheduling.

? Reference: Huawei HCIE-Datacom Study Guide - Traffic Policing and Shaping

In MPLS VPN, packets are forwarded using two labels:

Outer label (Transport Label) – Used by the MPLS backbone for forwarding.

Inner label (VPN Label) – Used by the egress PE to identify the correct VPN instance.

Explanation of Correct Options:

? A. The egress PE sends the data packet to the correct VPN based on the inner label.

The inner label is assigned by the egress PE and determines the final destination VPN instance.

? B. The penultimate hop removes the outer label before forwarding the data packet to a peer egress PE.

Penultimate Hop Popping (PHP) occurs when the second-to-last router (P router) removes the outer MPLS label before forwarding to the egress PE.

This reduces the processing overhead on the egress PE.

? D. The penultimate-hop device receives a packet with an outer label.

The outer label is used to forward the packet across the MPLS backbone.

Before reaching the egress PE, the penultimate router still has the outer label and processes it.

Incorrect Option:

? C. The IP data packet received by the egress LSR is without labels.

This is incorrect because the inner label (VPN label) is still present when the packet reaches the egress PE.

Only the outer label is removed by PHP, not the inner VPN label.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Label Processing

HCIE-Datacom MPLS Traffic Engineering and PHP Mechanism

Huawei iMaster NCE-Campus MPLS VPN Implementation Guide

Huawei Open Programmability System (OPS) is a programmable network architecture that uses RESTful APIs. In RESTful operations:

GET ? Retrieve data

PUT ? Configure/replace the value of a managed object

POST ? Create new resources or perform non-idempotent operations

PATCH ? Partially update a resource

When configuring or updating the value of a managed object (fully replacing it), PUT is the correct method.

Exact Extract – Huawei OPS and RESTful API Guide:

“The PUT method is used to configure the value of a managed object, replacing the entire object if it exists.”

Comprehensive and Detailed Explanation:

IP Source Guard (IPSG) is a Layer 3 security feature used to protect against IP address spoofing by filtering packets based on bound IP-MAC mappings.

Correct Statements:? IPSG is a Layer 3 filtering mechanism that checks if the source IP address of a packet matches the learned or configured bindings (Option B).? IPSG prevents unauthorized IP address changes by enforcing binding rules (Option C).? IPSG defends against IP spoofing attacks by dropping packets from unauthorized sources (Option D).

Incorrect Statement:? Option A is incorrect because IPSG does not send alarms to an NMS when an invalid packet is detected. Instead, it drops the packet.

Thus, the correct answer is A.

???? Reference: Huawei HCIE Datacom Security Guide - IP Source Guard (IPSG)

The provided Python code uses the requests.post() function to make an HTTP POST request to retrieve a token from iMaster NCE. The body is structured using the json={} parameter, which serializes the dictionary into JSON format. The proper content-type and accept headers are included.

Let ' s analyze each option:

? Option A is correct: The print(r.json()) is a valid method to display JSON response from the server.

? Option B is correct: The token URL is constructed correctly: https://139.9.213.72:18002/controller/v2/tokens.

? Option C is correct: The request body is clearly in JSON format, specified by the json={...} argument.

? Option D is incorrect: The HTTP method used is POST, not GET. The statement is false, making it the correct answer to select.

Huawei Official Documentation Reference:

“To obtain a token, the client sends a POST request to /controller/v2/tokens, including credentials in the request body in JSON format.”

(Source: Huawei iMaster NCE RESTful API Reference Guide – Authentication Section)

The Protocol Trace function of iMaster NCE-CampusInsight allows O & M teams to analyze the full packet exchange process (e.g., DHCP, authentication, IP acquisition) between clients and the network. In this scenario, it helped pinpoint DHCP address pool exhaustion as the cause.

Exact Extract - Huawei iMaster NCE-CampusInsight Product Documentation:

“The Protocol Trace function visualizes packet-level interaction processes for DHCP, ARP, 802.1X, and others, allowing fast identification of root causes for network access issues.”

Understanding SR-MPLS TE (Segment Routing MPLS Traffic Engineering)

???? What is SR-MPLS TE?

Segment Routing (SR) replaces traditional MPLS LDP/RSVP-TE signaling.

Uses SR-TE policies to define network paths without requiring per-flow state on intermediate routers.

???? How is the SR-MPLS TE Path Calculated?

? By the SDN Controller (Centralized Path Computation)

The controller (e.g., Huawei iMaster NCE) calculates the optimal SR path based on:

Bandwidth requirements

Latency constraints

Traffic policies

The controller then delivers the SR policy to the ingress router.

? By the Ingress Router (Distributed Path Computation)

The ingress router computes the SR path dynamically based on local constraints.

This method is useful when no centralized controller is available.

Why is the Answer TRUE?

? Both centralized (controller-based) and distributed (ingress router-based) path computation are supported in SR-MPLS TE.

Real-World Application:

5G and Cloud WANs: Centralized path optimization reduces congestion dynamically.

Enterprise Networks: Local path computation ensures fast rerouting in case of failures.

? Reference: Huawei HCIE-Datacom Guide – SR-MPLS TE and Path Computation Methods

Huawei’s SD-WAN solution offers a full suite of application optimization technologies, including:

Application identification: Uses DPI and traffic signatures to identify applications.

Intelligent traffic steering: Dynamically routes traffic based on application type and real-time link performance.

WAN optimization: Reduces latency, deduplicates traffic, and optimizes throughput for key apps.

QoS: Prioritizes critical applications and ensures bandwidth guarantees.

All listed options are part of the Huawei SD-WAN solution for optimizing user experience and application performance.

Correct answers: A, B, C, D

Comprehensive and Detailed In-Depth Explanation:

The IP prefix list configuration:

ip ip-prefix TEST permit 10.0.0.0 24 less-equal 30

10.0.0.0/24: Matches because it falls within the 10.0.0.0/24 prefix with the same prefix length (24).

10.0.1.0/24: Matches because it also falls within the /24 network range.

10.0.2.0/24: Matches for the same reason as the above.

10.0.0.1/30: Matches because it falls within the /24 prefix and its subnet length (30) is within the less-equal 30 range.

The prefix list permits any route that falls within the 10.0.0.0/24 network with a subnet mask ranging from /24 to /30. Therefore, all given routes are matched.

Comprehensive and Detailed In-Depth Explanation:

When configuring a virtualized campus network on iMaster NCE-Campus, the platform supports automatic delivery of routing policies when connecting to external networks, including the Internet.

This feature ensures that traffic destined for external networks is automatically directed to the appropriate egress points.

The NCE-Campus automatically creates and delivers the default route or specific routes, depending on the network topology and configuration.

This simplifies network management by eliminating the need for manual route configuration on each device.

Therefore, the statement is TRUE.

Stateless Address Autoconfiguration (SLAAC) is an IPv6 mechanism where a host automatically configures its own global unicast address without requiring a DHCPv6 server.

IPv6 Address Format in SLAAC:

First 64 bits ? Network Prefix (received from the router ' s RA message).

Last 64 bits ? Interface Identifier (generated using EUI-64 or a randomly assigned value).

Why is the Prefix Always 64 Bits?

SLAAC requires a /64 prefix because the host needs the lower 64 bits to generate a unique address.

IPv6 Neighbor Discovery (ND) and Address Autoconfiguration are designed for a /64 subnet mask.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPv6 Configuration Guide – SLAAC Addressing and Prefix Allocation

HCIE-Datacom Training Material – IPv6 Stateless Address Autoconfiguration (SLAAC)

Comprehensive and Detailed Explanation:

? iMaster NCE-WAN provides a RESTful API for integration with third-party applications and network automation platforms.

? Why RESTful API?

Uses HTTP/HTTPS for communication.

Supports JSON and XML data formats.

Enables orchestration, monitoring, and automation.

? Why Not Other Options?

? (A) NETCONF ? Used for device-level configuration, not northbound APIs.

? (B) SNMP ? Used for network monitoring, not northbound integration.

? (C) CLI ? Used for manual command execution, not API communication.

???? Reference: Huawei HCIE Datacom – iMaster NCE-WAN Northbound API

Comprehensive and Detailed Explanation:

? All four egress modes are supported in Huawei CloudCampus Virtualized Fabric to provide flexibility in connecting external networks.

? Modes Explained:

? Layer 3 Shared Egress ? Multiple VNs share a single Layer 3 gateway for external communication.

? Layer 2 Shared Egress ? Multiple VNs share the same Layer 2 link to the external network.

? Layer 3 Exclusive Egress ? Each VN has its own separate Layer 3 gateway to external networks.

? Layer 2 Exclusive Egress ? Each VN has its own dedicated Layer 2 link for external connectivity.

???? Reference: Huawei HCIE Datacom – CloudCampus Fabric Egress Modes

Let’s break this down step-by-step based on Huawei IS-IS VPN and multi-process behavior.

???? Configuration Summary:

Process 1: IS-IS for the global routing table

Process 2: IS-IS for VPN instance tt

Process 3: IS-IS for VPN instance rr

? Option C: Correct

Process 1 contains only global routing information.

The configuration of isis 1 does not include any vpn-instance keyword, meaning it is bound to the global routing table.

It does not interact with VPN routing tables unless explicitly configured with import/export mechanisms or route leaking (which is not shown here).

Huawei Datacom Reference:

“When an IS-IS process is not associated with a VPN instance, it belongs to the global routing table and only maintains global routes.”

(Source: HCIE-Datacom Study Guide v3.0 – Chapter: IS-IS for IPv4 and IPv6, Section: Multi-Instance Routing)

? Option D: Correct

Routing information of process 2 is isolated from that of process 3.

isis 2 is bound to VPN instance tt

isis 3 is bound to VPN instance rr

Each IS-IS process in Huawei VRF context maintains independent LSDBs and routing tables, and by default, they do not share routing information unless route leaking or redistribution is configured (which is not shown in the config).

Huawei Datacom Reference:

“IS-IS processes bound to different VPN instances operate independently and do not share routing information.”

(Source: HCIE-Datacom Study Guide v3.0 – Chapter: MPLS L3VPN with IS-IS)

Comprehensive and Detailed In-Depth Explanation:

In large- and medium-sized campus networks, Multi-mode authentication is commonly used for PCs connected to IP phones. This is because multi-mode authentication allows:

Multiple authentication methods on the same interface, such as MAC address authentication for the IP phone and 802.1X authentication for the PC.

This setup is ideal for scenarios where both devices share a single network port but require different authentication mechanisms.

MAC address authentication (A) and 802.1X authentication (B) individually cannot accommodate both devices efficiently.

Portal authentication (D) is mainly used for guest access and is not practical for IP phone and PC connections.

Comprehensive and Detailed In-Depth Explanation:

An HTTP response from the server to the client typically includes the following components:

Protocol version (C): Specifies the HTTP version used (e.g., HTTP/1.1).

Status code (B): Indicates the response result (e.g., 200 for OK, 404 for Not Found).

Reason phrase (A): A textual description associated with the status code (e.g., " OK " , " Not Found " ).

Headers and Body: Contain additional information and the actual response content.

URI (D): The Uniform Resource Identifier is part of the HTTP request and not the HTTP response. Therefore, D is the correct answer.

In BGP/MPLS IP VPN, when OSPF is used as the PE-CE routing protocol, Domain IDs are used to determine whether the OSPF routes imported into the VPN instance belong to the same OSPF domain.

How Domain ID Works in OSPF and MPLS VPN:

Same Domain ID (OSPF Intra-domain routes)

If the PE router ' s Domain ID matches the OSPF Domain ID, routes are treated as intra-area routes.

The routes retain OSPF attributes when redistributed into the VPN.

Different Domain ID (OSPF Inter-domain routes)

If the Domain ID does not match, routes are treated as external routes (Type 3 or Type 5 LSAs).

The PE router redistributes these routes as OSPF external routes.

Example Huawei Configuration for Domain ID in OSPF VPN:

ospf 1 vpn-instance VPN1

domain-id 1.1.1.1

This ensures consistent OSPF route types when exchanging routes between PE and CE.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – OSPF Domain ID in PE-CE Routing

HCIE-Datacom Study Material – OSPF & MPLS VPN Route Redistribution

Comprehensive and Detailed In-Depth Explanation:

The statement A is incorrect because enabling DHCP snooping in the VLAN view only takes effect on interfaces within that specific VLAN that have DHCP snooping configured. It does not automatically apply to all interfaces of the device. Each interface within the VLAN must individually be configured or marked as trusted/untrusted.

B: Correct, as DHCP snooping, when enabled globally without any additional specifications, defaults to processing DHCPv4 messages.

C: Correct, as DHCP snooping can protect against DHCP spoofing attacks by marking interfaces as trusted or untrusted.

D: Correct, enabling DHCP snooping on an interface means it will monitor all DHCP messages on that specific interface.

Understanding BGP Link State (BGP-LS)

???? What is BGP-LS?

BGP-LS (BGP Link-State) is an extension of BGP that allows routers to exchange network topology information via Link-State NLRI.

Helps SDN controllers and path computation elements (PCEs) make intelligent routing decisions.

???? What Does BGP-LS Advertise?

? Node Information – Router IDs, Loopbacks

? Link Information – Bandwidth, Delay, Cost

? Prefix Information – Network Subnets

? Topology Information – Full network graph

Why is the Answer TRUE?

? BGP-LS introduces a new NLRI format for advertising link-state information.

? NLRI (Network Layer Reachability Information) is used to distribute topology data to SDN controllers.

? It improves path optimization by enabling centralized traffic engineering decisions.

Real-World Application:

SDN-Based Traffic Engineering: Used in Segment Routing (SR) networks for centralized path selection.

MPLS TE (Traffic Engineering): Optimizes network paths dynamically based on real-time link-state data.

? Reference: Huawei HCIE-Datacom Guide – BGP Link-State (BGP-LS) Fundamentals

Comprehensive and Detailed In-Depth Explanation:

1. Understanding VXLAN Asymmetric IRB Forwarding:

In VXLAN (Virtual Extensible LAN) networks, there are two types of IRB forwarding: Symmetric IRB and Asymmetric IRB.

In Asymmetric IRB, routing occurs only at the ingress VTEP (Virtual Tunnel Endpoint).

The ingress VTEP (VTEP1) encapsulates the original data frame and sends it to the egress VTEP (VTEP2) over the VXLAN tunnel.

The destination MAC address of the original Ethernet frame is the MAC address of the Layer 3 gateway (VBDIF) at the egress VTEP.

2. Analyzing the Topology:

PC1 (172.16.2.1/24) with MAC A is sending traffic to PC2 (172.16.1.2/24) with MAC D.

Both PCs are in different subnets, so inter-subnet routing is required.

VTEP1 (1.1.1.1) on SW1 is the ingress VTEP.

VTEP2 (2.2.2.2) on SW2 is the egress VTEP.

The VXLAN Network Identifier (VNI) for the traffic is 100.

SW1 has two VBDIF interfaces:

VBDIF10 (MAC B) - Interface for BD10 (172.16.2.254).

VBDIF20 (MAC C) - Interface for BD20 (172.16.1.254).

3. Packet Flow in Asymmetric IRB:

Step 1: PC1 sends a packet destined for PC2. The packet is routed at the ingress VTEP (SW1) using the VBDIF interface (VBDIF10 with MAC B).

Step 2: The ingress VTEP (SW1) encapsulates the packet in a VXLAN header (VNI 100) and sends it to VTEP2.

Step 3: The original data frame inside the VXLAN packet must have a destination MAC address that matches the gateway MAC address (VBDIF20 - MAC C) at the egress VTEP (SW2).

Step 4: On reaching VTEP2, the encapsulation is removed, and the original frame with destination MAC C is forwarded.

Step 5: VTEP2 performs Layer 3 routing to forward the packet to PC2.

4. Why MAC C is Correct:

In asymmetric IRB forwarding, the routing decision at the ingress VTEP ensures that the destination MAC in the original frame is set to the VBDIF (gateway) MAC of the egress VTEP.

Since the egress VTEP (SW2) has VBDIF20 (MAC C) for the destination subnet (172.16.1.0/24), the destination MAC address of the original frame is MAC C.
