A proprietary field-glued mass timber beam splice requires special inspection because the connection relies on a field-applied adhesive process that is not covered as a routine prescriptive mass timber connection in Table 1705.5.3. The controlling mechanism is IBC Section 1705.1.1, which authorizes the building official to require special inspection for unusual materials, systems, or installation procedures, particularly where compliance depends on additional manufacturer installation instructions.

The ICC code-development rationale for the tall mass timber provisions specifically identifies field-glued mass timber beam or panel splices as an example of work for which special inspection can be required. Inspection must address the approved evaluation report and manufacturer’s instructions, including substrate preparation, moisture and temperature limits, adhesive storage and expiration, mixing or proportioning, application quantity, open time, member alignment, clamping or pressure, and curing conditions.

Approval by the permit applicant has no regulatory significance. Verification by the registered design professional may supplement the inspection program but does not replace the approved special inspector. A building official may observe the work, but routine field verification by that official is not the prescribed quality-control procedure.

References/Topics: 2021 IBC Sections 1704.2, 1704.3 and 1705.1.1; special cases; proprietary field-glued mass timber splices.

===============

A conventional 2 × 6 solid-sawn stud is a light-frame member and does not satisfy the minimum cross-sectional dimensions associated with mass timber or heavy-timber construction. Therefore, option A is the exception.

The IBC defines mass timber as Type IV structural elements primarily composed of solid, built-up, panelized or engineered wood products that meet the minimum cross-sectional dimensions required for Type IV construction. A nominal 2 × 6 stud is substantially smaller than those dimensions and is ordinarily classified as conventional light-frame construction. Its use might be permitted in a particular nonstructural partition or another specifically authorized application, but it is not itself a qualifying mass timber structural element.

CLT is expressly recognized as a mass timber panel product. Parallel-strand lumber is a form of structural composite lumber and can qualify where it satisfies the applicable minimum dimensions, product-standard requirements and approved structural design. Dowel-laminated timber is a built-up panelized timber product and may likewise serve as a mass timber element when its dimensions, engineering and approval satisfy the construction documents and code.

The classification depends on the completed element’s dimensions and approved structural function—not merely on the fact that it is manufactured from wood.

References/Topics: 2021 IBC Chapter 2 definitions of “Mass Timber” and “Conventional Light-Frame Construction”; Sections 602.4 and 2304.11.

===============

Option D directly reflects the engineering-analysis method authorized by 2021 IBC Section 2304.10.1. For structural connections in Type IV-A, IV-B, or IV-C construction, the analysis must demonstrate that temperatures at every relevant portion of the connection remain within prescribed limits for a period corresponding to the fire-resistance rating required of the connected structural element.

The code establishes two critical temperature-rise limits: an average rise of not more than 250°F and a maximum rise of not more than 325°F . For this purpose, the “connection” includes the connectors, fasteners, and those portions of the wood members that participate structurally in the connection.

Option A is incorrect because ASTM E136 is a test for determining whether a material is noncombustible; it is not the fire-resistance test method for a structural connection. Option B is not a code-recognized substitute for the required connection fire evaluation. Option C is insufficient because a manufacturer’s generalized fire-performance representation does not establish the required code fire-resistance duration unless supported through an approved test, evaluation, or engineering analysis.

References/Topics: 2021 IBC Section 2304.10.1; engineering-analysis method for Type IV-A, IV-B, and IV-C structural connections.

===============

Option A correctly applies the protection requirements for mass timber used in qualifying interior exit and elevator hoistway enclosures. Where a two-hour, or 120-minute, fire-resistance rating is required, the noncombustible protection must contribute not less than two-thirds of that required rating. Two-thirds of 120 minutes is 80 minutes.

The 2021 IBC provisions for Type IV-A require interior mass timber surfaces to be protected with compliant noncombustible materials. The assigned protection time is determined under Section 722.7 and cannot be less than the applicable minimum. Option B is incorrect because 40 minutes would provide only one-third of a two-hour rating; Type IV-B protected mass timber generally requires at least 80 minutes for a two-hour element. Option C does not correctly describe the special protection path applicable to mass timber exit and hoistway enclosures. Option D is also incorrect because Type IV-HT is not governed by the tall mass timber enclosure provision stated in the question.

The inspector must verify the total assigned protection time, membrane type, number of layers, fastening, joints, corners, penetrations, and continuity on both required faces of the enclosure.

References/Topics: 2021 IBC Sections 602.4, 602.4.1.2 and 722.7.1; protection of mass timber shaft and exit enclosures.

===============

Option C is not an IFC requirement. The 2021 IFC requires inspection records to be maintained on-site, but it does not require those records to be secured in a fire- and water-resistant safe.

Section 3303.2 requires the owner to designate a site safety director. Section 3303.3 then makes that director responsible for completing a daily fire safety inspection of the project site. Every day, building and outdoor construction areas must be evaluated against the prescribed fire-safety inspection items.

The results of each inspection must be documented and retained on-site until a certificate of occupancy has been issued . The records must also be immediately available at the site for presentation to the fire code official upon request. Options A, B, and D therefore accurately reflect the code requirements.

The daily inspection program covers practical hazards such as hot work, temporary heating, combustible debris, temporary electrical wiring, hazardous-material storage, fire apparatus access, hydrants, fire department connections, standpipe availability, and portable extinguishers.

For tall mass timber projects, this documentation is particularly important because substantial combustible construction may be present before permanent fire protection systems are complete.

References/Topics: 2021 IFC Sections 3303.2 and 3303.3; site safety director; daily fire-safety inspection and documentation.

===============

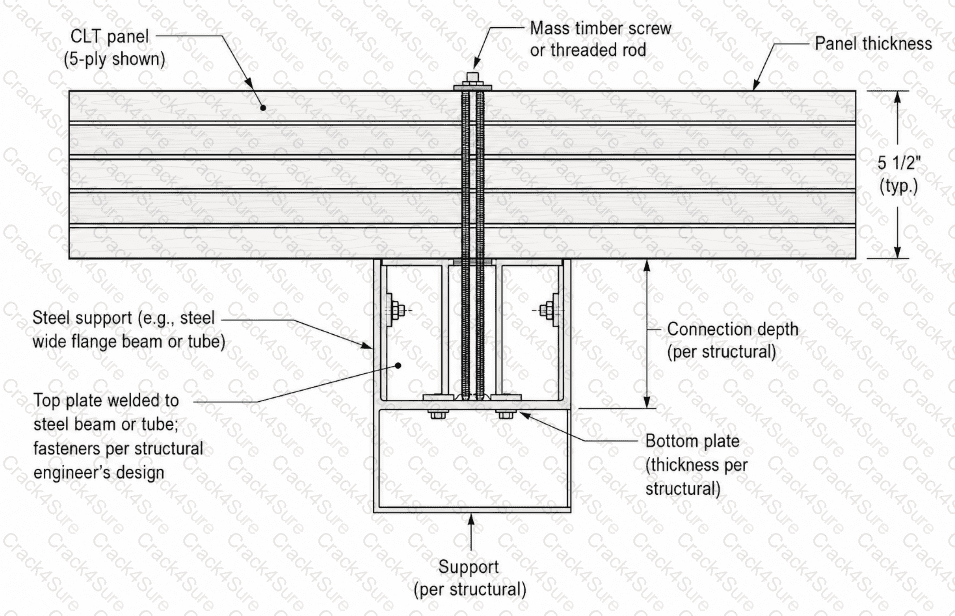

The structural connections must maintain a fire-resistance rating corresponding to the required rating of the structural elements they connect. Because both the glulam beam and CLT panels require a two-hour fire-resistance rating, their connections must also provide two hours of fire resistance. Therefore, option C is correct.

Concealing steel hardware inside a timber member does not eliminate the fire-resistance requirement. Steel rapidly conducts heat and can lose strength, while timber surrounding a concealed connector can char, split, or withdraw from fasteners. The connection must consequently be protected through sufficient wood cover, noncombustible protection, tested assemblies, or an approved engineering analysis demonstrating acceptable connection temperatures and capacity for the entire required duration.

A three-hour rating is not required merely as a generalized safety factor; the code requires correspondence with the connected elements unless the approved design establishes another condition. A one-hour connection would create a premature weak point in the load path, and a zero-hour rating would be unacceptable simply because the hardware is hidden.

References/Topics: 2021 IBC Section 2304.10.1; fire-resistance rating of mass timber connections; protected concealed steel hardware.

===============

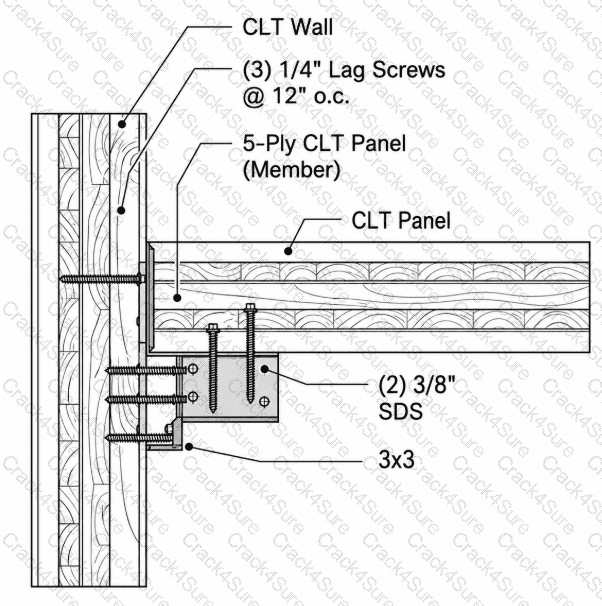

The 2 × 2 block is intended to protect the abutting wood edges from the effects of char contraction. Therefore, option D is correct.

During fire exposure, wood chars and the char layer can shrink or contract. At an interface between two abutting timber components, that contraction can create a gap that allows heat and flames to penetrate deeper than predicted for a continuous exposed surface. AWC connection-fire-design methodology therefore requires additional protection at susceptible joints and interfaces. The block shields the abutting edges and maintains the sacrificial wood-cover path around the protected connection.

Its primary function is not decorative, nor is it simply an air-sealing component. Although limiting airflow can be a secondary consequence of closing the interface, the design purpose addressed by the technical guidance is control of premature fire penetration caused by char contraction. The block also should not be interpreted independently as a generic one-hour protective membrane for the steel ledger; the connection’s total rating depends on the complete approved protection assembly.

The inspector should confirm the block’s dimensions, species or product designation, fastening, continuity, and tight installation before the connection is concealed.

References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions addressing char contraction and gaps between abutting wood members.

IBC Table 722.7.1(2) assigns a 40-minute protection contribution to 5/8-inch Type X gypsum board . Therefore, option D is correct.

The same table assigns 25 minutes to 1/2-inch Type X gypsum board. Consequently, option B overstates the protection contribution of the thinner Type X panel. Ordinary gypsum board values appearing elsewhere in Section 722 cannot simply be substituted for the specific mass timber noncombustible protection values in Table 722.7.1(2). Options A and C therefore do not state the protection contribution recognized by the mass timber table.

These assigned values are particularly important when multiple layers are required. For example, a two-hour building element requires at least 80 minutes of noncombustible protection under Table 722.7.1(1), which can be satisfied prescriptively with two properly installed layers of 5/8-inch Type X gypsum board, each contributing 40 minutes.

The contribution is valid only when the gypsum board is installed and fastened in accordance with Section 722.7.2.

References/Topics: 2021 IBC Tables 722.7.1(1) and 722.7.1(2); Section 722.7.2; Type X gypsum noncombustible protection.

===============

Minimum prescriptive dimensions are not themselves a component added into a calculated fire-resistance time. Therefore, option A is the exception.

IBC Section 602.4 states that a mass timber element’s required fire resistance can be based on the fire-resistance contribution of the mass timber, the noncombustible protection, or a combination of those two components. Options B, C, and D reflect those permitted approaches.

Minimum dimensions under Section 2304.11 serve a different function. They establish the minimum cross-sectional size and construction characteristics required for qualifying heavy timber or mass timber elements. A member can satisfy the minimum dimensional requirement without automatically achieving every required one-, two-, or three-hour fire-resistance rating. The structural fire calculation must evaluate the remaining effective section after charring, elevated-temperature effects, applied loading, and any credited protective materials.

The inspector must therefore verify both requirements independently: the installed member must meet the minimum code dimensions and must match the approved fire-resistance design. Increasing a member to the minimum prescriptive size does not by itself replace the required calculation, tested assembly, or approved protection system.

References/Topics: 2021 IBC Sections 602.4, 703.2, 722.7 and 2304.11; calculated mass timber fire resistance.

===============

Option A correctly reflects the required noncombustible protection for protected Type IV-A mass timber. Under IBC Section 602.4.1.2.1, the noncombustible protection applied to interior faces of Type IV-A mass timber must contribute the protection time determined by the applicable provisions of Section 722.7, but not less than 80 minutes .

The broader Type IV provisions are particularly important for interior exit and elevator hoistway enclosures. In qualifying tall mass timber buildings with an occupied floor more than 75 feet above the lowest level of fire department access, mass timber interior exit and elevator hoistway enclosures are permitted up to the specified height limits only where protected in accordance with Section 602.4.1.2. For a two-hour, 120-minute-rated enclosure, at least 80 minutes must therefore come from the prescribed noncombustible protection.

Type IV-B likewise uses an 80-minute minimum for protected interior mass timber, so option B ' s 40-minute value is incorrect. Type IV-C has different exposure allowances and shaft-protection provisions, but option C does not state the controlling tall-building enclosure requirement tested here. Type IV-HT is not governed by the Type IV-A tall mass timber enclosure protection rule.

References/Topics: 2021 IBC Sections 602.4 and 602.4.1.2 through 602.4.1.2.1; Section 722.7.

===============

A 7/16-inch wood structural panel does not satisfy the prescribed minimum thickness for fireblocking. Therefore, option C is the exception.

IBC Section 718.2.1 permits one thickness of 23/32-inch wood structural panel where the joints are properly backed. A 7/16-inch panel is substantially thinner and cannot be substituted without an approved alternative-material determination. The code also recognizes one-half-inch gypsum board and properly installed batts or blankets of mineral wool or other approved materials.

Mass timber complying with Section 2304.11 is also permitted as fireblocking. Its large cross section provides resistance to the movement of flame, hot gases, and smoke through a concealed space that is at least equivalent to the nominal lumber traditionally accepted for this purpose.

The inspector must distinguish fireblocking from a tested firestop system. Fireblocking divides or interrupts concealed combustible cavities; it does not automatically protect a penetration through a fire-resistance-rated wall or floor. Installation must completely fill or close the required space, remain securely supported, and comply with requirements for joints, edges, penetrations, and mineral-fiber compression.

References/Topics: 2021 IBC Section 718.2.1; Section 2304.11; approved fireblocking materials in mass timber construction.

===============

When the footnotes are disregarded, the fire-resistance ratings assigned to the principal building elements of Type IV-A construction correspond to those of Type I-A construction . Option A is therefore correct.

IBC Table 601 assigns both Type I-A and Type IV-A a 3-hour rating for the primary structural frame , 3 hours for exterior and interior bearing walls, 2 hours for floor construction and associated secondary structural members , and 1½ hours for roof construction and associated secondary structural members . Interior nonbearing walls and partitions are generally rated zero by Table 601 unless another code provision requires a rating. Exterior nonbearing walls are governed separately based on fire separation distance.

The similarity in Table 601 ratings does not mean Type I-A and Type IV-A are otherwise equivalent construction types. Type I-A relies principally on noncombustible structural construction, whereas Type IV-A permits mass timber subject to the substantial noncombustible protection requirements of Section 602.4.1.

Types II-A, III-A, IV-C, and IV-HT have materially different Table 601 requirements, so options B, C, and D do not provide a complete rating match.

References/Topics: 2021 IBC Section 601 and Table 601; Types I-A and IV-A fire-resistance ratings.

===============

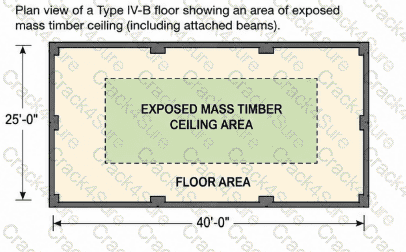

The figure depicts an unprotected portion of the mass timber ceiling . For Type IV-B construction, Section 602.4.2.2.2, Exception 1.1, limits unprotected ceiling areas—including attached mass timber beams—to 20 percent of the floor area of the applicable dwelling unit or fire area. Option B is therefore correct.

The percentage is based on floor area rather than total ceiling surface area. For example, where the associated fire area contains 1,000 square feet of floor area, the maximum ceiling exposure permitted under this particular exception would be 200 square feet, subject to the additional separation and mixed-exposure provisions.

The 40-percent value in option D applies to mass timber walls, including attached columns , rather than ceilings. The 15-percent and 30-percent values are not the prescribed Type IV-B ceiling exposure limitations in the 2021 IBC.

The inspector must additionally determine whether another exposed wall or ceiling region exists nearby. Section 602.4.2.2.4 imposes a 15-foot separation requirement, and Section 602.4.2.2.3 controls situations where both wall and ceiling surfaces are intentionally exposed.

References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B ceiling exposure limitations.

===============

Option A is the exception because the base fire-resistance rating for an exterior bearing wall in Type IV-C construction is two hours, not one hour. The values are established by 2021 IBC Table 601.

Type IV-A has the most stringent tall mass timber construction requirements and assigns a three-hour rating to exterior bearing walls. Type IV-B and Type IV-C each assign a two-hour rating. Consequently, options B, C, and D accurately state the Table 601 requirements, while option A understates the required rating by one hour.

The Table 601 value is the minimum construction-type rating. Exterior bearing walls must also comply with the exterior-wall requirements of Table 705.5 based on fire separation distance. Where another code provision requires a higher rating, the more restrictive requirement governs. The inspector must therefore avoid treating the two-hour Type IV-C value as an absolute maximum.

Field verification should include the approved wall assembly, mass timber dimensions, noncombustible exterior protection, membrane continuity, protection of connections, intersections, joints, and any required opening protection. An exterior bearing wall installed as a nominal one-hour assembly would not comply merely because the timber itself has substantial cross-sectional dimensions.

References/Topics: 2021 IBC Table 601; Sections 602.4 and 705.5; exterior bearing-wall ratings for Types IV-A, IV-B, and IV-C.

===============

Adhesive anchors installed horizontally to resist sustained tension loads require continuous special inspection. Therefore, option D is correct.

Continuous special inspection means that the special inspector must be present during the performance of the regulated work. This heightened oversight is necessary because horizontal or upwardly inclined adhesive-anchor installations resisting sustained tension are sensitive to installation variables such as borehole cleaning, adhesive proportioning, mixing, placement, embedment depth, temperature, cure time, and prevention of adhesive loss before curing. A concealed installation defect can substantially reduce long-term tension capacity.

The other listed activities are generally subject to periodic inspection under the mass timber special-inspection provisions. Periodic inspection allows the inspector to observe the work intermittently at appropriate stages rather than remaining present throughout the entire operation. Bolted connections, concealed mass timber connections, and anchorage of mass timber construction to deep foundation systems must still be inspected, but the code does not automatically designate each of those activities as continuous.

The inspector should also verify installer certification where required, approved adhesive-anchor evaluation documentation, expiration dates, storage conditions, drilling method, hole dimensions, and compliance with the approved structural documents.

References/Topics: 2021 IBC Sections 1705.3 and 1705.5.3; Table 1705.3; continuous inspection of adhesive anchors under sustained tension.

===============

ASTM E84 is not a test for establishing the fire-resistance rating of a structural member or building assembly. Therefore, option B is the exception.

The 2021 IBC establishes fire-resistance ratings primarily through testing conducted in accordance with ASTM E119 or UL 263. Those tests evaluate whether an element or assembly can maintain structural performance, limit flame passage, and control temperature rise for a specified duration under standardized fire exposure. ASTM E84 instead evaluates surface-burning characteristics, principally flame-spread and smoke-developed indices. An E84 classification cannot establish that a wall, floor, beam, column, or connection possesses a one-, two-, or three-hour fire-resistance rating.

The IBC also recognizes approved prescriptive designs under Section 721, calculated fire resistance under Section 722, and designs documented in approved sources or supported by permitted analytical methods. Those are valid methods represented by options A, C, and D.

For inspection purposes, the approved construction documents must identify the method used to establish the rating. The inspector must then verify that the installed materials, dimensions, loading assumptions, protective layers, fasteners, joints, and connection details match the tested, calculated, or prescriptive design.

References/Topics: 2021 IBC Sections 703.2, 703.2.1, 721 and 722; ASTM E119 and UL 263 fire-resistance testing.

===============

The applicable standard is ASTM E119 , making option B correct. IBC Section 703.6 establishes a performance method for determining the number of minutes contributed by noncombustible protection applied to mass timber.

The methodology requires two otherwise identical assemblies to be evaluated using the procedures of ASTM E119 or UL 263 . Test Assembly 1 is tested without the protective covering. Test Assembly 2 incorporates the representative noncombustible protection, including its actual configuration, attachment details, joint treatment, accessories, and other relevant installation conditions. The protection contribution is then calculated by subtracting the fire-resistance time of the unprotected assembly from that of the protected assembly.

ASTM E119 is specifically designed to evaluate fire endurance of building construction and structural assemblies under standardized fire exposure. ASTM D3498, by contrast, is an adhesive specification referenced by the IBC for sealing certain mass timber interfaces. The other standards listed are not the prescribed comparative fire-resistance test for this determination.

References/Topics: 2021 IBC Sections 703.6 and 722.7.1; ASTM E119; UL 263; determination of noncombustible protection time contribution.

===============

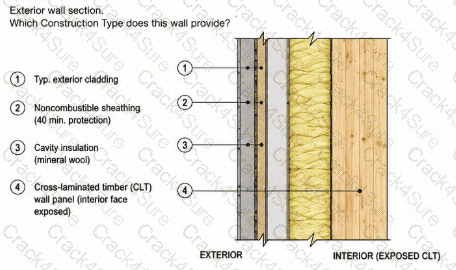

The illustrated configuration represents Type IV-C construction , so option C is correct. The distinguishing feature is the combination of noncombustible protection on the exterior face with an exposed CLT surface toward the interior.

IBC Section 602.4.3.1 requires the exterior side of combustible exterior walls in Type IV-C construction to have noncombustible protection providing a minimum assigned time of 40 minutes . Table 722.7.1(2) assigns exactly 40 minutes to one layer of 5/8-inch Type X gypsum board, matching the protection illustrated in Figure 66.

The decisive distinction is Section 602.4.3.2: mass timber elements in Type IV-C are permitted to be unprotected on the interior . This is fundamentally different from Type IV-A, where essentially all interior mass timber faces must be protected, and Type IV-B, where interior protection is generally required but limited areas may remain exposed under specific area and separation restrictions.

Type IV-HT does not use the Type IV-C protected-exterior/exposed-interior regulatory scheme.

References/Topics: 2021 IBC Sections 602.4.3, 602.4.3.1 and 602.4.3.2; Table 722.7.1(2), 5/8-inch Type X gypsum board = 40 minutes.

===============

Type IV-HT construction permits concealed spaces where those spaces comply with the specific protection alternatives prescribed for traditional heavy-timber construction. One permitted method is to completely fill the concealed space with noncombustible insulation. Therefore, option D is correct.

This provision should not be confused with the concealed-space requirements applicable to the tall mass timber classifications—Types IV-A, IV-B, and IV-C. Those classifications employ dedicated noncombustible protection and assigned-time requirements intended to control the contribution of concealed combustible construction during a fire. Type IV-HT follows a different concealed-space framework and allows protection through approved alternatives, including sprinkler protection, gypsum-board enclosure, or complete filling with noncombustible insulation, as applicable.

The insulation must completely occupy the concealed volume. Merely installing partial batt insulation, leaving unprotected voids, or relying on nominally fire-resistant thermal insulation does not satisfy the provision. The inspector should verify the material’s noncombustibility, continuity, placement around obstructions, and conformance with the approved construction documents before the space becomes inaccessible.

References/Topics: 2021 IBC Section 602.4.4; concealed spaces in Type IV-HT construction; noncombustible insulation protection method.

===============
