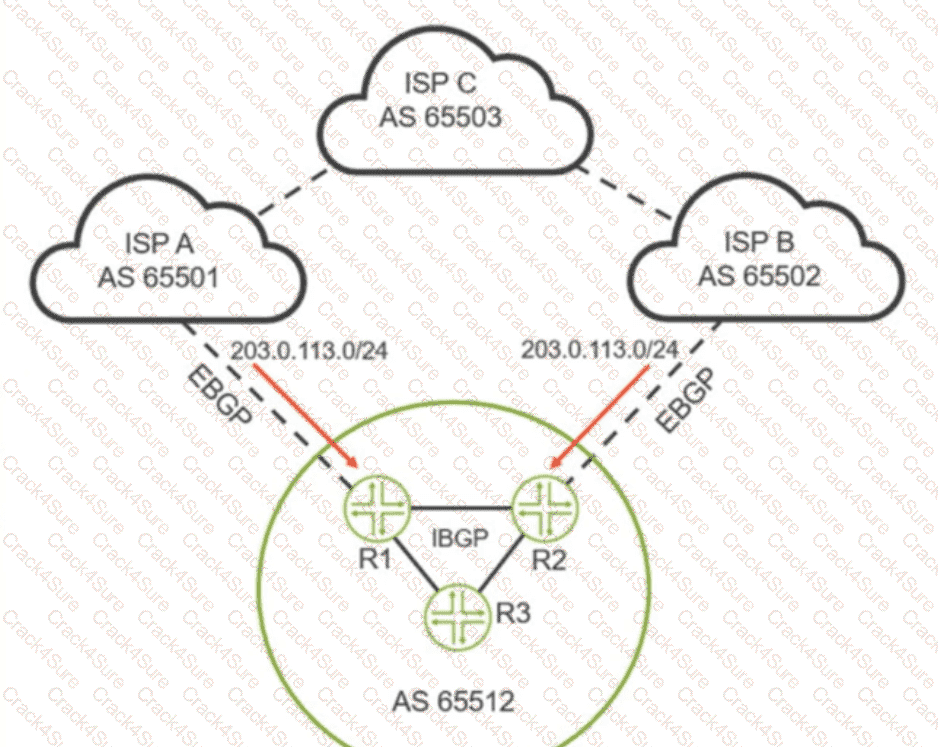

The exhibit illustrates an Autonomous System (AS 65512) receiving the same prefix ($203.0.113.0/24$) from two different neighbors, ISP A and ISP B. To influence outbound traffic from AS 65512 so that ISP A is preferred, you must manipulate the BGP Local Preference attribute.BGP Path Selection and Local Preference: Local preference is the first attribute evaluated by BGP after checking if the next hop is reachable. A higher local preference value is always preferred over a lower one. The default value in Junos OS is 100.Applying the Preference (Option B): By applying an import policy on router R1 to set a local preference higher than 100 (e.g., 200) for routes from ISP A, R1, R2, and R3 will all prefer the path through R1 to reach ISP A.Applying the Preference (Option C): Alternatively, you can achieve the same result by applying an import policy on R2 to set a local preference lower than 100 (e.g., 50) for routes from ISP B. Since the routes from R1 remain at the default of 100, the path through ISP A (100) will be preferred over ISP B (50).Why A and D are incorrect: Setting a lower preference for ISP A (Option A) or a higher preference for ISP B (Option D) would result in ISP B being preferred for outbound traffic, which is the opposite of the requirement.

This question focuses on port security and preventing " rogue switches " or multiple devices from accessing a single physical port simultaneously.

Single-Secure Supplicant Mode (Option A): This is the most restrictive 802.1X mode in Junos OS. It allows exactly one MAC address to be authenticated on the port at a time. If a device successfully authenticates, the switch will drop any traffic coming from any other MAC address on that same physical interface. If a user tries to plug in a switch, only the first device that authenticates will have access; all other devices behind that switch will be blocked.

Single Supplicant Mode (Option C): This mode allows the first authenticated user to " open " the port for all other users. This would actually allow a rogue switch to function once the first device is authorized.

Multiple Supplicant Mode (Option B): This allows multiple devices to connect, provided each one authenticates individually. While secure, it does not prevent a user from connecting multiple devices to the port, which violates the requirement to allow only one.

MAC-RADIUS (Option D): This is an authentication method, not a port-access mode that limits the number of supplicants.

In a standard campus deployment on Juniper EX Series switches involving VoIP phones and 802.1X authentication, understanding the default behavior of Junos OS 24.4 is critical:

Voice VLAN (Option A): By default, an access port belongs to a single VLAN (the native or data VLAN). For an IP phone to operate correctly on the same physical port as a PC, a Voice VLAN must be explicitly configured and associated with the interface. This allows the switch to segregate voice traffic (usually tagged) from data traffic (untagged).

802.1X Configuration (Option D): Access ports do not have 802.1X authentication enabled by default. To enforce network access control for the client PCs, you must manually enable and configure the dot1x protocol on all relevant interfaces.

PoE Default (Option B): On EX Series switches that support PoE (like P or MP models), PoE is enabled by default on all PoE-capable ports. Therefore, additional configuration is generally not required unless you need to change power priorities or management modes.

LLDP Default (Option C): Standard LLDP is typically enabled by default in the factory configuration of most EX Series switches to facilitate neighbor discovery. While LLDP-MED is used for VoIP, the core requirement for " deploying " the described environment highlights the manual steps of VLAN and security setup rather than protocol discovery which often runs out-of-the-box.
