The Packet Forwarding Engine (PFE) is an integral component of Juniper Networks devices, responsible for the data plane operations. The data plane, also known as the forwarding plane, is where the actual processing and forwarding of packets occur based on the routing and forwarding tables. The PFE executes the forwarding decisions made by the Routing Engine (RE), handling all packet transmissions, including routing, filtering, and switching packets towards their destination. This contrasts with the control plane operations handled by the RE, which involve routing table maintenance, system management, and control protocol processing.

To view real-time usage statistics for the busiest interfaces on a device running Junos OS, the correct command is B, "monitor interface traffic." This command provides a dynamic, real-time view of the traffic flowing through the interfaces, allowing administrators to quickly identify and monitor the busiest interfaces on the device.

If you've committed a configuration and then need to revert to the previous configuration, the rollback command is used. Since the incorrect IP address has not been committed, as indicated by the commit check command being successful, issuing rollback 1 will undo the changes made in the current session, which includes the accidental entry of the IP address.

In Junos OS, the management daemon (mgd) is responsible for handling all the device management tasks, including processing CLI commands and handling commit operations. The mgd daemon interacts with the Junos OS configuration database and provides the necessary logic to ensure that configuration changes are syntactically correct and do not conflict with each other. When a user commits a configuration, mgd validates the changes, applies them to the running configuration, and ensures that the necessary daemons are notified of the changes to apply them accordingly.

Referring to the exhibit, the presence of the "+" symbol next to the OSPF route for 192.168.100.2/32 indicates that this is the active route being used to forward traffic. The BGP route, although present, does not have the "+" symbol, indicating it is not the active route. In Junos OS, the routing table displays the active route with a "+" symbol, and the fact that the OSPF route has this symbol means it is the preferred path based on the routing protocol's decision process, which takes into account factors such as route preference (administrative distance) and metrics.

In Junos OS, route preference (also known as administrative distance) is used to determine the preferred route among multiple routes to the same destination learned via different routing protocols. Direct and local routes, which represent directly connected networks and interfaces, typically share the same low preference value, indicating high trustworthiness because they are directly connected to the router. OSPF internal routes (routes within the same OSPF area) and OSPF AS external routes (routes that are external to the OSPF autonomous system but redistributed into OSPF) also share the same preference value, although this value is higher (indicating less trust) than for direct and local routes. This distinction helps the routing engine decide which routes to use when multiple paths are available.

When you enter ? at the command-line prompt in Junos OS, the system provides assistance in two significant ways. Firstly, it lists the available commands and options that can be used at the current point in the command hierarchy, aiding users in understanding what commands they can execute next. Secondly, it displays summary information about those commands and options, providing brief descriptions or additional context that can help users understand the function of each command or option. This feature is particularly useful for learning the command structure or for quick reference when specific command syntax is forgotten.

Junos OS supports several external authentication methods for administrative access, with TACACS+ (Terminal Access Controller Access-Control System Plus) and RADIUS (Remote Authentication Dial-In User Service) being among the most commonly used. Both TACACS+ and RADIUS are protocols that allow network devices to communicate with a central authentication server, enabling centralized control over user authentication and authorization. This centralization simplifies the management of user credentials and access policies, especially in larger networks with multiple devices.

In a Juniper Networks device, the Packet Forwarding Engine (PFE) processes unicast traffic by forwarding it according to the existing entries in the forwarding table. When the PFE encounters unicast traffic destined for an address that has a corresponding entry in the forwarding table, it directs the traffic through a specific outgoing interface or port toward its destination. This process is based on the most efficient path determined by the routing protocols in use, ensuring that the packet reaches its intended destination through a singular path, unless specific configurations such as load balancing are in place.

In Juniper Networks devices, firewall filters are used to control packet flow through the device. The default action for packets that do not match any of the specified criteria in the firewall filter is to discard them, enhancing network security by ensuring that only explicitly allowed traffic can pass through. Furthermore, it is possible to configure multiple firewall filters on a device, allowing for granular control over traffic based on various criteria such as source, destination, and protocol type.

Transit traffic that traverses the forwarding plane of a Layer 3 router includes both unicast and multicast traffic types. Unicast traffic is directed from a single source to a single destination, while multicast traffic is sent from one source to multiple destinations that are part of a multicast group. These types of traffic are efficiently routed through the network by leveraging the router's forwarding plane capabilities. Exception traffic, which requires special handling by the control plane, and broadcast traffic, which is typically limited to a single broadcast domain and not usually forwarded by Layer 3 routers, are not considered standard types of transit traffic for the forwarding plane of a router.

The routing table and forwarding table play distinct roles in a Junos OS device. The correct answers are A and D. The routing table (A) is used by the Routing Engine (RE) to select the best route among all the learned routes, while the routing table (D) stores all routes and prefixes learned from all routing protocols. The forwarding table, in contrast, contains only the active routes chosen by the RE and is used by the Packet Forwarding Engine for actual packet forwarding.

The error message in the exhibit indicates that the root-authentication statement is missing, which is mandatory for committing the configuration. In Junos OS, it is required to set a password for the root account to commit any configuration changes. This is a security measure to ensure that unauthorized users cannot access the device's configuration mode. To solve the error shown in the exhibit, configuring a password for the root account is necessary. This can be done by using the set system root-authentication plain-text-password command, after which the user will be prompted to enter a new password for the root account.

Firewall filters in Junos OS are stateless, meaning they process each packet individually without regard to the state of a connection or sequence of packets. These filters can match various packet attributes, including those at Layer 4, such as TCP and UDP port numbers. This allows for granular control over traffic based on the type of service or application. Unlike stateless filters, stateful firewalls keep track of the state of active connections and make decisions based on the context of the traffic flow, which is not a capability of Junos firewall filters. Additionally, Junos firewall filters primarily operate up to Layer 4 and do not natively inspect Layer 7 parameters, which involve application-level data.

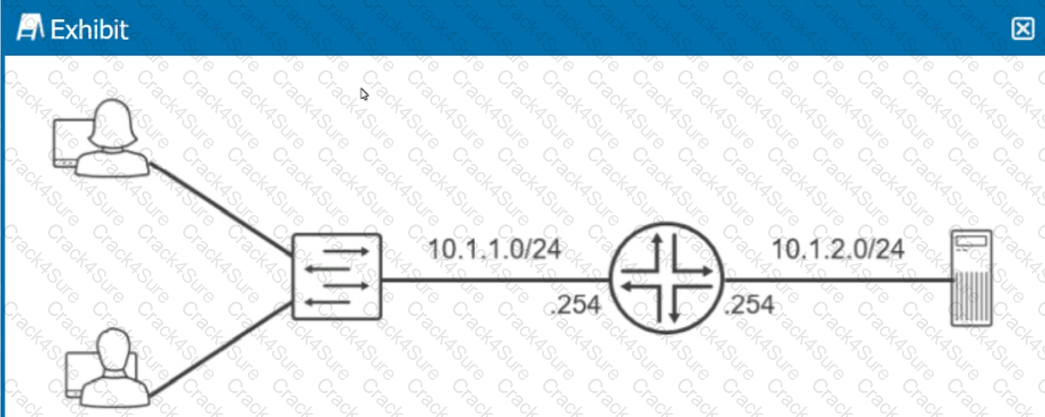

For the users in the 10.1.1.0/24 subnet and the server in the 10.1.2.0/24 subnet to communicate with each other, they need to route packets through the router that connects these two subnets. Each user and the server need to have their default gateway set to the IP address of the router interface on their respective subnet (.254). This ensures that packets destined for other subnets are sent to the router, which then routes them to the correct destination subnet.

References:

Juniper official documentation: Configuring Basic Routing.

General networking principles.

One of the key advantages of Junos OS is its ability to roll back to previous configurations. This feature allows administrators to revert to an earlier configuration state, which is invaluable for quickly recovering from configuration errors or undesired changes. Junos OS maintains an archive of previous configurations, enabling easy rollback to any saved state. Another significant advantage of Junos OS is its modular design. The operating system is structured so that different processes and services run in separate protected memory spaces, enhancing the stability and reliability of the system. If one process fails, it does not affect the others, thereby minimizing the risk of system-wide failures.

Routing policies in Junos OS are crucial for controlling route advertisements and path selection. The correct answers are B and C. An import routing policy for BGP determines which received prefix advertisements are placed in the routing information base (RIB), and policy terms are evaluated from top to bottom, with action taken on the first match found. This sequential evaluation allows for precise control over routing decisions.

Exception traffic refers to packets that the Packet Forwarding Engine (PFE) cannot process normally and must be forwarded to the Routing Engine (RE) for further processing. This includes packets destined for the router itself or packets needing special handling that the PFE cannot provide. To protect the RE from being overwhelmed by such traffic, which could potentially impact the router's control plane functions, exception traffic is rate-limited. This means that there's a threshold to how much exception traffic can be sent to the RE, ensuring that the router's critical management and control functions remain stable and responsive even during high traffic volumes or attacks.

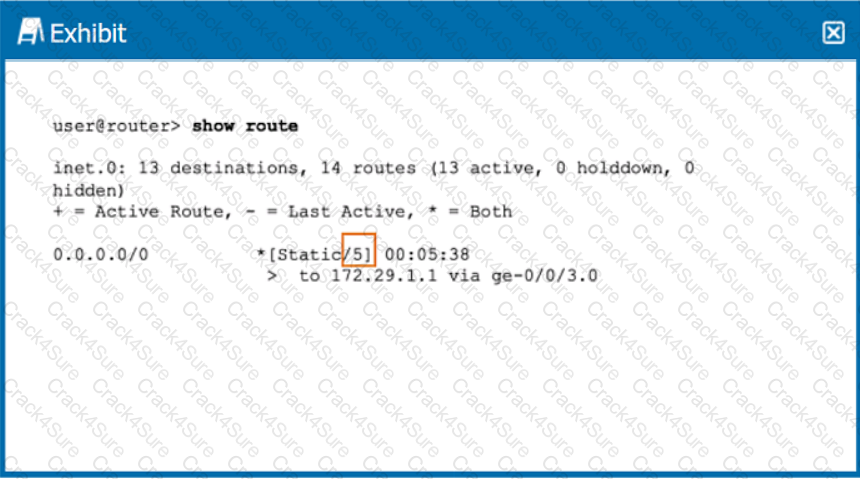

In the exhibit shown, the highlighted number next to the route type (Static) within the square brackets indicates the route preference, also known as the administrative distance. In Junos, the route preference is a value that determines the priority of the route source. Lower numbers indicate a higher priority when the routing table is being calculated. The route preference is used to select the best route when multiple paths to the same destination exist from different routing sources. The number 5 is unusually low for a static route by default, suggesting it has been manually configured to override other route types.

The Packet Forwarding Engine (PFE) in Junos OS is responsible for maintaining the forwarding table. The PFE processes incoming packets, performs route lookups in the forwarding table, and forwards packets based on this information, offloading these tasks from the Routing Engine to ensure efficient packet forwarding.

After increasing the MTU size of an interface and committing the configuration, the command to verify the applied MTU change is D, "show interfaces ge-0/0/0." This command displays detailed information about the interface, including the current MTU size, making it the best choice for verifying the applied changes.

The exhibit shows a ping test being executed from router R2 to the IP address 10.23.0.3. Since the ping command is issued on R2 and we see successful replies from 10.23.0.3, it means the source of the ping must be an interface on R2. Given the network diagram and the IP address scheme, the source IP address of the ping is on the interface ge-0/0/2 of R2, which is in the subnet 10.23.0.0/24. The only logical IP address for R2's interface in this subnet, based on standard networking practices and the given options, would be 10.23.0.2. The other addresses provided in the options belong to different subnets or are the destination of the ping itself.

In the given telnet command, "telnet 10.10.10.1 source 192.168.100.1," the destination address of the telnet session is 10.10.10.1, and the source address of the session is specified as 192.168.100.1, making C and D the correct answers. This command instructs the telnet client to use the specified source IP address when establishing the connection to the destination.

Traceoptions in Junos OS are used for detailed debugging and troubleshooting of protocols and processes within the system. They are not enabled by default due to the potential performance impact and volume of data generated. Instead, traceoptions are enabled through specific configuration settings under the relevant protocol or process hierarchy. This allows administrators to target their troubleshooting efforts and control the scope of logging. By default, the output generated by traceoptions is stored in files located in the /var/log directory, with the file name typically specified in the traceoptions configuration. This structured approach to logging and debugging helps in diagnosing complex issues without overwhelming the system or the administrator with irrelevant data.

When configuring the system-related settings for the current date and time on a Junos device, especially for a specific time zone like America/Los_Angeles, and the time does not automatically adjust, two effective actions can be taken. Firstly, setting the date and time manually allows for immediate correction of the system clock. This can be done via the CLI with the appropriate set date and time command. Secondly, configuring the device to use an NTP server can provide ongoing synchronization with an accurate time source, ensuring that the device maintains the correct time and date automatically in the future, even in the case of restarts or minor drifts in the internal clock.
