Practice Free JN0-232 Security, Associate (JNCIA-SEC) Exam Questions Answers With Explanation

After confirming correct routing:

The next step is to verify security zone assignments (Option A) . If interfaces are not correctly assigned to zones, traffic will not be evaluated against proper inter-zone or intra-zone security policies, causing drops.

Option B: The routing protocol is irrelevant once the correct route lookup is confirmed.

Option C: NAT is checked later in the flow, not the immediate next step after routing.

Option D: ALG is only needed for specific applications (FTP, SIP), not general troubleshooting.

Correct Next Step: Verify that interfaces are assigned to the correct security zones.

The SRX Series devices support third-party antivirus scanning engines such as Avira . To use the Avira antivirus engine, administrators must explicitly enable the engine and ensure that the required components are properly loaded.

Enable in configuration mode:

The Avira antivirus engine must be enabled under UTM configuration mode. This step ensures the SRX device uses the Avira scanning engine for antivirus inspection.

Example:

set security utm feature-profile anti-virus avira-engine enable

Reboot the SRX device:

A system reboot is required after enabling the Avira engine to load the Avira antivirus components into memory.

Without a reboot, the Avira engine will not become active.

Why not the others?

Restarting the mgd process (Option A) only reloads the management daemon and does not load antivirus engines.

Enabling in operational mode (Option B) is not supported; the configuration must be applied in configuration mode.

Therefore, the correct actions to use Avira Antivirus are: Enable the Avira engine in configuration mode (Option D) and reboot the SRX device (Option C).

The session output shows traffic entering the SRX from 192.0.2.212/49862 to the public destination 203.0.113.199/22. The paired flow shows the translated internal server address as 10.10.101.10/22. This confirms destination NAT because the original destination IP address 203.0.113.199 is translated to the internal destination IP address 10.10.101.10. Juniper’s destination NAT documentation shows the same interpretation of show security flow session: the incoming flow is destined to the public address, while the paired flow displays the translated private destination address. PAT is not being performed because the destination port remains 22 before and after translation. PAT would require port translation, but no port number changes are shown.

In Juniper SRX flow-based packet processing, the flow module is responsible for security functions such as screening, session management, NAT, and policy enforcement. The processing order is critical:

Screens are applied before any session lookup. This ensures that packets are inspected for anomalies, floods, or protocol violations before consuming resources for session management. Examples of these screens include TCP SYN flood protection, ICMP flood protection, and port scanning protection.

After screening, the session lookup occurs. At this point, the firewall checks whether the packet belongs to an existing session in the session table. If a matching session is found, the packet bypasses policy evaluation and is forwarded according to the session state.

If no existing session is found, the packet continues through route lookup, NAT processing, and security policy evaluation before a new session is created.

Thus, screening occurs before the session lookup , protecting the system early in the flow process. This design ensures efficiency by dropping malicious or malformed traffic before allocating session resources.

The exhibit shows an internal source address and port being translated to a different external source address and port. This behavior identifies source NAT with Port Address Translation. Source NAT changes the source IP address of traffic leaving the SRX, commonly allowing private hosts to access public networks. PAT extends this by translating the source port as well, allowing multiple internal devices or sessions to share a smaller number of public addresses, often a single public IP address. The exhibit does not show destination NAT because the translated value is associated with the internal client’s source identity, not the destination server address. It is not source NAT without PAT because the port number is also changed. Therefore, source NAT with PAT is the correct answer.

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

When a packet enters an SRX interface, a route lookup is performed:

It determines the egress interface (Option B) by checking the destination IP against the routing table.

Once the egress interface is known, its associated egress security zone (Option D) is also determined.

The ingress interface (Option A) is already known when the packet arrives, so the route lookup does not determine it.

DNS name (Option C): DNS is unrelated to routing lookups.

Correct Results: egress interface, egress security zone

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct ? Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

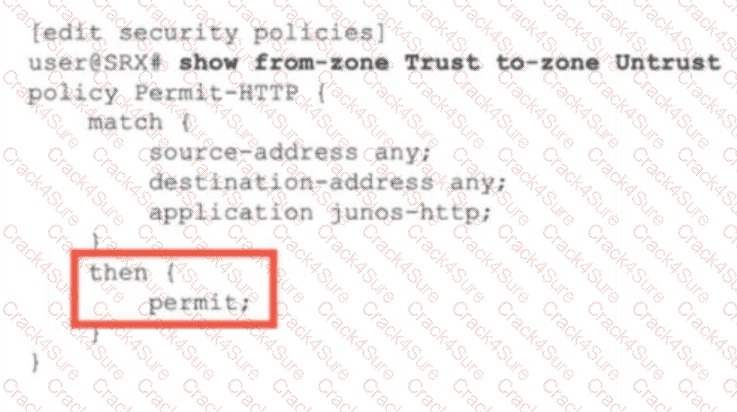

The highlighted portion in the exhibit is:

then {

permit;

}

In Junos OS security policy configuration, the then statement defines the policy action . The action tells the SRX Series Firewall what to do with traffic after it matches the policy conditions.

A security policy normally contains these major components:

Zone context: from-zone Trust to-zone Untrust

Policy name: policy Permit-HTTP

Match criteria: source address, destination address, and application

Policy action: then permit, then deny, or then reject

In the exhibit, the highlighted section is not the zone context, policy name, or match criteria. It is the action section that permits the matched HTTP traffic.

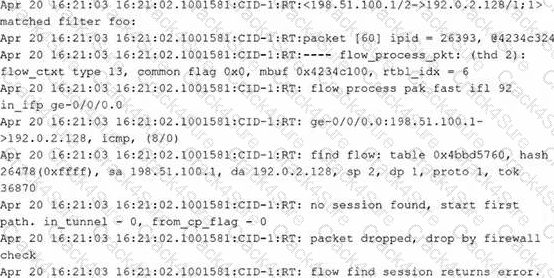

The trace output shows that the SRX receives the ICMP packet, does not find an existing session, starts first path processing, and then drops the packet with a firewall check failure before a session is successfully created. In SRX troubleshooting, first path processing includes route lookup, policy evaluation, and session creation. If the device cannot determine a valid forwarding path for the destination, the session cannot be established and the packet is dropped. The exhibit does not show evidence of a web filtering decision, ALG processing, or a screen counter match. Therefore, the best answer is that there is no known route to the destination 192.0.2.128. The appropriate operational verification would be to check the routing table using a command such as show route 192.0.2.128.

In Junos OS, security zones are the foundation of SRX firewall policy enforcement. Logical interfaces must be assigned to zones. This enables:

Separation of traffic by zone boundaries.

Enforcement of security policies for traffic traversing between zones.

Control of traffic across VLANs, subnets, or functional areas (e.g., trust, untrust, DMZ).

Other options:

Zone assignment is not used to simplify interface configuration (A).

Routing protocols and updates (B) are handled by routing instances, not zones.

SNMP monitoring (D) is enabled under system or services configuration, not zones.

PAT (Port Address Translation) , also called NAT overload, allows many devices to share a single public IP:

Option C: Correct. Multiple internal hosts share a single external IP.

Option D: Correct. Each internal host is mapped to the same public IP but differentiated by unique port numbers.

Option A: This describes basic static NAT (1-to-1 mapping).

Option B: Incorrect, this describes general NAT behavior but not specific to PAT.

Correct Statements: PAT enables multiple internal devices to share one external IP, and it maps internal IPs to external IP + port.

Default assignment: All logical interfaces are placed in the null zone by default until explicitly assigned to a user-defined security zone (Option A is correct).

Removal from null zone: Once an interface is assigned to a security zone, it is removed from the null zone (Option D is correct).

No traffic acceptance: The null zone is a discard zone; it cannot be configured to accept any traffic (Option C is incorrect).

Policy behavior: Traffic rejected by a security policy is dropped according to the policy action. It is not forwarded to the null zone for logging (Option B is incorrect).

Correct Statements: A and D

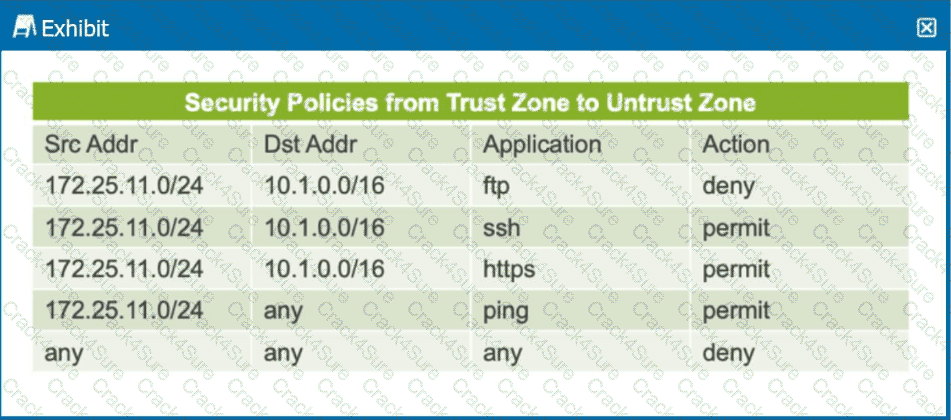

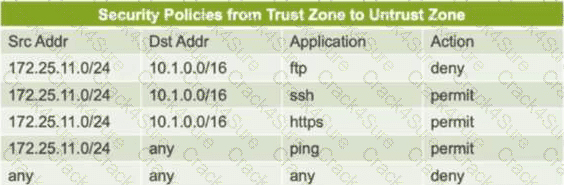

The policy table applies to traffic from the Trust zone to the Untrust zone. The source prefix 172.25.11.0/24 and destination prefix 10.1.0.0/16 are matched for FTP, SSH, HTTPS, and ping actions. FTP traffic from 172.25.11.11 to 10.1.0.10 matches the FTP deny policy, so option A is correct. SSH traffic from 172.25.11.10 to 10.1.0.10 matches the SSH permit policy, so option C is correct. Ping from 172.25.11.100 to 10.1.0.10 is permitted, not denied, because the ping policy permits it. Option D reverses the source and destination direction and does not match the displayed Trust-to-Untrust policy table. Security policies are matched using zone context, source address, destination address, and application.

Unified security policies use AppID to classify and control applications based on Layer 7 inspection, including applications nested within trusted services such as HTTP. Juniper documentation states that AppID identifies dynamic or real-time Layer 4 through Layer 7 applications and that dynamic applications can be added to unified security policy match criteria. To use AppID-based control, the SRX must have the required Application Identification feature license and application signature support. Dynamic application objects must then be referenced in the security policy so the firewall can match traffic by application identity rather than only by port or protocol. Unified policies do not have to be created only in the global zone, and disabling the default policy is not required.

Unified security policies (USPs) provide integrated application-aware controls using AppID and extend traditional zone-based policy enforcement.

Option A: Correct. If traffic matches a unified security policy, it is not re-evaluated by traditional security policies. Unified policies take precedence for matched flows.

Option B: Incorrect. Traditional policies rely on Layer 3/4 attributes. Unified policies go deeper by leveraging AppID, which inspects traffic up to Layer 7.

Option C: Incorrect. Traffic matching a traditional policy is unaffected by unified policy unless unified mode is explicitly configured for those flows.

Option D: Correct. Dynamic application recognition in unified policies uses Layer 7 (application-layer) inspection via AppID.

Correct Statements: A and D

Transit traffic is defined as traffic that passes through the SRX (not destined to the Routing Engine). To capture transit traffic:

Sampling and port mirroring (Option D) are the correct supported methods for capturing or exporting transit traffic. Sampling allows captured packets to be sent to a file or collector, while port mirroring sends a copy to a monitoring interface.

Option A: Firewall filters on an egress interface cannot directly capture packets; they can only count, accept, discard, or sample. Sampling itself is separate.

Option B: Loopback interface (lo0) is for control-plane traffic, not transit traffic.

Option C: tcpdump is not supported on SRX as a tool for capturing transit packets; the operational command monitor traffic interface is used, but sampling/port mirroring is the recommended scalable approach.

Correct Method: Sampling and port mirroring

RFC 1918 defines three private IPv4 blocks:

10.0.0.0/8

172.16.0.0/12

192.168.0.0/16

Option A exactly matches these ranges in a single source NAT rule, replacing numerous per-subnet entries.

Options B and C contain invalid/non-RFC1918 networks (e.g., 192.16.0.0/12, 172.168.0.0/16).

Option D incorrectly adds documentation network 192.0.2.0/24 , which is not RFC1918.

The SBL (SurfControl Web Filtering) server integration is part of UTM web filtering on SRX. To confirm that the firewall is properly connected and communicating with the SBL server, the command used is:

show security web filtering status

This command displays connectivity information with the SBL server, license status, and filtering operations.

Other options:

Anti-virus (Option A) checks antivirus engine status.

Content-filtering statistics (Option C) shows local content filtering counters.

Anti-spam status (Option D) checks spam engine connectivity.

Correct Command: show security web filtering status

The packet processing order in SRX with NAT and policies is:

Destination NAT (applies first, for inbound traffic).

Security Policy Evaluation (after destination NAT, before source NAT).

Source NAT (applies last, for outbound traffic).

Option A: Incorrect. Policies are not evaluated before destination NAT.

Option B: Correct. Security policies are evaluated before source NAT but after destination NAT. So in terms of order, policies are processed prior to source NAT.

Option C: Incorrect. Policies are not evaluated before source NAT — they are evaluated before source NAT is applied .

Option D: Correct. Policies are evaluated after destination NAT .

Correct Statements: B and D

A functional zone is used for special purposes, such as management interfaces. Juniper documentation states that currently only the management (MGT) functional zone is supported, which makes option A correct. The management functional zone is used for dedicated management interfaces and can be configured with host-inbound-traffic and screen options to protect management access, which makes option D correct. Option B is incorrect because functional zones are not groups of logical interfaces belonging to multiple security zones; they are special-purpose zones. Option C is incorrect because Juniper specifically states that the management functional zone cannot be specified in security policies, and traffic entering the management zone does not match policies.

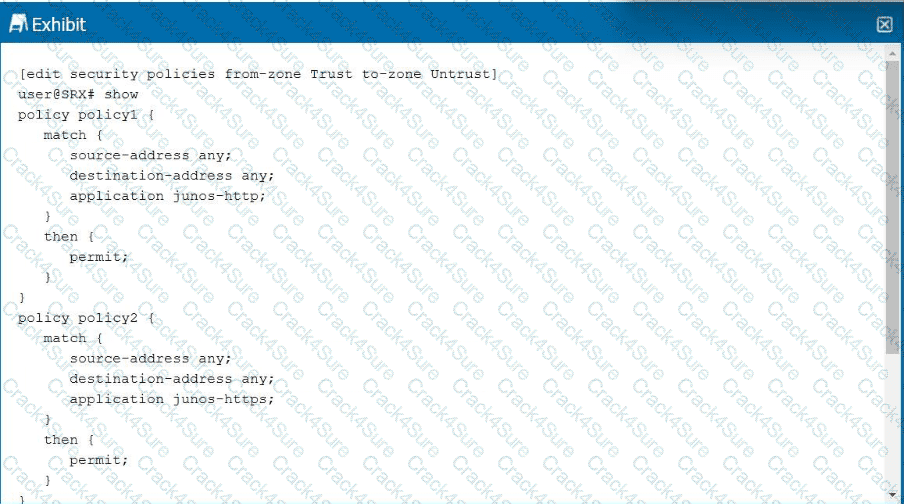

Juniper SRX evaluates security policies in order, top to bottom . The first matching policy determines the action, and no further policies are evaluated. This behavior can lead to shadowed policies if later policies match the same conditions as earlier ones.

From the exhibit:

Policy1: Matches application junos-http and permits traffic.

Policy2: Matches application junos-https and permits traffic.

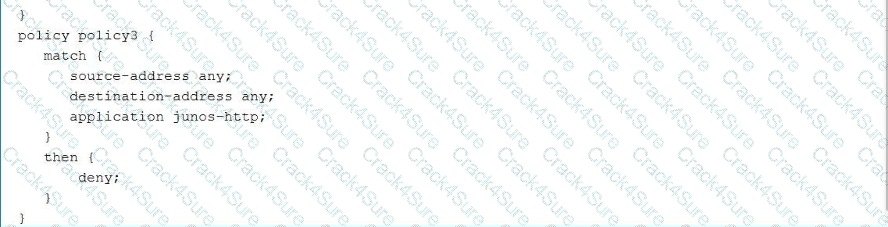

Policy3: Matches application junos-http again, but denies traffic.

Since policy1 already matches all HTTP traffic and permits it, traffic never reaches policy3 . This makes policy3 shadowed because it has the same match condition as policy1 but is evaluated later in the list.

Other options:

Policy1 is not shadowed because it is evaluated first.

Policy2 is independent (application = HTTPS) and therefore unaffected.

Only policy3 is shadowed by policy1.

Correct Statement: Policy3 will be shadowed because it matches the same application as policy1.

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

For an SRX firewall interface to respond to management traffic such as ICMP pings:

The interface must be assigned to a security zone (Option A). If an interface is not part of any zone, it is placed into the null zone, which drops all traffic.

Additionally, the zone must be configured to allow management traffic types as host-inbound-traffic (Option D). For ICMP, the protocol must be explicitly allowed under host-inbound-traffic for that zone.

Other options:

Security policies (Option B) control traffic traversing the firewall, not traffic destined to the SRX device itself.

Assigning the interface to the null zone (Option C) prevents any communication, including management.

Correct Actions: Assign the interface to a zone and configure ICMP under host-inbound-traffic.

When source NAT uses a pool of addresses from the same subnet as the egress interface , the firewall must respond to ARP requests for those NAT pool IPs. Without this, upstream devices would not know how to forward traffic destined for those IPs.

Proxy ARP is required (Option D). It enables the SRX to answer ARP requests on behalf of the NAT pool addresses.

Static NAT (Option A) is unrelated and maps one-to-one, not required here.

Dynamic DNS (Option B) has no relation to NAT pools.

Destination NAT (Option C) applies to inbound translations, not outbound source NAT pools.

Correct Feature: Proxy ARP

Global policies (Option D): Evaluated before zone-based policies. They allow centralized control and can apply across all zones. Perfect for Internet-to-private traffic that must be enforced before other rules.

Routing policy (Option A): Controls routing decisions, not traffic forwarding/security.

Default policy (Option B): Denies all traffic by default, but cannot be customized for early evaluation.

Zone policy (Option C): Zone-based policies apply after global policies and are limited to specific zone pairs.

Correct Policy Type: Global policy

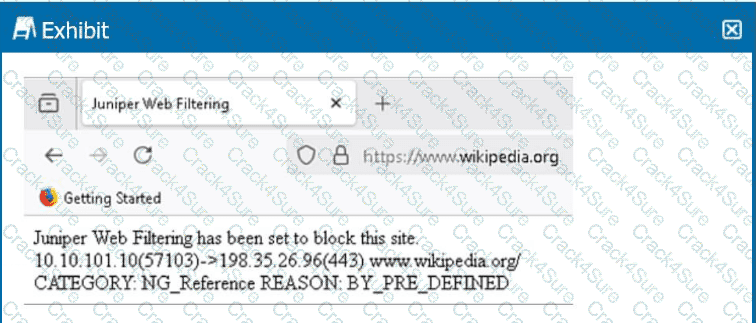

NextGen Web Filtering (NGWF) requires SSL proxy functionality to inspect HTTPS traffic. To enable NGWF:

Option B: You can generate a self-signed certificate for SSL proxy functionality (or import a CA-signed certificate, but the course emphasizes self-signed for lab/demo purposes).

Option D: You must configure an SSL proxy profile so that HTTPS traffic can be decrypted and inspected.

Option A: A CA-signed certificate may be used in production but is not strictly required to enable NGWF.

Option C: SSL initiation profiles are used for outbound SSL inspection initiated by the SRX, not for NGWF traffic interception.

Correct Actions: Generate a self-signed certificate, Configure an SSL proxy profile

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT
