Practice Free JN0-280 Data Center, Associate (JNCIA-DC) Exam Questions Answers With Explanation

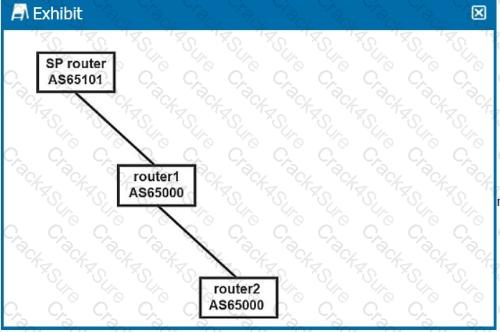

The exhibit shows a BGP peering scenario between three routers:router1androuter2are part of the same AS (AS65000), while theSP routeris in a different AS (AS65101). This indicates anEBGP (External BGP)peering between the SP router and router1, andIBGPbetween router1 androuter2.

Step-by-Step Breakdown:

Next-Hop Behavior in BGP:

IBGP: In IBGP, thenext-hop addressis not modified when advertising routes within the same AS. Thus, when router1 advertises routes learned from router2 to the SP router, it will keep thenext-hop addressof router1, not router2.

EBGP: In EBGP, thenext-hop addressis modified. When router1 receives routes from the SP router, it will advertise them to router2 with thenext-hop addressof router1.

Route Propagation:

Routes received byrouter1fromrouter2will be advertised to the SP router with router1 as the next hop.

Similarly, routes advertised by theSP routerwill be passed on to router2, with router1 remaining as the next hop.

Juniper Reference:

BGP Next-Hop: Juniper's BGP implementations follow standard BGP next-hop behavior, where the next-hop is modified in EBGP but not in IBGP, ensuring proper route advertisement across autonomous systems.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

To configureaggregated Ethernet (AE) interfaceson a Junos device, the configuration is done under the[edit chassis]hierarchy.

Step-by-Step Breakdown:

Chassis Configuration:Thechassisconfiguration is responsible for enabling the hardware to supportLink Aggregation Groups (LAGs), allowing multiple physical interfaces to be bundled into a single logical interface for load balancing and redundancy.

Command Example:

set chassis aggregated-devices ethernet device-count

This command enables a specific number of aggregated Ethernet interfaces on the device.

Juniper Reference:

LAG Configuration in Junos: Thechassishierarchy is used to allocate and manage hardware resources for aggregated Ethernet interfaces in Juniper devices.

VLAN tagsare used in Ethernet frames to identify and differentiate traffic between multiple VLANs. They are especially important for devices like switches that handle multiple VLANs on the same physical link.

Step-by-Step Breakdown:

VLAN Tag Contents:

VLAN ID: The tag contains a 12-bit VLAN ID field that identifies the VLAN to which the frame belongs.

Priority: The tag also includes a 3-bit priority field (also known as 802.1p priority) used for QoS (Quality of Service) to prioritize traffic.

Trunk Ports and VLAN Tagging:

Trunk Portsare used to carry traffic for multiple VLANs across a single link. These interfaces insert (tag) VLAN identifiers into frames when they leave the switch and remove (untag) them when frames enter the switch.

Access Ports:VLAN tags are typically not used onaccess ports(ports that connect to end devices) since those ports are configured to be part of a single VLAN, and the traffic doesn't need VLAN tags.

Juniper Reference:

VLAN Tagging: Juniper switches support VLAN tagging and ensure that frames are tagged or untagged as they traverse trunk or access ports, respectively.

Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

A trunk interface on a switch is used to carry traffic for multiple VLANs between switches or between a switch and another network device, like a router. Trunk interfaces use 802.1Q tagging to identify which VLAN the traffic belongs to.

Step-by-Step Breakdown:

Trunk Ports:

Trunk ports are typically used for inter-switch links or switch-to-router links where multiple VLANs need to be carried over the same physical connection.

VLAN traffic is tagged with a VLAN ID to ensure that it is properly identified as it crosses the trunk link.

802.1Q VLAN Tagging:

Trunk ports use 802.1Q to tag Ethernet frames with the VLAN ID. This ensures that frames are correctly forwarded to the appropriate VLANs on the other side of the trunk.

Juniper Reference:

Trunk Interface Configuration: In Juniper switches, trunk ports are configured to carry tagged traffic for multiple VLANs, which is essential for interconnecting multiple network segments.

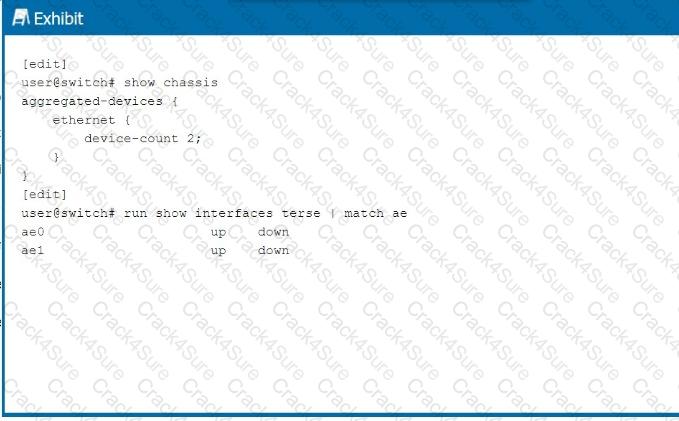

In the exhibit, theae0andae1interfaces are in alink downstate. This occurs when no physical interfaces (member interfaces) have been added to theLAG (Link Aggregation Group)interfaces, or the member interfaces are not operational.

Step-by-Step Breakdown:

LAG Configuration:ALAGinterface (aggregated Ethernet interface) is a logical interface that combines multiple physical interfaces for redundancy and increased bandwidth. The LAG will only be operational if at least one member interface is active and configured correctly.

No Operational Member Interfaces:If no member interfaces are added or if the member interfaces are down, the LAG will remain in adownstate, as shown in the exhibit for ae0 and ae1.

Resolution:Verify that physical interfaces have been added to the LAG using commands like:

LAG Interface Status: In Juniper, the link status of the LAG depends on its member interfaces, which must be operational for the LAG to function.

In Junos OS, thequalified-next-hopfeature is used to specify an alternate next hop for a static route, along with a unique preference value.

Step-by-Step Breakdown:

Qualified-Next-Hop:Aqualified-next-hopallows you to define multiple next hops for a static route, each with its own preference. This provides flexibility by allowing the router to choose the best available next hop based on reachability and preference.

Use Case:If the primary next hop becomes unreachable, the router can automatically switch to the alternate next hop defined by thequalified-next-hopwith a higher preference value.

Command Example:

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.1 preference 5

set routing-options static route 10.10.10.0/24 qualified-next-hop 192.168.1.2 preference 10

Preference:The next hop with the lowest preference is chosen first. If it becomes unavailable, the router will use the higher preference next hop.

Juniper Reference:

Qualified-Next-Hop: This feature is used to configure backup or alternate next hops for static routes in Juniper devices.

IP fabricsare Layer 3-centric network designs often used in data centers due to their scalability, efficient routing, and loop-free architecture.

Step-by-Step Breakdown:

Layer 3 Load Balancing:IP fabrics useEqual-Cost Multipath (ECMP)to distribute traffic across multiple paths, providing effective load balancing and improving bandwidth utilization. This capability is absent in traditional Layer 2 networks, which do not support ECMP for routing decisions.

Layer 2 Loops:Layer 2 networksare prone to loops because of the lack of TTL (Time-to-Live) mechanisms. Spanning Tree Protocol (STP) is required to prevent loops, but it can introduce inefficiencies by blocking links. In contrast, IP fabrics based on Layer 3 protocols are loop-free and do not need STP.

Juniper Reference:

IP Fabric: Juniper’s IP fabric solutions offer efficient Layer 3 routing with built-in load balancing and loop prevention, making them ideal for modern data center architectures.

In athree-stage IP fabric(also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric isonly two hops away.

Step-by-Step Breakdown:

Three-Stage IP Fabric:

Leaf Layer: Leaf switches connect directly to servers and edge devices.

Spine Layer: Spine switches provide connectivity between leaf switches but do not connect to each other directly.

Two-Hop Communication:In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops:

Ingress leaf ? Spine ? Egress leaf.

Benefits:This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.

Juniper Reference:

IP Fabric Architecture: This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper's QFX and EX switches in data centers.

When configuring anaggregate route, you have options for how to handle traffic that matches the route but does not match any more specific route in the routing table. Two actions can be taken:discardandreject.

Step-by-Step Breakdown:

Discard:

Thediscardoption will silently drop packets that match the aggregate route. No notification is sent to the sender, and the packet is simply dropped.

Reject:

Therejectoption will drop the packet and also send anICMP Destination Unreachablemessage back to the sender. This informs the sender that the packet could not be delivered because there is no specific route available.

Juniper Reference:

Aggregate Routes: The reject and discard next-hop options provide different levels of feedback when packets cannot be routed, and they can be used to control how unreachable destinations are handled.

When an OSPF (Open Shortest Path First) neighborship is stuck in the ExStart state, it usually points to a mismatch in Maximum Transmission Unit (MTU) settings between two routers trying to establish the adjacency. The ExStart state is where OSPF routers negotiate the master-slave relationship and exchange DBD (Database Description) packets.

Step-by-Step Breakdown:

OSPF Neighbor States: OSPF goes through several states to establish an adjacency with a neighbor:

Down: No hello packets have been received.

Init: Hello packets are received, but bidirectional communication isn't confirmed.

2-Way: Bidirectional communication is established.

ExStart: The routers are negotiating who will be the master and who will be the slave, and begin to exchange DBD packets.

Exchange: The routers start exchanging the database information.

Loading: The routers process the Link-State Advertisements (LSAs).

Full: The adjacency is fully established.

MTU Mismatch Issue:During the ExStart state, both OSPF routers must agree on their MTU values. If there is an MTU mismatch between the two routers, OSPF neighbors will fail to move from the ExStart to the Exchange state. The router with the larger MTU setting will not accept DBD packets from the router with a smaller MTU because the packets may exceed the smaller MTU size.

In Juniper devices, this behavior can be identified by examining the MTU settings using the show interfaces command and ensuring both routers have matching MTU configurations. To resolve this issue, either match the MTU settings on both routers or configure OSPF to ignore MTU mismatches using the command set protocols ospf ignore-mtu.

Juniper Reference:

Junos Command: show ospf neighbor helps diagnose neighbor states.

MTU Adjustment: set interfaces mtu can be used to set the MTU values correctly.

AnIP fabricis a network topology designed to provide a scalable, low-latency architecture that is typically implemented in modern data centers. It usesspine and leafswitches and enables efficienttraffic load sharingacross the network.

Step-by-Step Breakdown:

Spine-Leaf Architecture:

Leaf Devices: These switches connect to servers and edge devices within the data center. Each leaf switch connects to every spine switch.

Spine Devices: These high-performance switches interconnect all the leaf switches. There are no direct connections between leaf switches or spine switches. This architecture ensures that any two endpoints within the fabric are only one hop away from each other, minimizing latency.

Traffic Load Sharing:

An IP fabric leveragesEqual-Cost Multipath (ECMP)to distribute traffic evenly across all available paths between leaf and spine switches, providing effective load balancing. This ensures that no single link becomes a bottleneck and that traffic is distributed efficiently across the network.

Juniper Reference:

Juniper providesQFX Seriesswitches optimized for IP fabric topologies, allowing for scalable deployments in modern data centers.

EVPN-VXLAN: Often used in IP fabrics to extend Layer 2 services across the fabric with Layer 3 underlay, enabling both efficient routing and bridging.

In Layer 2 switching, switches learn MAC addresses based on thesource MAC addressof incoming frames and forward frames based on thedestination MAC address.

Step-by-Step Breakdown:

MAC Learning:When a switch receives a frame, it records thesource MAC addressand the port on which it arrived. This allows the switch to know where to send traffic destined for that MAC address.

Forwarding Based on Destination:The switch then looks at thedestination MAC addressand forwards the frame out of the port associated with that MAC address. If the MAC is unknown, the switch floods the frame to all ports.

Juniper Reference:

Layer 2 Switching: Juniper switches use source MAC addresses to build MAC tables and forward traffic based on the destination MAC address.
