Practice Free JN0-281 Data Center Associate (JNCIA-DC) Exam Questions Answers With Explanation

In BGP (Border Gateway Protocol), when evaluating multiple routes to the same destination, the first attribute that is considered is the local preference value. The local preference is a BGP attribute used to influence outbound routing decisions within an Autonomous System (AS).

Step-by-Step Breakdown:

Local Preference:The local preference attribute is used to determine which path is preferred for traffic leaving the AS. The higher the local preference value, the more preferred the route.

BGP Path Selection:The BGP path selection process evaluates the following attributes in this order:

Local Preference (higher is preferred)

AS Path (shorter is preferred)

Origin (IGP > EGP > incomplete)

MED (Multi-Exit Discriminator) (lower is preferred)

Juniper Reference:

BGP Path Selection: In Junos, the local preference attribute is the first to be evaluated when determining the best path for outbound traffic.

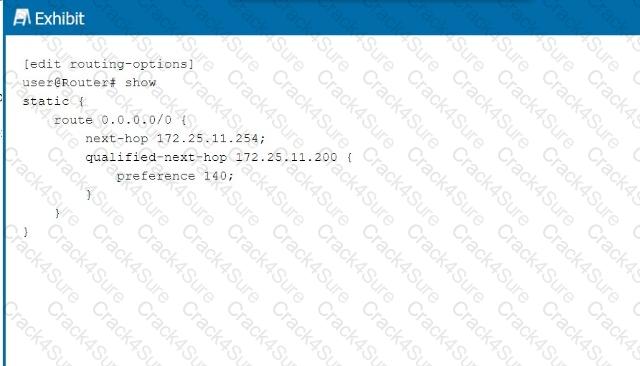

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is 172.25.11.254, with no specified preference.

The second next hop is 172.25.11.200, with a specified preference of 140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to 5 for static routes.

Determining Preference:In this case, the next hop 172.25.11.254 does not have an explicit preference defined, so it will use the default value of 5. The second next hop has a preference of 140, which is higher, meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is 5, and this value is applied unless overridden by the preference parameter.

In Junos, static routes are eligible to be exported into dynamic routing protocols if you configure an export policy that matches them. For management-only routes, especially default routes or specific management subnets used for out-of-band access, you often want to ensure they never leak into the production routing domain. The no-readvertise parameter is designed for this purpose. When you mark a static route as no-readvertise, Junos flags it so other routing protocols do not export or readvertise it, even if an export policy would otherwise match it. This helps keep the management plane isolated from the data plane and prevents accidental propagation of management reachability into the fabric underlay or overlay.

The reject and discard options control how packets are handled if they match the route, not whether the route is eligible to be exported. Preference 255 changes the route’s selection priority relative to other routes, but it does not prevent export. Therefore, no-readvertise is the correct configuration knob when the explicit goal is to prevent propagation of a management static route to other routers.

In a leaf spine IP fabric, spines form the high-speed transit layer and leaves provide the attachment points for servers, services, and edge connectivity. The defining physical topology rule is that every spine connects directly to every leaf. This design creates consistent one-hop transit through a spine for traffic between any two leaves, which keeps latency predictable and simplifies capacity planning. It also enables equal-cost multipath routing across all available spine links, allowing the fabric to use bandwidth efficiently and recover quickly from failures by shifting traffic to remaining paths.

Spine-to-spine connections are not required in a classic two-tier leaf spine fabric. Adding spine-to-spine links can create unnecessary complexity and does not improve the standard forwarding model, because spines are intended to provide transit between leaves, not to act as an additional meshed layer. Likewise, there is no inherent requirement that each spine must have two or more physical links to each leaf. Many fabrics start with one link per spine-leaf pair and scale capacity by adding more spines or adding additional parallel links as demand grows. The redundancy objective is achieved primarily by multiple spines and multiple available routed paths, not by mandating multiple links between every spine and every leaf from the outset.

A Layer 2 switch builds its Ethernet switching table through a learning process based on the source MAC addresses of incoming frames. When a frame arrives on an interface within a VLAN or bridge domain, the switch examines the source MAC address and associates it with the ingress interface and VLAN context. If the MAC address is new, the switch creates a new entry; if it already exists but is seen on a different interface, the switch updates the entry to reflect the new location. This dynamic learning is fundamental to efficient unicast forwarding and is why option A is correct.

Once the switch has learned MAC-to-port mappings, it can forward subsequent frames destined to those MAC addresses as known unicast out the specific egress interface rather than flooding them. If the destination MAC is unknown, the switch typically floods the frame within the VLAN or bridge domain to discover the correct destination. When the destination replies, the switch learns that MAC as a source, completing the learning cycle.

Spanning Tree Protocol does not provide a MAC table and there is no concept of downloading an Ethernet switching table from a root bridge. STP’s role is loop prevention and topology control at Layer 2, not MAC learning distribution. Firewall filters can enforce policy but do not create the switching table. Recording destination MAC addresses would not correctly learn endpoint locations because the destination can be unknown when the first frames are sent; source learning is reliable because every received frame carries the sender’s MAC address.

BGP prevents inter-domain routing loops primarily through the AS_PATH attribute. Each time a route advertisement crosses an autonomous system boundary, the advertising router prepends its own AS number to the AS_PATH before sending the route onward. When a router receives a BGP update, it can inspect the AS_PATH and reject routes that already contain its own AS number. This simple rule blocks the route from circulating back into the same AS, which is the fundamental loop prevention behavior in BGP.

In data center IP fabrics that use EBGP for the underlay, AS_PATH still plays an important role even though private AS numbers are used. The fabric can be designed so that leaf and spine devices are in distinct private ASs or use structured AS assignment, and AS_PATH tracking ensures clean propagation and helps operators understand where a route has traveled. It also supports policy decisions, such as preferring shorter paths or applying policy based on specific AS sequences.

The other attributes serve different purposes. MED influences inbound path selection into an AS, LOCAL_PREF is used within an AS to influence outbound selection, and NEXT_HOP indicates the forwarding next hop and is validated for reachability. None of those attributes provide the explicit “contains my AS” loop detection that AS_PATH does.

In OSPF, routers exchange link-state information in different stages to establish full adjacency. The MTU size is checked during the Exchange state.

Step-by-Step Breakdown:

1.     OSPF Adjacency Process:

o   OSPF routers go through multiple stages when forming an adjacency: Down, Init, 2-Way, ExStart, Exchange, Loading, and Full.

2.     Exchange State:

o   During the Exchange state, OSPF routers exchange Database Description (DBD) packets to describe their link-state databases. The MTU size is checked at this stage to ensure both routers can successfully exchange these packets without fragmentation.

o   If there is an MTU mismatch, the routers may fail to proceed past the Exchange state.

Juniper Reference:

·        MTU Checking in OSPF: Junos uses the Exchange state to check for MTU mismatches, ensuring that routers can properly exchange database information without packet fragmentation issues.

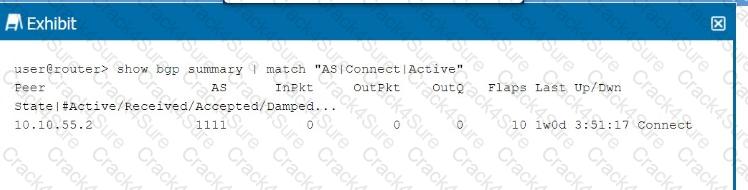

The BGP session in the exhibit shows the state as Connect, which indicates that the TCP session between the BGP peers has not been fully established.

Step-by-Step Breakdown:

BGP State "Connect":

The Connect state is the second stage in the BGP finite state machine (FSM). At this stage, BGP is trying to establish a TCP session with the peer, but the session has not yet been successfully established.

A successful TCP three-way handshake (SYN, SYN-ACK, ACK) is required before BGP can progress to the OpenSent state, where the peers exchange BGP Open messages.

Possible Causes:

A firewall blocking TCP port 179.

Incorrect IP addresses or network connectivity issues between the BGP peers.

Juniper Reference:

BGP Troubleshooting: In Junos, if a BGP session is stuck in the Connect state, the issue is likely due to a failure in establishing the underlying TCP connection.

A three-stage IP fabric is a scaled leaf-spine design that adds an additional layer above the spine layer to increase port scale and bandwidth. In common data center terminology, the stages are leaf, spine, and an upper spine layer often referred to as superspine. Traffic sourced from an endpoint attached to a leaf switch first enters the fabric at that leaf. If the destination is attached to a different leaf and the fabric is truly three-stage, the packet typically traverses from the source leaf up to a spine, then continues upward to the upper layer spine, then down to a destination spine, and finally down to the destination leaf. The option that best represents this stage progression is leaf to spine to spine to leaf, where the second spine in the sequence corresponds to the upper layer spine tier in a three-stage design.

By contrast, leaf to spine to leaf describes a two-tier leaf-spine fabric where a single spine hop connects any two leaves. The other options do not represent the standard end-to-end progression for traffic between leaves in a three-stage fabric. In practice, the underlay uses routed links with equal-cost multipath, so there can be multiple equal paths that still follow the same stage order. This preserves predictable forwarding behavior while allowing the fabric to scale beyond what a two-tier topology can support.

The configuration is applied under the routing-options hierarchy and specifically under graceful-restart with the statement disable. In Junos, routing-options graceful-restart is the global control point used to enable or manage graceful restart behavior at the system routing level. When graceful restart is enabled, the router can continue forwarding and temporarily suppress certain routing protocol update behavior during a routing process restart or control-plane event, allowing the network to avoid unnecessary reconvergence and route churn.

Placing disable under routing-options graceful-restart turns off graceful restart globally. This means the device will not attempt to use graceful restart mechanisms for routing protocols at the global level. Protocol-specific graceful restart configuration exists under each routing protocol hierarchy, but the exhibit shows the global routing-options location, which impacts overall graceful restart behavior for the routing subsystem.

Option A is incorrect because disabling BGP graceful restart only would be done under the BGP protocol hierarchy, not routing-options. Option C is incorrect because graceful restart is a routing protocol restart behavior, not something applied only to static routes. Option D is also incorrect because the setting is not scoped to specific route statements under routing-options; it disables the graceful restart feature itself, not individual routes.

In data center environments, globally disabling graceful restart may be chosen when an operator prefers deterministic, immediate reconvergence behavior or when interoperability testing indicates graceful restart helper or restart behavior is undesired with specific peers.

The diagram shows multiple autonomous systems, with each device labeled with a different AS number. Because the peers are in different autonomous systems, the correct BGP session type is external BGP. In a typical Juniper data center IP fabric underlay, this design is intentional: EBGP is used between leaf and spine devices to simplify policy boundaries, improve operational clarity, and avoid the additional mechanisms commonly required in large internal BGP designs.

In an EBGP-based underlay, neighbors are most commonly formed over the directly connected point-to-point links between leaf and spine. That means the BGP peering is established using the IP addresses configured on those physical routed interfaces, not loopback addresses. Using physically connected addresses aligns with the default EBGP behavior where the TTL is one hop, and it reduces configuration complexity because no multihop settings or additional reachability dependencies are required to bring up the session.

Peering using loopbacks is possible, but it typically requires EBGP multihop and a routing method to ensure reachability to the remote loopback before BGP can establish. That approach is more common for overlay control-plane sessions or for specific design requirements, rather than for the simplest and most common underlay implementation. Therefore, the two true statements are that the exhibit uses EBGP and that devices should peer using physically connected IP addresses.

Nonstop active routing relies on control-plane state synchronization between the primary and backup Routing Engines so that routing protocol operation can continue across a switchover. To verify whether that synchronization is occurring and to see which protocol processes are participating, Junos provides visibility into the underlying replication framework. The command show task replication displays replication status and synchronization details for replicated tasks, which commonly include routing-related processes when NSR is enabled. This output helps confirm whether the backup Routing Engine is receiving the necessary state updates and whether replication is in sync, catching up, or experiencing issues.

This is the most direct operational validation because NSR effectiveness depends on ongoing state replication. Simply checking general switchover readiness does not prove protocol state is synchronized. Likewise, listing system services does not confirm replication or identify which routing protocols are actively supported for nonstop behavior. High availability statistics under services are oriented toward service-specific HA functions and do not provide the routing protocol replication view that NSR troubleshooting typically requires.

In data center fabrics where underlay routing stability is critical, routinely checking task replication status is a practical way to verify that NSR is actually providing the intended resilience before you perform maintenance or experience an unplanned Routing Engine event.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/high-availability/topics/topic-map/nonstop-active-routing-understanding.html

https://www.juniper.net/documentation/us/en/software/junos/high-availability/topics/reference/command/show-task-replication.html

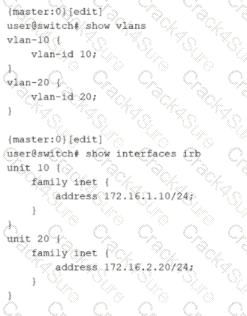

Inter-VLAN routing on Junos switching platforms is typically implemented by associating each VLAN or bridge domain with an IRB interface that provides the Layer 3 gateway for that VLAN. In the exhibit, VLAN 10 and VLAN 20 are defined with vlan-id values, and IRB logical units 10 and 20 already have IPv4 addresses assigned. However, the VLAN definitions do not yet reference the IRB interfaces. Without that association, hosts in the VLANs have no routed gateway on the switch, and the switch cannot perform Layer 3 forwarding between the two VLAN subnets.

To enable routing, each VLAN must include an l3-interface statement that binds the VLAN to the corresponding IRB logical unit. Adding l3-interface irb.10 under vlan-10 makes irb.10 the default gateway interface for VLAN 10 and enables the device to route traffic sourced from that VLAN. Adding l3-interface irb.20 under vlan-20 does the same for VLAN 20. Once both VLANs are bound to their IRB interfaces, the switch can route packets between 172.16.1.0/24 and 172.16.2.0/24 using its routing table, while still switching Layer 2 traffic within each VLAN.

The default VLAN settings are unrelated to enabling routing between these two specific VLANs. They control the behavior of the default VLAN, not the creation of Layer 3 gateways for VLAN 10 and VLAN 20.

A link aggregation group combines multiple physical Ethernet interfaces into one logical link layer interface, called an aggregated Ethernet interface on Junos. The primary purpose is to improve availability and increase usable bandwidth between two devices without changing the logical topology. If one member link fails, the aggregate can remain up and continue forwarding traffic over the remaining active members, providing redundancy at the link layer. This is especially valuable in data center designs where loss of a single optic or cable should not interrupt server connectivity, leaf to spine uplinks, or connections to service appliances.

LAG also enables load balancing. Instead of forcing all traffic over one physical link, the forwarding plane distributes flows across member links using a hashing algorithm. This allows the aggregate to use the sum of member bandwidth for multiple concurrent flows while keeping packets for a given flow in order. In leaf spine fabrics, this complements ECMP at Layer 3 by delivering parallelism both at the routed path level and within a single adjacency when multiple physical links exist.

LAG does not encrypt traffic. Encryption is provided by separate security features and protocols. It also does not increase the speed of a single physical interface; rather, it increases the total capacity of the logical bundle across multiple links. Finally, it does not assign IP addresses, which is the role of services like DHCP, not link aggregation.

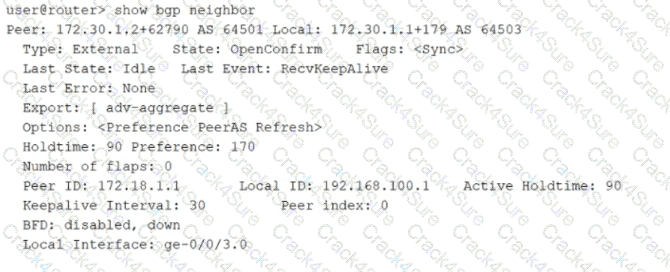

In the BGP finite state machine, OpenConfirm indicates that the TCP session is already established and the BGP OPEN message exchange has successfully completed. At this point, both peers have agreed on critical session parameters such as BGP version, autonomous system numbers, hold time, and the BGP identifier. Because the OPEN messages have been processed, BGP transitions from OpenSent to OpenConfirm and then waits for the next control message that validates the session is operational.

Specifically, in OpenConfirm the local BGP process is waiting to receive a KEEPALIVE message from the neighbor, which confirms that the neighbor accepted the OPEN and is ready to bring the session to the Established state. If instead a NOTIFICATION message is received, it indicates an error condition and the session will be torn down. This is why option D is correct.

Option A describes OpenSent, where the router is waiting to receive an OPEN after sending its own OPEN. Option B aligns more closely with Connect, where BGP is still trying to complete the transport connection. Option C relates to Idle, where BGP waits for a start event or configuration to initiate the session. In data center BGP underlays and EVPN control planes, being stuck in OpenConfirm commonly points to policy mismatch, capability negotiation issues, or keepalive handling problems, rather than basic IP reachability.
