RFC 4271 defines the BGP finite state machine as a strict, ordered progression of six states that a session must move through to successfully establish. A newly configured or reset session always begins in Idle, where BGP initializes resources and refuses connections until the ConnectRetry timer fires. From Idle, the router transitions to Connect and attempts to establish the underlying TCP transport session to the configured peer address on port 179. If that TCP attempt does not immediately succeed, the session falls back to the Active state, where the router continues retrying the TCP connection in the background; once the TCP handshake finally completes (from either Connect or Active), the session advances to OpenSent, during which the router transmits its own BGP OPEN message advertising its AS number, hold time, BGP identifier, and capabilities. Upon receiving and validating a compatible OPEN message from the peer, the session moves to OpenConfirm, where both sides exchange KEEPALIVE messages to confirm the parameters negotiated in the OPEN exchange are mutually acceptable. Only after this confirmation does the session reach Established, the final state in which UPDATE messages carrying actual routing information begin to flow between the peers. Any deviation from this Idle ? Connect ? Active ? OpenSent ? OpenConfirm ? Established ordering, as presented in the other answer choices, does not reflect the standardized BGP state machine. Reference topics: Junos Enterprise Routing – BGP, The BGP Finite State Machine.

A floating static route is a backup static route that remains present in the configuration but stays inactive in the routing table under normal conditions, only becoming active if the primary, preferred route to the same destination is withdrawn or otherwise becomes unavailable. Junos determines which of several competing routes to the same prefix becomes active strictly by comparing each route's preference value (administrative distance), with the numerically lowest preference always winning; every routing protocol and static routes themselves carry a default preference (5 for standard static routes), and this value can be explicitly overridden per route using the preference statement under the static route's configuration. To create a floating static route, the administrator deliberately configures a preference value higher (that is, numerically worse, less preferred) than the preference of the primary route it is meant to back up — for example, a value higher than the 5 default of an ordinary static route, or higher than a dynamic protocol's preference such as OSPF's 10 — ensuring the floating route only becomes active once the more-preferred primary route disappears from the table entirely. This preference-based mechanism is the essential, defining configuration element of a floating static route. Priority is not a valid Junos static-route statement, next-hop simply defines where matching traffic is forwarded without controlling route selection behavior, and qualified-next-hop is a related but distinct mechanism used to assign a per-next-hop preference within a single multi-next-hop static route statement rather than between the standalone static route and its dynamic counterpart. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Configuring Floating Static Routes with Preference.

Configuring interface-type p2p under an OSPF interface tells Junos to treat that interface as a point-to-point network type regardless of the underlying physical medium, which removes the interface from the standard broadcast-network state machine entirely. On a true broadcast network, two routers must first complete a Designated Router and Backup Designated Router election, wait through the associated timers, and only then proceed through 2-Way, ExStart, Exchange, and Loading before reaching Full — a multi-step process. A point-to-point interface skips DR/BDR election altogether and proceeds directly from 2-Way into ExStart, so adjacencies form measurably faster, which is the first correct benefit. Because there is no DR on a point-to-point interface, Junos also does not generate a Type 2 Network LSA to describe the segment; the connected subnet is instead advertised as a simple stub-network entry inside the Router LSA itself, eliminating an entire LSA type from the area's link-state database and reducing its overall size, which is the second correct benefit. Point-to-point configuration is entirely incompatible with DR election, so a router configured this way cannot 'win' a DR election — there is no DR to win. Advertisement of the connected network happens on any operational OSPF interface irrespective of network type, so that option describes normal OSPF behavior rather than a benefit specific to the point-to-point setting. Reference topics: Junos Enterprise Routing – OSPF Network Types, Configuring OSPF Interface Type.

Root protection (root guard) must always be applied on the ports of the switches you trust to remain root-bridge-eligible, specifically on the interfaces facing away from the legitimate root and toward parts of the network where an untrusted or rogue device could plausibly appear and begin transmitting superior BPDUs. In this topology, Switch-1 is the intended, permanent root bridge (lowest priority, 4k), and Switch-2 is its aggregation-layer peer; both sit above the access layer, where Switch-3 and Switch-4 connect downstream toward end-user-facing infrastructure and where an accidental or malicious rogue switch is realistically most likely to be introduced. The ge-0/0/6 and ge-0/0/8 interfaces on Switch-1 and Switch-2 are precisely the downlink ports facing that access layer, meaning they are the exact points at which a rogue switch's superior BPDU (one advertising a lower priority than the legitimate root) would first be received if such a device appeared beneath Switch-3 or Switch-4. Applying root protection on those specific interfaces causes Junos to immediately block (move to a root-inconsistent, discarding state) any port that receives a superior BPDU, preventing the rogue device from ever being accepted as root, while normal, non-superior BPDUs continue to be processed without disruption. Applying root guard on Switch-1 and Switch-2's peer link (ge-0/0/12/13) would be inappropriate, since that link legitimately connects two trusted, root-eligible switches. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, Root Protection Placement Strategy.

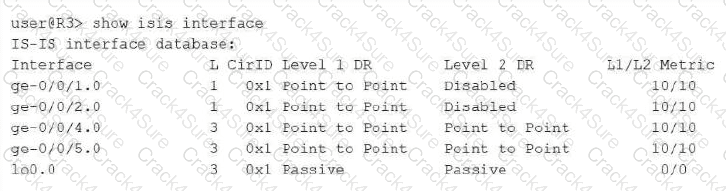

IS-IS is a link-state protocol that, like OSPF, runs Dijkstra's Shortest Path First algorithm independently on each router against its own copy of the synchronized link-state database to compute the best path toward every reachable destination. Each link within the topology carries an administrator-assigned or default metric, and as the SPF algorithm walks the topology graph from the local router outward, it sums the metrics of every link traversed along a candidate path to produce that path's total accumulated cost. Among all possible paths to a given destination prefix, IS-IS always selects and installs the path (or, in the case of equal-cost multipath, the set of paths) with the numerically lowest total accumulated metric, exactly mirroring the 'lowest cost wins' principle shared by essentially all link-state IGPs. A higher accumulated metric value is by definition a less preferred, more costly path, making that option the direct inverse of correct IS-IS behavior. Level 2 proximity to the destination has no independent bearing on path selection beyond however it happens to be reflected in the accumulated metric itself — IS-IS does not apply a separate rule preferring paths merely for passing near a Level 2 router. Likewise, LSP recency (sequence number or freshness) governs which version of a given LSP is trusted and flooded during database synchronization, ensuring the topology database itself is accurate and loop-free, but it plays no role in the SPF cost comparison once the database is synchronized and consistent. Reference topics: Junos Enterprise Routing – IS-IS, SPF Calculation and Metric-Based Path Selection.

MACsec (IEEE 802.1AE) secures a point-to-point Ethernet link independently of how the logical unit above it is configured for VLAN tagging, so neither trunk mode nor access mode has any bearing on whether the MACsec Key Agreement (MKA) protocol can establish a secure channel. What does determine success is the pre-shared key material: when static CAK security mode is used, the Connectivity Association Key (CAK) and the Connectivity Association Key Name (CKN) must be configured identically on both ends of the link. If they do not match, MKA never completes the exchange, no secure channel is created, and all traffic on that interface is dropped rather than merely left unencrypted. Equally important, and frequently overlooked, is that MACsec adds up to 32 bytes of overhead per frame for the security tag (SecTAG) and integrity check value (ICV); Juniper's official guidance is to ensure the difference between the interface's physical MTU and the protocol MTU is large enough to absorb this overhead, or frames will be silently discarded once encryption is active, producing symptoms that look identical to a failed session. Both the CAK/CKN and MTU checks are documented first-line troubleshooting steps for MACsec on EX Series switches. Reference topics: Junos Enterprise Switching – Layer 2 Security, Configuring and Troubleshooting MACsec on EX Series Switches.

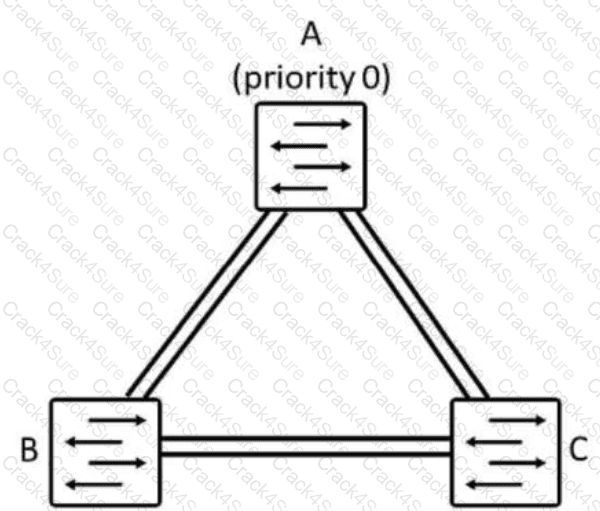

Switch A is already fixed as the root bridge in this topology (priority 0), so the outcome being engineered here is not about root bridge election at all, but about which of Switch C's two available paths toward that already-established root — the direct C-to-A link, or the indirect C-to-B-to-A path — RSTP selects as the lower-cost, primary path. RSTP's path-cost calculation for any non-root switch sums the port costs of every link along a candidate path to the root and always selects whichever candidate path has the lowest total accumulated cost as that switch's active root path, placing the corresponding local port into the forwarding root port role while any higher-cost alternative path is placed into a non-forwarding (alternate) role. To force Switch C to prefer routing through Switch B rather than connecting to Switch A directly, the administrator must make the direct C-to-A link's cost higher than the combined cost of the C-to-B link plus the B-to-A link added together, so that the indirect, two-hop path through Switch B mathematically totals to a lower cumulative cost than the single direct hop, causing RSTP's cost comparison to favor the indirect path as primary. Setting Switch B's priority (to either 1 or 0) is irrelevant here, since Switch B is not a root bridge candidate in this scenario and priority manipulation would only affect a root bridge election, not path cost preference between a fixed root and a downstream switch. Lowering the direct link's cost, the inverse of the correct answer, would instead reinforce the direct path rather than override it. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, RSTP Path Cost and Root Port Selection.

This scenario describes end hosts — virtualization hosts running software switches or virtual bridging stacks — unexpectedly generating and transmitting BPDUs on ports that are supposed to be pure edge (host-facing) ports where no BPDUs should ever legitimately be received. BPDU protection (BPDU guard) is the Junos feature purpose-built for exactly this situation: when applied to an edge-designated interface, it continuously monitors that port for any incoming BPDU, and the moment one is detected, it immediately and automatically disables the port, preventing the unexpected BPDU source from ever participating in or influencing the spanning-tree topology calculation, thereby protecting the stable, intended topology from disruption caused by unauthorized or accidental BPDU generation at the access edge. This directly and precisely resolves the described problem at its source, since the root cause is illegitimate BPDUs arriving on ports that were never meant to see them. Increasing the max-age timer only adjusts how long stale topology information is retained before being aged out and has no effect on preventing rogue BPDUs from being processed in the first place. Disabling RSTP outright on access interfaces would eliminate spanning tree's loop-prevention protection on those ports entirely, introducing a much more severe risk of undetected Layer 2 loops. Root protection (root guard) defends specifically against a port attempting to become the root port by receiving a superior BPDU claiming a better path to root; it addresses a different threat model than blocking any BPDU outright on a true edge port. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, BPDU Protection on Edge Interfaces.

TLV 22, the Extended IS Reachability TLV defined in RFC 5305, is the modern and Junos-preferred mechanism for advertising a router's adjacent neighbors together with the metric associated with each link. It carries the seven-octet system ID and pseudonode number of each neighbor along with a 24-bit wide metric field, and supports an extensible set of sub-TLVs used for traffic-engineering data such as interface and neighbor IP addresses, bandwidth, and administrative groups. The original IS Reachability TLV, TLV 2, defined in the base ISO 10589 standard, carries similar neighbor and metric information but is constrained to a 6-bit narrow metric with a maximum value of 63, which is inadequate for expressing meaningful cost differentiation in modern, high-capacity enterprise and service-provider topologies; consequently, Junos deployments are commonly configured for wide-metrics-only, favoring TLV 22 over the legacy TLV 2 whenever traffic-engineering-capable or simply more granular metric representation is desired. TLV 132, the IP Interface Address TLV, only advertises the IPv4 addresses configured on the originating router's interfaces and carries no neighbor-adjacency or metric information. TLV 129, the Protocols Supported TLV, merely lists which network-layer protocols (such as IPv4 or IPv6) the originating router is capable of routing, and likewise has nothing to do with neighbor reachability or link cost. Reference topics: Junos Enterprise Routing – IS-IS, Extended IS Reachability and Wide Metrics.

The described symptom — excessive packet drops specifically attributed to exceeding the MTU on a GRE tunnel carrying full-size video streaming traffic across default-MTU gigabit Ethernet interfaces — is a direct consequence of the 24 bytes of GRE encapsulation overhead pushing packets that were already at or near the standard 1500-byte Ethernet MTU past the physical interface's transmission limit once the outer GRE and IP headers are added. The most durable fix is to proactively increase the physical member interfaces' MTU beyond the 1500-byte default — to 1524 bytes or higher — which provides sufficient headroom to absorb the full GRE encapsulation overhead without ever causing the fully encapsulated packet to exceed the interface's transmission capability, allowing full-size 1500-byte payloads to pass through the tunnel intact and without fragmentation or drops. As a complementary measure, configuring the clear-dont-fragment-bit option on the tunnel or member interfaces instructs Junos to clear the DF (don't fragment) bit on oversized packets rather than dropping them outright when they do exceed the available MTU, allowing the Packet Forwarding Engine to fragment and later reassemble the traffic instead of silently discarding it, which directly addresses the reported packet loss even under transient conditions. Simply raising the MTU only to 1500 bytes fails to account for the 24-byte GRE overhead and would not resolve the underlying oversize condition. Routing the tunnel over a higher-bandwidth link addresses potential congestion but does nothing to correct an MTU-based packet-size violation, which is the root cause explicitly identified in this scenario. Reference topics: Junos Enterprise Routing – Tunneling, GRE MTU Sizing and Fragmentation Handling for High-Throughput Applications.

RSTP, as defined in IEEE 802.1w, introduces explicit, well-defined port roles that go beyond legacy 802.1D STP's simpler root/designated/blocking model, and the alternate port role is one of RSTP's key refinements. An alternate port is a port that receives BPDUs from a bridge other than the one through which the local switch's actual root port reaches the root bridge — in other words, it represents a second, redundant path toward the root bridge learned from a different upstream bridge than the one currently providing the best (root port) path. Because the existing root port already provides the lowest-cost, actively used path to the root, the alternate port is deliberately held in the discarding (non-forwarding) state during normal, stable operation, functioning purely as a pre-computed, ready-to-use backup; critically, RSTP's major performance advantage over legacy STP is that if the current root port fails, the switch can transition its alternate port directly and almost instantly into the forwarding root port role without needing to pass through the lengthy listening and learning timer-based states that classic STP required, since the alternate port's suitability as a backup was already continuously verified through ongoing BPDU reception. It is not simply 'not receiving BPDUs' (an alternate port receives BPDUs continuously, just inferior ones relative to the current root port), it is not itself the least-cost path (that describes the root port), and it does not forward based on designated-port overload, which is not a concept that exists in RSTP's port-role logic at all. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, RSTP Port Roles: Alternate and Backup Ports.

The factory-default storm control configuration on EX Series switches operates in a purely rate-limiting mode rather than an interface-shutdown mode. When broadcast, multicast, or unknown-unicast traffic on a port exceeds the configured bandwidth-percentage threshold, the default action is simply to police the offending traffic type and silently drop only the packets that exceed that threshold, while all traffic within the allowed rate continues to be forwarded normally and the interface itself remains administratively and operationally up throughout the event. This explains the observed symptom precisely: during the burst of unknown-unicast frames, the switch dropped the excess volume above the configured limit, producing a brief period of packet loss, but as soon as the burst subsided and traffic fell back under the threshold, storm control simply stopped dropping packets and normal forwarding resumed automatically — no administrative shutdown, recovery timer, or manual intervention was ever involved, because the interface was never taken down in the first place. This default drop-only behavior is distinct from the optional interface-shutdown action, which must be explicitly configured if an administrator wants storm control to disable a port outright on violation (as seen in a related scenario requiring the clear ethernet-switching recovery-timeout command). Storm control by default covers broadcast, multicast, and unknown-unicast traffic types together, not multicast alone, and it has no functional relationship to GRES, which governs Routing Engine redundancy rather than Layer 2 traffic policing. Reference topics: Junos Enterprise Switching – Storm Control, Default Drop Behavior Versus Interface Shutdown Action.

A classic and well-documented gotcha in filter-based forwarding deployments is that the static default route configured inside each forwarding instance frequently references a next-hop address that Junos cannot resolve, simply because the interface and other directly connected routes needed to validate that next hop as reachable exist only in the master inet.0 table by default, not automatically inside the newly created forwarding instance's own table. Since a static route's next hop must be resolvable against routes present within its own routing table to become active, the static default routes inside the ISP-A and ISP-B forwarding instances remain inactive precisely because the necessary interface/next-hop routes were never made visible inside those instances. The standard solution taught for this exact FBF scenario is to configure a routing information base (RIB) group that explicitly imports the relevant interface routes between the master inet.0 table and each forwarding instance's table, allowing the static default route's next hop inside each instance to resolve correctly against the leaked routes and become active. Applying a firewall filter without ever attaching it to an interface accomplishes nothing, since an unapplied filter never evaluates any traffic. Increasing the static route's preference value only affects which competing route wins selection and does nothing to resolve an unreachable next hop. Changing the instance type away from forwarding (to virtual-router) would in fact break FBF entirely, since filter-based forwarding specifically depends on the forwarding instance type working together with a routing-instance firewall filter action. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Filter-Based Forwarding and RIB Group Route Leaking.

A GRE tunnel's outer, delivery-layer packets are forwarded using the router's ordinary underlay routing table, meaning the tunnel destination address (192.168.0.1 in this case) must itself be resolvable to a physical, non-tunnel next hop for the encapsulated packets to actually leave the router. Before this configuration change, the default route (or some more specific route) presumably pointed toward a real physical next hop, allowing the router to reach 192.168.0.1 and keep the tunnel operational. When the administrator commits a static default route of 0.0.0.0/0 with a next hop of gr-0/0/0, every destination lookup that previously fell back to the default route — including the lookup for the tunnel's own destination address, 192.168.0.1, since no more specific route exists for it — now recurses through the GRE interface itself. This creates a circular dependency: the router needs to route to 192.168.0.1 to keep the tunnel up, but the only route it has to reach 192.168.0.1 now points back into the tunnel that requires 192.168.0.1 to already be reachable, so the interface's next-hop resolution fails and the tunnel drops. This is an entirely valid and common GRE design pitfall rather than any platform restriction; GRE interfaces can be legitimately used as static route next hops, do not require loopback-sourced encapsulation, and do not require a /32 host route to resolve their destination, provided that route does not recursively point back through the tunnel. Reference topics: Junos Enterprise Routing – Tunneling, Route Recursion and GRE Tunnel Destination Resolution.
