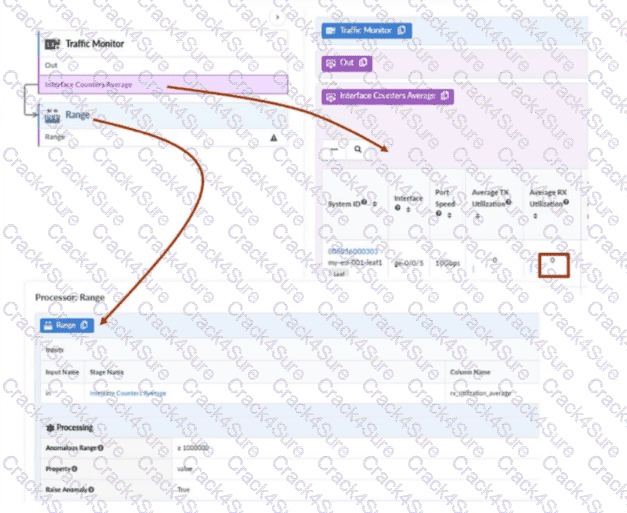

In Apstra 5.1, an IBA probe is a defined analytics pipeline that applies to a scoped set of graph objects (here, interfaces) and evaluates telemetry against logic defined in its processors. The exhibit shows a probe that consumes Interface Counters Average and then applies a Range processor. In the processor configuration, the Anomalous Range is set to “greater than 1,000,000” (bytes per second–equivalent for ~1 Mbps depending on the probe’s metric definition), and Raise Anomaly is set to True. Therefore, when ge-0/0/5 receives an average traffic level above the configured threshold, the probe’s condition evaluates as anomalous and Apstra raises a probe anomaly for that interface. That makes statement A correct.

When probe anomalies are raised, Apstra surfaces them in the blueprint’s Analytics area because they are analytics-derived findings (as opposed to configuration drift or deployment workflow issues). As a result, the blueprint’s Analytics tab indicator changes state (commonly to red with a badge count) to signal active analytics anomalies requiring attention. That makes statement B correct.

This event is not classified as a service anomaly (which is associated with higher-level service intent/assurance objects) unless separately mapped by policy/logic, and it does not primarily drive the Active tab indicator, which is focused on operational state views rather than being the primary alert surface for IBA probe anomalies.

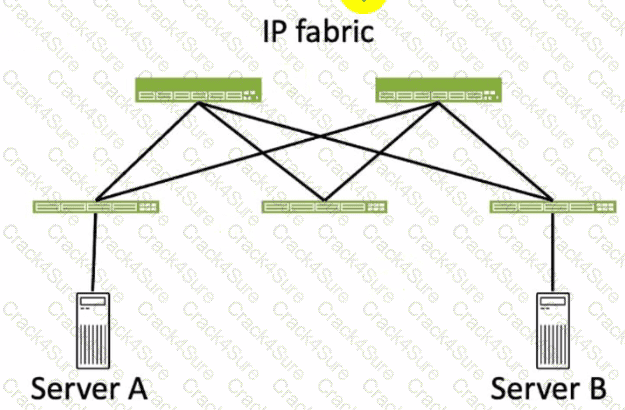

Referring to the exhibit, the image shows a simplified diagram of an IP fabric network connecting two servers, labeled as Server A and Server B. The IP fabric is a network architecture that uses a Clos topology to provide high bandwidth, low latency, and scalability for data center networks. The IP fabric consists of spine and leaf devices that use BGP as the routing protocol and VXLAN as the overlay technology1.

A broadcast domain is a logical portion of a network where any device can directly transmit broadcast frames to other devices at the data link layer (OSI Layer 2). A broadcast frame is a frame that has a destination MAC address of all ones (FF:FF:FF:FF:FF:FF), which means that it is intended for all devices in the same broadcast domain. A broadcast domain is usually bounded by a router, which does not forward broadcast frames to other networks2.

In the exhibit, there are two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The first broadcast domain is the one that contains Server A and the leaf device that it is connected to. The second broadcast domain is the one that contains Server B and the leaf device that it is connected to. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network. Therefore, the statement C is correct in this scenario.

The following three statements are incorrect in this scenario:

A. 1. This is not true, because there are not one, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

B. 4. This is not true, because there are not four, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The spine devices and the leaf devices that are not connected to the servers are not part of the broadcast domains, because they use IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

D. 3. This is not true, because there are not three, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

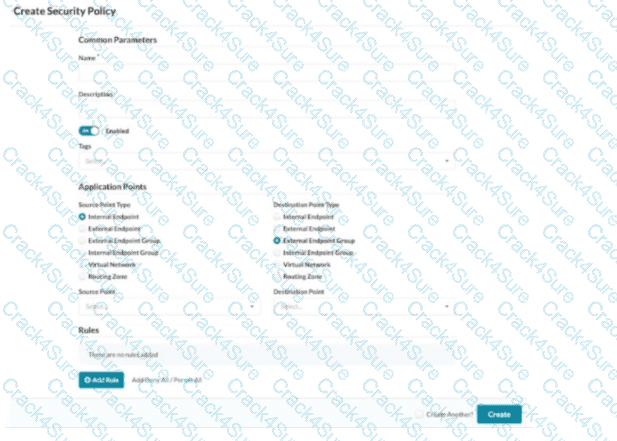

Apstra 5.1 Security Policies are intended to enforce permit/deny controls for traffic between defined endpoints such as routing zones, virtual networks, and IP endpoints. Apstra expresses this security intent in an implementation-independent way, then renders and deploys the equivalent enforcement configuration onto the appropriate devices and interfaces. In Apstra terminology, the outcome is an ACL applied at enforcement points, such as virtual network interfaces (SVIs/IRBs) for east-west controls and border leaf interfaces for external-to-internal controls.

Therefore, the two correct policy types in this context are access control lists (ACLs) and firewall filters. “ACL” is the abstract policy object Apstra compiles and applies, while on Junos v24.4 the concrete enforcement mechanism for stateless packet filtering on interfaces is typically implemented as a firewall filter. Apstra automatically places these rendered ACLs/filters where needed: when you add VXLAN endpoints (such as expanding a rack/leaf in a VN), the ACL is placed on the corresponding VN interface; when you add external connectivity points, relevant ACLs are placed on the border leaf enforcement points. This automation ensures that security intent remains consistent as the fabric scales or changes, reducing the risk of manual rule drift. In contrast, filter-based forwarding / policy-based routing changes forwarding decisions rather than expressing permit/deny security intent, and is not the primary mechanism used by Apstra Security Policies for reachability control.

In Juniper Apstra 5.1, the Event Log is a centralized record used for auditing and operational visibility. It includes audit events (user/system actions) and anomaly-related alerts (events generated when Apstra detects abnormal conditions). In Apstra documentation, anomaly entries are explicitly treated as “Alert” records with high severity, meaning the Event Log is a valid place to review anomaly notifications and their associated details. Therefore, the statement that the Event Log stores alerts for anomalies is correct.

The other options do not match the Event Log function. Viewing a device’s configuration is handled in device configuration and blueprint operational views, not as the primary purpose of the Event Log. Export behavior, where supported, is described for formats such as CSV rather than PDF, and exporting dashboards is a separate capability from event logging. Finally, while worker nodes are used to offload operational services (such as off-box agents and IBA components), the Event Log is a platform logging feature exposed through the controller UI/API rather than something described as “running on the worker node” as its defining trait.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/syslog-config.html

In Junos EVPN, the service type determines how VLANs (broadcast domains) are mapped into EVPN constructs. With VLAN-based service, the mapping is one-to-one: a single VLAN (single broadcast domain) maps to a single EVPN instance (EVI), resulting in a separate bridge table per VLAN. When you implement EVPN-VXLAN in a bridged overlay (L2 extension over an L3 underlay), leaf devices act as VTEPs and encapsulate VLAN traffic into VXLAN using the associated VNI, but the service-type mapping rule still applies.

At the MAC-VRF hierarchy, you configure the EVPN-VXLAN parameters and choose the service type for that EVPN instance. If the service type selected is VLAN-based, then the EVI represents exactly one VLAN at that EVPN instance level. If you need multiple VLANs under the same MAC-VRF/EVI construct, Junos provides alternative service types (for example, VLAN-aware or VLAN-bundle) specifically intended to associate multiple VLANs with a single EVPN instance; that is not what VLAN-based service does.

Therefore, in a bridged overlay EVPN-VXLAN design using VLAN-based service at the MAC-VRF EVPN instance level, the correct answer is one VLAN. This remains true regardless of how many total VLANs exist across the fabric; each VLAN-based EVI handles a single VLAN.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/evpn-based-services.html

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/mac-vrf-routing-instance-overview.html

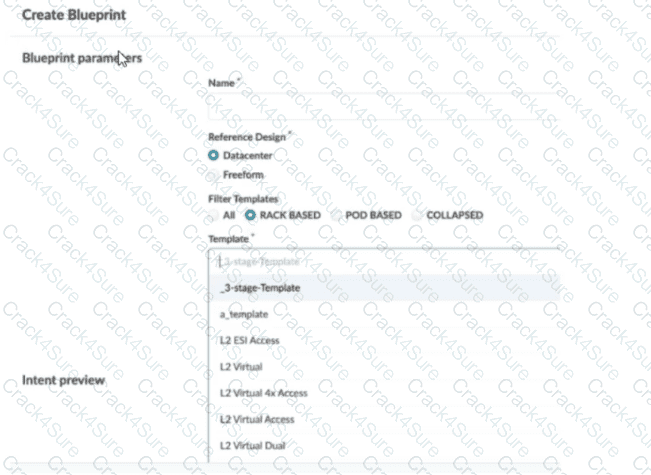

In Apstra 5.1, templates are organized by template type, and the Create Blueprint screen can filter the template list by those types. A five-stage Clos design in Apstra is represented as a pod-based template (multi-pod fabric with an additional tier such as super-spines to interconnect pods). Because of that, a five-stage template will only appear in the template selector when the Pod Based filter is chosen. If the filter is set to Rack Based or Collapsed, Apstra hides pod-based templates because those types correspond to different topology classes: rack-based aligns with a three-stage leaf–spine pod, while collapsed aligns with a spine-less topology pattern.

This behavior is by design to prevent selecting an incompatible template for the intended topology. The template name itself does not need to contain “five-stage”; Apstra determines its type from how the template was created and stored in the catalog. Also, five-stage templates are not limited to Freeform blueprints—five-stage is a data center fabric topology choice, and it is supported within the data center reference design workflows when the appropriate template type is selected.

So, to make the five-stage template visible and selectable, choose Pod Based in the template filter.

In Apstra 5.1, the worker node’s primary purpose is to add scalable runtime capacity to an Apstra cluster by hosting off-box services that would otherwise consume resources on the controller. Specifically, worker nodes run containerized services such as off-box device agents (used to communicate with and manage devices) and Intent-Based Analytics (IBA) components (such as probes and analytics-related services). This design keeps the controller node focused on cluster management and control-plane functions (API handling, cluster-wide state, blueprint control workflows), while shifting resource-intensive operational services to worker nodes.

As your fabric grows—more switches, more telemetry, more devices requiring agent connectivity—CPU and memory demand increases notably, especially when IBA is enabled. Adding worker nodes allows you to scale those container workloads horizontally without redesigning the fabric or reducing analytics coverage. In a Juniper data center built on EVPN-VXLAN with Junos v24.4 leaf-spine roles, this separation helps ensure that Apstra can continuously validate intent, process streaming telemetry, and maintain device communications reliably at scale. Worker nodes therefore exist primarily to offload and scale operational agents and IBA services, improving performance and resilience for larger deployments.

The deploy phase is the final step in the Juniper Apstra data center fabric design and deployment process. In this phase, you apply the Apstra-rendered configuration to the devices and verify the intent of the blueprint. Based on the web search results, we can infer the following actions are required during the deploy phase12:

Assign device profiles to the blueprint. This action associates a specific vendor model to each logical device in the blueprint. Device profiles contain extensive hardware model details, such as form factor, ASIC, CPU, RAM, ECMP limit, and supported features. Device profiles also define how configuration is generated, how telemetry commands are rendered, and how configuration is deployed on a device. Device profiles enable the Apstra system to render and deploy the configuration according to the Apstra Reference Design34.

Assign resources to the blueprint. This action allocates the physical devices, IP addresses, VLANs, and ASNs to the logical devices, networks, and routing zones in the blueprint. Resources can be assigned manually or automatically by the Apstra system. Assigning resources ensures that the blueprint has all the necessary elements to generate the configuration and deploy the fabric5 .

Assign user roles to the blueprint. This action is not required during the deploy phase. User roles are defined at the system level, not at the blueprint level. User roles determine the permissions and access levels of different users in the Apstra system. User roles can be system-defined or custom-defined .

Assign interface maps to the blueprint. This action is not required during the deploy phase. Interface maps are defined at the design phase, not at the deploy phase. Interface maps are objects that map the logical interfaces of a logical device to the physical interfaces of a device profile. Interface maps enable the Apstra system to generate the correct interface configuration for each device in the fabric . References:

Deploy

Deploy Device

Device Profiles

Juniper Device Profiles

Resources

Juniper Apstra provides four system-defined user roles that are available in the Apstra GUI environment. They are: administrator, device_ztp, viewer, and user1. Based on the web search results, we can infer the following statements:

viewer: This role includes permissions to only view various elements in the Apstra system, such as blueprints, devices, design, resources, external systems, platform, and others. Users with this role cannot create, edit, or delete any element12.

user: This role includes permissions to view and edit various elements in the Apstra system, such as blueprints, devices, design, resources, external systems, platform, and others. Users with this role cannot create or delete any element12.

authorized: This is not a system-defined user role in Juniper Apstra. It is a term used to describe users who have been authenticated by an external system, such as LDAP, Active Directory, TACACS+, or RADIUS3.

root: This is not a system-defined user role in Juniper Apstra. It is a term used to describe the superuser account on a Linux system, which has full access to all commands and files. Creating a user in the Apstra GUI does not provide that user access to the Apstra platform via SSH. To access the Apstra platform via SSH, you must create a local Linux system user4. References:

User / Role Management Introduction

User/Role Management (Platform)

AAA Providers

User Profile Management

In Juniper Apstra 5.1, tags are a lightweight metadata mechanism used to classify objects and enable conditional automation (for example, driving dynamic configlets or simplifying filtering/searching in the UI). Apstra supports tagging several blueprint-operational objects that commonly participate in day-1/day-2 workflows.

Virtual networks can be tagged so operators can group, search, and apply automation consistently across sets of segments. This is useful in EVPN-VXLAN fabrics where virtual networks represent VLAN- or VXLAN-backed broadcast domains and you may want policies or configlet logic to apply to all “finance” or “pci” segments as a group.

Interfaces can be tagged directly within a blueprint (for example, leaf access ports, uplinks, or specific border-facing ports). Interface tags are often used to drive template-based configuration behavior and to simplify operational actions across many ports without relying on fragile naming conventions.

Generic systems (internal or external) can also be tagged. Apstra documentation explicitly describes using tags to specify roles for internal generic systems, enabling you to differentiate server types or attachment roles and then apply the correct intent (connectivity templates, VN attachments, or policies) in a repeatable way.

By contrast, property sets are structured data objects used for parameterization (YAML/JSON values for templates/probes), and device profiles describe hardware/NOS capabilities; they are not the standard blueprint objects for tag assignment in this scenario.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/tag-virtual-network-update.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/tag-interface-add-remove-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html

In a VXLAN overlay, each Layer 2 broadcast domain (the logical equivalent of a VLAN/bridge domain) is identified by a 24-bit VXLAN Network Identifier (VNI) carried in the VXLAN header. This VNI is what allows the overlay to scale far beyond traditional VLAN space (12-bit VLAN IDs), enabling up to ~16 million distinct segments. In an EVPN-VXLAN data center fabric, Junos v24.4 leaf switches operate as VTEPs and map local bridge domains (often associated with VLANs on server-facing ports) to a VNI. When traffic is sent across the routed underlay, the leaf encapsulates Ethernet frames into VXLAN packets and inserts the VNI so the receiving VTEP can place the frame into the correct broadcast domain on decapsulation.

Apstra 5.1 abstracts this mapping through virtual networks and resource allocation: when you define a VXLAN-based virtual network, Apstra allocates a VNI from the appropriate pool and consistently programs the necessary constructs on all participating leaves. The key point is that VNI is the unique identifier in the VXLAN data plane used to label the broadcast domain across the IP fabric; VLAN IDs may exist locally at the edge for tagging, but the globally significant overlay identifier is the VNI.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/topic-map/sdn-vxlan.html

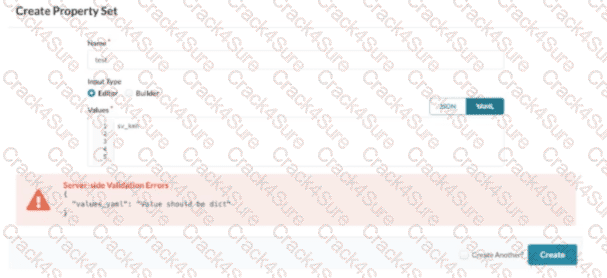

In Apstra 5.1, a property set is a structured data object used to parameterize configlets (config templates). The key point is that Apstra expects the property set “values” to be a dictionary/map so that the configlet can reference variables by name (for example, {{ NTP_SRV1 }} or nested keys). The exhibit shows a server-side validation error indicating that values_yaml “should be dict,” which occurs when the YAML content is entered as a single scalar string (such as try_ksh) instead of a key-value mapping.

To correct this, rewrite the YAML using valid key: value syntax so the top-level structure is a dictionary. For example, a minimal valid property set would look like role: try_ksh (or any meaningful key name aligned to the variables your configlet expects). If multiple variables are needed, add additional keys, and if your configlet uses nested objects, represent them as nested YAML dictionaries. This correction aligns the property set with Apstra’s intent-based model: values are stored as named properties and then rendered deterministically into device configuration. This is independent of Junos v24.4 specifics; Junos becomes relevant when the rendered configlet content is applied to devices, but the property set itself must first validate as a dictionary for Apstra to render the template correctly.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/property-set-datacenter-design-create.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/property-set-datacenter-design.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/ref/property-sets-api.html

In Apstra 5.1, multitenancy is modeled using routing zones, which map directly to the network operating system concept of a VRF. A VRF is an isolated Layer 3 routing instance with its own routing table and forwarding context, and Apstra’s routing zone is the intent-based abstraction used to define and manage that isolation consistently across the fabric. Therefore, if your goal is to allow or deny traffic to or from a particular VRF, you must select Routing Zone as the security policy application point.

This choice enables you to express policy at the tenant boundary (VRF boundary) rather than at a single segment boundary. In EVPN-VXLAN data center fabrics, a tenant VRF commonly contains multiple virtual networks (VXLAN segments) and their associated IRB gateways on the leaf switches. Applying policy at the routing-zone level allows Apstra to compile intent and deploy enforcement consistently where traffic enters or exits that VRF context—typically as ACL constructs rendered as Junos firewall filters on the appropriate interfaces (for example, IRB interfaces for east-west controls or border interfaces for north-south controls).

By contrast, selecting Virtual Network targets a single segment (not the whole VRF), and Internal/External Endpoint targets specific endpoints or endpoint groups rather than the VRF-wide policy boundary. Hence, Routing Zone is the correct application point when policy scope is the VRF.

In Apstra, tags are an intent-level metadata mechanism used to classify objects and drive automation and reuse. Within a data center blueprint, Apstra supports tagging multiple blueprint objects so operators can apply configuration or policy logic conditionally (for example, applying a connectivity template or a configlet based on a tag match). In this scenario, three valid taggable objects are virtual networks, interfaces, and generic systems.

Virtual network tagging is supported directly from the blueprint’s virtual network table, enabling you to label virtual networks (such as “finance,” “pci,” or “dev”) and then reference those tags elsewhere in blueprint operations and policy application. Interface tagging is also explicitly supported in the blueprint, allowing you to assign tags to switch interfaces and use those tags to control how templates, assignments, or other intent-driven operations apply to those ports. Finally, generic systems (which are modeled endpoint systems such as servers or external routers represented as “systems” in the blueprint) can be tagged so that downstream intent logic can distinguish system roles and apply the correct operations consistently across expansions and changes.

By contrast, property sets are structured data objects used for variable substitution and probe/configlet parameterization, not a primary target for operational tagging in the blueprint UI; and device profiles are catalog artifacts describing hardware/NOS compatibility rather than blueprint objects typically tagged for intent application.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/tag-interface-add-remove-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/task/tag-virtual-network-update.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/tag-system-add-remove-freeform.html
