JN0-637 Practice Exam Questions with Answers Security, Professional (JNCIP-SEC) Certification

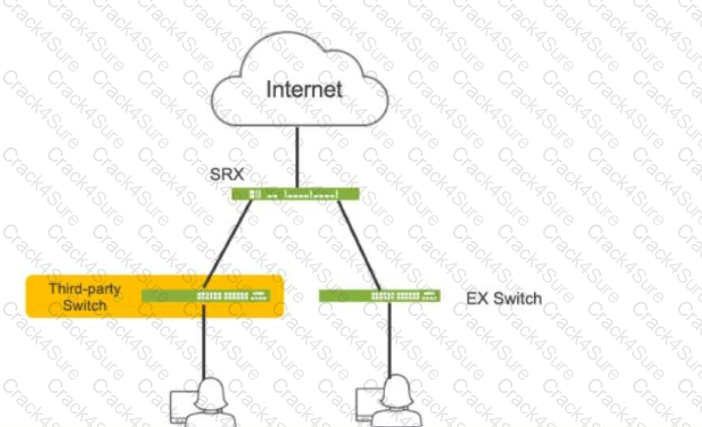

For threat remediation in a third-party network, the RADIUS protocol is necessary to communicate with the RADIUS server for details about infected hosts. CoA enables security measures to be enforced based on endpoint information provided by the RADIUS server. Details on this setup can be found in Juniper RADIUS and AAA Documentation.

When deploying threat remediation to endpoints connected through third-party devices, such as switches, the following conditions must be met for proper integration and functioning:

Explanation of Answer A (Support for AAA/RADIUS and Dynamic Authorization Extensions):

Third-party switches must support AAA (Authentication, Authorization, and Accounting) and RADIUS with Dynamic Authorization Extensions. These extensions allow dynamic updates to be made to a session's authorization parameters, which are essential for enforcing access control based on threat detection.

Explanation of Answer B (Connector Gathers MAC Information via API):

The connector uses an API to gather MAC address information from the RADIUS server. This MAC address data is necessary to identify and take action on infected hosts or endpoints.

Explanation of Answer D (Connector Initiates CoA):

The connector queries the RADIUS server for infected host details and triggers a Change of Authorization (CoA) for the infected host. The CoA allows the connector to dynamically alter the host's access permissions or isolate the infected host based on its threat status.

Juniper Security Reference:

Threat Remediation via RADIUS: Dynamic remediation actions, such as CoA, can be taken based on information received from the RADIUS server regarding infected hosts. Reference: Juniper RADIUS and CoA Documentation.

==========

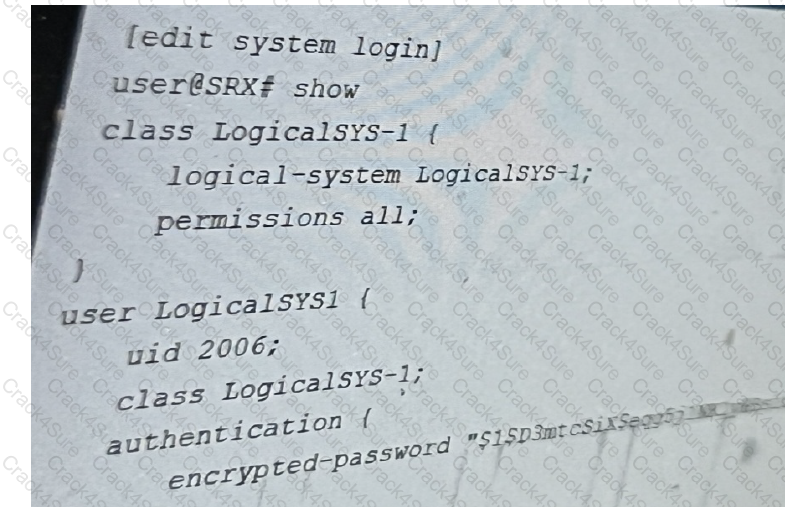

Each tenant system maintains its own configuration database, isolating configurations from others, enhancing security and operational efficiency. Junos OS supports multiple concurrent commit operations across tenant systems. Further details are covered in the Juniper Tenant System Guide.

When configuring tenant systems on an SRX device, the following principles apply:

Tenant Systems Have Their Own Configuration Database (Answer C): Each tenant system has its own isolated configuration database, ensuring that changes made in one tenant system do not affect others. This allows for multi-tenant environments where different tenants can have independent configurations.

Commit Multiple Tenant Systems Simultaneously (Answer D): The system allows for multiple tenant systems to be committed at the same time, simplifying management when working with multiple tenants. This is particularly useful in large environments where multiple logical systems or tenants need updates simultaneously.

Persistent NAT with target-host restricts session initiation to specific addresses, enhancing security. Reflexive NAT supports multiple connections by preserving the original port. Refer to Juniper NAT Configuration Documentation.

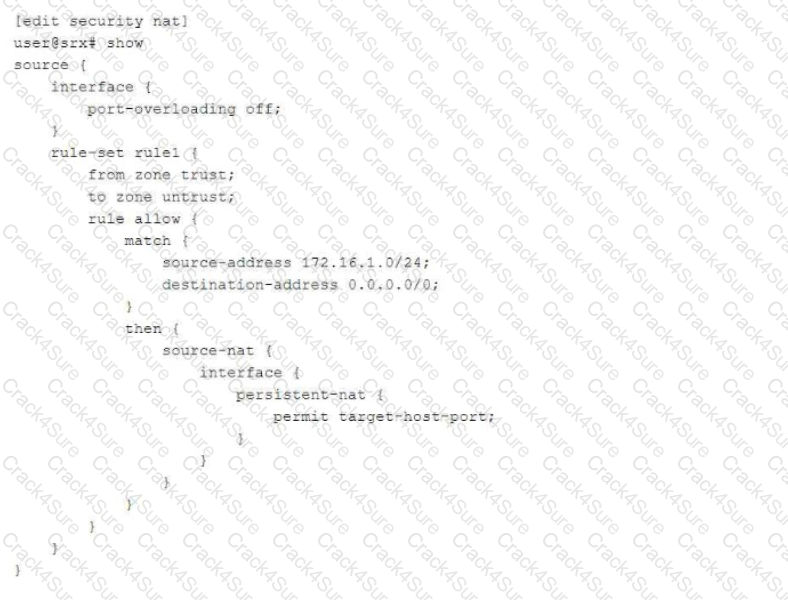

Referring to the NAT configuration shown in the exhibit:

Specific Host Can Initiate a Session (Answer B): The configuration uses persistent NAT with the permit target-host-port statement. This allows a specific external host (based on the target host and port used in the initial session) to initiate a session back to the internal host after the initial session has been established.

Explanation: Persistent NAT ensures that the translation state is maintained, allowing external hosts to connect back only under specific conditions (e.g., the same target host and port as used in the original connection).

Original Destination Port (Answer D): The original destination port used by the internal host is retained as the source port when the session is established from outside to inside. This behavior is a result of how persistent NAT binds the internal and external sessions, ensuring that communication occurs over the same port used for the initial session.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

Explanation:

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.

The SRX Series can inspect traffic within VXLAN tunnels, providing in-depth security services across multiple layers. Adding SRX in the overlay network allows comprehensive control, leveraging advanced firewall capabilities. For more details, see Juniper EVPN-VXLAN Security.

When integrating an SRX Series device into an EVPN-VXLAN solution, it offers several security benefits:

Layer 4-7 Security Services (Answer A): The SRX can provide deep packet inspection for VXLAN encapsulated traffic, enhancing security by offering services such as intrusion prevention, application layer filtering, and antivirus scanning. This allows security monitoring of the encapsulated traffic at higher layers of the OSI model (Layers 4-7), which is essential for advanced threat detection.

Security in the Overlay Network (Answer C): The SRX adds security by functioning as an enterprise-grade firewall within the EVPN-VXLAN overlay. This means that traffic flowing between virtualized segments or networks can be inspected and filtered using SRX firewall rules, ensuring that the VXLAN overlay remains secure.

These features make the SRX a powerful addition for securing EVPN-VXLAN environments, providing comprehensive security for encapsulated traffic and ensuring that both the underlay and overlay networks are protected.

Policy Enforcer interacts with other network elements like EX switches to enforce blocking of infected hosts based on threat intelligence from ATP Cloud and other sources. For more information, refer to Juniper Policy Enforcer Documentation.

In a Juniper automated threat mitigation setup involving Security Director, Policy Enforcer, Juniper ATP Cloud, SRX Series, and EX Series switches, the Policy Enforcer is the component responsible for blocking infected hosts. The role of each component is as follows:

Policy Enforcer (Correct: Option A):Policy Enforcer receives threat intelligence from Juniper ATP Cloud and instructs SRX devices and EX Series switches to block or quarantine infected hosts. Policy Enforcer pushes policies to these devices to enforce the mitigation actions.

Security Director (Incorrect):Security Director provides centralized management and visibility but does not directly enforce policies.

Juniper ATP Cloud (Incorrect):Juniper ATP Cloud is responsible for analyzing threats and providing intelligence but does not take direct mitigation actions.

EX Series Switch (Incorrect):EX Series switches can enforce the policy pushed by Policy Enforcer but are not responsible for deciding which hosts to block.

Juniper References:

Juniper ATP Cloud and Policy Enforcer Documentation: Details the roles of each component in the automated threat mitigation architecture.

==========

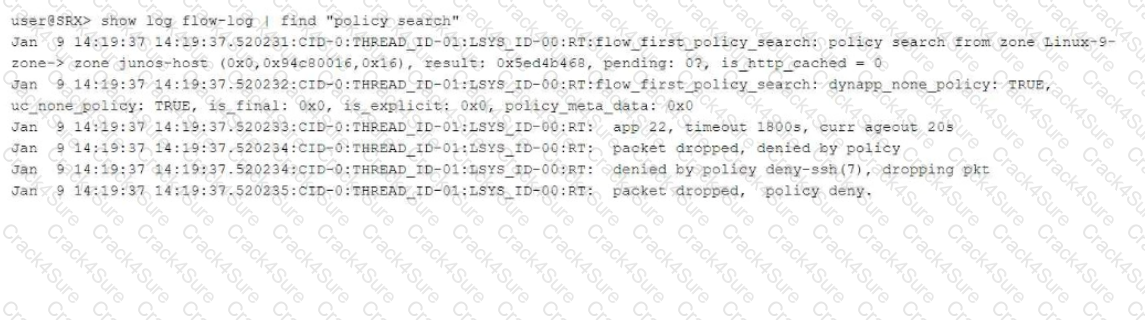

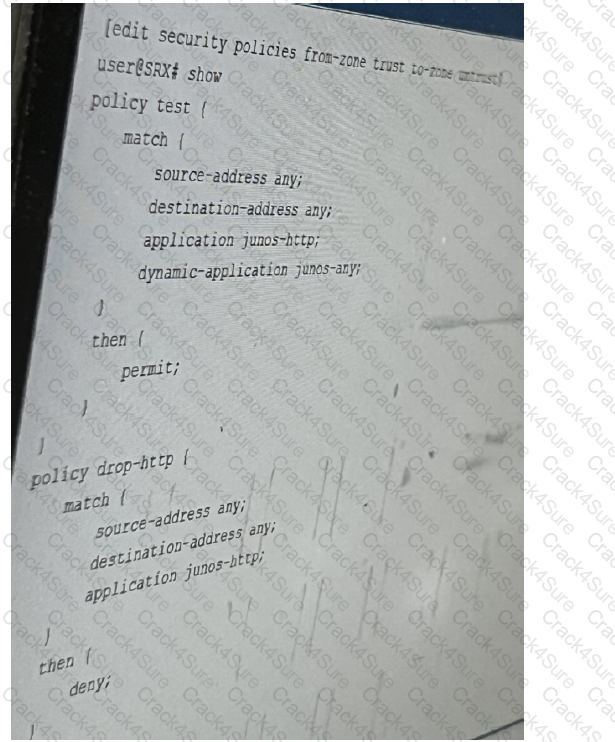

The request security policies check command allows you to simulate a session through the SRX device, checking the security policy action that would apply without needing to send real traffic. This helps in validating configurations before actual deployment. For more details, see Juniper Security Policies Testing.

The command request security policies check is used to test how a Junos security device handles a theoretical session without generating actual traffic. This command is useful for validating how security policies would be applied to a session based on various parameters like source and destination addresses, application type, and more.

Explanation of Answer A (request security policies check):

This command allows you to simulate a session and verify which security policies would be applied to the session. It's a proactive method to test security policy configurations without the need to generate real traffic.

Example usage:

bash

request security policies check from-zone trust to-zone untrust source 10.1.1.1 destination 192.168.1.1 protocol tcp application junos-https

Juniper Security Reference:

Security Policies Check: This command provides a way to simulate and verify security policy behavior without actual traffic. Reference: Juniper Security Policy Documentation.

==========

AutoVPN simplifies deployment by dynamically establishing tunnels from spokes to the hub. This architecture supports easy scaling with minimal configuration changes, ensuring spoke-to-spoke traffic flows through the hub. For more information, see Juniper AutoVPN Overview.

In this scenario, you need a VPN solution that ensures secure, dynamic connectivity between multiple sites, with the following conditions:

All sites must have secure reachability.

New spoke sites can be added without explicit configuration on the hub site.

Spoke-to-spoke communication must traverse the hub.

The correct technology to meet these requirements is AutoVPN. It simplifies VPN configurations by automating the setup between hub and spoke sites. Additionally, AutoVPN automatically establishes secure tunnels for new spoke sites without requiring manual configuration at the hub, and all spoke-to-spoke traffic is routed through the hub.

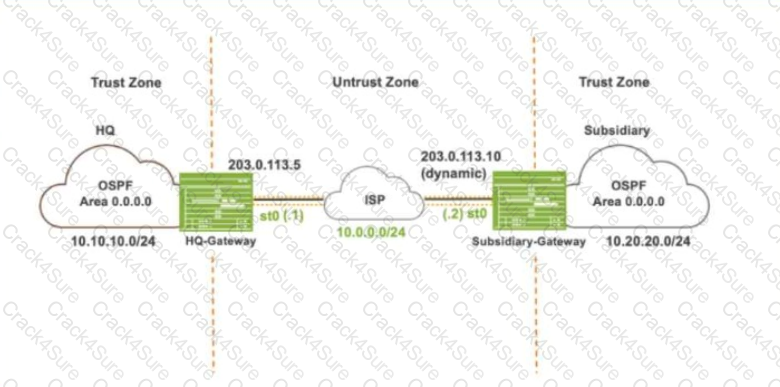

For ADVPN with OSPF, using a point-to-multipoint (p2mp) interface type and enabling dynamic-neighbors are crucial. This configuration allows dynamic discovery of neighbors and the establishment of tunnels. For more information, refer to Juniper ADVPN Configuration Guide.

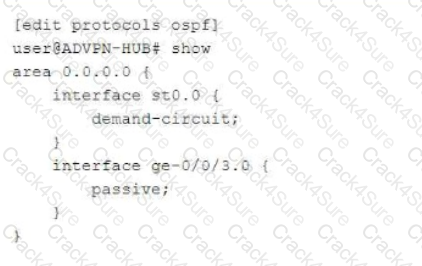

In the ADVPN configuration, OSPF isn't functioning as expected due to the interface configuration on st0.0. Here are the adjustments needed:

Interface Type p2mp (Answer A): OSPF requires that the tunnel interface be set to p2mp (point-to-multipoint) to allow OSPF to communicate with multiple dynamic neighbors over the ADVPN tunnels.

Command Example:

bash

set interfaces st0.0 family inet ospf interface-type p2mp

Dynamic Neighbors (Answer B): The dynamic neighbors statement allows OSPF to discover and communicate with dynamically established spokes in an ADVPN environment. This is essential for ADVPN to function properly since the tunnel endpoints are not static.

Command Example:

bash

set protocols ospf area 0.0.0.0 interface st0.0 dynamic-neighbors

These settings ensure OSPF properly functions over dynamically created ADVPN tunnels.

==========

==========

==========

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Exhibit:

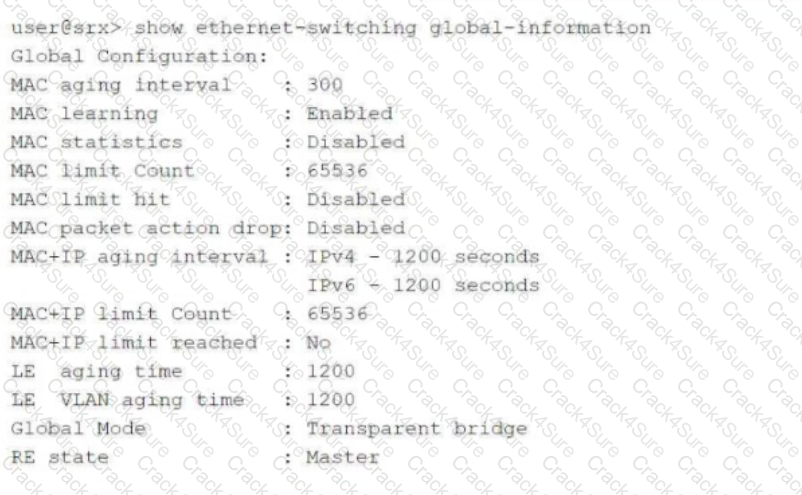

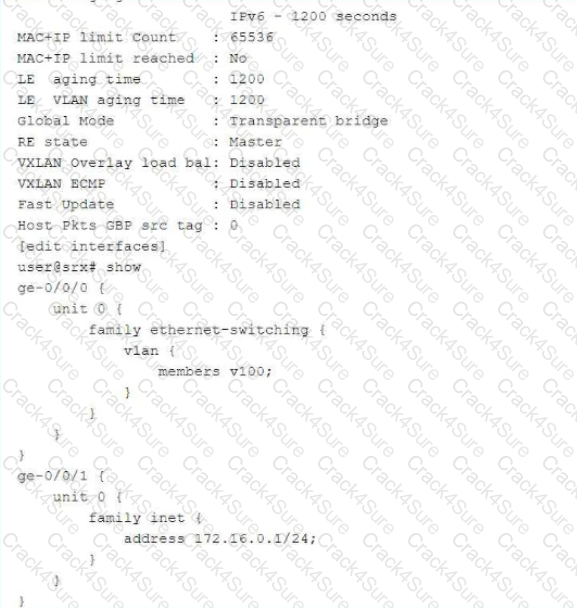

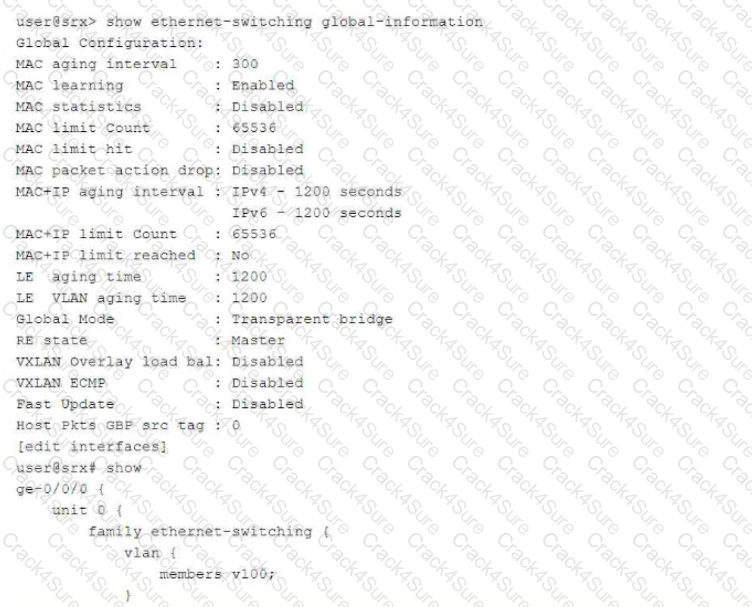

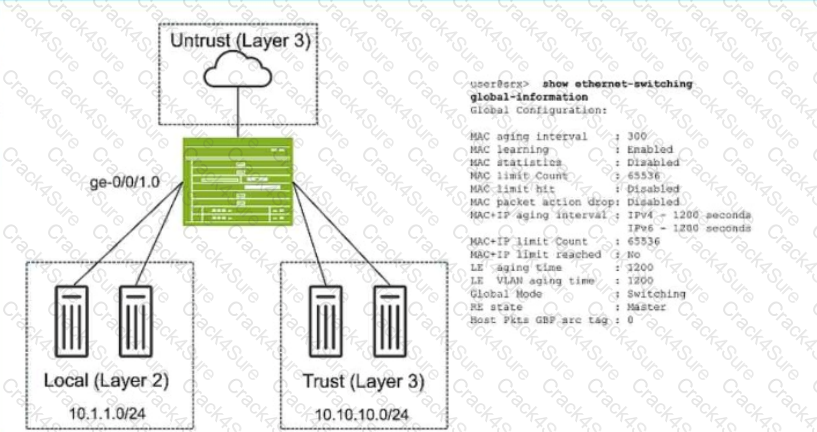

The SRX device is operating in Transparent Mode, as indicated by:

Global Mode : Transparent bridge

Transparent Mode on SRX Devices:

Transparent Mode (Layer 2 Mode):

The SRX device acts as a Layer 2 switch.

Does not perform routing functions.

Security policies can be applied to inter-VLAN (Layer 2) traffic but not intra-VLAN traffic.

Cannot handle Layer 3 traffic simultaneously.

Option A: You cannot secure intra-VLAN traffic with a security policy on this device.

True.

In Transparent Mode, intra-VLAN traffic is switched within the VLAN and does not pass through the SRX firewall processing engine.

Therefore, security policies cannot be applied to intra-VLAN traffic.

Option B: You can secure inter-VLAN traffic with a security policy on this device.

False.

In Transparent Mode, all interfaces are in the same VLAN (unless VLAN tagging is configured).

Inter-VLAN routing is not possible as the device does not perform Layer 3 functions.

Option C: The device can pass Layer 2 and Layer 3 traffic at the same time.

False.

In Transparent Mode, the SRX device operates exclusively at Layer 2.

It cannot process Layer 3 traffic simultaneously.

Option D: The device cannot pass Layer 2 and Layer 3 traffic at the same time.

True.

The SRX device in Transparent Mode cannot handle both Layer 2 and Layer 3 traffic concurrently.

Key Points:

Intra-VLAN Traffic:

Traffic within the same VLAN.

In Transparent Mode, this traffic is switched and does not go through the firewall's security policies.

Inter-VLAN Traffic:

Traffic between different VLANs.

Requires routing capabilities (Layer 3).

In Transparent Mode, the SRX cannot perform routing functions.

Juniper Security References:

Juniper Networks Documentation:

"In transparent mode, the SRX Series device acts like a Layer 2 switch or bridge. Security policies cannot control intra-VLAN traffic because such traffic does not pass through the firewall."

Source: Understanding Transparent Mode

"The device cannot perform both Layer 2 switching and Layer 3 routing simultaneously in transparent mode."

Source: Transparent Mode Limitations

Conclusion:

Option A is correct because intra-VLAN traffic cannot be secured with security policies in Transparent Mode.

Option D is correct because the device cannot pass both Layer 2 and Layer 3 traffic at the same time when operating in Transparent Mode.

? A. Enroll the SRX Series device with Juniper ATP Cloud. This is essential for the SRX to receive threat intelligence from ATP Cloud, enabling it to identify infected hosts and take action.

? B. Use a third-party connector. In this specific scenario, a third-party connector is required to integrate the SRX with the third-party switch. While Juniper has native integration for its EX switches, a connector is necessary to communicate with and manage the third-party switch.

? C. Deploy Security Director with Policy Enforcer. Security Director orchestrates the automated response, and Policy Enforcer translates the policies into device-specific commands for the SRX and the third-party switch (via the connector).

==========

==========

Here's why those elements are necessary for configuring a rule under an APBR profile:

B. Match condition: This defines the criteria for matching traffic to the APBR rule. It can include:

Applications: Match based on specific applications or application groups.

URL categories: Match based on URL categories provided by a web filtering service.

Other criteria: You can also match based on source/destination IP addresses, ports, protocols, etc.

C. Then action: This specifies the action to take when traffic matches the rule. The primary action in APBR is:

routing-instance: This redirects the matching traffic to a specific routing instance, allowing you to steer traffic through different paths based on the application or URL category.

Why other options are incorrect:

A. Instance type: While routing instances are used in APBR, the "instance type" itself is not configured within the APBR rule. You define the instance type separately when configuring the routing instance.

D. RIB group: RIB groups are used for route management and are not directly involved in APBR rule configuration.

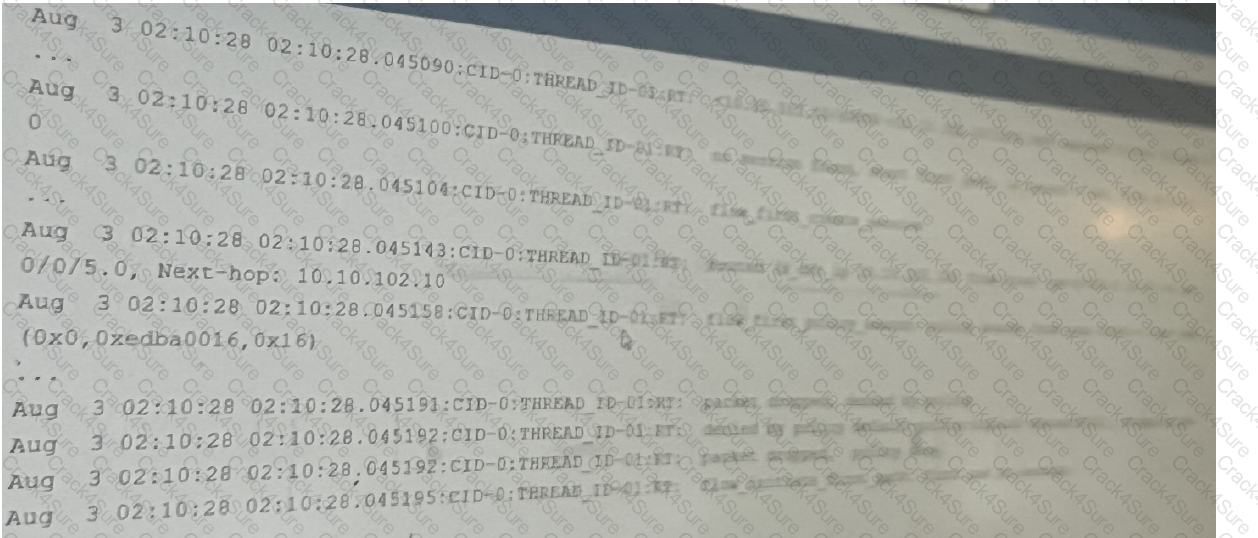

To enable advanced policy-based routing in Junos OS and activate a static route with a next-hop address in the inet.0 table within your routing instance, you should utilize RIB groups. RIB groups allow you to import routes from one routing table to another. In this scenario, the static route within the routing instance needs access to the inet.0 routes, which is facilitated by configuring a RIB group. Juniper’s documentation outlines RIB groups as a necessary component for handling instances where routes need to be shared across routing tables, thereby ensuring seamless traffic flow through specified routes. For more details, refer to the Juniper Networks Documentation on RIB Groups.

In Junos OS for SRX Series devices, when enabling advanced policy-based routing and configuring a static route with a next-hop from the inet.0 routing table, the issue arises because the static route is not being used in the routing instance. This is a common scenario when the next-hop belongs to a different routing table or instance, and the routing instance is not aware of that next-hop.

To resolve this, RIB (Routing Information Base) groups are used. RIB groups allow routes from one routing table (RIB) to be shared or imported into another routing table. This means that the routing instance can import the necessary routes from inet.0 and make them available for the routing instance where the policy-based routing is applied.

Detailed Steps:

Configure the Static Route: First, configure the static route pointing to the next-hop in inet.0. Here’s an example:

bash

set routing-options static route 10.1.1.0/24 next-hop 192.168.1.1

This static route will be placed in the inet.0 routing table by default.

Create and Apply a RIB Group: To import routes from inet.0 into the routing instance, create a RIB group configuration. This will allow the static route from inet.0 to be visible within the routing instance.

Example configuration for the RIB group:

bash

set routing-options rib-groups RIB-GROUP import-rib inet.0

set routing-options rib-groups RIB-GROUP import-rib .inet.0

This configuration ensures that routes from inet.0 are imported into the specified routing instance.

Apply the RIB Group to the Routing Instance: Once the RIB group is configured, apply it to the appropriate routing instance:

bash

set routing-instances routing-options rib-group RIB-GROUP

Verify Configuration: Use the following command to verify that the static route has been imported into the routing instance:

bash

show route table .inet.0

The output should now display the static route imported from inet.0.

Juniper Security Reference:

RIB Groups Overview: Juniper's documentation provides detailed information on how RIB groups function and how to use them to share routes between different routing tables. This is essential for scenarios involving policy-based routing where routes from one instance (like inet.0) need to be available in another instance. Reference: Juniper Networks Documentation on RIB Groups.

By using RIB groups, you ensure that the static route from inet.0 is available in the appropriate routing instance for policy-based routing to function correctly. This avoids the need for other methods like filter-based forwarding or transparent mode, which do not address the specific issue of static route visibility across routing instances.

==========

==========

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security Reference:

Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

==========
