Practice Free CKS Certified Kubernetes Security Specialist (CKS) Exam Questions Answers With Explanation

To add a Kubernetes cluster to your project, group, or instance:

Navigate to your:

Project’s Operations > Kubernetes page, for a project-level cluster.

Group’s Kubernetes page, for a group-level cluster.

Admin Area > Kubernetes page, for an instance-level cluster.

Click Add Kubernetes cluster.

Click the Add existing cluster tab and fill in the details:

Kubernetes cluster name (required) - The name you wish to give the cluster.

Environment scope (required) - The associated environment to this cluster.

API URL (required) - It’s the URL that GitLab uses to access the Kubernetes API. Kubernetes exposes several APIs, we want the “base” URL that is common to all of them. For example, https://kubernetes.example.com  rather than https://kubernetes.example.com/api/v1 .

Get the API URL by running this command:

kubectl cluster-info | grep -E 'Kubernetes master|Kubernetes control plane' | awk '/http/ {print $NF}'

CA certificate (required) - A valid Kubernetes certificate is needed to authenticate to the cluster. We use the certificate created by default.

List the secrets with kubectl get secrets, and one should be named similar to default-token-xxxxx. Copy that token name for use below.

Get the certificate by running this command:

kubectl get secret -o jsonpath="{['data']['ca\.crt']}"

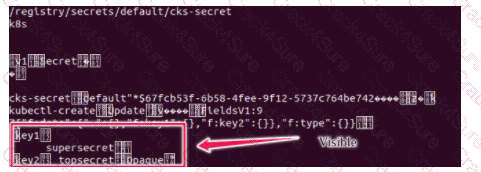

ETCD secret encryption can be verified with the help of etcdctl command line utility.

ETCD secrets are stored at the path /registry/secrets/$namespace/$secret on the master node.

The below command can be used to verify if the particular ETCD secret is encrypted or not.

# ETCDCTL_API=3 etcdctl get /registry/secrets/default/secret1 [...] | hexdump -C

Create psp to disallow privileged container

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

 name: deny-access-role

rules:

- apiGroups: ['policy']

 resources: ['podsecuritypolicies']

 verbs:     ['use']

 resourceNames:

 - “deny-policy”

k create sa psp-denial-sa -n development

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

 name: restrict-access-bing

roleRef:

 kind: ClusterRole

 name: deny-access-role

 apiGroup: rbac.authorization.k8s.io

subjects:

- kind: ServiceAccount

 name: psp-denial-sa

 namespace: development

Explanationmaster1 $ vim psp.yaml

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: deny-policy

spec:

privileged: false # Don't allow privileged pods!

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

master1 $ vim cr1.yaml

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

 name: deny-access-role

rules:

- apiGroups: ['policy']

 resources: ['podsecuritypolicies']

 verbs:     ['use']

 resourceNames:

 - “deny-policy”

master1 $ k create sa psp-denial-sa -n development

master1 $ vim cb1.yaml

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

 name: restrict-access-bing

roleRef:

 kind: ClusterRole

 name: deny-access-role

 apiGroup: rbac.authorization.k8s.io

subjects:

# Authorize specific service accounts:

- kind: ServiceAccount

 name: psp-denial-sa

 namespace: development

master1 $ k apply -f psp.yaml

master1 $ k apply -f cr1.yaml

master1 $ k apply -f cb1.yaml

Create a PSP that will prevent the creation of privileged pods in the namespace.

$ cat clusterrole-use-privileged.yaml

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

name: use-privileged-psp

rules:

- apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

- default-psp

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

name: privileged-role-bind

namespace: psp-test

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

name: use-privileged-psp

subjects:

- kind: ServiceAccount

name: privileged-sa

$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml

After a few moments, the privileged Pod should be created.

Create a new PodSecurityPolicy named prevent-privileged-policy which prevents the creation of privileged pods.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

- name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []

Create a new ServiceAccount named psp-sa in the namespace default.

$ cat clusterrole-use-privileged.yaml

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

name: use-privileged-psp

rules:

- apiGroups: ['policy']

resources: ['podsecuritypolicies']

verbs: ['use']

resourceNames:

- default-psp

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

name: privileged-role-bind

namespace: psp-test

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

name: use-privileged-psp

subjects:

- kind: ServiceAccount

name: privileged-sa

$ kubectl -n psp-test apply -f clusterrole-use-privileged.yaml

After a few moments, the privileged Pod should be created.

Create a new ClusterRole named prevent-role, which uses the newly created Pod Security Policy prevent-privileged-policy.

apiVersion: policy/v1beta1

kind: PodSecurityPolicy

metadata:

name: example

spec:

privileged: false # Don't allow privileged pods!

# The rest fills in some required fields.

seLinux:

rule: RunAsAny

supplementalGroups:

rule: RunAsAny

runAsUser:

rule: RunAsAny

fsGroup:

rule: RunAsAny

volumes:

- '*'

And create it with kubectl:

kubectl-admin create -f example-psp.yaml

Now, as the unprivileged user, try to create a simple pod:

kubectl-user create -f- <

apiVersion: v1

kind: Pod

metadata:

name: pause

spec:

containers:

- name: pause

image: k8s.gcr.io/pause

EOF

The output is similar to this:

Error from server (Forbidden): error when creating "STDIN": pods "pause" is forbidden: unable to validate against any pod security policy: []

Create a new ClusterRoleBinding named prevent-role-binding, which binds the created ClusterRole prevent-role to the created SA psp-sa.

apiVersion: rbac.authorization.k8s.io/v1

# This role binding allows "jane" to read pods in the "default" namespace.

# You need to already have a Role named "pod-reader" in that namespace.

kind: RoleBinding

metadata:

name: read-pods

namespace: default

subjects:

# You can specify more than one "subject"

- kind: User

name: jane # "name" is case sensitive

apiGroup: rbac.authorization.k8s.io

roleRef:

# "roleRef" specifies the binding to a Role / ClusterRole

kind: Role #this must be Role or ClusterRole

name: pod-reader # this must match the name of the Role or ClusterRole you wish to bind to

apiGroup: rbac.authorization.k8s.io

apiVersion: rbac.authorization.k8s.io/v1

kind: Role

metadata:

namespace: default

name: pod-reader

rules:

- apiGroups: [""] # "" indicates the core API group

resources: ["pods"]

verbs: ["get", "watch", "list"]

1) Connect to the correct host

ssh cks000m40

sudo -i

export KUBECONFIG=/etc/kubernetes/admin.conf

2) Verify namespace exists (quick check)

kubectl get ns clever-cactus

3) Verify certificate and key files exist

ls -l /home/candidate/clever-cactus/web.k8s.local.crt

ls -l /home/candidate/clever-cactus/web.k8s.local.key

Both files must exist.

4) Create the TLS Secret (THIS IS THE MAIN TASK)

Create a TLS Secret named clever-cactus in namespace clever-cactus:

kubectl -n clever-cactus create secret tls clever-cactus \

--cert=/home/candidate/clever-cactus/web.k8s.local.crt \

--key=/home/candidate/clever-cactus/web.k8s.local.key

?? Do NOT use apply

?? Do NOT edit the Deployment

5) Verify the Secret

kubectl -n clever-cactus get secret clever-cactus

Expected type:

kubernetes.io/tls

Optional detail check:

kubectl -n clever-cactus describe secret clever-cactus

You should see:

tls.crt

tls.key

6) (Optional) Confirm Pods are running

Since the Deployment is already configured to use the Secret, Pods should now work.

kubectl -n clever-cactus get pods

A service account provides an identity for processes that run in a Pod.

When you (a human) access the cluster (for example, using kubectl), you are authenticated by the apiserver as a particular User Account (currently this is usually admin, unless your cluster administrator has customized your cluster). Processes in containers inside pods can also contact the apiserver. When they do, they are authenticated as a particular Service Account (for example, default).

When you create a pod, if you do not specify a service account, it is automatically assigned the default service account in the same namespace. If you get the raw json or yaml for a pod you have created (for example, kubectl get pods/ -o yaml), you can see the spec.serviceAccountName field has been automatically set.

You can access the API from inside a pod using automatically mounted service account credentials, as described in Accessing the Cluster. The API permissions of the service account depend on the authorization plugin and policy in use.

In version 1.6+, you can opt out of automounting API credentials for a service account by setting automountServiceAccountToken: false on the service account:

apiVersion: v1

kind: ServiceAccount

metadata:

name: build-robot

automountServiceAccountToken: false

In version 1.6+, you can also opt out of automounting API credentials for a particular pod:

apiVersion: v1

kind: Pod

metadata:

name: my-pod

spec:

serviceAccountName: build-robot

automountServiceAccountToken: false

The pod spec takes precedence over the service account if both specify a automountServiceAccountToken value.

apiVersion: networking.k8s.io/v1

kind: NetworkPolicy

metadata:

name: network-policy

spec:

podSelector: {} #selects all the pods in the namespace deployed

policyTypes:

- Ingress

ingress:

- ports: #in input traffic allowed only through 80 port only

- protocol: TCP

port: 80

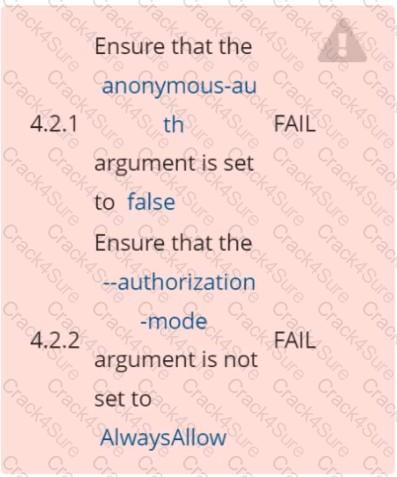

worker1 $ vim /var/lib/kubelet/config.yaml

anonymous:

enabled: true #Delete this

enabled: false #Replace by this

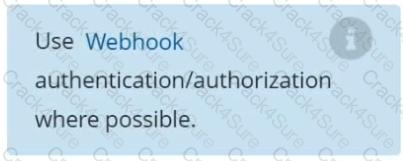

authorization:

mode: AlwaysAllow #Delete this

mode: Webhook #Replace by this

worker1 $ systemctl restart kubelet.    # To reload kubelet config

ssh to master1

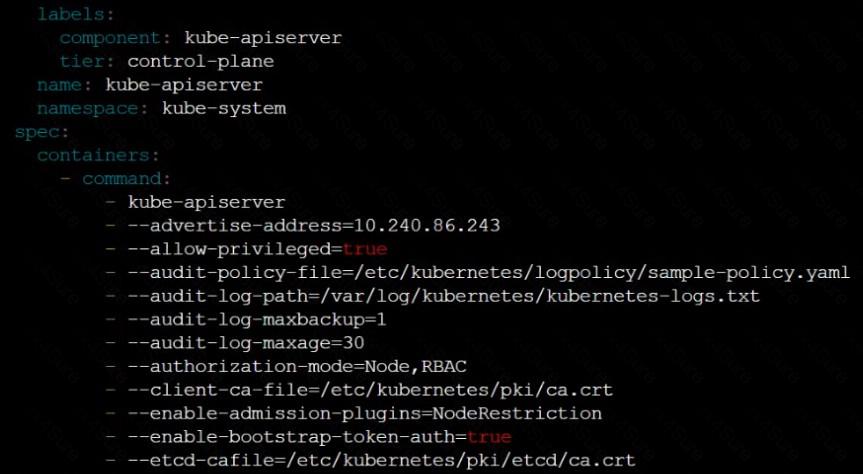

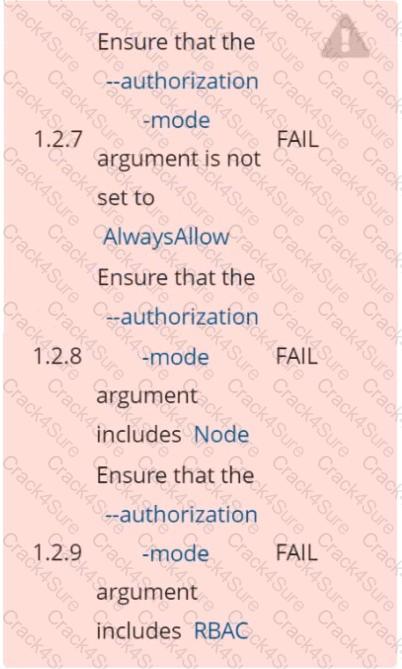

master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml

- -- authorization-mode=Node,RBAC

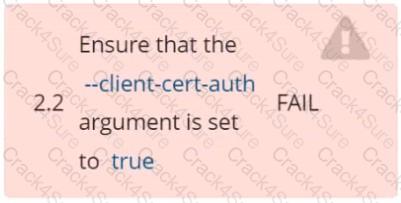

master1 $ vim /etc/kubernetes/manifests/etcd.yaml

- --client-cert-auth=true

Explanationssh to worker1

worker1 $ vim /var/lib/kubelet/config.yaml

apiVersion: kubelet.config.k8s.io/v1beta1

authentication:

anonymous:

enabled: true #Delete this

enabled: false #Replace by this

webhook:

cacheTTL: 0s

enabled: true

x509:

clientCAFile: /etc/kubernetes/pki/ca.crt

authorization:

mode: AlwaysAllow #Delete this

mode: Webhook #Replace by this

webhook:

cacheAuthorizedTTL: 0s

cacheUnauthorizedTTL: 0s

cgroupDriver: systemd

clusterDNS:

- 10.96.0.10

clusterDomain: cluster.local

cpuManagerReconcilePeriod: 0s

evictionPressureTransitionPeriod: 0s

fileCheckFrequency: 0s

healthzBindAddress: 127.0.0.1

healthzPort: 10248

httpCheckFrequency: 0s

imageMinimumGCAge: 0s

kind: KubeletConfiguration

logging: {}

nodeStatusReportFrequency: 0s

nodeStatusUpdateFrequency: 0s

resolvConf: /run/systemd/resolve/resolv.conf

rotateCertificates: true

runtimeRequestTimeout: 0s

staticPodPath: /etc/kubernetes/manifests

streamingConnectionIdleTimeout: 0s

syncFrequency: 0s

volumeStatsAggPeriod: 0s

worker1 $ systemctl restart kubelet.    # To reload kubelet config

ssh to master1

master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml

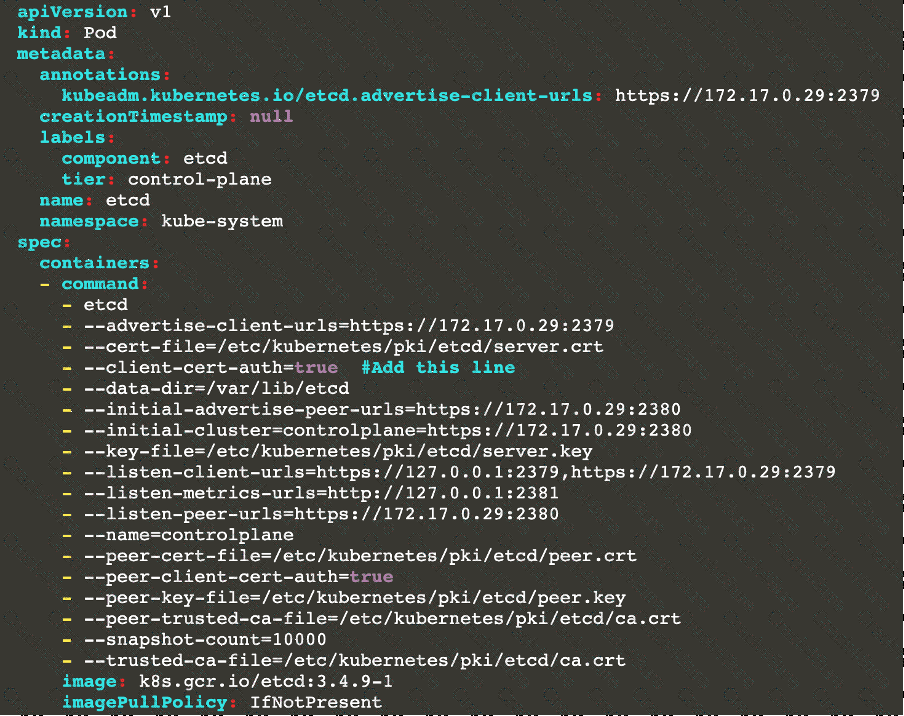

master1 $ vim /etc/kubernetes/manifests/etcd.yaml
