Practice Free Cilium-Associate Cilium Certified AssociateCCA Exam Questions Answers With Explanation

Technical explanation

Cilium tunnel mode supports VXLAN and Geneve encapsulation. In this routing model, Cilium nodes form an overlay mesh, and traffic exchanged between nodes is carried inside UDP-encapsulated packets. VXLAN is the default tunnel protocol and normally uses UDP port 8472. Geneve is the alternative and normally uses UDP port 6081. Operators select the protocol through the tunnel-protocol configuration setting, whose documented values are vxlan and geneve .

Encapsulation reduces the requirements placed on the underlying network. The underlay only needs to provide IP connectivity between the Kubernetes nodes and permit the selected UDP tunnel port. It does not need to learn or route individual PodCIDRs. Cilium also uses the tunnel metadata to carry information such as the source security identity, avoiding an additional identity lookup on the receiving node.

MPLS, OTV, STT, and EVPN are not supported values for Cilium’s tunnel-protocol setting. EVPN may be used in broader data-center network designs, and MPLS is a carrier-routing technology, but neither is a Cilium overlay encapsulation choice. Therefore, B is the only supported pair.

Official references

Cilium Routing ; System Requirements .

Study Guide topic: Architecture.

Technical explanation

The intended answer is D, but the option contains a source-bank typographical error. The valid command is cilium sysdump , not cilium sysduwp . Read literally, none of the four displayed commands exactly answers the question.

The Cilium CLI’s sysdump operation gathers cluster-wide troubleshooting material, including Cilium configuration and endpoint state, agent and operator logs, Kubernetes workload information, routing and interface details, kernel messages, service state, policies, and selected eBPF-map output. This consolidated archive is the preferred diagnostic package when investigating Kubernetes networking or preparing a support report.

cilium status --verbose provides expanded health and deployment status, but it does not collect the comprehensive diagnostic archive requested. debuginfo is associated with the in-agent debug client—currently documented as cilium-dbg debuginfo —and produces useful local-agent API information; in Kubernetes environments it is already included as part of the system dump. cilium bugtool is not the current cluster-wide Cilium CLI command requested here.

For an exam-ready correction, option D should read cilium sysdump .

Official references

Cilium Troubleshooting and Sysdump

Study Guide topic: Cilium CLI troubleshooting, system dumps, and diagnostic collection.

Technical explanation

B is the best answer, with two qualifications. First, “pop-to-pod” is evidently a source typo for “pod-to-pod.” Second, default WireGuard mode encrypts traffic between Cilium-managed pods on different nodes; node-to-node, pod-to-node, and node-to-pod coverage requires enabling the additional encryption.nodeEncryption=true mode.

Cilium creates WireGuard peers per node, not per pod. Each Cilium agent generates a node key pair, advertises the public key through its CiliumNode resource, and forms secure tunnels with other known nodes. This makes D incorrect. Same-node packets do not traverse a WireGuard tunnel because encryption cannot protect them from an observer already able to inspect raw traffic on that host, so A reverses the documented behavior.

C also reverses the encapsulation sequence. In tunnel-routing mode, pod traffic is first encapsulated for the VXLAN or Geneve overlay and is then encapsulated by WireGuard. The result is double encapsulation, with WireGuard protecting the overlay packet while it crosses the network between nodes.

Thus, B describes WireGuard’s supported traffic coverage most closely, but exam candidates should remember the separate node-encryption configuration requirement.

Official references

WireGuard Transparent Encryption

Study Guide topic: WireGuard peer architecture, encrypted traffic matrix, same-node behavior, and encapsulation order.

Technical explanation

Masquerading performs source network address translation for qualifying traffic that leaves the cluster. Because pod addresses are often private and not routable by the external network, Cilium replaces the pod’s source address with an address belonging to the egress node. Return traffic can then reach that node, which reverses the translation and delivers the response to the originating pod. B correctly summarizes this behavior.

Masquerading is a form of SNAT, not DNAT. DNAT modifies the destination address, commonly to direct incoming traffic toward another endpoint, so C is incorrect.

Cilium documents its eBPF-based masquerading implementation as the more efficient implementation. The iptables version is the legacy alternative, making A false. Conversely, eBPF masquerading depends on appropriate kernel eBPF capabilities and Cilium’s BPF NodePort functionality. It cannot be assumed to work on every kernel version, so D is false. The legacy iptables implementation is the mode documented as broadly working across kernel versions.

Cilium can exclude natively routable CIDRs from masquerading, and administrators may configure separate IPv4 and IPv6 masquerading behavior.

Official references

Cilium Masquerading , Cilium System Requirements

Study Guide topic: SNAT, native-routing exclusions, and eBPF versus iptables masquerading.

Technical explanation

cilium config view is the Cilium CLI command used to display the current Cilium configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release. The command belongs to the cilium config command group, which manages installation configuration.

Option B reverses the expected command structure and does not correspond to a documented Cilium CLI operation. Option D resembles command syntax used on traditional network appliances but is not part of the Cilium CLI. Option C is both textually corrupted and conceptually inaccurate: Cilium configuration is not generally exposed through a cluster-wide resource named ciliumconfig.cilium.io . Runtime settings are commonly represented through the Cilium ConfigMap and Helm release values, while specialized resources such as CiliumNodeConfig apply targeted per-node configuration.

The wording “display show” is a source-bank editing defect but does not affect the answer. Administrators should also distinguish the external cilium management CLI from cilium-dbg , which runs with or communicates with the node-local Cilium agent and provides detailed datapath and agent diagnostics.

Official references

cilium config view , Cilium Component Overview

Study Guide topic: Cilium CLI configuration inspection and command structure.

Technical explanation

The host entity represents the local node on which the selected Cilium endpoint resides. It also includes processes and containers using the local host network namespace. Therefore, A reproduces the official entity definition accurately.

The remote-node entity does not represent arbitrary unmanaged endpoints. It represents hosts other than the local node across the local cluster and connected clusters, including host-networked containers on those nodes. Unmanaged endpoints instead have the reserved unmanaged identity.

Option C gives the definition of the separate kube-apiserver entity, not cluster . The cluster entity is the logical collection of endpoints and reserved identities inside the local cluster, including Cilium-managed endpoints, unmanaged local endpoints, hosts, remote nodes, health, ingress, initialization, and kube-apiserver identities. Current documentation separately provides a cluster-mesh entity for endpoints in connected clusters.

Option D confuses all with world . world represents endpoints outside the cluster. all covers all identities and is not simply equivalent to the IPv4 CIDR 0.0.0.0/0 , particularly in identity-aware, node, and IPv6 contexts.

Official references

Cilium Layer 3 Policy Entities , Cilium Reserved Identities

Study Guide topic: Reserved entities and identity-based Layer 3 policies.

Technical explanation

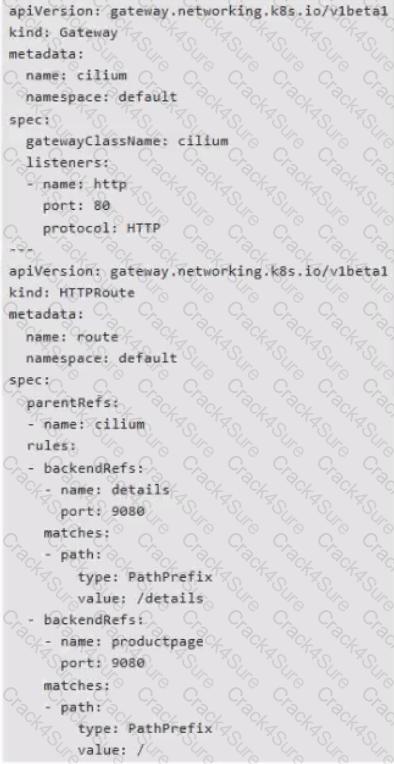

Option B correctly represents the Ingress as a Gateway and an attached HTTPRoute . The Gateway is named cilium , uses gatewayClassName: cilium , and exposes an HTTP listener on port 80. The HTTPRoute uses parentRefs with the same Gateway name, cilium , so the route attaches to the declared listener. Its two rules preserve the original routing behavior: /details with PathPrefix targets the details Service on port 9080, while / with PathPrefix targets productpage on port 9080.

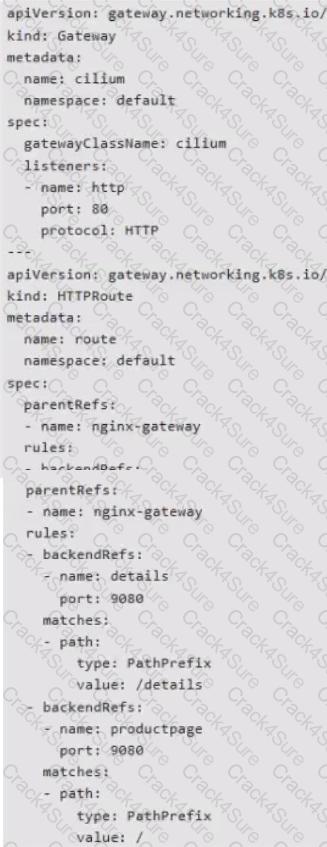

Option A declares a Gateway named cilium but attaches its route to nginx-gateway . Because the parent reference does not identify the displayed Gateway, it is not equivalent. Options C and D use kind: Route ; the correct resource kind for HTTP path routing is HTTPRoute . They also contain malformed or altered backend and matching fields. Option D changes the details backend name, while option C contains incorrect route structure and path content.

Cilium’s official migration example uses the same conversion pattern: the Ingress class becomes the Gateway’s class, paths move into HTTPRoute.rules , and the route identifies its Gateway through parentRefs .

The supplied key incorrectly identifies A. The verified answer is B.

Official references

HTTP Migration Example .

Study Guide topic: Service Mesh.

Technical explanation

For every pod managed by Cilium, the responsible node-local Cilium agent creates a CiliumEndpoint object with the same name and namespace. The object exposes endpoint state such as labels, the allocated security identity, addressing information, and effective policy. The agents also create endpoint objects for their inter-agent health endpoints. B is therefore correct.

The other responsibilities belong primarily to the Cilium Operator. The operator normally registers Cilium’s CustomResourceDefinitions, manages addresses for LoadBalancer Services when LB IPAM is active, and performs configured cluster-wide synchronization or shared-state operations. It also garbage-collects orphaned CiliumEndpoint resources when their associated pods no longer exist or have permanently completed.

The Cilium agent itself runs on each node. It responds to workload lifecycle events, creates and manages local endpoints, loads eBPF programs, applies policies, and maintains the node’s datapath. This division ensures that latency-sensitive forwarding and endpoint operations remain node-local while logically cluster-wide activities are consolidated in the operator.

Official references

CiliumEndpoint CRD , Cilium Operator Responsibilities

Study Guide topic: Cilium agent, Cilium Operator, and CiliumEndpoint lifecycle.

Technical explanation

The Cilium Operator handles IP address management responsibilities in IPAM modes that require cluster-wide or cloud-integrated allocation. Current documentation identifies the operator as responsible for IPAM in Azure IPAM, AWS ENI, and cluster-scope mode. Cloud-specific operators populate the appropriate allocation information in CiliumNode resources, after which node-local agents allocate addresses to endpoints from the available ranges.

The phrase “when available” is important because responsibilities vary by IPAM mode. Under Kubernetes host-scope IPAM, Kubernetes allocates each node’s PodCIDR, and the Cilium agent consumes that range from the Kubernetes Node object. Nevertheless, among the supplied components, the operator is the component specifically associated with centralized IPAM requests and allocation management.

The Cilium agent implements each node’s datapath and endpoint lifecycle but is not the general cluster-wide IPAM answer intended here. Cilium API Server is not the documented allocation component. The misspelled Cilium CNIPIugin refers to the CNI plugin, which requests networking setup when a pod is created but does not replace the operator’s IPAM responsibilities.

Official references

Cilium Operator , Cilium IP Address Management

Study Guide topic: Cilium Operator responsibilities and IPAM modes.

Technical explanation

cilium config view is the Cilium CLI command intended to display the current configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release and presents the relevant settings for inspection. This makes D the direct answer.

cilium status performs a different function. It reports the health and readiness of Cilium components such as the agent DaemonSet, operator, Envoy, Hubble Relay, and Cluster Mesh. Although status output may reveal a small amount of deployment information, it is not a complete configuration-viewing command.

cilium sysdump collects a comprehensive troubleshooting archive containing Kubernetes resources, component logs, command output, configuration data, and other diagnostic evidence. It is appropriate when preparing a support bundle, but it is unnecessarily broad for simply consulting the current configuration. cilium context deals with Kubernetes context selection or inspection rather than displaying Cilium’s configured values.

The Cilium CLI organizes configuration operations under the cilium config command group. Related subcommands include set , delete , and view . Because the requested action is read-only inspection of the existing settings, view is the appropriate subcommand.

Official references

Cilium CLI `config view` .

Study Guide topic: Installation and Configuration.

Technical explanation

If a global Service has no healthy local endpoints matching its selector, every available backend can be remote. Cluster Mesh synchronizes remote service and endpoint information, allowing the local Cilium datapath to load-balance requests to backend pods in connected clusters. The absence of local endpoints therefore provides a direct explanation for the observed behavior.

If the local cluster were not part of the Cluster Mesh, its Cilium agents would not normally receive the remote endpoint state needed to route traffic through the global Service, so B does not explain successful remote-only selection. An affinity value of none is the default behavior and expresses no preference between local and remote endpoints. When both categories exist and are healthy, this permits load balancing across both; it does not require every connection to use remote backends.

Setting service.cilium.io/shared: "false" prevents the local Service’s backends from being shared with remote clusters. It does not instruct the local cluster to direct all requests toward remote endpoints.

A separate possible cause, not presented among the choices, would be service.cilium.io/affinity: "remote" . Among the supplied answers, however, A is the valid explanation.

Official references

Service Affinity ; Cluster Mesh .

Study Guide topic: Cluster Mesh.

Technical explanation

Cilium functions as a Kubernetes Container Network Interface implementation. When Kubernetes creates or removes a pod sandbox, the container runtime invokes the configured CNI plugin. Cilium establishes the pod’s network connectivity, connects the workload to the node’s networking environment, allocates or obtains an address through the configured IPAM mode, and coordinates the endpoint with the Cilium agent. Its eBPF datapath then supplies routing, service load balancing, policy enforcement, and network visibility.

Cilium provides substantially more functionality than the minimum CNI contract, but those additional capabilities do not change its primary Kubernetes networking role. Hubble supplies integrated network observability, yet Cilium is not merely a container-metrics monitor. Resource utilization such as CPU and memory is normally handled through Kubernetes metrics and monitoring systems.

Cilium is also not a Container Storage Interface. CSI drivers manage storage volumes, attachment, mounting, and lifecycle operations, which are unrelated to Cilium’s primary responsibilities. Nor is Cilium simply a pod-operation logging mechanism. It can emit datapath events and diagnostic logs, but those are supporting capabilities.

Accordingly, D provides the correct architectural classification for Cilium in a Kubernetes cluster.

Official references

Introduction to Cilium and Hubble ; Cilium Helm Installation .

Study Guide topic: Architecture.

Technical explanation

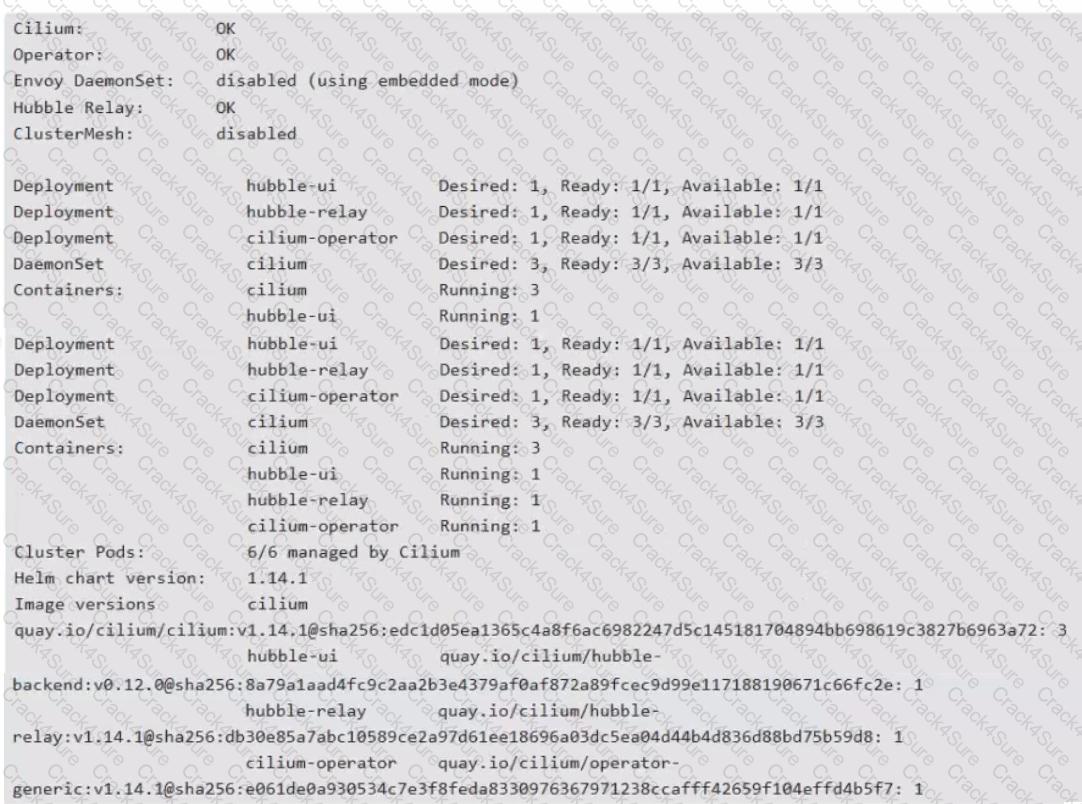

The status output shows Envoy DaemonSet: disabled (using embedded mode) . In embedded mode, Cilium starts Envoy as a separate process inside the Cilium agent pod when a feature requiring Layer 7 processing—such as an L7 network policy, protocol visibility, Ingress, or Gateway API—is used. This is precisely the behavior described in option B.

The remaining choices contradict the exhibit. The Cilium DaemonSet has a desired count of three, which ordinarily indicates three schedulable nodes running Cilium, not four. Hubble Relay: OK means the aggregation component is healthy. Hubble Relay connects to the Hubble instances associated with Cilium agents and presents a multi-node API to clients such as Hubble CLI and Hubble UI. Finally, ClusterMesh: disabled rules out the claim that the installation is currently configured for Cilium Cluster Mesh service discovery and cross-cluster load balancing.

Cilium can alternatively run Envoy through the independently life-cycled cilium-envoy DaemonSet. That is not the deployment displayed here because the DaemonSet is explicitly disabled and embedded mode is reported.

Official references

Envoy deployment modes ; Hubble internals .

Study Guide topic: Architecture.
