Practice Free AZ-800 Administering Windows Server Hybrid Core Infrastructure Exam Questions Answers With Explanation

According to the Administering Windows Server Hybrid Core Infrastructure (AZ-800) exam study materials, Azure DNS Private Resolver allows bidirectional name resolution between on-premises environments and Azure private DNS zones. The Private DNS Resolver consists of inbound endpoints (to resolve queries from on-premises to Azure) and outbound endpoints (to resolve queries from Azure to on-pr emises DNS servers). For name resolution to work, private DNS zones must be linked to the virtual network associated with the resolver’s hub network.

In this scenario, the planned configuration specifies:

A Private DNS Resolver named Private1 created in th e West US region and linked to VNet1 .

An inbound endpoint in SubnetB .

The requirement is to identify which private DNS zones will be available for name resolution through this resolver.

From the details given, only Zone1.com and Zone2.com are linked to VNe t1 , allowing them to participate in name resolution using the resolver. Zone3.com is not linked to VNet1 (either un linked or linked to another virtual network), and therefore it cannot be resolved through the DNS Resolver in VNet1.

As emphasized in Microso ft’s hybrid infrastructure documentation:

“Private DNS zones must be linked to the same virtual network that contains the Private DNS Resolver or to peered virtual networks for name resolution to succeed.”

Hence, only Zone1.com and Zone2.com are available for name resolution through the Private DNS Resolver.

? Correct Answer: C. Zone1.com and Zone2.com only

The exam materials state that Azure Automation runbooks can be authored in PowerShell and Python (along with Graphical and PowerShell Workflow where noted). The module on “Automate management in hybrid environments” specifies: “Runbooks support PowerShell for Windows-based automation and Python for cross-platform scenarios.” It further explains that these languages integrate with Automation Accounts, modules/packages, credentials, and managed identities to run tasks on Azure or hybrid resources through the Hybrid Runbook Worker. Languages such as Java, JavaScript, or Bicep are not runbook languages (Bicep is used for ARM template deployments, not runbook execution). Accordingly, Task1 can be implemented in PowerShell and Python.

Comprehensive and Detailed Explanation with all Administering Windows Server Hybrid Core Infrastructure documents: =

In the Administering Windows Server Hybrid Core Infrastructure study materials, Automanage for Azure VMs is described as a service that “onboards supported Azure virtual machines into a curated set of best-practice services automatically.” The guide notes that Automanage supports Azure IaaS VMs running Windows Server (2012 R2 and later) and common Linux distributions (for example Ubuntu/RHEL), while unsupported operating systems such as Windows client SKUs or older Windows Server releases are excluded. The same content emphasizes that Automanage targets “only supported Azure VMs” and does not extend to machines that don’t meet OS prerequisites.

Given the scenario, Server1 (supported Linux server) and Server2 (supported Windows Server) meet Automanage prerequisites, whereas the remaining Azure VMs are not in the supported matrix (client OS or an older/unsupported server release). Therefore, enabling Automanage on Server1 and Server2 only satisfies the technical requirement to “use Azure Automanage on all supported Azure virtual machines.”

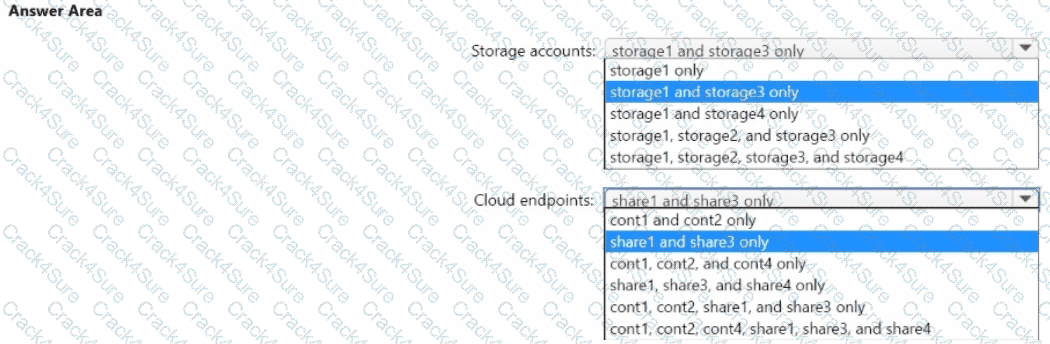

The Administering Windows Server Hybrid Core Infrastructure materials for Azure File Sync explain that a cloud endpoint in a sync group must be an Azure file share and that “the storage account that contains the Azure file share must be in the same Azure region as the Storage Sync Service.” The guide also clarifies supported account types: “Azure File Sync supports Azure Files in general-purpose v2 (StorageV2) accounts for Standard performance and FileStorage ac counts for Premium performance; BlockBlobStorage accounts are not supported for Azure Files.” Additionally, only storage accounts that contain Azure file shares can be selected for cloud endpoints; blob containers (used by Block Blob) are not applicable to Azure File Sync.

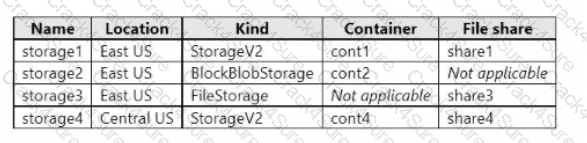

Applying these requirements to the table:

storage1 (East US, StorageV2) ? valid region and account kind, and it has share1 (an Azure file share) ? eligible.

storage3 (East US, FileStorage) ? valid region and supported Premium account kind, with share3 ? eligible.

storage2 (East US, BlockBlobStorage) ? Block Blob only, no Azure Files share ? ineligible.

storage4 (Central US, StorageV2) ? has a file share but is not in the same region as the Storage Sync Service (Synd in East US) ? ineligible.

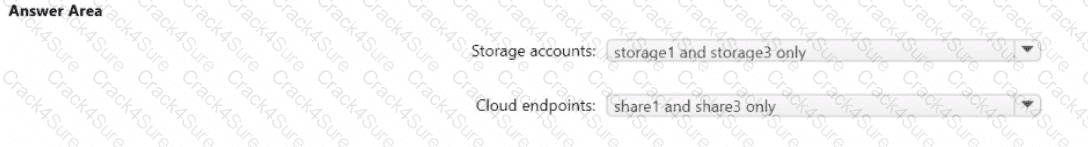

Therefore, when creating the sync group in Synd (East US), you can use storage1 and storage3, and the only valid cloud endpoints you can specify are share1 and share3.

The Administering Windows Server Hybrid Core Infrastructure content notes that Microsoft Entra Connect cloud sync uses lightweight agents and supports synchronizing specific OUs from multiple forests into a single tenant. The guide highlights that cloud sync “is designed for multi-forest or cross-organization scenarios and allows scoping to selected OUs and groups,” enabling granular onboarding of just the identities you need. The requirement says “the users in the Marketing OU (in Fabrikam’s forest) must have access to storage1.” Granting access to Azure Files using Entra-based authorization requires that those users exist in the same Entra tenant. Cloud sync enables importing only the Fabrikam Marketing OU into A. Datum’s tenant without establishing full trust for all users. Azure AD Connect in active or staging mode would target the A. Datum forest and isn’t intended for selectively bringing in a separate partner forest OU; AD FS is a federation solution and does not create tenant objects for ACLs on Azure resources like Azure Files. Therefore, implement Microsoft Entra Connect cloud sync and scope it to the Marketing OU to meet the requirement.

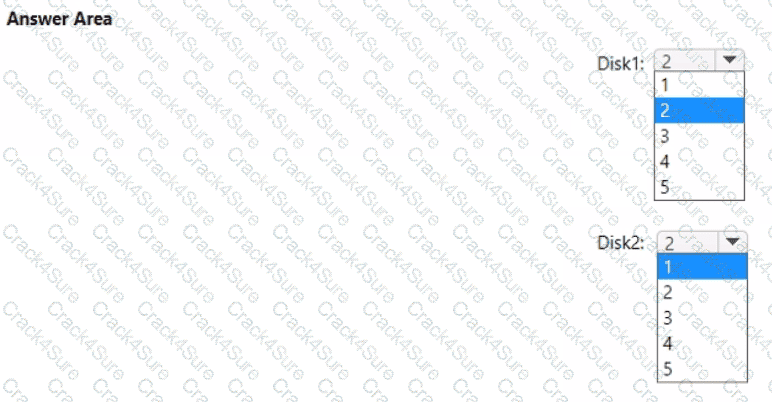

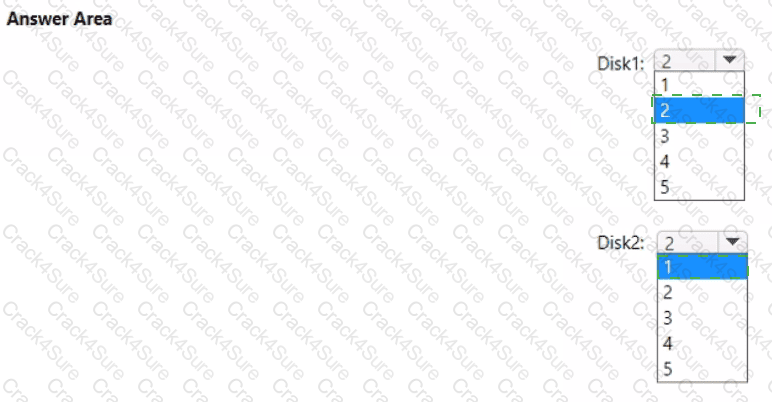

Disk1 (three-way mirror): 2 disks; Disk2 (parity): 1 disk

\In the Administering Windows Server Hybrid Core Infrastructure materials on Storage Spaces resiliency, Microsoft describes how each resiliency type determines simultaneous disk-failure tolerance. The guide explains that mirror spaces keep multiple copies of data: “Two-way mirror writes two copies and can sustain a single disk failure; three-way mirror writes three copies and can sustain the loss of any two disks without data loss.” It also differentiates parity spaces , which stripe data with parity information: “Parity provides capacity efficiency comparable to RAID-5 and tolerates a single disk failure (use dual parity to withstand two failures).”

Applying these to SSPace1:

Disk1 uses a three-way mirror across eight physical disks. By definition, a three-way mirror survives two concurrent disk failures and remains online, satisfying the “always available” requirement.

Disk2 is configured as parity across twelve ph ysical disks. Standard parity (single parity) is equivalent to RAID-5 and survives one disk failure ; only dual parity would allow two, but the configuration provided specifies parity (not dual parity).

Therefore, the maximum simultaneous physical disk fail ures while maintaining availability are 2 for Disk1 and 1 for Disk2 .

The AZ-800 materials emphasize Windows Admin Center (WAC) as the unified, browser-based management tool for Windows Server features including Storage Replica. The guidance explains two common installation modes: desktop mode (install WAC on a management workstation) and gateway mode (install on a management server). In either case, WAC remotely manages target servers (Server1/Server2) over WinRM/PowerShell—WAC does not need to be installed on the source or destination file servers to configure replication partnerships, volumes, or test failover. Best practice in the study content is to install WAC on a management computer and add the servers as managed nodes, then use the Storage Replica tool in WAC to create a partnership, select source/target volumes, and monitor replication health. Installing WAC on a domain controller is discouraged, and installing it directly on the file servers is unnecessary. Consequently, to configure Storage Replica between Server1 and Server2, you should install Windows Admin Center on the client management computer (CLIENT1) and use it to manage and configure the replication on both servers remotely.

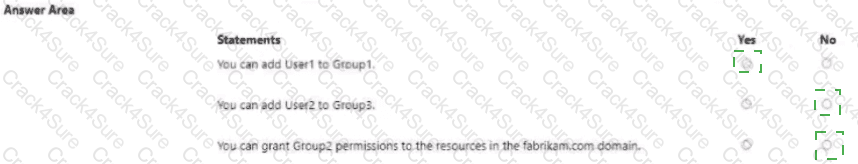

? You can add User1 to Group1. Yes

? You can add User2 to Group3. No

? You can grant Group2 permissions to the resources in the fabrikam.com domain. No

The Administering Windows Server Hybrid Core Infrastructure materials describe how group scopes and forest trusts determine where y ou can add members and where you can assign permissions. For Domain Local groups: “Domain local groups are intended to secure resources in the local domain and can include accounts and groups from any trusted domains or forests .” With a two-way forest trus t between contoso.com and adatum.com , a user from east.contoso.com (User1) can therefore be added to Group1 , a domain local group in west.adatum.com ? Yes .

For Universal groups, the guide states: “Universal groups are replicated to the global catalog and c an contain users and groups from any domain in the same forest ; they are designed for cross-domain (in-forest) membership.” Because User2 is in fabrikam.com (a different forest), they cannot be added to Group3 (a Universal group in east.contoso.com ) ? No .

On assigning permissions across forests , the materials clarify: “A security principal can be granted access only where a trust exists with its account forest. Forest trusts are not transitive to other forests .” Since fabrikam.com trusts adatum.com but has no trust with contoso.com , you cannot grant Group2 (Universal in contoso.com ) permissions on fabrikam.com resources ? No .

n the Administering Windows Server Hybrid Core Infrastructure guidance for managing AD DS, Microsoft emphasizes using OU-level delegation to satisfy administrative needs while adhering to the principle of least privilege. The documentation explains that the Delegate Control wizard on an OU lets you grant a user or group only the specific permissions required for common tasks, including “Modify the membership of a group”. This grants the write permission to the member attribute on group objects contained in that OU, without giving broader account-management rights across the domain.

By contrast, placing a user in Account Operators or Server Operators provides elevated, domain-wide capabilities far beyond what is required. Account Operators can create, delete, and modify many account types across the domain (except for protected admin accounts), which violates least-privilege for a task that only needs to change group membership in one OU. Server Operators is unrelated to group membership and is intended for server administration tasks. Creating a delegation at the domain root would similarly be excessive because it applies broadly to all containers and OUs.

Therefore, to meet the requirement “Ensure that User1 can manage the membership of all the groups in Contoso\OU3,” you should delegate control on OU3 and assign the built-in task “Modify the membership of a group” to User1, achieving the minimal permissions necessary.

No

Yes

Yes

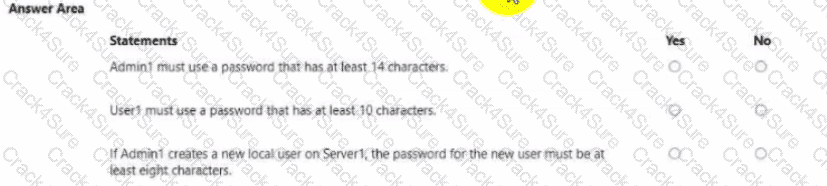

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that the domain password policy for domain user accounts is determined by the GPO that wins at the domain root (commonly the Default Domain Policy ). GPOs linked to OUs do not change the domain password policy for user accounts in those OUs; they only affect local accounts on computers within those OUs unless Fine-Grained Password Policies (PSOs) are used and scoped to users/groups. The case shows Default Domain Policy in contoso.com sets Minimum password length = 10 . Therefore, both Admin1 (a domain user in Contoso\OU1) and User1 (in Contoso\OU3) fall under the 10-character minimum; the OU-linked GPO1 (14) does not override the domain password policy for their domain accounts ? Admin1: No , User1: Yes .

For member servers and local accounts , the documentation explains that password policy settings in a GP O linked to the OU containing the computer apply to that computer’s local Security Accounts Manager (SAM) . In the scenario, Server1 resides in Member Servers and GPO2 linked to Member Servers specifies Minimum password length = 8 . Thus, when Admin1 creates a local account on Server1 , the enforced minimum is 8 characters ? Yes . This approach follows least privilege and standard precedence: domain-level for domain accounts, OU-linked GPOs for local accounts, unless PSOs are explicitly defined.

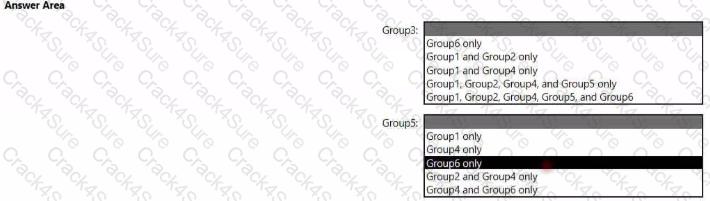

In Windows Server AD DS, group scope determines which groups/accounts can be members. The AZ-800 study materials summarize: “Domain Local groups can include accounts, Global groups, and Universal groups from any domain and Domain Local groups from the same domain only. Global groups can include accounts and other Global groups from the same domain only. Universal groups can include *accounts, Global groups, and Universal groups from any domain.” In addition, distribution vs. security does not change the scope membership rules; it only affects whether the group can be assigned permis sions.

Applying the rules: Group3 is a Domain Local security group in contoso.com . Therefore it can contain Universal (Group1), Global from any domain (Group2 in contoso.com and Group4/Group5 in canada.contoso.com), but cannot contain a Domain Local from a nother domain (Group6 in canada.contoso.com). Hence: Group1, Group2, Group4, and Group5 only .

Group5 is a Global distribution group in canada.contoso.com . A Global group can only contain accounts or Global groups from the same domain . From the list, only G roup4 (Global distribution, canada.contoso.com) fits. It cannot contain Group1 (Universal), Group2 (Global but different domain), or Group6 (Domain Local). Therefore: Group4 only .

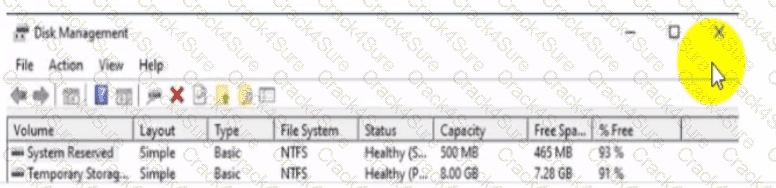

In the Windows Server exam materials for Administering Windows Server Hybrid Core Infrastructure (AZ-800) , Microsoft documents that Data Deduplication is supported only on data volumes and specifically on NTFS-formatted volumes , and it cannot be enabled on the system or boot volume . The study text states: “Data Deduplication is applied at the volume level and supports NTFS data volumes. You cannot enable deduplication on the system or boot volume.” It further clarifies unsupported targets: “ReFS volumes and FAT/exFAT volumes are not supported for Data Deduplication in general-purpose server scenarios,” and emphasizes that deduplication is “not available for the operating s ystem volume.”

Applying these rules to VM3:

C: NTFS but it is the OS/system volume ? not eligible .

D: NTFS data volume ? eligible .

E: ReFS ? not supported for general-purpose dedup in this context.

F: exFAT ? not supported .

Therefore, the only volume on which you can enable Data Deduplication to meet the requirement is volume D .

The AZ-800 content covering Active Directory Sites and Services clarifies that site, subnet, and site-link objects live in the Configuration partition. The guides emphasize that administration of the Configuration naming context is restricted to Enterprise Admins and to Domain Admins of the forest-root domain. In the context of changing replication topology parameters—such as editing the replication schedule on site links—the documentation notes: “Only Enterprise Admins or administrators in the forest-root Domain Admins group have default permissions to modify site and site-link objects,” because these objects affect replication forest-wide.

Applying this to the scenario:

Contoso\Admin1 (Enterprise Admins) has forest-wide rights to modify site links.

Contoso\Admin2 (Domain Admins in contoso.com, the forest-root domain) also has the required rights to change site-link schedules.

Canada\Admin3 (Domain Admins in canada.contoso.com) does not have default permissions in the Configuration partition for forest-wide site-link administration.

Thus, to meet the technical requirement to change all site links to a 30-minute schedule, the users who can perform the task are Admin1 and Admin2.

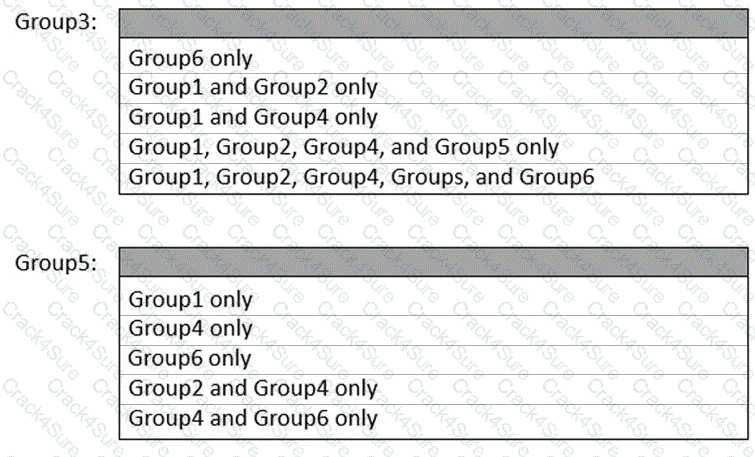

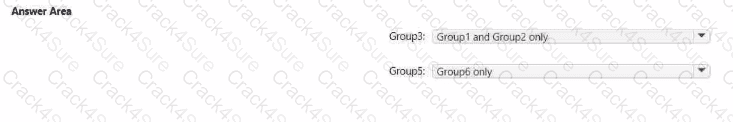

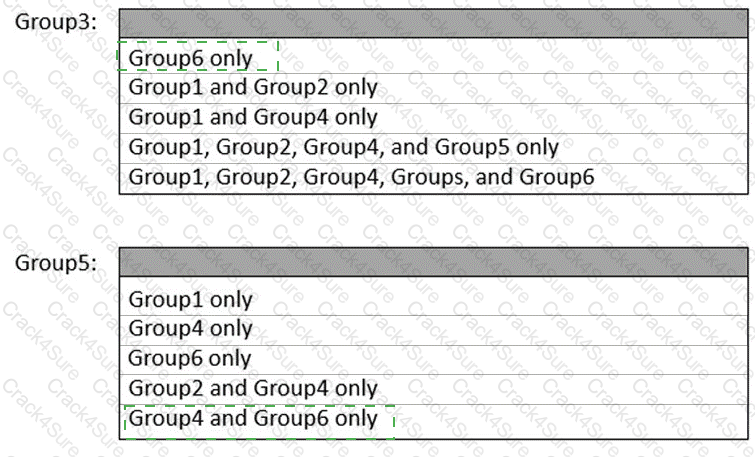

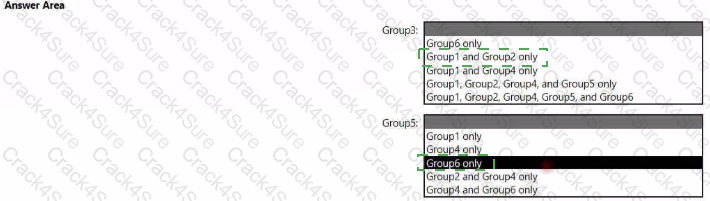

In the Windows Server Hybrid Core Infrastructure objectives for Active Directory group design, group scope and type determine valid membership and usage. The study guidance for group scopes states that a Domain Local group is used to assign permissions in its own domain and “can contain accounts, computer objects, global groups from any domain, and universal groups; it can also contain other domain local groups from the same domain only.” Security-type restrictions also apply: “Security groups can contain only security principals; distribution groups cannot be nested into security groups for access control.”

Applying these rules to Group3 (contoso.com Domain Local Security): it can accept security groups of compatible scopes. From the lists, Group1 (contoso.com Universal Security) and Group2 (contoso.com Global Security) are valid. Distribution groups (Group4, Group5, Group6) are not valid members of a security group used for authorization. Therefore, Group3 ? Group1 and Group2 only.

For Group5 (canada.contoso.com Global Distribution), the scope rule for Global groups is: “Global groups can include user accounts and other global groups from the same domain only; they cannot include universal or domain local groups.” Hence, the only eligible group from the same domain and scope is Group4 (canada.contoso.com Global Distribution). Group6 is domain local (invalid), and cross-domain globals (Group2) are not permitted. Therefore, Group5 ? Group4 only.

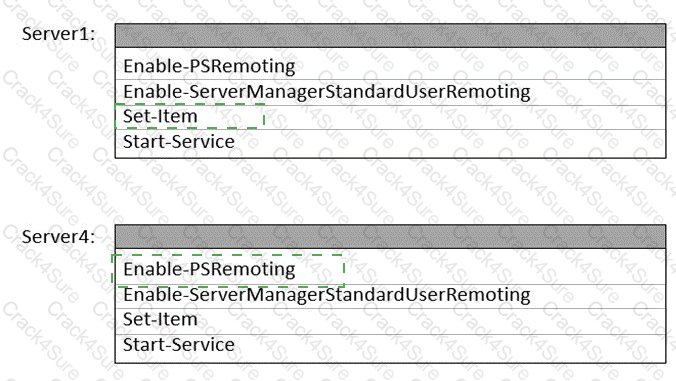

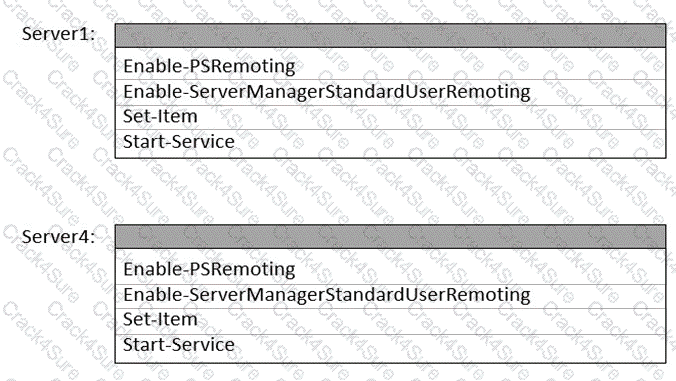

Server1 - Set-Item

Server4 - Enable-PSRemoting

In the AZ-800 “Administering Windows Server Hybrid Core Infrastructure” objectives for Active Directory, server promotion is governed by forest/domain administrative roles. The materials state that promoting a member server to a domain controller in a given domain requires membership in either the Enterprise Admins group or the Domain Admins group of the target domain. The Configuration and Domain naming contexts that DCPromo touches (NTDS settings, SYSVOL/DFS-R readiness, DC computer account, and associated service SPNs) are protected so that “Enterprise Admins have full rights forest-wide, and Domain Admins have full rights within their respective domain.”

In this case, the requirement is to promote Server1 to a domain controller in canada.contoso.com. From the identities table:

Contoso\Admin1 is a member of Enterprise Admins (forest-wide authority).

Canada\Admin3 is a member of Canada\Domain Admins (authority within canada.contoso.com).

Contoso\Admin2 is Domain Admins (contoso.com) only, which does not grant administrative authority in the canada.contoso.com child domain.

Therefore, the users who can currently perform the required task for Server1 are Admin1 and Admin3.

In the Administering Windows Server Hybrid Core Infrastructure materials under Hyper-V management, Microsoft specifies that Enhanced Sess ion Mode changes VMConnect from a raw console attach to a connection that uses Remote Desktop Protocol (RDP) to the guest. The guide states that Enhanced Session Mode “ uses RDP to establish the VMConnect session so the user must supply credentials for a lo gon to the guest operating system ,” and further that it “ prevents a second administrator from inheriting an already signed-in console session ” because the connection is treated as a new interactive sign-in. In contrast, the default basic console session “ attaches directly to the active console without prompting for credentials ,” which is exactly the current problem described for VM2.

The same objective area clarifies that other options do not meet the requirement: Guest Services integration only enables fi le copy and certain host-guest interactions; Credential Guard protects secrets inside Windows by isolating LSASS but does not affect Hyper-V console connection behavior ; Shielded VMs provide fabric-level protections and encryption but are not required mere ly to force credential prompts for VMConnect.

Therefore, to force users to provide credentials when they connect to VM2 and to eliminate inherited console sessions, you should enable Enhanced Session Mode on the Hyper-V host (and ensure the guest supports RDP).

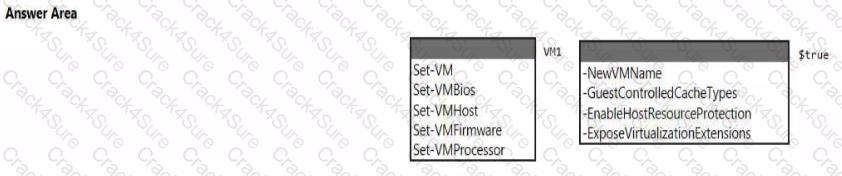

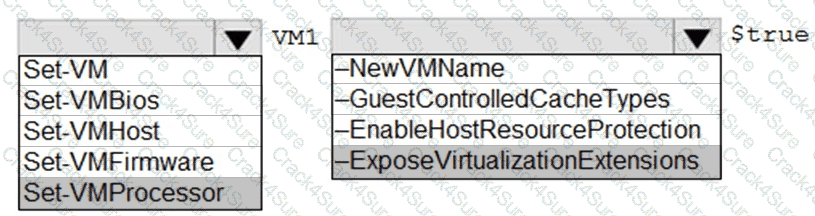

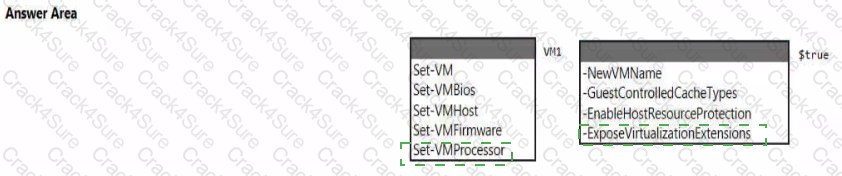

In the Administering Windows Server Hybrid Core Infrastructure objectives for managing Hyper-V, enabling nested virtualization is the required step when you must “run virtual machines inside a virtual machine.” The referenced guidance states that Hyper-V on a VM is supported only when the host exposes hardware virtualization features to the guest. The prescriptive step is: “Turn off the VM and run Set-VMProcessor -VMName < V MName > -ExposeVirtualizationExtensions $true to enable nested virtualization.” The module further notes that this action “passes through Intel VT-x/AMD-V to the guest so the guest OS can install the Hyper-V role and create VMs.” It also clarifies that “the setting is applied on the parent host for the target VM and requires the VM to be powered off before the change is committed.”

Because the technical requirement says “Ensure that you can run virtual machines on VM1”, VM1 must be able to host Hyper-V while itself running as a VM on Server2. The first and essential cmdlet is therefore Set-VMProcessor with the -ExposeVirtualizationExtensions switch set to $true against VM1. Other optional settings (for example, MAC spoofing on the vNIC or static memory) may be configured later if needed, but exposing virtualization extensions is the enabling prerequisite that satisfies the requirement.

One possible solution to ensure that all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server is to use the DHCP scope options. DHCP scope options are settings that apply to all DHCP clients that obtain an IP address from a specific scope. You can use the DHCP scope options to specify the DNS server IP address, as well as other parameters such as the default gat eway, the domain name, and the DNS suffix. Here are the steps to configure the DHCP scope options on SRV1:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and c lick on IPv4.

In the right pane, right-click on the scope that you want to configure and select Properties.

In the Scope Properties dialog box, click on the DNS tab.

Check the box Enable DNS dynamic updates according to the settings below. This option allows the DHCP server to register and update the DNS records for the DHCP clients.

Select the option Always dynamically update DNS records. This option ensures that the DHCP server updates both the A and PTR records for the DHCP clients, regardless of whe ther they request or support dynamic updates.

Check the box Discard A and PTR records when lease is deleted. This option allows the DHCP server to delete the DNS records for the DHCP clients when their leases expire or are released.

Check the box Dynamical ly update DNS records for DHCP clients that do not request updates. This option allows the DHCP server to update the DNS records for the DHCP clients that do not support dynamic updates, such as legacy or non-Windows clients.

In the DNS servers section, cl ick on the Add button to add a new DNS server IP address.

In the Add Server dialog box, enter the IP address of DC1, which is the DNS server that you want to use for the DHCP clients, and click Add.

Click OK to close the Add Server dialog box and return to the Scope Properties dialog box.

Click OK to apply the changes and close the Scope Properties dialog box.

Now, all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server. You can verify the DNS configuration by using t he ipconfig /all command on a DHCP client computer and checking the DNS Servers entry. You can also check the DNS records for the DHCP clients by using the DNS Manager console on DC1.

TASK 5

???? Objective:

Configure a Group Policy Preference to create a shortcut to \\srvi.contoso.com\data on the desktop of users in the Server Admins OU.

Step-by-Step Guide: Using Group Policy Preferences to Create a Desktop Shortcut

? Step 1: Open Group Policy Management Console (GPMC)

Log in to a DC or a management computer with RSAT installed.

Open Grou p Policy Management (gpmc.msc).

? Step 2: Create a New GPO

In the GPMC console, expand the forest and the domain (e.g., contoso.com).

Right-click the OU named Server Admins and select Create a GPO in this domain, and Link it here.

Name the GPO, e.g., Desktop Shortcut for Server Admins.

? Step 3: Edit the GPO

Right-click the newly created GPO and select Edit.

This opens the Group Policy Management Editor.

? Step 4: Navigate to User Preferences

In the editor, expand:

User Configuration > Preferences > Windows Settings > Shortcuts.

? Step 5: Create the Shortcut

Right-click Shortcuts and select New > Shortcut.

In the New Shortcut Properties window:

Action: Create

Name: Data Folder

Target Type: File System Object

Location: Desktop

Target Path: \\srvi.c ontoso.com\data

Optionally, set an icon or description if you want.

? Step 6: Configure Item-Level Targeting (Optional)

If you want to limit this shortcut strictly to specific users/groups, click the Common tab.

Check Item-level targeting and configure c onditions (optional).

For this scenario, linking the GPO to the Server Admins OU is usually sufficient.

? Step 7: Close and Update

Close the editor.

In GPMC, ensure the GPO is linked to the Server Admins OU.

Force a Group Policy Update on client computers:

On a client computer:

gpupdate /force

Or wait for the next Group Policy refresh cycle.

? Step 8: Verify

Log in as a user in the Server Admins OU.

The shortcut to \\srvi.contoso.com\data should appear on the desktop.

TASK 4

???? Objective:

Enforce a minimum password lengt h of 12 characters for members of the BranchAdmins group only.

Step-by-Step Guide: Fine-Grained Password Policy (FGPP)

? Step 1: Verify Forest Functional Level

Fine-grained password policies require the forest functional level to be at least Windows Serv er 2008.

On a DC, open Active Directory Domains and Trusts (domain.msc).

Right-click the domain and select Raise Forest Functional Level to verify.

If it’s lower, consider raising it (requires caution and planning).

? Step 2: Open the Active Directory Administrative Center (ADAC)

On a DC or management server, open ADAC:

Press Windows + R, type dsac.exe, and hit Enter.

? Step 3: Create a Fine-Grained Password Policy

In ADAC, in the left pane, expand the domain (e.g., contoso.com) and click System > Pas sword Settings Container.

In the right pane, right-click and select New > Password Settings.

? Step 4: Configure the Password Policy

Name: e.g., BranchAdminsPSO.

Precedence: e.g., 1 (lower number = higher priority).

Minimum password length: 12.

Configure other settings as required (leave them at default if not specified).

In Directly Applies To, click Add.

Search for and select the BranchAdmins group.

Click OK.

? Step 5: Confirm and Apply

Click OK to create the policy.

It’s now linked directly to the Bran chAdmins group, affecting only its members.

? Step 6: Verify the Policy

You can use PowerShell to confirm that the PSO is applied:

Get-ADUserResultantPasswordPolicy -Identity " username "

Replace " username " with a user from the BranchAdmins group. The output will show the minimum password length (should be 12).

The exam materials explain that to add a new domain controller to an existing AD DS forest in Azure, you deploy a Windows Server IaaS VM and then promote it: “To extend on-premises AD DS into Azure, provision a Windows Server VM in Azure and run AD DS to create an additional domain controll er for the existing domain.” Conversely, Azure Active Directory Domain Services (Azure AD DS) provides a managed domain that is separate from and not writable by your on-premises administrators —you “do not get domain admin rights or access to DCs” —so it cannot be used to add a DC (dc3.corp.fabrikam.com) to the existing corp.fabrikam.com forest. Azure AD Application Proxy and Azure AD administrative units are unrelated to deploying DCs. Therefore, the correct implementation is to deploy an Azure virtual machine in Vnet1, install AD DS/DNS, and promote it to become DC3 in the existing domain.

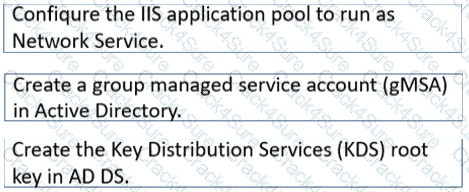

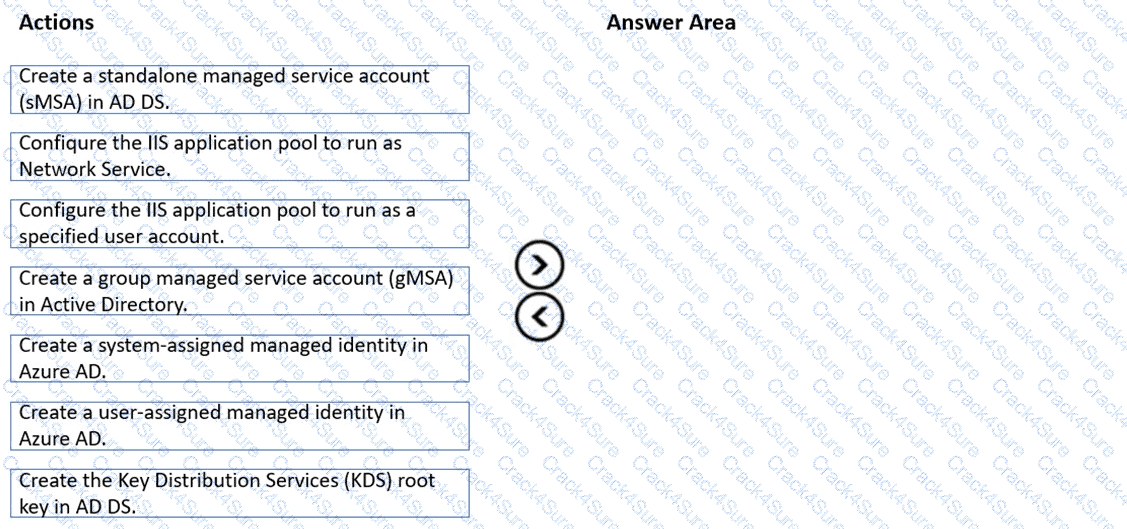

In the Administering Windows Server Hybrid Core Infrastructure materials (AZ-800), Microsoft explains that Group Managed Service Accounts (gMSAs) are designed for services running on multi ple servers and “provide automatic password management, simplified SPN management, and the ability to delegate the management to other administrators.” The guidance further states that before you can create any gMSA, “the domain must have a KDS root key so that the Key Distribution Service can generate and rotate strong, unique passwords for gMSAs on a schedule.” After the KDS root key is created, “use New-ADServiceAccount to create the gMSA and grant the computers (e.g., web servers) permission to retrieve the account password.” For IIS, the course notes specify that a gMSA can be used for app pools: “Configure the IIS application pool identity to a custom account and specify the gMSA name (ending with ‘$’) without a password; the password is managed automa tically by AD and rotates by policy (for example, every 30 days).”

Mapping these requirements to the scenario: Webapp1 runs on WEB1 and WEB2 and must use the same service account with an automatic 30-day password change . Therefore, the correct sequence is: create the KDS root key , create the gMSA , and then set the IIS application pool to run under that account. This fulfills the security requirement while allowing both web servers to share the same, automatically-rotated credentials.

In Administering Windows Server Hybrid Core Infrastructure , Microsoft states that high availability for DHCP on Windows Server is achieved by using DHCP failover rather than the legacy split-scope (80/20) model. The guidan ce explains that DHCP failover “ synchronizes lease data between two DHCP servers and can be configured in Load Balance or Hot Standby mode on a per-scope basis,” and that you enable it on each DHCP scope to create a partner relationship that automatically replicates scope configuration and active leases. This meets the requirement to keep address assignment available if one DHCP server is down.

The same materials further note that DHCP broadcasts do not traverse routers; therefore, when the partner server i s reachable across a routed boundary (another site/subnet) , you must configure the router as a DHCP relay (IP helper) to forward DHCPDISCOVER messages to the remote DHCP server(s). The text emphasizes: “When clients and DHCP servers are on different subnet s, configure a relay agent on the router to forward requests to the DHCP server IP addresses.”

Applying this to Fabrikam: create DHCP failover between DHCP1 (Scope1) and DHCP2 (Scope2) ( E ) and configure the routers in New York and Seattle as DHCP relays th at forward to both DHCP servers ( B ). You do not use Failover Clustering for DHCP here, and you do not create extra 25% scopes; those are split-scope practices superseded by DHCP failover.

The Administering Windows Server Hybrid Core Infrastructure materials explain that Azure AD Password Protection for on-premises AD uses two components : the DC agent and the proxy service . The DC agent is installed on every domain controller because it “ intercepts password set/change operations locally on the DC and evaluates them against the forbidden-password policy .” The guidance further states that to ensure consistent enforcement “ the DC agent should be deployed to all DCs in the forest, since password changes may occur on any DC .” The proxy service is installed on member servers (not necessarily DCs) and “ relays policy downloads and telemetry to Azure AD on behalf of DCs ,” which satisfies envi ronments where “ domain controllers must not directly contact Internet endpoints .” Finally, configuration of the global and custom banned password lists is performed in Azure AD , where administrators “ define tenant-wide custom banned terms; DCs obtain the p olicy via the proxy and cache it for local enforcement .”

Given Fabrikam’s requirement to prevent DCs from accessing the Internet, the proxy must run on non-DC servers ( VM1 and VM2 ). To guarantee enforcement wherever a password is changed, the DC agent must be on all domain controllers . The custom banned password list is configured in the Azure AD tenant and then distributed to on-premises DCs via the proxy.

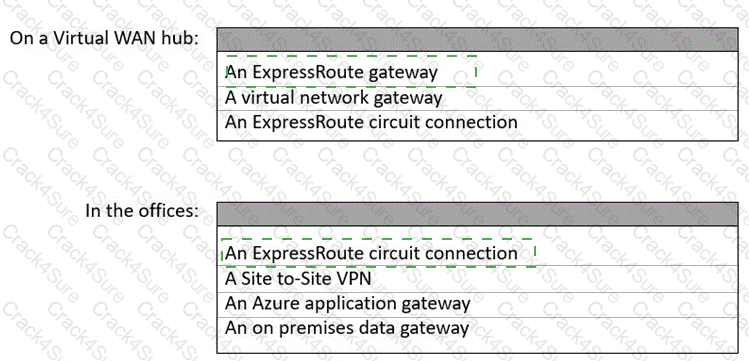

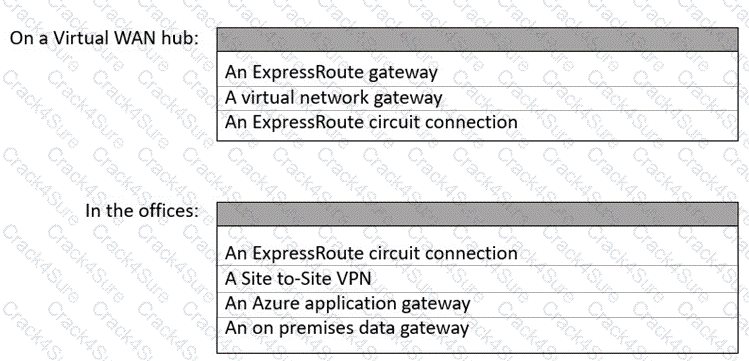

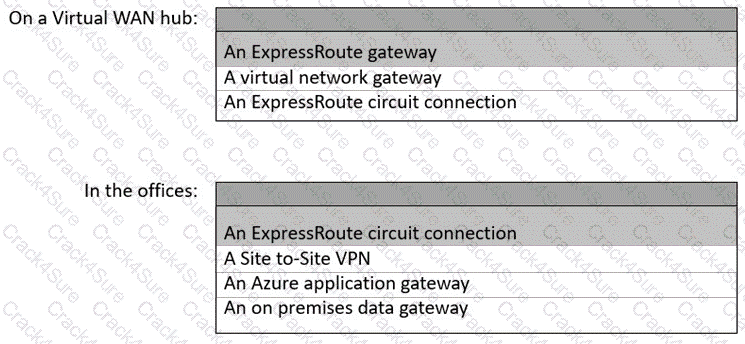

The exam materials for Administering Windows Server Hybrid Core Infrastructure explain that when replacing private WAN links with Azure, Azure Virtual WAN (vWAN) can be used to centralize connectivity. For private connectivity, ExpressRoute integrates directly with a vWAN hub by deploying an ExpressRoute gateway in the hub. The gateway is the Azure resource that terminates ExpressRoute and enables hub-and-spoke routing to connected VNets (such as Vnet1 ). The guides emphasize: “ In a Virtual WAN hub, use the ExpressRoute gateway to connect ExpressRoute circuits and propagate routes acro ss the hub to your virtual networks .”

On-premises, each site (New York and Seattle) requires an ExpressRoute circuit connection provisioned via a connectivity provider. The circuit is the dedicated private connection from the customer edge to Microsoft’s edge and is what the office sites actually use; it’s then linked to the vWAN hub’s ExpressRoute gateway. The same materials note that Site-to-Site VPN is an alternative transport but is not required when ExpressRoute is mandated. Likewise, Application Gateway is a Layer-7 load balancer for HTTP/S traffic, and on-premises data gateway relates to Power BI/Power Platform hybrid connectivity, neither of which establishes network transport between offices and Azure.

Therefore, to meet the requirement “connect both on-premises offices to Vnet1 by using ExpressRoute,” configure an ExpressRoute gateway on the vWAN hub and ExpressRoute circuit connections in the offices.

The exam content for Group Policy processing stresses User Group Policy loopback processing for session hosts (RDS/AVD): “In environments like Remote Desktop Session Host (or Azure Virtual Desktop), enable loopback processing on the OU that contains the session host computers so that user settings from that GPO apply when users log on to those computers, regardless of the user’s own OU.” The requirement states: “Apply GPO4 to the Azure Virtual Desktop session hosts. Ensure that Azure Virtual D esktop user sessions lock after being idle for 10 minutes. Users must be able to control the lockout time manually from their client computer.” The idle-lock is a user configuration setting that must apply when users sign in to the session hosts, not to their personal devices. Therefore, enable loopback processing (Merge/Replace) in GPO4, which is linked to the VirtualDesktops OU containing the session hosts. Using security filtering or Enforced cannot make user settings in GPO4 override the user’s own OU without loopback. Loopback ensures the AVD hosts impose the 10-minute lock for sessions, while leaving users free to set their own client device policies independently—fulfilling least-impact design.

Within the hybrid governance section of Administering Windows Server Hybrid Core Infrastructure, Microsoft specifies that Azure Arc–enabled servers are the mechanism to bring on-premises and multi-cloud servers under Azure control to apply Azure Policy (Guest Configuration) and Defender for Servers. The prerequisite is installing the Azure Connected Machine agent (Azure Arc agent) on each server: “To manage servers with Azure Policy and configuration management, install the Connected Machine agent to onboard them to Azure Arc; once connected, you can assign Azure Policy guest configuration and monitor compliance just like Azure VMs.” Hybrid Azure AD Join is unrelated to Azure Policy assignment; the Azure Monitor agent provides telemetry but does not onboard to Arc for policy governance; a hybrid runbook worker is for Automation runbooks, not for enforcing Azure Policy. Therefore, to “use Azure Policy to enforce configuration management policies on the servers in Azure and on-premises,” deploy the Azure Connected Machine agent to all servers to Arc-enable them and then assign the desired policies.

In the Administering Windows Server Hybrid Core Infrastructure guidance for extending AD DS into Azure, Microsoft states that when you place a domain controller in an Azure virtual network you must run DNS on that domain controller and point the VNet to that DNS server: “Domain controllers in Azure IaaS should host the AD-integrated DNS zone, and the virtual network’s DNS server setting must reference those DC/DNS IPs so Azure VMs use AD DNS rat her than the Azure-provided resolver.” The materials also emphasize that Azure’s default DNS cannot host or manage AD DS zones, so custom DNS is required for domain-joined workloads. Therefore, to meet the requirement you (1) install the DNS Server role on DC3 so it can host the corp.fabrikam.com AD-integrated zone (F), and (2) configure the DNS Servers setting on Vnet1 to the IP of DC3 (and any additional DCs), ensuring all Azure VMs in Vnet1 resolve the domain via AD DNS (D). Creating a public Azure DNS zone or a Private DNS zone with the same AD name is not appropriate for AD-integrated name resolution. This design also supports the security requirement of preventing domain controllers from relying on Internet-facing resolvers.

In the Administering Windows Server Hybrid Core Infrastructure materials (hybrid security and IaaS management), Just-In-Time (JIT) VM access from Microsoft Defender for Cloud is the prescribed way to require approval-based, time-bound Remote Desktop access to Azure VMs. The guide explains that JIT “locks down inbound traffic to management ports (for example, TCP/3389) and opens them only on request, for a limited time and only from approved source IPs.” Administrators request access; upon approval, Defender for Cloud creates a temporary NSG rule that expires automatically—you specify the maximum allowed window (e.g., 2 hours) and the ports. This matches the requirement: “Ensure that server administ rators request approval before they can establish a Remote Desktop connection to an Azure virtual machine. If the request is approved, the connection must be established within two hours.” Alternatives don’t meet this: PIM governs Azure roles, not VM RDP port exposure; Azure Bastion provides secure RDP/SSH over TLS without public IPs but doesn’t provide approval/time-boxed gating; the Remote Desktop extension is for classic Cloud Services and not for policy-driven approval windows. JIT is the least-privilege, policy-enforced solution aligned with the exam’s hybrid security objectives.

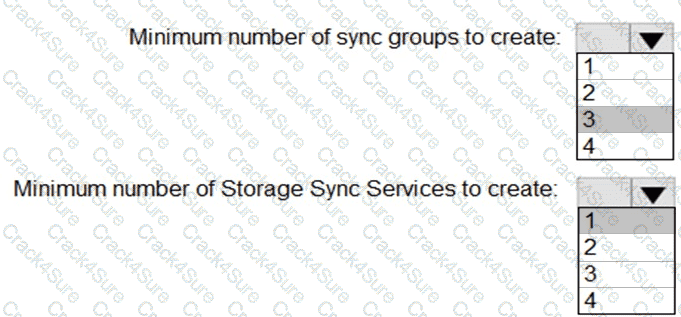

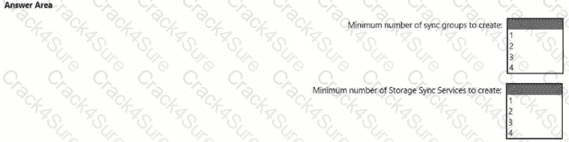

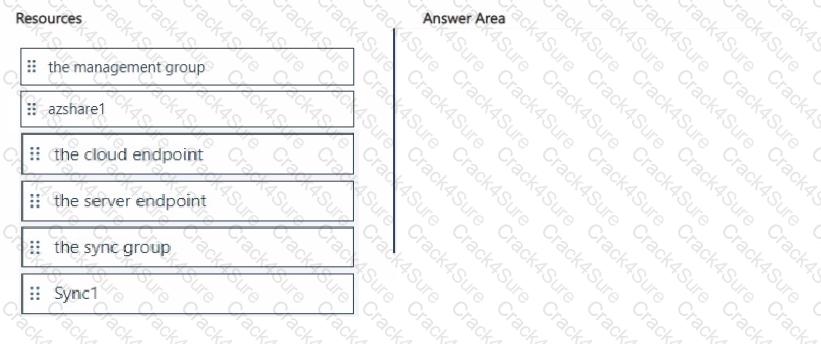

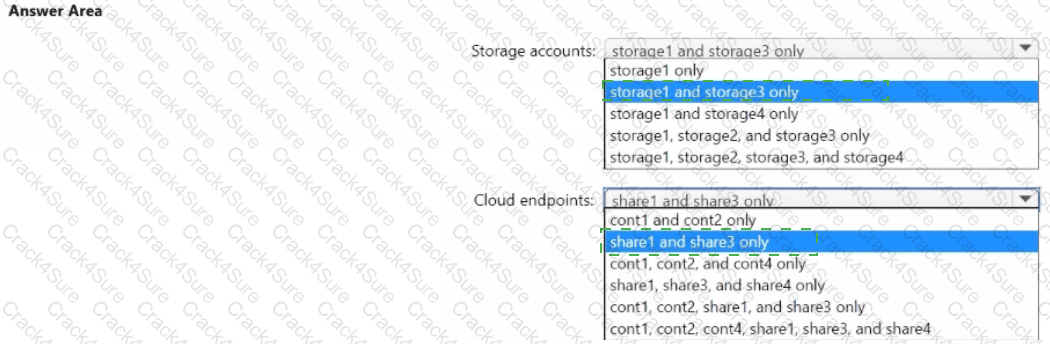

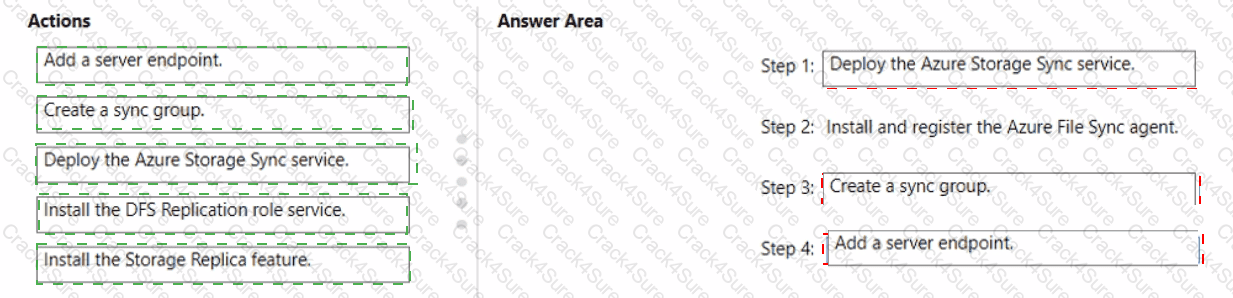

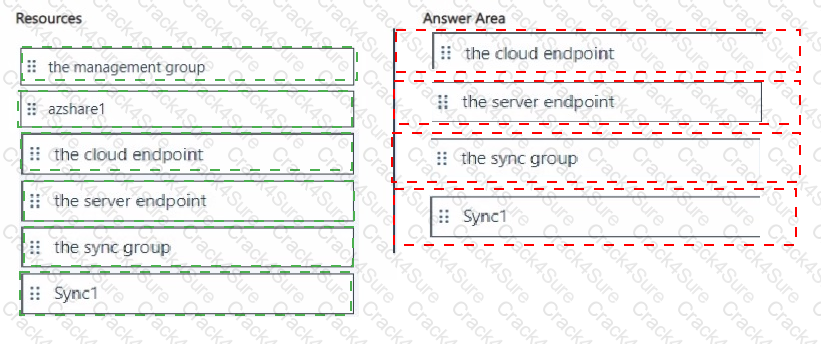

In Azure File Sync architecture (covered in Admin istering Windows Server Hybrid Core Infrastructure under “Implement and manage storage solutions”), the fundamental design points are:

Sync group – “A sync group defines a sync topology. Each sync group contains exactly one cloud endpoint (an Azure file sh are) and one or more server endpoints.” A server endpoint is a folder on a registered Windows Server. A server can participate in multiple sync groups so long as the server endpoints are different paths.

Storage Sync Service – “The Storage Sync Service is the top-level resource that maintains server registrations and houses your sync groups.” A Windows Server registers to one Storage Sync Service at a time, and that service can contain many sync groups and many servers.

Applying these rules to the requirement:

You have three Azure file shares: newyorkfiles, seattlefiles, and companyfiles. Because each sync group maps to one cloud endpoint, you need one sync group per share ? 3 sync groups.

FS1 must sync with newyorkfiles and companyfiles; FS2 must sync with seattlefiles and companyfiles. Since one Storage Sync Service can host multiple sync groups and multiple servers, and a server must be registered to a single service, the most efficient design is a single Storage Sync Service containing all three sync groups and both servers.
