Practice Free MB-820 Microsoft Dynamics 365 Business Central Developer Exam Questions Answers With Explanation

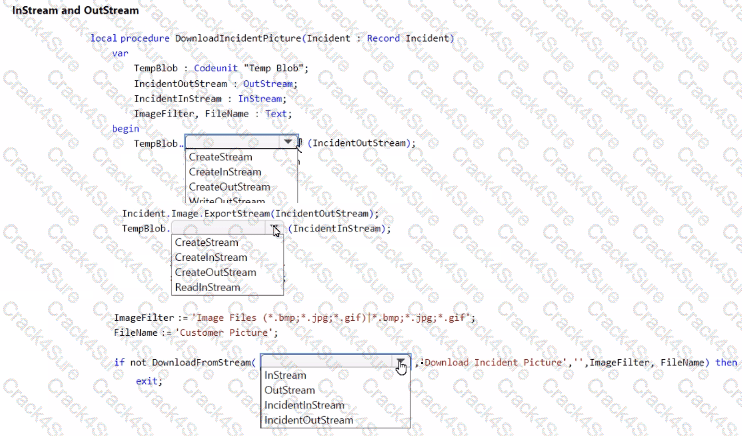

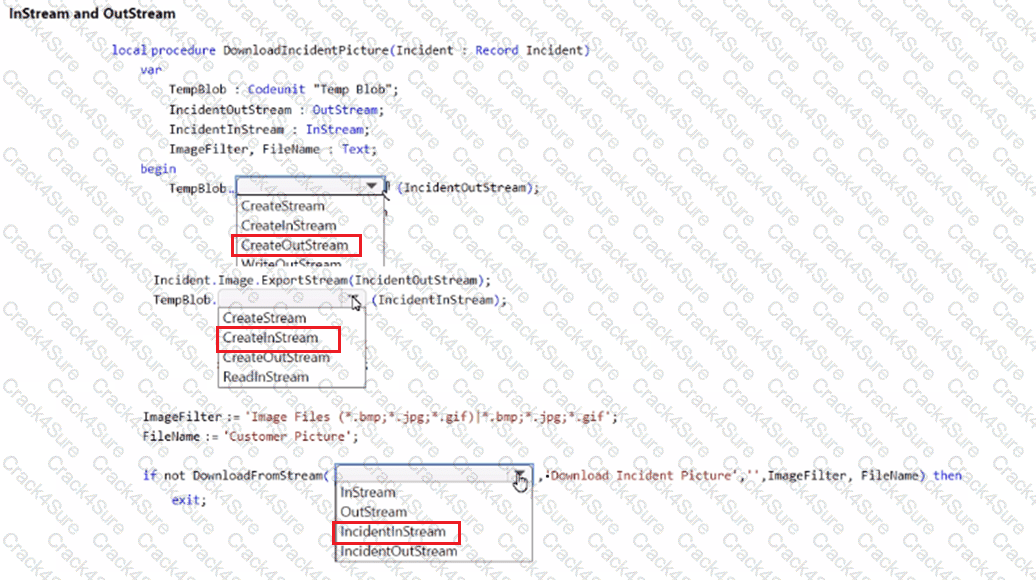

var

TempBlob: Codeunit "Temp Blob";

IncidentOutStream: OutStream;

IncidentInStream: InStream;

ImageFilter, FileName: Text;

begin

// Initialize the TempBlob and streams

TempBlob.CreateOutStream(IncidentOutStream);

Rec.Image.ExportStream(IncidentOutStream); // 'Rec' refers to the current Room Incident record

TempBlob.CreateInStream(IncidentInStream);

// Set the filters and filename for the image

ImageFilter := 'Image Files (*.bmp,*.jpg,*.jpeg,*.gif)|*.bmp;*.jpg;*.jpeg;*.gif';

FileName := 'Customer Picture';

// Prompt the user to download the image

if not DownloadFromStream(IncidentInStream, '', 'Download Incident Picture', '', ImageFilter, FileName) then

Error('Unable to download the image.');

end;

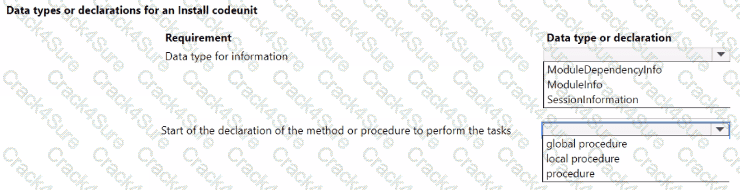

For the Install codeunit required for the extension used for installing or updating the Housekeeping app, you should use the following data type and declaration:

Data type for information: ModuleInfo

Start of the declaration of the method or procedure to perform the tasks: local procedure

In AL language, which is used for developing extensions in Business Central, an Install codeunit is a special type of codeunit that is used to handle installation or upgrade logic for an extension.

ModuleInfo is a data type that contains information about the current extension, such as its version. It is typically used within the OnInstallAppPerCompany or OnUpgradePerCompany triggers of an Install codeunit to determine if the app is being installed for the first time or upgraded.

A local procedure within an Install codeunit is a method that is only accessible within the codeunit itself. It is not visible to other objects or extensions. This is suitable for tasks that are internal to the installation process and should not be exposed globally.

These selections align with the requirements of handling installation and update procedures in a controlled and encapsulated manner within Business Central extensions.

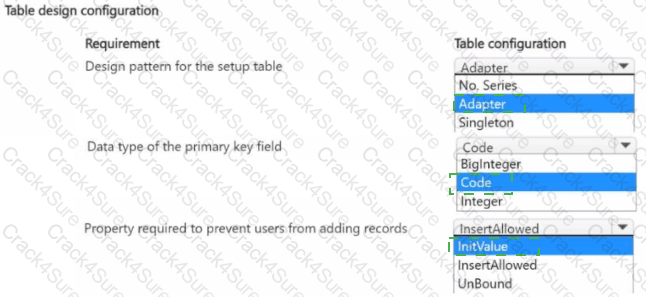

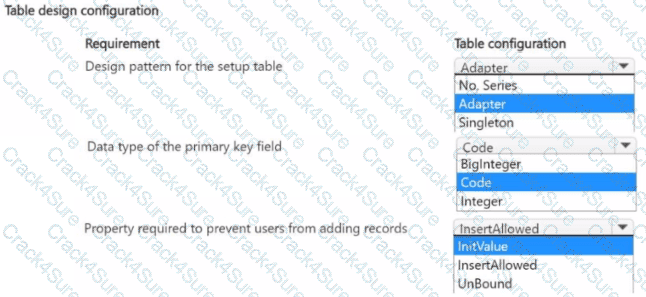

? Design pattern for the setup table:

The correct selection here is Adapter. The Adapter design pattern is commonly used when you need to handle integration points or create a setup table that acts as an intermediary for data manipulation, which fits the requirement for the configuration of the non-conformity functionality.

? Data type of the primary key field:

The correct data type is Code. In Business Central, when creating a table with a primary key field, the Code data type is typically used for fields such as document numbers, codes, and identifiers. For a setup table, a Code field is appropriate for keys like "No." series or setup identifiers.

? Property required to prevent users from adding records:

The correct property is InitValue. This property is used to set initial values for fields and can be configured in such a way that users are prevented from adding records directly, typically enforcing control over record creation and editing in configuration scenarios.

Table Structure in Business Central: When creating entities such as "non-conformity" entities in Business Central, you use document tables to represent entities that have a header and line structure. In this case, the non-conformity entity has:

A header with common information (Non-conformity Number, Date, Vendor No., etc.).

One or more lines representing the detailed information for each non-conforming item.

Document Table Usage:

Document Table: A document table is the correct table type for scenarios where you have a header (with general information like vendor details) and lines (with detailed, item-specific information).

Document tables are typically used for entities such as Sales Orders, Purchase Orders, or any other transactional data where you have both header and line information.

Supplemental Table (Option C):

Supplemental tables are usually used to add supplementary information to existing data in Business Central. In this case, we need to store detailed line information, which is a core part of the entity rather than supplementary data, so a supplemental table would not be appropriate here.

Document History Table (Option A):

Document history tables are used to track changes and historical data for entities but are not suitable for the main introduction of the entity and its lines. This option is also not appropriate.

Reference Documentation:

Introduction to Business Central Tables

Document Tables in Business Central

You are customizing Business Central using Visual Studio Code and JSON files for configuration.

You plan to:

Open page 21 after publishing.

Enable debugging.

Disable the capability to download the source code.

Which configurations should you add?

The options involve two primary JSON files: launch.json and app.json, and configuration tags like startupObjectId and resourceExposurePolicy.

To enable debugging in an extension and allow the source code to be viewed, the allowDebugging property should be specified in the app.json file (C). The app.json file serves as the manifest for an AL project in Microsoft Dynamics 365 Business Central, defining the project's properties, dependencies, and features. By setting the allowDebugging property to true in this file, developers enable the debugging of the extension's source code, facilitating troubleshooting and development. This is essential for analyzing the behavior of the extension and identifying issues during the development process.

SharedLayout = true allows for the layout to be shared across views, and it is often used when defining a custom layout that should follow specific filtering conditions.

The Filters property specifies the exact filter criteria for the view, in this case, filtering on Balance > 500 and the Currency Code = LCY (local currency).

A uses incorrect filter syntax and shareLayout = false, which doesn't allow the layout to be shared, so it’s not ideal for this use case.

C and D both have issues with the filter syntax and do not use proper Currency Code filtering or share layout settings.

For more details, check Creating Views in Business Central.

When exporting a file from a client using the DownloadFromStream method in a Business Central online environment, you need to create an InStream data type to send the data. The solution is to use the CreateInStream method from codeunit "Temp Blob" (A). The Temp Blob codeunit provides temporary storage of BLOBs (Binary Large Objects) and is commonly used for handling files and streams in Business Central. By using the CreateInStream method on a Temp Blob, you create an InStream that can then be used with the DownloadFromStream method to send the file data to the client. This approach is efficient for file handling and transfer in Business Central, especially in scenarios involving data export or file manipulation.

Each JSON file has its own purpose in Business Central extensions:

app.json

Purpose: This file holds metadata about the application and contains configuration settings for dependencies and startup object information.

Startup object type and object ID should be configured here.

launch.json

Purpose: This file defines how to run and debug the application during development.

Runtime settings are configured here.

Final Answer (Drag and Drop):

Startup object type and object ID ? app.json

Runtime ? launch.json

Dependencies ? app.json

? Add Clear(PurchaseLine); as a line before line 01 of the code: No

? Add PurchaseLine.SetFilter("Line No."; '>0') as a line after line 06: Yes

? Change the filter on line 06 from a "No." field to a "Document No." field: No

? Remove "not" in line 07: No

? Add Clear(PurchaseLine); as a line before line 01 of the code.

No

You do not need to clear the PurchaseLine record before running the query, because the SetRange filters will take care of setting the correct context.

? Add PurchaseLine.SetFilter("Line No."; '>0') as a line after line 06.

Yes

Adding a SetFilter on the "Line No." field ensures that you're checking for actual purchase lines greater than 0, which are valid lines. This would fix the issue where the check might return false even when lines exist.

? Change the filter on line 06 from a "No." field to a "Document No." field.

No

The filter on the No. field is correct, as it's filtering based on the purchase order number. Changing this to Document No. is unnecessary.

? Remove "not" in line 07.

No

The not in line 07 is necessary because IsEmpty() returns true when no lines are found. To correctly return a boolean indicating whether the purchase order has lines, you need to negate the result of IsEmpty().

In Business Central, when you need to handle the removal of fields and procedures to ensure that other extensions are not affected by these changes, you typically follow a two-step deprecation process. This allows other developers and users to adapt to the changes before they are fully enforced. Here are the steps to handle the removal:

Mark as Obsolete: In the first version where the decision to remove the field or procedure is made, you set the ObsoleteState to Pending and provide an ObsoleteReason. This doesn't remove the feature but indicates to users and developers that it will be removed in the future. This step is crucial for backward compatibility.

Removal: In a subsequent version, after users have had time to adapt to the deprecation warning, you can then remove the field or procedure or set the ObsoleteState to Removed.

Based on these guidelines, here are the three actions you should perform in sequence:

Set the Description field as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Set the Clone procedure as ObsoleteState = Pending and ObsoleteReason = 'Not in use' in version 2.0.0.0.

Remove the Description field from the Issue table in version 2.0.0.1.

These steps will ensure that anyone using the Description field or Clone procedure will receive a warning about the pending deprecation before it is actually removed, thereby minimizing the impact on other extensions and providing a clear path for migration.

When handling the removal of fields and procedures in Microsoft Dynamics 365 Business Central, the process should be carried out in a way that allows other extensions or dependent features to adapt to the changes without causing immediate failures.

Set Obsolete State and Reason for Description Field (Version 2.0.0.0): The first step involves marking the Description field as obsolete by setting the ObsoleteState to 'Pending'. This is a non-breaking change, signaling to other developers and users that the field is planned for removal in a future version. An ObsoleteReason should also be provided to explain why the field is being deprecated.

Set Obsolete State and Reason for Clone Procedure (Version 2.0.0.0): Similarly, the Clone procedure should be marked as obsolete with the ObsoleteState set to 'Pending'. This indicates that the procedure is no longer in use and will be removed in the future. Providing an ObsoleteReason is best practice as it explains the rationale behind the decision.

Remove the Description Field (Version 2.0.0.1): In the subsequent version, after the developers and users have been given time to adapt to the deprecation notice, the Description field can be safely removed from the Issue table. This is considered a breaking change, hence it is done after the field has been marked as obsolete in a previous version.

The reason for not removing the Description field and Clone procedure immediately in version 2.0.0.0 is to avoid causing runtime errors for any extensions or integrations that may depend on these components. By following this sequence, you provide a clear deprecation path that helps maintain the stability of the overall system while evolving the schema.

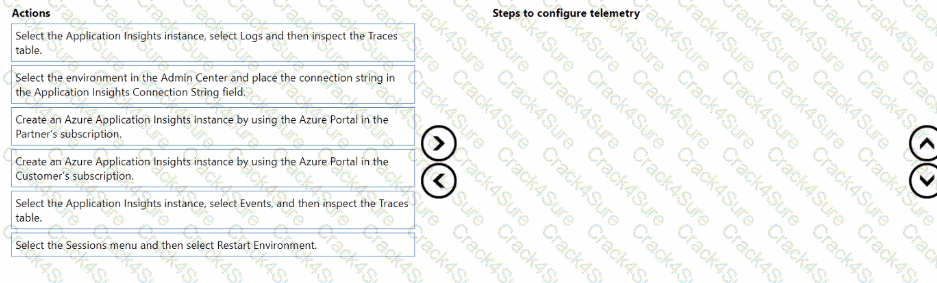

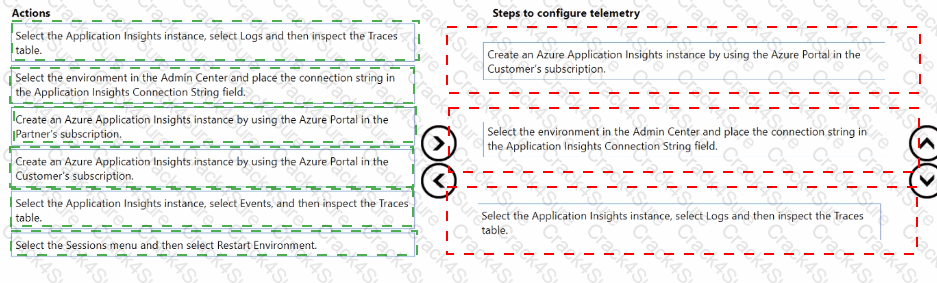

The correct sequence of actions to configure telemetry for the SaaS tenant and test whether the ingested signals are displayed would be:

Create an Azure Application Insights instance by using the Azure Portal in the Customer's subscription.

Select the environment in the Admin Center and place the connection string in the Application Insights Connection String field.

Select the Application Insights instance, select Logs and then inspect the Traces table.

To set up telemetry for a SaaS tenant using Azure Application Insights, you need to follow these steps:

Create an Azure Application Insights instance: This is the first step where you create an instance in Azure that will collect the telemetry data. This should be done in the customer's Azure subscription because it's their data that you're monitoring.

Configure the SaaS tenant to use the created Application Insights instance: This involves entering the correct connection string in the Business Central Admin Center so that telemetry data from the tenant is sent to the Application Insights instance.

Verify that telemetry is being collected: After configuring, you would check if the telemetry is arriving as expected by inspecting the Traces table in the Azure Application Insights instance. The 'Traces' table holds the telemetry data, which you can query to verify that the correct signals are being ingested.

In the context provided by the case study, when calling an API action from a mobile application, the correct format for a POST request to an action in Business Central typically involves specifying the entity (/issues), the ID of the entity (88122e0e-5796-ec11-bb87-000d3a392eb5), and the action to be called (/Copy). The action name should match the exact name as defined in the AL code, which is case-sensitive.

Option A is incorrect because it uses a non-standard format for the action call.

Option B uses the PATCH method, which is generally used for update operations, not for calling actions.

Option C is correct as it uses the POST method, which is appropriate for calling actions, and correctly specifies the entity, ID, and action name.

Option D is incorrect because the action name /copy is in lowercase, while AL is case-sensitive, and it should match the case exactly as defined in the code.

Option E incorrectly adds 'MicrosoftNAV' before the action name, which is not standard for calling actions in Business Central APIs.

Hence, the correct action to use when calling the Issue API action from the mobile application is given in Option C.

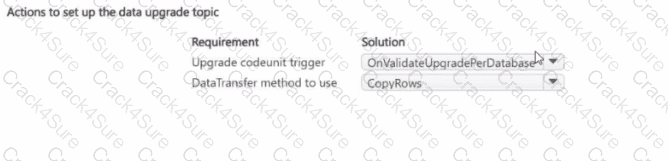

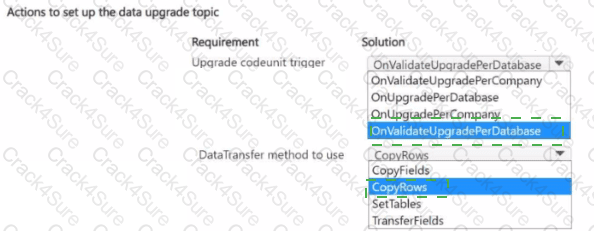

? Upgrade codeunit trigger: OnValidateUpgradePerDatabase

Since the question specifies that you are handling data upgrades, and you need to use validation before upgrading at the database level, the correct choice is OnValidateUpgradePerDatabase. This method ensures that the upgrade process is validated before applying to the entire database, making it more efficient when data affects multiple companies or structures.

? DataTransfer method to use: CopyRows

CopyRows is the appropriate method when you are handling large data transfers between tables, especially in an upgrade scenario where you are migrating or transferring data from one table to another. It copies entire rows of data and is optimal for bulk data operations during upgrades.

Code Segment Analysis:

The AL code is trying to read JSON data from a response and process it to extract subcontracting order numbers. It uses JsonToken, JsonObject, and JsonArray to work with the JSON data.

JToken.ReadFrom(Data): This line reads the incoming JSON data and converts it into a token. It processes the full JSON body so you can start working with it.

JToken.SelectToken("results"): This line selects the part of the JSON containing the results array. The key "results" is where the JSON response data is expected to be found.

JsonArray: Once the results are extracted, they are stored as an array, and each element in the array (which is expected to contain subcontracting order numbers) is processed.

SubcontractingOrderNo: The extracted order_no from the JSON is stored in this variable.

Breakdown of Steps:

JToken.ReadFrom(Data): This step reads the entire JSON response.

JToken.SelectToken("results"): This step selects the results array from the JSON response.

JArray.AsArray(): This step converts the selected results token into a JSON array that can be iterated over.

GetValueAsText(JToken, 'order_no'): This step retrieves the order_no from each element in the array.

Correct Code Completion:

JToken.ReadFrom(Data): This is the correct method to read the incoming JSON response, as it will convert the string into a JsonToken that can be further processed.

JToken.SelectToken("results"): This is the correct method to extract the results array from the token. This method looks for the key "results" in the JSON and retrieves the relevant array.

Final Code Segment:

al

Copy code

procedure ReadJsonData(Data: text)

var

JToken: JsonToken;

JObject: JsonObject;

JArray: JsonArray;

SubcontractingOrderNo: Code[20];

begin

if Data = '' then

exit;

JToken := JToken.ReadFrom(Data); // Step 1: Read the JSON response data.

JToken := JToken.SelectToken('results'); // Step 2: Select the "results" array.

JArray := JToken.AsArray(); // Convert the token into a JSON array.

foreach JToken in JArray do begin

SubcontractingOrderNo := GetValueAsText(JToken, 'order_no'); // Retrieve the order number.

end;

end;

JToken.ReadFrom(Data): This reads the raw JSON data string and converts it into a JSON token that can be processed.

JToken.SelectToken("results"): This extracts the results array from the JSON data.

JArray.AsArray(): Converts the token into an array so we can iterate over it.

GetValueAsText(JToken, 'order_no'): Extracts the order_no value from each item in the array.

procedure BlockNonSItems()

var

Item: Record Item;

begin

// Reset the Item record to clear any previous filters.

Item.Reset();

// Set the filter to exclude items that start with 'S'.

Item.SetFilter("No.", '<>%1*', 'S');

// Find each item that matches the filter.

if Item.FindSet() then

repeat

// Set the Blocked field to true to block the item.

Item.Blocked := true;

// Save the changes to the Item record.

Item.Modify();

until Item.Next() = 0; // Continue until no more items are found.

end;

Here is the most logical sequence of actions for implementing the Issue Management module in Business Central and exposing the PostIssue method:

Correct Order:

Create a codeunit named "Issue Management Impl." and set the value of Access property to Internal.

This is the first step because Issue Management Impl. is the implementation layer where the actual business logic resides, and setting it to Internal ensures that it is only accessible from within the module, following best practices in encapsulation.

Create a local procedure named PostIssueImpl in the "Issue Management Impl." codeunit.

This step adds the actual PostIssueImpl method, which contains the core logic of posting an issue.

Create a codeunit named "Issue Management" and set the value of Access property to Public.

After defining the implementation logic, you need to create a public-facing Issue Management codeunit to expose the service externally.

Create a PostIssue procedure in the "Issue Management" codeunit, and in it call the PostIssueImpl method.

Lastly, expose the PostIssue method in the Issue Management codeunit, which will internally call the PostIssueImpl method, completing the chain.

In Microsoft Dynamics 365 Business Central, when configuring snapshot debugging, it is crucial that the parameters in the configuration file are correctly set. From the options provided, the issue with the debugger not starting correctly is most likely due to an incorrect "userId" parameter.

Option A is the cause of the problem. The "userId" parameter must be the GUID of the user, not the username. The snapshot debugger needs the exact GUID to attach to the right session for debugging.

Option B is incorrect because "breakOnNext" set to "WebClient" is a valid setting. This tells the debugger to break on the next client action in the web client, which is a typical scenario.

Option C is not the cause of the problem. The "userId" parameter is meant to specify which user session to debug, and this works in conjunction with the "breakOnNext" parameter.

Option D is incorrect as the "executionContext" parameter does not need to be set to "Debug" for snapshot debugging to work. "DebugAndProfile" is a valid value for the "executionContext" parameter, as it allows for debugging and collecting performance information.

Therefore, the reason why the debugger does not start correctly is due to Option A: The "userId" parameter must have the GUID of the user specified, not the username.

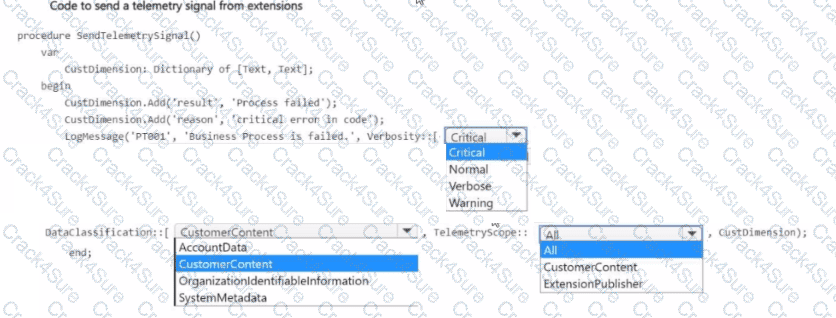

? Verbosity::Critical: This ensures that the telemetry logs the failure as a critical event.

? DataClassification::CustomerContent: This helps classify the error as related to customer data.

? TelemetryScope::All: This ensures that the error is visible across all relevant telemetry scopes, making it easier to monitor the issue in real-time.
