Practice Free SC-500 Microsoft Certified: Cloud and AI Security Engineer Associate Exam Questions Answers With Explanation

To add the network interface of a virtual machine named VM1 to an application security group named ASG1, you can follow these steps:

In the Azure portal, search for and select the virtual machine named VM1.

In the left pane, select Networking.

In the Networking pane, select the network interface that you want to add to the application security group named ASG1.

In the network interface pane, select Application security groups.

In the Application security groups pane, select Add.

In the Add application security group pane, select the application security group named ASG1.

Select Save.

You can find more information on this topic in the following Microsoft documentation: Add a network interface to an application security group using the Azure portal.

To configure Azure to allow RDP connections from the Internet to a virtual machine named VM1, you can follow the steps below:

Create a new inbound security rule in the network security group (NSG) that is associated with the virtual network subnet that contains VM1. The rule should allow RDP traffic from the Internet to the virtual network subnet. You can use the Azure portal, Azure PowerShell, or Azure CLI to create the rule.

Configure the network security group (NSG) to associate it with the virtual network subnet that contains VM1.

Configure the virtual machine to allow RDP traffic. You can use the Azure portal, Azure PowerShell, or Azure CLI to configure the virtual machine.

To minimize the attack surface of VM1, you can use the following best practices:

Use a strong password for the local administrator account on the virtual machine.

Use Network Security Groups (NSGs) to restrict traffic to only the necessary ports and protocols.

Use Azure Security Center to monitor and protect your virtual machines.

To collect all the audit failure data from the security log of a virtual machine named VM1 to an Azure Storage account, you can follow these steps:

In the Azure portal, search for and select the virtual machine named VM1.

In the left pane, select Diagnostic settings.

Select Add diagnostic setting.

In the Add diagnostic setting pane, enter the following information:

Name: Enter a name for the diagnostic setting.

Destination: Select Storage account.

Storage account: Select the storage account you want to use.

Logs: Select Windows Event Logs.

Categories: Select Security.

Event types: Select Audit Failure.

Select Save.

To ensure that only devices connected to a 131-107.0.0/16 subnet can access data in the rg1lod28681041 Azure Storage account, you can follow these steps:

In the Azure portal, search for and select the storage account named rg1lod28681041.

In the left pane, select Firewalls and virtual networks.

In the Firewalls and virtual networks pane, select Selected networks.

In the Selected networks pane, select Add existing virtual network.

In the Add existing virtual network pane, select the virtual network that contains the 131-107.0.0/16 subnet.

Select Add.

https://docs.microsoft.com/en-us/azure/storage/common/storage-network-security

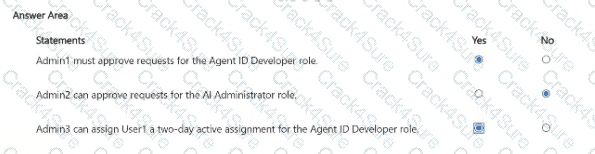

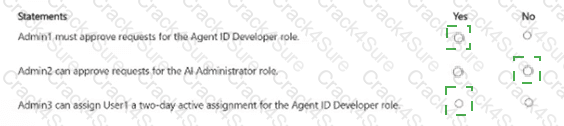

Yes; 2) No; 3) Yes

The visible PIM settings indicate that Admin1 must approve Agent ID Developer activations, Admin2 is not an approver for the AI Administrator role, and Admin3 can assign User1 a two-day active assignment for Agent ID Developer. The controlling factors are the configured approver list and active assignment duration policy for each role. PIM evaluates those settings per role, so approval authority or duration for one role cannot be assumed for another role. For SC-500, the decisive distinction is whether the control authenticates an identity, grants authorization, or merely changes configuration visibility. The incorrect choices generally either grant excessive privilege, change the application model, or operate at the wrong scope. Microsoft expects the least-privilege identity path that satisfies the scenario without introducing shared secrets or unnecessary tenant-wide rights. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > PIM role settings and Agent ID governance; Microsoft Learn > approvers and maximum activation duration.

==============================================================

The solution as worded adds virtual machine resources to a role. Azure Storage authorization through Azure RBAC is granted to security principals such as managed identities, users, groups, and service principals, not to VM compute objects as resource containers. Since each VM already has a system-assigned managed identity, the correct approach would be to assign the storage data role to those identities. As stated, this solution does not meet the goal. The exam objective emphasizes practical identity enforcement rather than cosmetic configuration. A valid answer must identify who authenticates, what permission is granted, where the scope is applied, and whether the method continues to work without passwords or secrets. That is why the selected answer is preferred over broader administrative roles or unrelated access settings. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > managed identities and storage access; Microsoft Learn > RBAC role assignments are made to identities.

==============================================================

A hunting query is an investigation tool. It can find suspicious activity or support manual threat hunting, but it does not automatically assign every new incident to a group or flag it for triage. The requirement is an operational automation requirement on incident creation. Therefore, a hunting query alone does not meet the goal even though it may help analysts review incidents later. In Microsoft Sentinel and Defender scenarios, collection, detection, investigation, and automation are separate functions. The selected answer maps to the function requested by the question rather than a neighboring capability. This is why analytics, hunting, workbooks, connectors, automation rules, and playbooks must not be treated as interchangeable. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Sentinel hunting and automation; Microsoft Learn > hunting queries versus incident automation.

==============================================================

AKS workload protection is provided by Microsoft Defender for Containers. That plan covers Kubernetes posture, runtime threat detection, image risk signals, and container workload protections. Defender for Servers protects VMs and Arc servers, Defender for App Service protects web apps, Resource Manager protects control-plane operations, and Defender for Storage protects storage accounts. Because the applications are hosted on AKS1, Defender for Containers is the correct plan. The compute domain tests whether protection is applied before deployment, during runtime, or through posture assessment. The selected answer matches the phase described in the requirement. Detection-only tools are not acceptable when the requirement says prevent, and local installation methods are inferior when Defender for Cloud, Azure Policy, or Azure Machine Configuration can enforce the control centrally. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Defender for Containers; Microsoft Learn > AKS workload protection.

==============================================================

The correct choice is storage1 only.

For Azure SQL Database auditing, Microsoft supports writing audit logs to an Azure Storage account. Both Standard storage accounts and Premium BlockBlobStorage accounts are supported as audit destinations. However, the question specifically requires configuring auditing for sql1 by using the Azure portal. Microsoft states that when auditing is configured through the Azure portal, the selected storage account must be in the same Azure region as the logical SQL server/database. Microsoft Learn

In this case, sql1 is located in West US. Of the available storage accounts, storage1 is also in West US and uses Standard performance, which is supported for SQL audit storage. Therefore, storage1 satisfies both the storage-type and regional requirements.

Although storage2 uses Premium Block blobs, which is technically supported for SQL auditing, it is located in East US, so it cannot be selected through the Azure portal for sql1. storage3 is Premium File shares and storage4 is Premium Page blobs; these are not supported SQL auditing storage destinations. Microsoft specifically identifies Standard storage and Premium BlockBlobStorage as supported.

Adding virtual machines to a security group does not by itself grant Azure Storage access. The authorization principal used by Azure RBAC must be the managed identity or another supported security principal that the workload uses to request tokens. The solution also fails to state that the system-assigned managed identities are added to the group. Because the compute resources themselves are not the authenticating principals, this solution does not meet the goal. This domain is tested through precise scope control: tenant, subscription, resource, application, and data-plane authorization are not interchangeable. The correct choice applies the smallest identity or governance control that enforces the stated requirement. Options that only add users, create registrations, or provide broad administrator access fail because they do not directly enforce the requested access behavior. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Azure RBAC and identities; Microsoft Learn > role assignment requires an identity principal at the scope.

==============================================================

Set Analytics retention to 2 years. The case states that the DnsEvents table uses the Analytics tier and requires data to be retained for the maximum supported duration without changing the tier. For a Log Analytics table using the Analytics plan, Microsoft currently supports an Analytics—or interactive—retention period of up to 730 days (two years). During this period, the data remains directly available for high-performance KQL queries, Microsoft Sentinel analytics rules, hunting, workbooks, and other real-time security operations.

The important distinction is between Analytics retention and total retention. Microsoft Sentinel can retain data for up to 12 years in long-term/Data Lake retention, but data beyond the Analytics retention period is no longer maintained as normal interactive Analytics-tier data. Access to long-term data uses mechanisms such as search jobs or the Data Lake tier. Therefore, 12 years does not satisfy a question specifically asking for the maximum Analytics retention.

The other choices—180 days and one year—are valid durations but are below the maximum. Six years exceeds the two-year Analytics limit.

An automation rule is the native Sentinel control for applying actions automatically when incidents are created or updated. It can assign incidents to users or groups, change status/severity, add tags, and run playbooks. This directly matches the requirement to assign all new incidents immediately and flag them for triage. It is more direct than hunting queries and is intended for incident-handling automation. The posture and monitoring objective focuses on turning security data into usable operational outcomes. The correct answer either collects the right signal, grants the right security-operations role, or automates incident handling at the correct layer. Distractors often provide dashboards, queries, or broad permissions, but those do not create the requested workflow or least-privilege security capability. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Sentinel automation rules; Microsoft Learn > automation rule actions for incident assignment.

==============================================================

Statement

Answer

On May 15, User1 can activate the Contributor role.

Yes

On May 15, User2 can use the Contributor role.

Yes

On June 15, User3 can activate the Contributor role.

No

User1 = Yes. User1 received an eligible assignment on May 1, and eligible assignments expire after three months, so the assignment remains valid on May 15. Eligible users must activate the role before using it. PIM is configured to require Azure MFA and justification during activation. Microsoft states that PIM can require MFA during role activation independently of the user ' s legacy per-user MFA state; a per-user state of Disabled does not prevent PIM from challenging the user for MFA.

User2 = Yes. User2 has an active assignment, so no activation is required. Microsoft explicitly states that active assignments provide role privileges immediately. The assignment expires after one month, meaning it is still valid on May 15. The “Require Azure MFA on active assignment” setting applies when an administrator creates the active assignment; it does not force MFA every time the user uses the role.

User3 = No. User3 also received an active assignment on May 1, which expires after one month, around June 1. By June 15, that assignment has expired. Because User3 was not assigned an eligible role, there is nothing available to activate.

An analytics rule creates alerts and incidents from detection logic. It is not a global mechanism for assigning every new incident from all sources or adding triage flags after incident creation. While a specific analytics rule can set some incident details for incidents it generates, it does not meet the stated goal for all new incidents in the workspace. Sentinel automation rules or playbooks are the correct tools. In Microsoft Sentinel and Defender scenarios, collection, detection, investigation, and automation are separate functions. The selected answer maps to the function requested by the question rather than a neighboring capability. This is why analytics, hunting, workbooks, connectors, automation rules, and playbooks must not be treated as interchangeable. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Sentinel analytics rules; Microsoft Learn > analytics rules create incidents, not global assignment handling.

==============================================================

To ensure that a user named user2-28681041 can manage the properties of the virtual machines in the RG1lod28681041 resource group using the principle of least privilege, you can follow these steps:

In the Azure portal, search for and select the resource group named RG1lod28681041.

In the left pane, select Access control (IAM).

Select Add.

In the Add role assignment pane, enter the following information:

Role: Select the appropriate role for your scenario. For example, Virtual Machine Contributor.

Assign access to: Select User, group, or service principal.

Select: Enter the name of the user you want to assign the role to. For example, user2-28681041.

Select Save.

https://docs.microsoft.com/en-us/azure/role-based-access-control/role-assignments-portal

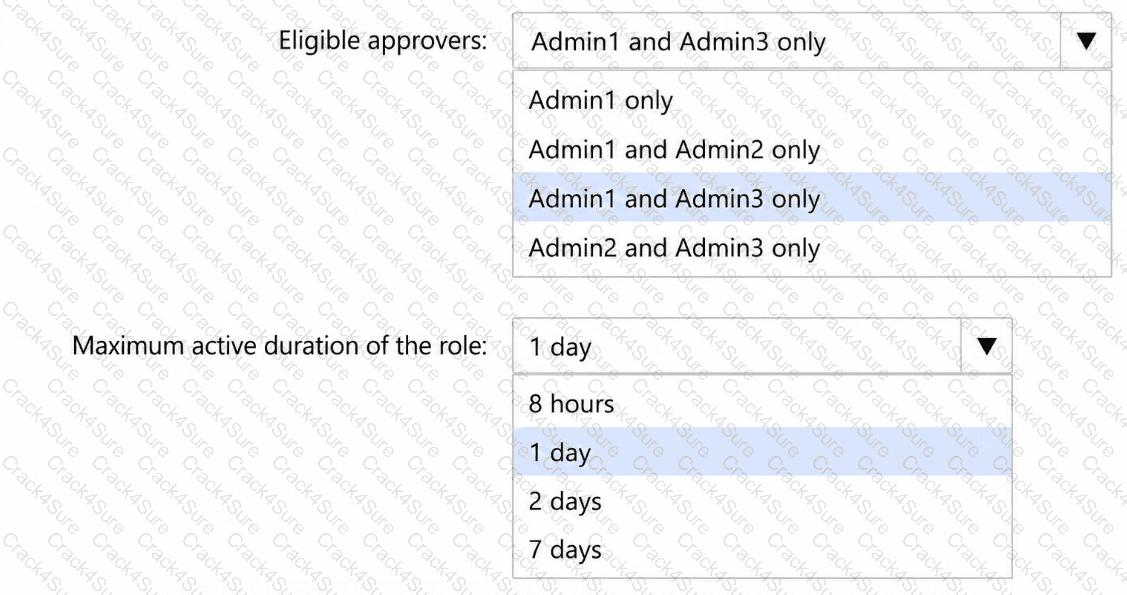

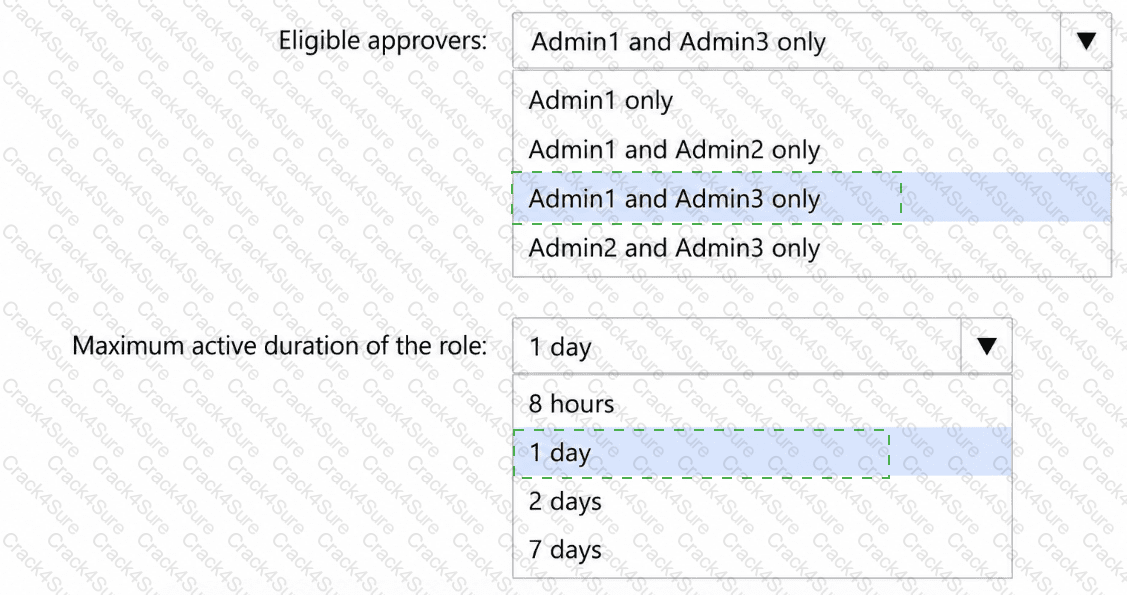

Eligible approvers: Admin1 and Admin3 only; Maximum active duration of the role: 1 day

The answer area indicates that Admin1 and Admin3 are the eligible approvers and that the active AI Administrator role duration is one day. This is consistent with PIM role settings: approvers are explicitly configured for a role activation policy, and maximum active duration controls how long the activated role remains available. Other administrators who are not configured as approvers cannot approve the request merely because they hold unrelated roles. This domain is tested through precise scope control: tenant, subscription, resource, application, and data-plane authorization are not interchangeable. The correct choice applies the smallest identity or governance control that enforces the stated requirement. Options that only add users, create registrations, or provide broad administrator access fail because they do not directly enforce the requested access behavior. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > PIM activation approval and duration; Microsoft Learn > role settings in PIM.

==============================================================

A private endpoint changes network routing so clients reach the storage account over a private IP address, but it does not grant data-plane authorization. The scenario already allows public network access, so network reachability is not the missing component. VM1 and VM2 still need Azure RBAC assignments for their managed identities or another valid authentication path. Therefore, a private endpoint alone does not meet the goal. For this domain, least privilege means granting only the required data operation or allowing only the required network flow. The correct response avoids shared keys, broad peering, general contributor roles, or log-only controls when the scenario demands prevention, routing, event triggering, or account-specific configuration. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > private endpoints and storage access; Microsoft Learn > private endpoints provide network access, not authorization.

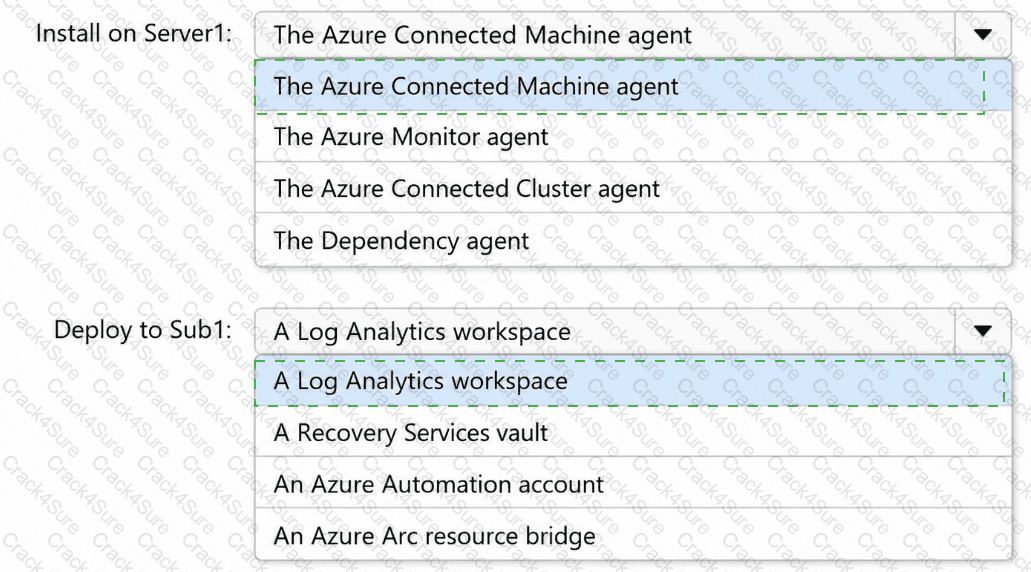

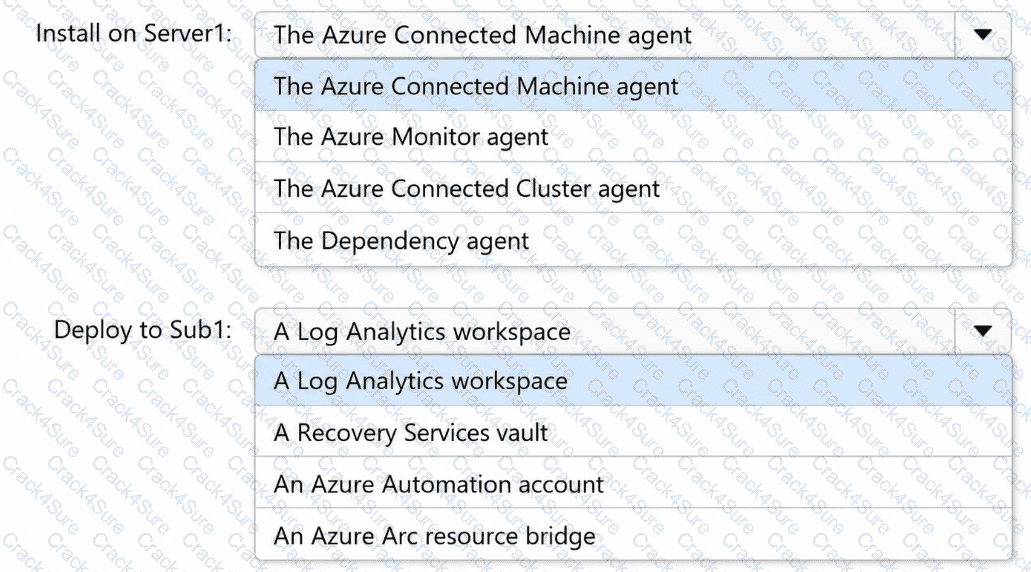

Install on Server1: The Azure Connected Machine agent; Deploy to Sub1: A Log Analytics workspace

The Azure Connected Machine agent is required to onboard a non-Azure server as an Azure Arc-enabled server. Once the server is represented in Azure, telemetry and security data can be directed to a Log Analytics workspace in the subscription. This combination supports Defender for Cloud and Sentinel-style monitoring without treating the server as a native Azure VM. Deploying only a workspace would not onboard Server1; installing only the agent would not provide the analytics destination. This answer also follows operational scalability. Microsoft security architecture favors policy-driven deployment, agentless assessment, managed identities, and Defender workload plans where possible. Those mechanisms reduce manual configuration while keeping enforcement tied to the resource type, which is why the selected choice is stronger than manual or after-the-fact alternatives. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Azure Arc and Sentinel data collection; Microsoft Learn > Connected Machine agent and Log Analytics workspace.

==============================================================

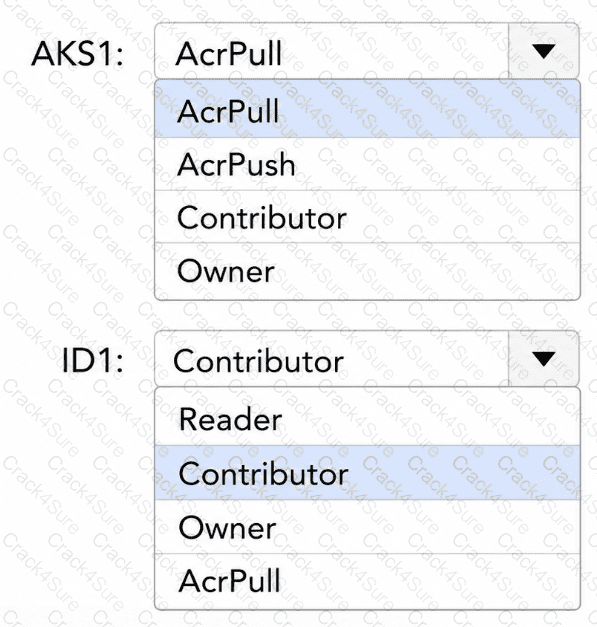

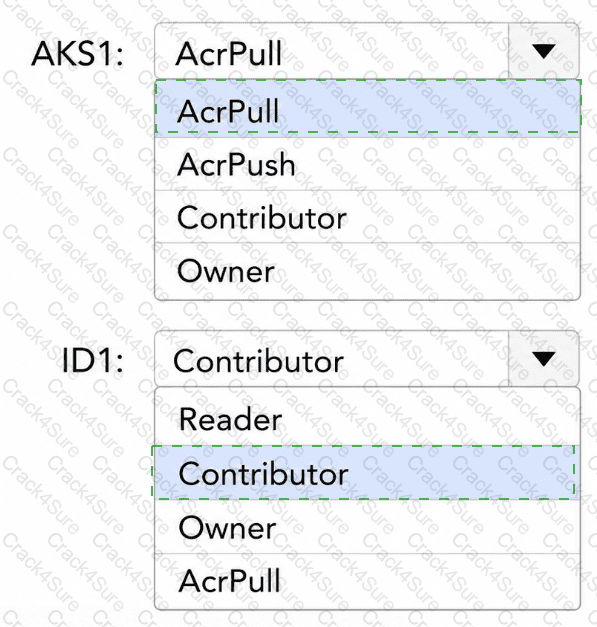

AKS1: AcrPull; ID1: Contributor

AKS1 needs to pull images from Azure Container Registry, so AcrPull is the least-privilege registry role for the cluster identity. ID1 requires Contributor in the visible answer area because the referenced technical requirement requires resource changes beyond a read-only or pull-only role. The important distinction is scope: AKS image retrieval should not receive Contributor, while the separate managed identity receives the broader role only for its implementation task. This domain is tested through precise scope control: tenant, subscription, resource, application, and data-plane authorization are not interchangeable. The correct choice applies the smallest identity or governance control that enforces the stated requirement. Options that only add users, create registrations, or provide broad administrator access fail because they do not directly enforce the requested access behavior. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > AKS and managed identities; Microsoft Learn > ACR pull role and Azure RBAC.

==============================================================

Configure an inbound access restriction on App1 that explicitly allows the partner ' s public IP address. Azure Functions running on App Service infrastructure support access restriction rules that operate as an inbound network ACL. Microsoft states that these rules can contain individual IPv4/IPv6 addresses or ranges and that once one or more rules are configured, unmatched traffic can be denied. This directly supports the requirement to accept HTTP requests only from the specified partner IP.

The existing virtual network integration does not control inbound access. Microsoft specifically defines VNet integration as an outbound networking capability. Consequently, an NSG associated with the integration subnet affects traffic originating from the Function App but does not filter requests arriving at the Function App ' s public endpoint.

A private endpoint would eliminate normal public access and therefore would not support a partner that connects from a public Internet IP unless additional private connectivity were implemented. Azure Bastion is for administrative connectivity to VMs, while NAT Gateway controls outbound source addressing.

The SC-500 study guide explicitly includes configuring Azure Functions authentication and network access under Secure compute.

===============

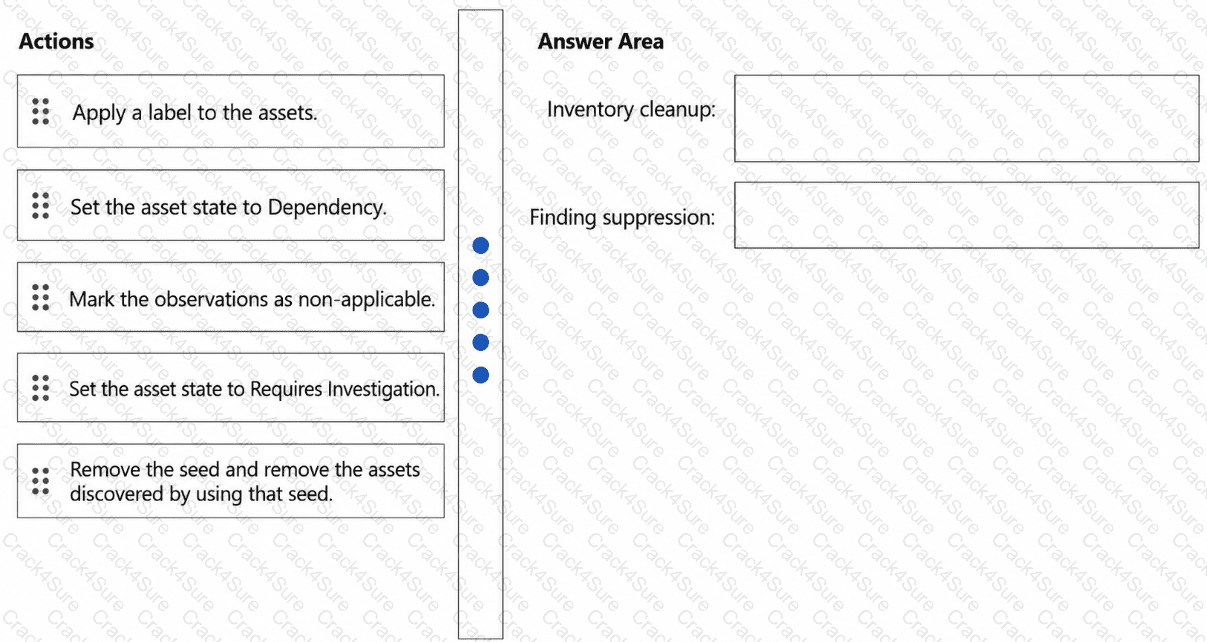

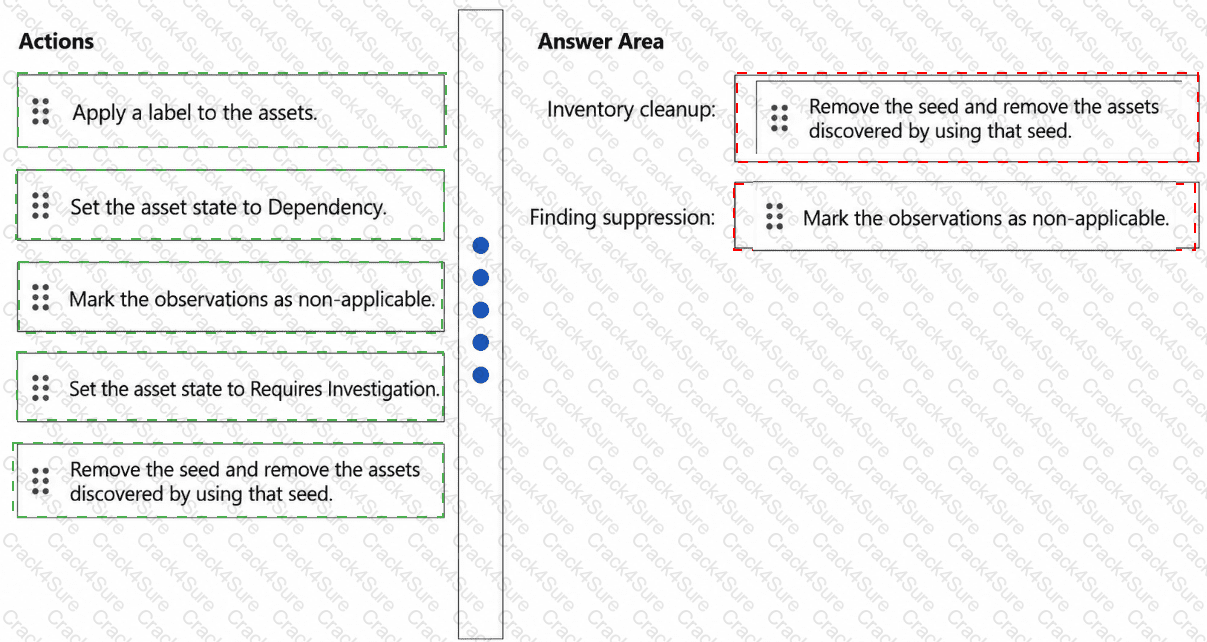

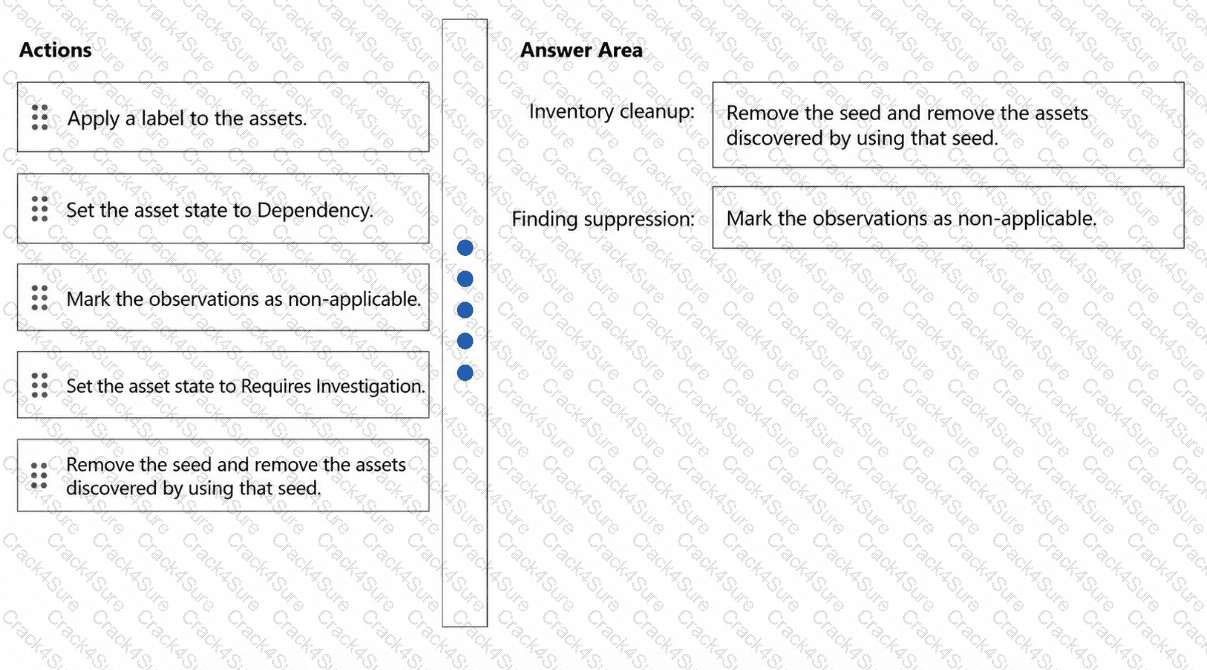

Inventory cleanup: Remove the seed and remove the assets discovered by using that seed; Finding suppression: Mark the observations as non-applicable

When a seed domain is no longer owned, the clean inventory action is to remove the seed and remove assets discovered from that seed. Leaving those assets as dependencies or merely labeling them would keep stale assets in the inventory. For findings that do not apply to confirmed inventory, marking the observations as non-applicable prevents them from influencing finding counts while retaining the operational history needed for audit and review. For this domain, least privilege means granting only the required data operation or allowing only the required network flow. The correct response avoids shared keys, broad peering, general contributor roles, or log-only controls when the scenario demands prevention, routing, event triggering, or account-specific configuration. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Defender EASM; Microsoft Learn > inventory and observation state management.

==============================================================

A user-assigned managed identity can be attached to multiple virtual machines and then granted an Azure Storage data role. The applications running on VM1 and VM2 can request tokens for that identity and access storage1 without account keys. Public network access is already enabled, so the missing control is authorization. Assigning the user-assigned managed identity to the correct storage role satisfies the access requirement. For SC-500, the decisive distinction is whether the control authenticates an identity, grants authorization, or merely changes configuration visibility. The incorrect choices generally either grant excessive privilege, change the application model, or operate at the wrong scope. Microsoft expects the least-privilege identity path that satisfies the scenario without introducing shared secrets or unnecessary tenant-wide rights. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > managed identities; Microsoft Learn > user-assigned managed identities and role assignment to storage.

==============================================================

Node pool

Subnet type

Pool1

An Azure Container Networking Interface (CNI) subnet

Pool2

An Azure Container Networking Interface (CNI) subnet

Use an Azure CNI subnet for both Pool1 and Pool2. With the Azure CNI flat-networking model, AKS pods receive IP addresses directly from Azure virtual-network address space rather than from a separate overlay CIDR. In the Azure CNI Node Subnet model, every pod receives an IP address from the subnet associated with its node pool, which exactly matches the requirement that pod addresses be allocated directly from the assigned subnet.

AKS supports placing different node pools in different subnets, which allows Pool2 to use a separate subnet for the sensitive workload while Pool1 uses another Azure CNI subnet. This enables separate NSGs, routing, and other subnet-level security controls while preserving a single AKS cluster. Microsoft confirms that all node pools must remain in the same virtual network, but they can reside in different subnets.

Azure CNI Overlay is incorrect because pod IPs come from a separate overlay CIDR instead of directly from the VNet subnet. Kubenet likewise assigns pod addresses from a logically separate address space and NATs traffic through node addresses. A delegated subnet is also invalid because Microsoft explicitly states that a subnet assigned to an AKS node pool cannot be delegated.

Statement

Answer

You can establish a Remote Desktop connection from VM1 to VM3 for a maximum of three hours.

No

You can establish a Remote Desktop connection from VM2 to VM1 after requesting access.

No

You can establish a Remote Desktop connection from VM3 to VM1 without requesting access.

No

JIT access on VM1 controls inbound traffic to VM1, not outbound traffic originating from VM1. Therefore, the three-hour RDP rule on VM1 does not limit a connection from VM1 to VM3. Microsoft states that JIT protects selected VM ports by blocking inbound traffic until access is requested and approved.

The second statement is No because VM2 ' s source address is in 172.16.0.0/24, but VM1 ' s JIT configuration for RDP port 3389 permits requests only from 10.10.0.0/24 and 192.168.10.0/24. JIT requests must use source addresses allowed by the configured JIT policy.

The third statement is also No. VM3 is in 192.168.10.0/24, which is an allowed source range for port 3389, but that does not mean permanent access is open. Microsoft documents that when JIT is enabled, users must still request access; Defender for Cloud then temporarily opens the selected port for the approved source IP and duration.

A playbook can automate incident response actions by using a Logic Apps workflow. When designed with the Microsoft Sentinel incident trigger or invoked from an automation rule, it can assign an incident and add a triage flag. Because the proposed solution is a playbook for new incidents, it can meet the goal. The essential point is that the workflow must run when incidents are created and update incident properties. The SC-500 study guide places these tasks under security posture, event collection, Defender CSPM, EASM, Sentinel, and Security Copilot operations. The exam expects the control that minimizes analyst effort while preserving correct permissions and data flow. The selected answer reflects that service boundary and avoids a broader or merely investigative alternative. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Sentinel playbooks; Microsoft Learn > automate incident assignment and tagging.

==============================================================

Microsoft Entra authentication must be configured on the SQL server before Microsoft Entra identities and Conditional Access can govern database access. A Conditional Access policy then enforces the planned access control for SQLdb1. A compliance policy does not authenticate SQL connections. Federated client identity and a user-assigned managed identity are used for workload identity scenarios, not for enforcing user sign-in requirements against Azure SQL in this case. The exam objective emphasizes practical identity enforcement rather than cosmetic configuration. A valid answer must identify who authenticates, what permission is granted, where the scope is applied, and whether the method continues to work without passwords or secrets. That is why the selected answer is preferred over broader administrative roles or unrelated access settings. The result is a direct exam-style implementation choice: it changes the required security behavior without relying on unrelated monitoring, manual cleanup, or excessive privilege. Official Microsoft source/topic: SC-500 Study Guide > Azure SQL authentication and conditional access; Microsoft Learn > Microsoft Entra authentication for Azure SQL.

==============================================================

Storage2 must be configured to use an account encryption key. The planned storage account must support Azure Table storage, while the technical requirement specifies that all storage data must be encrypted using Fabrikam-managed keys, meaning customer-managed keys (CMKs).

Azure Storage treats Table and Queue encryption differently from Blob Storage and Azure Files. Microsoft states that to encrypt Table Storage or Queue Storage with a customer-managed key, the storage account must be configured at creation time to use an encryption key scoped to the account rather than the default service-scoped key. After creation, this setting cannot be changed. Microsoft Learn

An encryption scope does not solve this requirement because encryption scopes apply to Blob Storage containers and individual blobs, not Azure Table data. Microsoft Learn

An Azure RBAC assignment may later be required so that the storage account ' s managed identity can access the customer-managed key in Key Vault, but it does not itself configure Table Storage to support account-level CMK encryption. Purge protection applies to Azure Key Vault rather than storage2.

Therefore, when storage2 is created, configure Table Storage to use the account encryption key.

===============

Add a custom WAF rule. The planned change requires WAF1 to implement rate limiting based on the geographic location of incoming requests. Azure Web Application Firewall supports this combination directly through custom rate-limit rules.

Microsoft documents that Application Gateway WAF rate-limit rules can group requests by GeoLocation, where requests are categorized based on the geographic location derived from the client IP address. The rule can then apply the configured rate threshold independently to traffic originating from each geographic location. Microsoft Learn Azure WAF custom rules also support the GeoMatch operator, which evaluates requests according to their country or region of origin. Microsoft Learn

This makes a single custom rule the most direct and administratively efficient implementation.

The Azure-managed Default Rule Set (DRS) provides predefined protections against common web application attacks, such as injection and protocol attacks; it is not where custom geographic rate limits are defined. Bot Manager 1.1 identifies and handles automated bot traffic but is not the appropriate mechanism for general location-based rate limiting. Azure Policy can enforce configuration standards across resources but does not itself process web requests or impose per-location request thresholds.

Therefore, configure a custom rate-limit rule with geographic matching/grouping.

===============

The technical requirement states that all outbound traffic from the function apps to the on-premises network must use ExpressRoute circuits. To accomplish this, the Function App hosting plan must support outbound virtual network integration, because the application must send outbound traffic into an Azure virtual network from which routes learned through or directed toward the ExpressRoute gateway can reach the on-premises environment.

Fa1, which uses the Flex Consumption plan, supports virtual network integration. Microsoft documents that Flex Consumption provides outbound virtual network connectivity and can therefore reach resources accessible through the integrated virtual network. Microsoft Learn

Fa3, which uses a Dedicated App Service plan, also supports outbound virtual network integration. Microsoft further documents that VNet-integrated Functions can have outbound traffic affected by BGP routes learned from an ExpressRoute gateway, and route tables can direct traffic through that gateway. Microsoft Learn

Fa2, however, uses the legacy Consumption plan, which does not support outbound virtual network integration. Consequently, it cannot meet the requirement to route its outbound on-premises traffic through ExpressRoute using this architecture. Microsoft Learn

Therefore, only Fa1 and Fa3 support the required networking configuration.

The correct configuration is the Secrets Store CSI Driver. The planned change requires AKS1 to integrate with Vault1, which is an Azure Key Vault. Microsoft provides the Azure Key Vault Provider for Secrets Store CSI Driver specifically for this scenario. It enables an AKS cluster to consume Key Vault objects—such as secrets, keys, and certificates—by mounting them into Kubernetes pods through a CSI volume. Microsoft explicitly describes this driver as providing integration between Azure Key Vault and AKS.

A workload identity can be used as an authentication mechanism that allows Kubernetes workloads to authenticate to Azure resources, including Key Vault, but it is not by itself the feature that performs the Key Vault integration requested by the question. In fact, Workload ID is one of several supported identity methods that can be used with the Secrets Store CSI Driver.

Application scaling controls workload capacity and does not provide secret-store integration. Kubernetes RBAC controls authorization to Kubernetes resources but does not connect AKS to Azure Key Vault.

This maps directly to the SC-500 Secure compute domain, which includes implementing and configuring security controls for Azure Kubernetes Service (AKS).

Encryption type

ExpressRoute circuits

Layer 2 encryption

ER3 and ER4 only

Layer 3 encryption

ER1, ER2, ER3, and ER4

For Layer 2 encryption, Azure ExpressRoute uses MACsec (Media Access Control Security). Microsoft states that MACsec is available for ExpressRoute Direct connections because customers have dedicated physical ports connecting their edge routers directly to Microsoft Enterprise Edge routers. Therefore, both ER3 (ExpressRoute Direct) and ER4 (ExpressRoute Metro Direct) can use MACsec. Provider-based ExpressRoute circuits such as ER1 and ER2 do not expose dedicated ExpressRoute Direct ports to the customer and therefore do not support this native Layer 2 MACsec capability. Microsoft Learn

For Layer 3 encryption, ExpressRoute can use IPsec over ExpressRoute private peering. Unlike MACsec, IPsec is an end-to-end network-layer encryption mechanism and is not dependent on ExpressRoute Direct physical ports. Microsoft states that IPsec over ExpressRoute works with any ExpressRoute circuit, allowing encrypted connectivity between the on-premises network and Azure over private peering.

For AKS1, assign the AcrPull role on Registry1. AcrPull provides the permissions required to download container images from an Azure Container Registry without granting permissions to push, modify, or delete images. Microsoft documents that when AKS is integrated with an Azure Container Registry, the appropriate pull-only role is assigned to the AKS identity used for image pulls. This satisfies the explicit requirement that AKS1 must only be able to pull images and follows least privilege. Microsoft Learn

For ID1, assign AcrPush. Microsoft defines AcrPush as the built-in Azure RBAC role for identities that require both push and pull permissions on a non-ABAC-enabled Azure Container Registry. It therefore allows ID1 to upload container images and retrieve existing images from Registry1 without granting broad resource-management capabilities such as Contributor or Owner. Microsoft Learn

Contributor and Owner would grant substantially more Azure management permissions than required. Reader does not provide container image pull/push data-plane permissions.

Choose Admin1 because the planned Defender for Cloud change is to enable the NIST SP 800-53 Rev. 5 regulatory compliance standard for Sub1. Defender for Cloud implements regulatory compliance standards through Azure Policy initiatives, and assigning a new standard requires permissions to create or manage policy assignments.

Microsoft states that assigning a regulatory compliance standard requires Owner or Policy Contributor permissions at the relevant scope. Microsoft Learn Admin1 has the Resource Policy Contributor Azure role on Sub1, which provides the policy-management permissions required to assign policy initiatives and therefore supports enabling the NIST standard without granting broader resource-management permissions.

Admin2 has User Access Administrator, which manages Azure RBAC assignments but does not provide the policy-management permissions required for this operation. Admin3 has Contributor, which can manage Azure resources but is restricted from performing certain Microsoft.Authorization operations, including policy assignment operations needed here. Admin4 is a Global Administrator in Microsoft Entra but has no Azure role assignment for Sub1; Microsoft Entra directory administration does not automatically provide subscription-level Defender for Cloud policy-management rights.

Because Admin1 already has the specific policy-management role required for the change, selecting Admin1 satisfies both the functional requirement and the principle of least privilege.

===============

The first step is to enable a system-assigned managed identity on VM1. The scenario requires VM1 to read data from storage1 and also specifies that when VM1 is deleted, the permissions associated with VM1 must effectively cease automatically.

A system-assigned managed identity has a one-to-one lifecycle relationship with the Azure resource to which it belongs. Microsoft explicitly states that when the associated resource is deleted, its system-assigned managed identity is automatically deleted from Microsoft Entra ID. In contrast, a user-assigned identity such as ID1 exists independently and remains after the VM is deleted. Microsoft Learn

After enabling the identity, the appropriate storage data-plane role—such as Storage Blob Data Reader when VM1 requires read access to blobs—can be granted to VM1 ' s managed identity at the required scope. Microsoft documents this exact pattern for a Windows VM accessing Azure Storage: enable its managed identity and assign Storage Blob Data Reader to that identity. Microsoft Learn

Federated credentials are unnecessary for a VM ' s native managed identity. Assigning ID1 would violate the lifecycle requirement because ID1 is user-assigned and survives VM1 deletion. A role assignment cannot be created for VM1 ' s system identity until that identity exists.

Therefore, first enable VM1 ' s system-assigned managed identity.
