MCIA-Level-1 Practice Exam Questions with Answers MuleSoft Certified Integration Architect - Level 1 Certification

MuleSoft's IT delivery and operating model suggests adopting an approach that decouples core IT projects from the innovation within each line of business. This approach, often referred to as API-led connectivity, allows different lines of business to innovate and deliver projects independently by using reusable APIs that provide access to core systems and data. This decoupling enhances agility, speeds up delivery, and ensures that core IT maintains control over critical systems and data while enabling rapid innovation.

References:

• API-led Connectivity: Build Your Digital Platform for Change
• MuleSoft's API-led Connectivity Approach

Explanation

* An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

* Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime.

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent.

In a standalone Mule runtime, Mule creates a default persistent store in the file system. If you do not specify an object store, the default persistent object store is used.

MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/mule-object-stores

• Requirement Analysis: Jenkins files and folders used for CI/CD configurations are not part of the actual Mule package and should be excluded from the deployed archive.
• Solution: MuleSoft provides the .muleignore file to specify files and directories that should be excluded from the packaged application.
• Implementation Steps:

# .muleignore example /path/to/jenkins/file1 /path/to/jenkins/folder/*

• uk.co.certification.simulator.questionpool.PList@18be4c30
• Advantages:

References

• MuleSoft Documentation on .muleignore

The advantage of using OAuth 2.0 client credentials and access tokens over only API keys for API authentication is that if the access token is compromised, the client credentials do not have to be reissued.

OAuth 2.0 is a secure protocol for authenticating clients and authorizing them to access protected resources. It works by having the client authenticate with the authorization server and receive an access token, which is then used to authenticate requests to the API. If the access token is compromised, it can be revoked and replaced without needing to reissue the client credentials.

References: MuleSoft Certified Integration Architect - Level 1 Official Text Book and Resources:

• Chapter 7: Security
• Section 7.2: OAuth 2.0

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

To extend Mule APIs to the Europe region and ensure minimal latency between APIs and target users and systems in Europe, it is important to set the region property correctly and update the naming convention. Here’s the detailed approach:

• Setting the Region Property:
• Updating Naming Convention:
• Communicating the Change:
• Benefits:

References:

• MuleSoft Documentation on Deploying to CloudHub
• MuleSoft Documentation on Managing Applications in Runtime Manager

Explanation

V2 Rest API is recommended for on premise applications to access Object Store. It also comes with overhead of encryption and security of using rest api. With Object Store v2, the API call is localized to the same data center as the Runtime Manager app.

But in this case requirement is to access the OS of other mule application and not the same mule application.

You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

However, Object Store v2 is not designed for app-to-app communication.

According to MuleSoft, the term "interface" describes the method, format, and protocol used for communication between two systems. An interface defines how systems interact, specifying the data formats (e.g., JSON, XML), protocols (e.g., HTTP, FTP), and methods (e.g., GET, POST) that are used to exchange information. Properly designed interfaces ensure compatibility and seamless communication between integrated systems.

References:

• MuleSoft Glossary of Integration Terms
• System Interfaces and APIs

Explanation

* If you need to scale a JMS provider/ message broker, - add nodes to scale it horizontally or - add memory to scale it vertically * Cons of adding another JMS provider/ message broker: - adds cost. - adds complexity to use two JMS brokers - adds Operational overhead if we use two brokers, say, ActiveMQ and IBM MQ * So Two options that mention to use two brokers are not best choice. * It's mentioned that "The Fulfillment microservice consumes Order messages, fulfills the order described therein, and then publishes an OrderFulfilled message. Each OrderFulfilled message can be consumed by any interested Mule application." - When you publish a message on a topic, it goes to all the subscribers who are interested - so zero to many subscribers will receive a copy of the message. - When you send a message on a queue, it will be received by exactly one consumer. * As we need multiple consumers to consume the message below option is not valid choice: "Order messages are sent to an Anypoint MQ exchange. OrderFulfilled messages are sent to an Anypoint MQ queue. Both microservices interact with Anypoint MQ as the message broker, which must therefore scale to support the load of both microservices" * Order messages are only consumed by one Mule application, the Fulfillment microservice, so we will publish it on queue and OrderFulfilled message can be consumed by any interested Mule application so it need to be published on Topic using same broker. * Correct Answer: Best choice in this scenario is: "Order messages are sent to a JMS queue. OrderFulfilled messages are sent to a JMS topic. Both microservices interact with the same JMS provider (message broker) instance, which must therefore scale to support the load of both microservices" Tried to depict scenario in diagram:

Diagram Description automatically generated

Explanation

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

To extend Mule APIs to the EU (Frankfurt) region and minimize latency for European users, follow these steps:

• Set Region Property: In Runtime Manager, for each Mule application deployment, set the Region property to EU (Frankfurt). This deploys the application to the desired region, optimizing performance for European users.
• Reuse Application Names: Keep the same Mule application names as used in the North American region. This approach maintains consistency and simplifies management.
• Communicate New URLs: Inform the consuming API clients in Europe of the new URLs in the format {API-name}—{environment}.de-ci.cloudhub.io. These URLs will direct the clients to the applications deployed in the EU region, ensuring reduced latency and improved performance.

This strategy effectively deploys the same Mule APIs to the CloudHub EU region, leveraging the existing control plane in North America.

Explanation

Anypoint Platform provides a scripting and command-line tool for both Anypoint Platform and Anypoint Platform Private Cloud Edition (Anypoint Platform PCE). The command-line interface (CLI) supports both the interactive shell and standard CLI modes and works with: Anypoint Exchange Access management Anypoint Runtime Manager

To automate the promotion and deployment of API Manager policies as part of a CI/CD process, an organization can use the Anypoint CLI (Command Line Interface). The Anypoint CLI provides a set of commands to interact with various components of the Anypoint Platform, including API Manager.

Using the Anypoint CLI, you can:

• Apply policies to API instances.
• Promote APIs and their associated policies across different environments.
• Script these actions as part of the CI/CD pipeline to ensure consistency and automation in managing API policies.

Other tools like the MUnit Maven plugin, Mule Maven plugin, and Runtime Manager agent do not provide direct capabilities to manage API Manager policies.

References

• MuleSoft Anypoint CLI Documentation
• Automating API Management with Anypoint CLI

To monitor Mule applications deployed to different customer-hosted Mule runtimes using Anypoint Monitoring, follow these steps:

• Install Anypoint Monitoring Agent: Install an Anypoint Monitoring agent on each Mule runtime. This agent is responsible for collecting monitoring data from the Mule applications running on that runtime.
• Data Transmission: Each Anypoint Monitoring agent sends the collected monitoring data directly to Anypoint Monitoring. This ensures that performance metrics, logs, and other relevant data are available for analysis and monitoring within the Anypoint Platform.

By using the Anypoint Monitoring agent, organizations can effectively monitor their Mule applications across various environments, ensuring visibility and operational efficiency.

References

• MuleSoft Documentation on Anypoint Monitoring
• Installing and Configuring Anypoint Monitoring Agent

In a hybrid, load-balanced, single cluster production environment running Mule applications in an active-active multi-node configuration, several considerations are critical for ensuring performance and reliability. The key consideration is the use of an external load balancer:

• Active-Active Multi-Node Cluster Configuration:
• External Load Balancer Requirement:
• Load Balancer Configuration:
• Mule Application Isolation:
• Handling Requests:
• Benefits:

References:

• MuleSoft Documentation on Mule Clustering
• Best Practices for Load Balancing

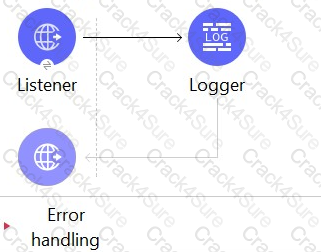

In Mule applications, different components are handled by specific thread pools to optimize performance and resource utilization.

• HTTP Listener: This component handles incoming HTTP requests and is managed by the Shared Selector Pool. The Shared Selector Pool is responsible for handling non-blocking IO operations efficiently.
• Logger: The Logger component is lightweight and does not perform CPU-intensive operations. It is managed by the CPU_LITE thread pool, which is designed for lightweight CPU operations.

This separation ensures that IO-bound operations do not block CPU-bound operations, maintaining optimal performance and responsiveness in the application.

References:

• MuleSoft Threading and Thread Pools
• MuleSoft HTTP Listener Documentation

=========================

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

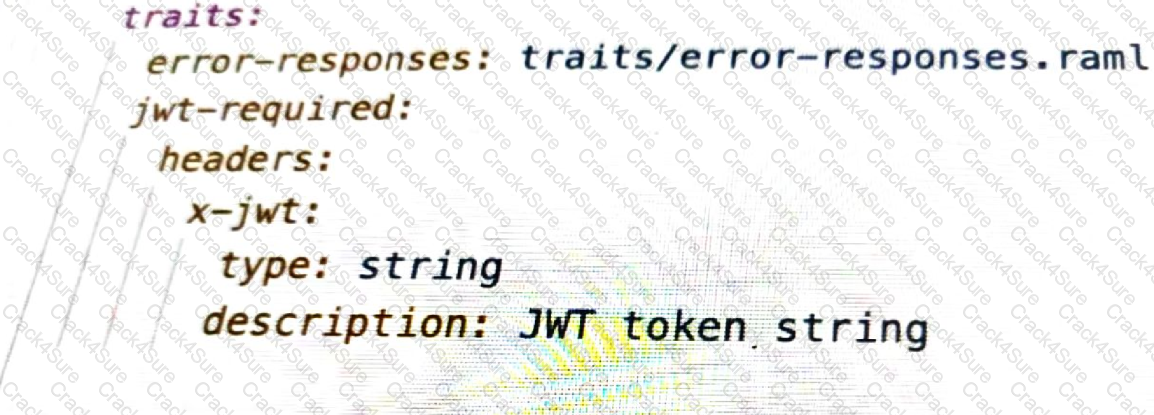

The data format shown in the exhibit is YAML (YAML Ain't Markup Language). YAML is a human-readable data serialization standard that is commonly used for configuration files and data exchange between languages with different data structures. In the exhibit, the indentation and the use of colons to define key-value pairs are characteristic of YAML.

JSON (JavaScript Object Notation) and XML (eXtensible Markup Language) have different syntax structures, and CSV (Comma-Separated Values) is a flat file format that uses commas to separate values. The format shown in the exhibit fits the structure and style of YAML.

References

• YAML Specification Documentation
• MuleSoft Documentation on Supported Data Formats

Explanation

Explanation

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/polic y-mule3-client-id-based-policies

In a microservices application architecture, each service is designed to be an independent deployment artifact. This means that services can be deployed, updated, and scaled independently of one another. This characteristic allows for greater flexibility and agility in managing applications, as individual services can be scaled up or down based on demand without impacting other services. It also enhances fault isolation, as issues in one service do not necessarily affect the entire application.

This is in contrast to monolithic architectures, where all components are packaged and deployed together, often resulting in a single point of failure and difficulties in scaling and updating specific parts of the application.

References

• MuleSoft Documentation on Microservices Architecture
• Principles of Microservices Design

Explanation

Connected Apps

The Connected Apps feature provides a framework that enables an external application to integrate with Anypoint Platform using APIs through OAuth 2.0 and OpenID Connect. Connected apps help users delegate their access without sharing sensitive credentials or giving full control of their accounts to third parties. Actions taken by connected apps are audited, and users can also revoke access at any time. Note that some products do not currently include client IDs in this release of the Connected Apps feature. The Connected Apps feature enables you to use secure authentication protocols and control an app’s access to user data. Additionally, end users can authorize the app to access their Anypoint Platform data.

Mule Ref Doc : https://docs.mulesoft.com/access-management/connected-apps-overview

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

• MuleSoft API Design Best Practices
• Anypoint Platform Documentation on API Development Lifecycle

Explanation

Correct answer is When server-side load-balanced TLS mutual authentication is required between API implementations and API clients CloudHub dedicated load balancers (DLBs) are an optional component of Anypoint Platform that enable you to route external HTTP and HTTPS traffic to multiple Mule applications deployed to CloudHub workers in a Virtual Private Cloud (VPC). Dedicated load balancers enable you to: * Handle load balancing among the different CloudHub workers that run your application. * Define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication. * Configure proxy rules that map your applications to custom domains. This enables you to host your applications under a single domain

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

References:

• API Design Best Practices
• Design-First API Development

Explanation

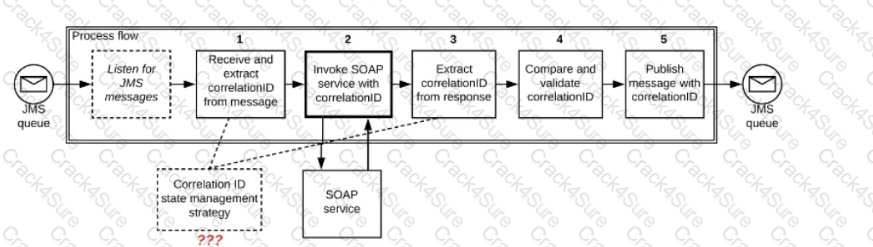

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

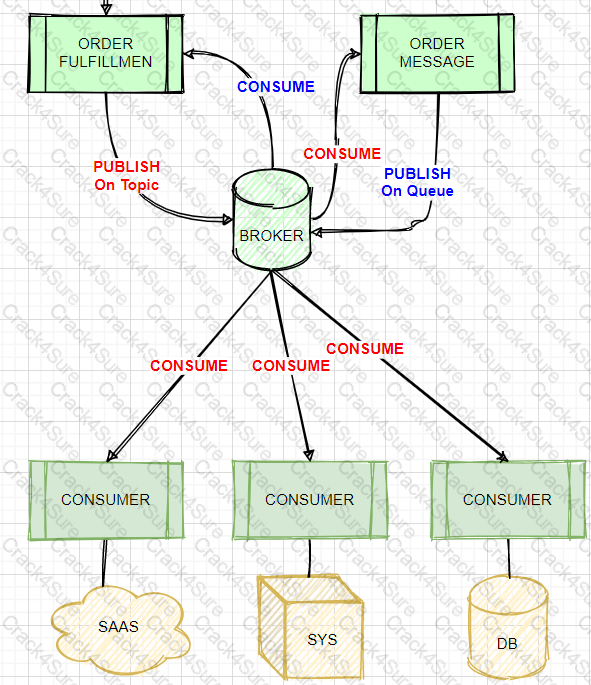

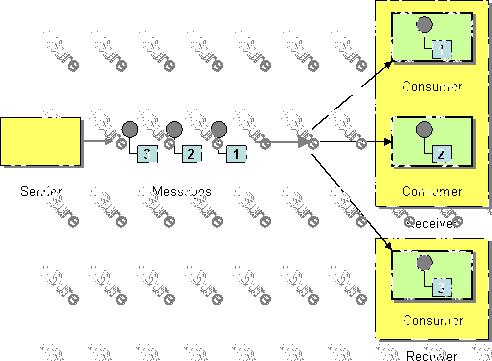

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

Diagram Description automatically generated

* In case you are unaware about term idempotent re is more info:

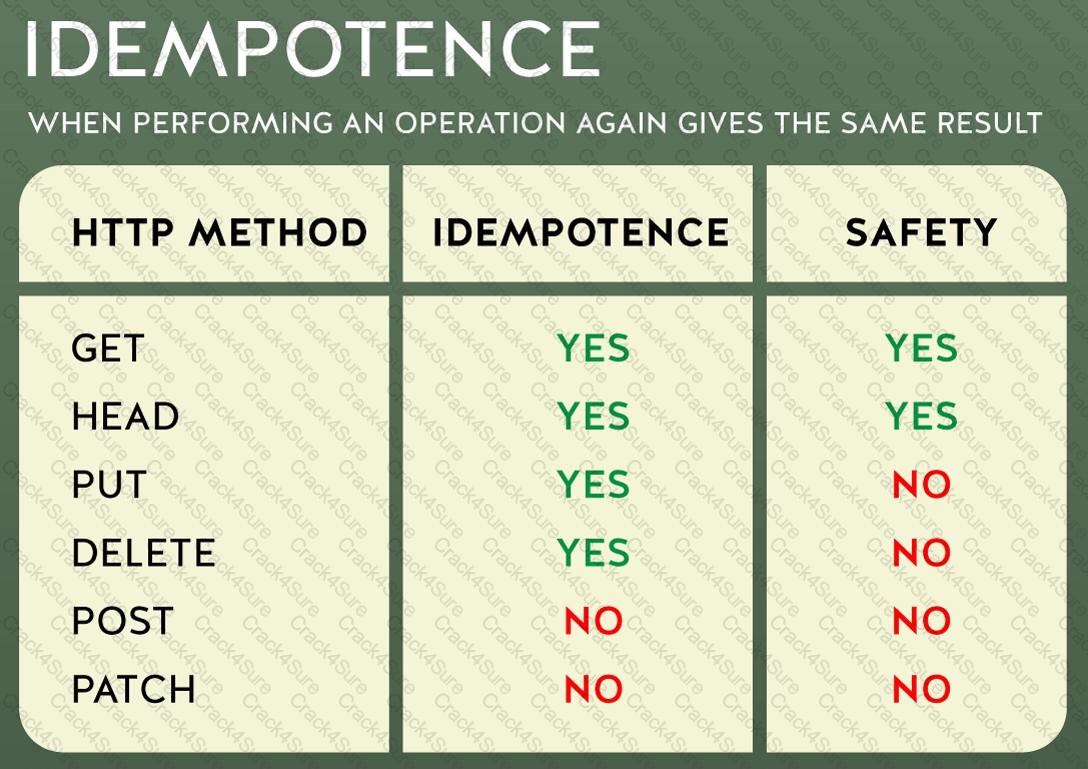

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Table Description automatically generated

Bottom of Form

Explanation

? Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

? Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

? Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

? Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

? XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

? The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

? Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

? Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

• 200 OK: The request was successful.
• 201 Created: The request was successful and a new resource was created.
• 202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

• IETF RFC 2616: HTTP/1.1 Specification
• HTTP Status Code Definitions

Explanation

As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO).

Configure identity management using one of the following single sign-on standards:

1) OpenID Connect: End user identity verification by an authorization server including SSO

2) SAML 2.0: Web-based authorization including cross-domain SSO

The Publish/Subscriber Messaging Bus (Pub/Sub) model is well-suited for high-volume, real-time communication and notification requirements. In this scenario, the retailer needs to notify its order management, warehouse, and billing systems within 15 minutes of order submission. Pub/Sub messaging systems enable asynchronous communication where messages (orders) are published to a topic and multiple subscribers (order management, warehouse, billing systems) receive notifications simultaneously. This decouples the systems and ensures that each subscriber receives the message promptly for subsequent processing.

References:

• Understanding Pub/Sub Messaging
• MuleSoft's Approach to Event-Driven Architecture

Explanation

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP • For zero downtime deployment, each worker in CloudHub needs additional IP addresses • A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) • The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 • The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

Explanation

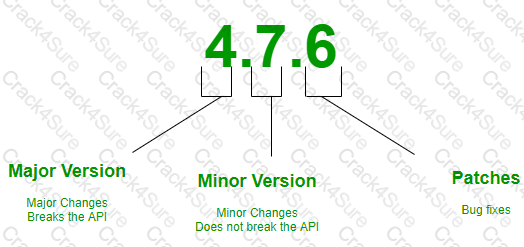

* Semantic Versioning is a 3-component number in the format of X.Y.Z, where :

X stands for a major version.

Y stands for a minor version:

Z stands for a patch.

So, SemVer is of the form Major.Minor.Patch Coming to our question , minor version of the API has been changed which is backward compatible. Hence there is no change required on API client end. If they want to make use of new featured that have been added as a part of minor version change they may need to change code at their end. Hence correct answer is The API client code ONLY needs to be changed if it needs to take advantage of new features.

Diagram Description automatically generated

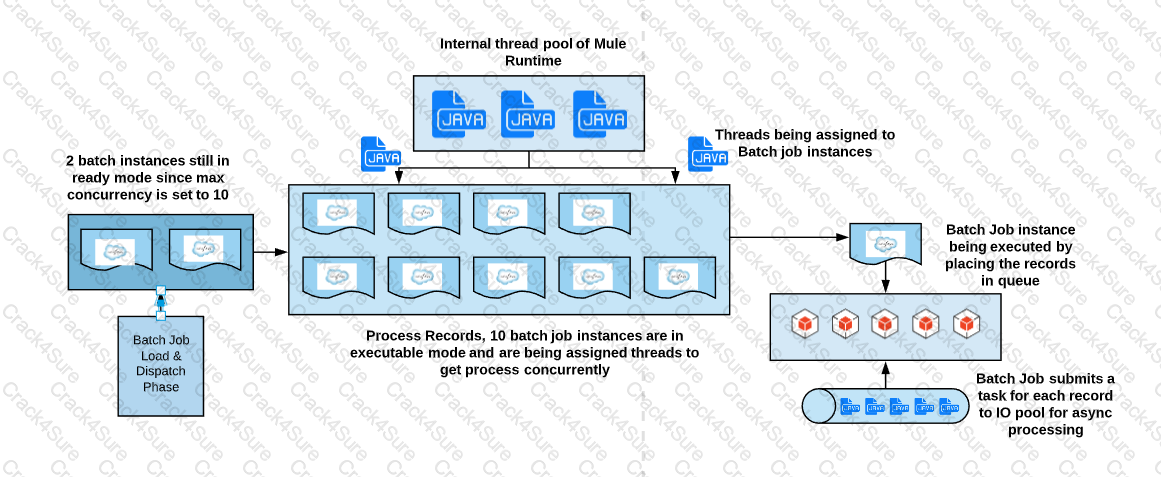

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

• Try-Catch Scope for Data Fetching:
• Async Scope for Inserting Records into Audit Database:
• Ensuring Better Throughput:

References:

• MuleSoft Documentation on Async Scope
• Best practices for Error Handling in MuleSoft

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

• Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.
• Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.
• Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

• MuleSoft Documentation on Canonical Data Models
• Best Practices for Data Integration with MuleSoft

API Manager is a component of the Anypoint Platform's control plane. The control plane in Anypoint Platform is responsible for managing, securing, and monitoring APIs and integrations. API Manager specifically provides tools for API governance, including policy enforcement, analytics, security, and lifecycle management. It allows organizations to manage APIs centrally, ensuring they adhere to compliance and security standards while providing insights into API usage and performance.

References:

• Anypoint Platform Control Plane
• Managing APIs with API Manager

Explanation

* The Object Store V2 API enables API access to Anypoint Platform Object Store v2.

* You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app. However, Object Store v2 is not designed for app-to-app communication. To share data between two Mule4 apps, use a queue in Anypoint MQ.

* The Object Store v2 APIs enable you to use REST to perform the following:

- Retrieve a list of object stores and keys associated with an application.

- Store and retrieve key-value pairs in an object store.

- Delete key-value pairs from an object store.

- Retrieve Object Store usage statistics for your organization.

- Object Store provides these APIs:

Object Store API

Object Store Stats API

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

• Dealer D1 - AUTO Acknowledgment:
• Dealer D2 - Manual Acknowledgment:
• Ensuring Message Delivery:

References:

• MuleSoft Documentation on JMS Acknowledgment
• Best practices for Reliable Messaging

To reduce the overall development time to release the System API, the most efficient approach is to use the Anypoint Connector for Salesforce. This connector is specifically designed to interact with Salesforce APIs, providing a seamless and optimized way to access customer data directly from Salesforce. Using this connector simplifies development, reduces complexity, and leverages built-in capabilities for authentication and data retrieval, ensuring a faster and more secure implementation.

References:

• Anypoint Connector for Salesforce
• Connecting to Salesforce with Anypoint Platform

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

* Sharing Mule applications as templates is a great way to share your work with other people who are in your organization in Anypoint Platform. When they need to build a similar application they can create the mule application using the template project from Anypoint studio.

* Anypoint Templates are designed to make it easier and faster to go from a blank canvas to a production application. They’re bit for bit Mule applications requiring only Anypoint Studio to build and design, and are deployable both on-premises and in the cloud.

* Anypoint Templates are based on five common data Integration patterns and can be customized and extended to fit your integration needs. So even if your use case involves different endpoints or connectors than those included in the template, they still offer a great starting point.

Some of the best practices while creating the template project: - Define the common error handler as part of template project, either using pom dependency or mule config file - Define common logger/audit framework as part of the template project - Define the env specific properties and secure properties file as per the requirement - Define global.xml for global configuration - Define the config file for connector configuration like Http,Salesforce,File,FTP etc - Create separate folders to create DWL,Properties,SSL certificates etc - Add the dependency and configure the pom.xml as per the business need - Configure the mule-artifact.json as per the business need

Explanation

Correct answer is Request size, number of requests, response size, response time Analytics API Analytics can provide insight into how your APIs are being used and how they are performing. From API Manager, you can access the Analytics dashboard, create a custom dashboard, create and manage charts, and create reports. From API Manager, you can get following types of analytics: - API viewing analytics - API events analytics - Charted metrics in API Manager

It can be accessed using: http://anypoint.mulesoft.com/analytics

API Analytics provides a summary in chart form of requests, top apps, and latency for a particular duration.

The custom dashboard in Anypoint Analytics contains a set of charts for a single API or for all APIs Each chart displays various API characteristics

– Requests size: Line chart representing size of requests in KBs

– Requests : Line chart representing number of requests over a period

– Response size : Line chart representing size of response in KBs

– Response time :Line chart representing response time in ms

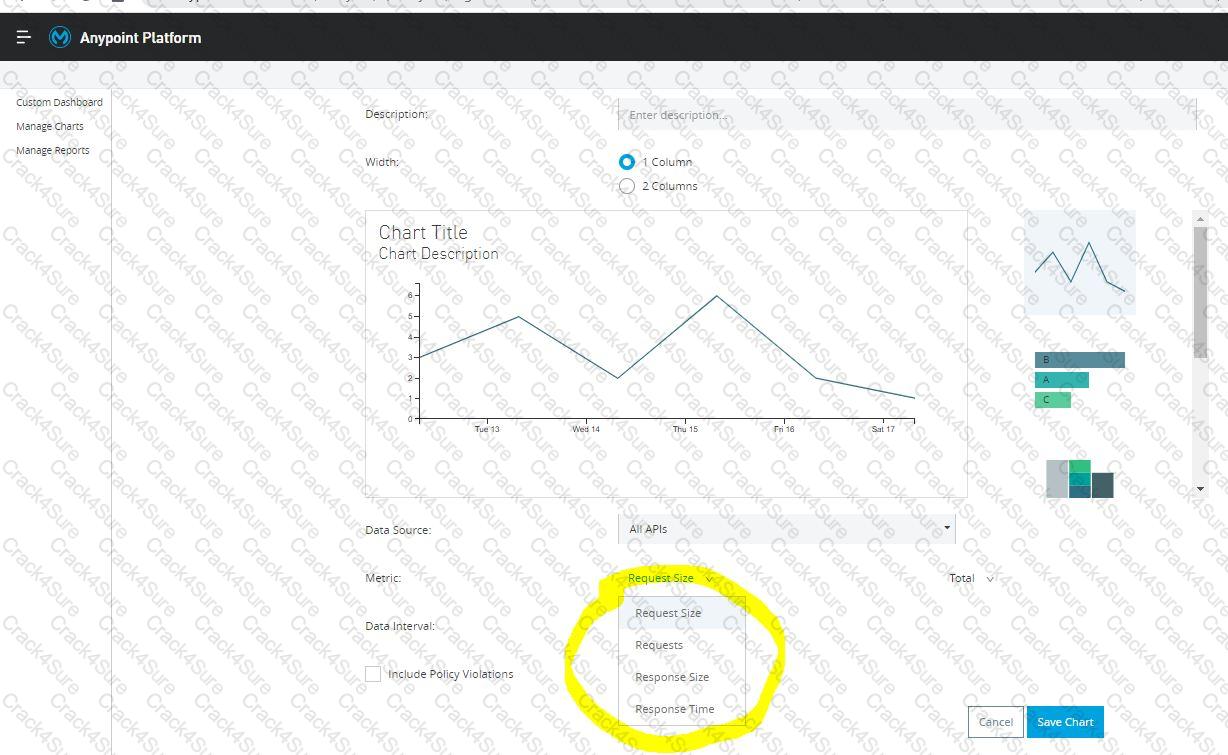

* To check this, You can go to API Manager > Analytics > Custom Dashboard > Edit Dashboard > Create Chart > Metric

Graphical user interface, chart Description automatically generated

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

• MuleSoft Anypoint MQ Documentation
• Cloud vs. On-Premises Messaging Solutions

Explanation

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

To hide sensitive data exchanged between API consumers and API implementations while allowing the conversion of tokenized fields back to their original values for other API requests or responses, the best approach is to use tokenization. This involves:

• Tokenization Format: Create a tokenization format that will be used to apply a tokenization policy in the API gateway. This format ensures that sensitive fields in message payloads are replaced with tokenized values that maintain a similar format, making them less recognizable as sensitive data.
• Tokenization Policy: Apply a tokenization policy in the API gateway that replaces sensitive data with tokenized values.
• Detokenization Policy: Apply a corresponding detokenization policy in the API gateway to convert tokenized values back to their original values when required by other APIs.

This method does not require recoding the API implementations and ensures that sensitive data is protected while still being accessible in its original form when necessary.

References

• MuleSoft Documentation on Tokenization Policies
• API Gateway Security Best Practices

When an API client makes an HTTP request to an API gateway with an Accept header containing the value "application/json", the valid HTTP response payload should be in JSON format. The correct JSON format for indicating a healthy status is {"status": "healthy"}. This format uses a JSON object with a key-value pair where the key is "status" and the value is "healthy".

Other options provided are not valid JSON responses:

• healthy is XML format.
• status('healthy') and status: healthy are not valid JSON syntax.

References

• HTTP Content Negotiation and Accept Headers
• JSON Formatting and Syntax Rules

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Explanation

An SLA for the upstream API CANNOT be provided.

• urpose of Metadata API:
• Use in MuleSoft:
• Why Not Other APIs:

References:

• Salesforce Metadata API Overview: Salesforce Metadata API
• MuleSoft Documentation on Salesforce Connector

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

Explanation

* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.

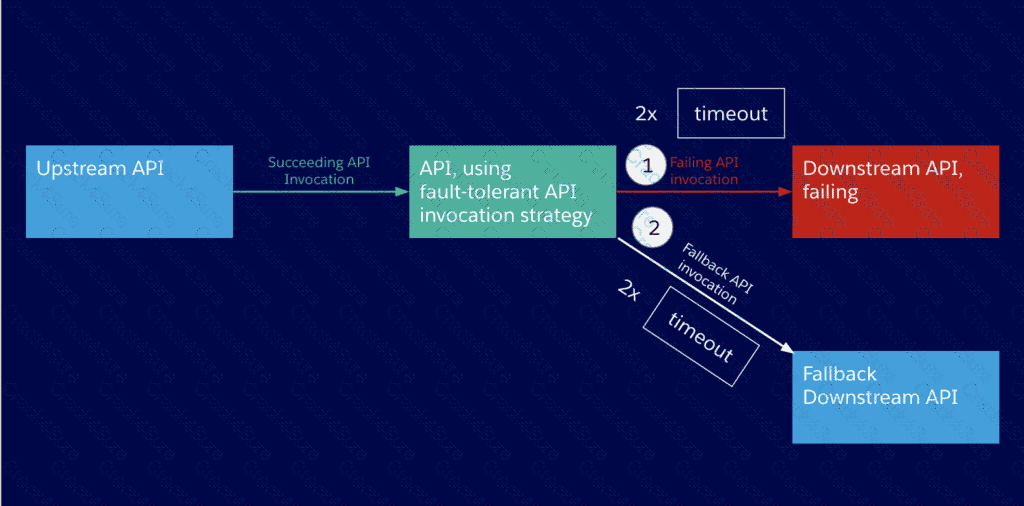

* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.

* Here are some examples for fallback APIs:

- An old, deprecated version of the same API.

- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).

- An API doing more than required, and therefore not as performant as the primary API.

- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.

* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.

* All HTTP response status codes within the 3xx category are considered redirection messages. These codes indicate to the user agent (i.e. your web browser) that an additional action is required in order to complete the request and access the desired resource

Diagram Description automatically generated

Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status code to the fallback API whenever the Order API is unavailable

Explanation

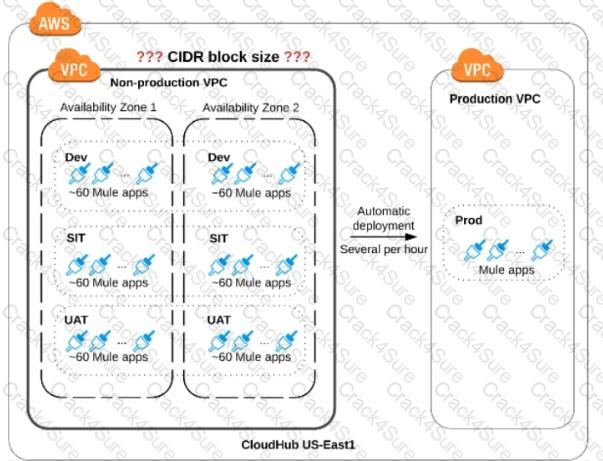

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

Explanation

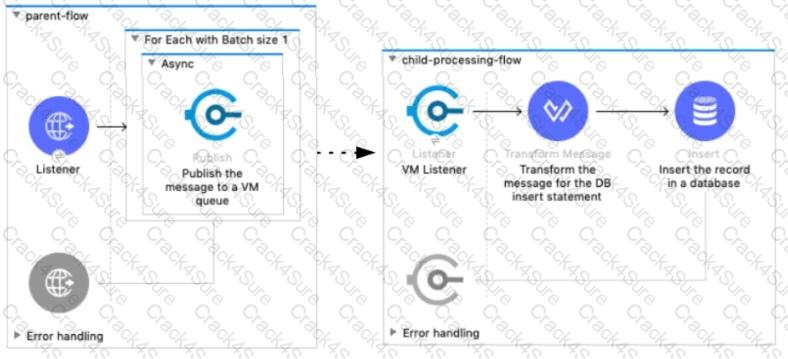

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

Anypoint Runtime Fabric is the appropriate choice for deploying Mule applications in an isolated Mule runtime within Docker containers on an Azure Kubernetes Service (AKS) infrastructure. This solution provides a containerized and orchestrated environment managed from the MuleSoft-hosted control plane. It enhances the availability, scalability, and robustness of Mule applications by allowing fine-grained control over deployments and providing built-in support for high availability and fault tolerance.

References:

• Anypoint Runtime Fabric Overview
• Deploying Mule Applications to Kubernetes

In this business scenario, the supplier needs to deliver two fundamental integration use cases to provide an end-to-end solution:

A. Synchronized data transfer: This involves ensuring that the customer’s purchase orders (sent using ANSI X12 EDI standard) are accurately and timely transferred and reflected in the supplier’s ERP system. This synchronization ensures data consistency between the EDI transactions and the ERP system.

B. Sharing data with external partners: This involves providing the customer with a RESTful API to access current product inventory levels from the supplier’s ERP system. Sharing data through a RESTful API allows the customer to retrieve up-to-date inventory information as needed.

References:

• EDI Integration with APIs
• Integrating with External Partners Using APIs

Explanation

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

Explanation

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

References:

• MuleSoft Documentation on Object Store v2

To ensure that data is encrypted both in-transit and at-rest, and to validate incoming requests to the Payment Processing API, the following approach is recommended:

• TLS Inbound Policy: Apply a Transport Layer Security (TLS) - Inbound policy in API Manager. This policy ensures that the data is encrypted during transmission and can be decrypted by the API Manager before it reaches the Mule application.
• Decryption: With the TLS policy applied, the message payload is decrypted when it is received by the API Manager.
• JSON Validation: After decryption, the Mule application can use the JSON Validation module to validate the structure and content of the JSON data. This ensures that the payload conforms to the specified format and contains valid data.

This approach ensures that data is securely transmitted and properly validated upon receipt.

References:

• Transport Layer Security (TLS) Policies
• JSON Validation Module

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same automated CI/CD deployment strategy, follow these steps:

• Add runtimefabricDeployment Profile: Add a runtimefabricDeployment profile to the pom.xml file in all Mule applications. This profile will include the necessary configurations specific to RTF deployments.
• Modify CI/CD Scripts: Update the CI/CD deployment scripts to use the new runtimefabricDeployment profile. This modification ensures that the deployment process will correctly reference the RTF-specific configurations when deploying applications.
• Keep Configuration Files Unchanged: There is no need to change the pom.xml and Mule configuration YAML files other than adding the runtimefabricDeployment profile. This maintains consistency and reduces the risk of errors during the migration.

This approach ensures a smooth transition to RTF while leveraging existing CI/CD scripts with minimal changes, maintaining the automated deployment strategy.

References

• MuleSoft Documentation on Runtime Fabric Deployment
• Best Practices for CI/CD with MuleSoft

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

References:

• Anypoint API Designer
• API Design Best Practices

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

• Understanding Object Store V2:
• Setting Up Anypoint Object Store V2:
• Configuration Steps:

xml

• uk.co.certification.simulator.questionpool.PList@18be5ce0

xml

• Deploying on RTF:
• Benefits:

References:

• MuleSoft Documentation on Object Store V2
• MuleSoft Documentation on Runtime Fabric

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

• Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.
• Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

• MuleSoft Anypoint Platform Documentation
• MuleSoft Hosted vs. Customer Hosted Deployment Guides

If the size of the stream exceeds the maximum, a STREAM_MAXIMUM_SIZE_EXCEEDED error is raised.

Explanation

Types of logging:

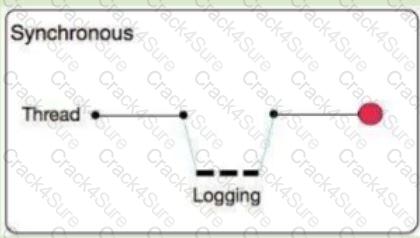

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

? The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

? Performance degrades because of synchronous logging

? Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

? If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

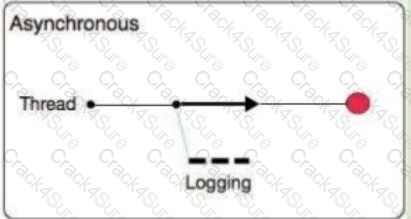

B) Asynchronous:

? The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

? Substantial improvement in throughput and latency of message processing

? Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

? The disadvantage of asynchronous logging is error handling.

? If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event
