When setting up a NetApp ONTAP AFF system for both NVMe/TCP and iSCSI, a critical task required for SAN configuration is to configure Logical Interfaces (LIFs). LIFs are necessary for network connectivity and are used by both NVMe/TCP and iSCSI protocols to communicate between the storage system and the host.

The configuration of LIFs involves creating and managing these interfaces to ensure they are correctly mapped and available for use by the respective protocols. This step is essential for the SAN setup to function properly.

For more detailed steps on configuring LIFs, you can refer to NetApp ' s documentation:

How to Configure NVMe/TCP with ONTAP? ( NetApp Community )?.

SAN Configuration with ONTAP ? ( NetApp )?.

When planning to upgrade the UCS Server BIOS and Cisco NX-OS system running on the switches in a NetApp AFF ASA cluster environment, the Interoperability Matrix Tool (IMT) is the recommended resource to check compatibility with the new versions. The IMT provides detailed compatibility information for various hardware and software components, ensuring that the planned upgrades will not cause any interoperability issues.

For further details, refer to:

NetApp Interoperability Matrix Tool

When configuring NVMe/FC (NVMe over Fibre Channel), it is necessary to enable N_Port ID Virtualization (NPIV) on all fabric switches. NPIV allows multiple Fibre Channel initiators to share a single physical Fibre Channel port, which is crucial for NVMe/FC environments where efficient utilization of available ports is needed.

NPIV support enables the creation of virtual ports, which can significantly optimize the configuration and management of Fibre Channel fabrics, thus supporting NVMe/FC operations.

For further details, you can refer to:

NetApp Community - NVMe/FC Configuration? ( NetApp Community )?.

NetApp Documentation - NVMe Overview ? ( NetApp )?.

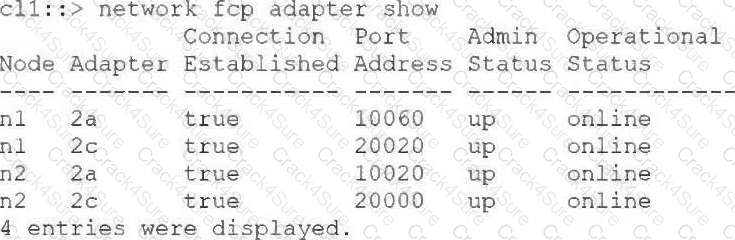

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.

For synchronous data replication between two sites with automatic failover in case of a site disaster for SAN workloads, the two NetApp features that provide these capabilities are SnapMirror Synchronous and MetroCluster IP.

SnapMirror Synchronous: This feature provides volume-granular, synchronous replication with zero RPO (Recovery Point Objective), ensuring that data is mirrored in real-time to a secondary site. This setup supports automatic failover, maintaining data availability even during site failures?

MetroCluster IP: This solution provides synchronous replication and combines high availability and disaster recovery capabilities. MetroCluster IP uses IP networking to extend the distance over which replication can occur and supports automatic failover and failback, making it suitable for critical SAN workloads

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either " Active/Optimized " or " Active/Nonoptimized " . A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the path states. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

ONTAP manages the MTU consistently across ports belonging to the same broadcast domain. To transition the storage network from the standard 1500-byte MTU to jumbo frames, the administrator modifies the MTU of the appropriate broadcast domain. The applicable operation is network port broadcast-domain modify, represented by broadcast-domain modify in the answer choices. NetApp documents 9000 bytes as a typical jumbo-frame MTU and notes that changing a broadcast-domain MTU changes the MTU for all ports contained in that domain. The surrounding Ethernet path—including host NICs and switch interfaces—must also support the configured MTU end to end. Changing an individual LIF, subnet, or unrelated port property does not provide the correct broadcast-domain-wide MTU configuration. Therefore, option C is the correct ONTAP configuration operation.

To restore a LUN from a SnapMirror Synchronous destination, the following steps must be taken:

Release the relationship: This step is necessary to break the SnapMirror relationship, allowing the LUN to be restored independently.

Delete the relationship: After releasing the relationship, deleting it ensures that there are no residual dependencies or configurations that might interfere with the restore process.

For more information, refer to:

NetApp Documentation on SnapMirror Synchronous? ( NetApp )?? ( NetApp )?.

The correct available capacity is 20 GB. Both 20 GB LUNs are space-reserved, so ONTAP reserves their full provisioned capacity rather than only the 10 GB currently consumed in each LUN. The two LUN reservations therefore account for 40 GB. Because the volume uses a 100% fractional reserve and a Snapshot copy exists, ONTAP also reserves sufficient overwrite space for 100% turnover of the reserved objects. That represents another 40 GB. Consequently, 80 GB of the 100 GB volume is committed: 40 GB for the two space-reserved LUNs and 40 GB to guarantee their overwrites. This leaves 20 GB available. NetApp describes fractional reserve 100 as reserving 100% of the space necessary for overwrites of reserved objects. Relevant topics include LUN space reservation, fractional reserve, thick provisioning, and Snapshot overwrite guarantees.

In NetApp ONTAP 9.13.1, one of the automatic features that can be used with iSCSI is LIF failover. This feature ensures that in the event of a network failure or a node issue, the Logical Interface (LIF) will automatically fail over to another available port, maintaining connectivity and minimizing disruption to iSCSI traffic.

For more information, refer to:

NetApp ONTAP 9.13.1 Features

NetApp Hardware Universe is the authoritative resource for platform-specific hardware compatibility, supported adapter configurations, and slot priorities. When adding an FC adapter or another I/O module to an ONTAP controller, the administrator must verify that the adapter is supported by the specific controller model and determine the correct or preferred PCIe slot. NetApp installation documentation explicitly directs administrators to Hardware Universe when multiple slots are available so that the documented slot priorities are followed. The Interoperability Matrix Tool validates interoperability among ONTAP releases, hosts, HBAs, drivers, firmware, switches, and related components, but it is not the primary source for controller slot placement. Relevant SAN ONTAP topics include Hardware Universe, controller I/O architecture, FC adapters, PCIe slot priorities, hardware compatibility, and installation planning.

When configuring an NVMe protocol-based NetApp ONTAP storage system in a SAN environment, a subsystem is used to configure the list of hosts. A subsystem in the NVMe context is an entity that groups NVMe namespaces (storage units) and presents them to the connected hosts. The hosts access these namespaces through the subsystem, allowing for efficient management and configuration of NVMe resources.

This configuration ensures that the appropriate hosts have access to the necessary namespaces for storage operations. This approach is critical in NVMe SAN environments to maintain high performance and manageability.

For further details, refer to:

NetApp Community - How to Configure NVMe/TCP? ( NetApp Community )?.

NetApp Documentation - NVMe Overview ? ( NetApp )?.

Adding the selected hosts to the NVMe subsystem with high priority is the correct method because ONTAP host priority controls the NVMe I/O queue resources assigned to a host. NetApp’s NVMe subsystem model defines the host priority setting as allocating appropriate I/O queue counts and queue depths for the host to submit I/O commands. Therefore, demanding database hosts that require larger queue counts and deeper queues should receive the higher host-priority setting rather than changing a volume QoS policy. QoS governs workload throughput or performance limits and does not directly redefine the NVMe host submission-queue count and depth. Likewise, queue depth is not configured on an individual namespace in the manner described by option D. Relevant SAN ONTAP topics are NVMe subsystems, host priority, I/O queue count, I/O queue depth, and host performance configuration.

Implementing VLANs for NVMe/TCP configurations provides several benefits, two of which are increased resiliency and increased security:

Increased Resiliency: VLANs help segment the network traffic, reducing the risk of a single point of failure. By isolating NVMe/TCP traffic into specific VLANs, network issues can be contained within a VLAN, preventing them from affecting other parts of the network. This isolation ensures that disruptions are minimized and network resiliency is enhanced.

Increased Security: VLANs provide an added layer of security by segregating traffic. This segregation ensures that NVMe/TCP traffic is isolated from other types of traffic, reducing the risk of unauthorized access or data breaches. VLANs help in enforcing stricter access controls and monitoring, thereby increasing the overall security of the network.

For more information on the benefits of VLANs in NVMe/TCP configurations, you can refer to NetApp ' s technical resources:

Implementing and Configuring Modern SANs with NVMe-oF ? ( NetApp )?.

SAN Configuration Best Practices? ( NetApp Community )?.

Fibre Channel zoning is configured and maintained within the FC switching fabric. ONTAP hosts and storage LIFs provide WWPN identities, but the switch configuration determines which initiator and target ports are permitted to communicate. NetApp’s FC zoning guidance instructs administrators to log in to the FC switch administration interface, create zones containing host initiator WWPNs and ONTAP FC LIF WWPNs, save the zones, and activate the resulting zone configuration. Cisco environments use zones and zonesets, while comparable constructs exist on Broadcom/Brocade fabrics. Neither the host HBA nor the ONTAP storage system stores the authoritative fabric zoning configuration. Therefore, the FC switches are the correct location. Relevant SAN ONTAP topics include FC fabric design, WWPN zoning, zonesets, dual-fabric configurations, and SAN connectivity.

To ensure that Snapshot copies of database files across multiple FCP LUNs are taken at the same point in time, the following configurations can be used:

Create a consistency group that uses FlexVol volumes: This setup ensures that snapshots of all volumes in the consistency group are taken simultaneously.

Create each LUN within the same FlexGroup volume: This configuration allows for a unified snapshot across multiple LUNs within the FlexGroup, ensuring data consistency.

For more details, see:

NetApp Documentation on Consistency Groups

NetApp FlexGroup Overview

ONTAP interface groups support several traffic-distribution algorithms, including port, which distributes traffic using transport-layer TCP or UDP port information. Therefore, network port ifgrp create -distr-func port establishes the corresponding ONTAP-side distribution behavior. The connected Cisco Nexus infrastructure should use a compatible port-channel hashing method; NetApp validated architectures show port-channel load-balance src-dst l4port for Nexus switches so source and destination Layer-4 ports contribute to traffic distribution. This improves utilization across member links compared with algorithms using fewer flow attributes. The original V9.02 text contained the typographical string 14port; the correct command parameter is l4port, meaning Layer 4 port. Options C and D do not establish the requested port-based load-balancing algorithm. Relevant SAN ONTAP topics include interface groups, port distribution functions, link aggregation, and Nexus port-channel hashing.

When a LUN shows 90% used space in the NetApp ONTAP CLI but a Windows Server shows only 10% used space, the discrepancy is often due to how space allocation is handled between the two systems. Enabling space allocation ensures that the ONTAP system accurately reflects the actual space usage as reported by the host system, in this case, the Windows Server. This adjustment allows ONTAP to reclaim and manage space more effectively, aligning the reported usage between the ONTAP system and the host.

For more information, refer to:

NetApp Community Discussion on Space Allocation

NetApp Documentation on Space Usage

A LUN created with the ONTAP CLI is not automatically visible to a host merely because the storage object exists. For FCP or iSCSI access, ONTAP must associate the LUN with an initiator group by creating a LUN mapping. NetApp’s SAN provisioning workflow explicitly creates the LUN, creates or identifies the igroup containing the host initiators, and then maps the LUN to that igroup. The mapping assigns host access and a LUN ID that the initiator uses to discover the device. Bringing the LUN online does not grant host access, mounting a volume is not part of SAN LUN presentation, and export policies apply to NAS protocols rather than FCP/iSCSI LUN access. Relevant SAN ONTAP topics are LUN provisioning, igroups, LUN mapping, LUN IDs, and host discovery.

NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.

MetroCluster uses SyncMirror technology to synchronously mirror data between storage pools at the two MetroCluster sites. Mirrored aggregates contain local and remote plexes, and writes are replicated synchronously so that a current copy of the data exists at the remote site. This storage-level mirroring is fundamental to MetroCluster ' s ability to maintain data availability during site failures and perform switchover operations. SnapMirror active sync is a separate ONTAP technology that provides synchronous application-level protection between peered clusters. SnapMirror Synchronous is likewise a replication technology but is not the underlying aggregate-mirroring mechanism used by MetroCluster. MPIO operates on the host to manage multiple SAN paths and performs no data replication. Therefore, data written to a LUN residing on a mirrored MetroCluster aggregate is replicated to the remote plex through SyncMirror.

In a traditional AFF or FAS SAN configuration using ALUA, paths through the controller that owns the LUN are reported as Active/Optimized. Paths entering through another controller can be Active/Non-Optimized. When I/O arrives through an active, non-optimized path, ONTAP must forward that I/O internally to the node servicing the LUN. This indirect data path uses the ONTAP cluster interconnect, represented in the choices as the cluster network, and therefore introduces additional latency compared with a direct optimized path. The external FC fabric transports traffic only as far as the target LIF; the HA interconnect is associated primarily with HA-pair storage failover functions, and the peering network is used for intercluster communications and replication. Relevant SAN ONTAP topics include ALUA, optimized versus non-optimized paths, cluster interconnect forwarding, SLM, and FCP multipathing.

IP SAN redundancy requires independent storage paths between each host and both nodes of the HA pair. NetApp SAN networking guidance recommends creating multiple iSCSI paths from each node and specifically allows two data LIFs per node to provide connectivity through separate Ethernet networks. These networks should use separate IP subnets or ranges so that loss of one network, switch, port, or path does not eliminate host access to the storage. Host-side MPIO then uses the remaining paths during a failure. A node-management LIF provides administrative connectivity and is not a redundant data path. Selective LUN Mapping controls which cluster nodes report a LUN, while separate SVMs are not required merely to create network redundancy. Therefore, at least two data LIFs per node across separate IP networks provide the requested redundant Ethernet SAN configuration.

Data compaction reduces physical storage consumption by combining multiple small data chunks into a single physical 4 KB block. ONTAP normally works with 4 KB blocks, meaning that a small object such as a 1 KB file could otherwise consume an entire 4 KB block. Inline data compaction combines such small pieces of data while they are still in memory, allowing several independently addressable data fragments to share one physical block. Compression differs because it reduces data size by encoding data into compression groups, while deduplication eliminates duplicate blocks. Thin provisioning controls capacity allocation rather than block packing. Therefore, when the requirement specifically refers to placing multiple different 1 KB files or data fragments into the same block, compaction is the applicable ONTAP storage-efficiency mechanism.

The correct tool for designing an FC SAN solution consisting of a NetApp ONTAP system, Broadcom switches, and servers is the " NetApp Verified Architecture " (NVA). The NetApp Verified Architecture provides comprehensive blueprints and detailed implementation references. These blueprints are thoroughly tested, prescriptive in nature, and designed to minimize deployment risks and accelerate time to market. They are specifically designed to help ensure that the architecture meets the high standards required for enterprise environments.

NVA documents include design guides, best practices, and detailed configuration steps, making them invaluable for planning and deploying complex solutions like the one described.

For more information, you can refer to the official NetApp documentation on NetApp Verified Architectures:

NetApp Verified Architecture Program Summary

NetApp Verified Architecture Overview

These resources provide detailed insights into the architecture, including technology requirements, deployment procedures, and additional references for further reading.

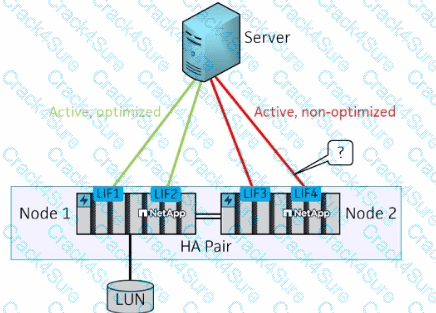

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

For an FC-attached VMware VMFS datastore migrated through SnapMirror, maintaining the expected LUN identity is critical when presenting the replicated LUN from the destination cluster. VMware uses persistent SCSI device identifiers associated with the LUN, including its serial-based identity, when recognizing an existing VMFS device. ONTAP provides the lun modify -serial capability specifically to modify a LUN serial number. Therefore, after the SnapMirror destination is made writable, the destination LUN ' s serial number must be configured appropriately before the LUN is mapped back to the VMware initiators. Creating a FlexClone, restoring from a Snapshot copy, or changing the LUN OS type does not address device identity. Relevant SAN ONTAP topics include SnapMirror SAN migration, LUN identity, LUN serial numbers, VMware VMFS, and LUN mapping.
