Practice Free C_ABAPD_2309 SAP Certified Associate - Back-End Developer - ABAP Cloud Exam Questions Answers With Explanation

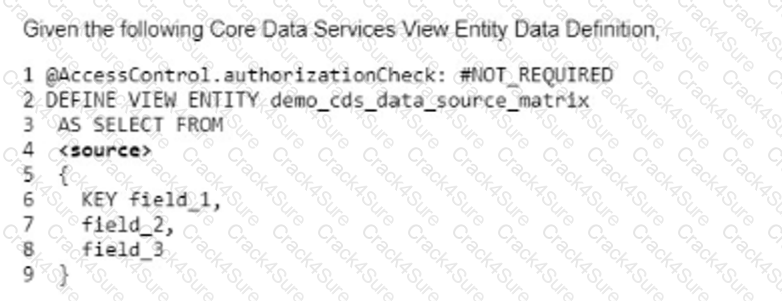

The clause in the CDS View Entity Data Definition can be used to specify the data source for the view entity. The clause can accept different types of data sources, depending on the type of the view entity1.

A database table from the ABAP Dictionary: This is a valid type of data source for a CDS View Entity Data Definition. A database table from the ABAP Dictionary is a table that is defined in the ABAP Dictionary using the keyword TABLE or TABLE OF. The name of the database table must be unique within its namespace and must not contain any special characters2.

A CDS DDIC-based view: This is also a valid type of data source for a CDS View Entity Data Definition. A CDS DDIC-based view is a view that is defined in the Core Data Services using the keyword DEFINE VIEW ENTITY. The name of the CDS DDIC-based view must be unique within its namespace and must not contain any special characters3.

You cannot do any of the following:

An external view from the ABAP Dictionary: This is not a valid type of data source for a CDS View Entity Data Definition. An external view from the ABAP Dictionary is a view that is defined in an external application using any language supported by SAP, such as SQL, PL/SQL, or Java. The name of the external view must be unique within its namespace and must not contain any special characters4.

A database view from the ABAP Dictionary: This is not a valid type of data source for a CDS View Entity Data Definition. A database view from the ABAP Dictionary is a view that is defined in an external application using any language supported by SAP, such as SQL, PL/SQL, or Java. The name of the database view must be unique within its namespace and must not contain any special characters4.

References: 1: CDS DDL - DEFINE VIEW ENTITY - ABAP Keyword Documentation - SAP Online Help 2: ABAP Dictionary Tables - SAP Online Help 3: CDS DDL - DEFINE VIEW ENTITY - ABAP Keyword Documentation - SAP Online Help 4: ABAP Dictionary Views - SAP Online Help

In RESTful Application Programming, the EML statement that retrieves an object is GET entity. The GET entity statement is used to read data of an entity instance from the database or the transaction buffer. The GET entity statement can specify the entity name, the entity key, and the entity elements to be retrieved. The GET entity statement can also use the IN LOCAL MODE addition to bypass the access control, authorization control, and feature control checks. The GET entity statement returns a single entity instance or raises an exception if no instance is found or multiple instances match the key.

The other EML statements are not used to retrieve an object, but have different purposes and effects. These statements are:

FIND entity: This statement is used to search for entity instances that match a given condition. The FIND entity statement can specify the entity name, the entity elements to be returned, and the condition to be applied. The FIND entity statement can also use the IN LOCAL MODE addition to bypass the access control, authorization control, and feature control checks. The FIND entity statement returns a table of entity instances or an empty table if no instances match the condition.

SELECT entity: This statement is used to query data of entity instances from the database or the transaction buffer. The SELECT entity statement can specify the entity name, the entity elements to be returned, and the filter, order, and aggregation options to be applied. The SELECT entity statement can also use the IN LOCAL MODE addition to bypass the access control, authorization control, and feature control checks. The SELECT entity statement returns a table of entity instances or an empty table if no instances match the query.

READ entity: This statement is not a valid EML statement, but an ABAP statement. The READ statement is used to access a single row of an internal table using the table index or the table key. The READ statement can also use the TRANSPORTING addition to specify which fields should be returned, and the INTO addition to specify the target variable. The READ statement returns a single row of the internal table or raises an exception if no row is found or multiple rows match the key.

References: GET ENTITY - ABAP Keyword Documentation, FIND ENTITY, ENTITIES - ABAP Keyword Documentation, SELECT ENTITY, ENTITIES - ABAP Keyword Documentation, READ - ABAP Keyword Documentation

According to the SAP clean core extensibility and ABAP cloud topic, SAP recommends using developer extensibility to enhance the existing UI for an SAP Fiori app. Developer extensibility allows you to use the UI adaptation editor in SAP Web IDE to modify the UI layout, add or remove fields, and bind them to the data model. You can also use the SAPUI5 framework to create custom controls, views, and controllers. Developer extensibility is based on the in-app extensibility concept, which means that the extensions are part of the same application and are deployed together with the app. Developer extensibility requires developer skills and access to the source code of the app. References: SAP Learning Hub, SAP S/4HANA Cloud Extensibility - In-App Extensibility, SAP Fiori: Extensibility

The purpose of a foreign key relationship between two tables in the ABAP Dictionary is to ensure the integrity of data in the corresponding database tables. A foreign key relationship defines a logical link between a foreign key table and a check table, where the foreign key fields of the former are assigned to the primary key fields of the latter. This means that the values entered in the foreign key fields must exist in the check table, otherwise the system will reject the entry. This way, the foreign key relationship prevents the insertion of invalid or inconsistent data in the database tables.

A foreign key relationship also serves to document the relationship between the two tables in the ABAP Dictionary, but this is not its primary purpose. A foreign key relationship does not necessarily create a corresponding foreign key relationship in the database, as this depends on the database system and the settings of the ABAP Dictionary. Some database systems do not support foreign keys at all, while others require additional steps to activate them. Therefore, the foreign key relationship in the ABAP Dictionary is mainly a logical concept that is enforced by the ABAP runtime environment.

References: Foreign Keys (SAP Library - ABAP Dictionary), Foreign Keys (SAP Library - BC - ABAP Dictionary)

https://help.sap.com/doc/saphelp_snc70/7.0/en-US/cf/21ea77446011d189700000e8322d00/content.htm

The annotation that can be used to provide a short description of the data definition for developers that will be attached to the database view is the @EndUserText.label annotation. This annotation is used to specify a text label for the data definition that can be displayed in the development tools or in the documentation. The annotation can be inserted on line #27 in the code snippet provided in the question12. For example:

The following code snippet uses the @EndUserText.label annotation to provide a short description of the data definition for the CDS view ZCDS_VIEW:

@AbapCatalog.sqlViewName: ‘ZCDS_VIEW’ @AbapCatalog.compiler.compareFilter: true @AbapCatalog.preserveKey: true @AccessControl.authorizationCheck: #CHECK @EndUserText.label: ‘CDS view for flight data’ "short description for developers define view ZCDS_VIEW as select from sflight { key carrid, key connid, key fldate, seatsmax, seatsocc }

You cannot do any of the following:

@UI.headerInfo.description.label: This annotation is used to specify a text label for the description field of the header information of a UI element. This annotation is not relevant for the data definition of a database view12.

@UI.badge.title.label: This annotation is used to specify a text label for the title field of a badge UI element. This annotation is not relevant for the data definition of a database view12.

@EndUserText.quickInfo: This annotation is used to specify a quick information text for the data definition that can be displayed as a tooltip in the development tools or in the documentation. This annotation is not the same as a short description or a label for the data definition12.

References: 1: ABAP CDS - SAP Annotations - ABAP Keyword Documentation - SAP Online Help 2: ABAP CDS - Data Definitions - ABAP Keyword Documentation - SAP Online Help

The code snippet in the image is an example of using the FOR statement to create an internal table with a constructor expression. The FOR statement introduces an iteration expression that runs over the content of source_itab and assigns each row to the variable row. The variable row is then used to populate the fields of target_itab12. Some of the correct statements about the code snippet are:

FOR defines a loop that runs over the content of source_itab: This is true. The FOR statement iterates over the rows of source_itab and assigns each row to the variable row. The iteration expression can also specify a range or a condition for the loop12.

row is only visible within the loop: This is true. The variable row is a local variable that is only visible within the scope of the iteration expression. It cannot be accessed outside the loop12.

You cannot do any of the following:

source_itab is only visible within the loop: This is false. The variable source_itab is not a local variable that is defined by the FOR statement. It is an existing internal table that is used as the data source for the iteration expression. It can be accessed outside the loop12.

row is a predefined name and cannot be chosen arbitrarily: This is false. The variable row is not a predefined name that is reserved by the FOR statement. It is a user-defined name that can be chosen arbitrarily. However, it must not conflict with any existing names in the program12.

References: 1: FOR - Iteration Expressions - ABAP Keyword Documentation - SAP Online Help 2: ABAP 7.4 Syntax - FOR Loop iteration | SAP Community

The data type of gv_result in the assignment data (gv_result) = 1/8 will be TYPE DECFLOAT 16. This is because the assignment operator (=) in ABAP performs an implicit type conversion from the source type to the target type, according to the following rules12:

If the target type is specified explicitly, the source value is converted to the target type.

If the target type is not specified explicitly, the source type is used as the target type, unless the source type is a literal or an expression, in which case the target type is determined by the following priority order: DECFLOAT34, DECFLOAT16, P, F, I, C, N, X, STRING, XSTRING.

In this case, the target type is not specified explicitly, and the source type is an expression (1/8). Therefore, the target type is determined by the priority order, and the first matching type is DECFLOAT16, which is a decimal floating point type with 16 digits of precision12.

References: 1: ABAP Assignment Rules - ABAP Keyword Documentation - SAP Online Help 2: ABAP Data Types - ABAP Keyword Documentation - SAP Online Help

After you created a database table in the RESTful Application Programming model (RAP), the next step is to create a projection view on the database table. A projection view is a CDS artefact that defines a view on one or more data sources, such as tables, views, or associations. A projection view can select, rename, or aggregate the fields of the data sources, but it cannot change the properties of the fields, such as whether they are read-only or not. The properties of the fields are inherited from the data sources or the behaviour definitions of the business objects12. For example:

The following code snippet defines a projection view ZI_AGENCY on the database table /DMO/AGENCY:

define view ZI_AGENCY as select from /dmo/agency { key agency_id, agency_name, street, city, region, postal_code, country, phone_number, url }

The projection view is used to expose the data of the database table to the service definition, which is the next step in the RAP. The service definition is a CDS artefact that defines the interface and the binding of a service. A service is a CDS entity that exposes the data and the functionality of one or more business objects as OData, InA, or SQL services. A service definition can specify the properties of the fields of a service, such as whether they are filterable, sortable, or aggregatable12. For example:

The following code snippet defines a service definition ZI_AGENCY_SRV that exposes the projection view ZI_AGENCY as an OData service:

define service ZI_AGENCY_SRV { expose ZI_AGENCY as Agency; }

You cannot do any of the following:

A. A metadata extension: A metadata extension is a CDS artefact that defines additional annotations for a CDS entity, such as a business object, a service, or a projection view. A metadata extension can specify the properties of the fields of a CDS entity for UI or analytical purposes, such as whether they are visible, editable, or hidden. However, a metadata extension is not the next step after creating a database table in the RAP, as it is not required to expose the data of the database table to the service definition. A metadata extension can be created later to customize the UI or analytical application that uses the service12.

C. A data model view: A data model view is a CDS artefact that defines a view on one or more data sources, such as tables, views, or associations. A data model view can select, rename, or aggregate the fields of the data sources, and it can also change the properties of the fields, such as whether they are read-only or not. The properties of the fields are defined by the annotations or the behaviour definitions of the data model view. A data model view is used to define the data model of a business object, which is a CDS entity that represents a business entity or concept, such as a customer, an order, or a product. However, a data model view is not the next step after creating a database table in the RAP, as it is not required to expose the data of the database table to the service definition. A data model view can be created later to define a business object that uses the database table as a data source12.

D. A service definition: A service definition is a CDS artefact that defines the interface and the binding of a service. A service is a CDS entity that exposes the data and the functionality of one or more business objects as OData, InA, or SQL services. A service definition can specify the properties of the fields of a service, such as whether they are filterable, sortable, or aggregatable. However, a service definition is not the next step after creating a database table in the RAP, as it requires a projection view or a data model view to expose the data of the database table. A service definition can be created after creating a projection view or a data model view on the database table12.

References: 1: ABAP CDS - Data Definitions - ABAP Keyword Documentation - SAP Online Help 2: ABAP CDS - Service Definitions - ABAP Keyword Documentation - SAP Online Help

On-stack developer extensibility is a type of extensibility that allows you to create development projects directly on the SAP S/4HANA Cloud technology stack. It gives you the opportunity to develop cloud-ready and upgrade-stable custom ABAP applications and services inside the SAP S/4HANA Cloud, public edition system. You can use the ABAP Development Tools in Eclipse to create and deploy your on-stack extensions. On-stack developer extensibility is suitable for the following kinds of applications:

Applications that provide APIs for side by side SAP BTP apps. On-stack developer extensibility allows you to create OData services or RESTful APIs based on CDS view entities or projection views. These services or APIs can expose SAP S/4HANA data and logic to other applications that run on the SAP Business Technology Platform (SAP BTP) or other platforms. This way, you can create a loosely coupled integration between your SAP S/4HANA system and your side by side SAP BTP apps.

Applications that access SAP S/4HANA data using complex SQL. On-stack developer extensibility allows you to use ABAP SQL to access SAP S/4HANA data using complex queries, such as joins, aggregations, filters, parameters, and code pushdown techniques. You can also use ABAP SQL to perform data manipulation operations, such as insert, update, delete, and upsert. This way, you can create applications that require advanced data processing and analysis on SAP S/4HANA data.

The other kinds of applications are not suitable for on-stack developer extensibility, as they have different requirements and challenges. These kinds of applications are:

Applications that integrate data from several different systems. On-stack developer extensibility is not meant for creating applications that integrate data from multiple sources, such as other SAP systems, third-party systems, or cloud services. This is because on-stack developer extensibility does not support remote access or data replication, and it may cause performance or security issues. For this kind of applications, you should use side by side extensibility, which allows you to create applications that run on the SAP BTP and communicate with the SAP S/4HANA system via public APIs or events.

Applications that run separate from SAP S/4HANA. On-stack developer extensibility is not meant for creating applications that run independently from the SAP S/4HANA system, such as standalone apps, microservices, or web apps. This is because on-stack developer extensibility requires a tight coupling with the SAP S/4HANA system, and it may limit the scalability, flexibility, and portability of the applications. For this kind of applications, you should use side by side extensibility, which allows you to create applications that run on the SAP BTP and leverage the cloud-native features and services of the platform.

References: Developer Extensibility in SAP S/4HANA Cloud ABAP Environment, SAP S/4HANA Extensibility – Simplified Guide for Beginners

The following are the explanations for each action:

A: Renaming a field in a structure that is included in the table definition causes an indirect change to the database table, as the field name in the table is derived from the structure. This change requires a table conversion, as the existing data in the table must be copied to a new table with the new field name, and the old table must be deleted.

B: Changing the field labels of a data element that is used in the table definition does not cause an indirect change to the database table, as the field labels are only used for documentation and display purposes. This change does not require a table conversion, as the existing data in the table is not affected by the change.

C: Deleting a field from a structure that is included in the table definition causes an indirect change to the database table, as the field is removed from the table as well. This change requires a table conversion, as the existing data in the table must be copied to a new table without the deleted field, and the old table must be deleted.

D: Shortening the length of a domain used in a data element that is used in the table definition causes an indirect change to the database table, as the field length in the table is derived from the domain. This change requires a table conversion, as the existing data in the table must be checked for compatibility with the new field length, and any data that exceeds the new length must be truncated or rejected.

References: Converting Database Tables - ABAP Keyword Documentation, Adjustment of Database Structures - ABAP Keyword Documentation

The expression itab1 = corresponding #( itab2 ) is a constructor expression with the component operator CORRESPONDING that assigns the contents of the internal table itab2 to the internal table itab1. The following statements are true for using this expression:

B: itab1 and itab2 must have at least one field name in common. This is because the component operator CORRESPONDING assigns the identically named columns of itab2 to the identically named columns of itab1 by default, according to the rules of MOVE-CORRESPONDING for internal tables. If itab1 and itab2 do not have any field name in common, the expression will not assign any value to itab1 and it will remain initial or unchanged1

C: Fields with the same name and the same type will be copied from itab2 to itab1. This is because the component operator CORRESPONDING assigns the identically named columns of itab2 to the identically named columns of itab1 by default, according to the rules of MOVE-CORRESPONDING for internal tables. If the columns have the same name but different types, the assignment will try to perform a conversion between the types, which may result in a loss of precision, a truncation, or a runtime error, depending on the types involved1

The following statements are false for using this expression:

A: Fields with the same name but with different types may be copied from itab2 to itab1. This is not true, as explained in statement C. The assignment will try to perform a conversion between the types, which may result in a loss of precision, a truncation, or a runtime error, depending on the types involved1

D: itab1 and itab2 must have the same data type. This is not true, as the component operator CORRESPONDING can assign the contents of an internal table of one type to another internal table of a different type, as long as they have at least one field name in common. The target type of the expression is determined by the left-hand side of the assignment, which is itab1 in this case. The expression will create an internal table of the same type as itab1 and assign it to itab11

References: CORRESPONDING - Component Operator - ABAP Keyword Documentation

The function module ZF1 is in a software component with the language version set to “ABAP Cloud”. This means that it follows the ABAP Cloud Development Model, which requires the usage of public SAP APIs and extension points to access SAP functionality and data. These APIs and extension points are released by SAP and documented in the SAP API Business Hub1. Customer-created function modules are not part of the public SAP APIs and are not released for cloud development. Therefore, calling a function module directly from a class with the language version set to “Standard ABAP” is not allowed and will result in a syntax error. However, there is a possible way to call a function module indirectly from a class with the language version set to “Standard ABAP”:

Create a wrapper class or interface for the function module and release it for cloud development. A wrapper is a class or interface that encapsulates the function module and exposes its functionality through public methods or attributes. The wrapper must be created in a software component with the language version set to “ABAP Cloud” and must be marked as released for cloud development using the annotation @EndUserText.label. The wrapper can then be called from a class with the language version set to “Standard ABAP” using the public methods or attributes2.

For example, the following code snippet shows how to create a wrapper class for the function module ZF1 and call it from the class zcl_demo_class:

@EndUserText.label: ‘Wrapper for ZF1’ CLASS zcl_wrapper_zf1 DEFINITION PUBLIC FINAL CREATE PUBLIC. PUBLIC SECTION. CLASS-METHODS: call_zf1 IMPORTING iv_a TYPE i iv_b TYPE i EXPORTING ev_result TYPE i. ENDCLASS.

CLASS zcl_wrapper_zf1 IMPLEMENTATION. METHOD call_zf1. CALL FUNCTION ‘ZF1’ EXPORTING a = iv_a b = iv_b IMPORTING result = ev_result. ENDMETHOD. ENDCLASS.

CLASS zcl_demo_class DEFINITION. METHODS: m1. ENDCLASS.

CLASS zcl_demo_class IMPLEMENTATION. METHOD m1. DATA(lv_result) = zcl_wrapper_zf1=>call_zf1( iv_a = 2 iv_b = 3 ). WRITE: / lv_result. ENDMETHOD. ENDCLASS.

The output of this code is:

5

References: 1: SAP API Business Hub 2: Creating an ABAP Cloud Project | SAP Help Portal

The order in which the join statements will be executed is:

scarr will be joined with scounter first and the result will be joined with sairport.

This is because the join statements are nested from left to right, meaning that the leftmost data source is joined with the next data source, and the result is joined with the next data source, and so on. The join condition for each pair of data sources is specified by the ON clause that follows the data source name. The join type for each pair of data sources is specified by the join operator that precedes the data source name. In this case, the join operator is LEFT OUTER JOIN, which means that all the rows from the left data source are included in the result, and only the matching rows from the right data source are included. If there is no matching row from the right data source, the corresponding fields are filled with initial values1.

Therefore, the join statements will be executed as follows:

First, scarr AS a will be joined with scounter AS c using the join condition a.carrid = c.carrid. This means that all the rows from scarr will be included in the result, and only the rows from scounter that have the same value for the carrid field will be included. If there is no matching row from scounter, the countnum field will be filled with an initial value.

Second, the result of the first join will be joined with sairport AS p using the join condition p.id = c.airport. This means that all the rows from the first join will be included in the result, and only the rows from sairport that have the same value for the id field as the airport field from the first join will be included. If there is no matching row from sairport, the id field will be filled with an initial value.

References: 1: Join - ABAP Keyword Documentation

When processing a loop with the statement DO… ENDDO, the system variable that contains the implicit loop counter is sy-index. The loop counter is a numeric value that indicates how many times the loop has been executed. The loop counter is initialized to 1 before the first execution of the loop and is incremented by 1 after each execution. The loop counter can be used to control the number of loop iterations or to access the loop elements by index. The loop counter can also be accessed or modified within the loop body, but this is not recommended as it may cause unexpected results or errors1.

For example, the following code snippet uses the loop counter sy-index to display the numbers from 1 to 10:

DO 10 TIMES. WRITE: / sy-index. ENDDO.

The output of this code is:

1 2 3 4 5 6 7 8 9 10

References: 1: DO - ABAP Keyword Documentation

The data declarations that will always work without truncation or rounding for the assignment gv_target = gv_source are B and C. This is because the target data type string is a variable-length character type that can hold any character string, including those of data types c (fixed-length character) and d (date). The assignment of a character or date value to a string variable will not cause any loss of information or precision, as the string variable will adjust its length to match the source value12.

You cannot do any of the following:

A. DATA gv_source TYPE string, to DATA gv_target TYPE c.: This data declaration may cause truncation for the assignment gv_target = gv_source. This is because the target data type c is a fixed-length character type that has a predefined length. If the source value of type string is longer than the target length of type c, the source value will be truncated on the right to fit the target length12.

D. DATA gv_source TYPE p LENGTH 8 DECIMALS 3. to DATA gv_target TYPE p LENGTH 16 DECIMALS 2.: This data declaration may cause rounding for the assignment gv_target = gv_source. This is because the target data type p is a packed decimal type that has a predefined length and number of decimal places. If the source value of type p has more decimal places than the target type p, the source value will be rounded to the target number of decimal places12.

References: 1: ABAP Data Types - ABAP Keyword Documentation - SAP Online Help 2: ABAP Assignment Rules - ABAP Keyword Documentation - SAP Online Help

The function find_any_not_of returns the position of the first character in the string val that is not contained in the string sub. If no such character is found, the function returns 0. In this case, the string val contains only the characters A, B, and a, which are all contained in the string sub, so the function returns 0. The other functions return positive values, as follows:

Count_any_of returns the number of occurrences of any character in the string sub within the string val. In this case, it returns 8, since there are 8 A’s and B’s in val.

Count returns the number of occurrences of the string sub within the string val. In this case, it returns 2, since there are 2 AB’s in val.

find_any_of returns the position of the first character in the string val that is contained in the string sub. In this case, it returns 1, since the first character A is in sub. References: String Functions - ABAP Keyword Documentation, Examples of String Functions - ABAP Keyword Documentation
