MuleSoft-Integration-Architect-I Practice Exam Questions with Answers Salesforce Certified MuleSoft Integration Architect 1 (SP25) Exam Certification

Explanation

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

According to the MuleSoft Catalyst framework, an Integration Architect plays a crucial role in defining and achieving business outcomes. One of their key responsibilities is to agree upon Key Performance Indicators (KPIs) and help develop an overall success plan. This involves working with stakeholders to identify measurable goals and ensure that the integration initiatives align with the organization’s strategic objectives.

KPIs are critical for tracking progress, measuring success, and making data-driven decisions. By agreeing on KPIs and developing a success plan, the Integration Architect ensures that the organization can objectively measure the impact of its integration efforts and adjust strategies as needed to achieve desired business outcomes.

References:

• MuleSoft Catalyst Knowledge Hub

Explanation

3xx HTTP status codes indicate a redirection that the user agent (a web browser or a crawler) needs to take further action when trying to access a particular resource.

For handling large datasets in a Mule application, streaming is an effective strategy. Streaming allows the application to process large amounts of data in chunks, reducing memory usage and improving performance. Using a file storage repeatable strategy for reading records from the database ensures that the data is read in manageable chunks and stored temporarily in files, which can be re-read if necessary, enhancing reliability.

The batch aggregator with streaming to write to an FTPS server ensures that data is written in chunks, aligning with the processing capabilities of the application running in CloudHub with 0.2 vCore and 8 GB storage. This configuration optimizes performance by balancing the load and managing the dataset size effectively, ensuring that the high rate of records can be processed and written to the FTPS server without overwhelming the system.

References:

• MuleSoft Documentation on Streaming
• MuleSoft Documentation on Batch Processing

A Center for Enablement (C4E) provides significant benefits to an enterprise and its lines of business by accelerating self-service capabilities. A C4E is a cross-functional team that promotes the use of best practices, reusable assets, and consistent methodologies across the organization. By enabling lines of business to access and use shared resources, tools, and knowledge independently, a C4E empowers these units to deliver projects faster and more efficiently. This self-service model reduces reliance on central IT for every initiative, fosters innovation, and enhances the overall agility of the organization.

References

• MuleSoft Center for Enablement (C4E) Overview
• Best Practices for Implementing a C4E on Anypoint Platform

A Center for Enablement (C4E) provides significant benefits by accelerating self-service capabilities for lines of business. Here’s how:

• Self-Service Enablement: C4E empowers lines of business to access, use, and create integrations and APIs independently, without relying heavily on central IT teams.
• Guidelines and Standards: The C4E establishes best practices, standards, and reusable frameworks, ensuring that lines of business can develop solutions efficiently and consistently.
• Faster Time-to-Market: By enabling self-service, lines of business can rapidly develop and deploy solutions to meet their specific needs, resulting in faster time-to-market for new initiatives.
• Reduced Bottlenecks: Self-service reduces dependency on central IT, alleviating potential bottlenecks and allowing IT to focus on governance, security, and strategic projects.

The C4E model thus accelerates innovation and responsiveness within the enterprise.

References:

• Center for Enablement (C4E)
• Benefits of a C4E

Explanation

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference: https://docs.mulesoft.com/mule-runtime/4.3/xa-transactions

Anypoint Runtime Fabric is the appropriate choice for deploying Mule applications in an isolated Mule runtime within Docker containers on an Azure Kubernetes Service (AKS) infrastructure. This solution provides a containerized and orchestrated environment managed from the MuleSoft-hosted control plane. It enhances the availability, scalability, and robustness of Mule applications by allowing fine-grained control over deployments and providing built-in support for high availability and fault tolerance.

References:

• Anypoint Runtime Fabric Overview
• Deploying Mule Applications to Kubernetes

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same deployment strategy using CI/CD, follow these steps:

• POM.xml Modification: Update the POM.xml file of each Mule application to include runtimeFabric deployment configurations. This ensures that the applications are packaged and prepared correctly for deployment to RTF.
• CI/CD Script Adjustments: Modify the existing CI/CD scripts to accommodate RTF-specific deployment commands and configurations. This includes updating the deployment targets and parameters to match the RTF environment.
• Deployment Strategy: Ensure that the CI/CD pipeline remains consistent with the organization’s existing strategy, but with the necessary changes to support RTF. This might involve using Anypoint CLI or API to interact with RTF.

By updating the POM.xml and CI/CD scripts, you can ensure a smooth transition from CloudHub to RTF while retaining the automated deployment process.

References:

• MuleSoft Runtime Fabric
• Mule Maven Plugin

https://help.mulesoft.com/s/feed/0D52T000055pzgsSAA .

Explanation

Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry

When a batch job instance running on a runtime fabric environment with two cluster replicas encounters an unexpected failure, the following sequence of events occurs:

• Failure Detection: The runtime fabric environment detects the failure of the replica running the batch job.
• Replica Replacement: A new replica is provisioned to replace the failed one.
• Batch Job State Recovery: MuleSoft’s batch processing mechanism ensures that the state of the batch job is periodically saved (checkpointing). This allows the new replica to resume processing from the last saved state.
• Resumption of Processing: The new replica takes over the batch job, continuing from where the previous one left off, thus processing the remaining 99,000 records without starting from scratch or causing duplicate processing.

References:

• MuleSoft Documentation on Batch Processing
• Runtime Fabric Guide

=======================

Explanation

Explanation

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/polic y-mule3-client-id-based-policies

Explanation

* Organization can continue using existing load balancer even if backend application changes are there. So option A is ruled out.

* As Mule runtime is within their datacenter, this model is RTF and not PCE. So option C is ruled out.

Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications -- This mean PCE or Hybird not RTF - Also mentioned in Question is that - Mule runtime is hosting several Mule Application, so that also rules out RTF and as for hosting multiple Application it will have Domain project which need redesign to make it microservice architecture

---------------------------------------------------------------------------------------------------------------

Correct Answer: Required redesign of Mule applications to follow microservice architecture principles

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

MuleSoft's API development best practices emphasize a design-first approach, which starts with writing and approving an API contract before any implementation begins. This approach ensures that the API's interface is agreed upon and understood by all stakeholders before the backend is built. It involves creating an API specification using tools like RAML or OpenAPI, which serves as a blueprint for development. This method promotes better planning, communication, and alignment between different teams and stakeholders, leading to more efficient and predictable API development processes.

References:

• API Design Best Practices
• MuleSoft's Approach to API Development

In a hybrid, load-balanced, single cluster production environment running Mule applications in an active-active multi-node configuration, several considerations are critical for ensuring performance and reliability. The key consideration is the use of an external load balancer:

• Active-Active Multi-Node Cluster Configuration:
• External Load Balancer Requirement:
• Load Balancer Configuration:
• Mule Application Isolation:
• Handling Requests:
• Benefits:

References:

• MuleSoft Documentation on Mule Clustering
• Best Practices for Load Balancing

Explanation

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

In Unit testing instead of using actual backends, stubs are used for the backend services. This ensures that developers are not blocked and have no dependency on other systems.

Below are the typical characteristics of unit testing.

-- Unit tests do not require deployment into any special environment, such as a staging environment

-- Unit tests san be run from within an embedded Mule runtime

-- Unit tests can/should be implemented using MUnit

-- For read-only interactions to any dependencies (such as other APIs): allowed to invoke production endpoints

-- For write interactions: developers must implement mocks using MUnit

-- Require knowledge of the implementation details of the API implementation under test

Explanation

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

When a Mule application using VM queues is deployed to a customer-hosted cluster or multiple CloudHub v1.0 workers/replicas, messages are consumed in a non-deterministic way. This means that any of the nodes in the cluster or any of the workers can consume the messages from the VM queues, but there is no guaranteed order or specific pattern (such as round-robin or sequential processing).

This non-deterministic message consumption helps in distributing the load and handling messages more efficiently across multiple nodes or workers, improving the scalability and reliability of the application.

References

• MuleSoft Documentation on VM Queues and Clustering
• Best Practices for Deploying Mule Applications in Clusters

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

• MuleSoft Documentation on Audit Logging
• Anypoint Platform User Management

Explanation

Correct answer is Mule correlation ID By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source. This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation-Id" header or set "Send Correlation Id" to NEVER.

MUnit is the testing framework component of Anypoint Platform that provides test automation capabilities for customers to use in their CI/CD pipelines. MUnit allows developers to write, run, and automate unit and integration tests for Mule applications. It supports creating repeatable tests for various scenarios, ensuring that the application functions correctly and adheres to specified requirements. MUnit integrates seamlessly with Anypoint Studio, enabling efficient test creation and execution as part of the development lifecycle.

References:

• MUnit Overview
• Testing with MUnit

A defining characteristic of an Integration-Platform-as-a-Service (iPaaS) is that it is cloud-based. iPaaS provides a cloud-based platform to enable integration of applications and data across various environments. This approach leverages the scalability, flexibility, and accessibility of the cloud to facilitate seamless integrations, reduce on-premises infrastructure requirements, and improve the speed of deployment and maintenance of integration solutions.

References:

• What is iPaaS?
• Benefits of iPaaS

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

Explanation

Correct answer is When a Mule runtime on a given customer-hosted server is experiencing high memory consumption during certain periods Using Anypoint Monitoring, you can configure two different types of alerts: Basic alerts for servers and Mule apps Limit per organization: Up to 50 basic alerts for users who do not have a Titanium subscription to Anypoint Platform You can set up basic alerts to trigger email notifications when a metric you are measuring passes a specified threshold. You can create basic alerts for the following metrics for servers or Mule apps: For on-premises servers and CloudHub apps: * CPU utilization * Memory utilization * Thread count Advanced alerts for graphs in custom dashboards in Anypoint Monitoring. You must have a Titanium subscription to use this feature. Limit per organization: Up to 20 advanced alerts

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

• Try-Catch Scope for Data Fetching:
• Async Scope for Inserting Records into Audit Database:
• Ensuring Better Throughput:

References:

• MuleSoft Documentation on Async Scope
• Best practices for Error Handling in MuleSoft

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

• Waterfall Model
• Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

• Mule Tracing Module and MDC:
• Set Logging Variable Operations:
• Configuring log4j2.xml:
• Improving Throughput and Lowering Latency:

References:

• MuleSoft Documentation on Mule Tracing: Mule Tracing Module
• Log4j2 Documentation on MDC: Log4j2 MDC

Explanation

* Mule High Availability Clustering provides basic failover capability for Mule. * When the primary Mule Runtime becomes unavailable, for example, because of a fatal JVM or hardware failure or it’s taken offline for maintenance, a backup Mule Runtime immediately becomes the primary node and resumes processing where the failed instance left off. * After a system administrator recovers a failed Mule Runtime server and puts it back online, that server automatically becomes the backup node. In this case, Alice, once up, will become backup ---------------------------------------------------------------------------------------------------------------------------------------------- Reference: https://docs.mulesoft.com/mule-runtime/4.3/hadr-guide So correct choice is : Files are polled form Bob node Bob is now the primary node

In the context of Mule applications running on Runtime Fabric for Self-Managed Kubernetes (RTF-BYOKS) in a multi-cloud environment, understanding the thread pools used for communication between Agents and Runtime Manager is crucial:

• Shared NIO Selector Pool: This pool is responsible for handling non-blocking IO operations, such as network communication. It ensures efficient handling of IO operations by using a small number of threads to manage multiple IO tasks simultaneously.
• CPU_LITE: This thread pool is used for lightweight CPU operations. It is designed to handle tasks that do not require significant computational resources, ensuring that lightweight operations are processed efficiently without overwhelming the system.

The combination of the Shared NIO Selector Pool and CPU_LITE thread pool ensures efficient and reliable communication between Agents and Runtime Manager in the RTF environment.

References:

• MuleSoft Threading and Thread Pools
• Runtime Fabric Architecture

Explanation

Correct answer is Database polling continues Only HTTP requests sent to the remaining node continue to be accepted. Explanation : Architecture descripted in the question could be described as follows.When node 1 is down , DB polling will still continue via node 2 . Also requests which are coming directly to node 2 will also be accepted and processed in BAU fashion. Only thing that wont work is when requests are sent to Node 1 HTTP connector. The flaw with this architecture is HTTP clients are sending HTTP requests directly to individual cluster nodes. By default, clustering Mule runtime engines ensures high system availability. If a Mule runtime engine node becomes unavailable due to failure or planned downtime, another node in the cluster can assume the workload and continue to process existing events and messages

Diagram Description automatically generated

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

Explanation

? Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

? Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

? Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

? Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

? XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

? The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

? Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

? Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

Explanation

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

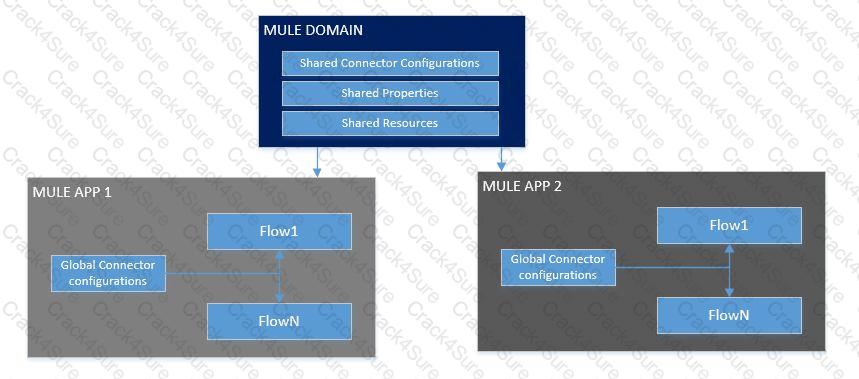

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

• Timeout Attribute:
• Transaction Management:
• Implications of Timeout:

References:

• MuleSoft Documentation on JMS Connector
• Understanding XA Transactions

According to MuleSoft, the term "interface" describes the method, format, and protocol used for communication between two systems. An interface defines how systems interact, specifying the data formats (e.g., JSON, XML), protocols (e.g., HTTP, FTP), and methods (e.g., GET, POST) that are used to exchange information. Properly designed interfaces ensure compatibility and seamless communication between integrated systems.

References:

• MuleSoft Glossary of Integration Terms
• System Interfaces and APIs

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

In a clustered Mule runtime environment, when using a JMS listener to consume messages from a queue destination, it is essential to ensure that messages are appropriately received by all nodes in the cluster. The configuration must support high availability and scalability. Here's why option B is correct:

• primaryNodeOnly="false": Setting this parameter to "false" ensures that the JMS listener is active on all nodes in the cluster, not just the primary node. This setting allows multiple instances of the JMS listener to run concurrently across different nodes, enabling them to consume messages from the JMS queue.
• Shared Subscription: Using a shared subscription means that all nodes will share the consumption of messages from the queue. This approach prevents duplicate message processing, as each message is delivered to only one listener instance within the cluster. This configuration ensures that message processing is balanced across the nodes, improving throughput and reliability.

To configure the JMS listener in Mule, the XML configuration might look something like this:

xml

This setup ensures that all nodes in the cluster are involved in message processing, leveraging the high availability and load balancing capabilities of the cluster.

References

• MuleSoft Documentation on JMS Listener
• MuleSoft Clustering Guide

Explanation

* An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

* Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime.

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent.

In a standalone Mule runtime, Mule creates a default persistent store in the file system. If you do not specify an object store, the default persistent object store is used.

MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/mule-object-stores

To monitor Mule applications deployed on customer-hosted Mule runtimes from Anypoint Platform, you need to enable monitoring for each application within the Runtime Manager's application settings. This step ensures that the Runtime Manager Agent, which is already part of the Mule runtime, will collect and send monitoring data to Anypoint Monitoring.

The Runtime Manager Agent acts as the intermediary, collecting metrics and operational data from the Mule applications and transmitting this data to Anypoint Monitoring for analysis and visualization. This setup provides real-time insights and allows for effective monitoring and management of Mule applications.

References:

• MuleSoft Documentation on Anypoint Monitoring

CloudHub, part of MuleSoft's Anypoint Platform, is an example of a Platform as a Service (PaaS) offering. PaaS provides a cloud-based platform that allows developers to build, deploy, and manage applications without dealing with the complexities of maintaining the underlying infrastructure. CloudHub provides the necessary tools and services to develop and deploy Mule applications and APIs in the cloud, offering features such as scalability, high availability, monitoring, and management. This allows developers to focus on writing code and developing applications rather than managing servers and infrastructure.

References

• MuleSoft CloudHub Documentation
• Overview of Cloud Computing Service Models

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects

Explanation

Correct answer is IBM: CICS CRM: SOAP

* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.

* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Explanation

Correct Answer: XSD In this approach to developing a web service, you begin with an XML schema (XSD file) that defines XML data structures to be used as parameters and return types in the web service operations.

----------------------------------------------------------------------------------------------------------------- Reference: https://www.w3schools.com/xml/schema_intro.asp

To enable the API to securely connect from its CloudHub 2.0 private space to both the on-premises mainframe application and the Kafka cluster in an Amazon AWS VPC, the following approach is recommended:

• AWS Transit Gateway: In the AWS account, attach the CloudHub 2.0 private space to an AWS Transit Gateway. This gateway facilitates routing between the CloudHub private space and the on-premises data center.
• Routing to On-Premises: The AWS Transit Gateway will route traffic from the CloudHub 2.0 private space to the on-premises data center, enabling secure and efficient communication.
• Anypoint VPN: In MuleSoft Runtime Manager, configure an Anypoint VPN to establish a secure connection from the CloudHub 2.0 private space to the AWS VPC where the Kafka cluster is hosted. This VPN ensures encrypted and secure communication between CloudHub and AWS VPC.

This method uses both AWS Transit Gateway and Anypoint VPN to create a secure and efficient network setup, allowing the API to connect to both on-premises and AWS resources.

References:

• AWS Transit Gateway Documentation
• Anypoint VPN Configuration

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

• Dealer D1 - AUTO Acknowledgment:
• Dealer D2 - Manual Acknowledgment:
• Ensuring Message Delivery:

References:

• MuleSoft Documentation on JMS Acknowledgment
• Best practices for Reliable Messaging

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

• MuleSoft Anypoint MQ Documentation
• Cloud vs. On-Premises Messaging Solutions

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

REST (Representational State Transfer) is an architectural style for designing networked applications. It supports multiple content types, including XML and JSON, making it suitable for APIs that need to handle requests from clients in both formats. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) and are designed to be stateless and scalable. REST's flexibility and wide adoption make it an appropriate choice for the integration architect’s requirements.

References:

• REST API Design
• Understanding RESTful API Design

Explanation

Correct answer is "The web store backend generates a new correlation ID value at the start of checkout and sets it on the X¬CORRELATION-ID HTTP request header in each API invocation belonging to that checkout No special code or configuration is included in the Experience API and Process API implementations to generate and manage the correlation ID" Explanation : By design, Correlation Ids cannot be changed within a flow in Mule 4 applications and can be set only at source. This ID is part of the Event Context and is generated as soon as the message is received by the application. When a HTTP Request is received, the request is inspected for "X-Correlation-Id" header. If "X-Correlation-Id" header is present, HTTP connector uses this as the Correlation Id. If "X-Correlation-Id" header is NOT present, a Correlation Id is randomly generated. For Incoming HTTP Requests: In order to set a custom Correlation Id, the client invoking the HTTP request must set "X-Correlation-Id" header. This will ensure that the Mule Flow uses this Correlation Id. For Outgoing HTTP Requests: You can also propagate the existing Correlation Id to downstream APIs. By default, all outgoing HTTP Requests send "X-Correlation-Id" header. However, you can choose to set a different value to "X-Correlation-Id" header or set "Send Correlation Id" to NEVER.

Mulesoft Reference: https://help.mulesoft.com/s/article/How-to-Set-Custom-Correlation-Id-for-Flows-with-HTTP-Endpo int-in-Mule-4

Graphical user interface, application, Word Description automatically generated

Explanation

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

A screenshot of a computer Description automatically generated with low confidence

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Diagram Description automatically generated

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

References:

• MuleSoft Documentation on Error Handling
• HTTP Status Codes

Explanation

CloudHub supports updating your applications at runtime so end users of your HTTP APIs experience zero downtime. While your application update is deploying, CloudHub keeps the old version of your application running. Your domain points to the old version of your application until the newly uploaded version is fully started. This allows you to keep servicing requests from your old application while the new version of your application is starting.

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

Explanation

Correct approach is to use Mixed configuration of asynchronous or synchronous loggers shoud be used to log exceptions via synchronous way Asynchronous logging poses a performance-reliability trade-off. You may lose some messages if Mule crashes before the logging buffers flush to the disk. In this case, consider that you can have a mixed configuration of asynchronous or synchronous loggers in your app. Best practice is to use asynchronous logging over synchronous with a minimum logging level of WARN for a production application. In some cases, enable INFO logging level when you need to confirm events such as successful policy installation or to perform troubleshooting. Configure your logging strategy by editing your application’s src/main/resources/log4j2.xml file

To address the reliability and scalability issues faced by the insurance provider, adding a load balancer and configuring additional servers in a cluster configuration is the optimal solution. Here's why:

• Load Balancing: Implementing a load balancer will help distribute incoming API requests evenly across multiple servers. This prevents any single server from becoming a bottleneck, thereby improving the overall performance and reliability of the system.
• Cluster Configuration: By setting up a cluster configuration, you ensure that multiple servers work together as a single unit. This provides several benefits:
• Maintenance: With a cluster configuration, servers can be taken offline for maintenance one at a time without affecting the overall availability of the applications, as the load balancer can redirect traffic to the remaining servers.
• VM Queues and Object Stores: In a clustered environment, the use of VM queues and object stores can be more efficiently managed as these resources are distributed across multiple servers, reducing the risk of contention and improving throughput.

References:

• MuleSoft Documentation on Clustering: https://docs.mulesoft.com/mule-runtime/4.3/clustering
• Best Practices for Scaling Mule Applications: https://blogs.mulesoft.com/dev/mule-dev/mule-4-scaling-applications/

• Digital Transformation Goals:
• CloudHub Runtimes:
• Suitability for Digital Transformation:

References:

• MuleSoft Documentation on CloudHub: CloudHub
• MuleSoft Digital Transformation Insights: MuleSoft Digital Transformation

Explanation

Correct answer is VM VM support Transactional Type. When an exception occur, The transaction rolls back to its original state for reprocessing. This feature is not supported by other connectors.

Here is additional information about Transaction management:

Table Description automatically generated

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

• Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.
• Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

• MuleSoft Documentation on Object Store v2
• Configuring Persistent Data Storage in MuleSoft

To secure all internal APIs within an integration solution by using an API proxy to apply required authentication and authorization policies, the organization should use API Management (APIM). APIM provides a comprehensive platform to manage, secure, and analyze APIs. It allows the IT team to create API proxies, enforce security policies, control access through authentication and authorization mechanisms, and monitor API usage.

Using APIM for this purpose ensures that internal APIs are protected with standardized security policies, facilitating centralized management and governance of API traffic. This approach is specifically designed for managing APIs and their security, making it the most suitable choice among the options provided.

References

• MuleSoft Documentation on API Management
• Best Practices for API Security and Governance

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

• AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.
• Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.
• Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

References:

• Anypoint CLI Documentation
• Mule Maven Plugin Documentation

In MuleSoft's Anypoint Exchange, a complete API specification in RAML (RESTful API Modeling Language) or OAS (OpenAPI Specification) format is represented as a "REST API". This asset type provides a comprehensive description of the API, including endpoints, methods, request/response structures, and other relevant details. It serves as the blueprint for implementing and consuming the API, ensuring that all stakeholders have a clear understanding of its functionality and design.

Other asset types like connectors, API spec fragments, and SOAP APIs represent different components or partial specifications, but only REST APIs provide the full specification in the mentioned formats.

References

• MuleSoft Anypoint Exchange Documentation
• API Specification Documentation on RAML and OAS

Explanation

* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

* HTTP-based programmatic interfaces are APIs even if they don’t use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

Explanation

V2 Rest API is recommended for on premise applications to access Object Store. It also comes with overhead of encryption and security of using rest api. With Object Store v2, the API call is localized to the same data center as the Runtime Manager app.

But in this case requirement is to access the OS of other mule application and not the same mule application.

You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

However, Object Store v2 is not designed for app-to-app communication.
