UiPath-ADPv1 Practice Exam Questions with Answers UiPath (ADPv1) Automation Developer Professional Exam Certification

The Monitoring feature in UiPath Orchestrator is a solution that provides real-time metrics to help you keep an eye on the health and state of your system1. It enables you to check the status and performance of your Robots, Machines, Queues, and Jobs in either the last hour or last day1. You can also use the Monitoring feature to filter, sort, and search for specific resources, view detailed information and charts for each resource, and access the Error Feed widget to see the errors that occurred during execution1.

The other options are incorrect because:

• Option A describes the purpose of the Source Control feature in UiPath Studio, which allows you to manage your automation projects using Git or TFS2.
• Option C describes the purpose of the Processes feature in UiPath Orchestrator, which allows you to deploy, configure, and run automation workflows on Robots3.
• Option D describes the purpose of the Logs feature in UiPath Orchestrator, which allows you to view and download event logs and records related to executed tasks and runtime anomalies.

References:

• Orchestrator - About Monitoring - UiPath Documentation Portal
• Studio - Source Control - UiPath Documentation Portal
• Orchestrator - Processes - UiPath Documentation Portal
• [Orchestrator - Logs - UiPath Documentation Portal]

AI Computer Vision is a feature of UiPath that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. AI Computer Vision uses a mix of AI, OCR, text fuzzy-matching, and an anchoring system to visually locate elements on the screen and interact with them via UiPath Robots, simulating human interaction2. AI Computer Vision is especially useful for scenarios where the UI elements have low quality or scaling issues, which make them difficult to recognize with traditional methods3.

Option A is an accurate example of using AI Computer Vision features in a UiPath project, because it involves identifying and interacting with UI elements in a remote desktop application, which is one of the main use cases of AI Computer Vision. By using the Computer Vision activities, such as CV Screen Scope, CV Click, CV Get Text, etc., you can automate tasks in a remote desktop application without using selectors, OCR, or image recognition activities4.

The other options are not accurate examples of using AI Computer Vision features in a UiPath project, because they involve tasks that are not related to the automation of remote applications or desktops, or that do not use the Computer Vision activities. For example:

• Option B involves training a custom machine learning model, which is not a feature of AI Computer Vision, but of the UiPath AI Fabric, a platform that enables you to deploy, consume, and improve machine learning models in UiPath.
• Option C involves extracting plain text from a scanned PDF document, which is not a feature of AI Computer Vision, but of the UiPath Document Understanding, a framework that enables you to classify, extract, and validate data from various types of documents.
• Option D involves performing sentiment analysis on a text string, which is not a feature of AI Computer Vision, but of the UiPath Text Analysis, a set of activities that enable you to analyze the sentiment, key phrases, and language of a text using pre-trained machine learning models.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: AI Computer Vision - Introduction - UiPath Documentation Portal 3: The New UiPath AI Computer Vision Is Now in Public Preview 4: Activities - Computer Vision activities - UiPath Documentation Portal : [AI Fabric - Overview - UiPath Documentation Portal] : [Document Understanding - Overview - UiPath Documentation Portal] : [Text Analysis - UiPath Activities]

When starting a job manually in UiPath Orchestrator, the default priority value for the Job Priority field is Inherited. This means that the job inherits the priority value that was set at the process level when the package was deployed. The possible priority values are High, Normal, and Low. The priority value determines the order in which the jobs are executed by the robots, with higher priority jobs being executed first. The priority value can be changed manually when starting a job, or it can be set dynamically using the Start Job activity in a workflow. References: [Starting a Job], [Job Priority]

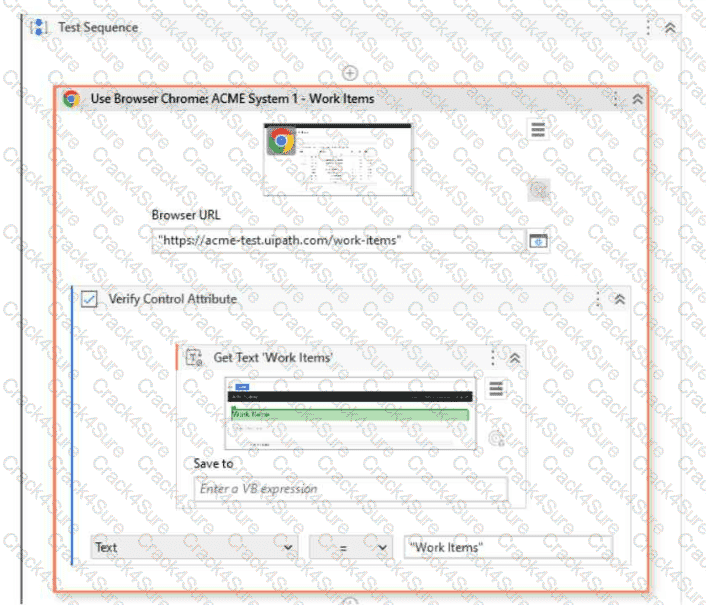

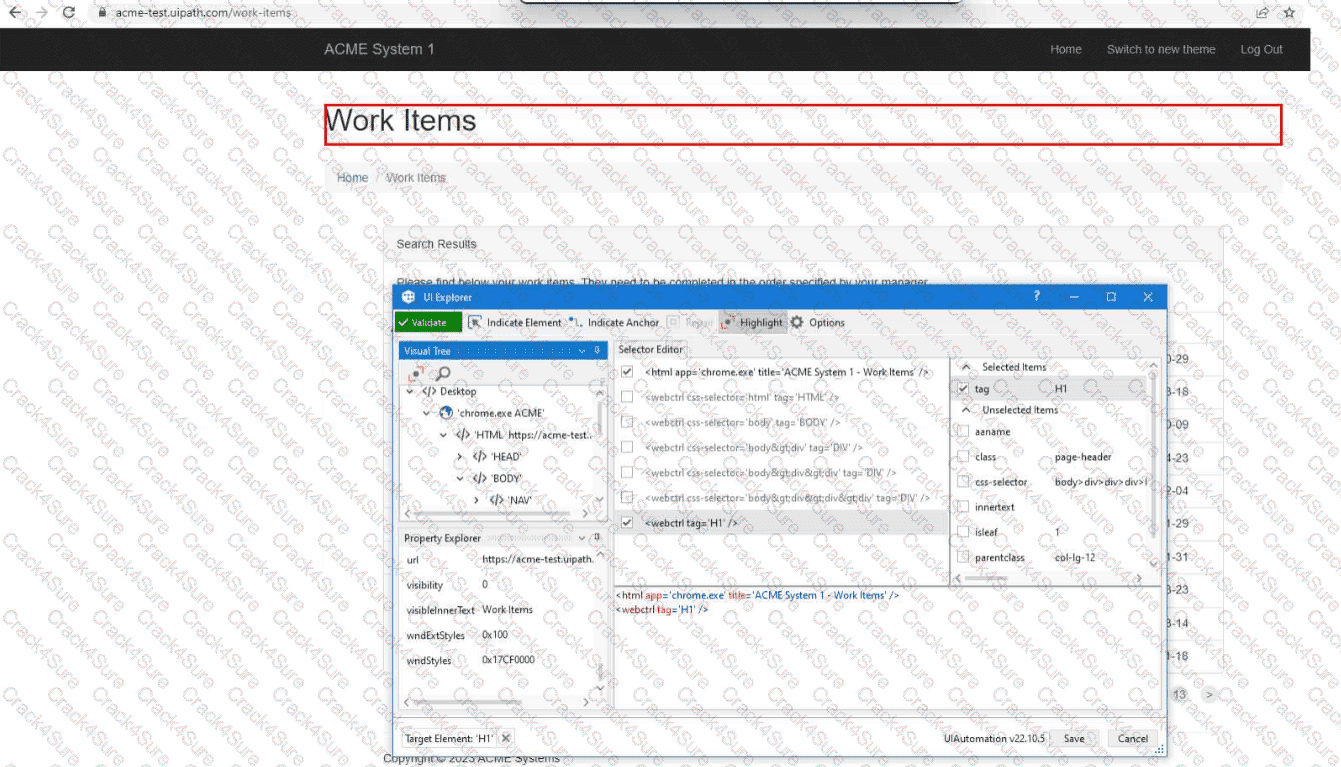

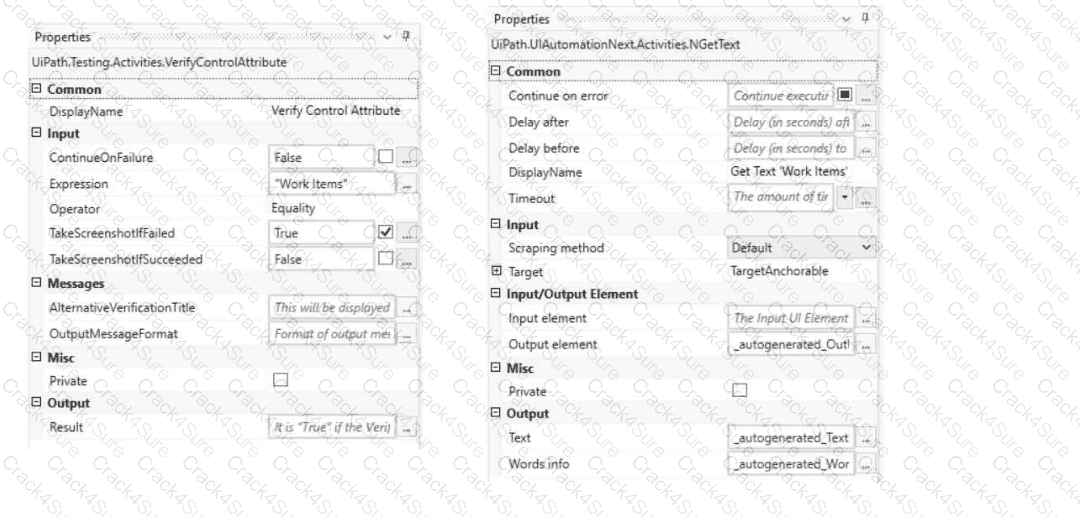

The workflow in question uses a 'Verify Control Attribute' activity to check if the text value of a UI element is equal to "Work Items". The Get Text activity is used to retrieve the text from the specified UI element, and the result of this activity is compared against the expected value "Work Items".

From the provided information, the 'Verify Control Attribute' activity has been set up with the Expression "Work Items" and the Operator set to Equality. The 'Get Text' activity is configured to extract the text from the UI element with the visible text "Work Items", as indicated by the selector shown in the image.

Since the actual value of the UI element's text is "Work Items" (which matches the expected value in the 'Verify Control Attribute' activity), and provided that the 'Get Text' activity successfully retrieves this value, the verification will pass. The configuration indicates that the activity should take a screenshot only if the verification fails (TakeScreenshotIfFailed is set to True), which will not be the case here.

Therefore, assuming that there are no other issues such as incorrect selectors or unexpected changes to the UI element at execution time, the result of the 'Verify Control Attribute' activity will be a pass.

References:

• UiPath Documentation: Verify Control Attribute Activity

A state machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered. Another important aspect of state machines are transitions, as they also enable you to add conditions based on which to jump from one state to another. These are represented by arrows or branches between states.

The Final State activity is a state machine specific activity that ends a state machine cycle. This activity contains an Entry area which holds the activities that are to be performed when the state is entered. A state machine must have one initial state and one or more final states.

The Final State activity should be used in the project when marking the successful completion or termination of a state machine’s execution. This means that the automation has reached its desired outcome or encountered an unrecoverable error, and no further actions are required. The Final State activity can also be used to perform some cleanup or logging activities before ending the state machine.

The other options are not circumstances when the Final State activity should be used in the project. Option A is incorrect, because an intermediary state can have multiple possible transitions, but it does not end the state machine cycle. Option B is incorrect, because a particular state can contain complex conditional logic, but it does not end the state machine cycle. Option C is incorrect, because the initial state is the first state of a state machine, not the final state.

References: Activities - Final State - UiPath Documentation Portal, Studio - State Machines - UiPath Documentation Portal, [State Machine Activity Designer - Microsoft Docs]

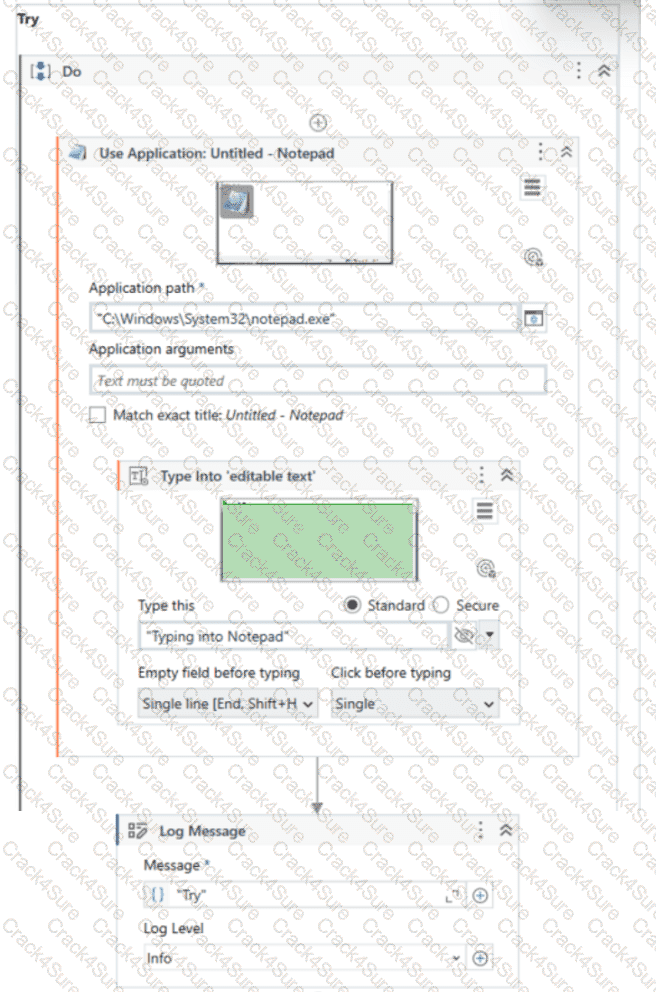

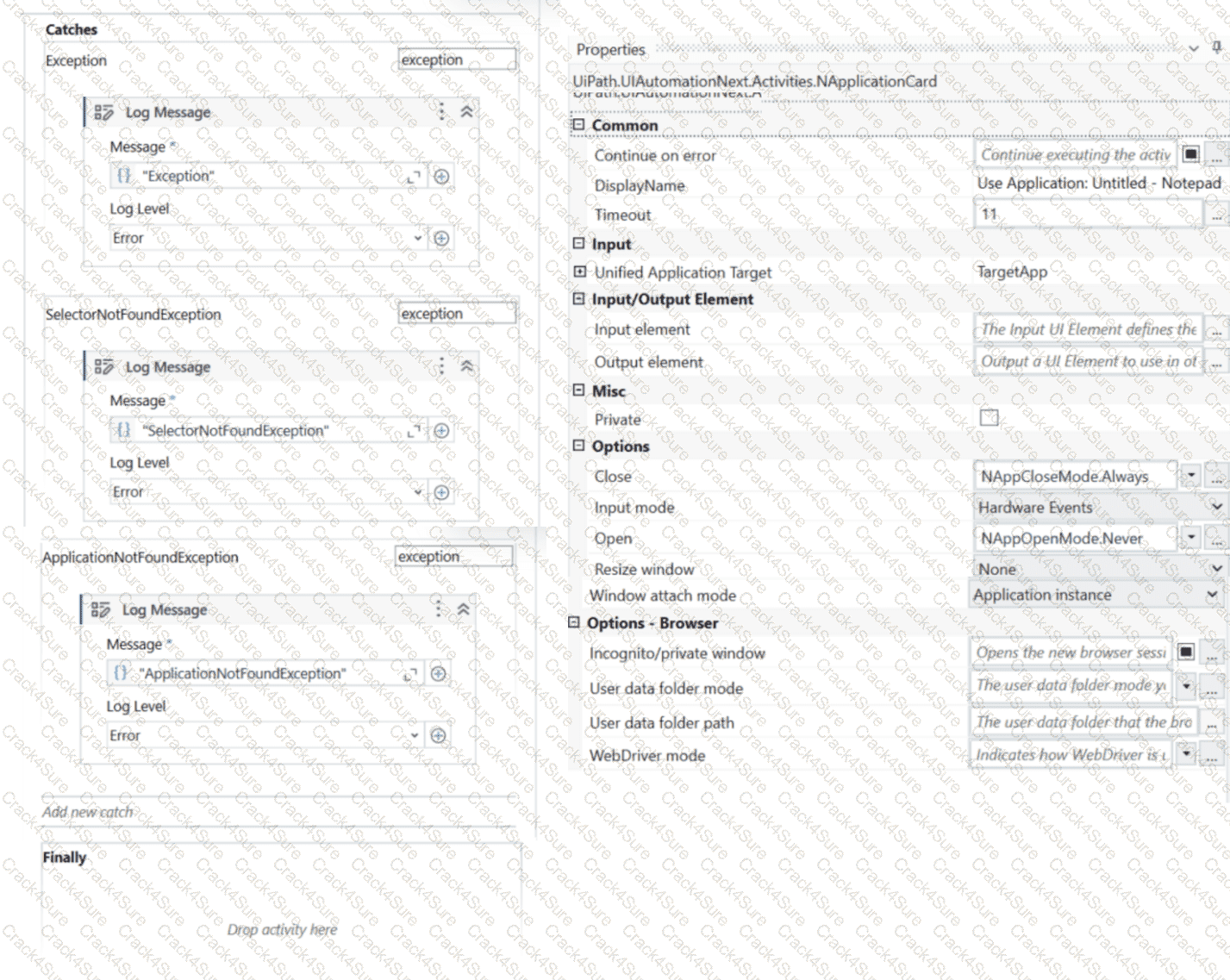

The graphics show a UiPath workflow that contains a Try Catch activity with a Type Into activity inside the Try block and a Log Message activity inside the Catch block. The Type Into activity is configured to type “Typing into Notepad” into a Notepad window with the selector “”. The Log Message activity is configured to log the exception message in the Output panel.

If the automation is executed and Notepad.exe is not running, the Type Into activity will fail to find the target UI element and throw an exception. The exception will be caught by the Catch block and the Log Message activity will log the exception message in the Output panel. The exception message will contain the name of the exception type, which is ApplicationNotFoundException. This exception is thrown when the application that is specified in the selector is not found or not running. Therefore, the Log Message text value that is contained in the Output panel is ApplicationNotFoundException.

The other options are not correct, as they are not the exception type that is thrown by the Type Into activity when the application is not running. Option A is incorrect, because Exception is a generic term for any error or problem that occurs during the execution of a program, not a specific exception type. Option C is incorrect, because Try is not an exception type, but a keyword that marks the beginning of a block of code that may throw an exception. Option D is incorrect, because SelectorNotFoundException is not an exception type, but a possible error message that is displayed when the selector is invalid or does not match any UI element.

References: Activities - Type Into - UiPath Documentation Portal, Activities - Log Message - UiPath Documentation Portal, Studio - Try Catch - UiPath Documentation Portal, UiPath.Core.Activities.ApplicationNotFoundException Class - UiPath Documentation Portal

When installing UiPath Studio, the action that requires administrator privileges is installing the robot in service mode. Service mode is a type of robot installation that allows the robot to run unattended automations in the background, without requiring a user to be logged in. Service mode requires administrator privileges because it involves installing the robot as a Windows service and registering it to the UiPathOrchestrator.msi file. Installing the robot in user mode does not require administrator privileges, because it involves installing the robot as a Windows application and registering it to the UiPathAssistant.msi file. User mode is a type of robot installation that allows the robot to run attended automations in the foreground, requiring a user to be logged in. Installing UiPath Studio itself does not require administrator privileges, because it involves installing the Studio as a Windows application and registering it to the UiPathStudio.msi file. References: [Robot Installation Modes], [Installing the Robot], [Installing Studio]

• The date is in the format "d MMM yyyy" (e.g., "3 Mar 2023").
• The correct expression is: (DateTime.Now - DateTime.ParseExact(DateString, "d MMM yyyy", CultureInfo.InvariantCulture)).Days < 7.
• This expression calculates the difference in days between the current date (DateTime.Now) and the parsed date (DateTime.ParseExact(DateString, "d MMM yyyy", CultureInfo.InvariantCulture)).
• It then checks if this difference is less than 7 days, which means the date is within the last 7 days.

LINQ (Language Integrated Query) is a feature of .NET that allows you to write queries to manipulate data from various sources, such as arrays, collections, databases, or XML files. LINQ provides a set of methods that can be used to perform different operations on the data, such as filtering, sorting, grouping, aggregating, or transforming.

The LINQ method that is used to filter data in a List or DataTable based on a condition is Where. The Where method returns a new collection that contains only the elements that satisfy the specified condition. The condition is usually a lambda expression or a delegate that takes an element as a parameter and returns a Boolean value. For example, if you have a List of integers called numbers, you can write:

var evenNumbers = numbers.Where (x => x % 2 == 0);

This expression returns a new List that contains only the even numbers from the original List. Similarly, if you have a DataTable called employees, you can write:

var highSalary = employees.AsEnumerable ().Where (row => row.Field (\"Salary\") > 100000);

This expression returns a new DataTable that contains only the rows where the Salary column is greater than 100000. The AsEnumerable () method is used to convert the DataTable into an IEnumerable, which is required for using LINQ methods.

The other options are not LINQ methods that are used to filter data in a List or DataTable based on a condition. Option A, Select, is a LINQ method that is used to project or transform data from one form to another. It returns a new collection that contains the result of applying a function to each element of the source collection. Option B, GroupBy, is a LINQ method that is used to group data by a common key or attribute. It returns a new collection that contains groups of elements that share the same key value. Option C, OrderBy, is a LINQ method that is used to sort data in ascending order by a specified criterion. It returns a new collection that contains the elements of the source collection in sorted order.

References: LINQ - Introduction - Microsoft Docs, Enumerable.Where Method (System.Linq) - Microsoft Docs, LINQ query to filter datatable - Studio - UiPath Community Forum, LINQ Tutorial - Learn - UiPath Community Forum

UiPath Integration Service is a component of the UiPath Platform that allows users to automate third-party applications using both UI and API integration. It has the following primary functions1:

• Enables automation with a library of connectors: Connectors are pre-built API integrations that provide a consistent developer experience and simplify the integration process. Users can browse and import connectors from the Connector Catalog or the UiPath Marketplace, or create their own connectors using the Connector Builder (Preview).
• Manages connections easily with standardized authentication: Users can create and manage secure connections to various applications using standardized authentication methods, such as OAuth 2.0, Basic, API Key, etc. Users can also share connections with other users, groups, or automations within the UiPath Platform.
• Kicks off automations with server-side triggers or events: Users can trigger automations based on events from external applications, such as webhooks, email, or schedules. Users can also configure parameters and filters for the events to customize the automation logic.
• Provides curated activities and events: Users can access a set of curated activities and events that are specific to each connector and application. These activities and events can be used in UiPath Studio or UiPath StudioX to design and execute automations.
• Simplifies automation design: Users can leverage the UiPath Integration Service Designer to create and test integrations in a graphical interface. Users can also import common API formats, such as Swagger, YAML, or Postman collections, to generate connectors automatically.

References:

1: Integration Service - Introduction - UiPath Documentation Portal

For a workflow that requires covering all possible cases and transitions, especially those not easily captured by loops and If statements, a State Machine layout is most suitable. It offers a flexible structure for complex workflows with numerous states.

In the Object Repository in UiPath, there are two types of elements: Local elements and library elements. Local elements are specific to a project, while library elements can be reused across multiple projects.

In a UiPath State Machine workflow, the Transitions section of the State activity is used to specify conditional/triggers logic and multiple outgoing transitions in a state machine. Transitions are expanded when you double-click them, just like the State activity. They contain three sections: Trigger, Condition and Action, that enable you to add a trigger for the next state, or add a condition under which an activity or sequence is to be executed. Transitions are represented by arrows or branches between states. They define the flow of the state machine and the rules for moving from one state to another. You can add multiple transitions from a state, but only one transition can be taken at a time, based on the trigger or condition that is met first

LINQ (Language Integrated Query) in UiPath is used for efficient data manipulation. The LINQ query 'listOfintegers.Sum(Function(x) x)' correctly demonstrates how to sum integers in a list, making use of LINQ's straightforward and readable syntax.

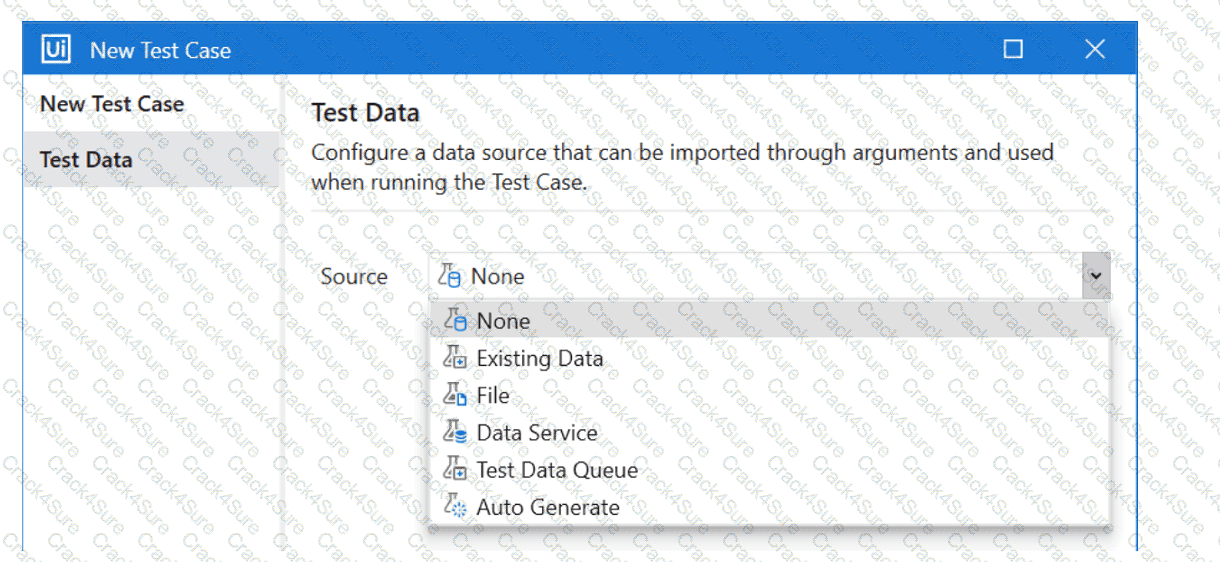

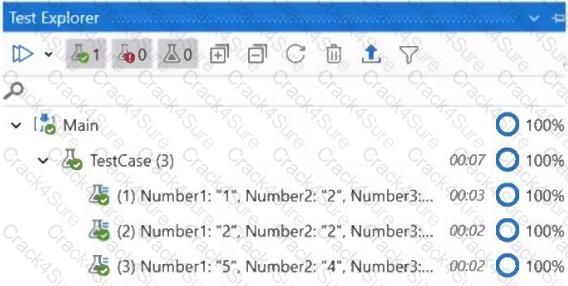

When expanding the functionality of a workflow to compute the sum of three numbers instead of two, and having to update the test data in an Excel file accordingly, you would generally need to:

• Open the Excel file that contains the test data.
• Add a new column for the third number (e.g., Number3).
• Fill in the data for the new column with the appropriate values for the test cases.
• Save the Excel file with the updated data.
• Refresh or update the data source in the test case to reflect these changes.

This is because "Refresh Test Data" suggests that the test case will re-import or re-read the test data from its source, which in this case is the updated Excel file with the additional Number3 column. "Update Test Data" might also seem appropriate, but it typically refers to a scenario where you need to update the test case's reference to the data, not the structure of the data itself. "Add Test Data" and "Remove Test Data" are not appropriate as they imply adding a new data set or removing an existing one, rather than refreshing or updating the existing data set with the new column.

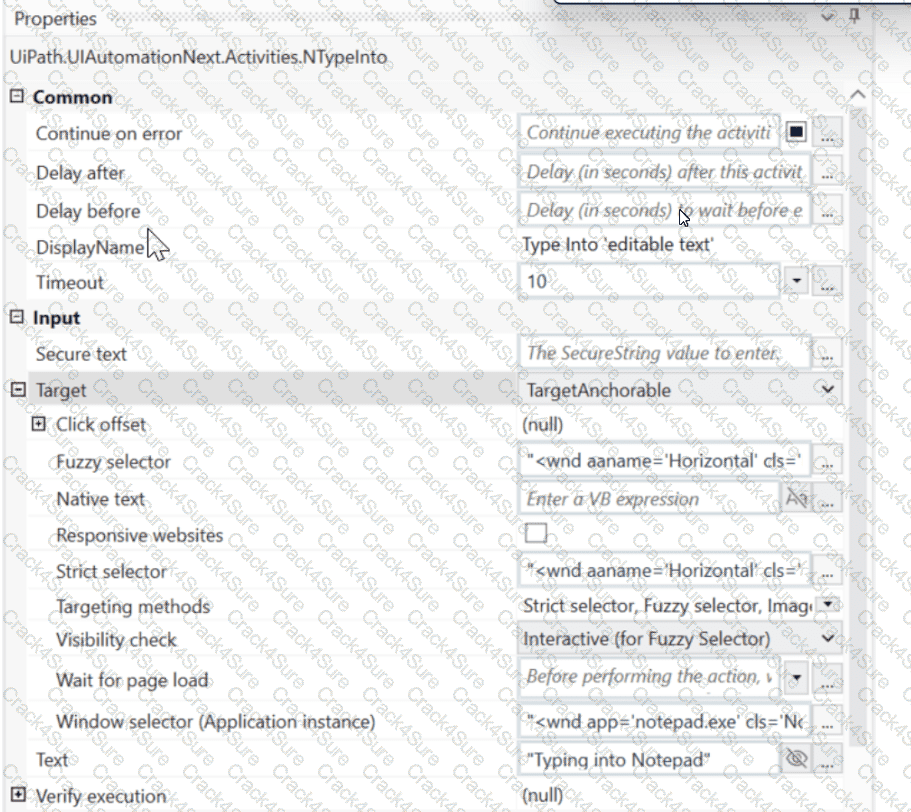

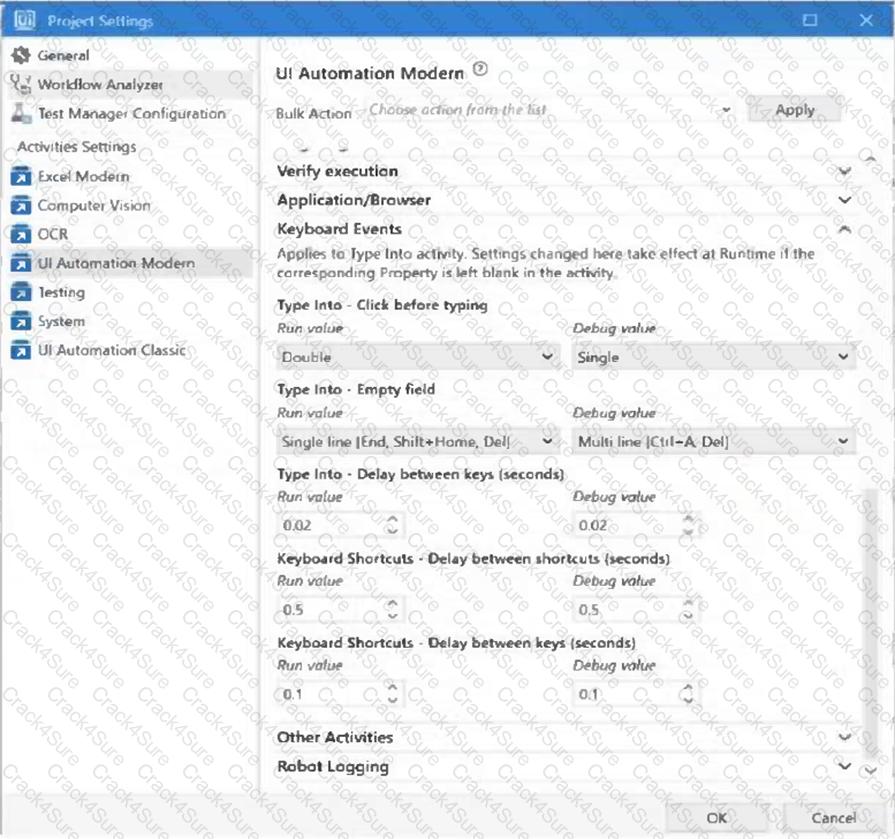

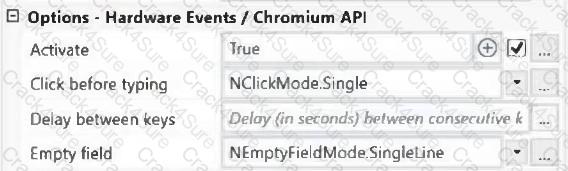

To reduce the pace at which the input string characters are typed into the fields using the Hardware Events input method, the developer should modify the Delay between keys property of the Type Into activity. This property specifies the delay time (in milliseconds) between two keystrokes. The default value is 10 milliseconds. The maximum value is 1000 milliseconds. By increasing the value of this property, the developer can slow down the typing speed and avoid any errors or missed characters. For example, if the developer sets the Delay between keys property to 100 milliseconds, the activity will wait for 0.1 seconds before typing each character of the input string. References: [Type Into], [Delay Between Keys]

The LINQ query that can be used to return the maximum total Quantity from the attached table is dt.AsEnumerable. GroupBy(Function(x) x(“Item”).ToString). Max(Function(x) x.Sum(Function(y) Convert.ToInt32(y(“Quantity”).ToString))). This query uses the LINQ methods AsEnumerable, GroupBy, Max, and Sum to manipulate the data in the dt variable. The dt variable is a DataTable that contains the following data:

No.

Item

Quantity

1

apple

10

2

orange

20

3

mango

50

4

kiwi

80

5

pear

1

6

apple

5

7

mango

15

The AsEnumerable method converts the DataTable into an Enumerable collection of DataRow objects. The GroupBy method groups the elements of the collection by the value of the Item column, creating a collection of groups. Each group has a key, which is the Item name, and a list of elements, which are the DataRows that have the same Item value. The Max method returns the maximum value of the collection, based on a selector function. The selector function is a lambda expression that calculates the sum of the Quantity column for each group. The Sum method returns the sum of the elements in a collection, based on a selector function. The selector function is a lambda expression that converts the value of the Quantity column into an integer. Therefore, the query will group the DataRows by the Item name, calculate the total Quantity for each group, and return the maximum total Quantity among the groups. The maximum total Quantity is 80, which corresponds to the group with the key “kiwi”. References: [DataTable.AsEnumerable Method], [Enumerable.GroupBy Method], [Enumerable.Max Method], [Enumerable.Sum Method]

The DataTable object in UiPath is a representation of a table with rows and columns that can store data of various types. It has a Columns property that returns a collection of DataColumn objects that describe the schema of the table1. To extract the column names from a DataTable and store them in a list, you can use the following query:

dt.Columns.Cast(Of Datacolumn).Select(function(x) x.ColumnName).ToList()

This query does the following:

• It casts the Columns collection to a generic IEnumerable(Of DataColumn) using the Cast(Of T) extension method2. This is necessary because the Columns collection is a non-generic IEnumerable that cannot be used with LINQ methods directly3.
• It selects the ColumnName property of each DataColumn object using the Select extension method and a lambda expression4. The ColumnName property returns the name of the column as a string5.
• It converts the resulting IEnumerable(Of String) to a List(Of String) using the ToList extension method6.

The other options are incorrect because:

• Option B does not cast the Columns collection to a generic IEnumerable(Of DataColumn), which will cause a runtime error.
• Option C uses the AsEnumerable extension method, which returns a collection of DataRow objects, not DataColumn objects7. Therefore, the ColumnName property will not be available.
• Option D selects the whole DataColumn object instead of its ColumnName property, which will result in a list of DataColumn objects, not strings.

References:

• DataTable Class (System.Data) | Microsoft Docs
• Enumerable.Cast(Of TResult) Method (System.Linq) | Microsoft Docs
• DataColumnCollection Class (System.Data) | Microsoft Docs
• Enumerable.Select(Of TSource, TResult) Method (System.Linq) | Microsoft Docs
• DataColumn.ColumnName Property (System.Data) | Microsoft Docs
• Enumerable.ToList(Of TSource) Method (System.Linq) | Microsoft Docs
• DataTableExtensions.AsEnumerable Method (System.Data) | Microsoft Docs

Converting a process into a background process in UiPath is accomplished by ensuring the process does not contain UI interaction and setting the "Starts in Background" toggle to Yes in the Project Settings. This is crucial for processes meant to run without user interface interaction.

The Test Explorer panel in UiPath Studio shows information relevant to test automation, such as test cases, test results, and activity coverage1. You can use the Test Explorer toolbar to filter test results based on result state, and to run or debug test cases using various options1. According to the UiPath documentation12, the available actions in Test Explorer are:

• Refresh: Refresh the information shown in the Test Results panel.
• Clear execution results: Clear all execution results shown in the Test Explorer Panel.
• Run All in View: Run tests that are currently in view through all filters.
• Run All: Run all test cases and workflows.
• Run Selected: Run only selected test cases and workflows.
• Run Failed Test Cases: Run only failed test cases.
• Debug Selected: Debug only selected test cases and workflows.
• Debug Failed Test Cases: Debug only failed test cases.
• Repeat Last Test Run: Run the latest test.
• Passed Test Cases: Show only test cases that have passed.
• Failed Test Cases: Show only test cases that have failed.
• Not Executed Test Cases: Show only test cases that have not been executed.
• Filter by Covered/Uncovered Activities: Choose whether to show in the Designer panel the activities that have been covered during the execution.
• Filter by Test Cases/Workflows: Choose what to show in the Test Explorer panel.
• Search Tests: Use the search function to look for test case names.

As you can see, there is no action called Run Passed Test Cases in Test Explorer, so this is the correct answer to the question.

References:

• Studio - Test Explorer - UiPath Documentation Portal
• Studio - Test Activities - UiPath Documentation Portal
• Studio - Test Explorer - UiPath Documentation Portal

The Today property of the DateTime structure returns the current date with the time component set to zero1. The Subtract method of the DateTime structure returns a new DateTime object that is the result of subtracting a specified time interval from this instance2. The TimeSpan structure represents a time interval that can be expressed in days, hours, minutes, seconds, and milliseconds3.

Option D is the correct way to subtract a specific TimeSpan from Today in VB.NET. For example, the following code snippet subtracts one day and two hours from the current date and displays the result:

Dim ts As New TimeSpan (1, 2, 0, 0) ' One day and two hours

Dim result As DateTime = Today.Subtract (ts) ' Subtract from Today

Console.WriteLine (result.ToString ("d")) ' Display the result

Option A is not valid, because there is no SubtractSpanFrom method in the DateTime structure. Option B is not correct, because it subtracts the TimeSpan from the current date and time, not just the date. Option C is not valid, because there is no SubtractUsingDate method in the DateTime structure.

References: 1: DateTime.Today Property (System) 2: DateTime.Subtract Method (System) 3: TimeSpan Structure (System)

The collection variable type that will cause an error when adding a new filename to the collection is System.Array. This is because System.Array is a fixed-size collection that cannot be resized or modified once it is initialized. Therefore, if the collection is initialized with a single filename, it cannot accommodate any more filenames. To add a new filename to the collection, the developer should use a dynamic collection type, such as System.Collections.Generic.List or System.Data.DataTable, that can grow or shrink as needed. Alternatively, the developer can use System.Collections.Generic.Dictionary if the filenames need to be associated with some keys or values. References: [Array Class], [Collection Classes]

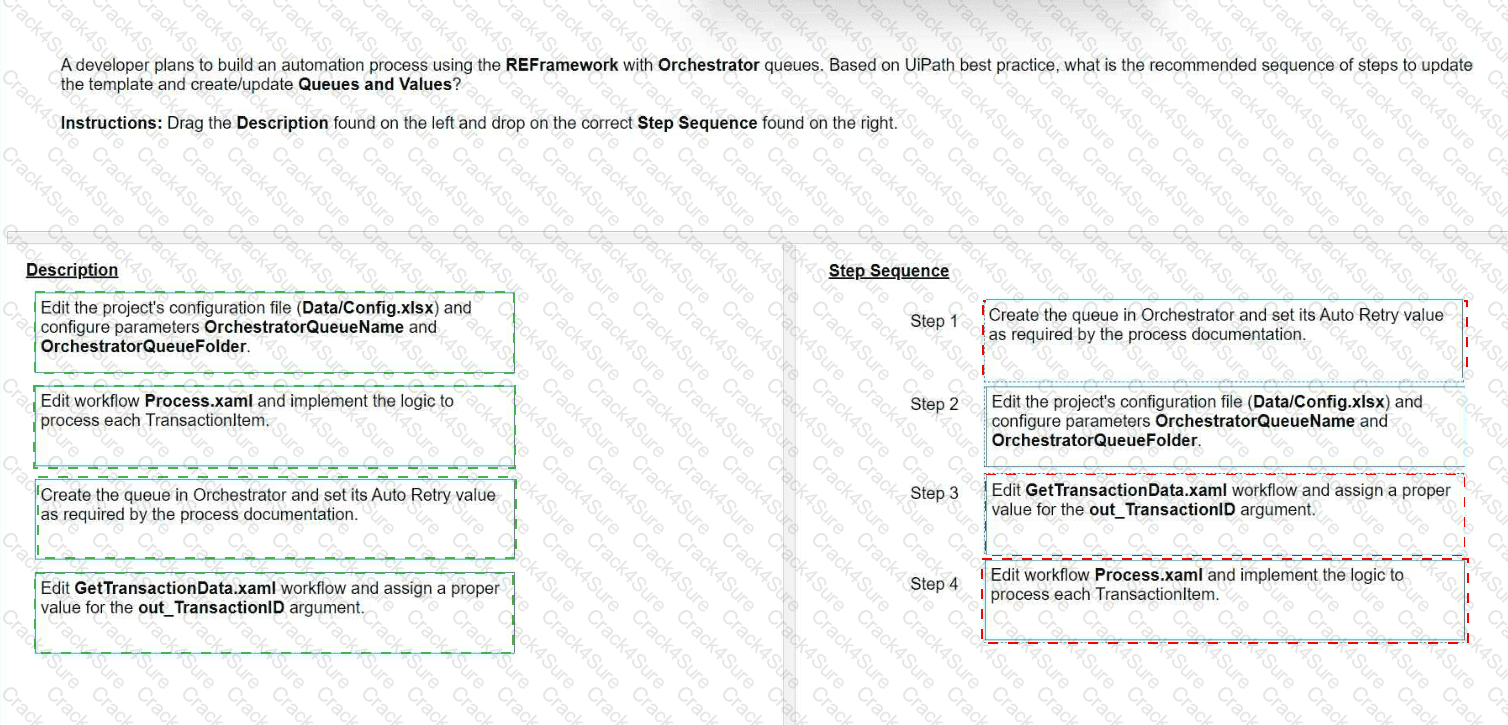

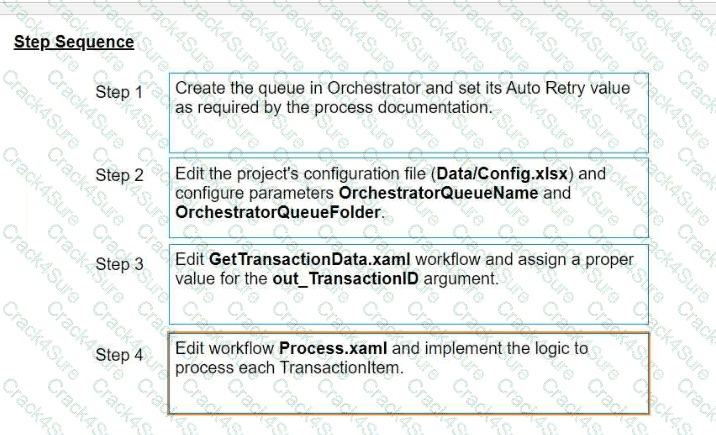

The REFramework (Robotic Enterprise Framework) is a template that provides a standard structure and best practices for building automation projects using UiPath Studio1. It uses the State Machine workflow type to handle different scenarios and exceptions in a robust and scalable way2. One of the states in the REFramework is the Get Transaction Data state, which is responsible for fetching the next transaction item from the Orchestrator queue and assigning it to a variable3. The Orchestrator queue is a data structure that stores multiple items that need to be processed by the robots4. The queue can be organized into folders, which are logical containers that help group and manage the queues and other Orchestrator entities5.

If a developer implemented a process using the REFramework and an Orchestrator queue, they need to specify the name of the queue and the folder where it is located in the Config.xlsx file, which is an Excel workbook that stores the configuration settings and constants for the project6. The name of the queue should be entered in the Settings sheet, under the OrchestratorQueueName key, and the name of the folder should be entered in the Constants sheet, under the OrchestratorQueueFolder key6. These values are then read by the InitAllSettings workflow, which is invoked in the Init state of the REFramework, and assigned to the in_Config argument, which is a dictionary that holds all the configuration data7.

At runtime, the Get Transaction Data state invokes the GetTransactionData workflow, which takes the in_Config argument as an input and uses it to get the queue item from the Orchestrator queue8. The workflow uses the Get Queue Items activity, which requires the QueueName and FolderPath properties to be specified9. The QueueName property is set to in_Config(“OrchestratorQueueName”).ToString, and the FolderPath property is set to in_Config(“OrchestratorQueueFolder”).ToString8. If the folder specified in the Config.xlsx file does not exist in Orchestrator, the Get Queue Items activity will throw an exception with the message “Folder does not exist” and the process will be stopped10. Therefore, the correct answer is B. The process throws an exception in the “Get Transaction Data” state because the queue folder is not found, and then the process is stopped.

The other options are incorrect because:

• Option A is incorrect because the process will not continue if the queue folder is missing. The Get Queue Items activity will fail and the exception will be caught by the Try Catch block in the GetTransactionData workflow, which will set the out_TransactionItem argument to Nothing and the out_TransactionID argument to "No more data"8. This will cause the transition condition from the Get Transaction Data state to the Process Transaction state to evaluate to False, and the transition condition from the Get Transaction Data state to the End Process state to evaluate to True3. The End Process state will invoke the SetTransactionStatus workflow, which will log the exception message and the process will be stopped11.
• Option C is incorrect because an exception will be thrown and a message will be logged if the queue folder is missing. The exception will be thrown by the Get Queue Items activity, as explained above, and the message will be logged by the SetTransactionStatus workflow, which uses the Log Message activity to write the exception message to the Output panel and the Orchestrator logs11.
• Option D is incorrect because the process will not reach the Process Transaction state if the queue folder is missing. The Process Transaction state is responsible for executing the business logic for each transaction item and invoking the SetTransactionStatus workflow to update the status of the item in the Orchestrator queue12. However, if the queue folder is missing, the Get Queue Items activity will throw an exception and the out_TransactionItem argument will be set to Nothing, which will prevent the transition from the Get Transaction Data state to the Process Transaction state83.

References:

• Studio - Robotic Enterprise Framework Template - UiPath Documentation Portal
• Studio - State Machines - UiPath Documentation Portal
• Studio - REFramework - UiPath Documentation Portal
• Orchestrator - Queues - UiPath Documentation Portal
• Orchestrator - Folders - UiPath Documentation Portal
• Studio - Config File - UiPath Documentation Portal
• Studio - InitAllSettings - UiPath Documentation Portal
• Studio - GetTransactionData - UiPath Documentation Portal
• Activities - Get Queue Items - UiPath Documentation Portal
• Orchestrator - Troubleshooting - UiPath Documentation Portal
• Studio - SetTransactionStatus - UiPath Documentation Portal
• Studio - Process Transaction - UiPath Documentation Portal

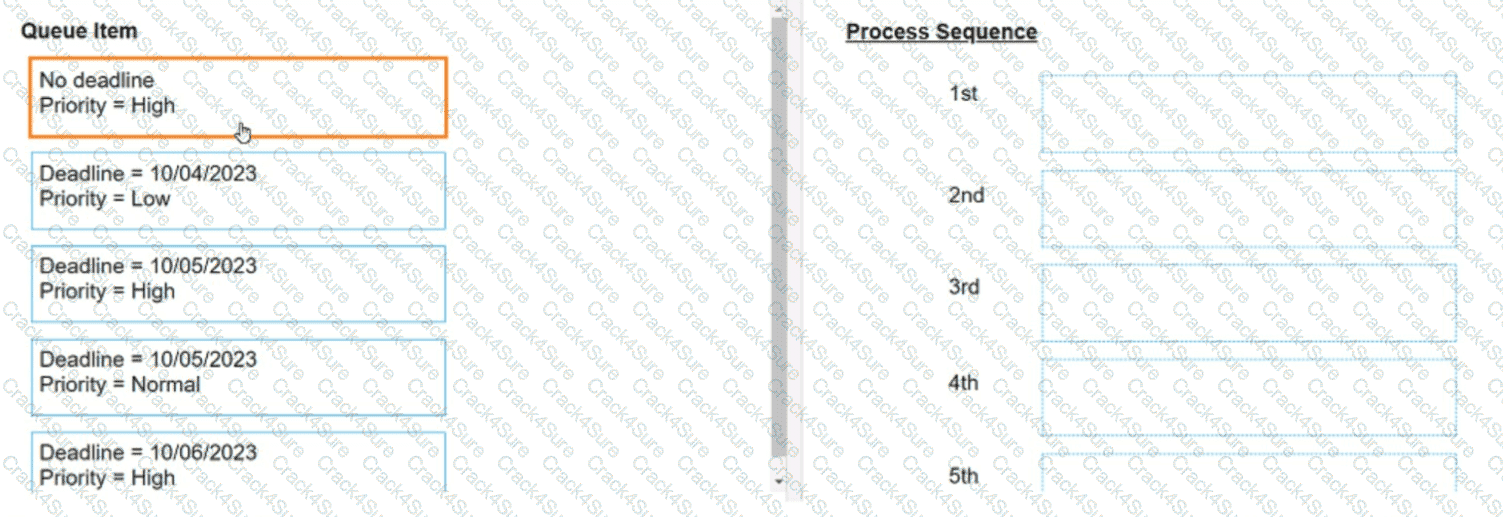

In UiPath Orchestrator, the Job Priority Levels feature allows operators to assign priority to jobs in a queue, thereby dictating their execution sequence based on their importance.

Test Explorer is a panel that shows information relevant to test automation in UiPath Studio. You can use Test Explorer and its sub-panels to perform various actions, such as1:

• Export test results: You can export the test results shown in the Test Results panel to a JSON or HTML file, which can be used for further analysis or reporting.
• Group tests together: You can group tests together based on different criteria, such as test type, test status, test suite, etc. This helps you organize and filter the tests in the Test Explorer panel.
• Analyze activity coverage: You can analyze the activity coverage of your test cases by using the Activity Coverage panel, which shows the percentage of activities that have been executed during the test run. You can also filter the activities by covered or uncovered in the Designer panel.

The other options are not actions that can be done in Test Explorer, because they either involve features that are not part of Test Explorer, or they are not related to test automation. For example:

• Option A is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.
• Option B is incorrect, because Test Explorer does not have a feature to perform debugging, but only to run or retry tests. Debugging can be done by using the Debug tab in Studio, which allows you to set breakpoints, inspect variables, and step through the workflow.
• Option D is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

References:

1: Studio - Test Explorer - UiPath Documentation Portal

In the REFramework using Orchestrator queues, the status of each Transaction Item in the queue is updated in two states: 'Get Transaction Data' and 'Process Transaction'. This ensures proper tracking and processing of each item.

To ensure that all UI Automation activities within project workflows reference elements from the Object Repository, the 'Object Repository Enforced' option should be set to Yes in the 'UI Automation Modern' tab within the Project Settings window. This setting enforces the use of the Object Repository for UI activities.

The purpose of the Interval filter in the Orchestrator’s Monitoring page is to allow you to control the granularity of the displayed data and check the health of your system in either the last day or the last hour. The Monitoring page provides various metrics and charts that show the status and performance of your robots, processes, queues, and transactions. The Interval filter lets you choose the time frame for the data that you want to see. You can select either the last day or the last hour as the interval. The data will be updated accordingly and show you the trends and changes in your system over the selected period. This can help you identify any issues or anomalies and take corrective actions if needed.

The Show Elements button in the Computer Vision wizard is used to highlight all UI elements that have been identified by the Computer Vision analysis. This helps you to see the UI elements that are available for automation and to select the ones that you want to use in your activities. The Show Elements button is located in the top-right corner of the Computer Vision wizard. When you click it, the UI elements are highlighted with different colors and shapes, depending on their type and category. You can hover over each UI element to see its name and properties. You can also use the Filter Elements button to filter out specific UI elements from being processed by the Computer Vision engine.

Mock Testing is a concept that allows you to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Mock Testing enables you to create a mock file of your workflow by selecting Mock workflow under test in the Create Test Case window. This creates a copy of your workflow with the name workflowName_mock and stores it in Project > Mocks. This folder mirrors the source workflow file tree structure. In the mock file, you can use the Surround with mock option to insert a mock activity that replaces the original input activity. For example, instead of asking the user to input a specific token, you can use a mock activity that assigns a predefined token value to a variable. This way, you can test the specific function of the process without having to enter the token manually every time. Mock Testing is useful for tests that have permanent effects in production or require special resources1.

The other options are incorrect because:

• Option A is incorrect because Application Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Application Testing is a type of testing that focuses on verifying the functionality, usability, performance, and security of an application2.
• Option B is incorrect because Data-Driven Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. Data-Driven Testing is a type of testing that uses external data sources, such as Excel files or databases, to provide input values and expected results for the test cases3.
• Option D is incorrect because RPA Testing is not a concept that can be used to isolate and replace the input part of an attended RPA process, without modifying the original workflow. RPA Testing is a type of testing that involves using robots to automate the testing of other robots or applications.

References:

• Studio - Mock Testing - UiPath Documentation Portal
• Application Testing - UiPath Documentation Portal
• Data-Driven Testing - UiPath Documentation Portal
• [RPA Testing - UiPath Documentation Portal]

Server-side event triggers in UiPath Integration Service are used to automatically start UiPath processes in response to certain events, like data updates, insertions, or deletions in other systems. This allows for a high level of automation integration.

The transaction will be retried only one time because the MaxRetryNumber from the “Config.xlsx” file is set to “1”. This parameter determines how many times a transaction item is retried when it fails with an application or a business exception. The Max # of retries from the Queue settings from Orchestrator is set to “2”, but this parameter only applies to the queue items that are marked as “Retry” by the robot. In the Robotic Enterprise Framework, the SetTransactionStatus workflow marks the queue items as “Retry” only if the MaxRetryNumber is not reached. Therefore, the first transaction item will be retried once by the robot and then marked as “Failed” in the queue, regardless of the Orchestrator setting.

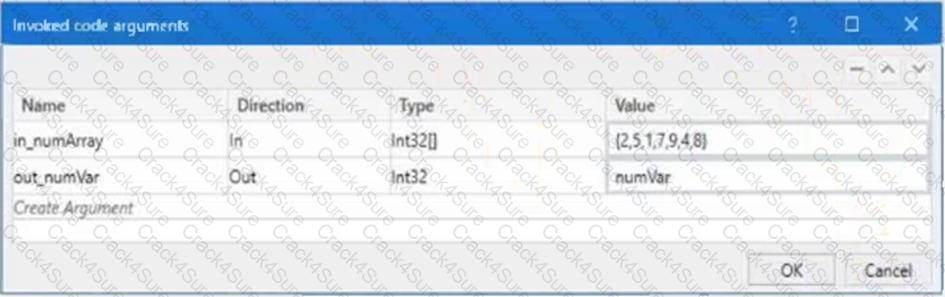

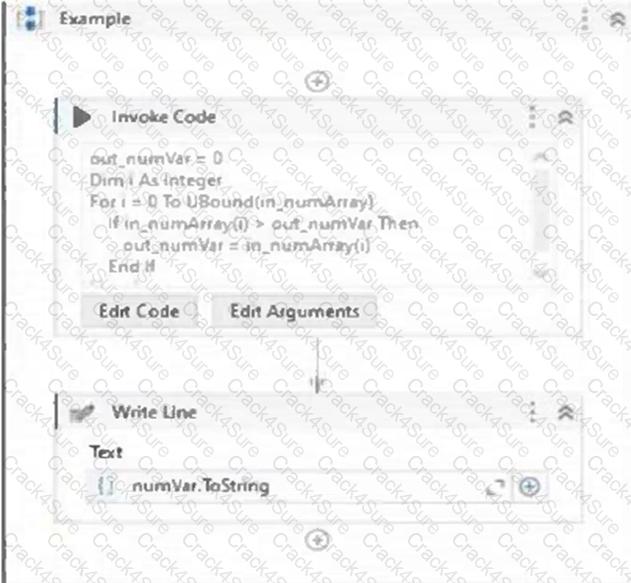

The purpose of the Invoke Code activity in UiPath is to invoke VB.NET or C# code, optionally passing it a list of input arguments. The Invoke Code activity allows the developer to write and execute custom code in VB.NET or C# within a UiPath workflow. The Invoke Code activity has a Code property, where the developer can enter the code to be executed. The Invoke Code activity also has an Arguments property, where the developer can specify the input and output arguments for the code. The Invoke Code activity can be useful for performing complex calculations, manipulating data, or integrating with external libraries or applications that are not supported by the existing UiPath activities. References: [Invoke Code]

The correct syntax for using the Vb.Net If operator is If(condition1, valueIfTrue, valueIfFalse). The If operator is a ternary operator that returns one of two values, depending on whether the condition is true or false. The condition must be a Boolean expression or a data type that can be implicitly converted to Boolean. The valueIfTrue and valueIfFalse arguments can be any data type, but they must be the same or implicitly convertible to a common type. The If operator uses short-circuit evaluation, which means that it only evaluates the argument that corresponds to the result of the condition. For example, the following expression returns “Positive” if the variable number is greater than or equal to zero, and “Negative” otherwise:

VB Dim result As String = If(number >= 0, “Positive”, “Negative”) References: [If Operator], [Ternary Operator]

Given the array "arrayOfPointsGainedByParticipant" with values {"7", "4", "1"}, at runtime, 'arrayOfPointsGainedByParticipant(1)' would return the value '4' with the data type 'String'. Arrays in .NET, which UiPath uses, are zero-indexed.

An Application Exception typically refers to errors arising from technical issues with applications, such as non-responsiveness or crashes. These exceptions are not related to the logic or data used by the application but are due to the application's functioning itself.

The out_TransactionItem argument is an output argument of the GetTransactionData workflow, which is used to store the data of the current transaction item1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework is designed for transactional processes, which are processes that handle multiple items of data in a loop3. However, it can also be adapted for linear processes, which are processes that execute a sequence of actions only once.

To use the REFramework for a linear process, the out_TransactionItem argument should be set to Nothing the first time when it enters the Get Transaction Data state. This will ensure that the process will not enter the Get Transaction Data state again, as the condition for the transition from the Get Transaction Data state to the Process Transaction state is out_TransactionItem isNot Nothing1. Setting the out_TransactionItem argument to Nothing will also trigger the End Process state, which will perform the final actions and close the application1.

Option A is incorrect, because the process will enter the Get Transaction Data state even if it is a linear process, as it is the first state in the REFramework. Option B is incorrect, because there is no queue item in a linear process, as there is only one item of data to be processed. Option D is incorrect, because setting the out_TransactionItem argument to a static value will cause the process to enter the Get Transaction Data state repeatedly, as the condition for the transition will always be true.

References: 1: The UiPath ReFramework 2: State Machine 3: Transactional Business Process : [Linear Business Process]

A linear process in UiPath is a type of process that is executed only once and does not involve any looping or branching logic. It is suitable for simple scenarios where the input data is fixed and the output is predictable. A linear process can be designed using a Sequence or a Flowchart diagram, but it does not use any Flow Decision, Switch, While, Do While, or For Each activity. If the process needs to process additional data, then the automation must be executed again with the new data as input. References: Framework for linear process or single transaction, How to modify ReFramework to Linear Process, Workflow Design, Difference between Linear process and Transactional process

In the context of a linear process, implemented with REFramework, the process will enter the Get Transaction Data state only 1 time. This is because the Get Transaction Data state is responsible for fetching the next transaction item from the data source and assigning it to the TransactionItem variable. In a linear process, there is only one transaction item that represents the entire process, and it is fetched at the beginning of the execution. Therefore, the process will enter the Get Transaction Data state only once, and then move to the Process Transaction state, where the main logic of the process is executed. The process will not return to the Get Transaction Data state, unless there is an exception or a retry in the Process Transaction state. References: [Robotic Enterprise Framework], [REFramework for Linear Processes]

on the prerequisite for performing Remote Debugging using an Unattended Robot connection:

• The prerequisite is that Studio and the remote robot must be connected to the same Orchestrator tenant. This ensures that Studio can communicate with the remote robot for debugging purposes. While having the same version and TCP/IP connectivity is beneficial, the key requirement for remote debugging is the connection to the same Orchestrator tenant.

A sequential process is a type of process design that executes actions in a straightforward progression without iteration or branching. A sequential process is composed of a series of activities that are executed one after another, from top to bottom, in a linear fashion. A sequential process is best suited for simple scenarios when activities follow each other and there is no need for complex logic or decision making12.

The other options are not appropriate for an automation task that executes actions in a straightforward progression without iteration or branching, because they involve different types of process design that require more complex structures and logic. For example:

• A transactional process is a type of process design that executes actions on a set of data items, one at a time, in a loop. A transactional process is composed of a dispatcher that adds data items to a queue, and a performer that processes each data item from the queue and updates its status. A transactional process is best suited for scenarios when activities need to be repeated for each data item and there is a need for reliability and scalability34.
• An iterative process is a type of process design that executes actions repeatedly until a certain condition is met or a certain number of iterations is reached. An iterative process is composed of a loop that contains a set of activities and a condition that controls the exit of the loop. An iterative process is best suited for scenarios when activities need to be performed multiple times and there is a need for dynamic control of the execution flow56.
• A linear process is not a type of process design, but a term that refers to a process that has a clear start and end point, and a well-defined sequence of steps that lead to a specific outcome. A linear process can be implemented using different types of process design, depending on the complexity and logic of the steps involved7.

References:

1: Studio - Workflow Design - UiPath Documentation Portal 2: Studio - Sequence - UiPath Activities 3: Studio - Transactional Business Process - UiPath Documentation Portal 4: Studio - Transactional Process - UiPath Activities 5: Studio - Control Flow - UiPath Documentation Portal 6: Studio - Loops - UiPath Activities 7: What is a Linear Process? - Definition from Techopedia

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject”" like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’" will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

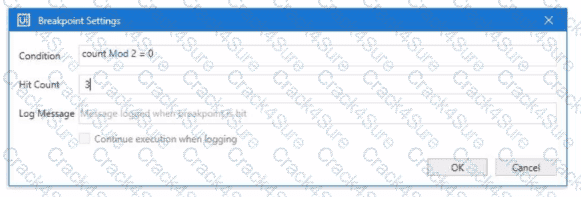

The Log Message option in the Breakpoint Settings allows the user to log custom information at each breakpoint while executing a process in Debug mode. This option can be accessed by right-clicking on a breakpoint and selecting Breakpoint Settings. The user can then enter a message that will be logged in the Output panel when the breakpoint is hit. The message can include variables, arguments, and pseudovariables, such as $PID, $TID, $FUNCTION, etc1

Option B is not recommended, because it requires the user to insert a Log Message activity before each activity with a breakpoint, which can be tedious and clutter the workflow. Option C is not relevant, because it enables or disables logging for all activities in the project, not just the breakpoints. Option D is not related, because it shows the execution flow of the process, not the custom information at each breakpoint.

References: 1: Studio - The Breakpoints Panel

In UiPath Studio, you can use DateTime and TimeSpan variables to store and manipulate date and time values. A DateTime variable represents a specific point in time, such as the current date and time, or a date in the past or future. A TimeSpan variable represents a time interval, such as one hour, two days, or three weeks.

To subtract a specific amount of time from the current date using DateTime and TimeSpan variables in VB.NET, you can use the Add method on the DateTime variable and pass a negative TimeSpan value. For example, if you have a DateTime variable called Today that stores the current date and time, and a TimeSpan variable called Span that stores the time interval you want to subtract, you can write:

Today.Add(-Span)

This expression returns a new DateTime value that is the result of subtracting the Span value from the Today value. For example, if Today is 2024-02-08 10:51:49 and Span is 1.02:10:04, then the expression returns 2024-02-07 08:41:45.

The other options are not correct ways of subtracting a TimeSpan value from a DateTime value in VB.NET. Option A is invalid, because you cannot multiply a TimeSpan value by a number. Option B is incorrect, because the Subtract method on the DateTime variable returns a TimeSpan value, not a DateTime value. Option D is incorrect, because the Now property is not a method, and it cannot take a TimeSpan value as an argument.

References: Variables - Date and Time Variables - UiPath Documentation Portal, DateTime.Add Method (System) - Microsoft Docs, DateTime.Subtract Method (System) - Microsoft Docs, Date and Time Arithmetic - UiPath Community Forum

The behavior of the Type Into activity when executing the workflow is that the activity will remove a Single Line in Run mode and Multi Line in Debug mode. This is because the activity has the Empty field property set to NEmptyFieldMode.SingleLine, which means that the activity will delete the existing content in the field by sending Ctrl+A and Delete keystrokes before typing the text. However, the activity also has the Debug mode property set to NEmptyFieldMode.MultiLine, which means that the activity will delete the existing content in the field by sending Ctrl+A, Shift+Home, and Delete keystrokes before typing the text. The Debug mode property overrides the Empty field property when the workflow is executed in Debug mode. Therefore, the activity will use different keystrokes to empty the field depending on the mode of execution. References: [Type Into], [Empty Field], [Debug Mode]
