2V0-11.25 Practice Exam Questions with Answers VMware Cloud Foundation 5.2 Administrator Certification

To assign roles to users or groups in vCenter, you first need to navigate to the vSphere Client and select the object (such as a datacenter, cluster, or host) where the permissions will be applied.

After selecting the object, you use the 'Add Permission' option from the context menu to start the process of assigning permissions.

You then select the role you want to assign, which will be from the predefined list of roles in vCenter. These roles define the level of access for the user or group.

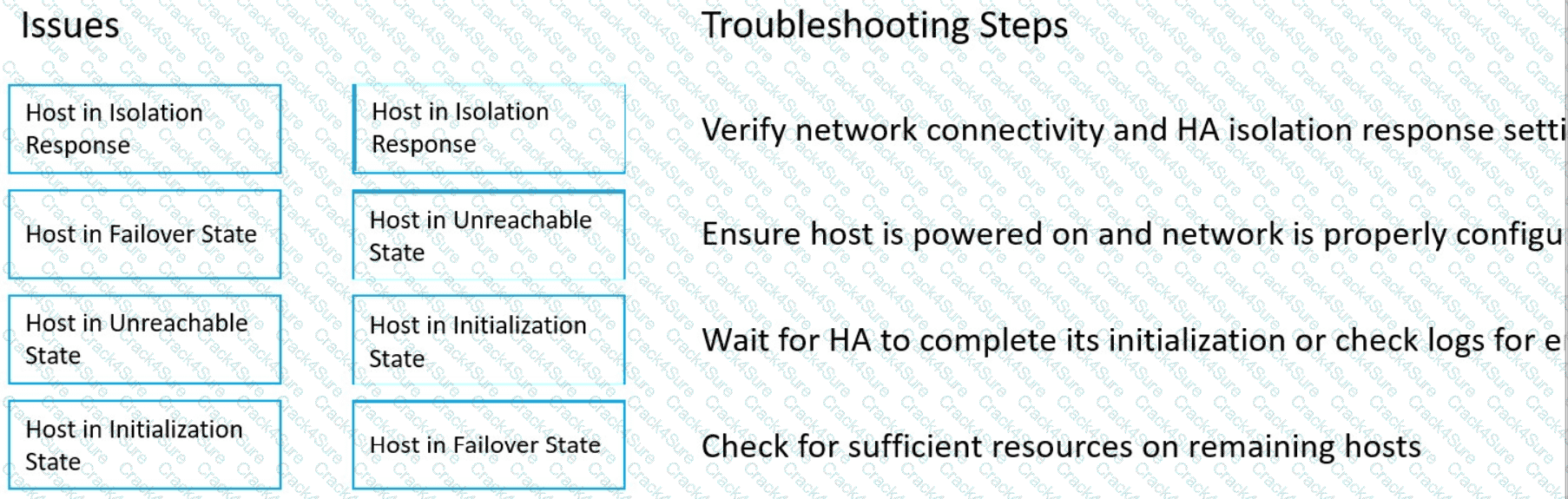

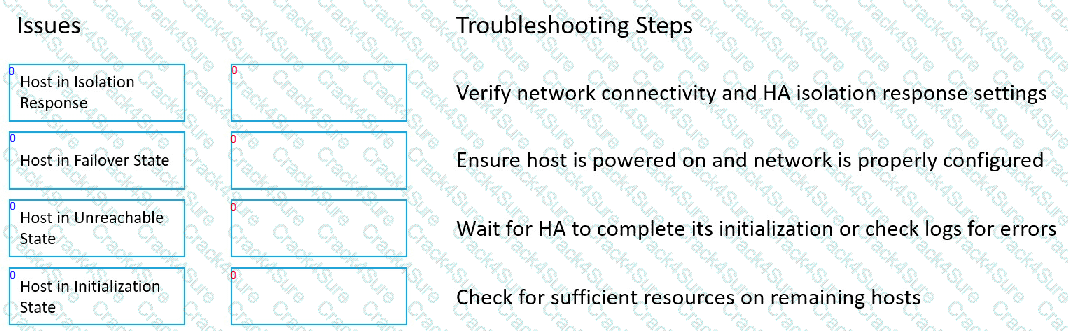

When an ESXi host is in a "Not Responding" state in VMware Cloud Foundation, the first step in troubleshooting is to check the network connectivity between the ESXi host and the SDDC Manager. Network issues (e.g., misconfigured VLANs, firewall settings, or network outages) are often the primary cause of communication problems between SDDC Manager and the ESXi host.

When expanding a VMware Cloud Foundation environment with a new workload domain, you have the flexibility to either configure a dedicated NSX Fabric for the new domain or join an existing NSX Fabric from either the management domain or a previously established VI workload domain. This allows for consistent and scalable network virtualization across multiple domains in the environment.

VMware Lifecycle Manager (vLCM) enables administrators to manage the lifecycle of ESXi hosts by applying a consistent image across the hosts in a cluster. These images include the ESXi version, firmware, drivers, and settings, ensuring consistency and simplifying updates and patches across all hosts in a cluster.

Comprehensive and Detailed Explanation From Exact Extract:

According to the VMware Cloud Foundation 5.2 Planning and Preparation Guide and the VMware NSX-T Data Center Installation Guide, the following are critical prerequisites before deploying an NSX Edge cluster in a VCF environment:

B. Verify that the NSX host overlay VLAN and NSX Edge overlay VLAN are routed to each other.

Exact Extract:

“The NSX host overlay network and the NSX Edge overlay network must be able to route traffic between each other to allow tunnel establishment and VM-to-edge connectivity.”

(VMware NSX-T Data Center Installation Guide, VMware Cloud Foundation Planning and Preparation Guide)

C. Create DNS entries for the NSX Edge nodes.

Exact Extract:

“You must create forward and reverse DNS records for each NSX Edge node before deployment. DNS resolution is required for NSX Manager and general network functionality.”

(VMware Cloud Foundation Planning and Preparation Guide)

D. Use separate VLAN IDs and subnets for the NSX host overlay and NSX Edge overlay networks.

Exact Extract:

“The NSX host overlay and the NSX Edge overlay must be on different VLANs and subnets to ensure proper logical separation and traffic flow within the NSX infrastructure.”

(VMware NSX-T Data Center Installation Guide, VMware Cloud Foundation Planning and Preparation Guide)

Why Not the Other Options?

A: vSAN storage policies for Edge VMs are not a documented prerequisite for Edge deployment.

E: BGP configuration is required at a later stage for north-south routing, but not as a deployment prerequisite.

F: Aria Operations is optional and used for monitoring, not a deployment prerequisite.

Summary:

Before deploying an NSX Edge cluster in a VCF environment, you must:

Ensure routing between NSX host and Edge overlay VLANs (B),

Create DNS entries for the NSX Edge nodes (C),

Use separate VLAN IDs and subnets for host and Edge overlays (D).

These prerequisites are confirmed in the official VMware Cloud Foundation and NSX documentation.

A screenshot of a computer error AI-generated content may be incorrect.

VMware Data Services Manager enhances database security and compliance by providing Database-Level Authentication, which ensures that access to databases is tightly controlled and that only authorized users can access sensitive database information. This is critical for maintaining security and compliance with industry standards and regulations.

When deploying an NSX Edge cluster in a VMware Cloud Foundation (VCF) environment, it must be deployed in the management domain. The management domain is responsible for managing and orchestrating various resources, including the NSX Edge cluster, which is crucial for network virtualization and security within the environment.

When consolidating snapshots, the data from the snapshot files is merged back into the original virtual disk. This process temporarily increases the disk space usage on the datastore because of the additional space required to merge the snapshot data into the primary disk.

Automated patch management ensures that database instances are kept up-to-date with the latest patches, which is essential for maintaining compliance and security.

Encryption of data at rest and in transit helps protect sensitive database data from unauthorized access and tampering, ensuring compliance with security standards.

Role-based access control (RBAC) restricts database access based on user roles, ensuring that only authorized users have access to sensitive data, which is crucial for compliance and security.

First, configure the desired settings on a reference ESXi host. This host will be used as the template for creating a consistent configuration across the cluster.

After configuring the reference host, extract the host profile from it. This captures the configuration of the reference host as a host profile.

Remediation is necessary to ensure that other hosts in the cluster align with the reference host's configuration. The host profile can be applied, and remediation will correct any non-compliant settings on other hosts.

The NSX host overlay VLAN and NSX Edge overlay VLAN need to be routed to each other to ensure proper communication between the host and NSX Edge clusters.

DNS entries for the NSX Edge nodes are required to enable name resolution, which is important for the proper functioning of the NSX Edge cluster.

Assigning separate VLAN IDs and subnets for the NSX host overlay and NSX Edge overlay networks is necessary to maintain network isolation and optimize traffic flow between components.

To apply software updates in a VMware Cloud Foundation deployment using the VMware Async Patch CLI Tool, the process involves downloading the patch bundle, uploading it to SDDC Manager, and then using the appropriate commands or tools to apply the patch. This ensures that the patch is properly staged in the environment and applied to the necessary components.

Comprehensive and Detailed Explanation From Exact Extract:

According to theVMware HCX User Guideand theVMware Cloud Foundation 5.2 Documentation,HCX Replication Assisted vMotion (RAV)is designed to provide a seamless migration of VMs across environmentswith no downtimeto the workload.

Exact Extract from the VMware HCX User Guide:

“HCX Replication Assisted vMotion (RAV) provides zero-downtime migration for virtual machines, combining the benefits of vMotion with replication technologies. This allows VMs to continue running without disruption during the migration process, ensuring uninterrupted service for business-critical workloads.”

(VMware HCX User Guide – VM Mobility Methods)

Why Not the Other Options?

A:RAV does not eliminate all configuration changes; network and other settings may still need updates depending on environments.

B:RAV does not perform a test migration; test migration is a feature of other migration methods.

D:RAV is not a cold migration method; it avoids powering off the VMs and maintains their availability throughout.

Summary:

Theprimary benefitof usingHCX Replication Assisted vMotion (RAV)for VM migration is thatit ensures zero downtime to the VM(s) (C), as stated in the official VMware documentation.

Backing up all VMware Cloud Foundation components ensures that data is protected in case the upgrade process encounters issues.

Performing a pre-check is important to verify that all components are compatible with the new version to avoid compatibility issues during the upgrade process.

The SDDC Manager UI is used to initiate the upgrade process, providing a guided and consistent method for upgrading the VMware Cloud Foundation environment.

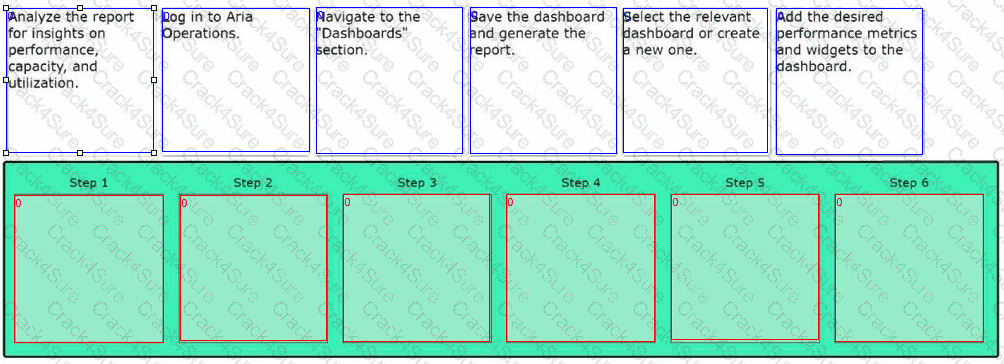

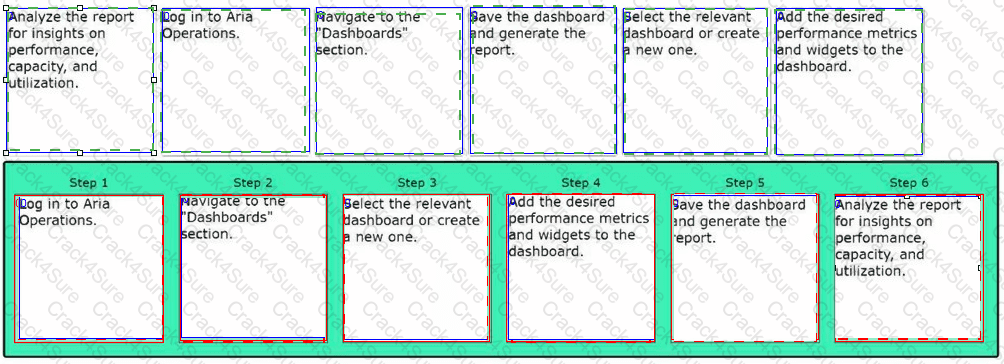

Creating custom dashboards in Aria Operations allows administrators to visualize and monitor performance metrics specific to the organization's needs, making it easier to analyze the infrastructure.

Using Aria Operations for Logs helps correlate log data with performance issues, enabling a deeper analysis and understanding of the root causes of performance problems.

Running predefined reports on capacity and utilization provides valuable insights into how resources are being consumed, helping identify areas that need optimization or adjustment.

A new VM storage policy needs to be created in the vSphere Client to define specific requirements for the storage configuration, including tolerance for two host failures.

Once the storage policy is created, it must be applied to the specific virtual machines that require the storage configuration that tolerates two host failures.

To ensure the storage configuration tolerates two host failures efficiently, RAID-6 (Erasure Coding) is the appropriate choice. RAID-6 can tolerate two host failures while minimizing resource usage compared to other configurations like RAID-1.

https://knowledge.broadcom.com/external/article/327008/vsan-deduplication-enabled-identifying.html

The primary purpose of configuring a Key Management Server (KMS) in vCenter for VM Encryption is to manage and store the encryption keys that are used to secure virtual machine data. The KMS ensures that encryption keys are handled securely and provides a central management point for encrypting VMs in a VMware environment.

Comprehensive and Detailed Explanation From Exact Extract:

After an NSX Edge cluster is deployed into a workload domain, SDDC Manager provides built?in operations to adjust the cluster size. According to theVMware Cloud Foundation 5.2documentation:

“After you create an NSX Edge cluster, you can use SDDC Manager toexpand or shrinkit by adding or deleting NSX Edge nodes.”

Breakdown of options:

B.?Expand– You canaddone or more Edge nodes to increase the cluster size.

E.?Shrink– You canremoveEdge nodes to decrease the cluster size.

These two actions are the only supported cluster scaling operations available in SDDC Manager post-deployment. Other operations—such as Redeploy, Sync, or Delete—are not available via the UI for a deployed Edge cluster and are either manual or unsupported in that context.

Summary:

Selected choicesBandEmatch the documented capability to scale an NSX Edge cluster via SDDC Manager.

No other operations (A, C, D) are supported for an existing Edge cluster through the UI.

Comprehensive and Detailed Explanation From Exact Extract:

Within a vSphere Namespace, administrators have the ability to configure resource limits to control the amount of resources that workloads can consume. According to the official VMware Cloud Foundation documentation, the three types of resource limits that can be set on a vSphere Namespace are:

CPU:The administrator can specify the maximum CPU resources that can be used within the namespace.

Memory:The administrator can define the maximum amount of memory allocated to workloads in the namespace.

Storage:The administrator can configure storage limits, specifying how much storage capacity is available to the namespace.

These resource limits are essential for managing and isolating resources across different namespaces to prevent resource contention and ensure fair resource distribution. The documentation clearly states that there is no option to set a resource limit based on the number of containers or network bandwidth within the vSphere Namespace configuration. The focus is solely on controlling CPU, memory, and storage resources.

The "Ensure Accessibility" option ensures that all data remains accessible during maintenance while minimizing the impact on performance and data migration.

The administrator must navigate to the vSAN cluster in the vSphere Client to select the host for maintenance mode.

Right-clicking the host and selecting "Enter Maintenance Mode" is the standard action for placing a host into maintenance mode.

Comprehensive and Detailed Explanation From Exact Extract:

According to theVMware Cloud Foundation 5.2 Administration Guideand the officialvSphere Networking documentation, prioritizing virtual machine (VM) network traffic for business-critical applications in a VCF environment requires configuring Network I/O Control (NIOC) on the vSphere Distributed Switch (vDS), allocating bandwidth resources, and creating resource pools for VM traffic. Below are the exact extracts and official explanations:

Option A: Configure a bandwidth resource allocation for the virtual machine traffic type.Extract from official VMware documentation:

“With Network I/O Control (NIOC) enabled on the vSphere Distributed Switch, you can allocate bandwidth to specific network resource types such as virtual machine traffic. Configuring bandwidth allocation ensures that business-critical VM traffic is prioritized on the physical network.”

(VMware vSphere Networking Guide)

Option B: Enable Network I/O control (NIOC) on the workload domain vSphere Distributed Switch (vDS).Extract:

“Network I/O Control must be enabled on the vSphere Distributed Switch to use features such as bandwidth allocation and resource pools. This allows you to guarantee minimum bandwidth and prioritize specific traffic types, including VM traffic.”

(VMware vSphere Networking Guide, VMware Cloud Foundation Administration Guide)

Option F: Configure a new network resource pool to assign shares, limits and reservations for the virtual machine traffic.Extract:

“Network resource pools allow administrators to assign shares, limits, and reservations to virtual machine traffic on the vSphere Distributed Switch. This ensures that business-critical workloads receive the necessary network resources, even in times of contention.”

(VMware vSphere Networking Guide)

Why Not the Other Options?

Option C:Creating a new vDS is not required specifically for prioritizing VM traffic; this can be done within the existing vDS.

Option D:While dedicated adapters can help with physical separation, they do not control network priority among traffic types within the vDS.

Option E:Disabling all other allocations is not recommended or supported and could disrupt other network operations.

Summary:

To ensure business-critical virtual machine traffic is prioritized over other types, the administrator should:

Enable NIOC on the vDS (B),

Configure bandwidth resource allocations for VM traffic (A), and

Create a new network resource pool to set shares, limits, and reservations for VM traffic (F).These steps are outlined and supported by the official VMware Cloud Foundation and vSphere Networking documentation.

Aria Automation (formerly vRealize Automation) is designed to automate the deployment of applications and infrastructure across hybrid cloud environments. It enables the provisioning, management, and orchestration of IT services, helping organizations streamline their service delivery.

When adding AD as an identity source, you need to enter the Domain Name and provide the credentials of an AD user with domain join privileges to authenticate and add the domain.

In the vSphere Client, you need to select 'Add Identity Source' and choose the appropriate method for AD integration, which is typically 'Active Directory (Integrated Windows Authentication)'.

The process to add AD as an identity source is performed under the vCenter Single Sign-On (SSO) configuration in the vSphere Client.

NSX provides network virtualization, offering secure, isolated networking that is crucial for ensuring robust availability and disaster recovery. It supports micro-segmentation and advanced network management features.

VMware Live Site Recovery (VLSR) provides orchestrated disaster recovery capabilities, enabling the organization to efficiently recover workloads and applications in case of a disaster.

vSphere Replication enables VM-level data replication, allowing for recovery and continuity of business operations by ensuring data is replicated across sites for high availability and disaster recovery.

For Workload Management in VMware Cloud Foundation, a minimum of three ESXi hosts is required to create a robust, highly available vSphere cluster.

Proper NTP and DNS configuration is essential to ensure time synchronization and proper resolution of network names, which are critical for Workload Management.

The hosts must be running vSphere 7.0 or later to be compatible with the latest features and requirements for Workload Management.

Comprehensive and Detailed Explanation From Exact Extract:

From theVMware vSphere Security Guideand official documentation for Lockdown Mode:

C. Add the restricted administrators group to the DCUI.Access advanced system setting.Exact Extract:

“You can add users or groups to the DCUI.Access advanced system setting to allow them to access the Direct Console User Interface (DCUI) even when the host is in lockdown mode. Ensure that only the authorized group (restricted administrators group) is included in this setting, and remove any other groups that should not have DCUI access.”

E. Enable Normal Lockdown Mode.Exact Extract:

“When Normal Lockdown Mode is enabled, only users and groups in the DCUI.Access list can log in to the Direct Console User Interface (DCUI) of the host. All other local or direct access is denied unless explicitly permitted in the DCUI.Access list. This mode allows vCenter-controlled access for all other administrative operations, which matches the company's security policy requirements.”

Why Not the Other Options?

A:Disabling SSH and ESXi Shell is best practice but is not directly related to DCUI or lockdown mode.

B:Adding the custom administrators group would violate the stated security policy.

D:Strict Lockdown Mode prevents all DCUI access except for the root user, which is more restrictive than what the policy requires. The policy permits a specific group to have DCUI access, which is supported in Normal Lockdown Mode, not Strict.

Summary:

To meet the security policy and remediate the audit finding, the administrator mustadd only the restricted administrators group to the DCUI.Access setting (C)andenable Normal Lockdown Mode (E)on each ESXi host.

This configuration ensures that only members of the restricted administrators group can directly access the DCUI, and all other users (including those from the custom administrators group) must access the host through vCenter Server or the vSphere Web Client, fully aligning with the official VMware documentation and security best practices.

Comprehensive and Detailed Explanation From Exact Extract:

According to theVMware vSphere with Tanzu DocumentationandVMware Cloud Foundation 5.2 Administration Guide, the supported method to access Supervisor Control Plane VMs for troubleshooting involves the following actions:

Option B: Log into the Supervisor Control Plane VM using the admin user and <password>.Exact Extract from official documentation:

“To troubleshoot Supervisor Control Plane VMs, log in via SSH using the 'admin' user and the password specific to the Supervisor Control Plane VM.”

(VMware vSphere with Tanzu Documentation – Supervisor Control Plane VM Access)

Option E: Update the <password> by running /usr/lib/vmware/auth/bin/chpw admin.Exact Extract from official documentation:

“If you need to update the 'admin' password for Supervisor Control Plane VMs, use the command '/usr/lib/vmware/auth/bin/chpw admin' on the VM.”

(VMware vSphere with Tanzu Documentation – Changing Admin Passwords)

Option F: Obtain the <password> by running /usr/lib/vmware-wcp/decryptK8Pwd.py.Exact Extract from official documentation:

“You can retrieve the 'admin' password for the Supervisor Control Plane VM by running the Python script '/usr/lib/vmware-wcp/decryptK8Pwd.py' on the vCenter Server Appliance.”

(VMware vSphere with Tanzu Documentation – Retrieving Admin Credentials)

Why Not the Other Options?

Option A:Logging into the vCenter Server Appliance is not necessary for direct access to the Supervisor Control Plane VMs.

Option C:SDDC Manager appliance access is unrelated to Supervisor VM troubleshooting.

Option D:Root login to Supervisor Control Plane VMs is not supported or documented for troubleshooting.

Summary:

To access the Supervisor Control Plane VMs for troubleshooting, the administrator must use theadmin user and password (B), canupdate the password using the chpw command (E), andretrieve the current password using the decryptK8Pwd.py script (F), following the exact steps documented in the VMware official guides.

The vSAN performance service provides valuable insights into the storage performance, helping identify potential bottlenecks or areas for improvement.

Analyzing and adjusting vSAN storage policies is crucial for ensuring optimal performance. Policies such as RAID levels, storage encryption, and other settings can be tweaked to better match the environment's performance requirements.

To diagnose the cause of automation workflow failures in VMware Aria Automation, the Interactive Analytics feature in VMware Aria Operations for Logs allows administrators to search for error messages and filter logs related to the specific workflows. This feature enables detailed analysis of log data to identify any underlying issues causing the failures.

The first step when updating the vSAN database (or performing any update to the vSAN environment) is to back up the vSAN database. This ensures that if any issues arise during the update process, the administrator can restore the environment to a previous state. This step is crucial to ensure data protection and prevent data loss.
